THEFT DETERRENT
157
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
If you unlock any door or trunk with wireless remote control, the
turn signal lights flash twice.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using an ignition key or
wireless remote control
 Opening the hood forcibly
 Reconnecting the battery
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, the door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door using an ignition key or wireless remote
control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.

THEFT DETERRENT
158
THEFT PREVENTION LABELS(U.S.A. ONLY)
Your new vehicle carries theft prevention labels which are
approximately 56 mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.
NOTICE
You should not attempt to remove the theft prevention
labels as it may violate certain state or federal laws.

SECTION 2 – 1
159
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controls160
. . . . . . . . . . . . . . . . . . . . . . . . .

AIR CONDITIONING
160

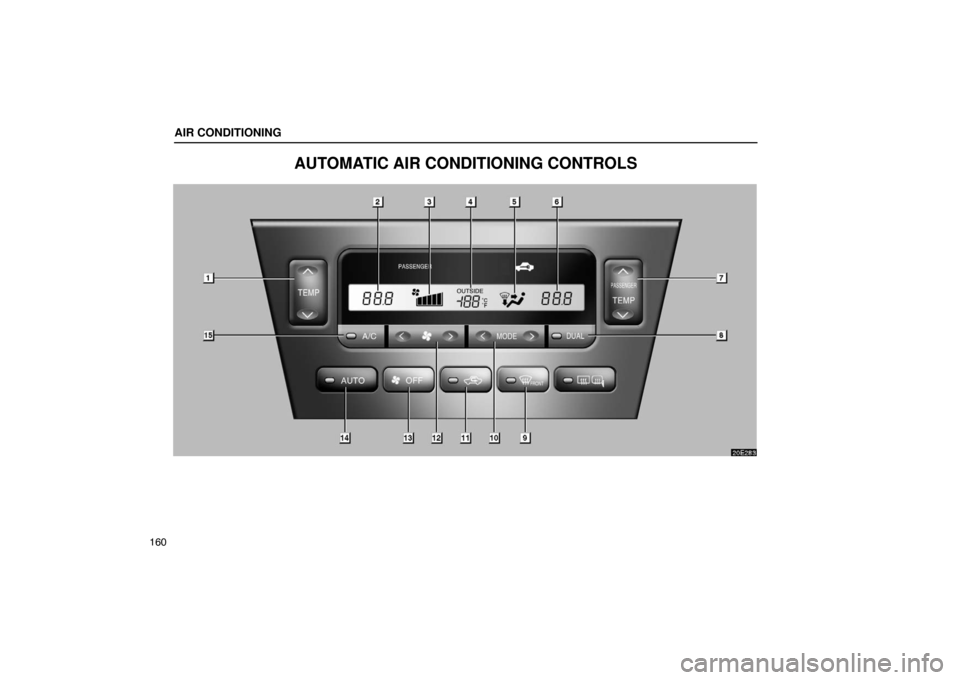

AUTOMATIC AIR CONDITIONING CONTROLS
20E283

AIR CONDITIONING
161
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on
−off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1 “TEMP” (driver side temperature control) button
2 Driver side temperature display (in degrees
Fahrenheit or Centigrade)
3 Fan speed display
4 Outside temperature display
5 Air flow display
6 Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7 “PASSENGER TEMP” (passenger side temperature
control) button
8 “DUAL” (temperature setting mode change) button
9 Windshield air flow button
10 “MODE”(air flow control) button
11 Air intake control button
12 Fan speed control button
13 “OFF” button
14 “AUTO” button
15 “A/C” button

AIR CONDITIONING
162
20E395

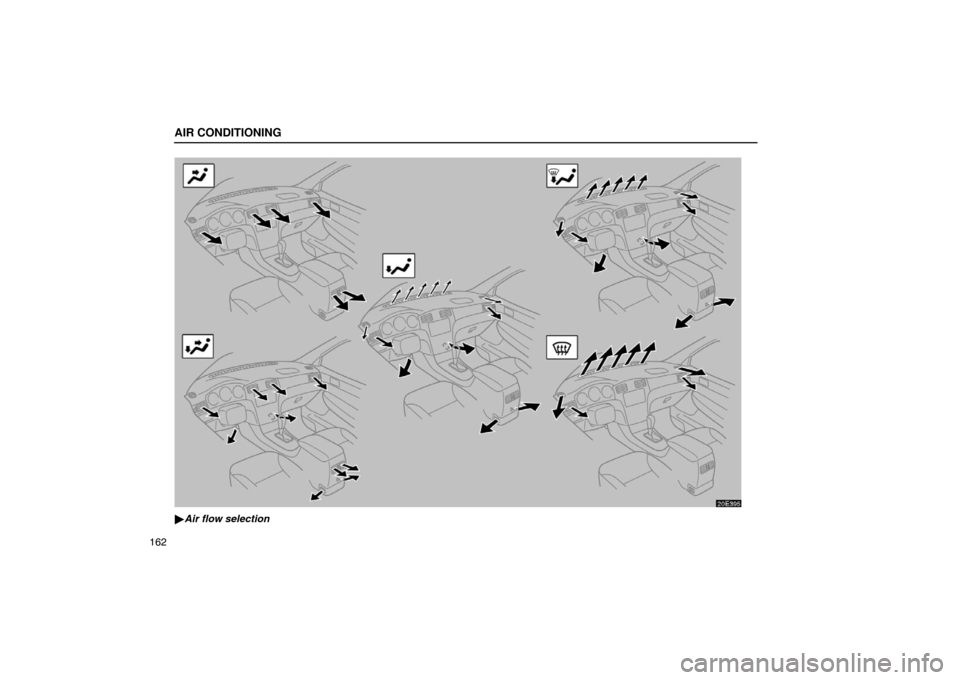

Air flow selection

AIR CONDITIONING
163
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
An indicator light will illuminate to show that the automatic
operation mode has been selected.
Air flow quantity, switching of the diffusers, on−off of the air
conditioning and switching of the air intake between
RECIRCULATED AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by each indicator.
When one of the manual control buttons is depressed while
operating in automatic mode, the operation corresponding to
the button depressed is set. Other conditions continue to be
adjusted automatically.
Push the “OFF” button to turn the air conditioning system off.
2. Use the “TEMP” or “PASSENGER TEMP” button to set
the desired temperature.
The “TEMP” or “P ASSENGER TEMP” button is used to set the
desired temperatu re. The temperatur e will be controlled on the
driver and passenger sides simultaneously or individually.
“TEMP” button—Changes the temperature on the driver and
passenger sides simultaneously or the driver side only.
“PASSENGER TEMP” button—Changes the temperature on
the passenger side only.
“DUAL” button— Changes the mode of the temperature
setting.
The indicator on the “DUAL” button has two modes:
 With the indicator on— For individual temperature setting
 With the indicator off— For simultaneous temperature
setting

AIR CONDITIONING
164
20E396
Driver side setting
Passenger side setting
Mixed settingSETTING OPERATION manual control
When one of the manual control buttons is depressed
while operating in automatic mode, the mode relevant to
the depressed button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired
The outlets from which air is delivered can be selected
manually by
pushing the button. The function of each mode is
as follows:
1 Panel − Air flows mainly from the instrument panel vents.
2
Bilevel − Air flows from both the floor vents and the
instrument panel vents.
3 Floor − Air flows mainly from the floor vents.
4
Floor/Windshield − Air flows mainly from the floor vents
and windshield vents.

AIR CONDITIONING
165
If quick heating or cooling is desired
Push the “TEMP” or “PASSENGER TEMP” button on either
side
and hold it until “MAX. HOT” or “MAX. COLD” appears on
the display.

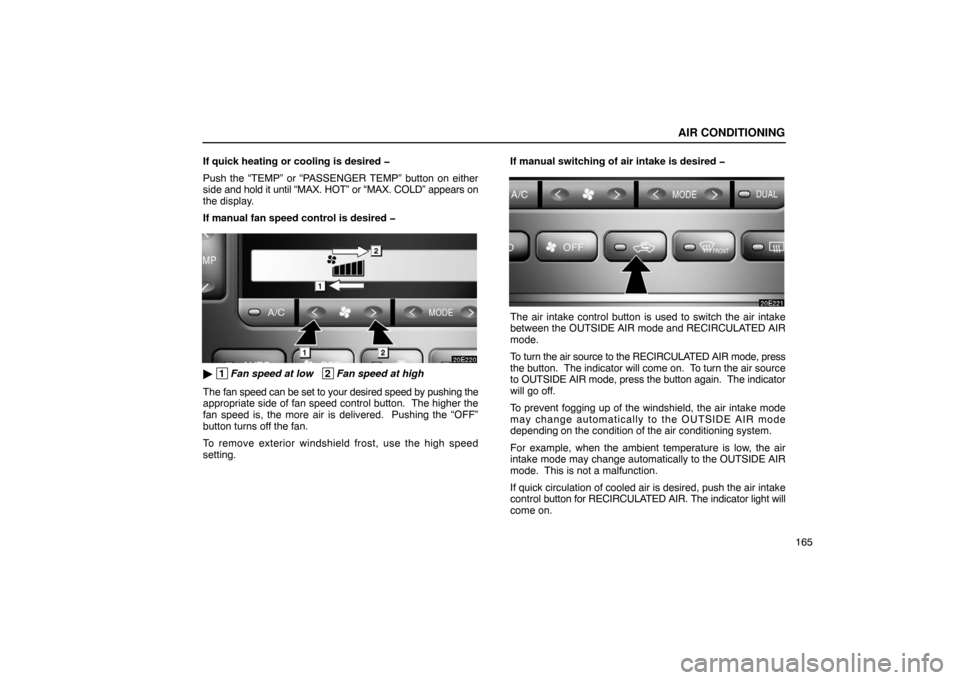

If manual fan speed control is desired
 1 Fan speed at low 2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the
fan speed is, the more air is delivered. Pushing the “OFF”
button turns off the fan.
To remove exterior windshield frost, use the high speed
setting. If manual switching of air intake is desired
The air intake control button is used to switch the air intake
between the OUTSIDE AIR mode and RECIRCULATED AIR
mode.
To turn the air source to the RECIRCULATED AIR mode, press
the button. The indicator will come on. To turn the air source
to OUTSIDE AIR mode, press the button agai
n. The indicator
will go off.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.
If quick circulation of cooled air is desired, push the air intake
control button for RECIRCULATED AIR. The indicator light will
come on.

AIR CONDITIONING
166For normal use, it is best to keep the air intake control button
set to OUTSIDE AIR mode. If recirculated air is used during
heating, the windows will fog up more easily.
If manual onoff of the air conditioning is desired
Push the “A/C”
button to turn the air conditioning on and push
it again to turn the air conditioning off.
The air conditioning does not work if the outside temperature
is lowered down to around 0C (32F).
If the system is used for ventilation, heating in dry weather or
removing frost or exterior fog on the windshield, turn the air
conditioning off once it is no longer required. This will improve
fuel economy. The air conditioning can be used for year −round
automatic temperature control including cooling and
dehumidifying operation.
If the air conditioning compressor does not operate, the
indicator of the “A/C” button will blink. If the indicator of the
“A/C” button blinks even when the “A/C” button is pushed
again, have the compressor checked by your nearest Lexus
dealer.
Displaying the outside temperature
The temperature display ranges from −30C (−22F) up to
50 C (122 F).
(b) Windshield defogging and defrosting
To remove interior fog on the windshield
Push the windshield air flow button.
To remove frost or exterior fog on the windshield
1. Push the “TEMP” button to set the maximum temperature.
2. Push the windshield air flow button.
3. Push the fan speed control button on the right side to obtain
a maximum air flow.
4. Leave the “A/C” button off.
When the windshield air flow button is pushed, air flows mainly
from the windshield vents and turns on the defogging function
with the purpose of clearing the front view.
Pushing this button once again returns the air flow mode to the
last one used.
