Lexus ES300 2003 Owner's Manuals (in English)

AUDIO
187
When
play of one disc ends, the first track of the following disc
starts. When play of the final disc ends, play of the first disc
starts again.
The player will skip any empty disc trays.
Pushing the “DISC” button while playing a disc in the automatic
changer will switch from the disc in the changer to the disc in
the compact disc player.
If you push the “DISC” button when the source is other than the
compact disc, a disc in the compact disc player or automatic
changer, whichever was previously used, will play. (c) Selecting a desired disc (with a compact disc changer
only)
Push the “” or “” button to select the disc number.
Push the button several times until the desired disc number
appears on the display. When you release the button, the
player will start playing the selected disc from the first track.

AUDIO

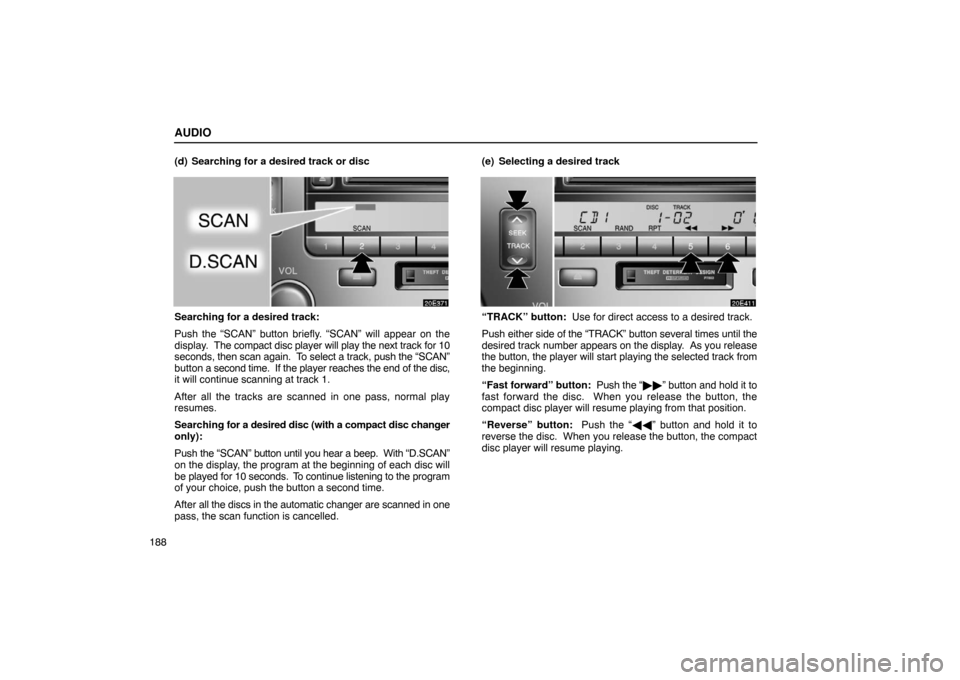

188(d) Searching for a desired track or disc
Searching for a desired track:
Push the “SCAN” button briefly. “SCAN” will appear on the
display.
The compact disc player will play the next track for 10
seconds, then scan again. To select a track, push the “SCAN”
button a second time. If the player reaches the end of the disc,
it will continue scanning at track 1.
After all the tracks are scanned in one pass, normal play
resumes.
Searching for a desired disc (with a compact disc changer
only):
Push the “SCAN” button until you hear a beep. With “D.SCAN”
on the display, the program at the beginning of each disc will
be played for 10 seconds. To continue listening to the program
of your choice, push the button a second time.
After all the discs in the automatic changer are scanned in one
pass, the scan function is cancelled. (e) Selecting a desired track“TRACK” button: Use for direct access to a desired track.
Push
either side of the “TRACK” button several times until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
“Fast forward” button: Push the “” button and hold it to
fast forward the disc. When you release the button, the
compact disc player will resume playing from that position.
“Reverse” button: Push the “” button and hold it to
reverse the disc. When you release the button, the compact
disc player will resume playing.

AUDIO
189

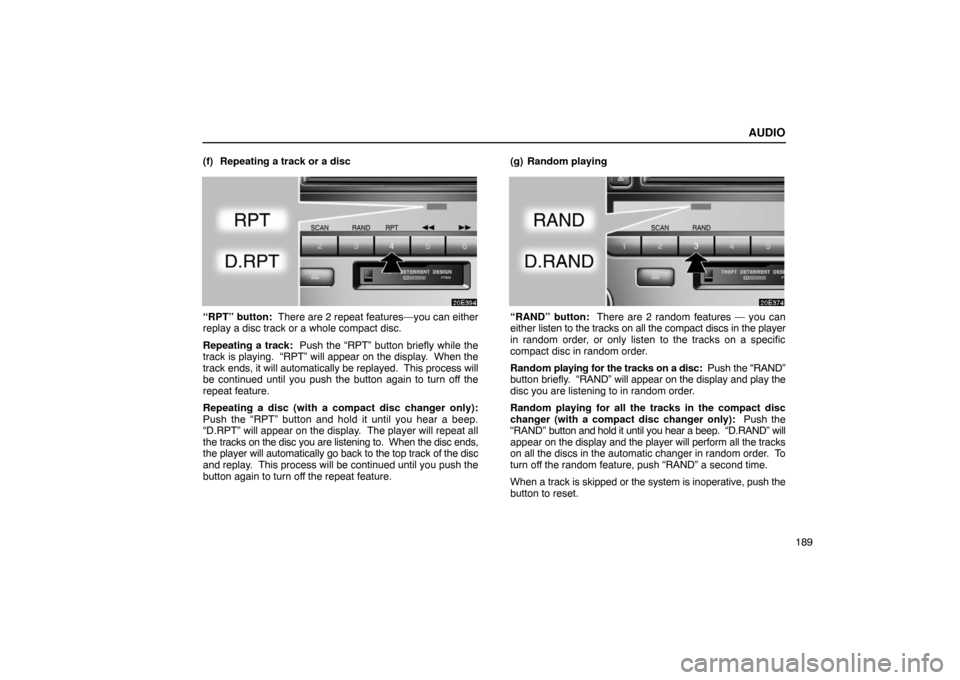

(f) Repeating a track or a disc
“RPT” button:
There are 2 repeat features—you can either
replay a disc track or a whole compact disc.
Repeating a track: Push the “RPT” button briefly while the
track is playing. “RPT” will appear on the display. When the
track ends, it will automatically be replayed. This process will
be continued until you push the button again to turn off the
repeat feature.
Repeating a disc (with a compact disc changer only):
Push the “RPT” button and hold it until you hear a beep.
“D.RPT” will appear on the display. The player will repeat all
the tracks on the disc you are listening to. When the disc ends,
the player will automatically go back to the top track of the disc
and replay. This process will be continued until you push the
button again to turn off the repeat feature. (g) Random playing“RAND” button: There are 2 random features — you can
either
listen to the tracks on all the compact discs in the player
in random order, or only listen to the tracks on a specific
compact disc in random order.
Random playing for the tracks on a disc: Push the “RAND”
button briefly . “RAND” will appear on the display and play the
disc you are listening to in random order.
Random playing for all the tracks in the compact disc
changer (with a compact disc changer only): Push the
“RAND” button and hold it until you hear a beep. “D.RAND” will
appear on the display and the player will perform all the tracks
on all the discs in the automatic changer in random order. To
turn off the random feature, push “RAND” a second time.
When a track is skipped or the system is inoperative, push the
button to reset.

AUDIO
190(h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If “WAIT” appears on the display:
It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the disc from the player and allow the
player to cool down.
If “ERROR 1” appears on the display: It indicates that the
disc is dirty, damaged, or it was inserted up −side down. Clean
the disc or insert it correctly.
If “ERROR 3” or “ERROR 4” appears on the display: It
indicates there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Car audio system operating hints
NOTICE
To ensure correct audio system operations:
 Be careful not to spill beverages over the audio
system.
 Do not put anything other than a cassette tape or
compact disc into the cassette tape slot or compact
disc slot.
 The use of a cellular phone inside or near the vehicle
may cause a noise from the speakers of the audio
system which you are listening to. However, this
does not indicate a malfunction.
Radio reception
Usually, a problem with radio reception does not mean there
is a problem with your radio − it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere with
FM reception. Power lines or telephone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther you are from a station, the weaker its signal
will be. In addition, reception conditions change constantly as
your vehicle moves.
Here are some common reception problems that probably do
not indicate a problem with your radio:

AUDIO
191
FM
Fading and drifting stations
− Generally, the ef fective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the
distance from the radio transmitter. They are often
accompanied by distortion.
Multipath − FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering − These occur when signals are blocked
by buildings, trees, or other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping − If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original signal can be picked up again. AM
Fading
− AM broadcasts are reflected by the upper
atmosphere − especially at night. These reflected signals can
interfere with those received directly from the radio station,
causing the radio station to sound alternately strong and weak.
Station interference − When a reflected signal and a signal
received directly from a radio station are very nearly the same
frequency, they can interfere with each other, making it dif ficult
to hear the broadcast.
Static − AM is easily affected by external sources of electrical
noise, such as high tension power lines, lightening, or electrical
motors. This results in static.
Caring for your cassette player and tapes
For the best performance for your cassette player and tapes:
Clean the tape head and other parts regularly.
 A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is
recommended.)

AUDIO
192Use high−
quality cassettes:
 Low −quality cassette tapes can cause many problems,
including poor sound, inconsistent playing speed, and
constant auto− reversing. They can also get stuck or
tangled in the cassette player.
 Do not use a cassette if it has been damaged or tangled or
if its label is peeling off.
 Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct sunlight.
 Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the
cassette player. Caring for your compact disc player and discs

Your compact disc player is intended for use with 12 cm (4.7
in.) discs only.
 Extremely high temperature can keep your compact disc
player from working. On hot days, use air conditioning to
cool the vehicle interior before you listen to a disc.
 Bumpy roads or other vibrations may make your compact
disc player skip.
 If moisture gets into your compact disc player, you may not
hear any sound even though your compact disc player
appears to be working. Eject all discs from the player and
wait until the player dries.
CAUTION
Compact disc players use an invisible laser beam which
could cause hazardous radiation exposure if directed
outside the unit. Be sure to operate the player correctly.

AUDIO
193

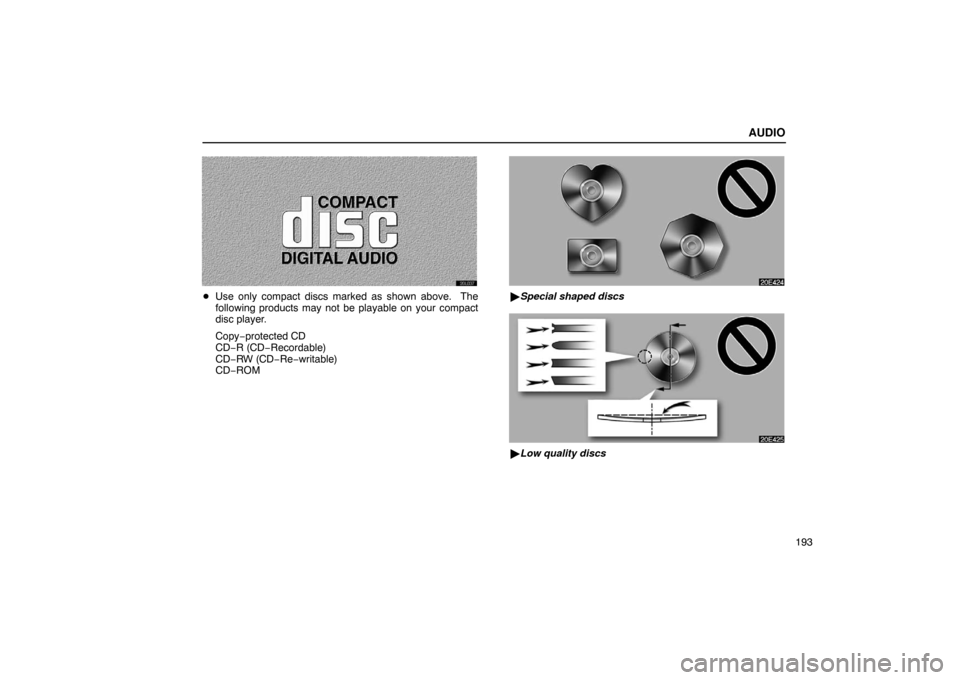

Use only compact discs marked as shown above. The
following products may not be playable on your compact
disc player.
Copy− protected CD
CD− R (CD− Recordable)
CD−RW (CD− Re−writable)
CD−ROM Special shaped discs
Low quality discs

AUDIO
194

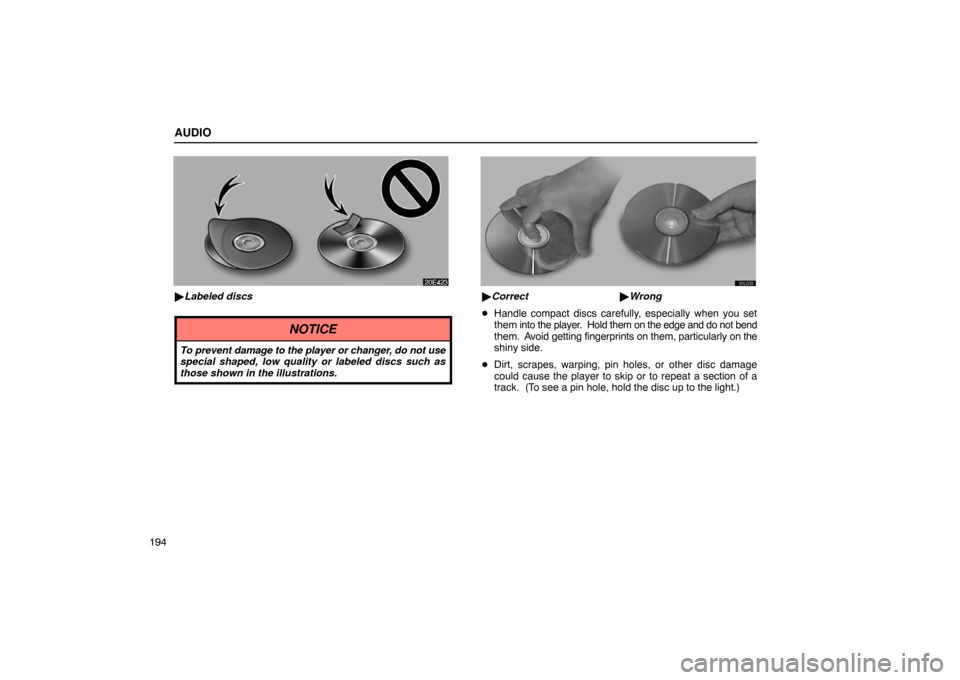

Labeled discs
NOTICE
To prevent damage to the player or changer, do not use
special shaped, low quality or labeled discs such as
those shown in the illustrations.
Correct Wrong
 Handle compact discs carefully, especially when you set
them into the player. Hold them on the edge and do not bend
them. Avoid ge tting fingerprints on them, particularly on the
shiny side.
 Dirt, scrapes, warping, pin holes, or other disc damage
could cause the player to skip or to repeat a section of a
track. (To see a pin hole, hold the disc up to the light.)

AUDIO
195

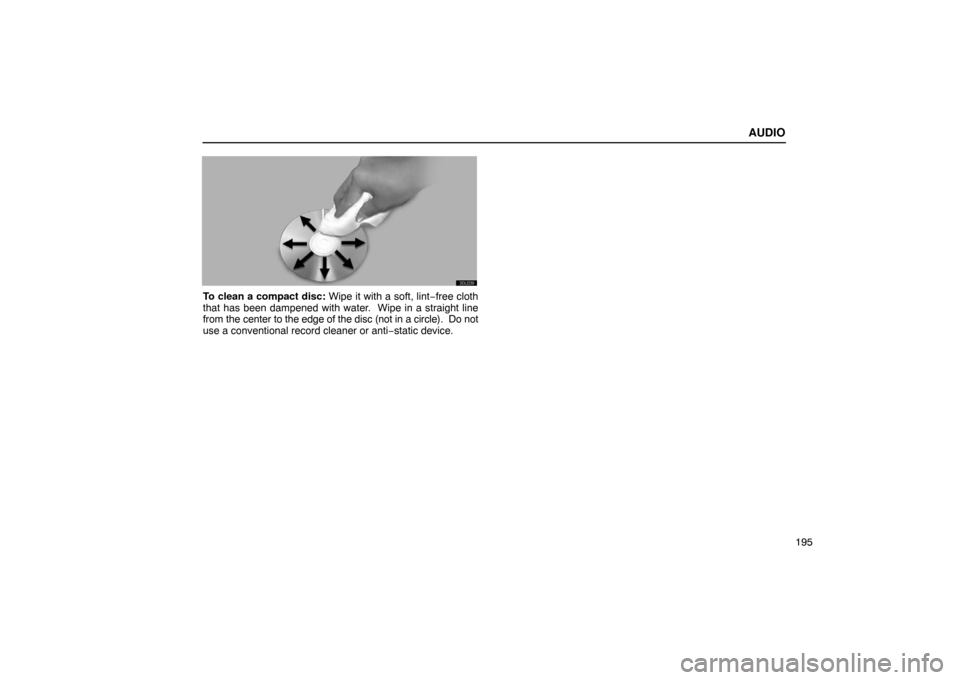

To clean a compact disc: Wipe it with a soft, lint−free cloth
that has been dampened with water. Wipe in a straight line
from the center to the edge of the disc (not in a circle). Do not
use a conventional record cleaner or anti −static device.

AUDIO
196
AUDIO SYSTEM (type B)

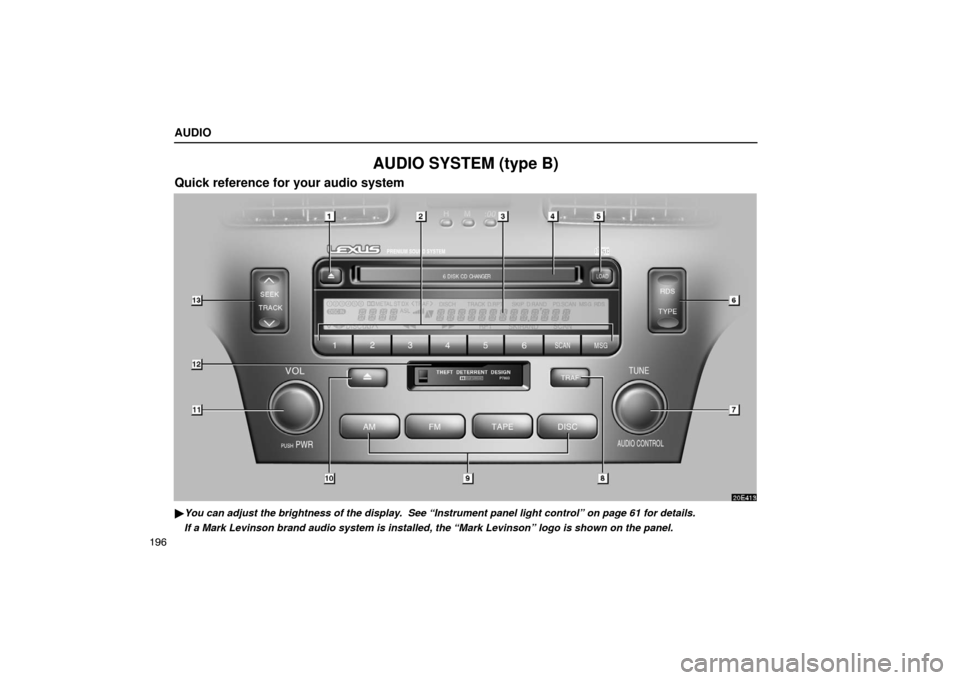

Quick reference for your audio system
20E413
You can adjust the brightness of the display. See “Instrument panel light control” on page 61 for details.
If a Mark Levinson brand audio system is installed, the “Mark Levinso\
n” logo is shown on the panel.
