2. Instrument cluster

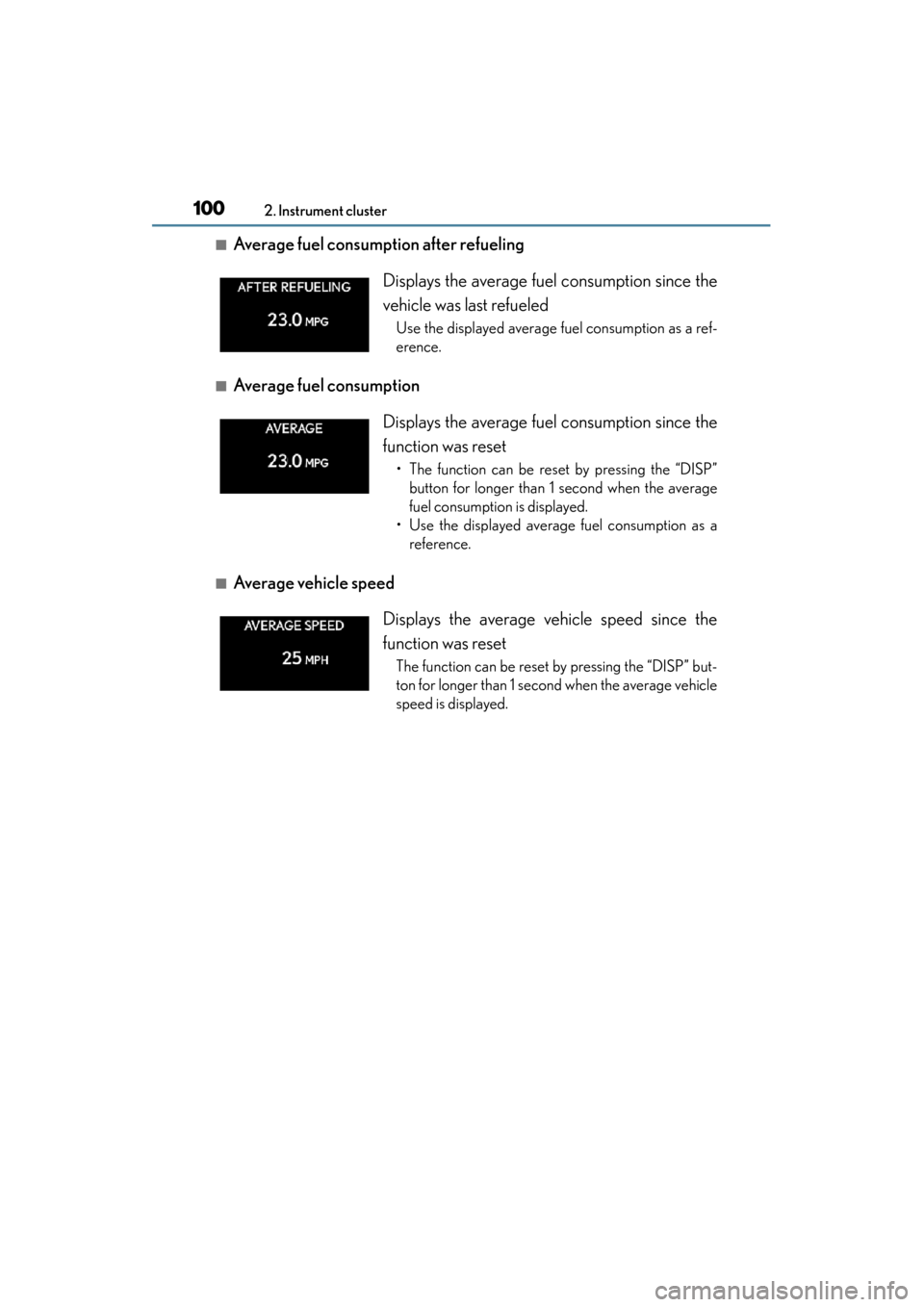

■Average fuel consumption after refueling
■Average fuel consumption
■Average vehicle speed Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehicle
speed is displayed.

ES350 300h_OM_OM33A01U_(U)
1012. Instrument cluster
2
Instrument cluster

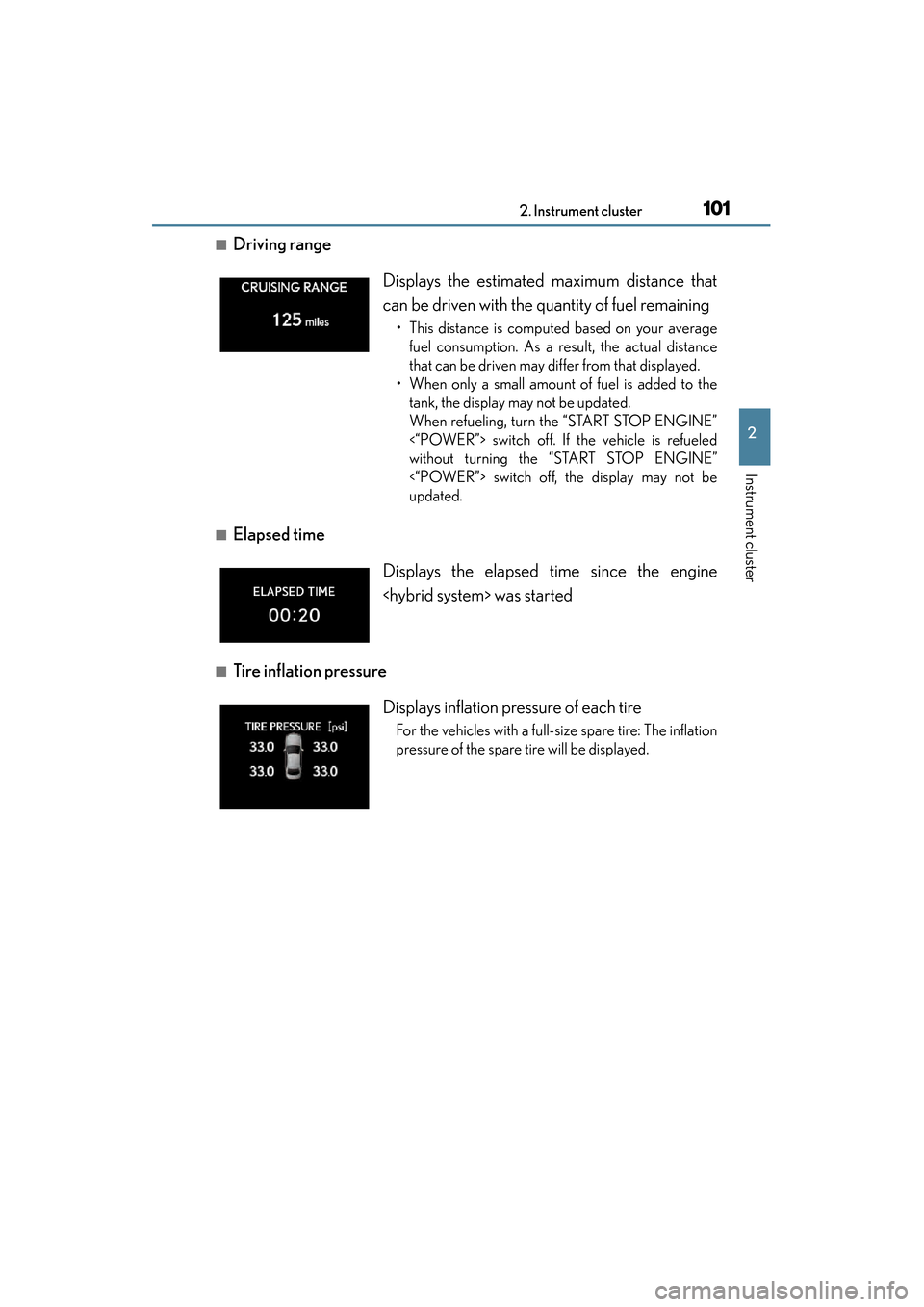

■Driving range
■Elapsed time
■Tire inflation pressureDisplays the estimated maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the “START STOP ENGINE”
<“POWER”> switch off. If the vehicle is refueled
without turning the “START STOP ENGINE”
<“POWER”> switch off, the display may not be
updated.
Displays the elapsed time since the engine
was started
Displays inflation pressure of each tire
For the vehicles with a full-size spare tire: The inflation
pressure of the spare tire will be displayed.

102
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
Outside temperature, average fuel
consumption after refueling or driv-
ing range can be selected and dis-
played.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.

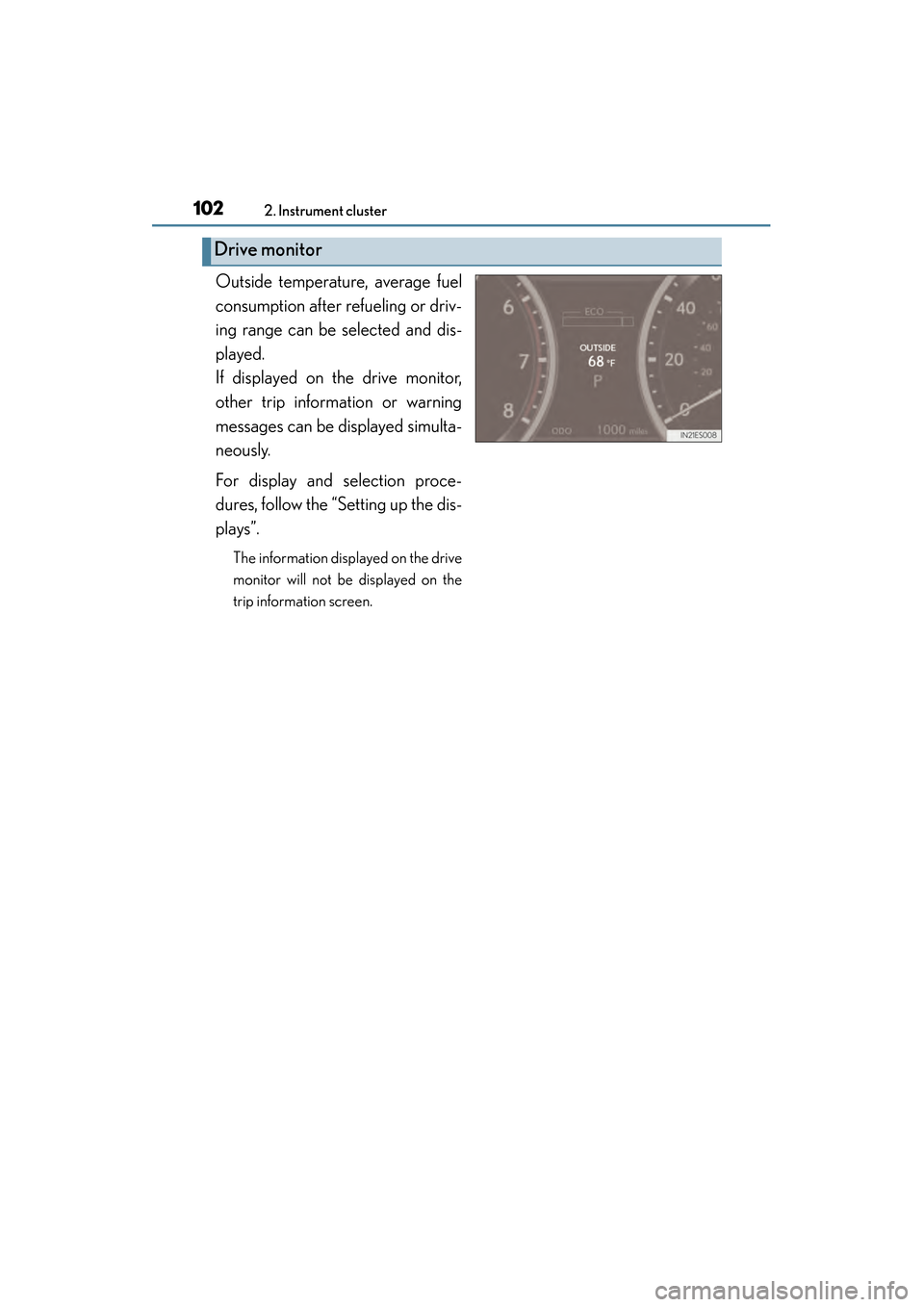

Drive monitor

ES350 300h_OM_OM33A01U_(U)
1032. Instrument cluster
2
Instrument cluster
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Vehicles without Lexus Display
Audio system or a navigation sys-
tem: Press and hold the “DISP”
button after selecting the desired
setting item (“Meter”, “Vehicle”
or “Ambient illumin.” [if
equipped]) by pressing the
“DISP” button.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.

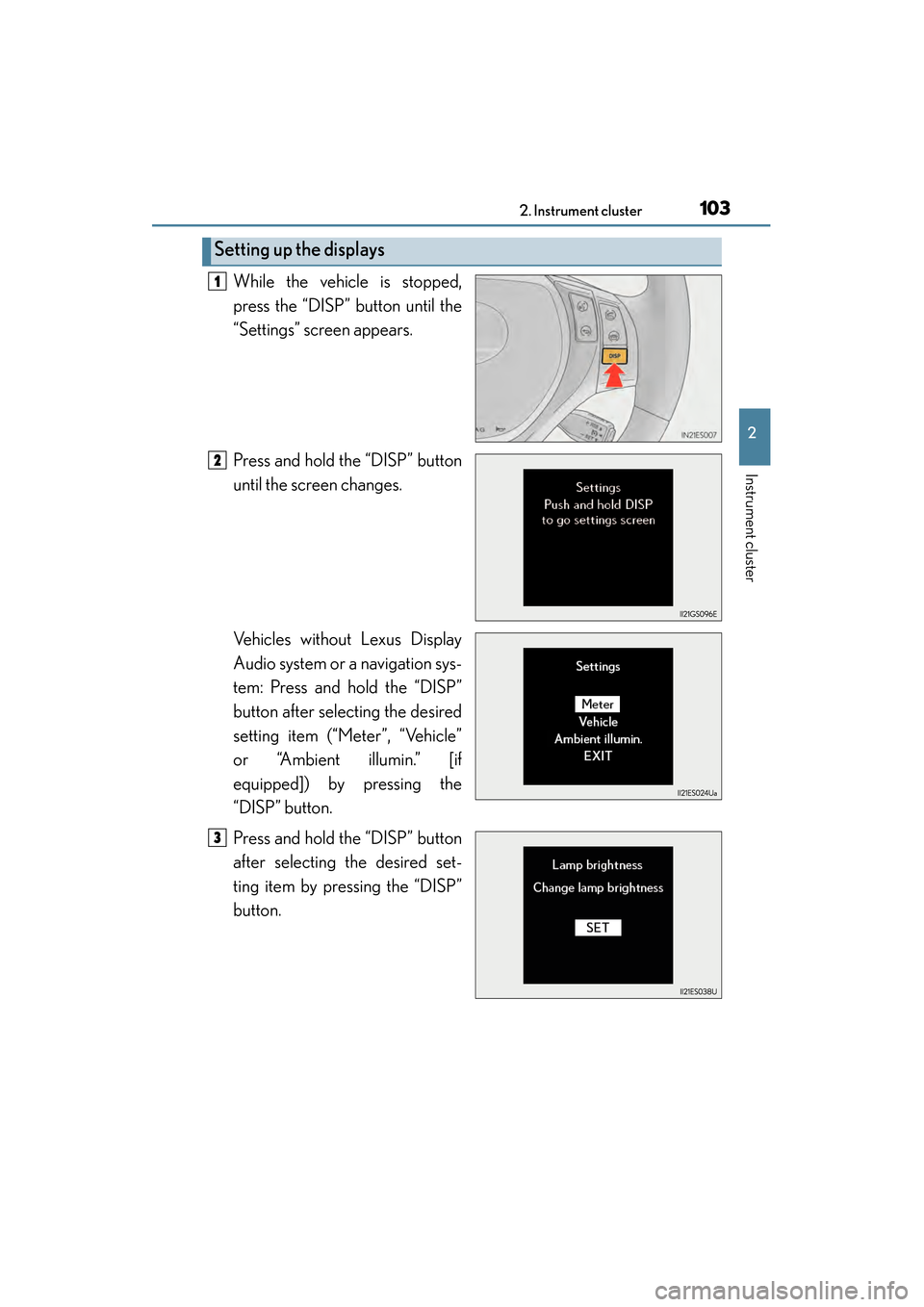

Setting up the displays
1
2
3

104
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

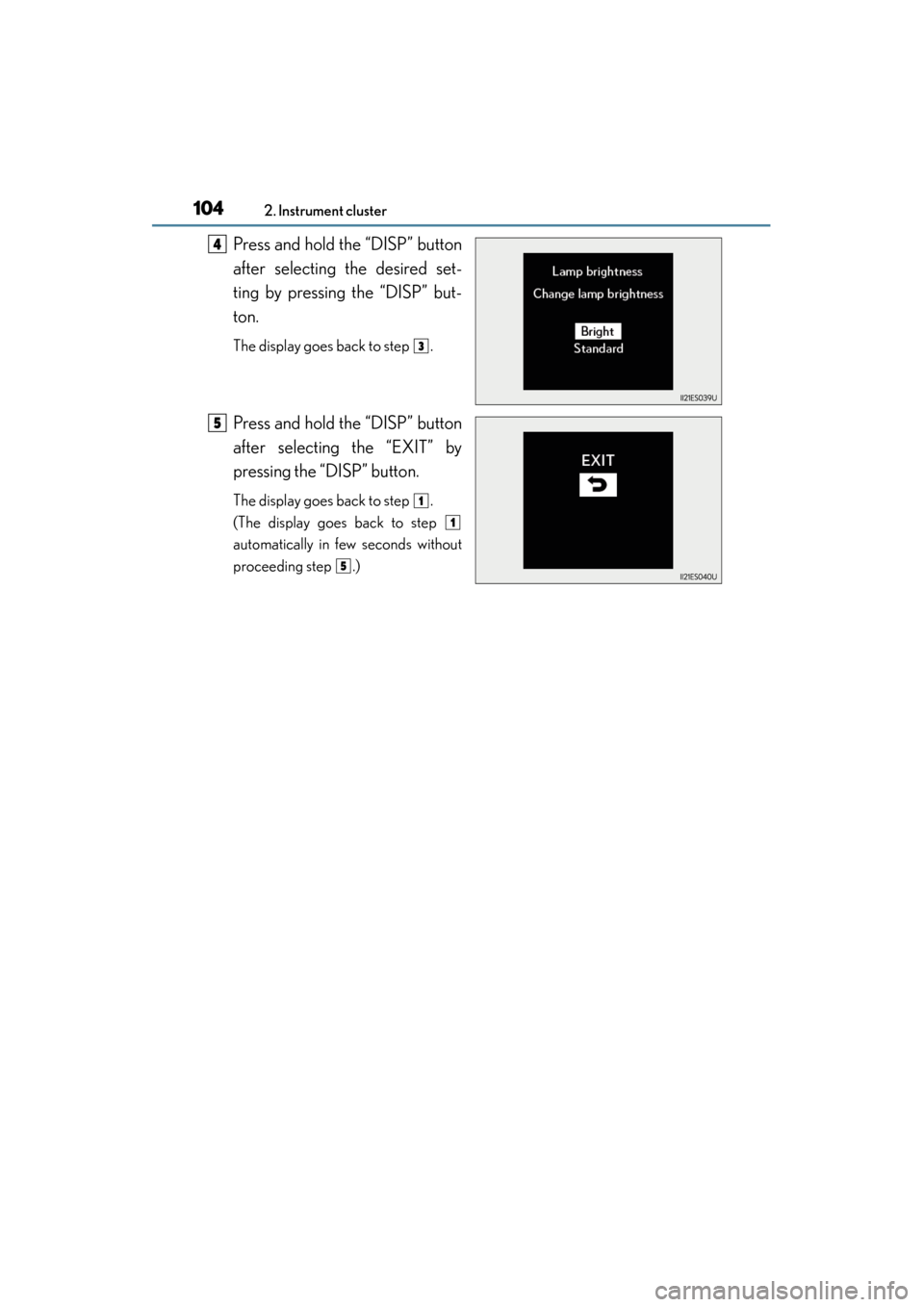

Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
(The display goes back to step
automatically in few seconds without
proceeding step .)
4
3
5
1
1
5

ES350 300h_OM_OM33A01U_(U)
1052. Instrument cluster
2
Instrument cluster
■System check display
After turning the “START STOP ENGINE” <“POWER”> switch to IGNITION ON
mode, “SYSTEM CHECK” is displayed while system operation is checked.

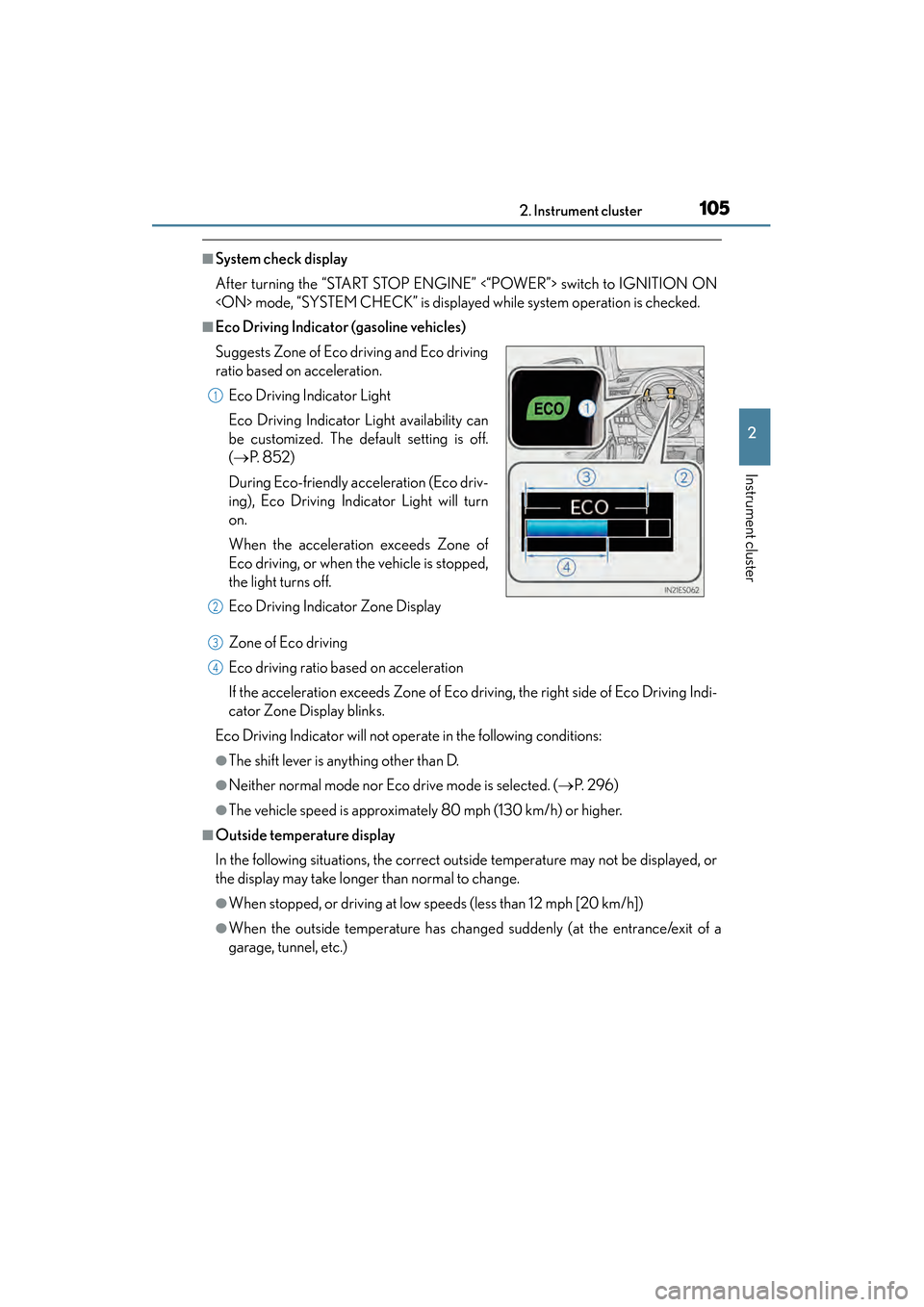

■Eco Driving Indicator (gasoline vehicles)Zone of Eco driving
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display blinks.
Eco Driving Indicator will not operate in the following conditions:
●The shift lever is anything other than D.
●Neither normal mode nor Eco drive mode is selected. ( →P. 2 9 6 )
●The vehicle speed is approximately 80 mph (130 km/h) or higher.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
Suggests Zone of Eco driving and Eco driving
ratio based on acceleration.
Eco Driving Indicator Light
Eco Driving Indicator Light availability can
be customized. The default setting is off.
(→ P. 8 5 2 )
During Eco-friendly acceleration (Eco driv-
ing), Eco Driving Indicator Light will turn
on.
When the acceleration exceeds Zone of
Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
1
2
3
4

106
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

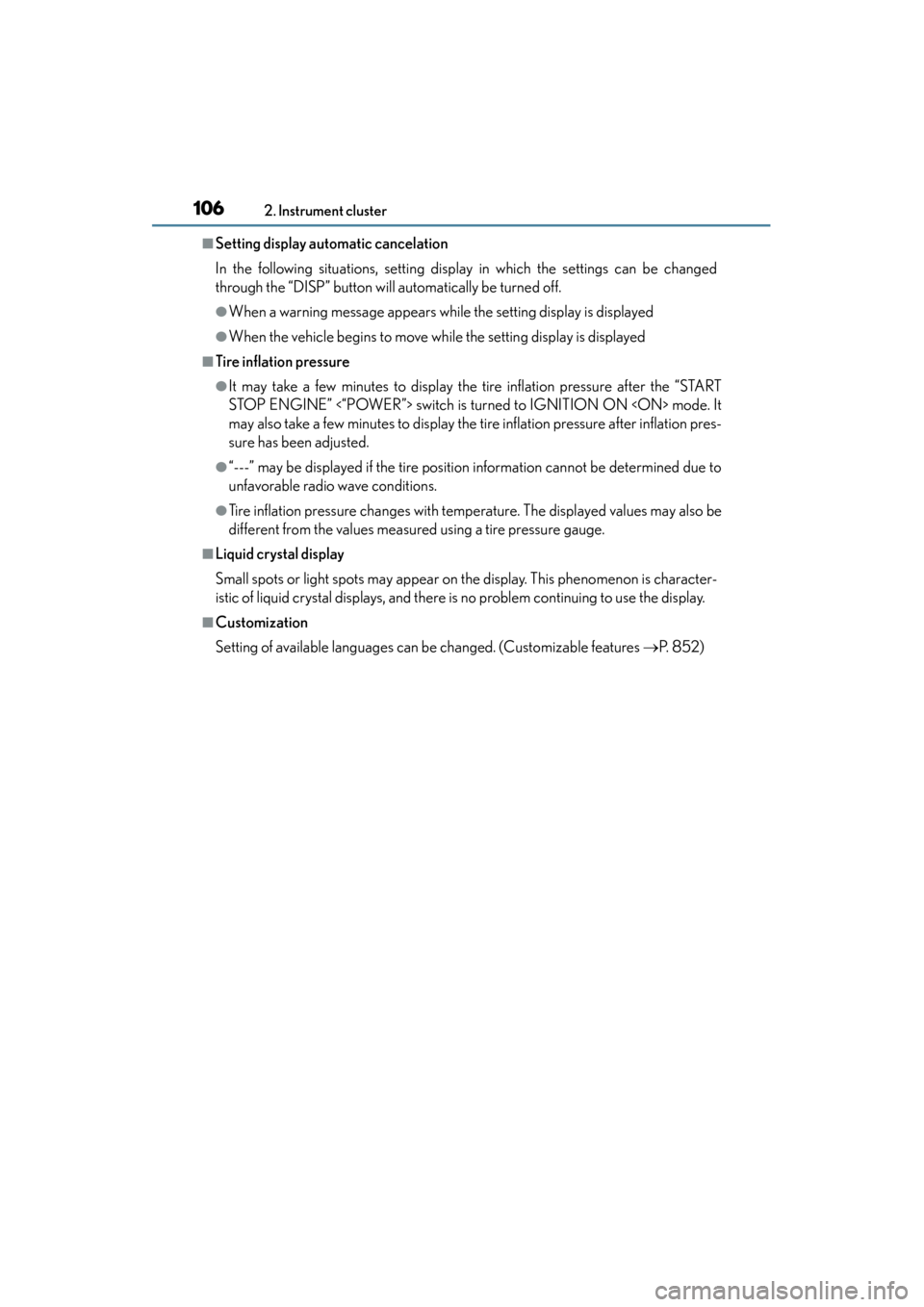

■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is turned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features →P. 8 5 2 )

ES350 300h_OM_OM33A01U_(U)
1072. Instrument cluster
2
Instrument cluster
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during
setting up the display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the engine is running tem is operating> while setting up the display features.

108
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

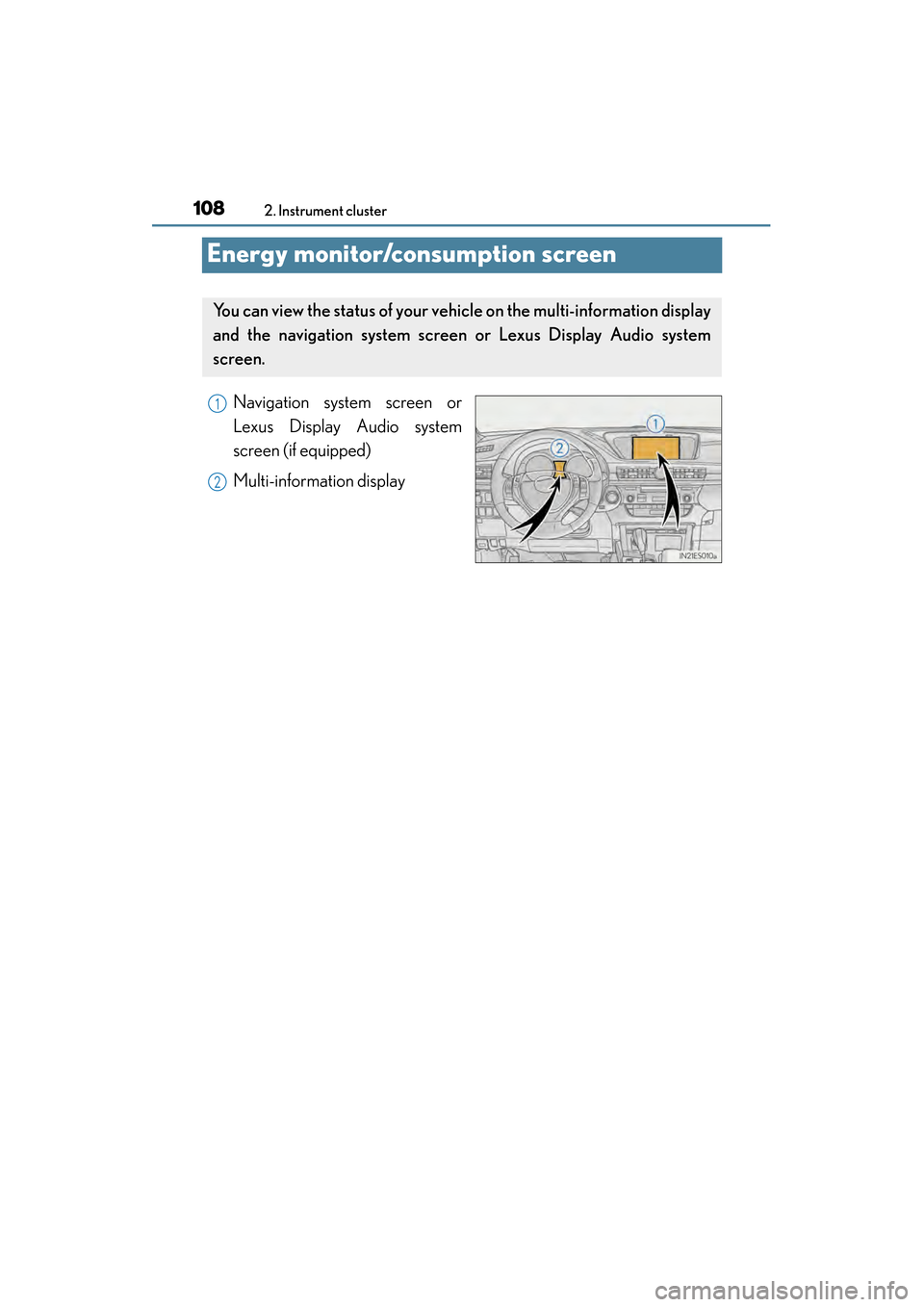

Energy monitor/consumption screen
Navigation system screen or
Lexus Display Audio system
screen (if equipped)
Multi-information display
You can view the status of your vehicle on the multi-information display
and the navigation system screen or Lexus Display Audio system
screen.
1
2

ES350 300h_OM_OM33A01U_(U)
1092. Instrument cluster
2
Instrument cluster
XNavigation system
Remote Touch
*
“MENU” button
Remote Touch knob
*: For use of the Remote Touch, refer to the “Navigation System Owner’s
Manual”.
XLexus Display Audio system
Lexus Display Audio controller
(→ P. 3 3 4 )
“MENU” button
Displaying the “MENU” screen
Lexus Display Audio controller
Turn or move the controller in the four
direction to select a function, number
and screen button.
Push the controller to enter the
selected function, number and screen
button.

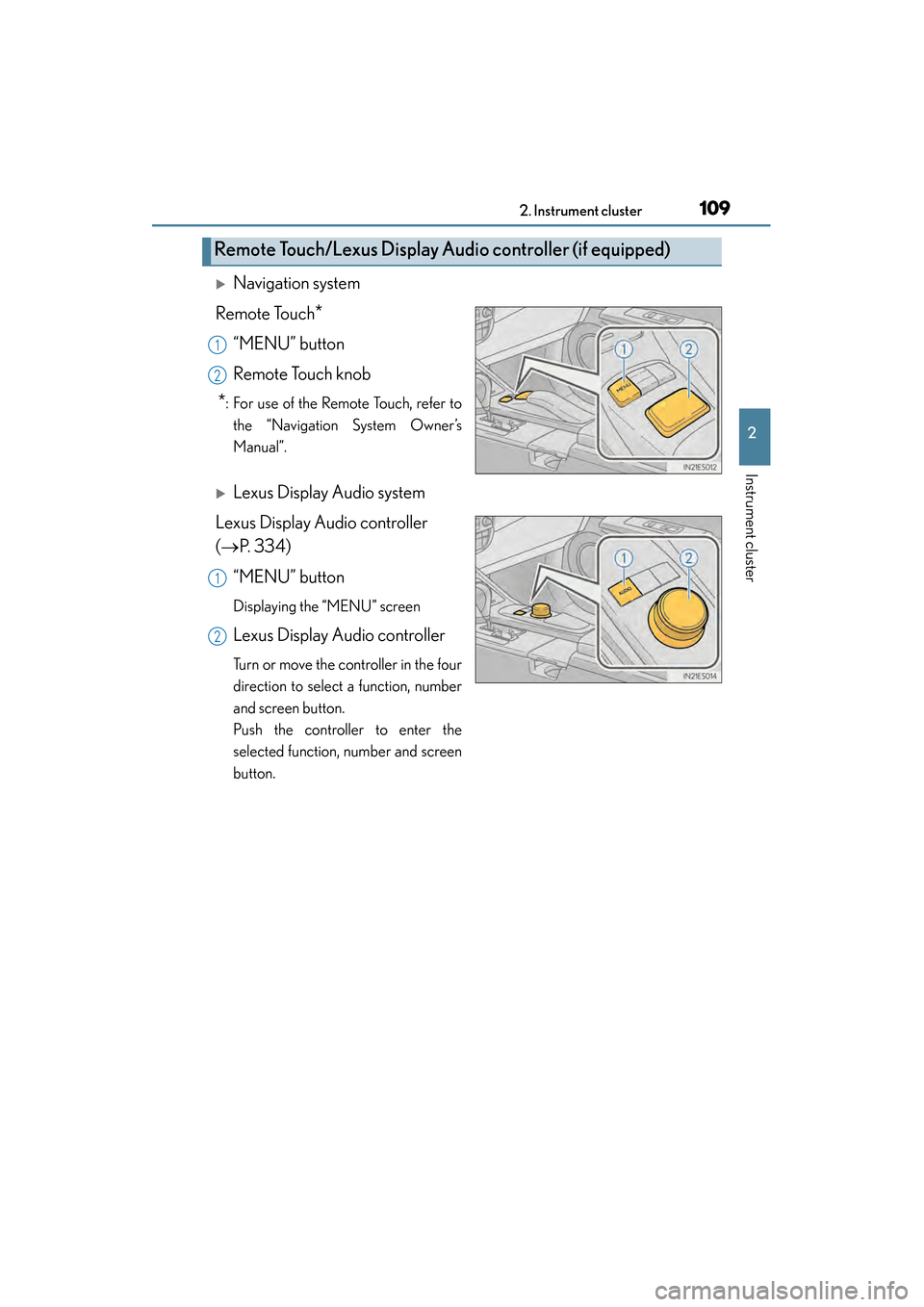

Remote Touch/Lexus Display Audio controller (if equipped)
1
2
1
2
