Lexus ES300h 2013 Owner's Manual

110
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

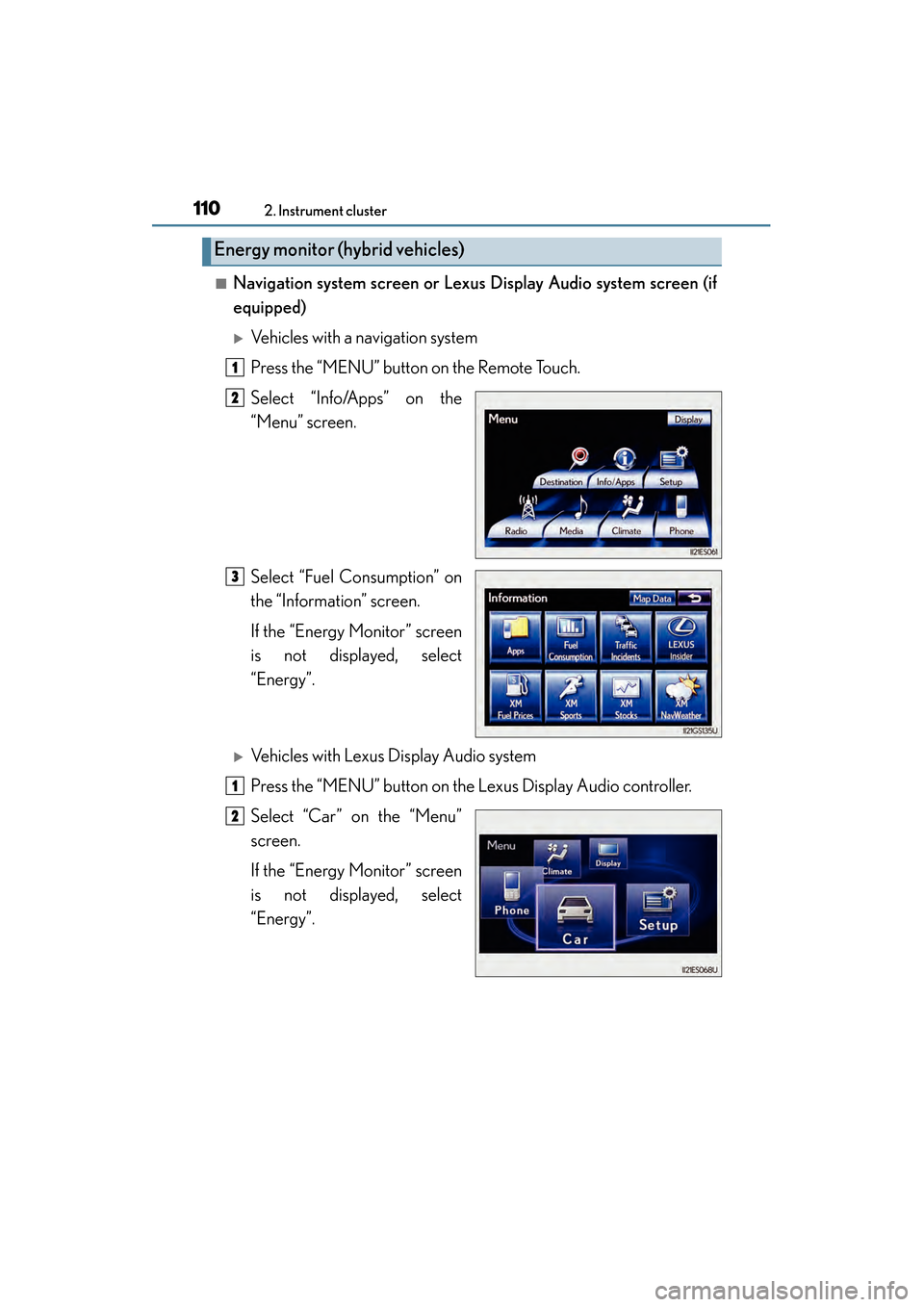

■Navigation system screen or Lexus Display Audio system screen (if
equipped)
XVehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select “Info/Apps” on the
“Menu” screen.
Select “Fuel Consumption” on
the “Information” screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
XVehicles with Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Car” on the “Menu”
screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
Energy monitor (hybrid vehicles)
1
2
3
1
2

ES350 300h_OM_OM33A01U_(U)
1112. Instrument cluster
2
Instrument cluster

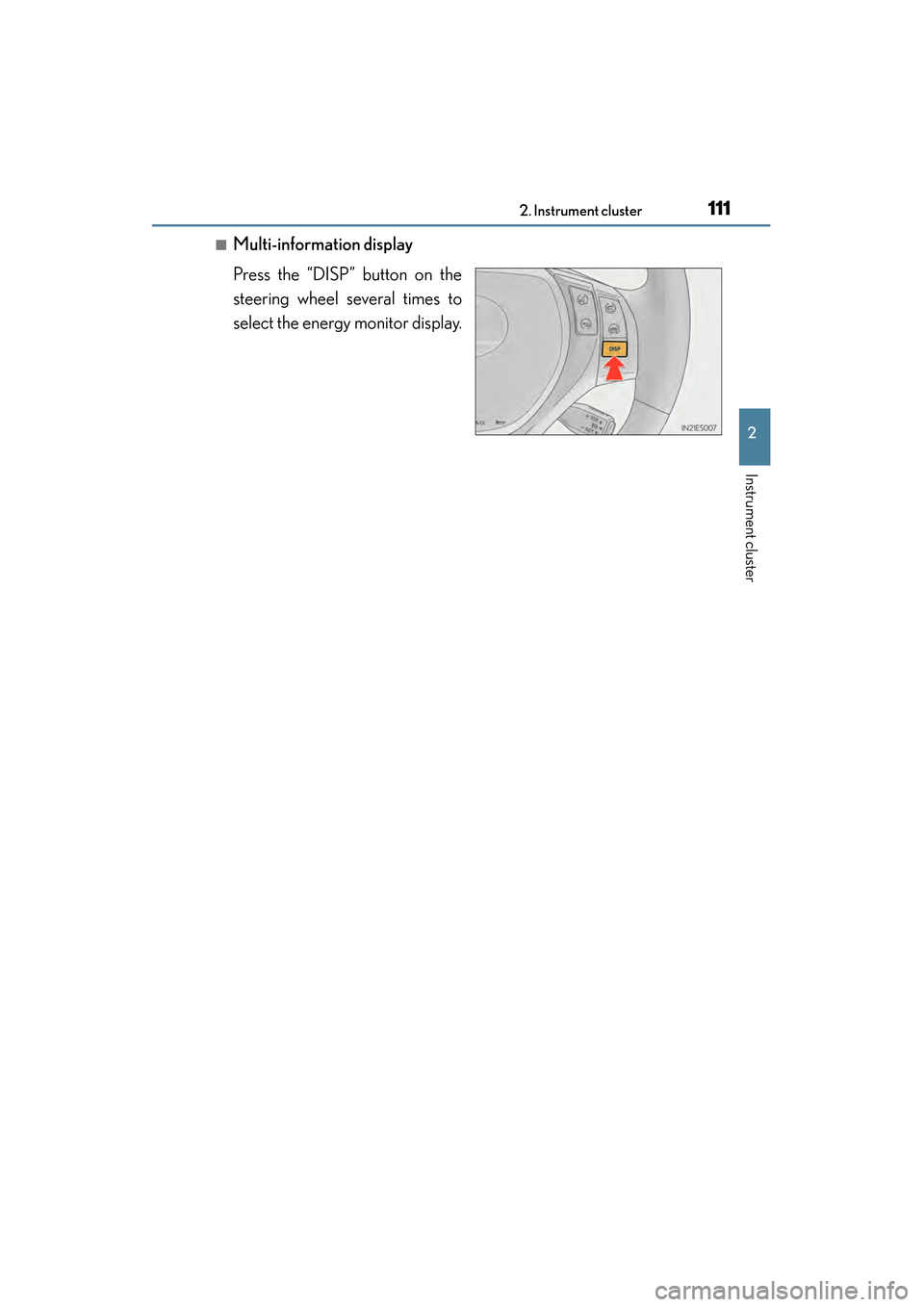

■Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor display.

112
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

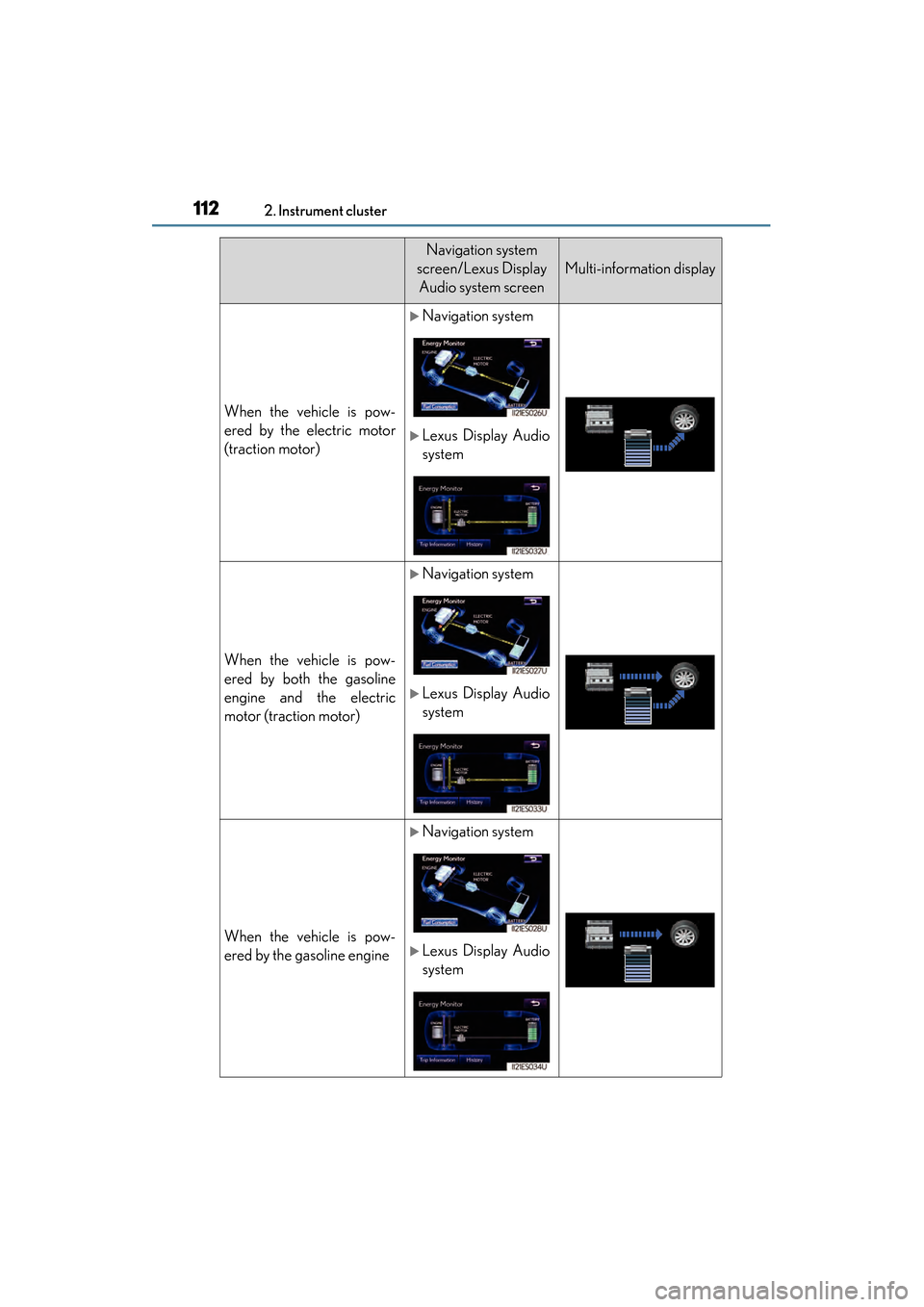

Navigation system
screen/Lexus Display Audio system screen
Multi-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
XNavigation system
XLexus Display Audio
system
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
XNavigation system
XLexus Display Audio
system
When the vehicle is pow-
ered by the gasoline engine
XNavigation system
XLexus Display Audio
system

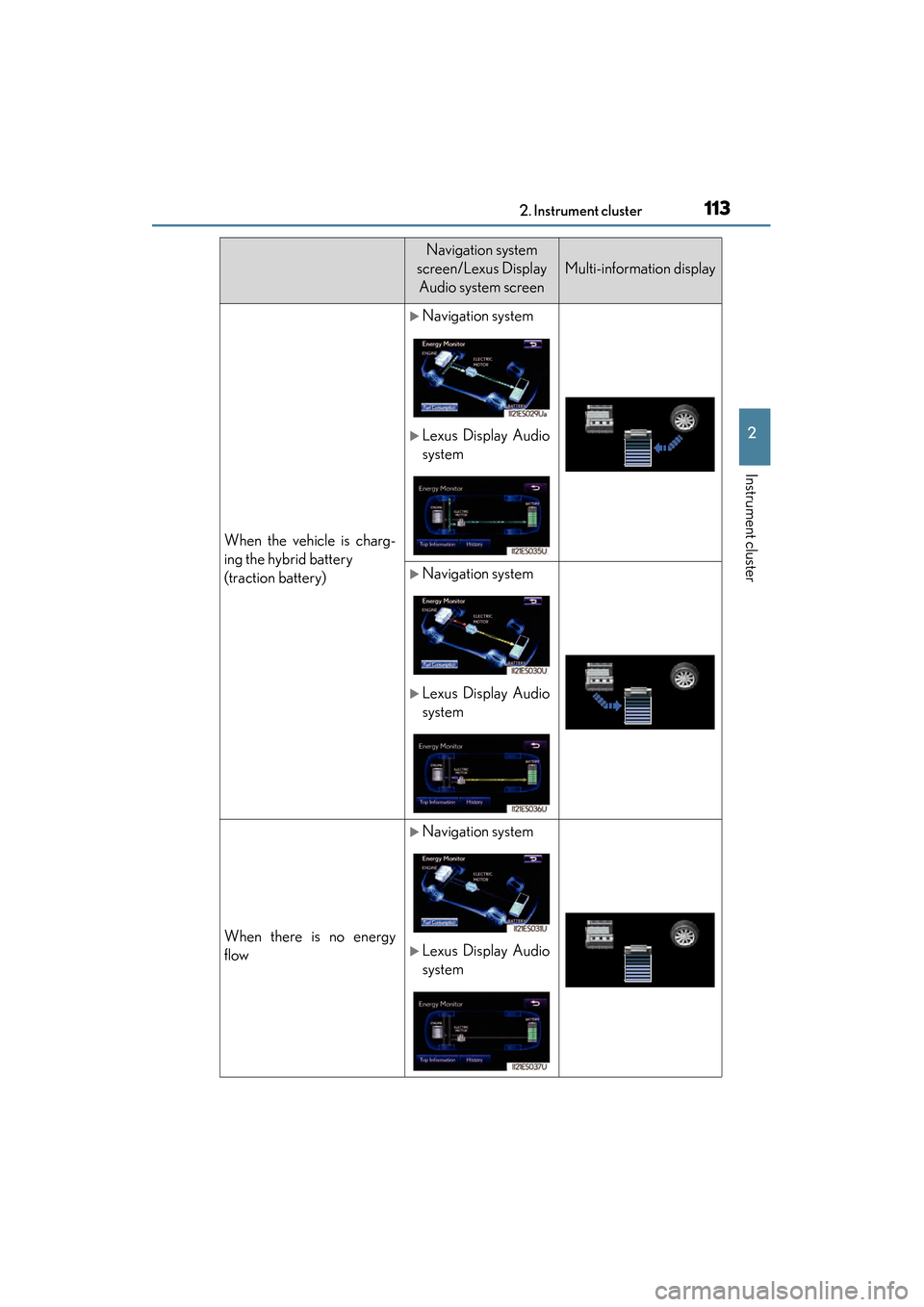

ES350 300h_OM_OM33A01U_(U)
1132. Instrument cluster
2
Instrument cluster
When the vehicle is charg-
ing the hybrid battery
(traction battery)
XNavigation system
XLexus Display Audio
system
XNavigation system
XLexus Display Audio
system
When there is no energy
flow
XNavigation system
XLexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display

114
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

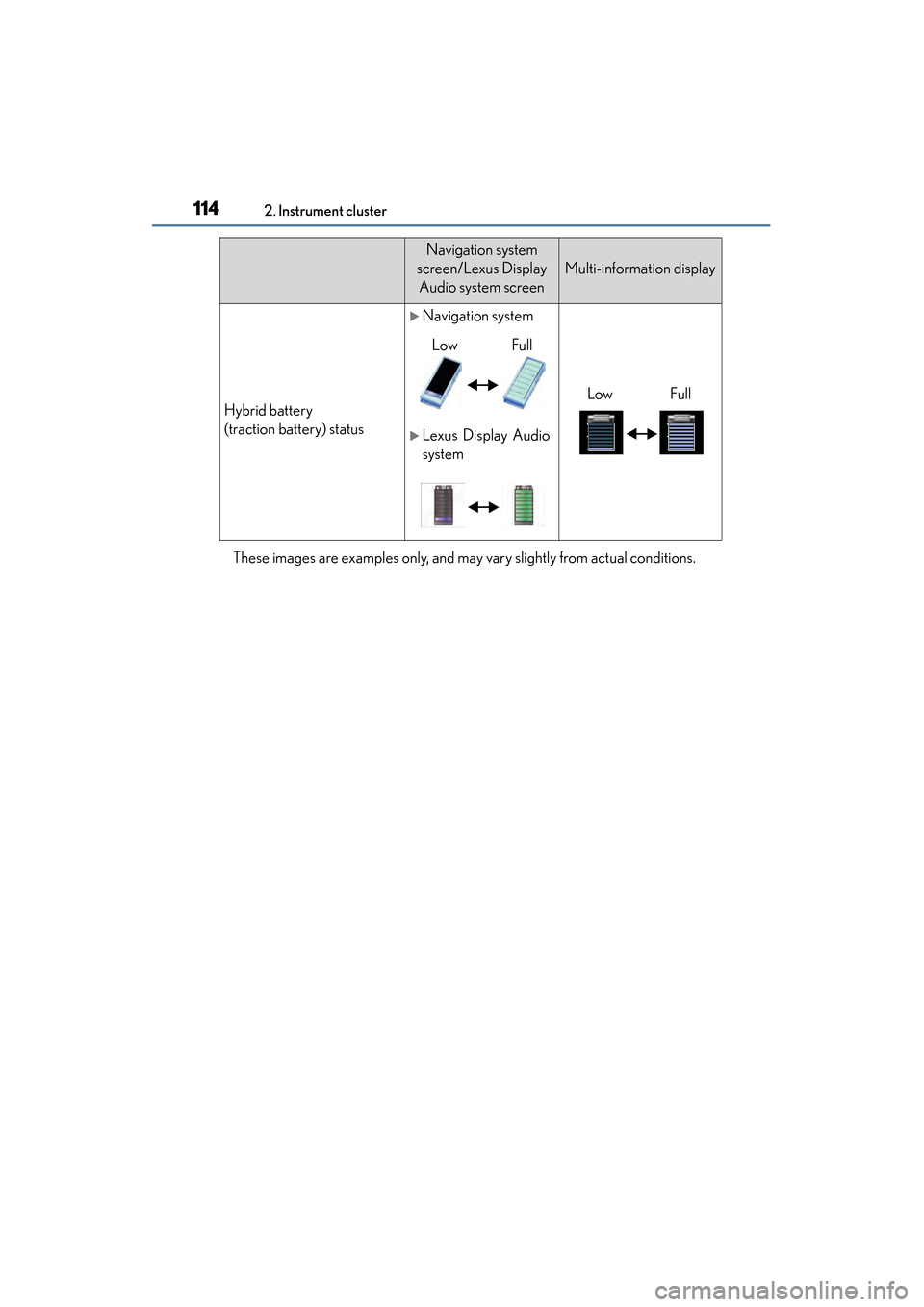

These images are examples only, and may vary slightly from actual conditions.
Hybrid battery
(traction battery) status
XNavigation system
XLexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
LowFull
LowFull

ES350 300h_OM_OM33A01U_(U)
1152. Instrument cluster
2
Instrument cluster

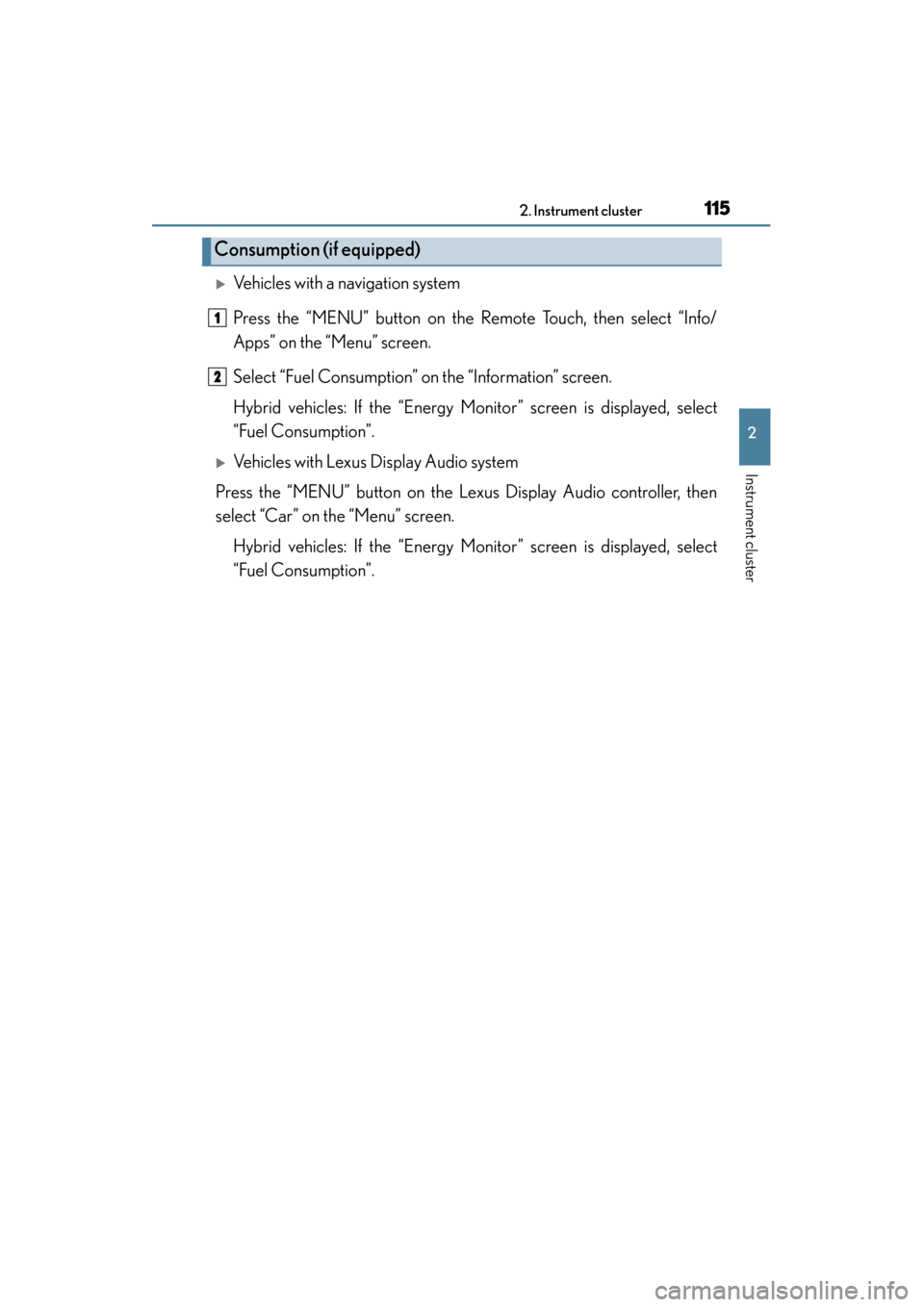

XVehicles with a navigation system
Press the “MENU” button on the Remote Touch, then select “Info/
Apps” on the “Menu” screen.
Select “Fuel Consumption” on the “Information” screen.
Hybrid vehicles: If the “Energy Monitor” screen is displayed, select
“Fuel Consumption”.
XVehicles with Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, then
select “Car” on the “Menu” screen.
Hybrid vehicles: If the “Energy Monitor” screen is displayed, select
“Fuel Consumption”.
Consumption (if equipped)
1
2

116
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

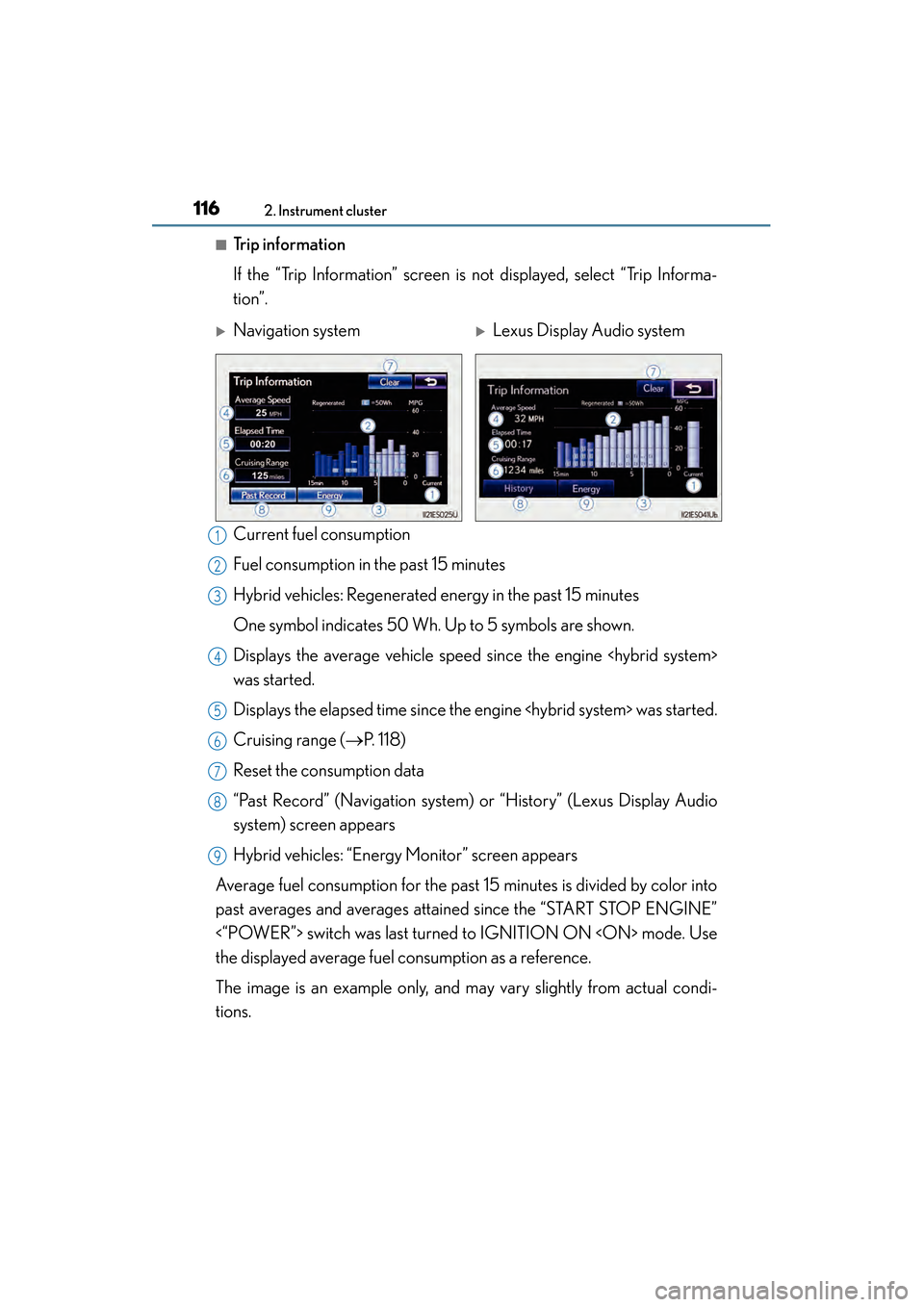

■Trip information
If the “Trip Information” screen is not displayed, select “Trip Informa-
tion”.
Current fuel consumption
Fuel consumption in the past 15 minutes
Hybrid vehicles: Regenerated energy in the past 15 minutes
One symbol indicates 50 Wh. Up to 5 symbols are shown.
Displays the average vehicle speed since the engine
was started.
Displays the elapsed time since the engine was started.
Cruising range (→P. 118)
Reset the consumption data
“Past Record” (Navigation system) or “History” (Lexus Display Audio
system) screen appears
Hybrid vehicles: “Energy Monitor” screen appears
Average fuel consumption for the past 15 minutes is divided by color into
past averages and averages attained since the “START STOP ENGINE”
<“POWER”> switch was last turned to IGNITION ON mode. Use
the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
XNavigation systemXLexus Display Audio system
1
2
3
4
5
6
7
8
9

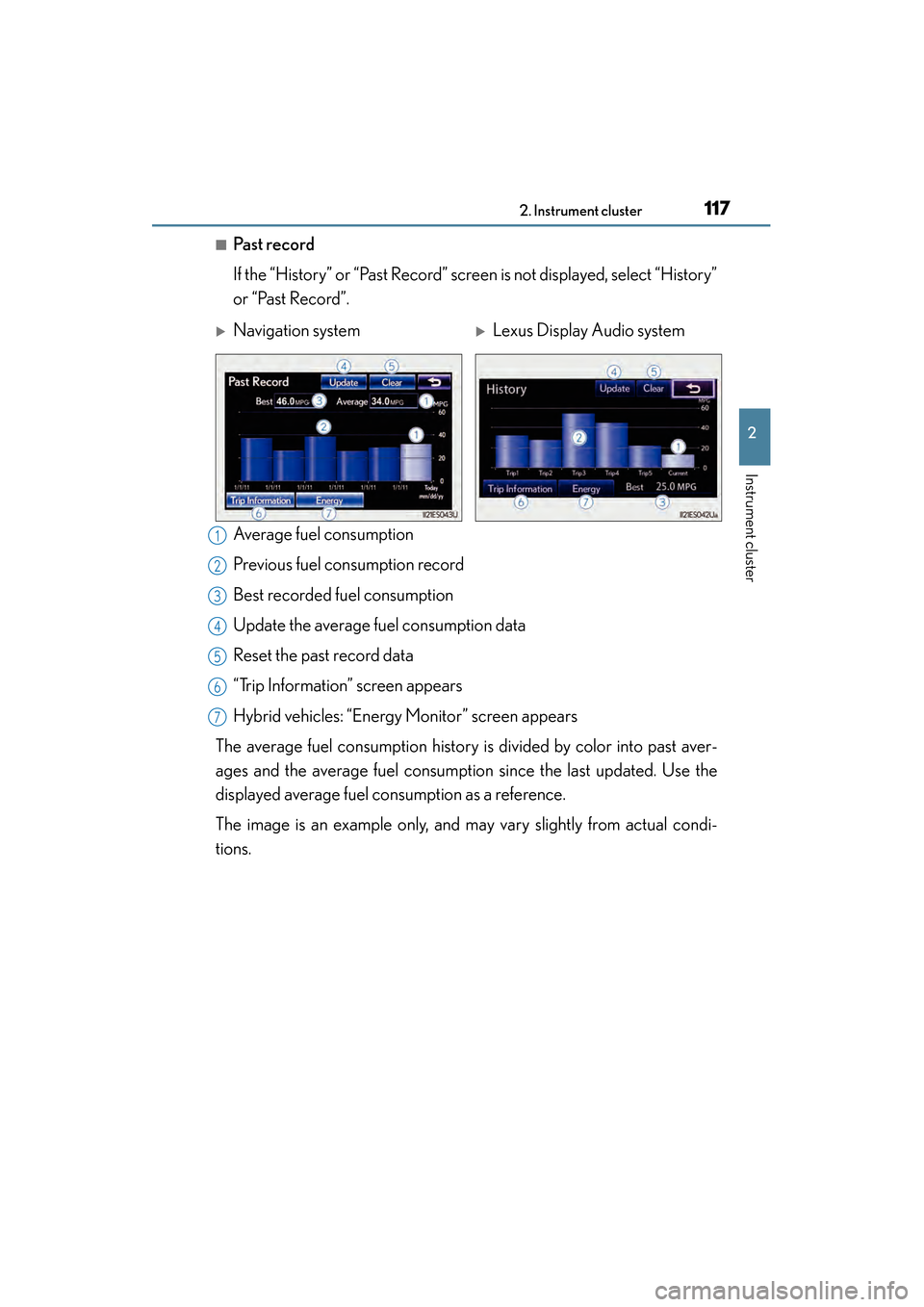

ES350 300h_OM_OM33A01U_(U)
1172. Instrument cluster
2
Instrument cluster
■Past record
If the “History” or “Past Record” screen is not displayed, select “History”
or “Past Record”.
Average fuel consumption
Previous fuel consumption record
Best recorded fuel consumption
Update the average fuel consumption data
Reset the past record data
“Trip Information” screen appears
Hybrid vehicles: “Energy Monitor” screen appears
The average fuel consumption history is divided by color into past aver-
ages and the average fuel consumption since the last updated. Use the
displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
XNavigation systemXLexus Display Audio system
1
2
3
4
5
6
7

118
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

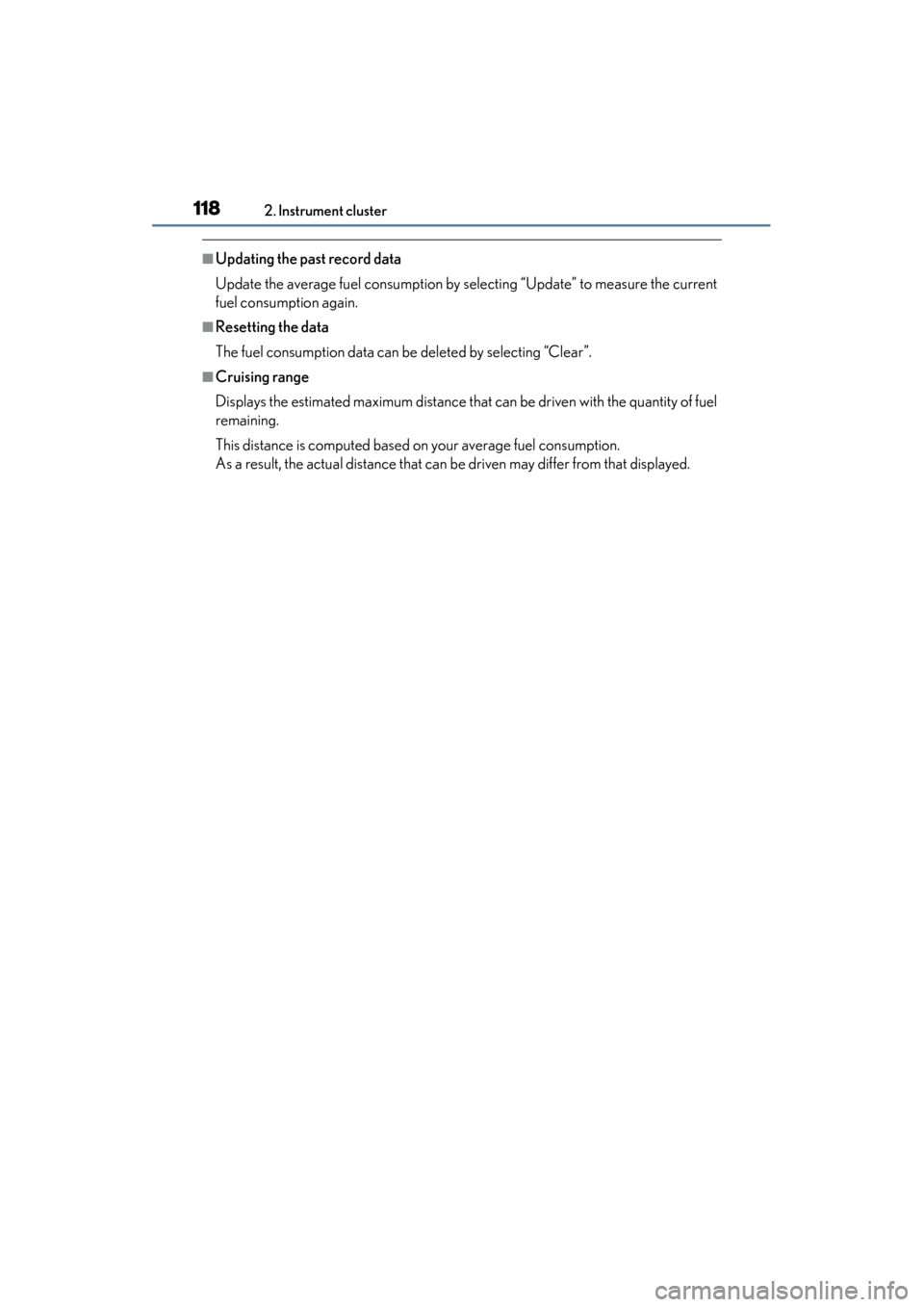

■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

119
ES350 300h_OM_OM33A01U_(U)

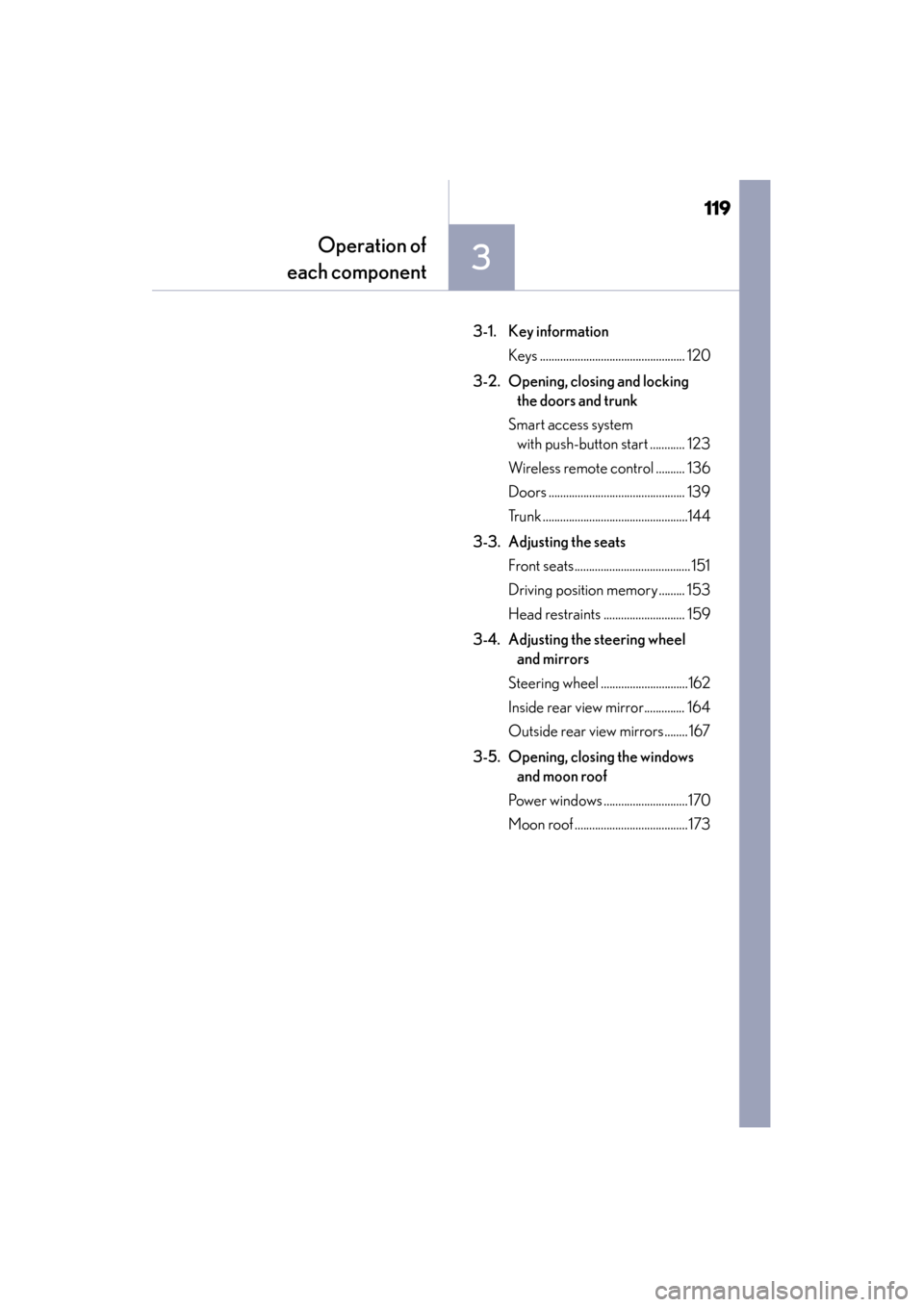

3
Operation of
each component
3-1. Key information
Keys .................................................. 120
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............ 123
Wireless remote control .......... 136
Doors ............................................... 139
Trunk ..................................................144
3-3. Adjusting the seats Front seats........................................ 151
Driving position memory ......... 153
Head restraints ............................ 159
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................162
Inside rear view mirror.............. 164
Outside rear view mirrors ........ 167
3-5. Opening, closing the windows and moon roof
Power windows .............................170
Moon roof .......................................173
