Lexus ES300h 2013 Owner's Manual

150
ES350 300h_OM_OM33A01U_(U)
3-2. Opening, closing and locking the doors and trunk

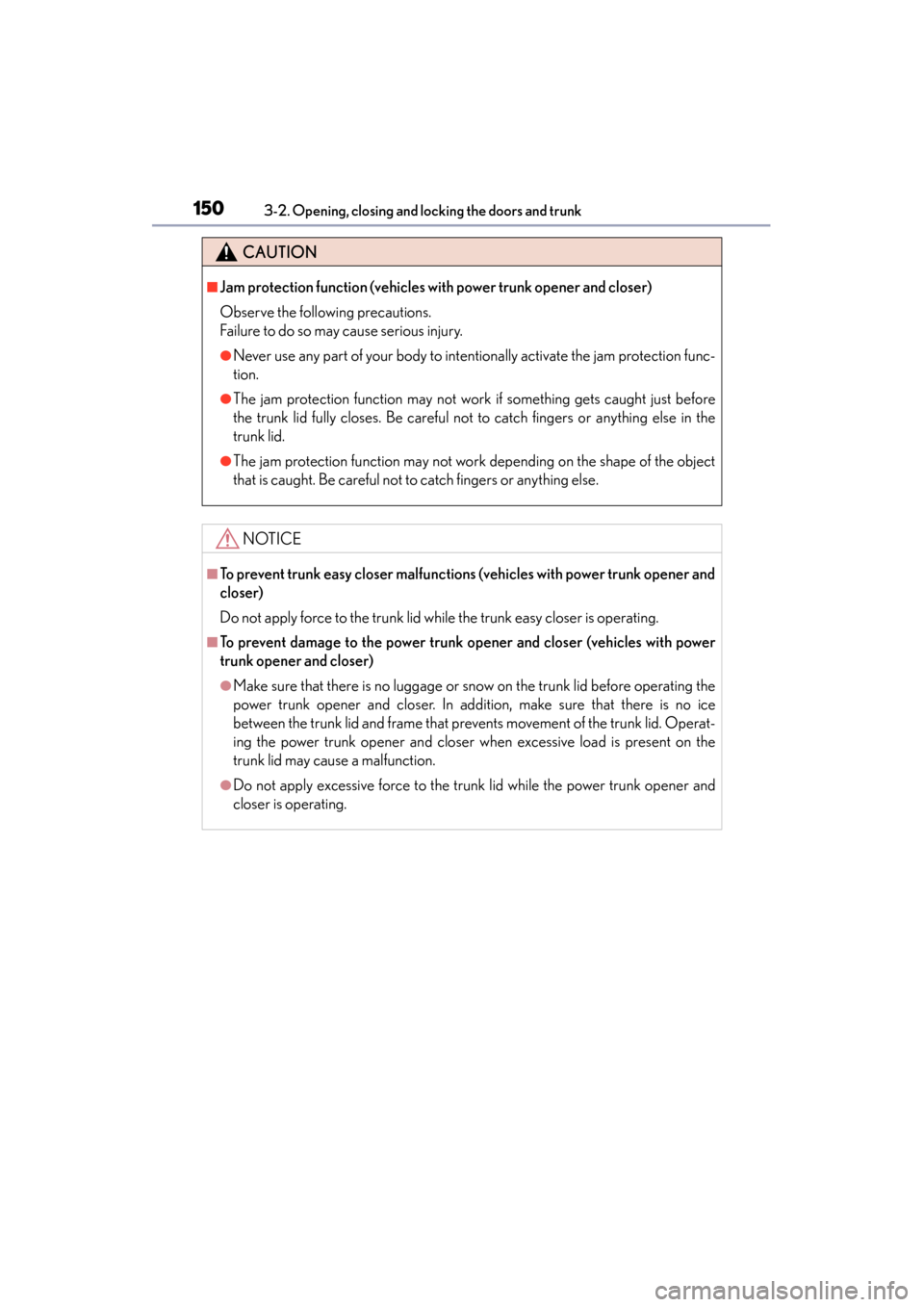

CAUTION
■Jam protection function (vehicles with power trunk opener and closer)
Observe the following precautions.
Failure to do so may cause serious injury.
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the trunk lid fully closes. Be careful not to catch fingers or anything else in the
trunk lid.
●The jam protection function may not work depending on the shape of the object
that is caught. Be careful not to catch fingers or anything else.
NOTICE
■To prevent trunk easy closer malfunctions (vehicles with power trunk opener and
closer)
Do not apply force to the trunk lid while the trunk easy closer is operating.
■To prevent damage to the power trunk opener and closer (vehicles with power
trunk opener and closer)
●Make sure that there is no luggage or snow on the trunk lid before operating the
power trunk opener and closer. In addition, make sure that there is no ice
between the trunk lid and frame that prevents movement of the trunk lid. Operat-
ing the power trunk opener and closer when excessive load is present on the
trunk lid may cause a malfunction.
●Do not apply excessive force to the trunk lid while the power trunk opener and
closer is operating.

151
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats
3
Operation of each component

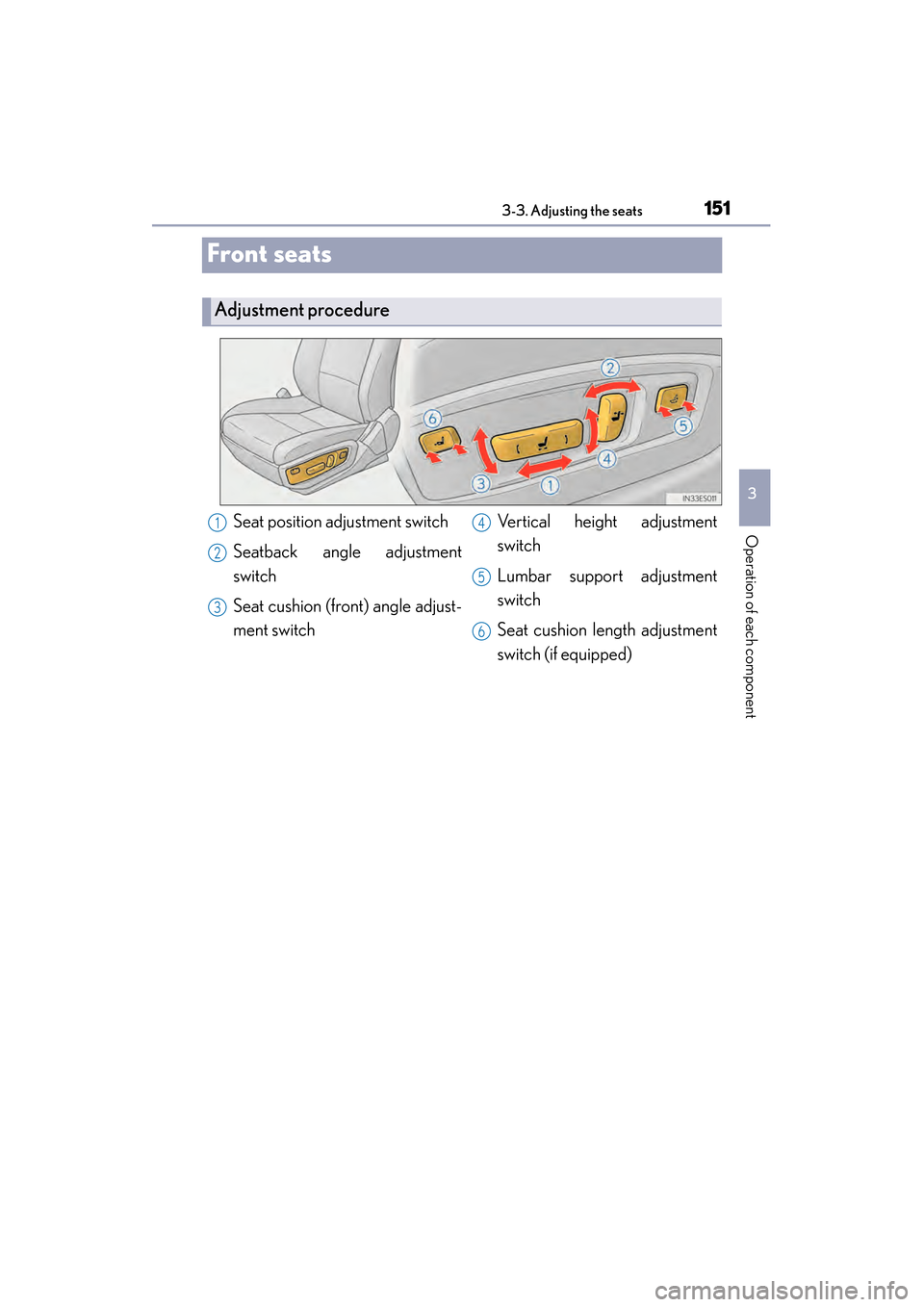

Front seats
Adjustment procedure
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle adjust-
ment switchVertical height adjustment
switch
Lumbar support adjustment
switch
Seat cushion length adjustment
switch (if equipped)1
2
3
4
5
6

152
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats

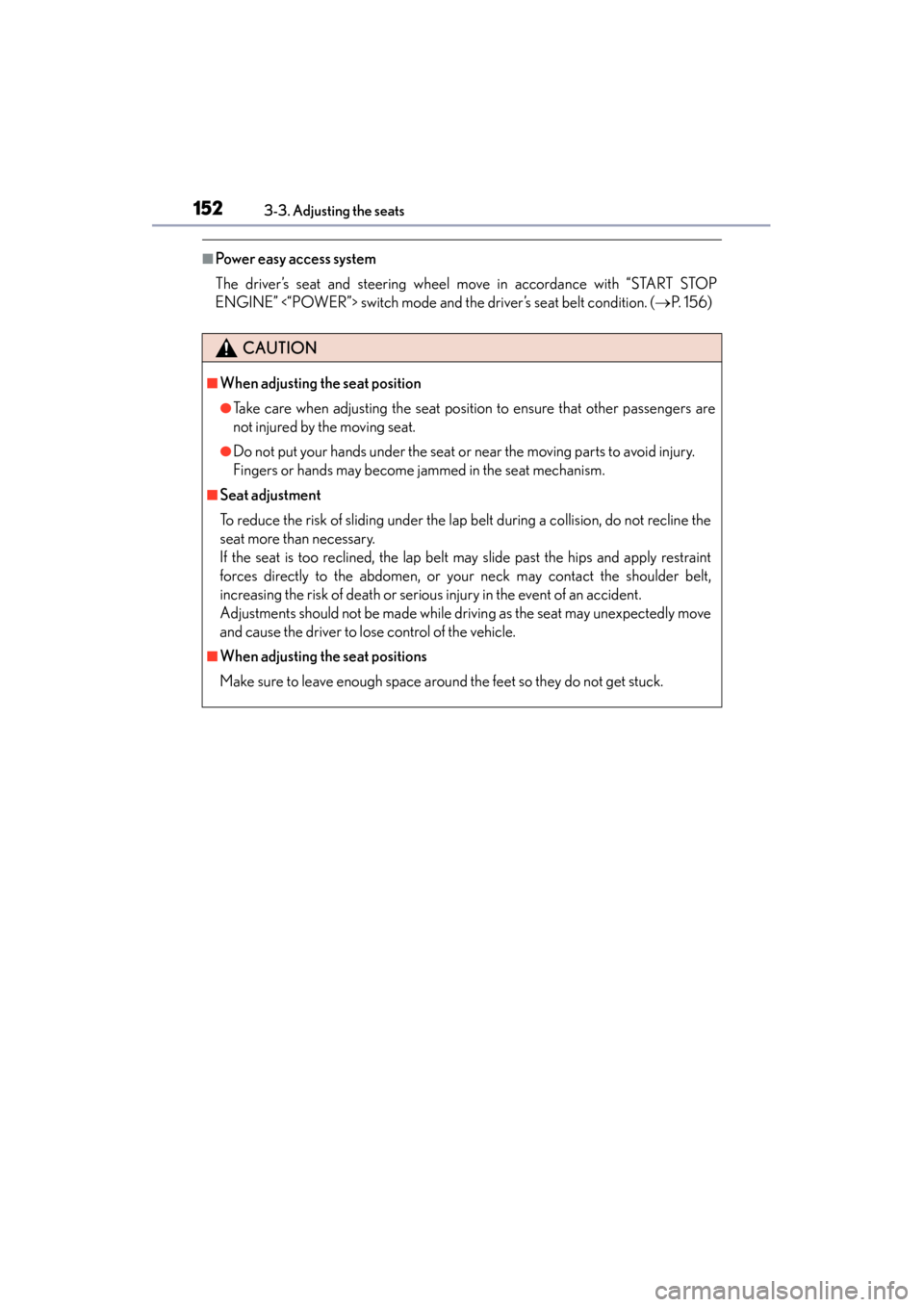

■Power easy access system
The driver’s seat and steering wheel move in accordance with “START STOP
ENGINE” <“POWER”> switch mode and the driver’s seat belt condition. (→P. 1 5 6 )
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
■When adjusting the seat positions
Make sure to leave enough space around the feet so they do not get stuck.

153
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats
3
Operation of each component

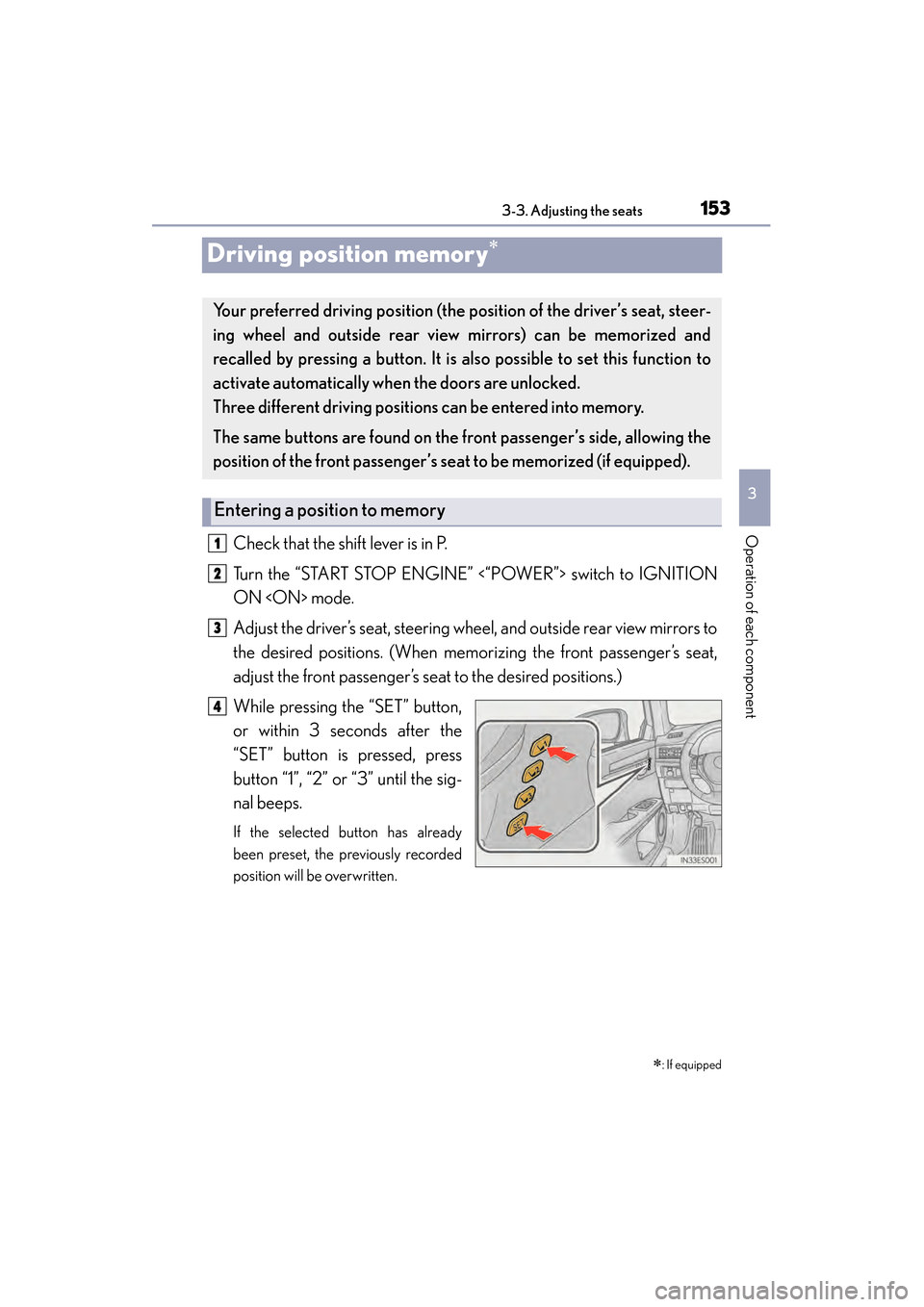

Driving position memory∗
Check that the shift lever is in P.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNITION
ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors to
the desired positions. (When memorizing the front passenger’s seat,
adjust the front passenger’s seat to the desired positions.)
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the sig-
nal beeps.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
∗: If equipped
Your preferred driving po sition (the position of the driver’s seat, steer-
ing wheel and outside rear view mirrors) can be memorized and
recalled by pressing a button. It is also possible to set this function to
activate automatically when the doors are unlocked.
Three different driving position s can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passenger’s se at to be memorized (if equipped).
Entering a position to memory
1
2
3
4

154
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats

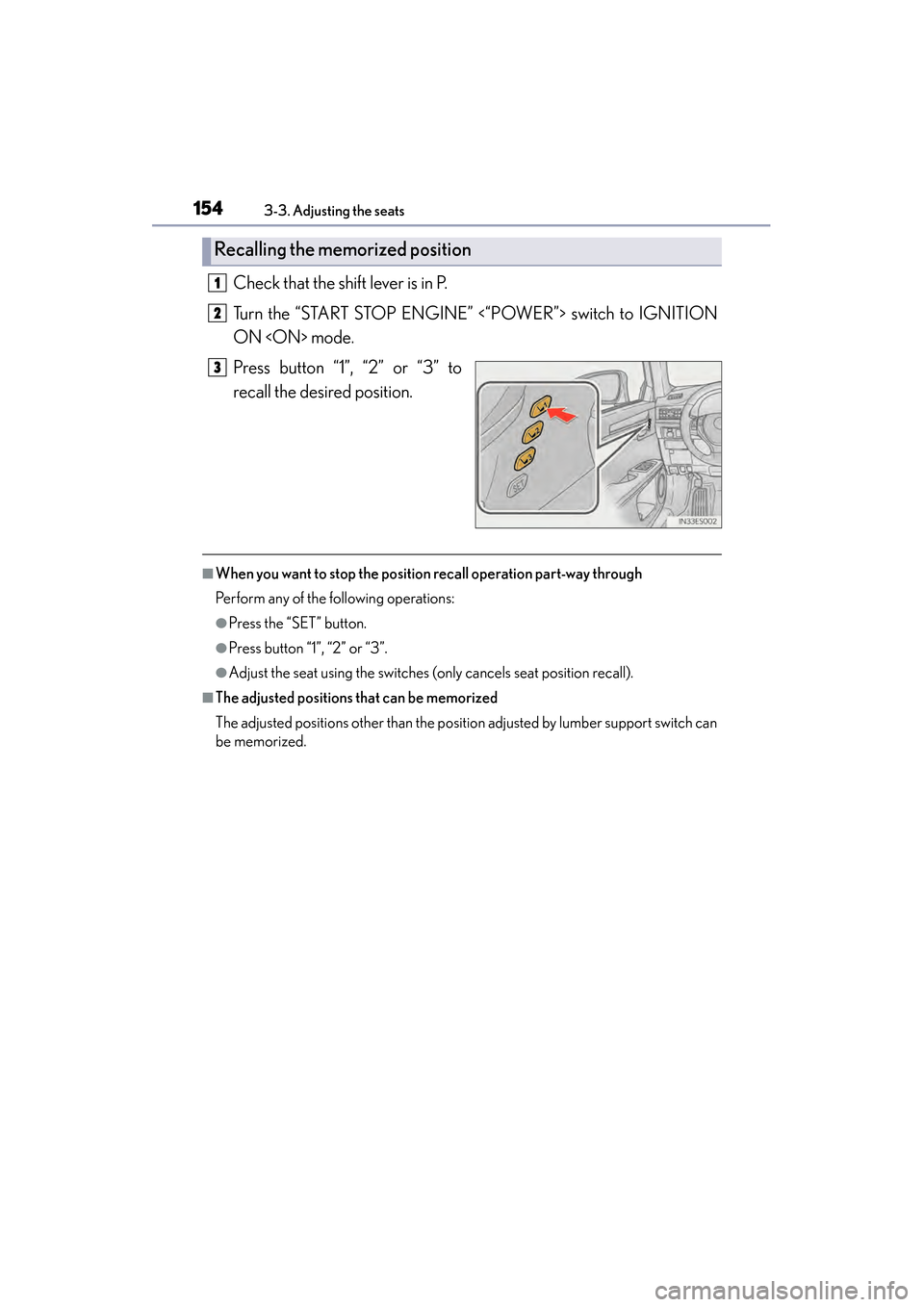

Check that the shift lever is in P.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNITION
ON mode.
Press button “1”, “2” or “3” to
recall the desired position.
■When you want to stop the position recall operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■The adjusted positions that can be memorized
The adjusted positions other than the position adjusted by lumber support switch can
be memorized.
Recalling the memorized position
1
2
3

ES350 300h_OM_OM33A01U_(U)
1553-3. Adjusting the seats
3
Operation of each component

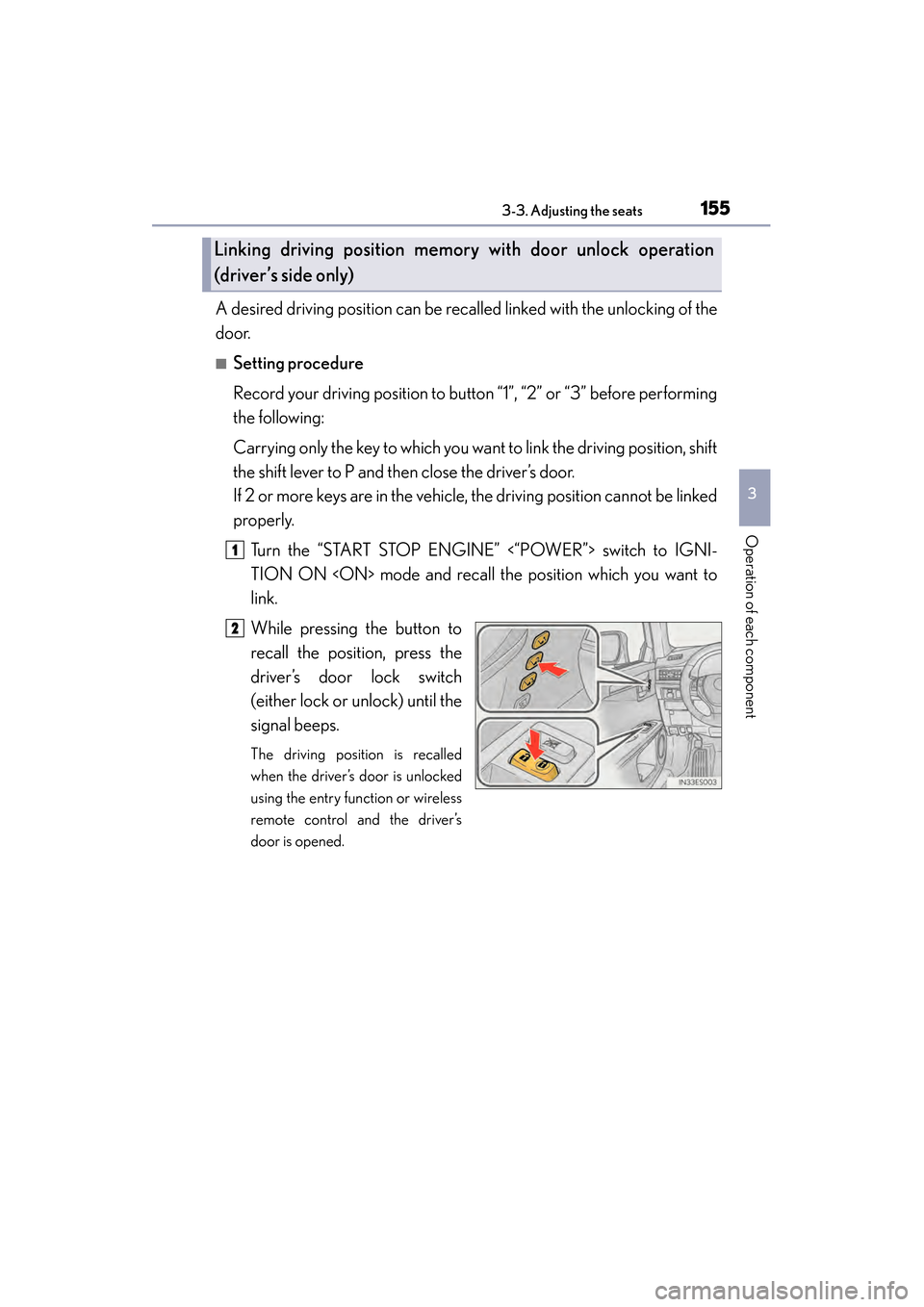

A desired driving position can be recalled linked with the unlocking of the
door.
■Setting procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carrying only the key to which you wa nt to link the driving position, shift
the shift lever to P and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be linked
properly.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNI-
TION ON mode and recall the position which you want to
link.
While pressing the button to
recall the position, press the
driver’s door lock switch
(either lock or unlock) until the
signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Linking driving position memory with door unlock operation
(driver’s side only)
1
2

156
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats

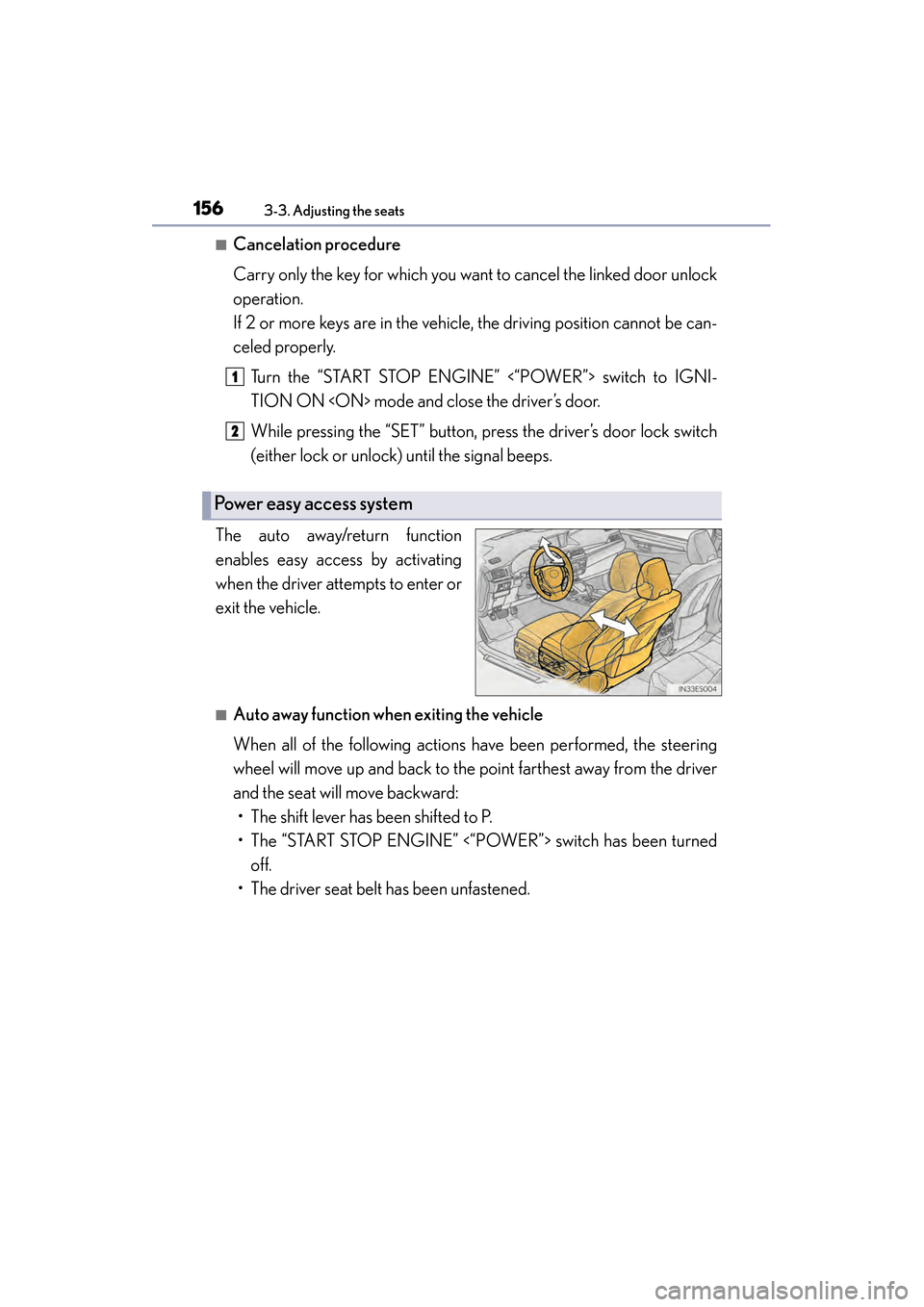

■Cancelation procedure
Carry only the key for which you want to cancel the linked door unlock
operation.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the “START STOP ENGINE” <“POWER”> switch to IGNI-
TION ON mode and close the driver’s door.
While pressing the “SET” button, press the driver’s door lock switch
(either lock or unlock) until the signal beeps.
The auto away/return function
enables easy access by activating
when the driver attempts to enter or
exit the vehicle.
■Auto away function when exiting the vehicle
When all of the following actions have been performed, the steering
wheel will move up and back to the point farthest away from the driver
and the seat will move backward: • The shift lever has been shifted to P.
• The “START STOP ENGINE” <“POWER”> switch has been turned off.
• The driver seat belt has been unfastened.
Power easy access system
1
2

ES350 300h_OM_OM33A01U_(U)
1573-3. Adjusting the seats
3
Operation of each component

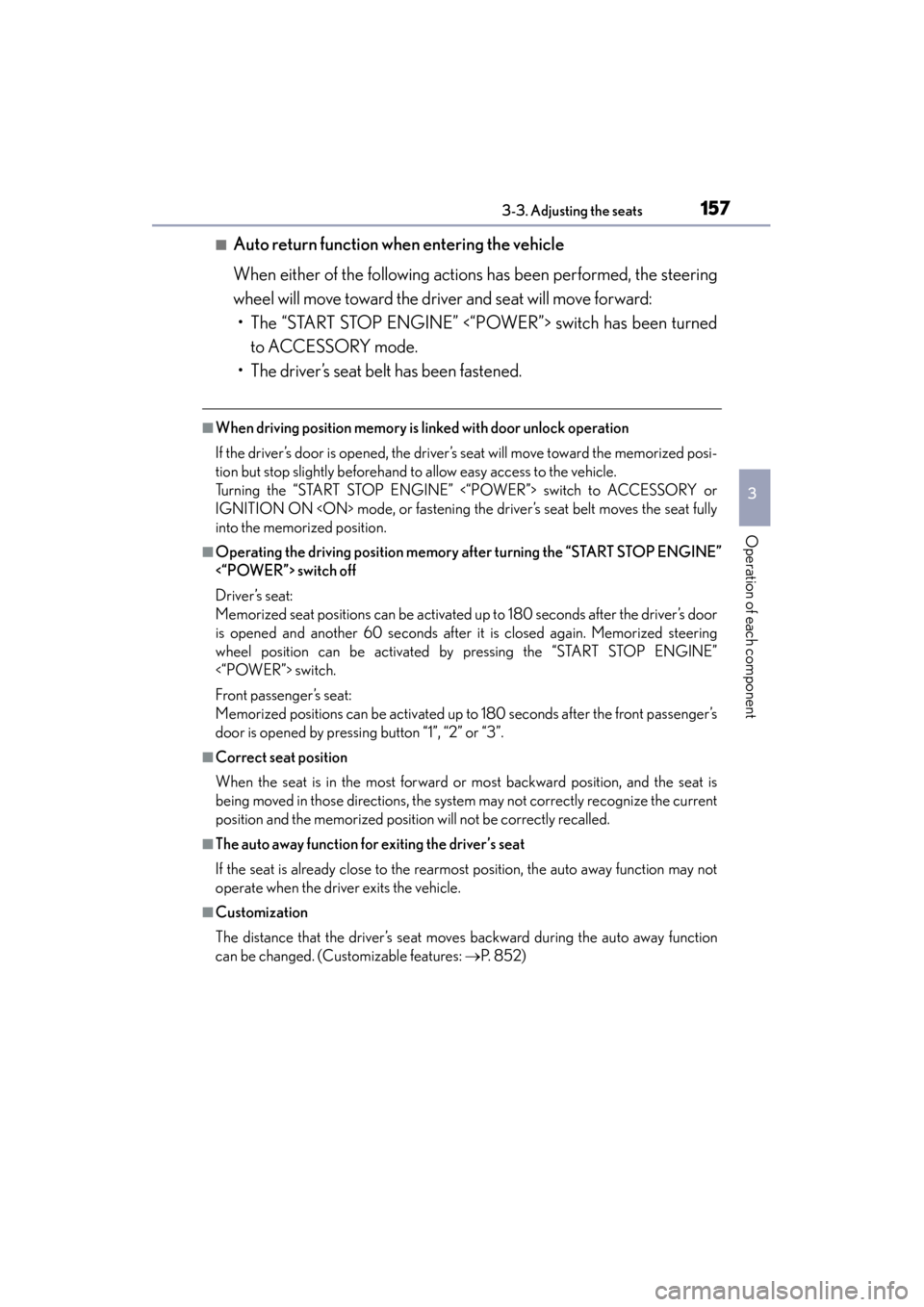

■Auto return function when entering the vehicle
When either of the following actions has been performed, the steering
wheel will move toward the driver and seat will move forward:• The “START STOP ENGINE” <“POWER”> switch has been turned to ACCESSORY mode.
• The driver’s seat belt has been fastened.
■When driving position memory is linked with door unlock operation
If the driver’s door is opened, the driver’s seat will move toward the memorized posi-
tion but stop slightly beforehand to allow easy access to the vehicle.
Turning the “START STOP ENGINE” <“POWER”> switch to ACCESSORY or
IGNITION ON mode, or fastening the driver’s seat belt moves the seat fully
into the memorized position.
■Operating the driving position memory after turning the “START STOP ENGINE”
<“POWER”> switch off
Driver’s seat:
Memorized seat positions can be activated up to 180 seconds after the driver’s door
is opened and another 60 seconds after it is closed again. Memorized steering
wheel position can be activated by pressing the “START STOP ENGINE”
<“POWER”> switch.
Front passenger’s seat:
Memorized positions can be activated up to 180 seconds after the front passenger’s
door is opened by pressing button “1”, “2” or “3”.
■Correct seat position
When the seat is in the most forward or most backward position, and the seat is
being moved in those directions, the system may not correctly recognize the current
position and the memorized positi on will not be correctly recalled.
■The auto away function for exiting the driver’s seat
If the seat is already close to the rearmost position, the auto away function may not
operate when the driver exits the vehicle.
■Customization
The distance that the driver’s seat moves backward during the auto away function
can be changed. (Customizable features: →P. 8 5 2 )

158
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats

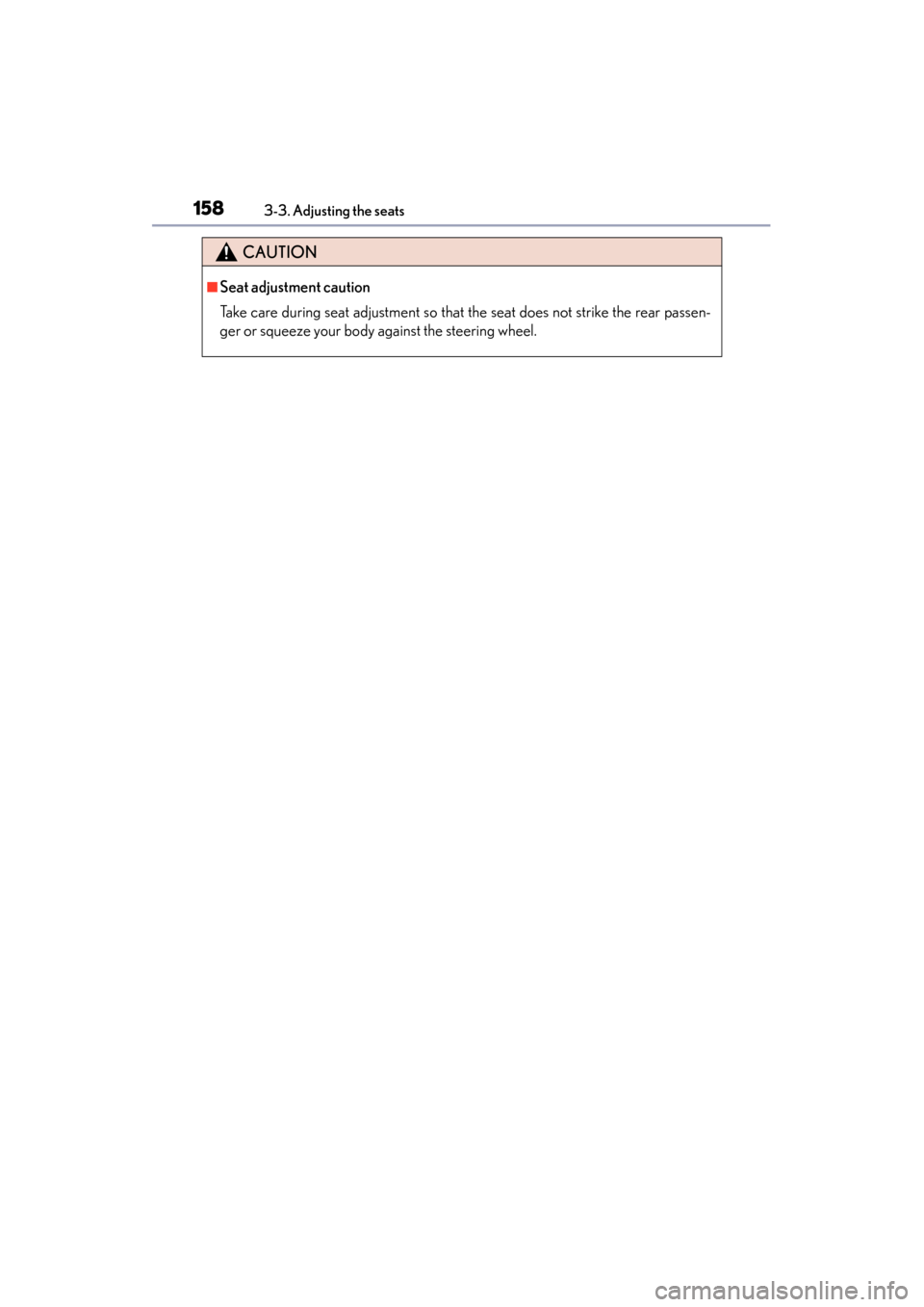

CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.

159
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats
3
Operation of each component

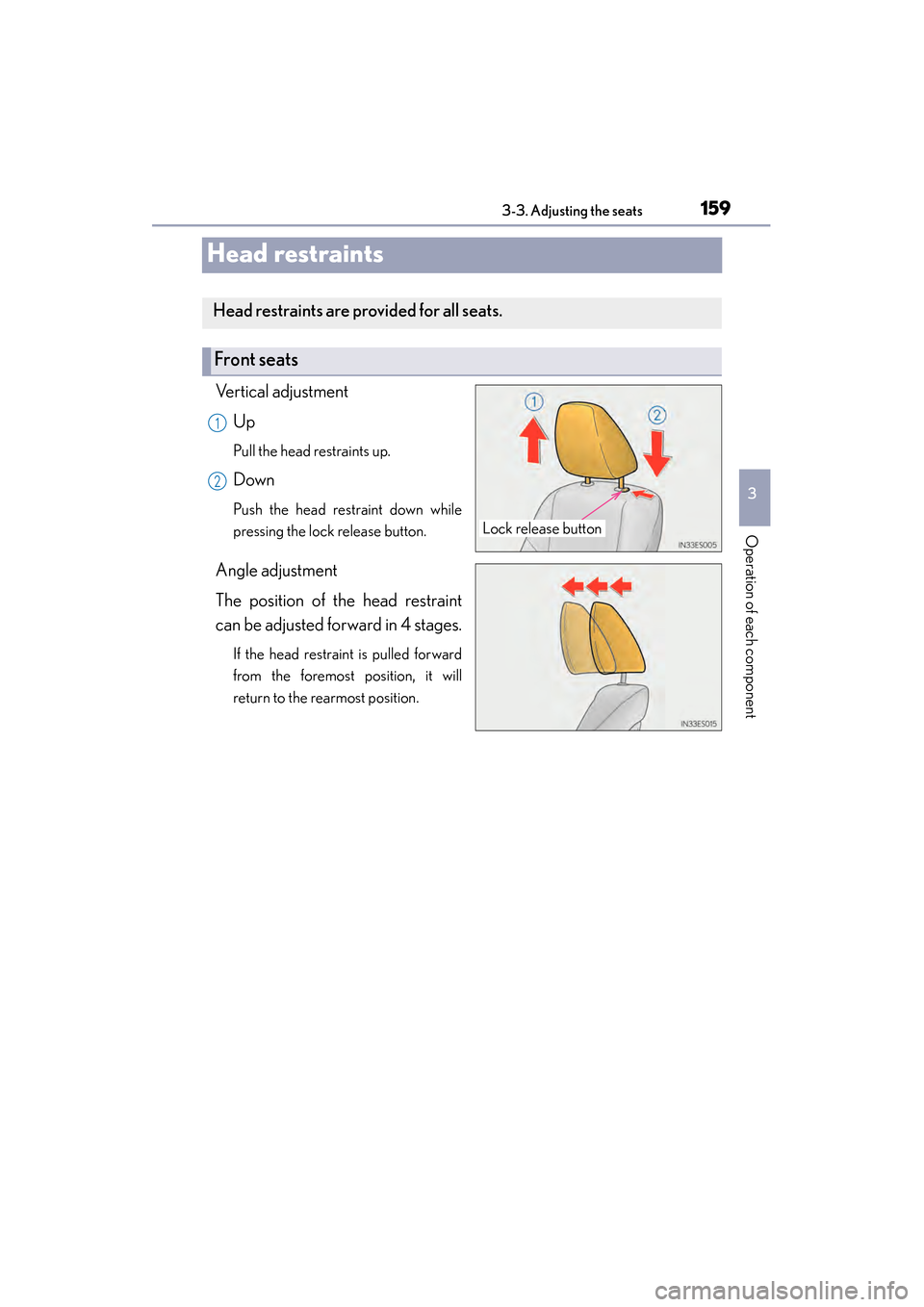

Head restraints
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Angle adjustment
The position of the head restraint
can be adjusted forward in 4 stages.
If the head restraint is pulled forward
from the foremost position, it will
return to the rearmost position.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
