Lexus ES300h 2013 Owner's Manual

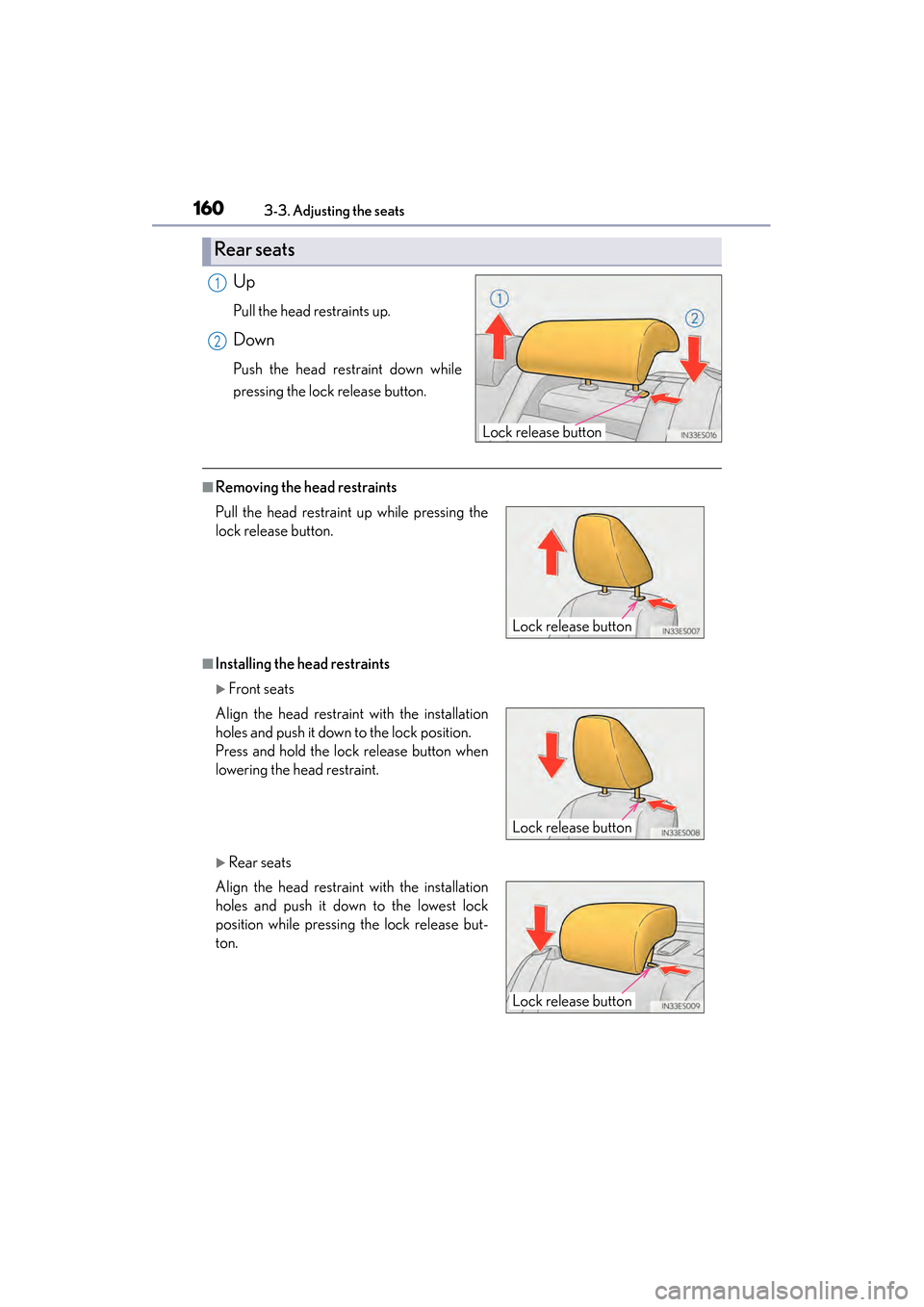

160
ES350 300h_OM_OM33A01U_(U)
3-3. Adjusting the seats
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
■Installing the head restraints
XFront seats
XRear seats
Rear seats
Lock release button
1
2
Pull the head restraint up while pressing the
lock release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Align the head restraint with the installation
holes and push it down to the lowest lock
position while pressing the lock release but-
ton.
Lock release button
Lock release button
Lock release button

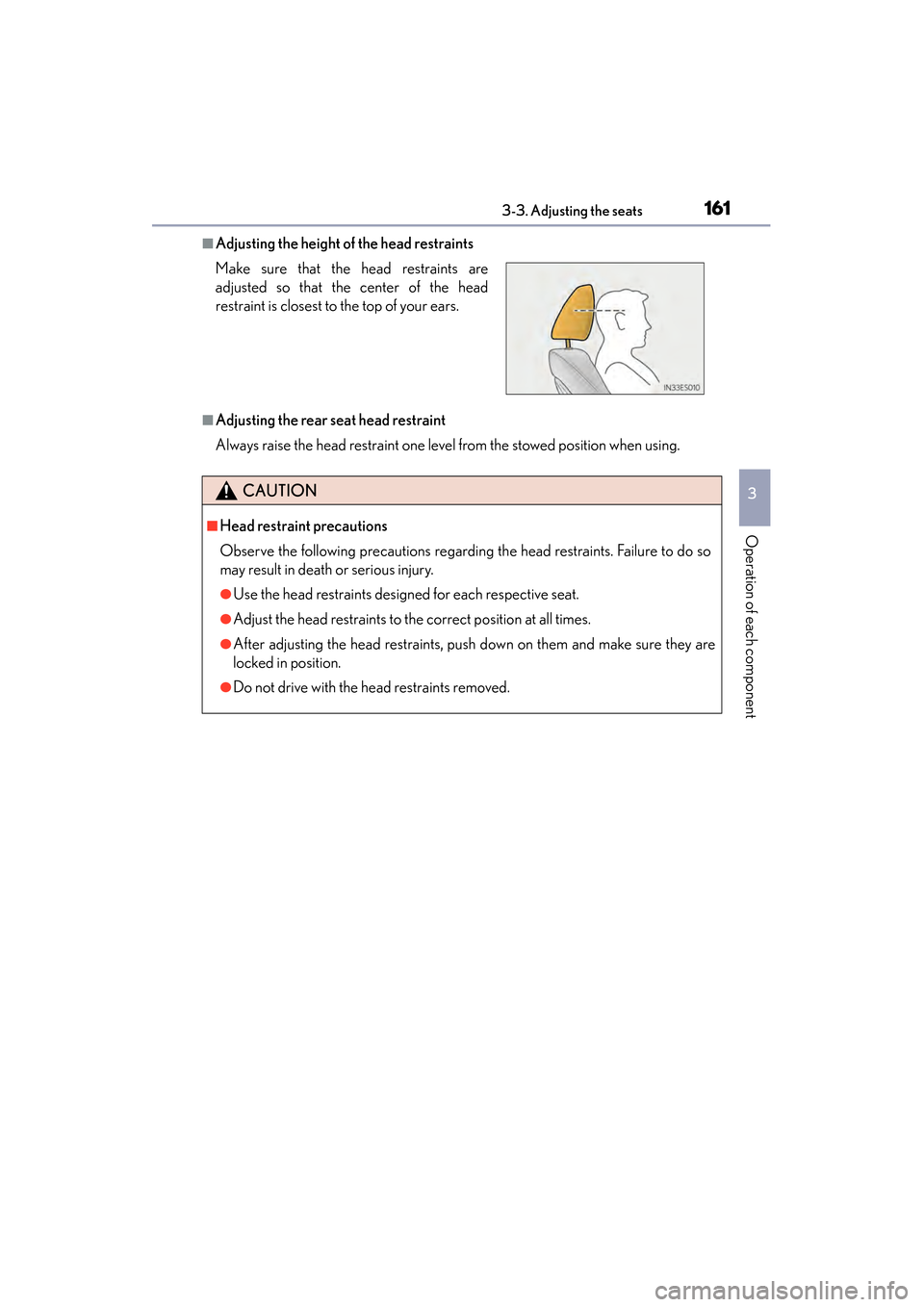

ES350 300h_OM_OM33A01U_(U)
1613-3. Adjusting the seats
3
Operation of each component
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using. Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.

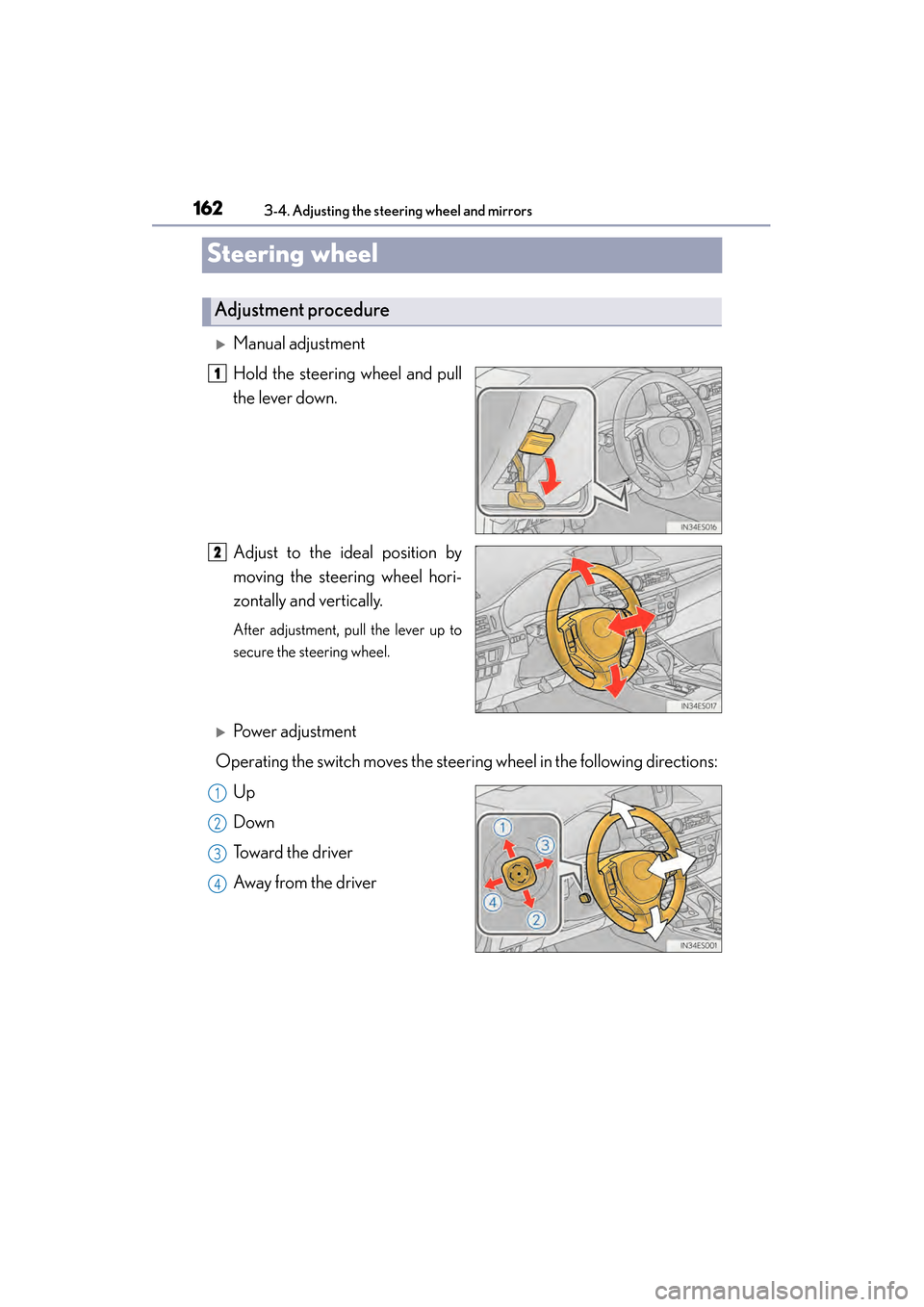

1623-4. Adjusting the steering wheel and mirrors
ES350 300h_OM_OM33A01U_(U)
Steering wheel
XManual adjustment
Hold the steering wheel and pull
the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
XPower adjustment
Operating the switch moves the steeri ng wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
Adjustment procedure
1
2
1
2
3
4

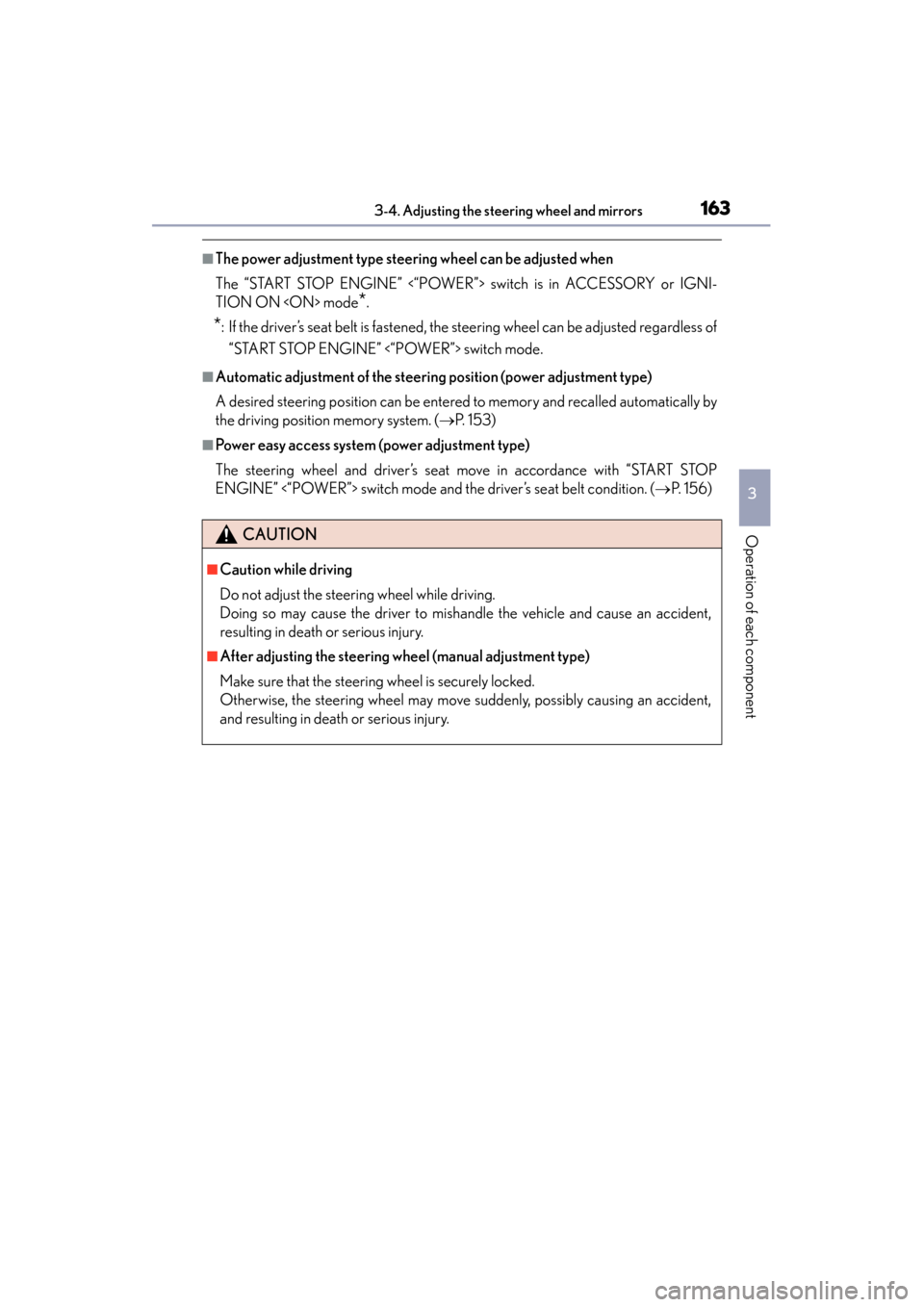

1633-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350 300h_OM_OM33A01U_(U)
■The power adjustment type steering wheel can be adjusted when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI-
TION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of“START STOP ENGINE” <“POWER”> switch mode.
■Automatic adjustment of the steering position (power adjustment type)
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( →P. 1 5 3 )
■Power easy access system (power adjustment type)
The steering wheel and driver’s seat move in accordance with “START STOP
ENGINE” <“POWER”> switch mode and the driver’s seat belt condition. ( →P. 1 5 6 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
■After adjusting the steering wheel (manual adjustment type)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

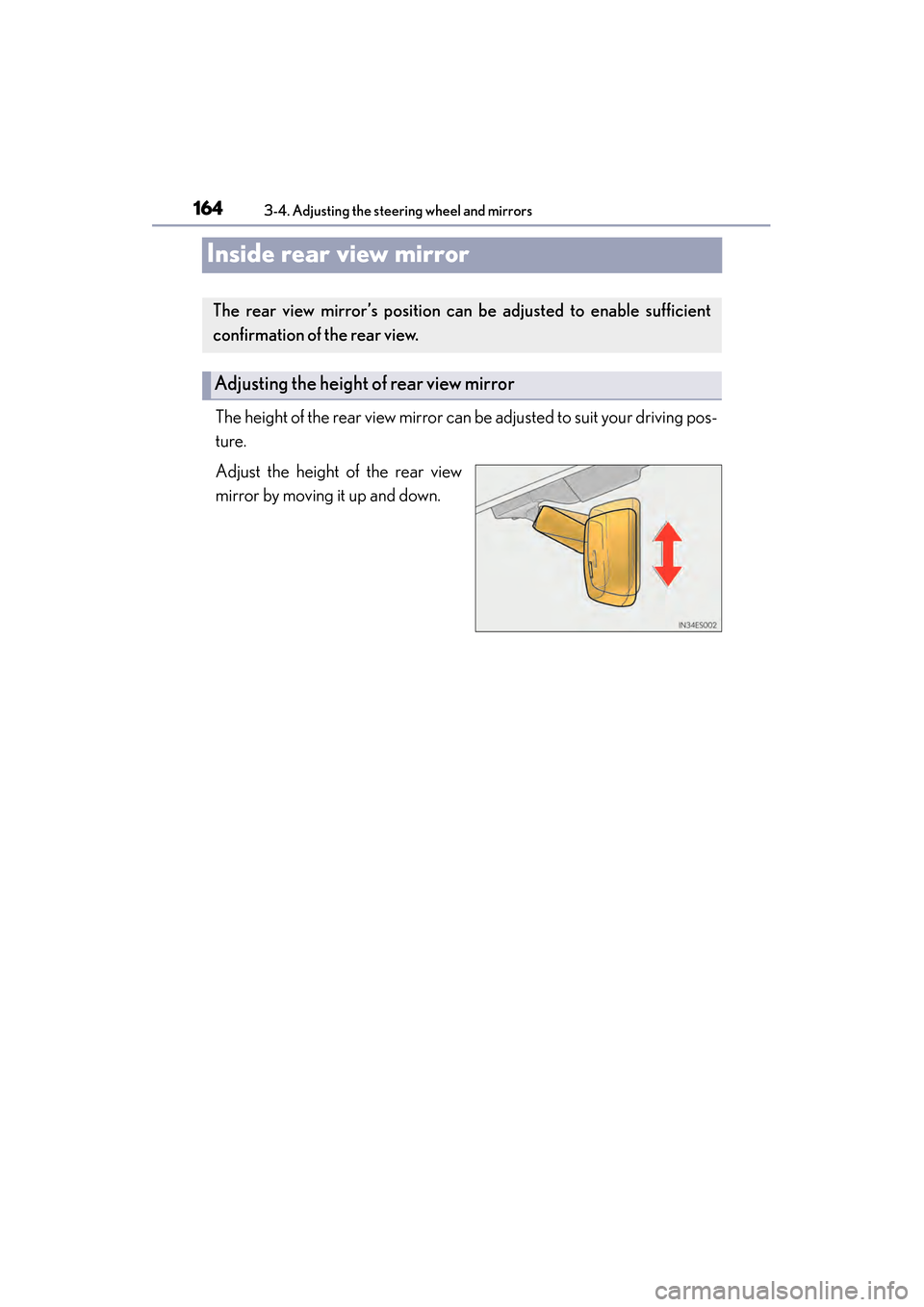

1643-4. Adjusting the steering wheel and mirrors
ES350 300h_OM_OM33A01U_(U)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view.
Adjusting the height of rear view mirror

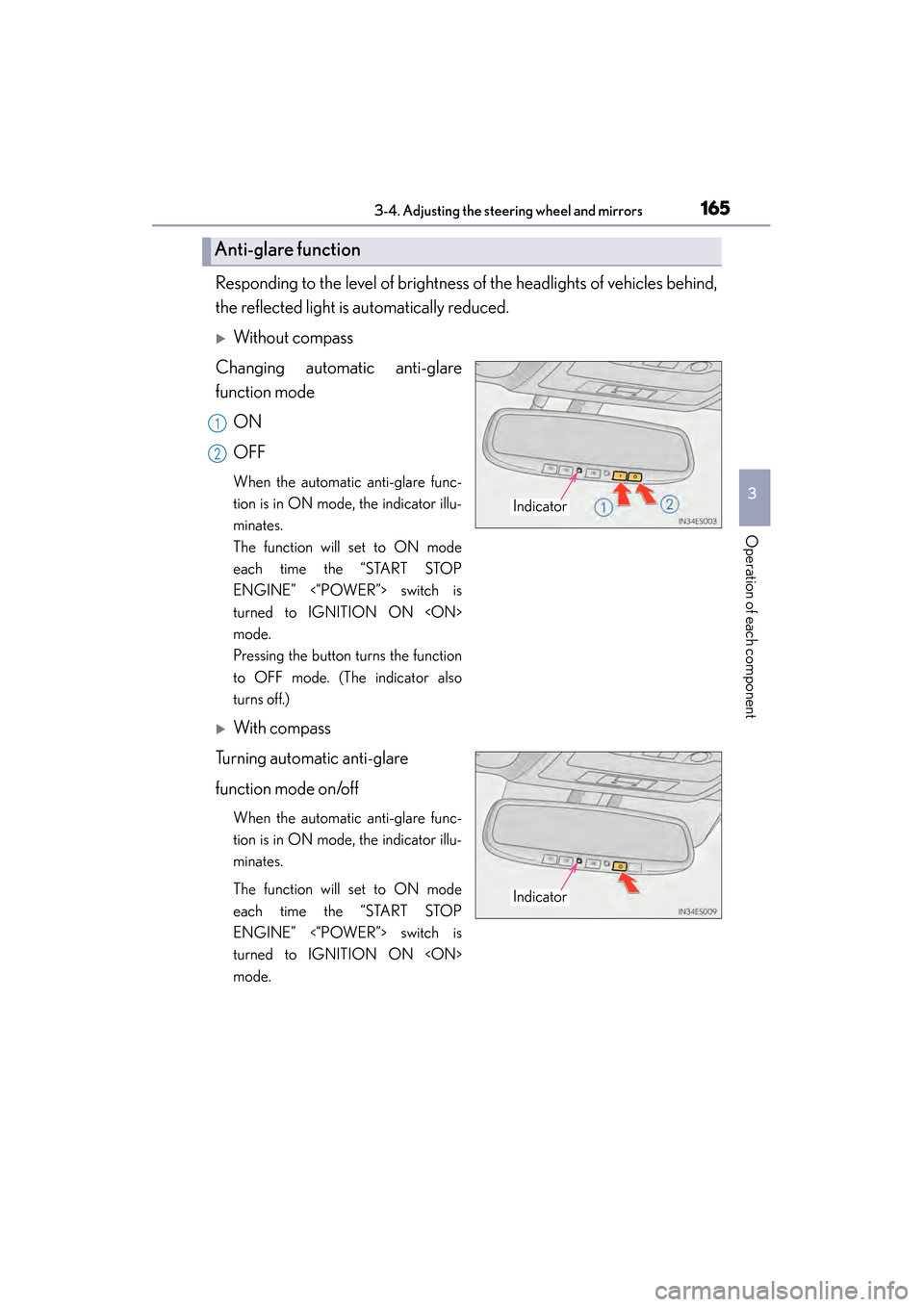

1653-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350 300h_OM_OM33A01U_(U)
Responding to the level of brightness of the headlights of vehicles behind,
the reflected light is automatically reduced.
XWithout compass
Changing automatic anti-glare
function mode
ON
OFF
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the “START STOP
ENGINE” <“POWER”> switch is
turned to IGNITION ON
mode.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
XWith compass
Turning automatic anti-glare
function mode on/off
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the “START STOP
ENGINE” <“POWER”> switch is
turned to IGNITION ON
mode.
Anti-glare function
Indicator
1
2
Indicator

1663-4. Adjusting the steering wheel and mirrors
ES350 300h_OM_OM33A01U_(U)
■To prevent sensor error
To ensure that the sensors operate properly,
do not touch or cover them.
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.

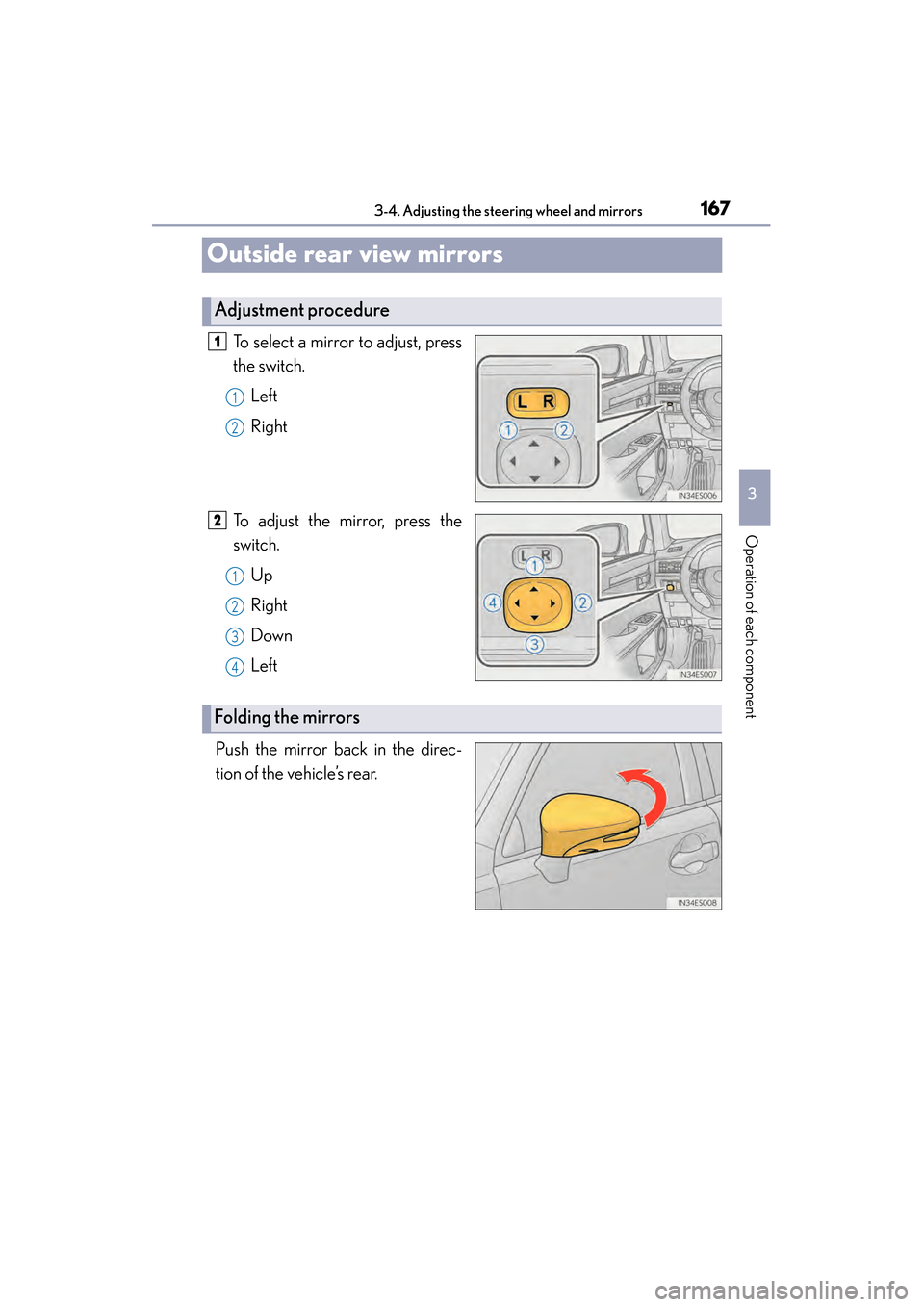

1673-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350 300h_OM_OM33A01U_(U)
Outside rear view mirrors
To select a mirror to adjust, press
the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Push the mirror back in the direc-
tion of the vehicle’s rear.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding the mirrors

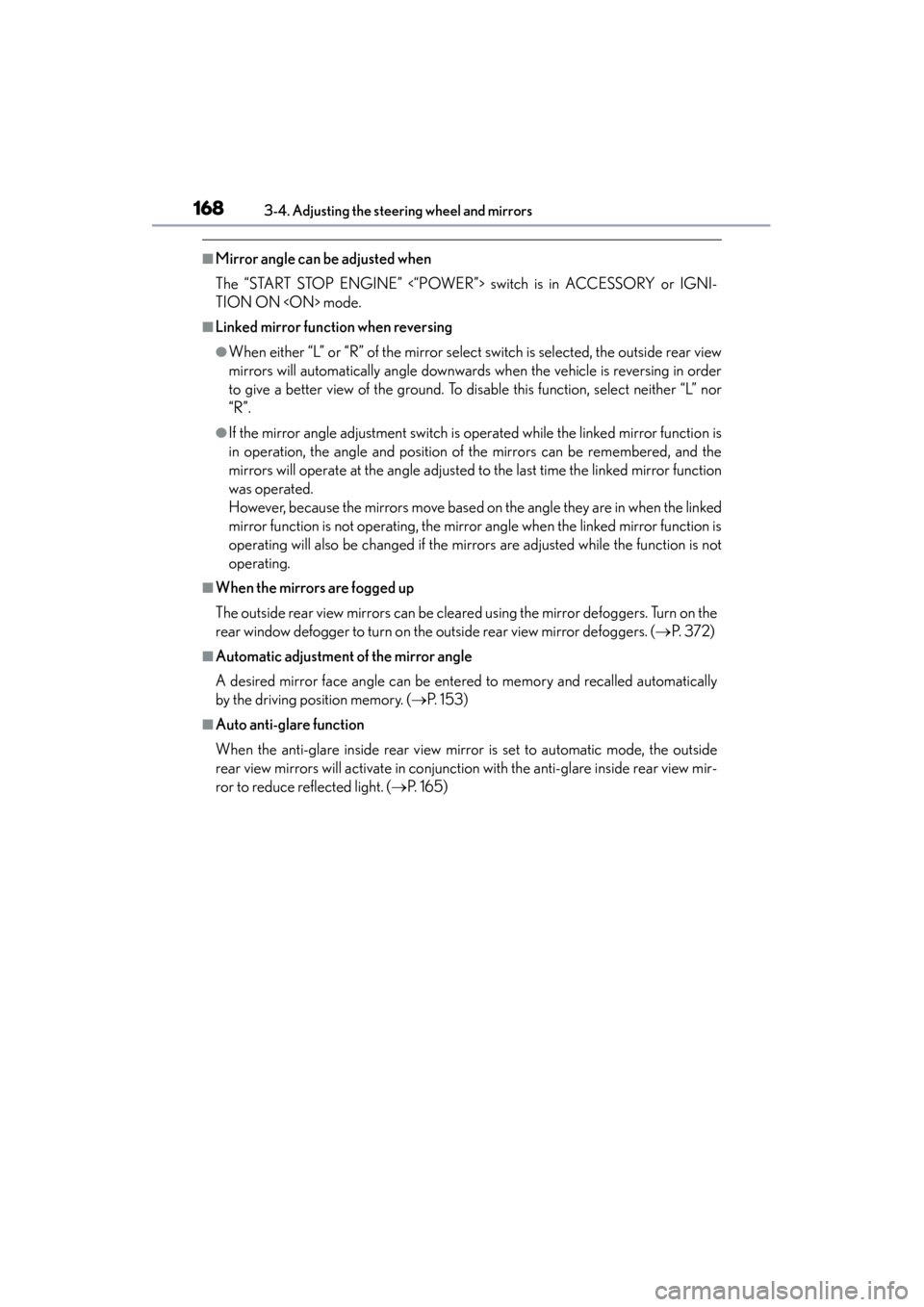

1683-4. Adjusting the steering wheel and mirrors
ES350 300h_OM_OM33A01U_(U)
■Mirror angle can be adjusted when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI-
TION ON mode.
■Linked mirror function when reversing
●When either “L” or “R” of the mirror select switch is selected, the outside rear view
mirrors will automatically angle downwards when the vehicle is reversing in order
to give a better view of the ground. To disable this function, select neither “L” nor
“R”.
●If the mirror angle adjustment switch is operated while the linked mirror function is
in operation, the angle and position of the mirrors can be remembered, and the
mirrors will operate at the angle adjusted to the last time the linked mirror function
was operated.
However, because the mirrors move based on the angle they are in when the linked
mirror function is not operating, the mirror angle when the linked mirror function is
operating will also be changed if the mirrors are adjusted while the function is not
operating.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. (→P. 3 7 2 )
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 1 5 3 )
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 1 6 5 )

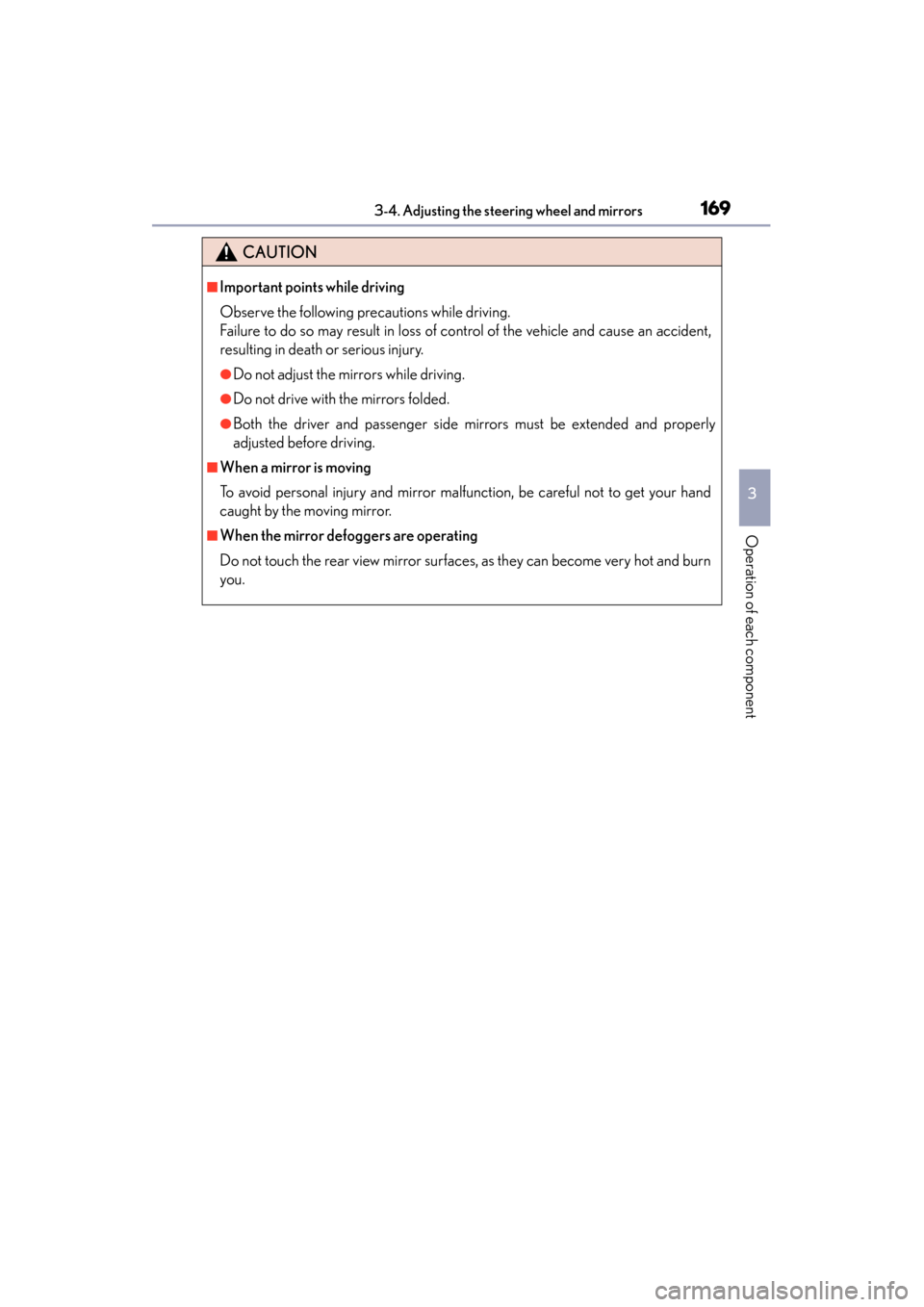

1693-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350 300h_OM_OM33A01U_(U)
CAUTION
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
