disc Lexus ES300h 2013 Owner's Manual

TABLE OF CONTENTS4
ES350 300h_OM_OM33A01U_(U)5-1. Lexus Display Audio system
Lexus Display Audio system .......................................... 334
Display settings........................... 339
Setup menu ....................................341
5-2. Using the air conditioning system and defogger
Automatic air conditioning system (with the Lexus
Display Audio system).......... 347
Automatic air conditioning system (without a navigation
system or the Lexus
Display Audio system).......... 359
Rear window and outside rear view mirror defoggers ...........372
Windshield wiper de-icer........ 374 5-3. Using the Lexus
Display Audio system
Audio system (with the Lexus Display Audio system)........... 376
Using the radio ............................379
Using the CD player ................ 394
Playing an audio CD and MP3/WMA discs .................. 395
Listening to an iPod................... 405
Listening to a USB memory ..........................413
Using the AUX port ..................422
Listening to Bluetooth
® audio ....................424
Optimal use of the audio system ..................... 439
Using the steering wheel audio switches............................ 441
Hands-free system (for cellular phone) ................ 444
Using the Bluetooth
®
phone ............................................452
Setting the hands-free system ............................................ 471
Bluetooth
® settings .................. 484
5Interior features

5
1
8 7
6
5
4
3
2
ES350 300h_OM_OM33A01U_(U)
9
5-4. Using the audio systemAudio system (without a navigation system or
the Lexus Display
Audio system) .......................... 493
Using the radio ........................... 496
Using the CD player ................505
Playing MP3 and WMA discs .................................514
Operating an iPod..................... 522
Operating a USB memory .... 532
Bluetooth
® audio system .........541
Using the Bluetooth
®
audio system ............................. 545
Operating a Bluetooth
®
enabled portable player....... 550
Setting up a Bluetooth
®
enabled portable player....... 554
Bluetooth
® audio
system setup ...............................561
Optimal use of the audio system ............................. 562
Using the AUX port ................. 564
Using the steering wheel audio switches.......................... 565
Hands-free system (for cellular phone) ................568
Using the hands-free system (for cellular phones) ...............573
Making a phone call .................. 581
Setting a cellular phone ..........585
Security and system setup...... 590
Using the phone book ............. 595 5-5. Using the interior lights
Interior lights list ......................... 603• Interior light............................ 604
• Personal lights ....................... 604
5-6. Using the storage features List of storage features ............ 606• Glove box ...............................608
• Console box .......................... 609
• Cup holders .............................610
• Auxiliary box............................. 611
Trunk features ................................ 612
5-7. Other interior features Sun visors and vanity mirrors ..................... 614
Clock ................................................615
Power outlets ................................. 616
Heated steering wheel ..............618
Seat heaters/ seat ventilators ......................... 620
Armrest...........................................622
Rear sunshade/ rear door sunshades.............. 623
Trunk storage extension ...........626
Coat hooks .................................... 627
Assist grips ................................... 628
Garage door opener ............... 629
Compass ....................................... 636
Safety Connect.............................641

7
1
8 7
6
5
4
3
2
ES350 300h_OM_OM33A01U_(U)
9
If the 12-volt battery is discharged (gasoline
vehicles)......................................805
If the 12-volt battery is discharged (hybrid
vehicles)......................................809
If your vehicle overheats (gasoline vehicles)................... 813
If your vehicle overheats (hybrid vehicles) ....................... 816
If the vehicle becomes stuck .............................................820
8-1. Specifications Maintenance data (fuel, oil level, etc.) .................. 824
Fuel information.......................... 837
Tire information...........................840
8-2. Customization Customizable features ............ 852
8-3. Items to initialize Items to initialize .........................865 Reporting safety defects
for U.S. owners.....................................868
Seat belt instructions for Canadian owners
(in French) .............................................. 869
SRS airbag instructions for Canadian owners
(in French) ................................................871
What to do if... (Troubleshooting) ............................... 882
Alphabetical index ............................... 888
8Vehicle specifications
9For owners
Index
For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual” for information regarding the equipment listed below. • Navigation system
• Air conditioning controls
• Windshield wiper de-icer
• Audio/video system
• Rear window and outside rear view mirror defogging
• Lexus Enform with Safety Connect

10
ES350 300h_OM_OM33A01U_(U)Your Lexus is equipped with several sophisticated computers that will record certain
data, such as:
• Engine speed
• Electric motor speed (traction motor speed) (hybrid vehicles)
• Accelerator status
• Brake status
• Vehicle speed
•Shift position
• Hybrid battery (traction battery) status (hybrid vehicles)
The recorded data varies according to the vehicle grade level and options with which
it is equipped. Furthermore, these computers do not record conversations, sounds or
pictures.
●Data usage
Lexus may use the data recorded in these computers to diagnose malfunctions,
conduct research and development, and improve quality.
Lexus will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a government agency
• For use by Lexus in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner
●Usage of data collected through Safety Connect / Lexus Enform (U.S. mainland
only)
If your Lexus has Safety Connect or Lexus Enform and if you have subscribed to
those services, please refer to the Safety Connect / Lexus Enform Telematics Sub-
scription Service Agreement for information on data collected and its usage.
Vehicle data recordings

ES350 300h_OM_OM33A01U_(U)
11
This vehicle is equipped with an event data recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal;and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under normal driving conditions and no
personal data (e.g., name, gender, age, and crash location) are recorded. However,
other parties, such as law enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information
if they have access to the vehicle or the EDR.
●Disclosure of the EDR data
Lexus will not disclose the data recorded in an EDR to a third party except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained
• In response to an official request by the police, a court of law or a government agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing infor- mation about the specific vehicle or vehicle owner
Event data recorder

521-1. For safe use
ES350 300h_OM_OM33A01U_(U)

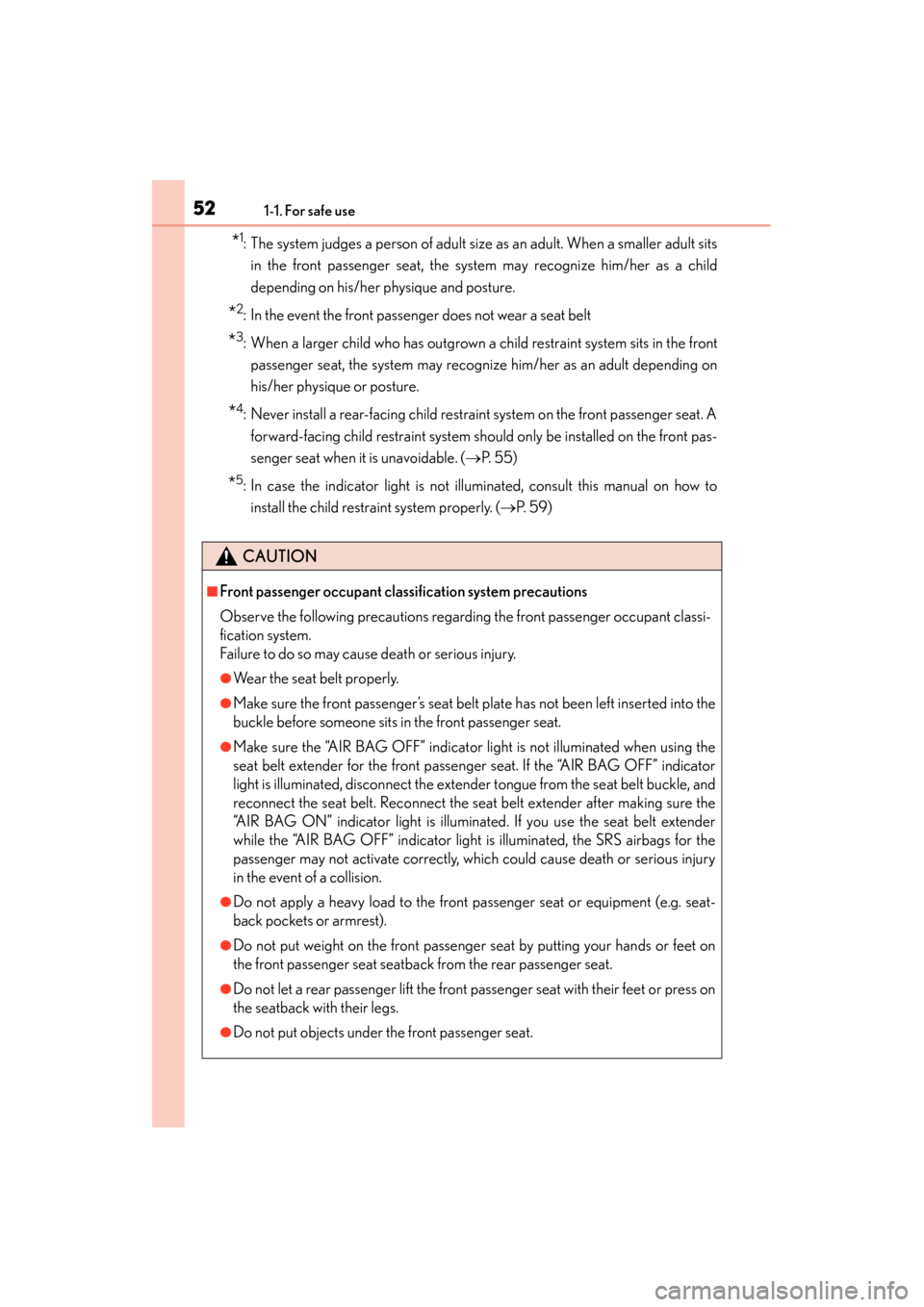

*1: The system judges a person of adult size as an adult. When a smaller adult sitsin the front passenger seat, the system may recognize him/her as a child
depending on his/her physique and posture.
*2: In the event the front passenger does not wear a seat belt
*3: When a larger child who has outgrown a child restraint system sits in the frontpassenger seat, the system may recognize him/her as an adult depending on
his/her physique or posture.
*4: Never install a rear-facing child restraint system on the front passenger seat. A
forward-facing child restraint system should only be installed on the front pas-
senger seat when it is unavoidable. ( →P. 5 5 )
*5: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. ( →P. 5 9 )
CAUTION
■Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant classi-
fication system.
Failure to do so may cause death or serious injury.
●Wear the seat belt properly.
●Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.
●Make sure the “AIR BAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle, and
reconnect the seat belt. Reconnect the seat belt extender after making sure the
“AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the
passenger may not activate correctly, which could cause death or serious injury
in the event of a collision.
●Do not apply a heavy load to the front passenger seat or equipment (e.g. seat-
back pockets or armrest).
●Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
●Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
●Do not put objects under the front passenger seat.

721-2. Hybrid system
ES350 300h_OM_OM33A01U_(U)

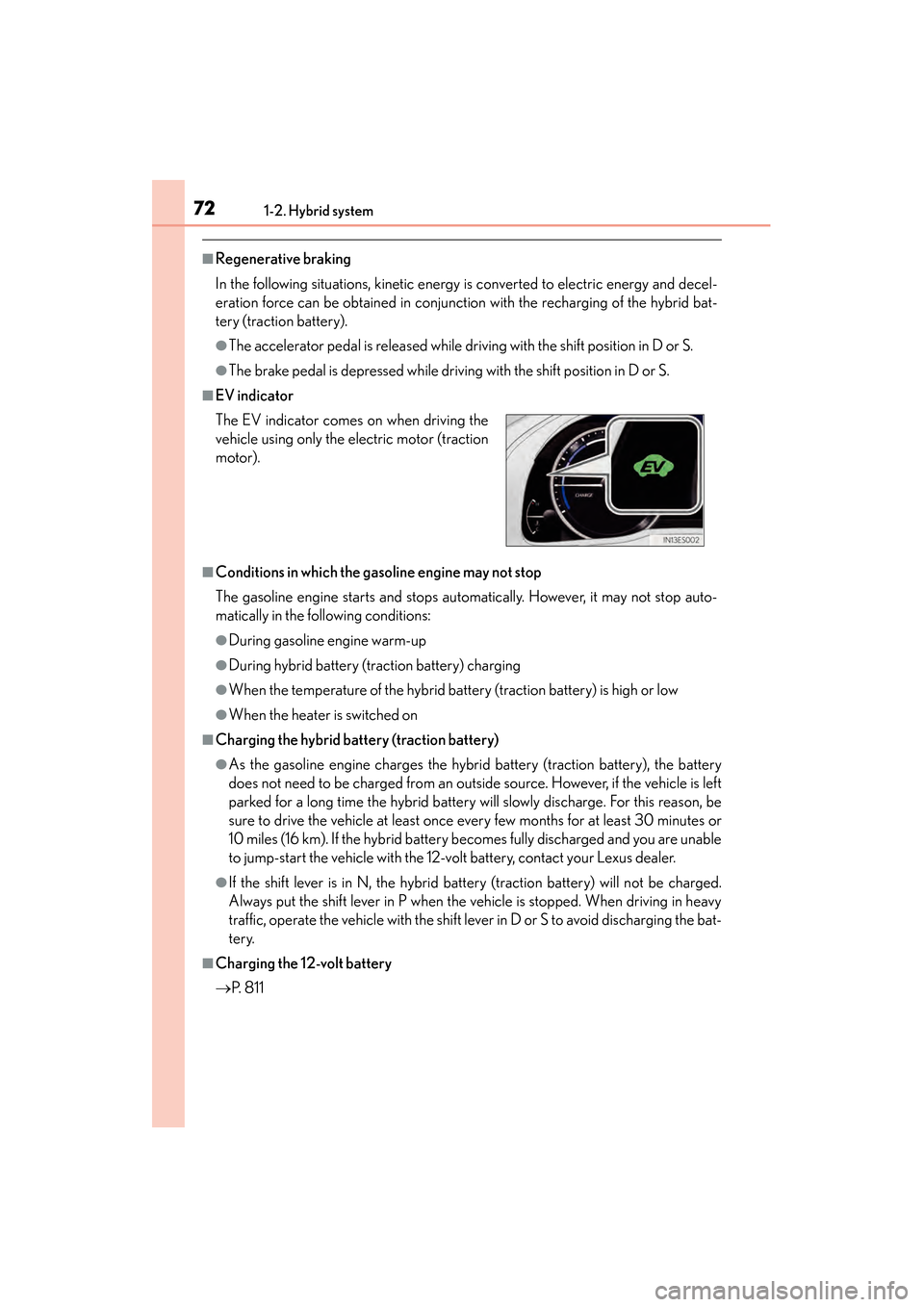

■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and decel-
eration force can be obtained in conjunction with the recharging of the hybrid bat-
tery (traction battery).
●The accelerator pedal is released while driving with the shift position in D or S.
●The brake pedal is depressed while driving with the shift position in D or S.
■EV indicator
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop auto-
matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the heater is switched on
■Charging the hybrid battery (traction battery)
●As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is left
parked for a long time the hybrid battery will slowly discharge. For this reason, be
sure to drive the vehicle at least once every few months for at least 30 minutes or
10 miles (16 km). If the hybrid battery becomes fully discharged and you are unable
to jump-start the vehicle with the 12-volt battery, contact your Lexus dealer.
●If the shift lever is in N, the hybrid battery (traction battery) will not be charged.
Always put the shift lever in P when the vehicle is stopped. When driving in heavy
traffic, operate the vehicle with the shift lever in D or S to avoid discharging the bat-
tery.
■Charging the 12-volt battery
→P. 8 1 1
The EV indicator comes on when driving the
vehicle using only the electric motor (traction
motor).

731-2. Hybrid system
ES350 300h_OM_OM33A01U_(U)
1
For safety and security

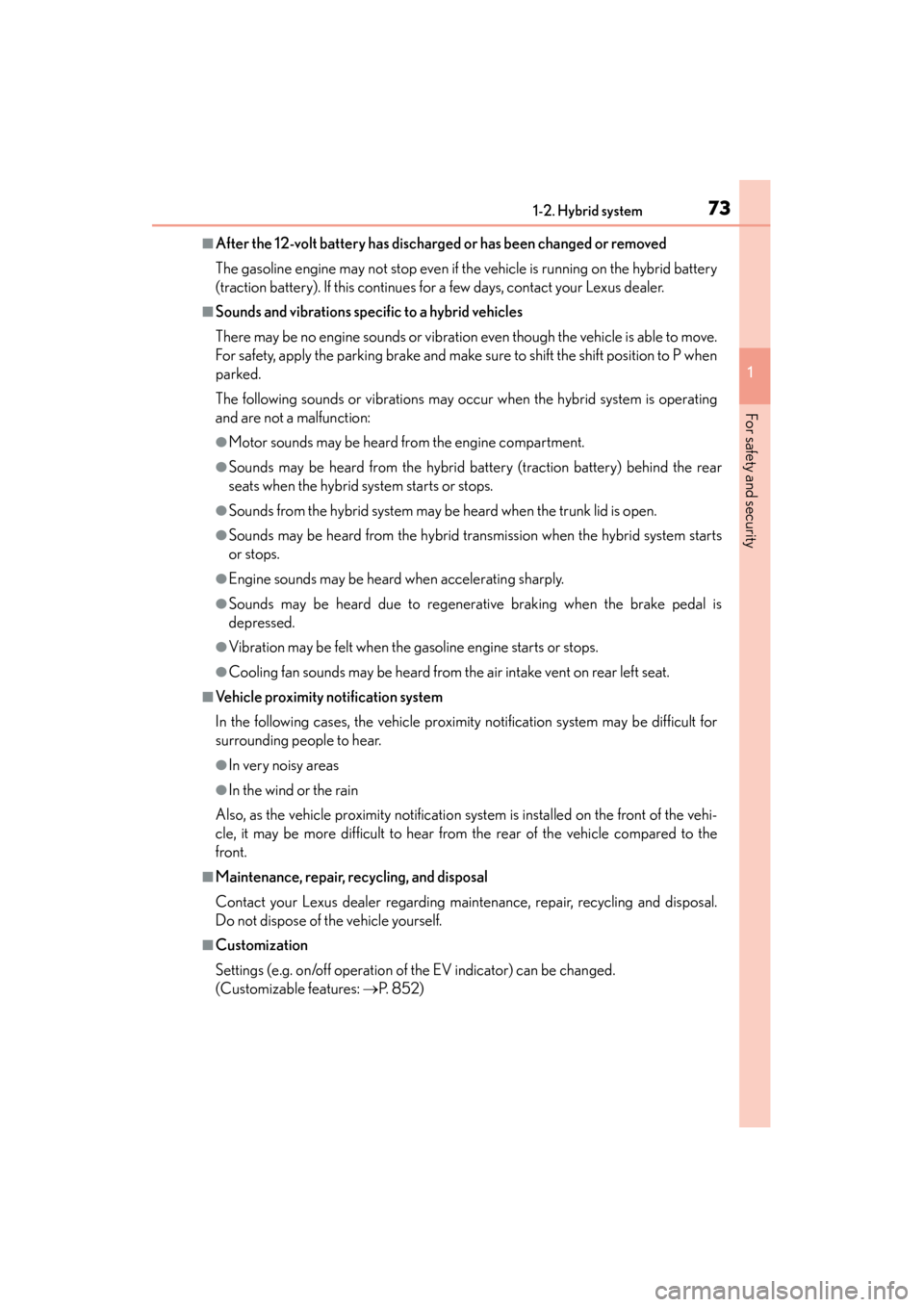

■After the 12-volt battery has discharged or has been changed or removed
The gasoline engine may not stop even if the vehicle is running on the hybrid battery
(traction battery). If this continues for a few days, contact your Lexus dealer.
■Sounds and vibrations specific to a hybrid vehicles
There may be no engine sounds or vibration even though the vehicle is able to move.
For safety, apply the parking brake and make sure to shift the shift position to P when
parked.
The following sounds or vibrations may occur when the hybrid system is operating
and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear
seats when the hybrid system starts or stops.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the hybrid transmission when the hybrid system starts
or stops.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the brake pedal is
depressed.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vent on rear left seat.
■Vehicle proximity notification system
In the following cases, the vehicle proximity notification system may be difficult for
surrounding people to hear.
●In very noisy areas
●In the wind or the rain
Also, as the vehicle proximity notification system is installed on the front of the vehi-
cle, it may be more difficult to hear from the rear of the vehicle compared to the
front.
■Maintenance, repair, recycling, and disposal
Contact your Lexus dealer regarding maintenance, repair, recycling and disposal.
Do not dispose of the vehicle yourself.
■Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features: → P. 8 5 2 )

761-2. Hybrid system
ES350 300h_OM_OM33A01U_(U)
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is
disconnected
The hybrid system may not start. In that case, try to start the system again. If the
“READY” indicator does not come on, contact your Lexus dealer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel
the vehicle with at least enough gasoline to make the low fuel level warning light
( → P. 754) go off. If there is only a small amount of fuel, the hybrid system may not be
able to start. (The minimum amount of fuel to add to make the low fuel level warning
light go out is about 3.0 gal. [11.3 L, 2.5 Imp.gal.], when the vehicle is on a level sur-
face. This value may vary when the vehicle is on a slope.)
■Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electromagnetic
shielding, and therefore emit approximately the same amount of electromagnetic
waves as conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio
parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybrid battery (traction battery) can change in accordance with driving style and
driving conditions.

ES350 300h_OM_OM33A01U_(U)
1072. Instrument cluster
2

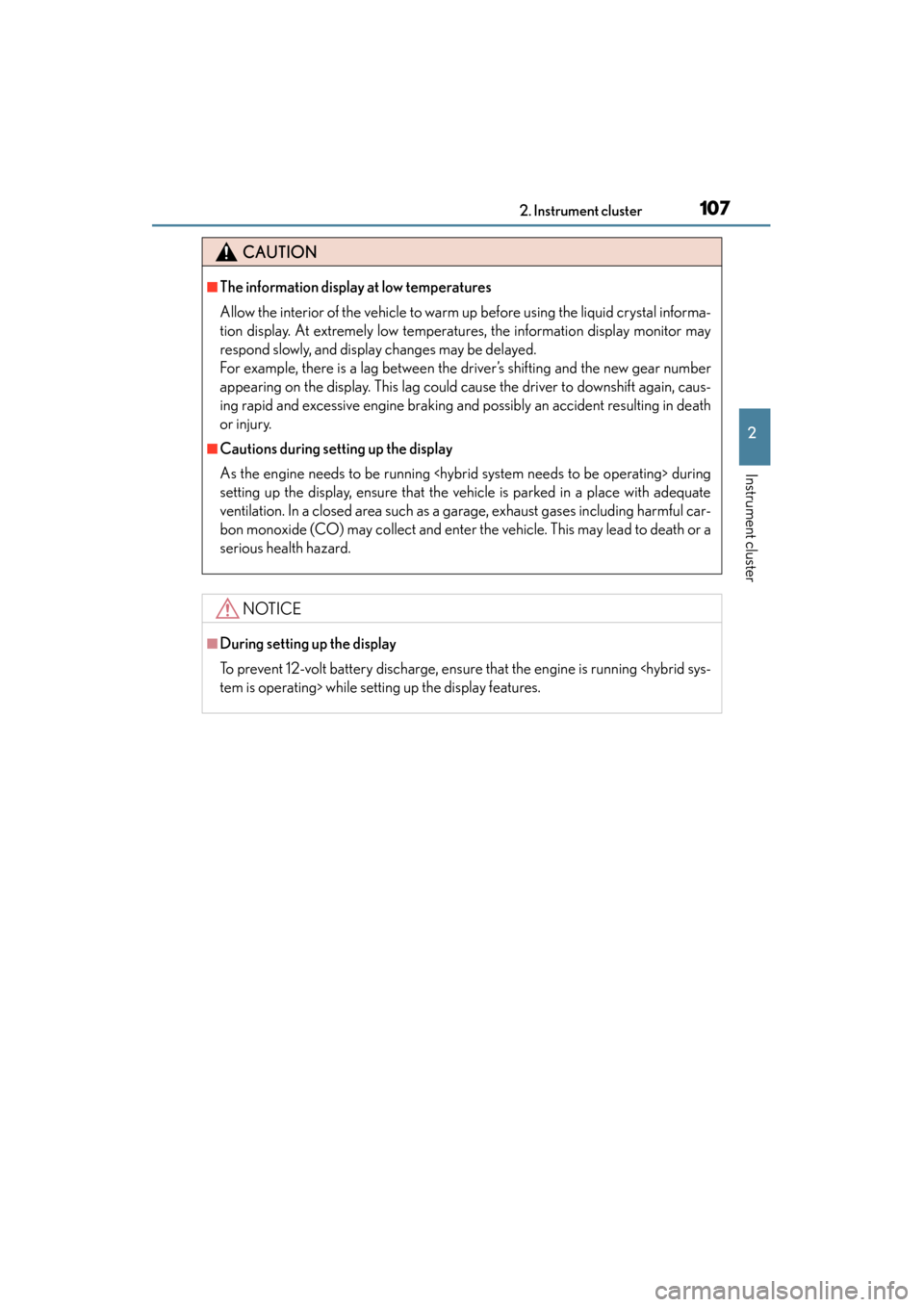

Instrument cluster
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during
setting up the display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the engine is running tem is operating> while setting up the display features.
