audio Lexus ES300h 2014 Instrument cluster / Owner's Manual (OM33A60U)

528
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
●MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc are first
checked. Once the file check is finished, the first MP3 or WMA file is played. To
make the file check finish more quickly, we recommend you do not write in any
files other than MP3 or WMA files or create any unnecessary folders.
Discs that contain a mixture of music data and MP3 or WMA format data cannot
be played.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be mistakenly recognized and played as MP3 and WMA files. This
may result in large amounts of interference and damage to the speakers.
●Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate of atleast 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and the
file format, poor sound quality or noise at the start of playback may result. In
some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may take more time to recognize the disc and in some cases, playback may not be possi-
ble at all.
• Microsoft, Windows, and Windows Me dia are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
NOTICE
■CDs and adapters that cannot be used
P. 5 1 9
■CD player precautions
P. 5 2 0

529
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
5
Interior features
Operating an iPod
Ty p e A
Connecting an iPod enables you to enjoy music from the vehicle speak-
ers.
Playback button
Song selector button
iPod menu/Song selector knob
Go back button
Playback/Pause button Repeat play button
Shuffle playback button
Text button
Po w e r
Vo l u m e1
2
3
4
5
6
7
8
9
10

530
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Ty p e B
Playback button
Song selector button
iPod menu/Song selector knob
Go back button
Playback/Pause buttonRepeat play button
Shuffle playback button
Text button
Po w e r
Vo l u m e1
2
3
4
5
6
7
8
9
10

ES350_300h_OM_OM33A60U_(U)
5315-4. Using the audio system
5
Interior features
Push the knob to release the lock,
and lift the armrest to open fully.
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if it is not
turned on.
Press or .
Connecting an iPod
1
2
3

532
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system

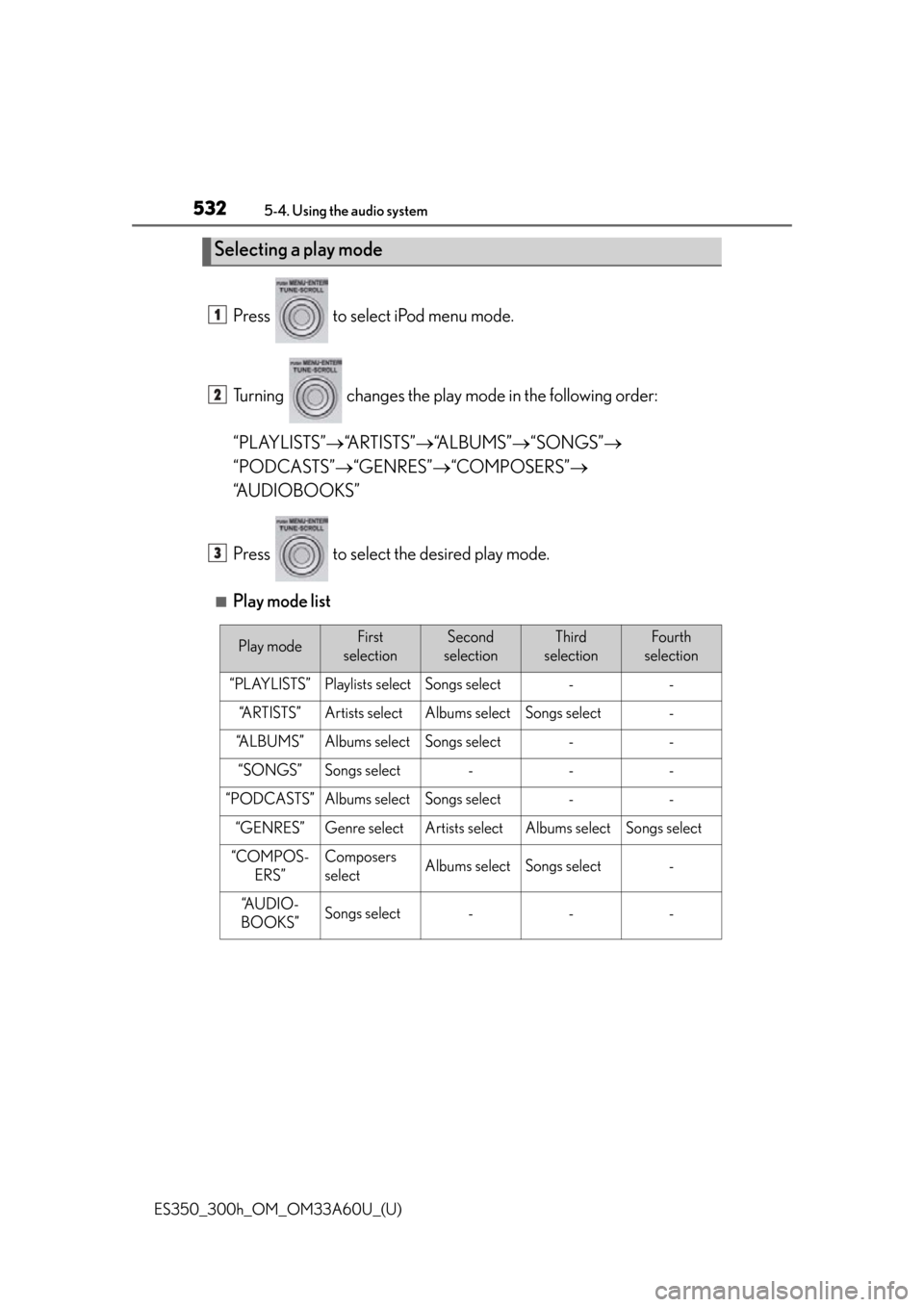

Press to select iPod menu mode.
Turning changes the play mode in the following order:
“PLAYLISTS” “ARTISTS” “ALBUMS” “SONGS” 
“PODCASTS” “GENRES” “COMPOSERS” 
“AUDIOBOOKS”
Press to select the desired play mode.
■Play mode list
Selecting a play mode
1
2
3
Play modeFirst
selectionSecond
selectionThird
selectionFour th
selection
“PLAYLISTS”Playlists selectSongs select--
“A R T I S T S ”Artists selectAlbums selectSongs select-
“A L B U M S ”Albums selectSongs select--
“SONGS”Songs select---
“PODCASTS”Albums selectSongs select--
“GENRES”Genre selectArtists selectAlbums selectSongs select
“COMPOS- ERS”Composers
selectAlbums selectSongs select-
“A U D I O -
BOOKS”Songs select---

ES350_300h_OM_OM33A60U_(U)
5335-4. Using the audio system
5
Interior features
■Selecting a listTurn to display the first selection list.
Press to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selectio n list, select “GO BACK” or press .
Turn or press “” or “ ” on to select the desired song.
Selecting songs
1
2
3

534
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
To play or pause a song, press .
To fast-forward or reverse, press and hold “” or “ ” on until
you hear a beep.
■Playing songs from one playlist or album in random order
Press .
To cancel, press again.
■Playing songs from all the playlists or albums in random order
Press and hold until you hear a beep.
To cancel, press again.
Press .
To cancel, press again.
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time  Album title  Track title  Artist name
Playing and pausing songs
Fast-forwarding and reversing songs
Shuffle playback
Repeat play
Switching the display

ES350_300h_OM_OM33A60U_(U)
5355-4. Using the audio system
5
Interior features
Press to enter iPod menu mode.
Pressing changes sound modes. (P. 569)
■About iPod
●“Made for iPod” and “Made for iPhone” me an that an electronic accessory has
been designed to connect specifically to iPod, or iPhone, respectively, and has
been certified by the developer to meet Apple performance standards.
●Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.
●iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
■iPod functions
●When an iPod is connected and the audio source is changed to iPod mode, the
iPod will resume play from the same point in which it was last used.
●Depending on the iPod that is connected to the system, certain functions may not
be available. If a function is unavailable due to a malfunction (as opposed to a sys-
tem specification), disconnecting the device and reconnecting it once again may
resolve the problem.
●While connected to the system, the iPod ca nnot be operated with its own controls.
It is necessary to use the controls of the vehicle’s audio system instead.
●When the battery level of an iPod is very low, the iPod may not operate. If so, charge
the iPod before use.
●Supported models ( P. 5 3 7 )
Adjusting sound quality and volume balance
1
2

536
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
■iPod problems
To resolve most problems encountered when using your iPod, disconnect your iPod
from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Manual.
■Display
 P. 5 1 8
■Error messages
“ERROR”:
This indicates a problem in the iPod or its connection.
“NO MUSIC”:
This indicates that there is no music data in the iPod.
“EMPTY”:
This indicates that some available songs are not found in a selected playlist.
“UPDATE”:
This indicates that the version of the iPod is not compatible. Upgrade your iPod soft-
ware to the latest version.

ES350_300h_OM_OM33A60U_(U)
5375-4. Using the audio system
5
Interior features
■Compatible models
The following iPod
®, iPod nano®, iPod classic®, iPod touch® and iPhone® devices
can be used with this system.
●Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
•iPod classic
•iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
•iPhone 4
•iPhone 3GS
•iPhone 3G
•iPhone
Depending on differences between models or software versions etc., some models
might be incompatible with this system.
Items related to standards an d limitations are as follows:
●Maximum number of lists in device: 9999
●Maximum number of songs in device: 65535
●Maximum number of songs per list: 65535
CAUTION
■Caution while driving
Do not connect iPod or operate the controls.
