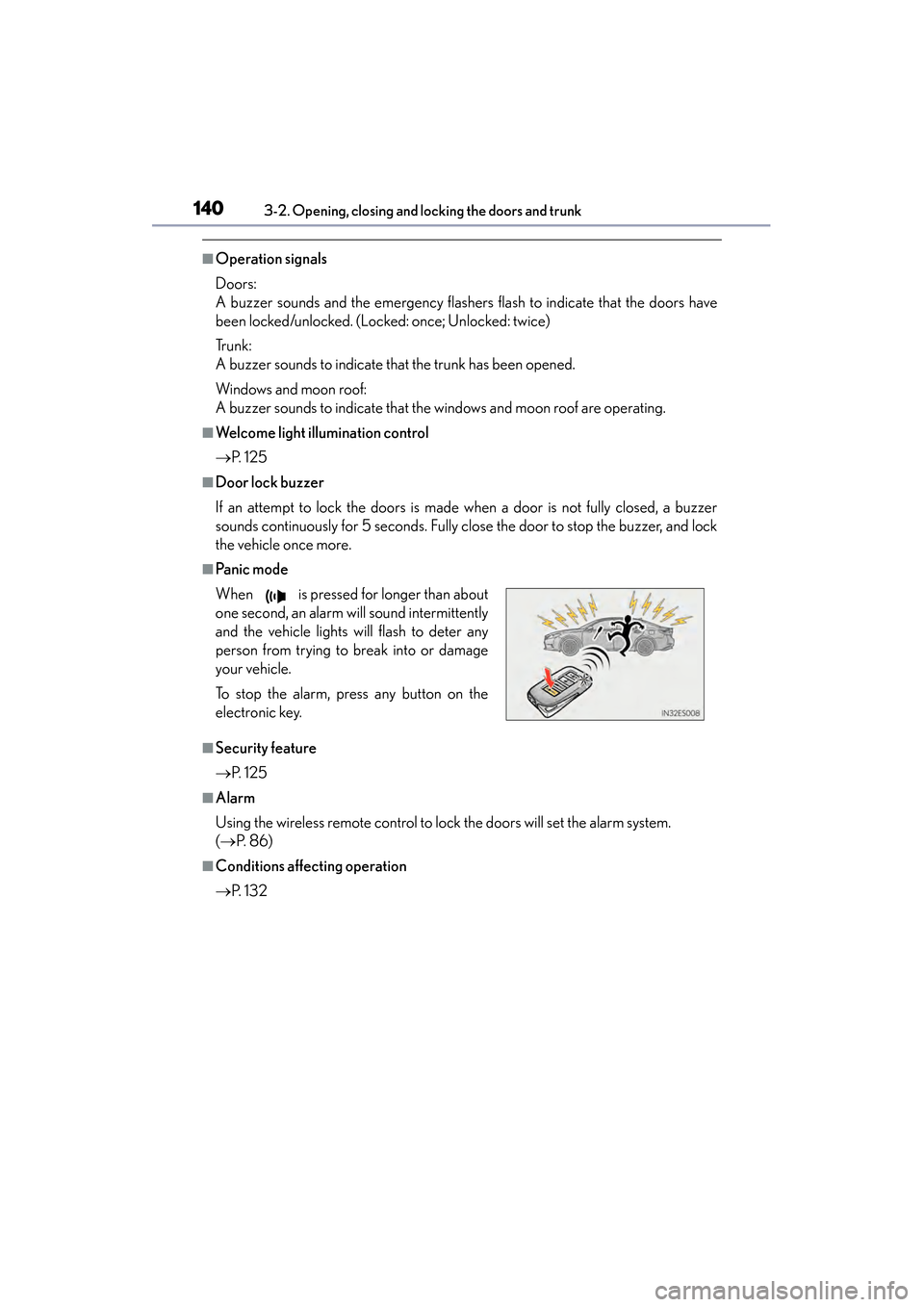

Lexus ES300h 2014 Owner's Manual

140
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
Tr u n k :
A buzzer sounds to indicate that the trunk has been opened.
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are operating.
■Welcome light illumination control
→P. 1 2 5
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously for 5 seconds. Fully cl ose the door to stop the buzzer, and lock
the vehicle once more.
■Pa ni c m o d e
■Security feature
→ P. 1 2 5
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
(→ P. 8 6 )
■Conditions affecting operation
→P. 1 3 2
When is pressed for longer than about
one second, an alarm will sound intermittently
and the vehicle lights will flash to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, press any button on the
electronic key.

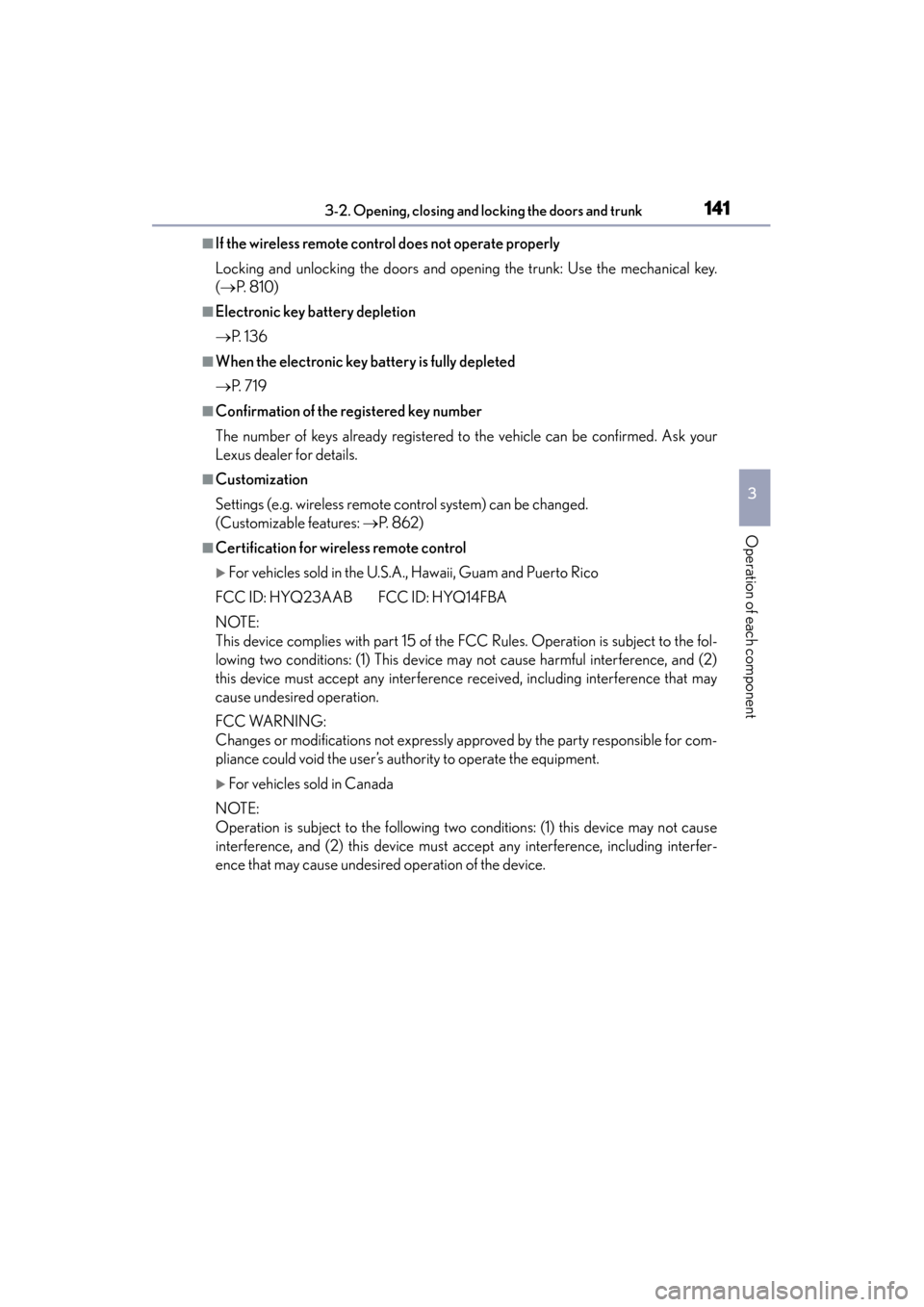

ES350_300h_OM_OM33A60U_(U)
1413-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■If the wireless remote control does not operate properly
Locking and unlocking the doors and opening the trunk: Use the mechanical key.
(→ P. 8 1 0 )
■Electronic key battery depletion
→P. 1 3 6
■When the electronic key battery is fully depleted
→P. 7 1 9
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask your
Lexus dealer for details.
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: → P. 8 6 2 )
■Certification for wireless remote control
XFor vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico
FCC ID: HYQ23AAB FCC ID: HYQ14FBA
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
XFor vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.

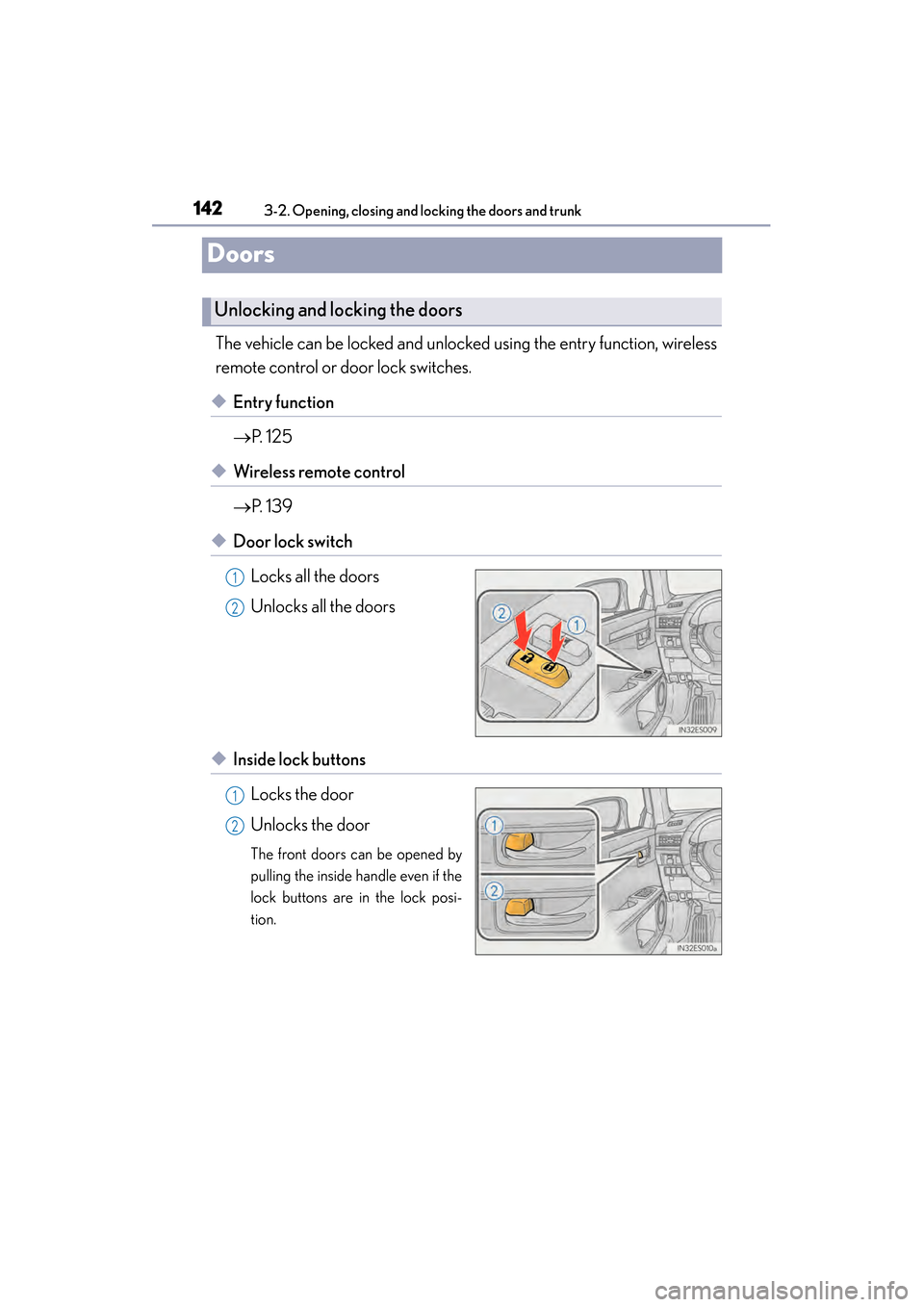

142
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
Doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switches.
◆Entry function
→P. 125
◆Wireless remote control
→P. 1 3 9
◆Door lock switch
Locks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock posi-
tion.
Unlocking and locking the doors
1
2
1
2

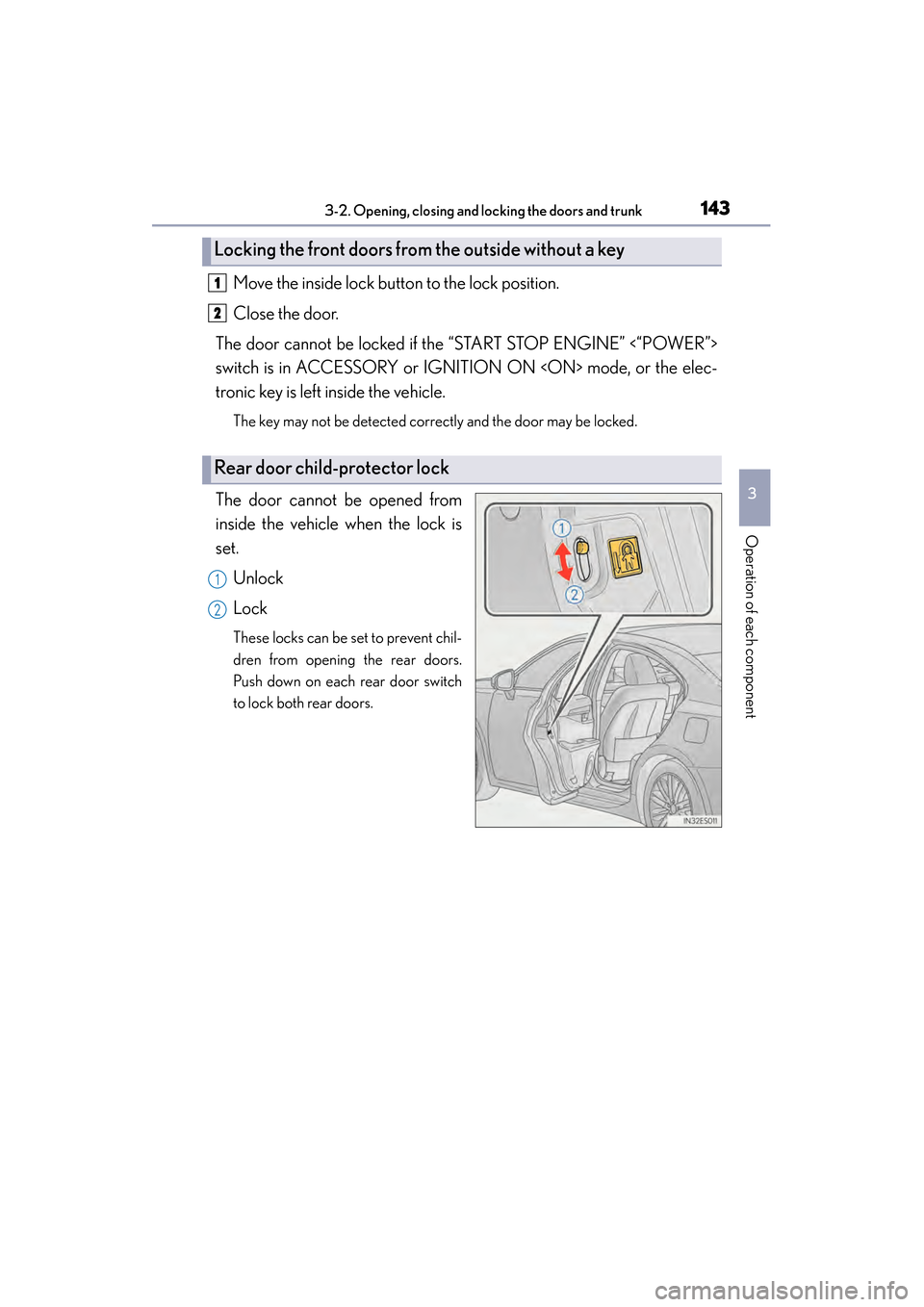

ES350_300h_OM_OM33A60U_(U)
1433-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “START STOP ENGINE” <“POWER”>
switch is in ACCESSORY or IGNITION ON mode, or the elec-
tronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

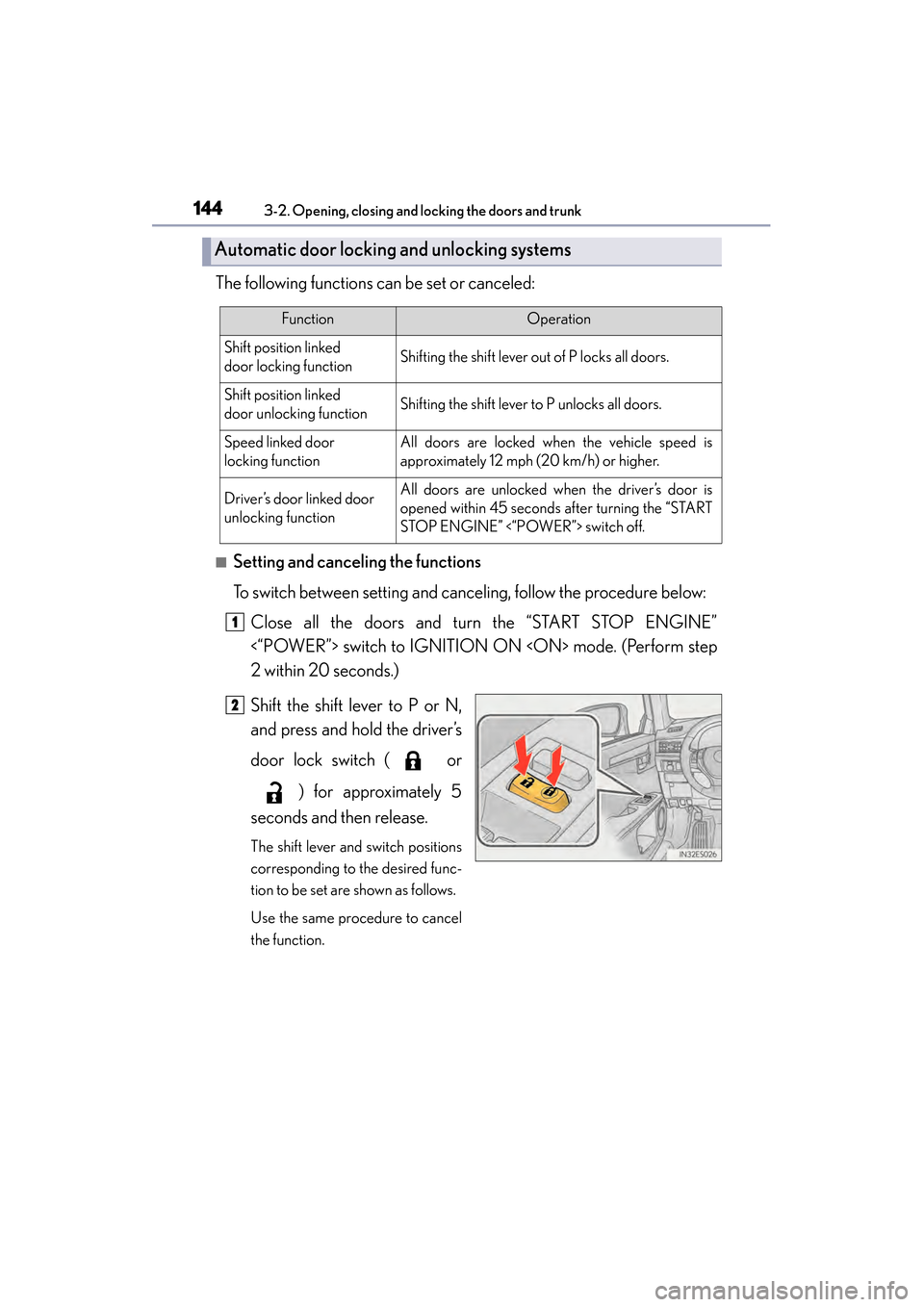

144
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
The following functions can be set or canceled:
■Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:Close all the doors and turn the “START STOP ENGINE”
<“POWER”> switch to IGNITION ON mode. (Perform step
2 within 20 seconds.)
Shift the shift lever to P or N,
and press and hold the driver’s
door lock switch ( or
) for approximately 5
seconds and then release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown as follows.
Use the same procedure to cancel
the function.
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked
door locking functionShifting the shift lever out of P locks all doors.
Shift position linked
door unlocking functionShifting the shift lever to P unlocks all doors.
Speed linked door
locking functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking functionAll doors are unlocked when the driver’s door is
opened within 45 seconds after turning the “START
STOP ENGINE” <“POWER”> switch off.
1
2

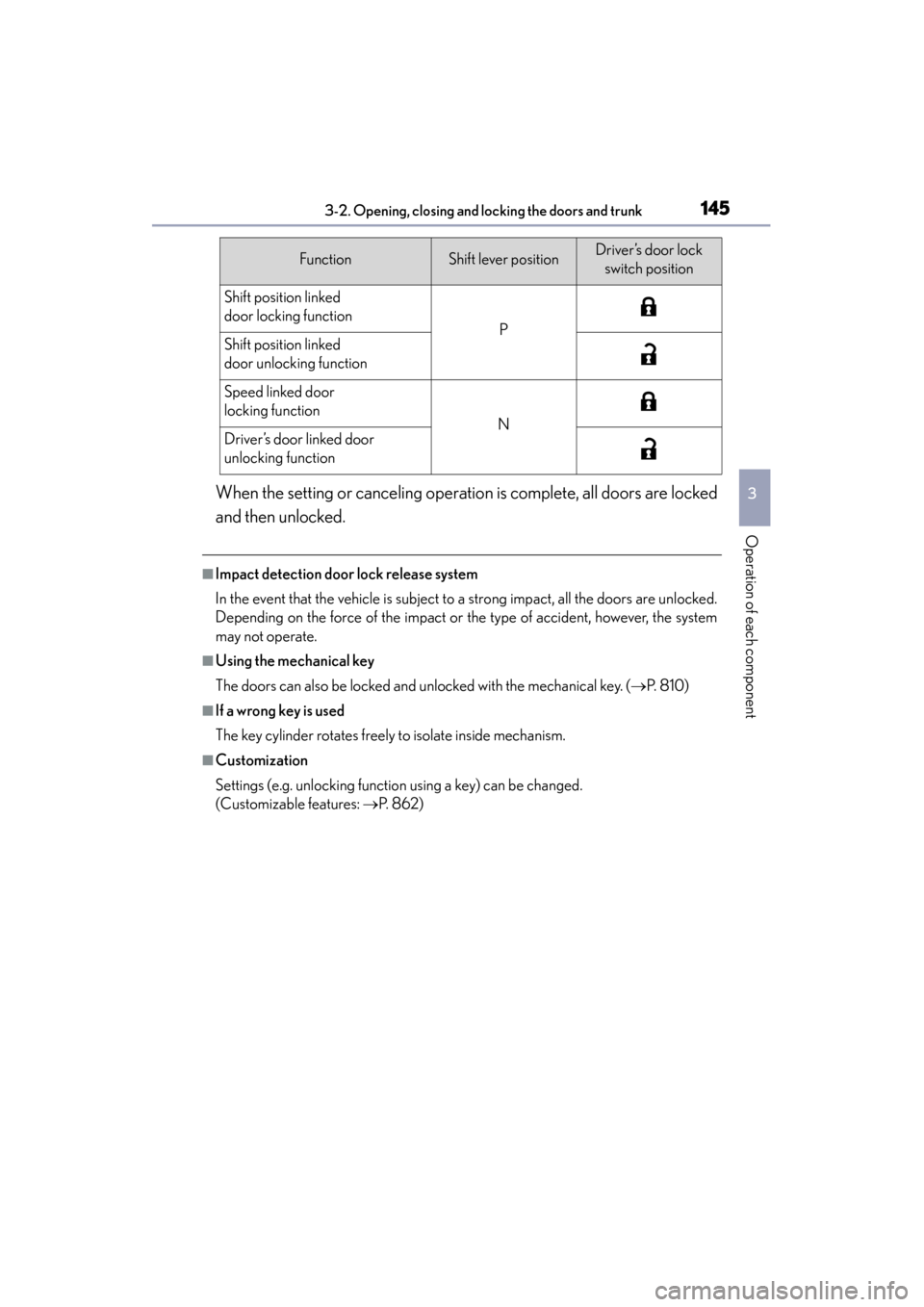

ES350_300h_OM_OM33A60U_(U)
1453-2. Opening, closing and locking the doors and trunk
3
Operation of each component
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 8 1 0 )
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: → P. 8 6 2 )
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked
door locking function
PShift position linked
door unlocking function
Speed linked door
locking function
NDriver’s door linked door
unlocking function

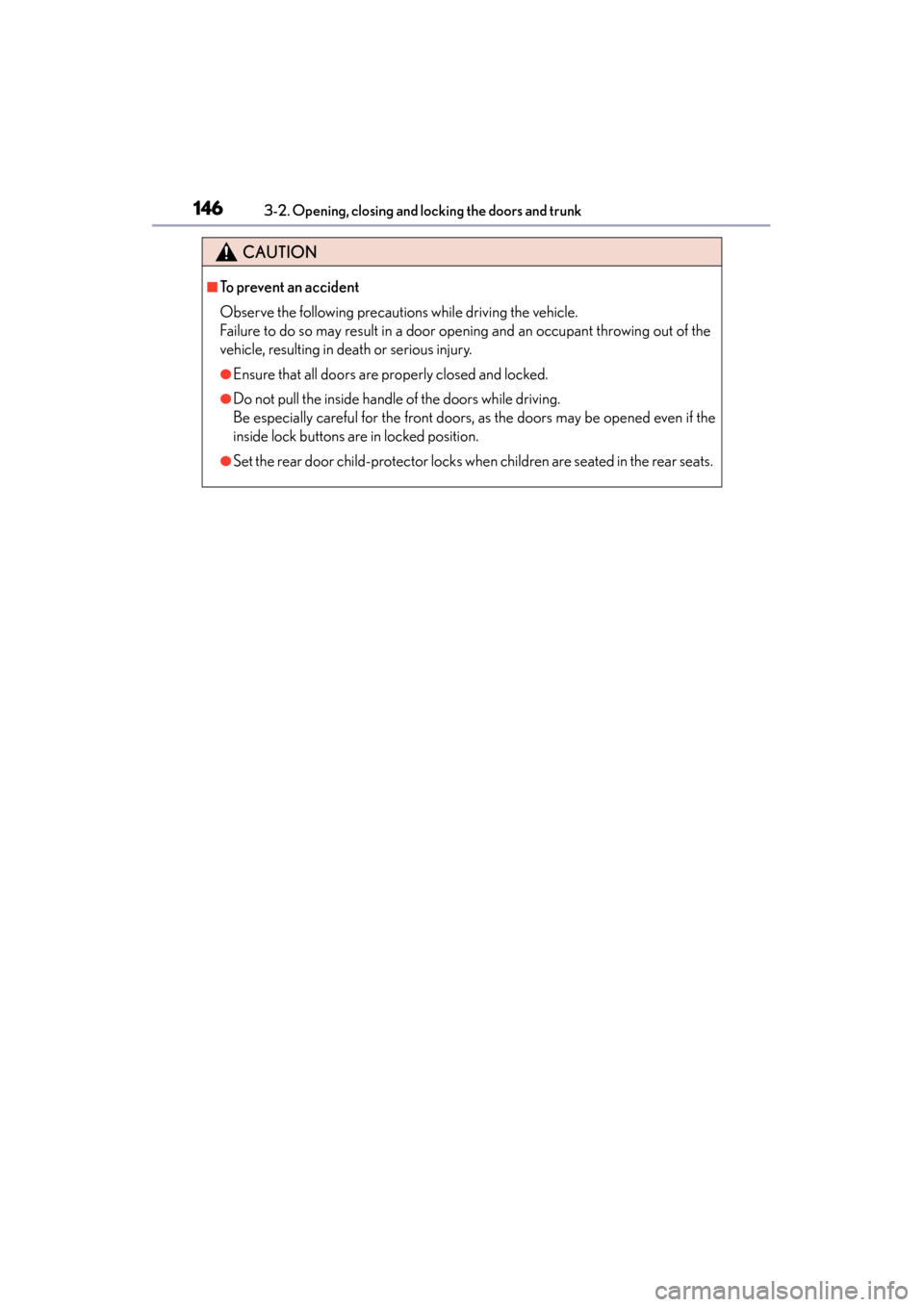

146
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.

147
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
3
Operation of each component

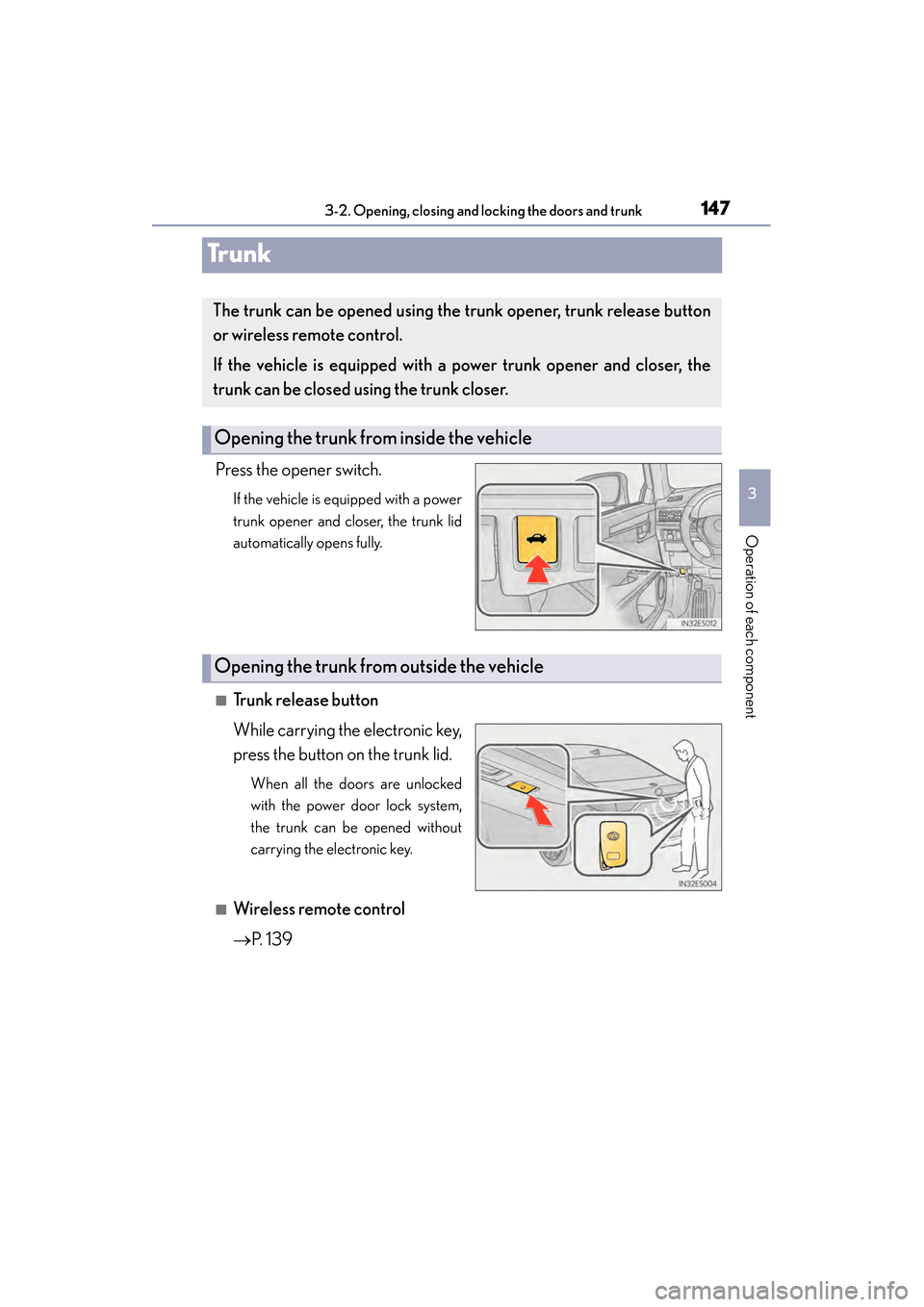

Trunk
Press the opener switch.
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
■Trunk release button
While carrying the electronic key,
press the button on the trunk lid.
When all the doors are unlocked
with the power door lock system,
the trunk can be opened without
carrying the electronic key.
■Wireless remote control
→P. 1 3 9
The trunk can be opened using the trunk opener, trunk release button
or wireless remote control.
If the vehicle is equipped with a power trunk opener and closer, the
trunk can be closed us ing the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

148
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
Pressing the switch closes the trunk
lid automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid
is closing opens the trunk lid again.
Using the trunk grip, lower the trunk
without applying force to the side
and push the trunk down from the
outside to close it.
The trunk opener switch can be temporarily disabled to protect luggage
stored in the trunk against theft.
Turn the main switch in the glove
box off to disable the trunk opener.On
Off
The trunk lid cannot be opened even
with the wireless remote control or the
entry function.
Trunk closer switch (vehicles with power trunk opener and closer)
When closing the trunk
Luggage security system
1
2

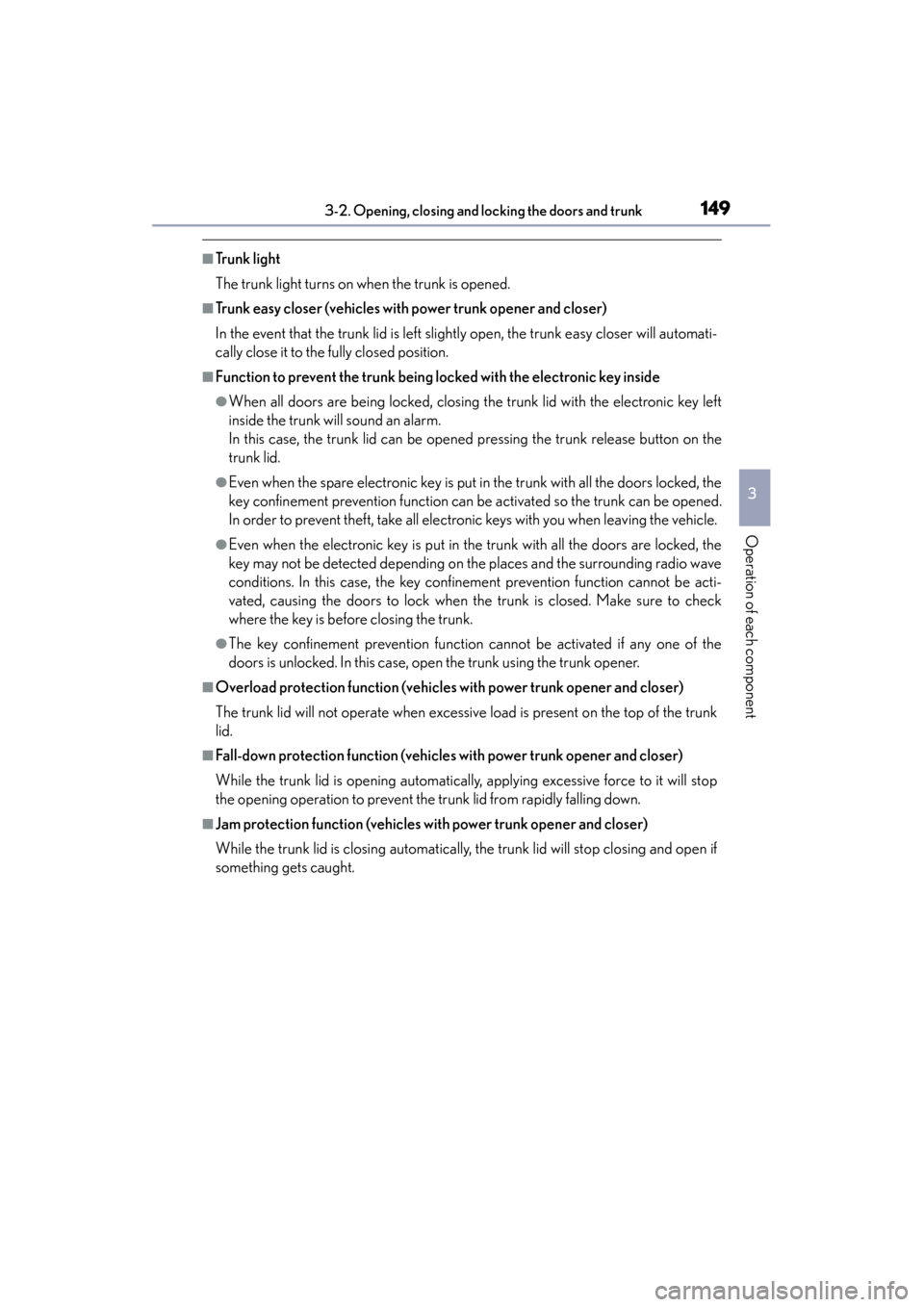

ES350_300h_OM_OM33A60U_(U)
1493-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Trunk light
The trunk light turns on when the trunk is opened.
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electronic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on the places and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be acti-
vated, causing the doors to lock when the trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
■Overload protection function (vehicles with power trunk opener and closer)
The trunk lid will not operate when excessive load is present on the top of the trunk
lid.
■Fall-down protection function (vehicles with power trunk opener and closer)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk opener and closer)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.
