Lexus ES300h 2014 Owner's Manual

160
ES350_300h_OM_OM33A60U_(U)
3-3. Adjusting the seats
While pressing the recalled
button, press and hold the
door lock switch (either lock or
unlock) until the buzzer
sounds.
If the button could not be regis-
tered, the buzzer sounds continu-
ously for approximately 3 seconds.
■Recall procedureCarry the electronic key that has been registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
access system with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the “START STOP ENGINE” <“POWER”> switch to ACCES-
SORY mode or IGNITION ON mode, or fasten a seat belt.
The seat and steering wheel will move to the recorded position.
4
1
2

ES350_300h_OM_OM33A60U_(U)
1613-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the
driving position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized. (Cus-
tomizable features: →P. 8 6 2 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2

162
ES350_300h_OM_OM33A60U_(U)
3-3. Adjusting the seats

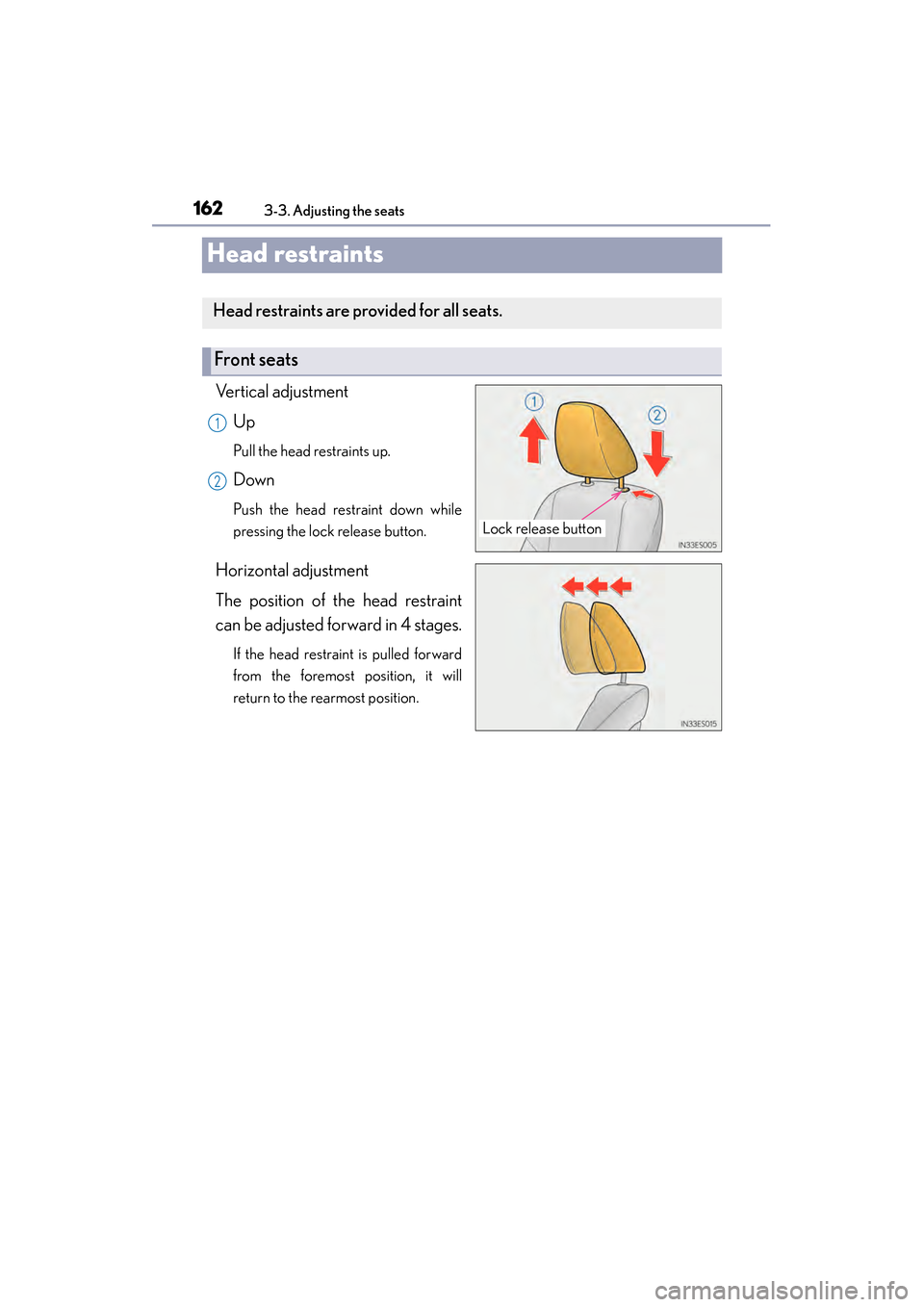

Head restraints
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Horizontal adjustment
The position of the head restraint
can be adjusted forward in 4 stages.
If the head restraint is pulled forward
from the foremost position, it will
return to the rearmost position.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2

ES350_300h_OM_OM33A60U_(U)
1633-3. Adjusting the seats
3
Operation of each component

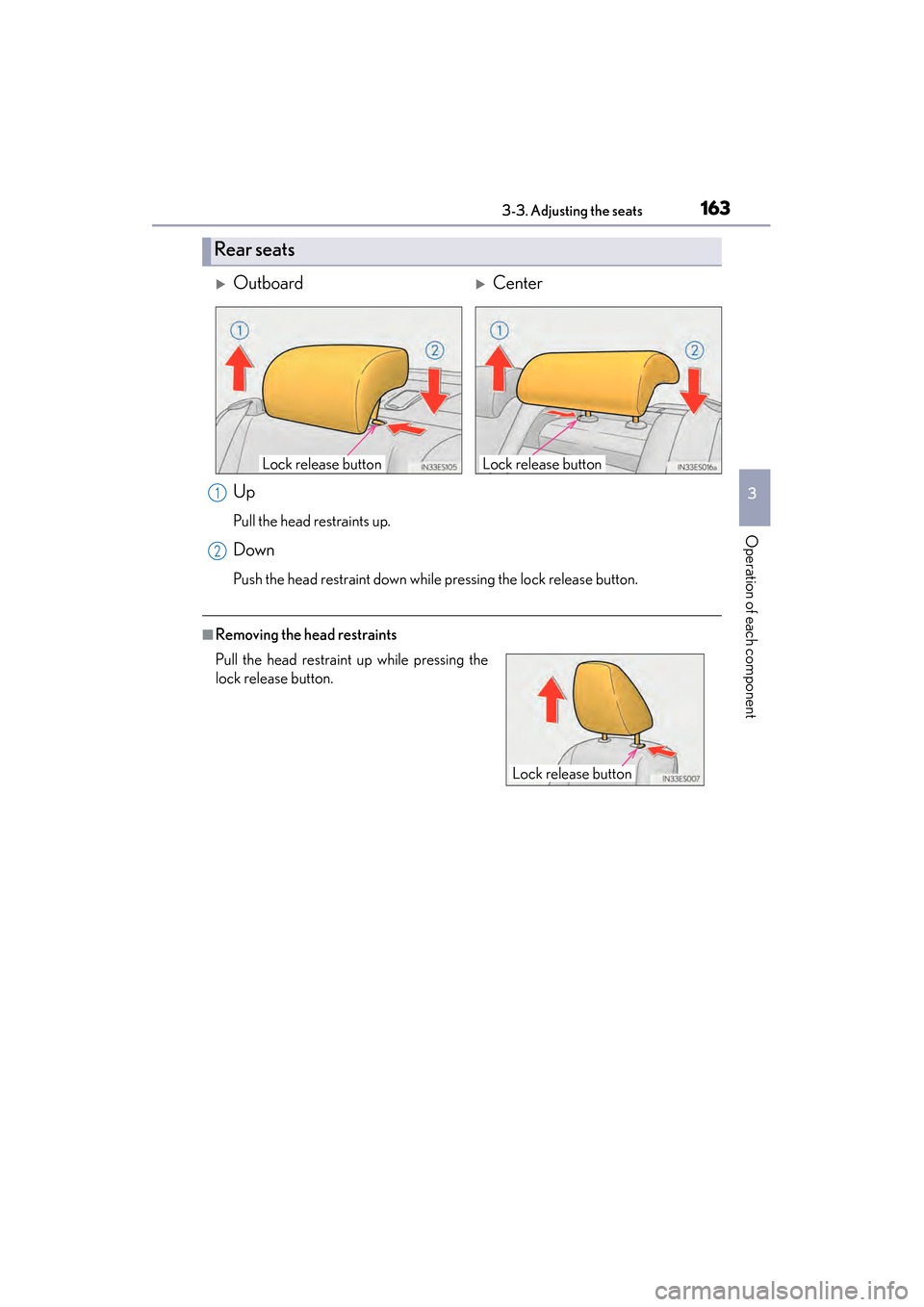

Up
Pull the head restraints up.
Down
Push the head restraint down while pressing the lock release button.
■Removing the head restraints
Rear seats
XOutboardXCenter
Lock release buttonLock release button
Pull the head restraint up while pressing the
lock release button.
1
2
Lock release button

164
ES350_300h_OM_OM33A60U_(U)
3-3. Adjusting the seats

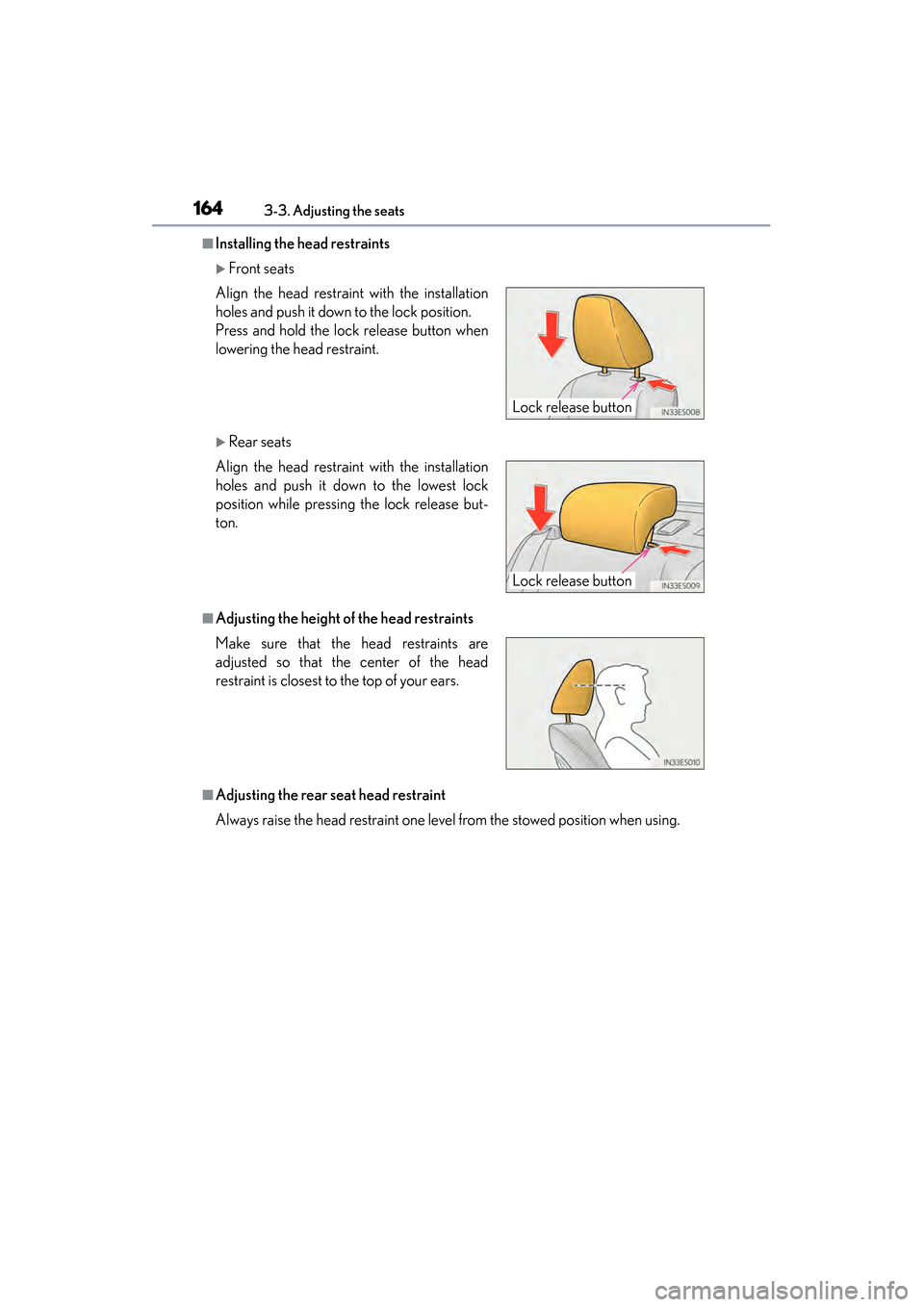

■Installing the head restraints
XFront seats
XRear seats
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using. Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Align the head restraint with the installation
holes and push it down to the lowest lock
position while pressing the lock release but-
ton.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button

ES350_300h_OM_OM33A60U_(U)
1653-3. Adjusting the seats
3
Operation of each component

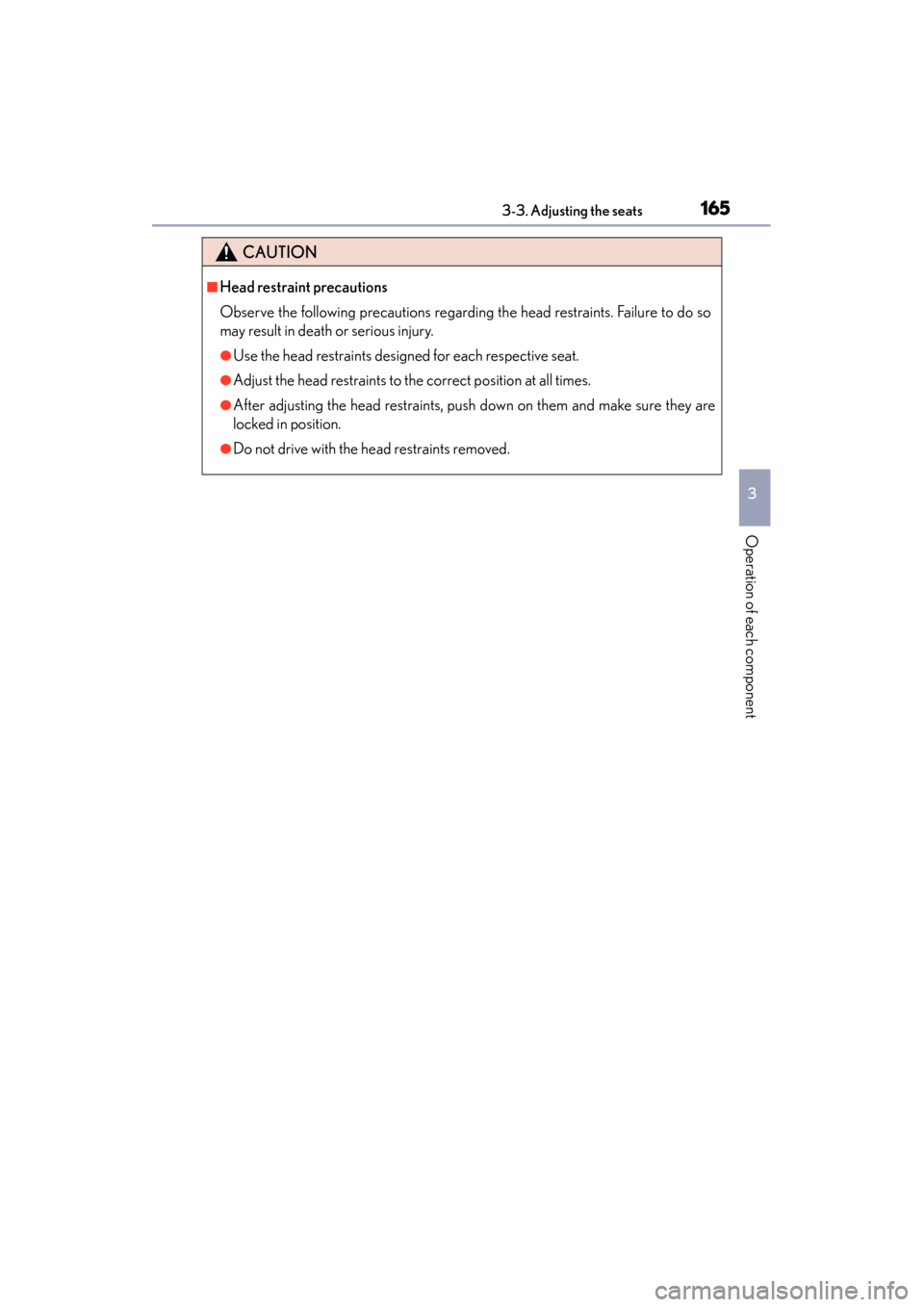

CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.

1663-4. Adjusting the steering wheel and mirrors
ES350_300h_OM_OM33A60U_(U)
Steering wheel
XManual adjustment
Hold the steering wheel and pull
the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
XPower adjustment
Operating the switch moves the steeri ng wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
Adjustment procedure
1
2
1
2
3
4

1673-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350_300h_OM_OM33A60U_(U)
■The power adjustment type steering wheel can be adjusted when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or
IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of“START STOP ENGINE” <“POWER”> switch mode.
■Automatic adjustment of the steering position (power adjustment type)
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( →P. 1 5 6 )
■Power easy access system (power adjustment type)
The steering wheel and driver’s seat move in accordance with “START STOP
ENGINE” <“POWER”> switch mode and the driver’s seat belt condition. ( →P. 1 5 6 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
■After adjusting the steering wheel (manual adjustment type)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

1683-4. Adjusting the steering wheel and mirrors
ES350_300h_OM_OM33A60U_(U)

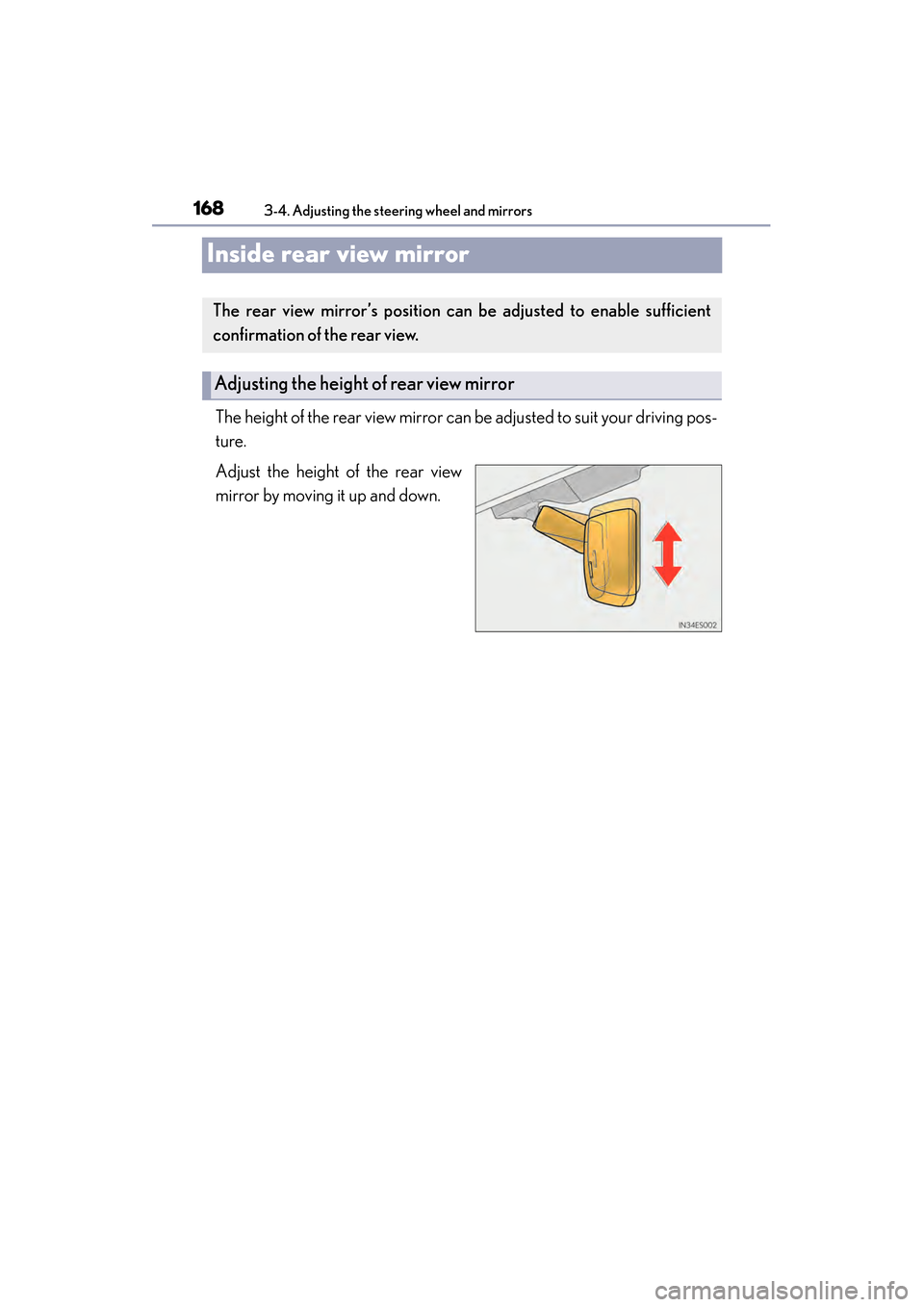

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view.
Adjusting the height of rear view mirror

1693-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350_300h_OM_OM33A60U_(U)
Responding to the level of brightness of the headlights of vehicles behind,
the reflected light is automatically reduced.
XWithout compass
Changing automatic anti-glare
function mode
ON
OFF
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the “START STOP
ENGINE” <“POWER”> switch is
turned to IGNITION ON
mode.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
XWith compass
Turning automatic anti-glare
function mode on/off
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the “START STOP
ENGINE” <“POWER”> switch is
turned to IGNITION ON
mode.
Anti-glare function
Indicator
1
2
Indicator
