Lexus ES300h 2014 Owner's Manual

500
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Audio system (without a navigation system or
the Lexus Display Audio system)
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
XVehicles with the Lexus Display Audio system
→ P. 382
XCD player with a changer and AM/FM radio (type A)

ES350_300h_OM_OM33A60U_(U)
5015-4. Using the audio system
5
Interior features

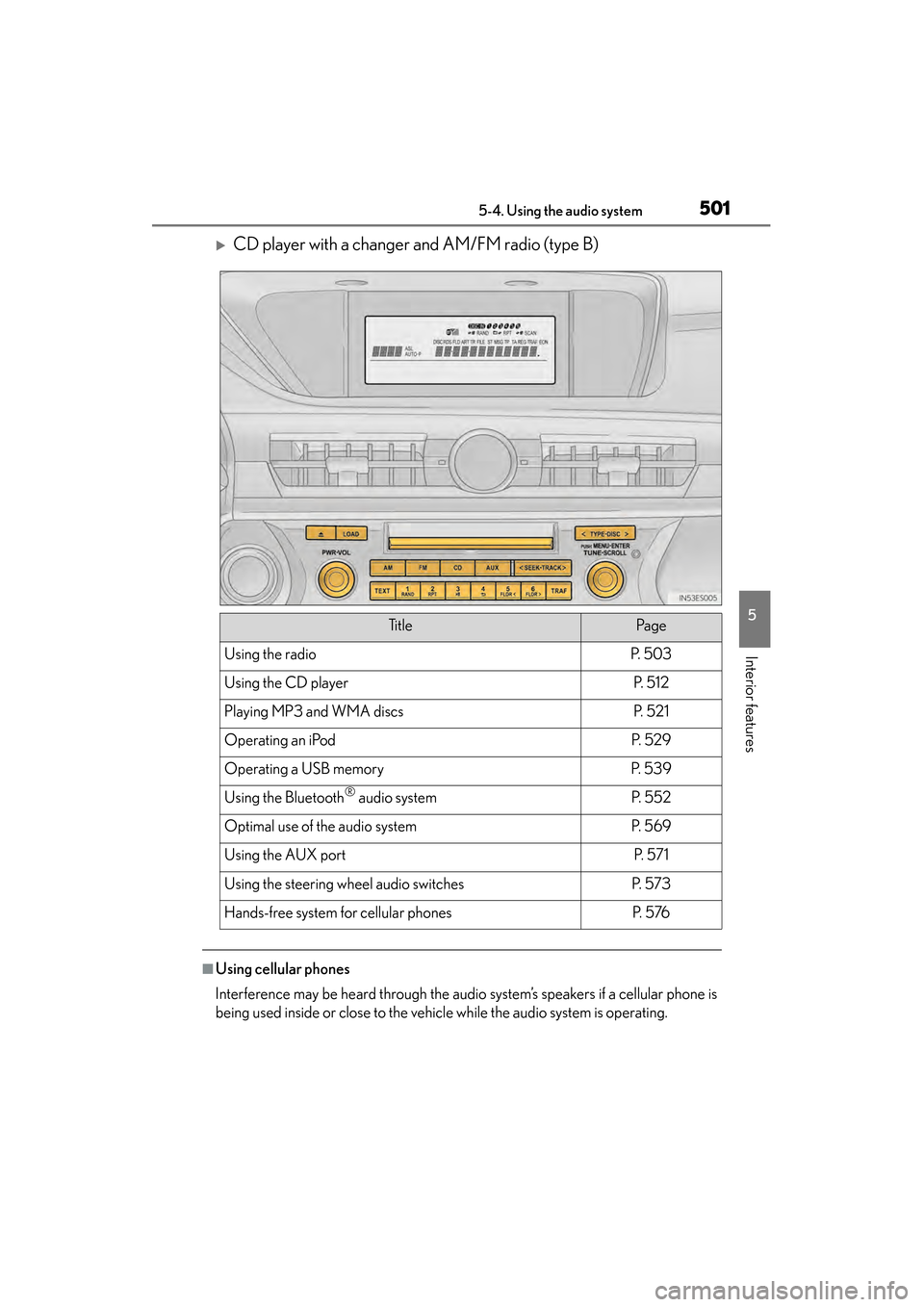

XCD player with a changer and AM/FM radio (type B)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
Ti t l ePa g e
Using the radioP. 5 0 3
Using the CD playerP. 5 1 2
Playing MP3 and WMA discsP. 5 2 1
Operating an iPodP. 5 2 9
Operating a USB memoryP. 5 3 9
Using the Bluetooth® audio systemP. 5 5 2
Optimal use of the audio systemP. 5 6 9
Using the AUX portP. 5 7 1
Using the steering wheel audio switchesP. 5 7 3
Hands-free system for cellular phonesP. 5 76

502
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system

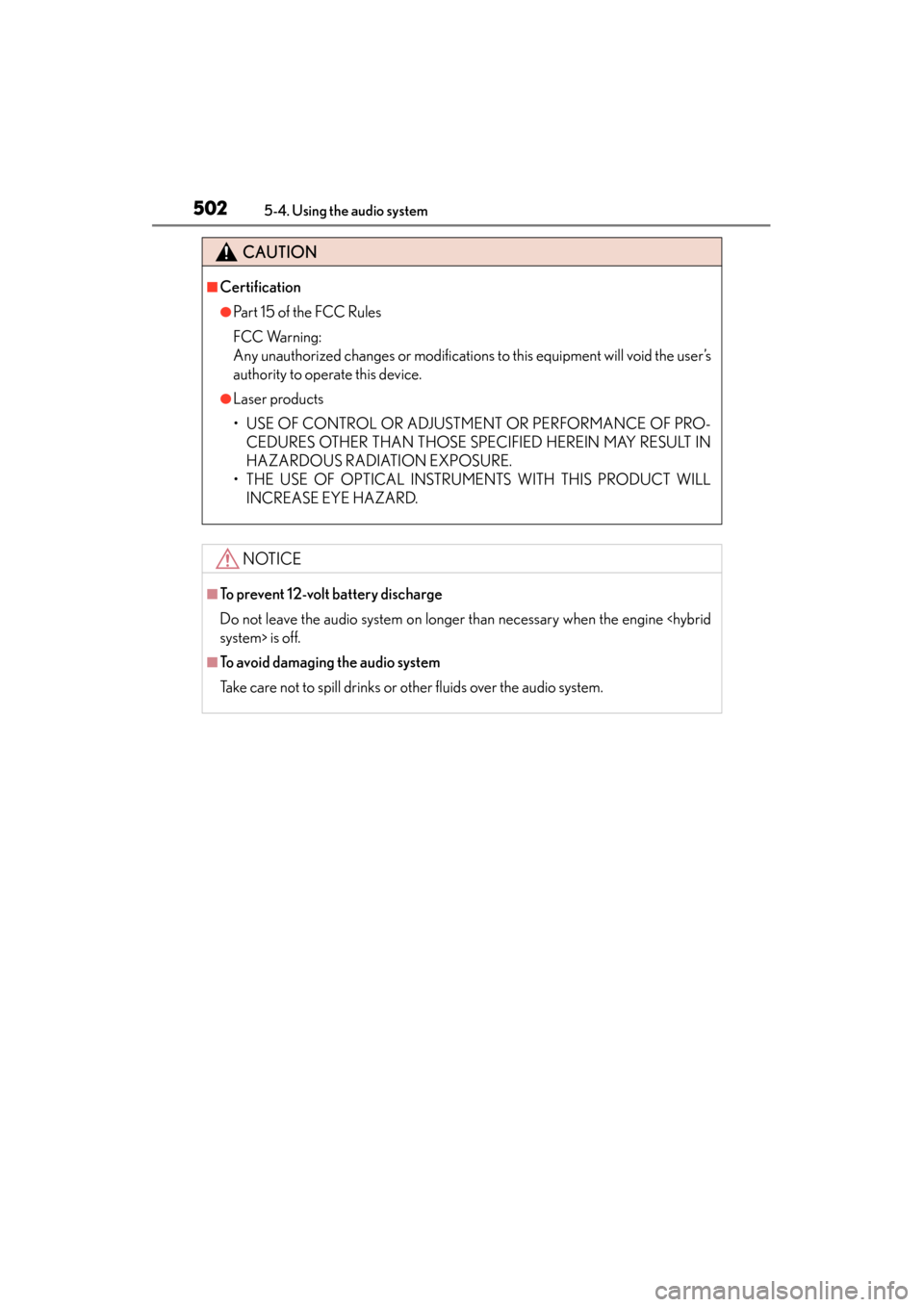

CAUTION
■Certification
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PRO-CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
• THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the audio system on longer than necessary when the engine system> is off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

503
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
5
Interior features

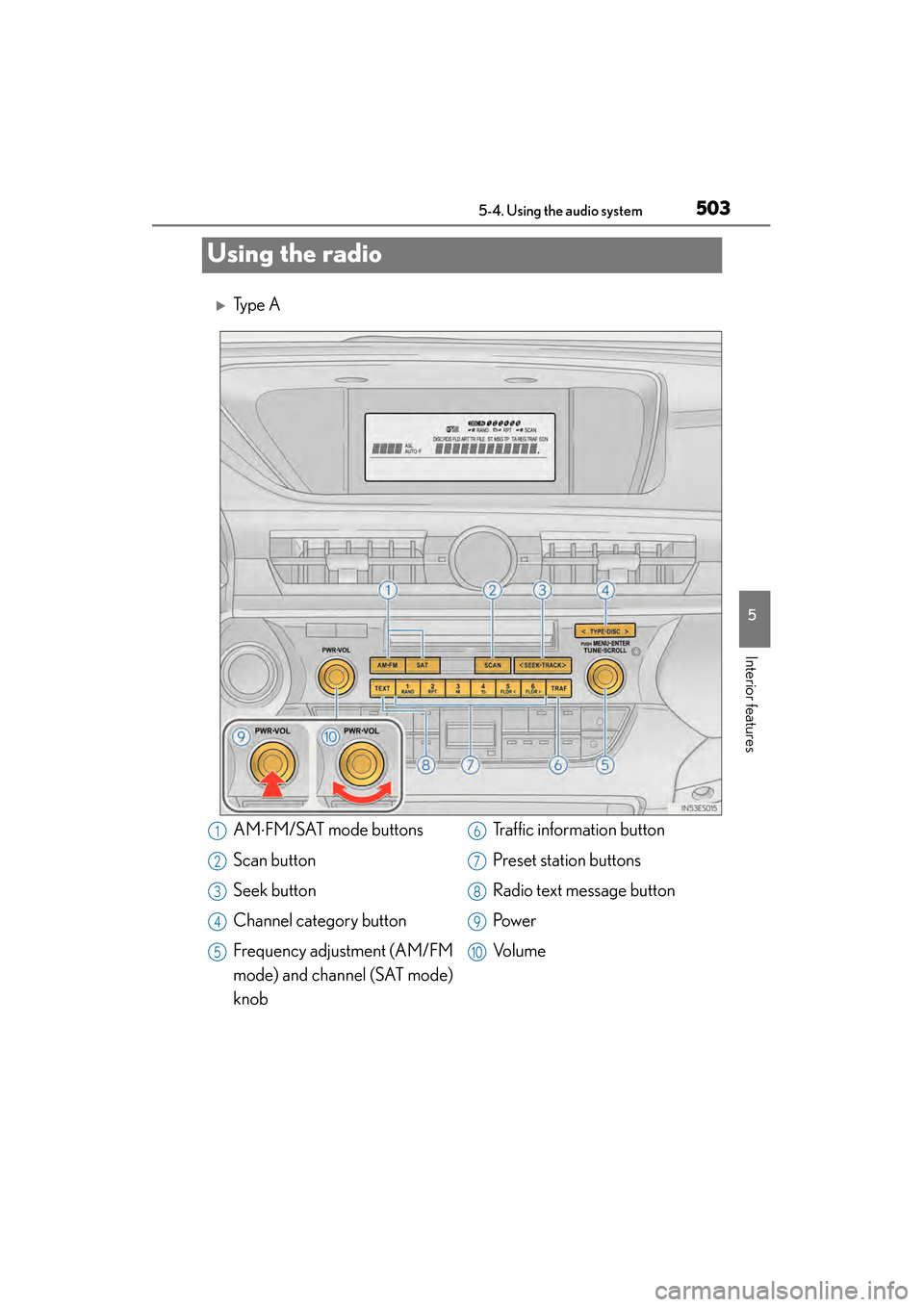

Using the radio
XTy p e A
AM⋅FM/SAT mode buttons
Scan button
Seek button
Channel category button
Frequency adjustment (AM/FM
mode) and channel (SAT mode)
knob Traffic information button
Preset station buttons
Radio text message button
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10

504
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system

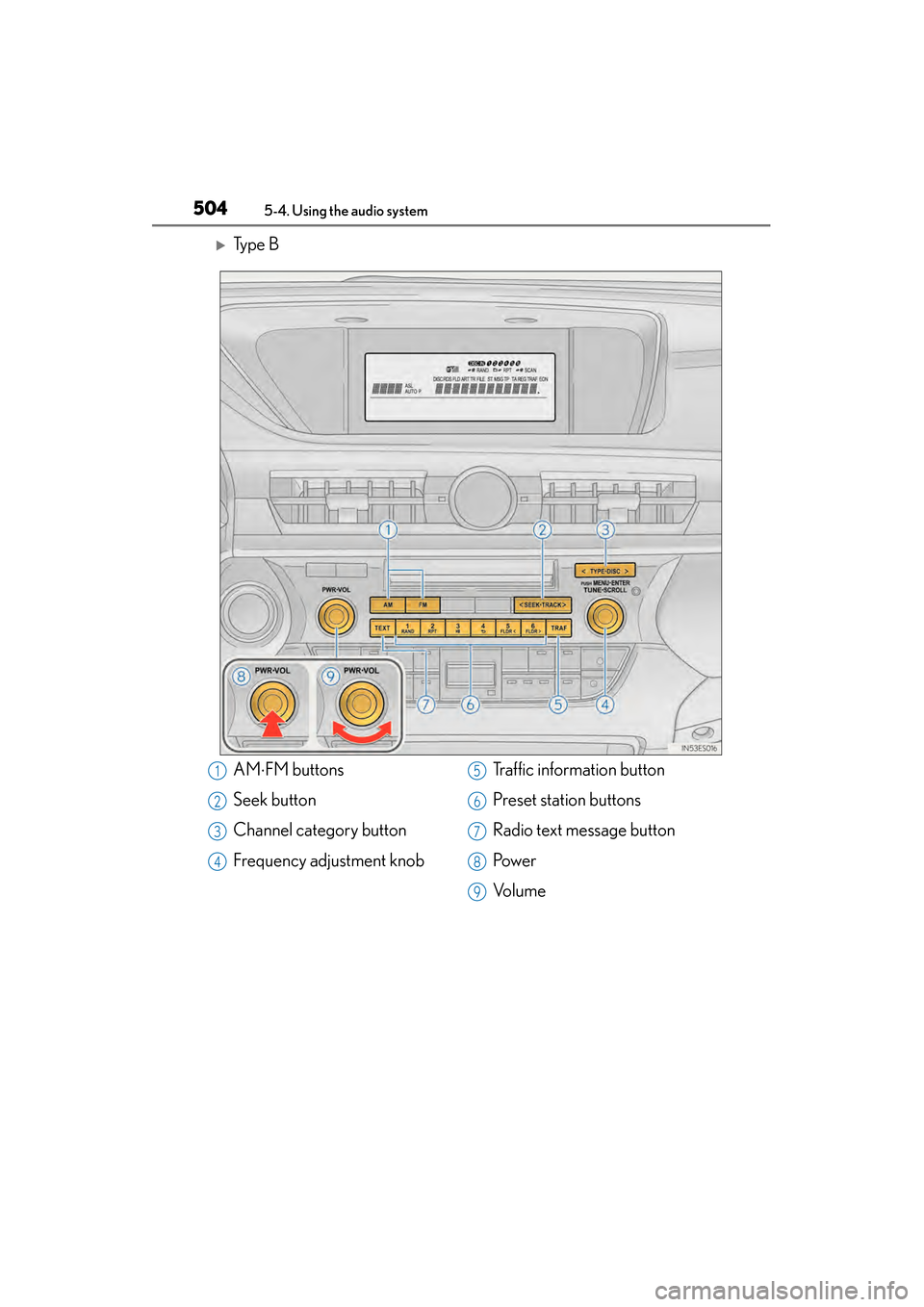

XTy p e B
AM⋅FM buttons
Seek button
Channel category button
Frequency adjustment knob Traffic information button
Preset station buttons
Radio text message button
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9

ES350_300h_OM_OM33A60U_(U)
5055-4. Using the audio system
5
Interior features
Search for the desired stations by turning or pressing “>” or “< ”
on .
Press and hold the button (from to ) the station is to be set
to until you hear a beep.
■Scanning the preset radio stations Press and hold until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the button again.
■Scanning all the radio st ations within range
Press .
All the stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button again.
Setting station presets (excluding XM® Satellite Radio)
Scanning radio stations (excluding XM® Satellite Radio) (type A)
1
2
1
2
1
2

506
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information.
■Receiving RBDS broadcastsPress “ >” or “ <” on during FM reception.
The type of program changes each time the button is pressed.
●
“ROCK”
●“EASYLIS” (Easy listening)
●“CLS/JAZZ” (Classical music and Jazz)
●“R & B” (Rhythm and Blues)
●“INFORM” (Information)
●“RELIGION”
●“MISC” (Miscellaneous)
●“ALERT” (Emergency messages)
If the system receives no RBDS stations, “NO PTY” appears on the display.
Press , or “ >” or “ <” on .
The radio seeks or scans for stations of the relevant program type.
■Displaying radio station names
Press .
■Displaying radio text messages
Press twice.
A text message is displayed when “MSG” is shown on the screen.
If the text continues past the end of the display, is displayed. Press and hold
until you hear a beep.
RBDS (Radio Broadcast Data System)
1
2

ES350_300h_OM_OM33A60U_(U)
5075-4. Using the audio system
5
Interior features
■Receiving XM® Satellite Radio
Press .
The display changes as follows each time the button is pressed:
“SAT1” → “SAT2” → “SAT3”
Turn to select the desired channel in all the categories or
press “ >” or “ <” on to select the desired channel in the
current category.
■Setting XM® Satellite Radio channel presets
Select the desired channel. Press and hold the button (from to ) the channel is to be set to until you hear a beep.
■Changing the channel category
Press “>” or “ <” on .
XM® Satellite Radio (type A)
1
2

508
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
■Scanning the XM® Satellite Radio channels
●Scanning the channels in the current categoryPress .
When the desired channel is reached, press the button again.
●Scanning the preset channelsPress and hold until you hear a beep.
When the desired channel is reached, press the button again.
■Displaying text information
Press .
The display will show up to 10 characters.
The display changes as follows each time the button is pressed:
●
CH NAME
●TITLE (SONG/PROGRAM TITLE)
●NAME (ARTIST NAME/FEATURE)
●CH NUMBER
1
2
1
2

ES350_300h_OM_OM33A60U_(U)
5095-4. Using the audio system
5
Interior features
■When the 12-volt battery is disconnected
All preset stations are erased.
■Reception sensitivity
●Cargo loaded on the roof luggage carrier, especially metal objects, may adversely
affect the reception of XM® Satellite Radio.
●It is difficult to maintain perfect radio reception at all times due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains and transmitters.
●The radio antenna is mounted inside the trunk and the rear window. To maintain
clear radio reception, do not attach metallic window tinting or other metallic
objects to the antenna wire mounted inside the rear window.
■Receiving XM® Satellite Radio
An XM
® Satellite Radio is a tuner designed exclusively to receive broadcasts pro-
vided under a separate subscription. Availability is limited to the 48 contiguous
states and 10 Canadian provinces.
●XM® subscriptions
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A. 
Visit on the web at www.siriusxm.com
or call 1-866-635-2349.
Canada 
Visit on the web at www.xmradio.ca
or call 1-877-438-9677.
●Radio ID
You will need the radio ID when activating XM
® service or reporting a problem.
Select “CH000” using , and the receiver’s 8-character ID number will
appear.
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompanying
Te x t I n f o r m a t i o n o f X M
® Satellite Radio.
