2. Instrument cluster

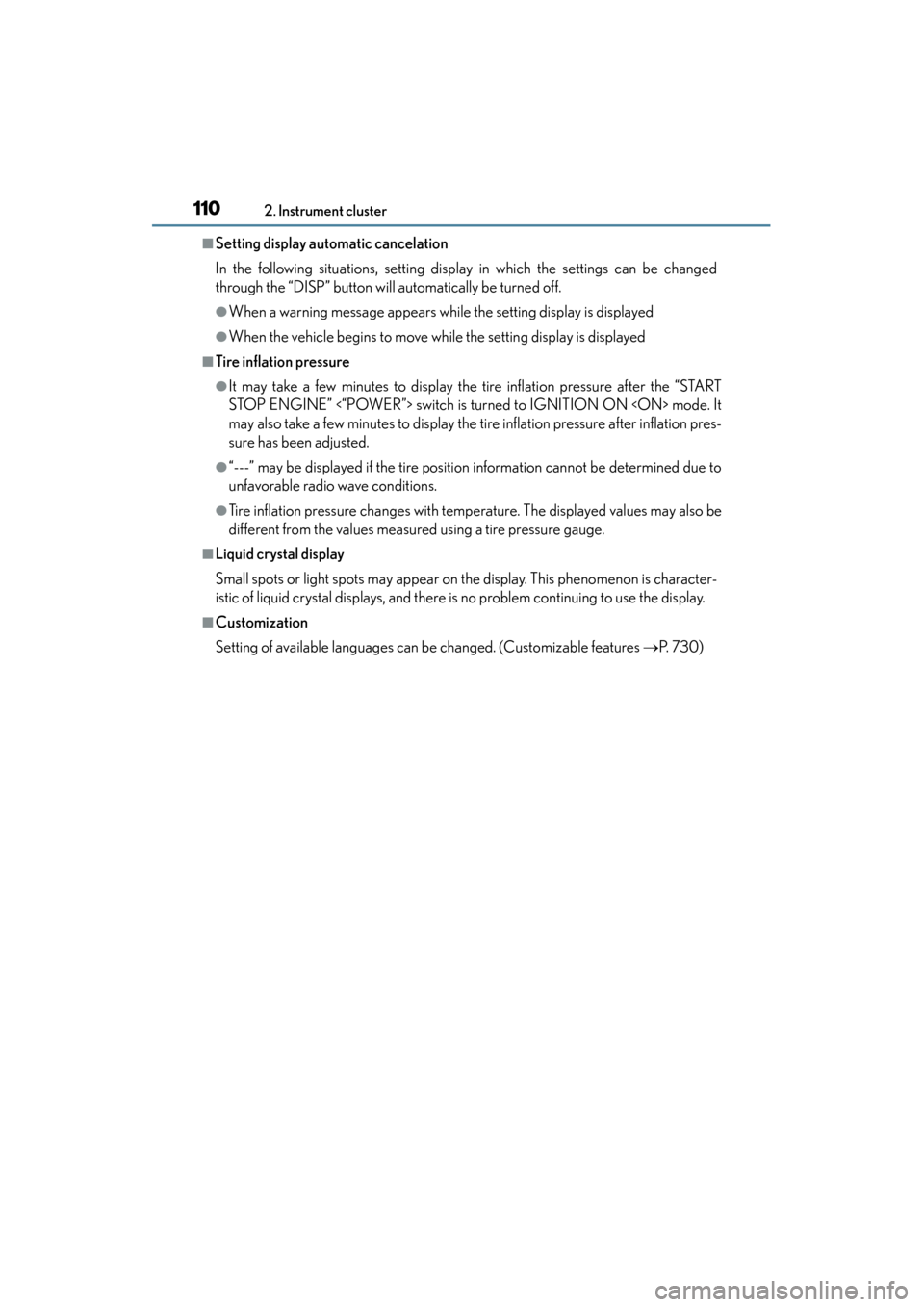

■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is turned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features →P. 7 3 0 )

ES350_300h_OM_OM33B36U_(U)
1112. Instrument cluster
2
Instrument cluster

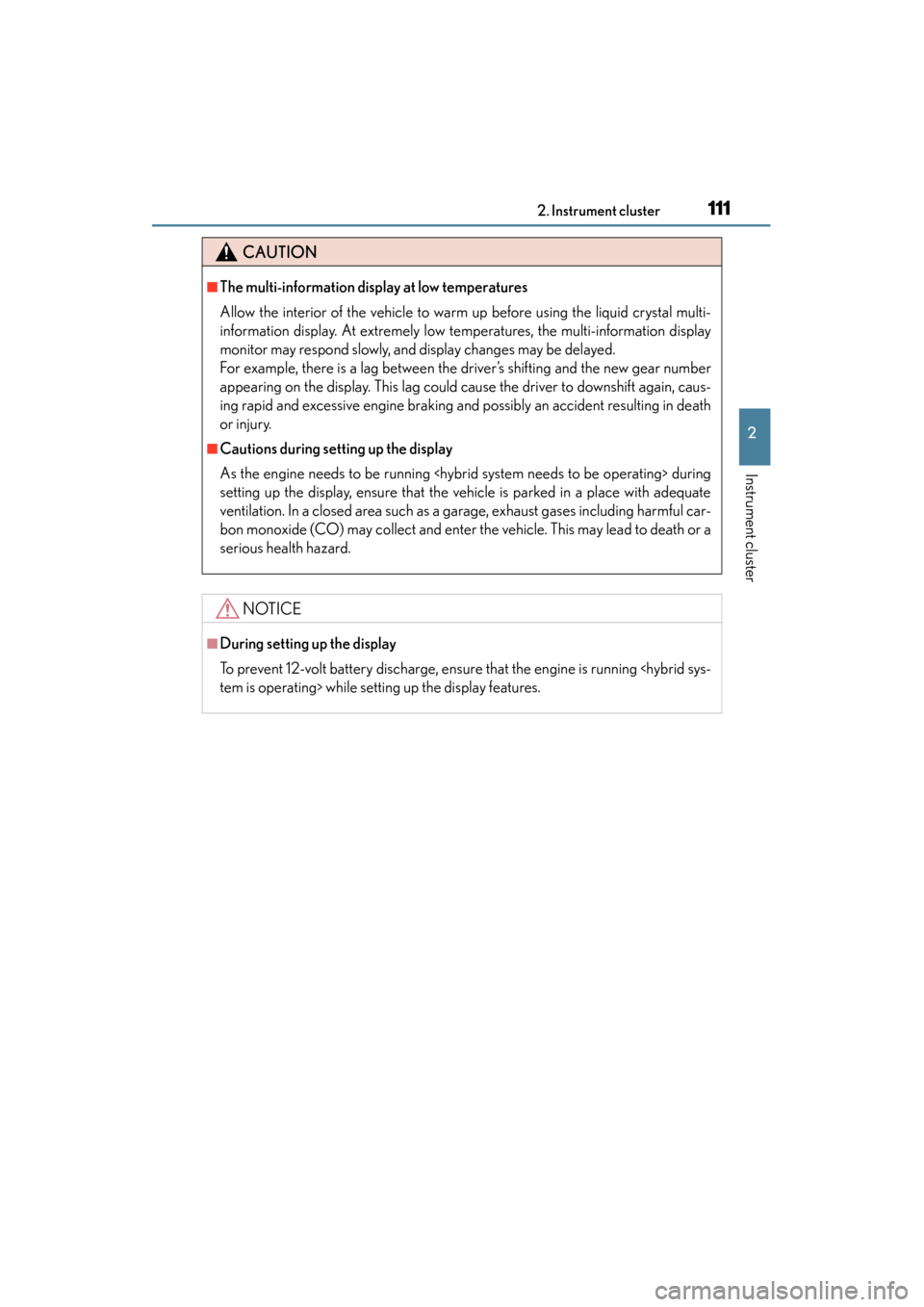

CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal multi-
information display. At extremely low temperatures, the multi-information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during
setting up the display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the engine is running tem is operating> while setting up the display features.

112
ES350_300h_OM_OM33B36U_(U)
2. Instrument cluster
Energy monitor/consumption screen
Navigation system screen or
Lexus Display Audio system
screen
Multi-information display

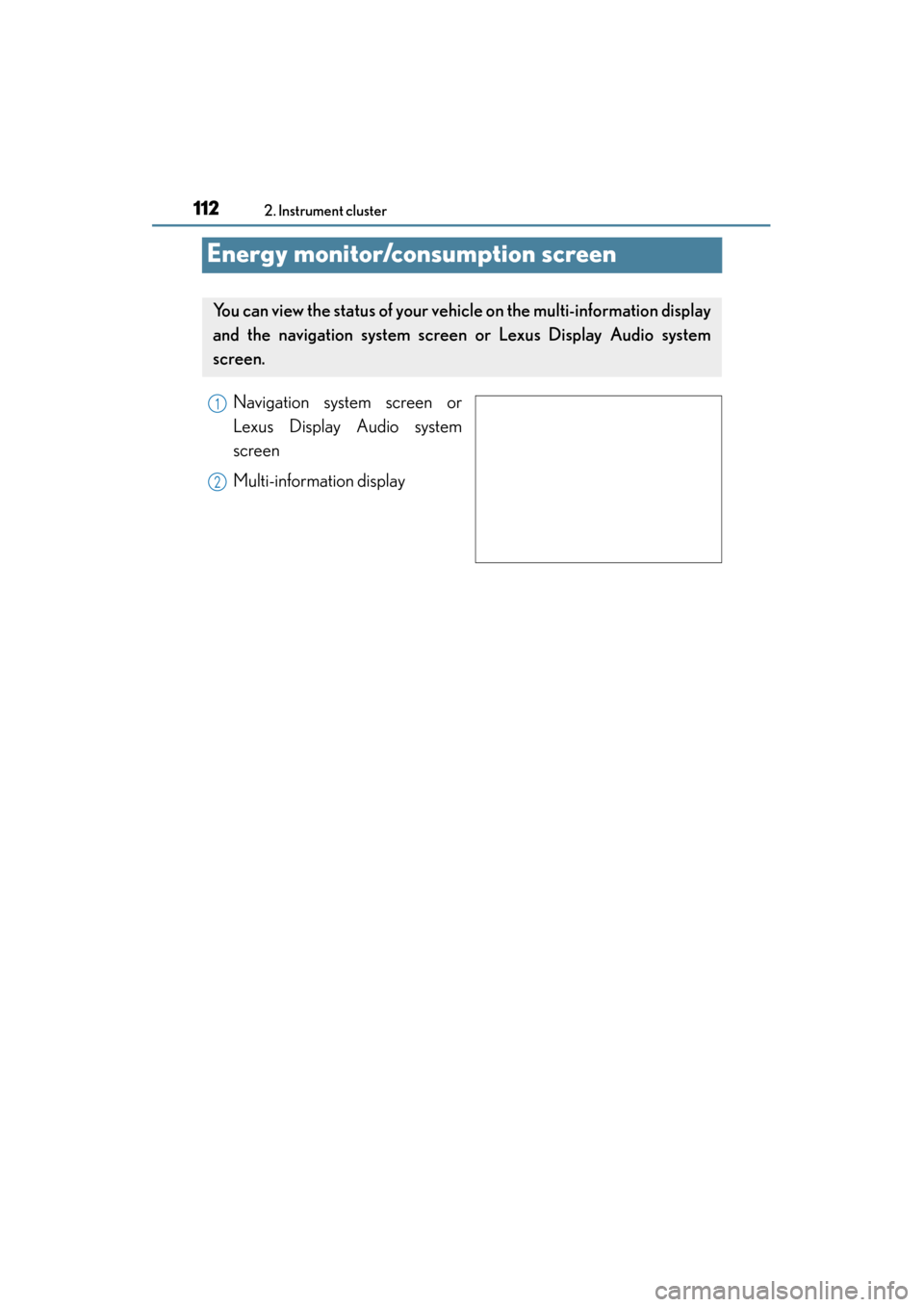

You can view the status of your vehicle on the multi-information display
and the navigation system screen or Lexus Display Audio system
screen.
1
2

ES350_300h_OM_OM33B36U_(U)
1132. Instrument cluster
2
Instrument cluster
XNavigation system
“MENU” button
Remote Touch knob
For use of Remote Touch, refer to the
“NAVIGATION SYSTEM OWNER’S
MANUAL”.
XLexus Display Audio system
“MENU” button
Lexus Display Audio controller
(→P. 3 5 2 )

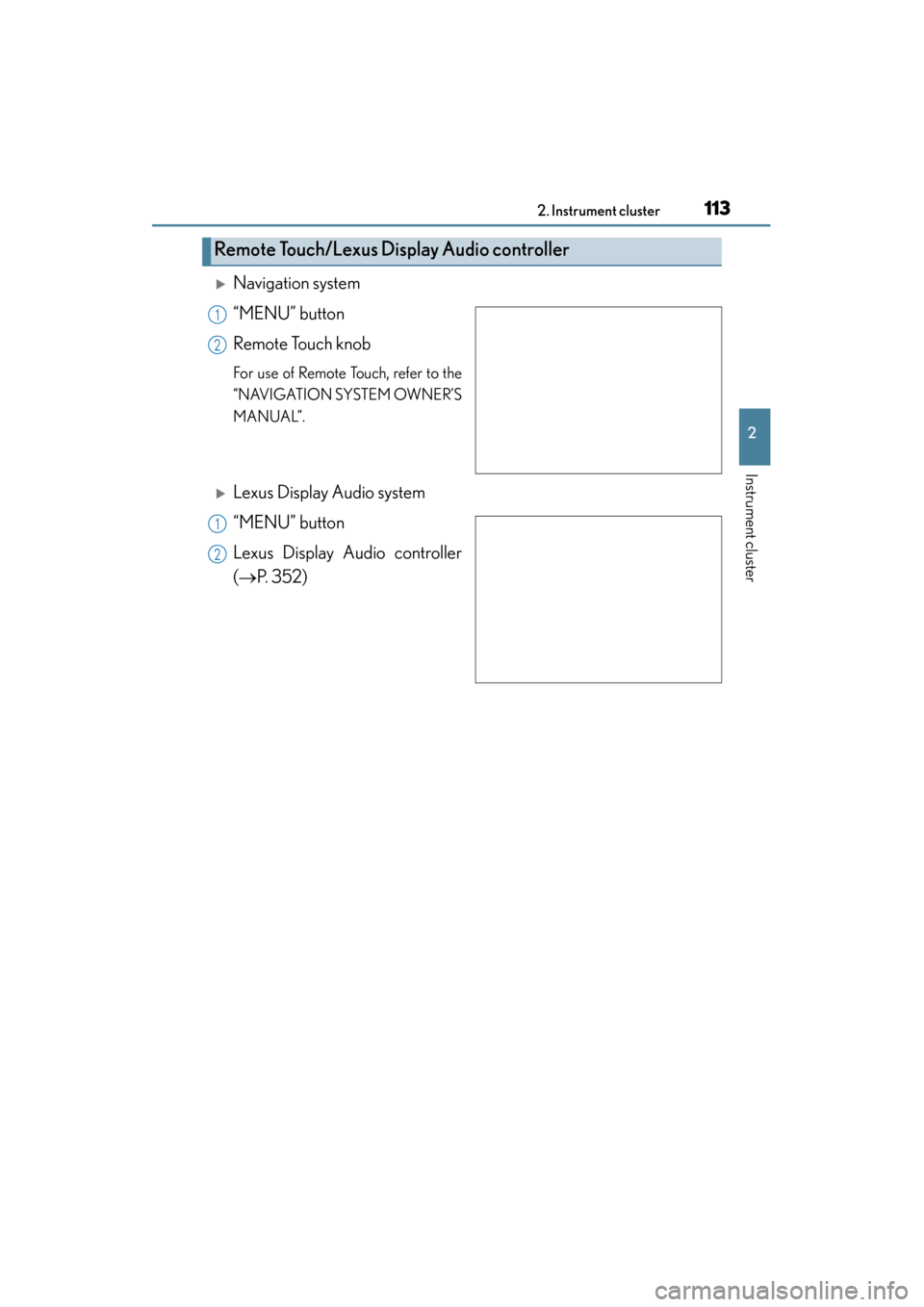

Remote Touch/Lexus Display Audio controller
1
2
1
2

114
ES350_300h_OM_OM33B36U_(U)
2. Instrument cluster
XNavigation system screen
Press the “MENU” button on the
Remote Touch, then select “Info” on
the “Menu” screen, and then select
“Fuel Consumption”.
If the “Trip Information” or “Past
Record” screen is displayed, select
“Energy”.
XLexus Display Audio screen
Press the “MENU” button on the
Lexus Display Audio controller,
then select “Info” on the “Menu”
screen, and then select “Fuel Con-
sumption”.
If the “Energy Monitor” screen does
not appear, move the controller to the
right and select “Energy”.
XMulti-information display
Press the “DISP” button on the steering wheel several times to select the
energy monitor display.
Energy monitor (hybrid vehicles)

ES350_300h_OM_OM33B36U_(U)
1152. Instrument cluster
2
Instrument cluster
■Navigation system screen/Lexus Display Audio screen
Navigation system screenLexus Display Audio screen
When the vehicle is
powered by the
electric motor
(traction motor)
When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
charging the hybrid
battery (traction
battery)
When there is no
energy flow

116
ES350_300h_OM_OM33B36U_(U)
2. Instrument cluster
These images are examples only, and may vary slightly from actual condi-
tions.

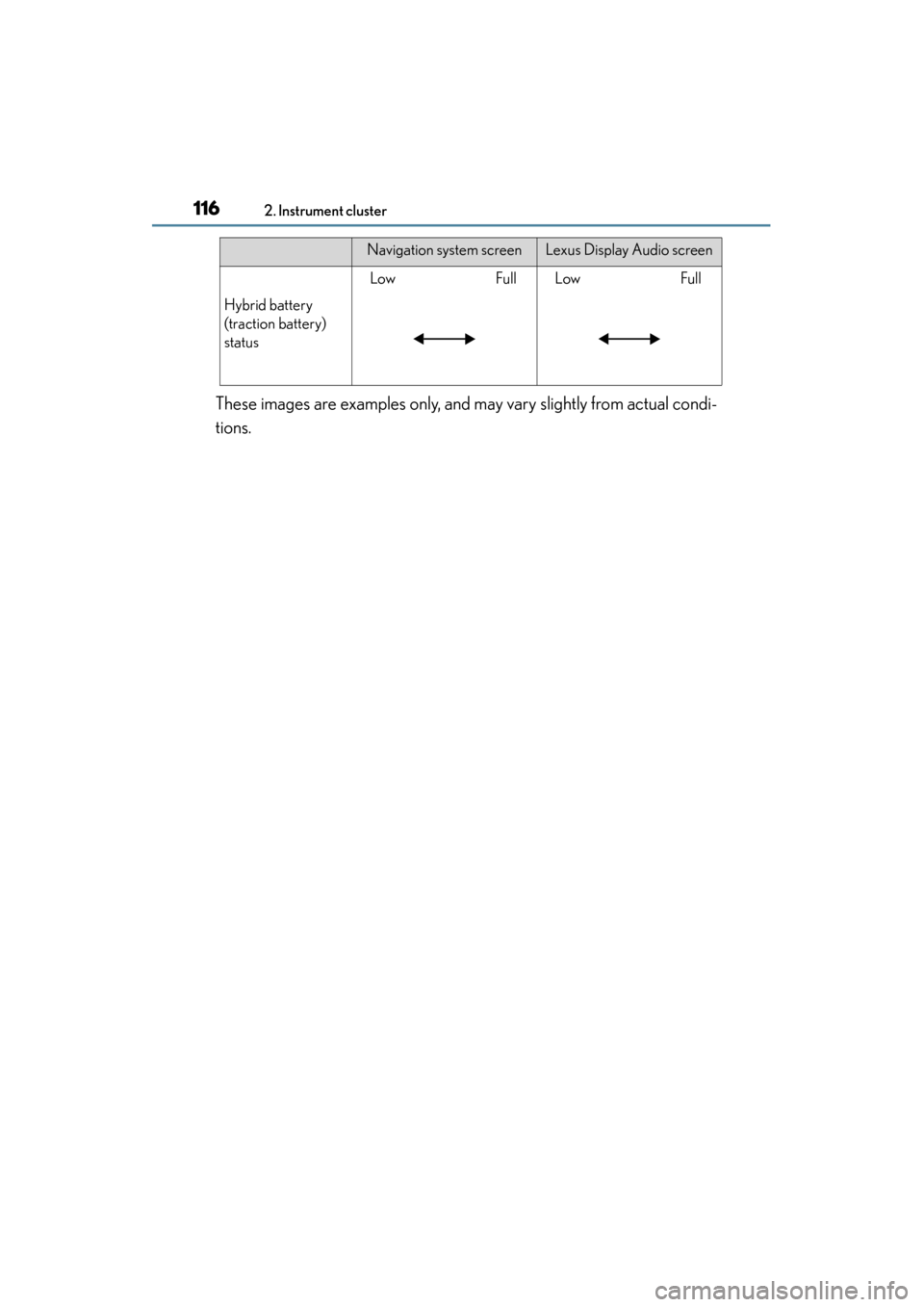

Hybrid battery
(traction battery)
status
LowFullLowFull
Navigation system screenLexus Display Audio screen

ES350_300h_OM_OM33B36U_(U)
1172. Instrument cluster
2
Instrument cluster

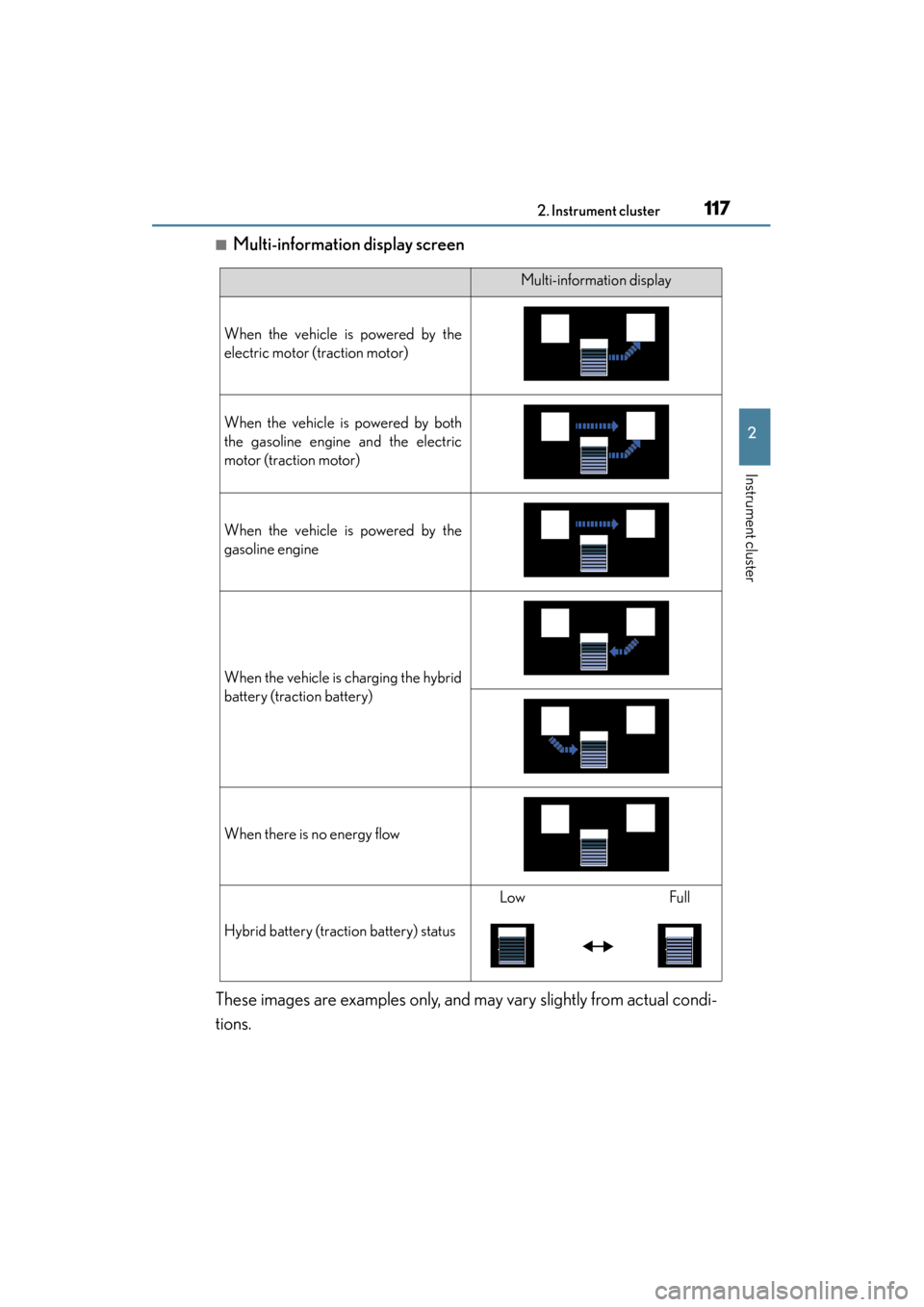

■Multi-information display screen
These images are examples only, and may vary slightly from actual condi-
tions.
Multi-information display
When the vehicle is powered by the
electric motor (traction motor)
When the vehicle is powered by both
the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the
gasoline engine
When the vehicle is charging the hybrid
battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
LowFull

118
ES350_300h_OM_OM33B36U_(U)
2. Instrument cluster
■Trip information

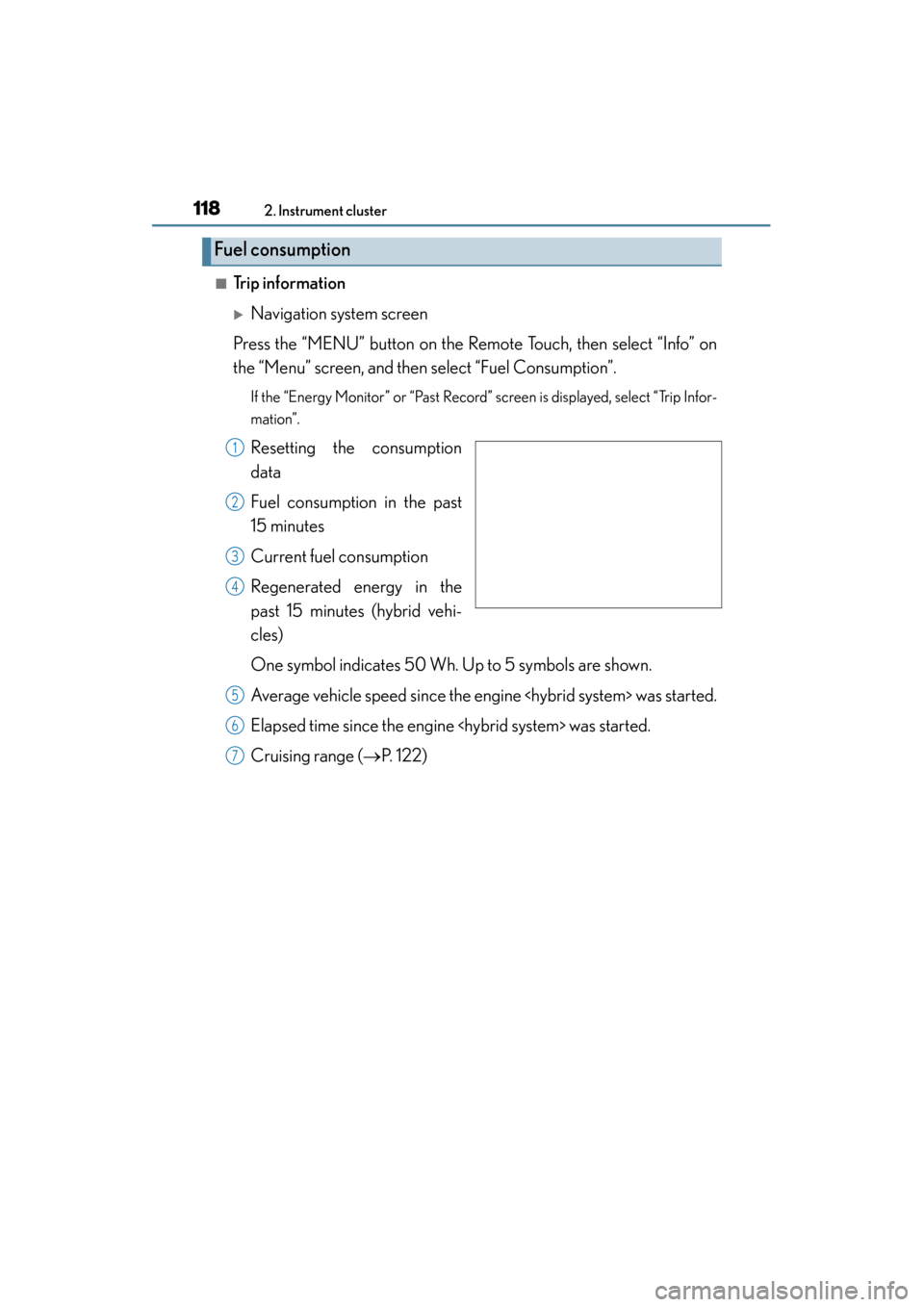

XNavigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on
the “Menu” screen, and then select “Fuel Consumption”.
If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Infor-
mation”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes (hybrid vehi-
cles)
One symbol indicates 50 Wh. Up to 5 symbols are shown.
Average vehicle speed since the engine was started.
Elapsed time since the engine was started.
Cruising range ( →P. 122)
Fuel consumption
1
2
3
4
5
6
7

ES350_300h_OM_OM33B36U_(U)
1192. Instrument cluster
2
Instrument cluster

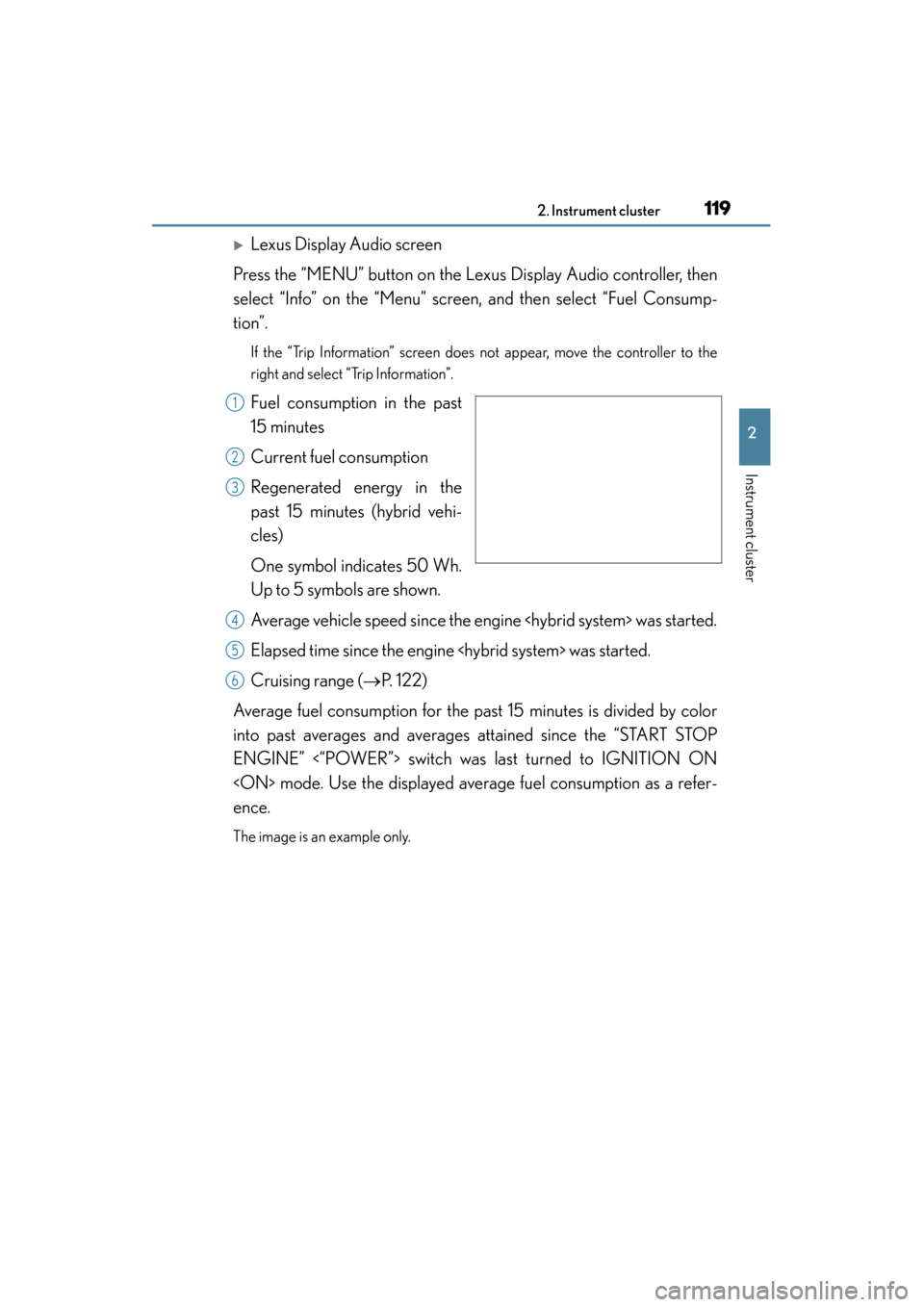

XLexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then
select “Info” on the “Menu” screen, and then select “Fuel Consump-
tion”.
If the “Trip Information” screen does not appear, move the controller to the
right and select “Trip Information”.
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes (hybrid vehi-
cles)
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the engine was started.
Elapsed time since the engine was started.
Cruising range ( →P. 122)
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the “START STOP
ENGINE” <“POWER”> switch was last turned to IGNITION ON
mode. Use the displayed average fuel consumption as a refer-
ence.
The image is an example only.
1
2
3
4
5
6
