Lexus ES300h 2015 Owner's Manual

150
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
Pressing the switch closes the trunk
lid automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid
is closing opens the trunk lid again.
Using the trunk grip, lower the trunk
without applying force to the side
and push the trunk down from the
outside to close it.
The trunk opener switch can be temporarily disabled to protect luggage
stored in the trunk against theft.
Turn the main switch in the glove
box off to disable the trunk opener.On
Off
The trunk lid cannot be opened even
with the wireless remote control or the
entry function.
Trunk closer switch (vehicles with power trunk opener and closer)
When closing the trunk
Luggage security system
1
2

ES350_300h_OM_OM33B36U_(U)

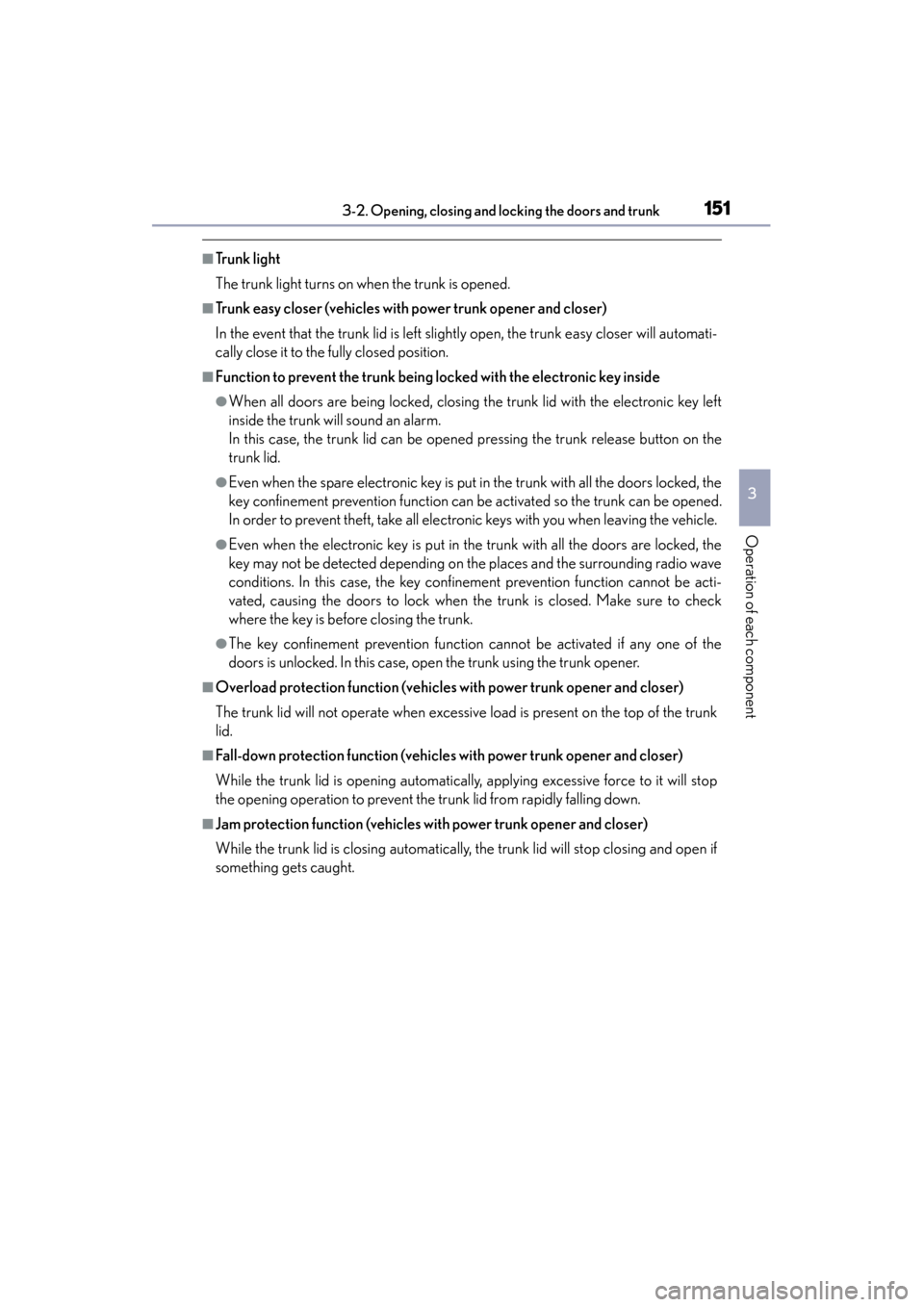

1513-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Trunk light
The trunk light turns on when the trunk is opened.
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electronic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on the places and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be acti-
vated, causing the doors to lock when the trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
■Overload protection function (vehicles with power trunk opener and closer)
The trunk lid will not operate when excessive load is present on the top of the trunk
lid.
■Fall-down protection function (vehicles with power trunk opener and closer)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk opener and closer)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.

152
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 6 7 8 )
■When leaving a key to the vehi cle with a parking attendant
→ P. 1 2 5
The trunk lid can be opened by pulling the
glow-in-the-dark lever located on the inside
of the trunk lid to the side.
The lever will continue to glow for some time
after the trunk lid is closed.
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk
may be thrown out, causing an accident.
●Do not allow children to play in the trunk.
If a child is accidentally locked in the trunk, they could suffer from heat exhaus-
tion, suffocation or other injuries.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.

ES350_300h_OM_OM33B36U_(U)
1533-2. Opening, closing and locking the doors and trunk
3
Operation of each component
CAUTION
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious
injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to suddenly shut again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Vehicles without power trunk opener and
closer: The trunk lid may suddenly shut if it
is not opened fully. It is more difficult to
open or close the trunk lid on an incline
than on a level surface, so beware of the
trunk lid unexpectedly opening or closing
by itself. Make sure that the trunk lid is fully
open and secure before using the trunk.

154
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
CAUTION
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to suddenly shut again
after it is opened.
■Trunk easy closer (vehicles with power trunk opener and closer)
●When closing the trunk lid, take extra care
to prevent your fingers etc. from being
caught.
●Vehicles without power trunk opener and
closer: When closing the trunk lid, make
sure to press it lightly on its outer surface. If
the trunk grip is used to fully close the trunk
lid, it may result in hands or arms being
caught.
In the event that the trunk lid is left slightly
open, the trunk easy closer will automatically
close it to the fully closed position. It takes
several seconds before the trunk easy closer
begins to operate. Be careful not to catch fin-
gers or anything else in the trunk lid, as this
may cause bone fractures or other serious
injuries.

ES350_300h_OM_OM33B36U_(U)
1553-2. Opening, closing and locking the doors and trunk
3
Operation of each component
CAUTION

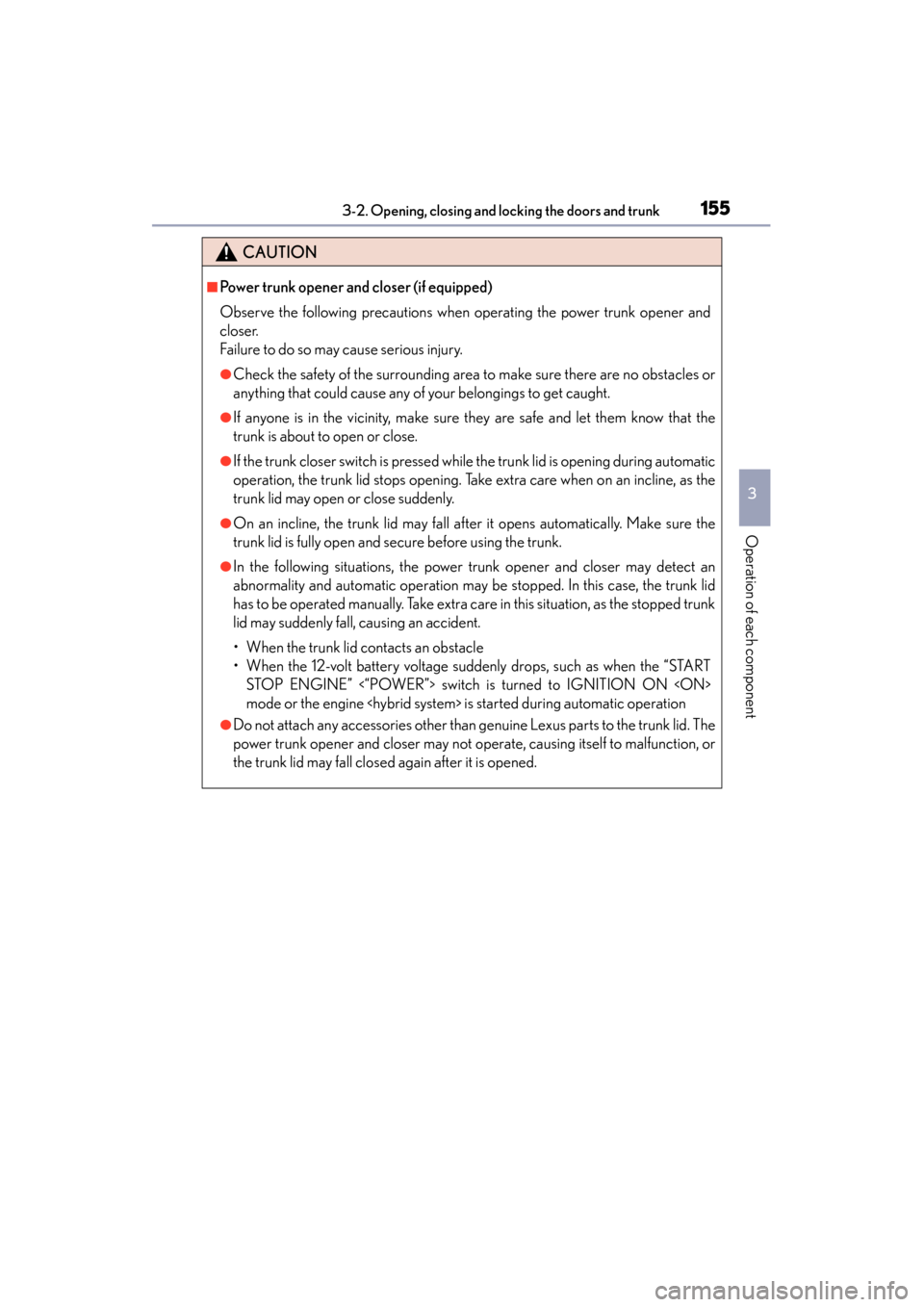

■Power trunk opener and closer (if equipped)
Observe the following precautions when operating the power trunk opener and
closer.
Failure to do so may cause serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●If the trunk closer switch is pressed while the trunk lid is opening during automatic
operation, the trunk lid stops opening. Take extra care when on an incline, as the
trunk lid may open or close suddenly.
●On an incline, the trunk lid may fall after it opens automatically. Make sure the
trunk lid is fully open and secure before using the trunk.
●In the following situations, the power trunk opener and closer may detect an
abnormality and automatic operation may be stopped. In this case, the trunk lid
has to be operated manually. Take extra care in this situation, as the stopped trunk
lid may suddenly fall, causing an accident.
• When the trunk lid contacts an obstacle
• When the 12-volt battery voltage suddenly drops, such as when the “START STOP ENGINE” <“POWER”> switch is turned to IGNITION ON
mode or the engine is started during automatic operation
●Do not attach any accessories other than genuine Lexus parts to the trunk lid. The
power trunk opener and closer may not operate, causing itself to malfunction, or
the trunk lid may fall closed again after it is opened.

156
ES350_300h_OM_OM33B36U_(U)

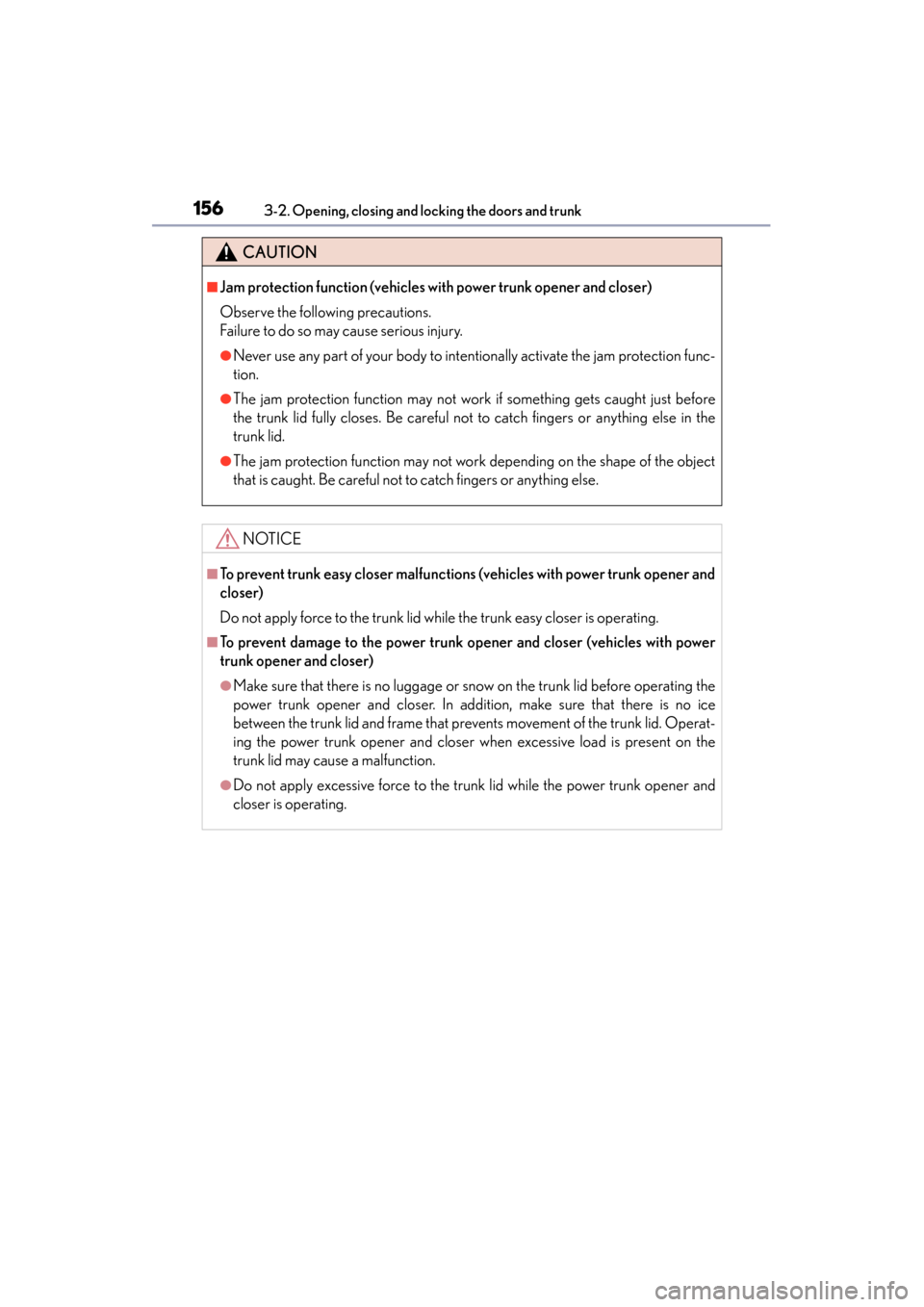

3-2. Opening, closing and locking the doors and trunk
CAUTION
■Jam protection function (vehicles with power trunk opener and closer)
Observe the following precautions.
Failure to do so may cause serious injury.
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the trunk lid fully closes. Be careful not to catch fingers or anything else in the
trunk lid.
●The jam protection function may not work depending on the shape of the object
that is caught. Be careful not to catch fingers or anything else.
NOTICE
■To prevent trunk easy closer malfunctions (vehicles with power trunk opener and
closer)
Do not apply force to the trunk lid while the trunk easy closer is operating.
■To prevent damage to the power trunk opener and closer (vehicles with power
trunk opener and closer)
●Make sure that there is no luggage or snow on the trunk lid before operating the
power trunk opener and closer. In addition, make sure that there is no ice
between the trunk lid and frame that prevents movement of the trunk lid. Operat-
ing the power trunk opener and closer when excessive load is present on the
trunk lid may cause a malfunction.
●Do not apply excessive force to the trunk lid while the power trunk opener and
closer is operating.

157
ES350_300h_OM_OM33B36U_(U)
3-3. Adjusting the seats
3
Operation of each component
Front seats
Adjustment procedure
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle adjust-
ment switchVertical height adjustment
switch
Lumbar support adjustment
switch
Seat cushion length adjustment
switch (if equipped)1
2
3
4
5
6

158
ES350_300h_OM_OM33B36U_(U)

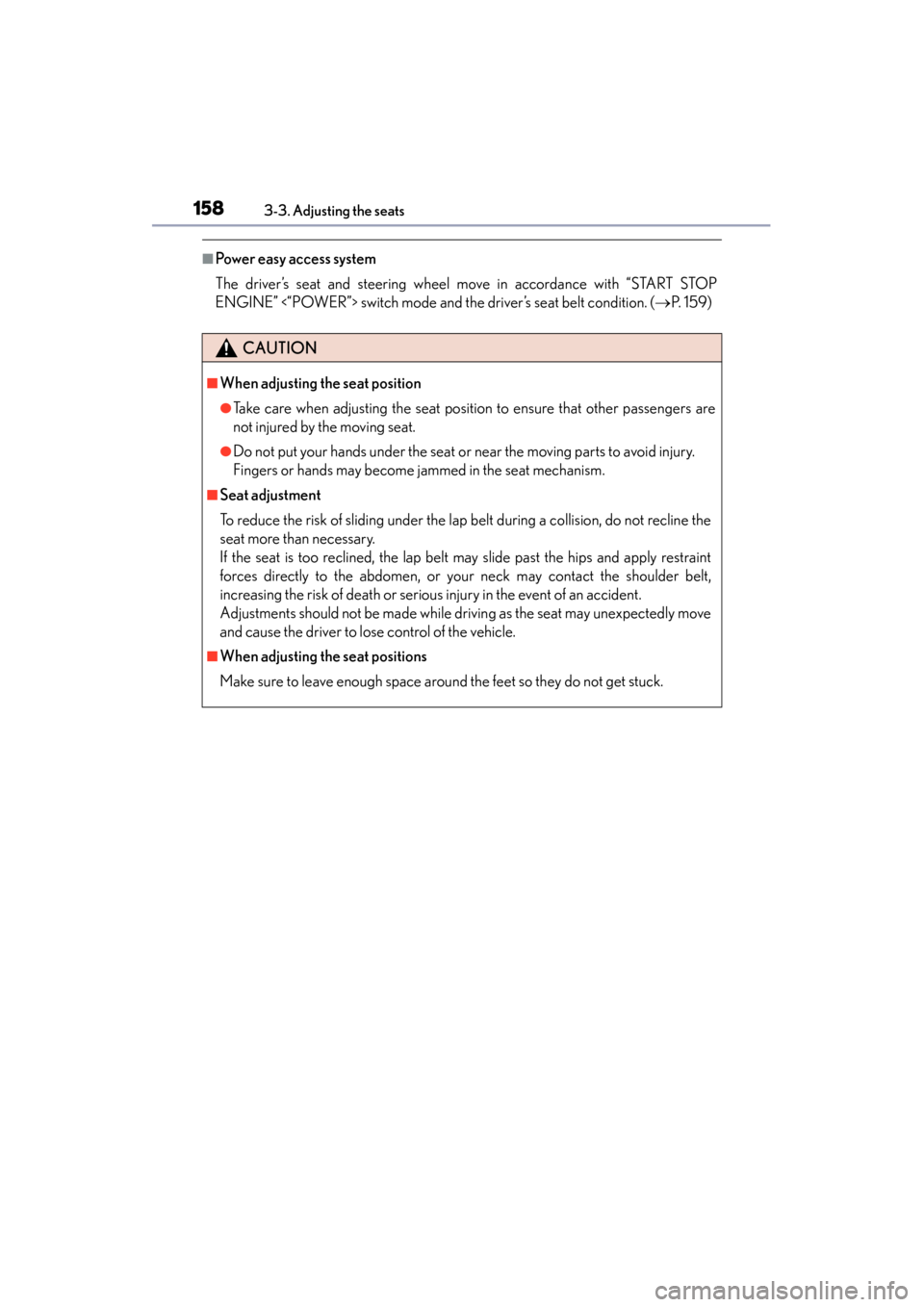

3-3. Adjusting the seats
■Power easy access system
The driver’s seat and steering wheel move in accordance with “START STOP
ENGINE” <“POWER”> switch mode and the driver’s seat belt condition. (→P. 1 5 9 )
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
■When adjusting the seat positions
Make sure to leave enough space around the feet so they do not get stuck.

159
ES350_300h_OM_OM33B36U_(U)
3-3. Adjusting the seats
3
Operation of each component
Driving position memory∗
The seat and steering wheel are automatically adjusted to allow the driver
to enter and exit the vehicle easily.
When all of the following have been
performed, the driver’s seat and
steering wheel are automatically
adjusted to a position that allows
driver to enter and exit the vehicle
easily.• The shift lever has been shifted to P.
•The “START STOP ENGINE” <“POWER”> switch has been
turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and
steering wheel automatically return to their original positions. • The “START STOP ENGINE” <“POWER”> switch has been turned to ACCESSORY mode or IGNI TION ON mode.
• The driver’s seat belt has been fastened.
∗
: If equipped
This feature automatically adjusts the front seats, steering wheel
(power adjustment type) and outside rear view mirrors to make enter-
ing and exiting the vehicle easier or to suit your preferences.
Power easy access system
