Lexus ES300h 2015 Owner's Manual

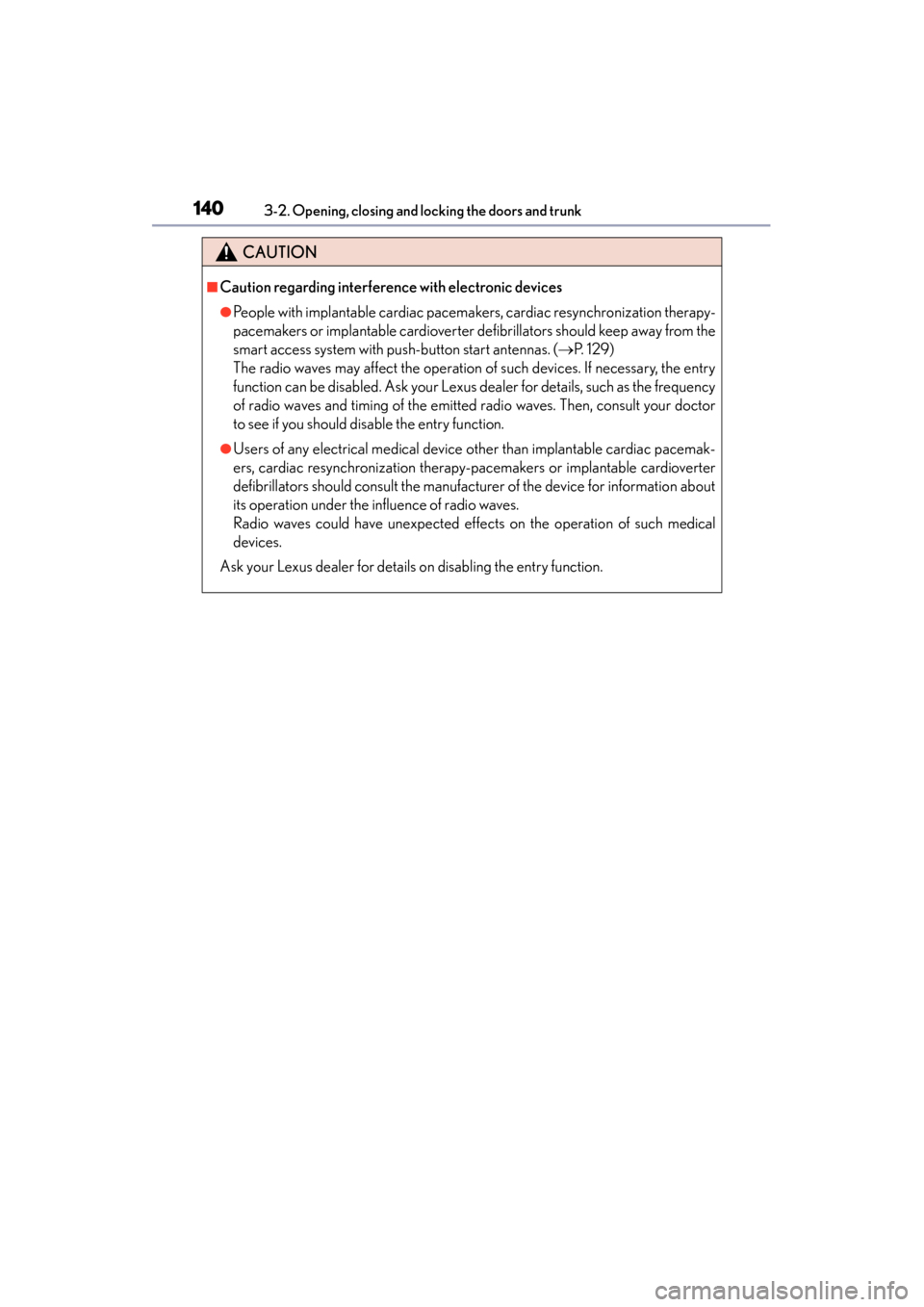

140
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
CAUTION
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter defibrillators should keep away from the
smart access system with push-button start antennas. (→P. 1 2 9 )
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency
of radio waves and timing of the emitted radio waves. Then, consult your doctor
to see if you should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemak-
ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should consult the manufacturer of the device for information about
its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask your Lexus dealer for details on disabling the entry function.

141
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Wireless remote control
The wireless remote control can be used to lock and unlock the vehicle.
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Opens the windows and moon
roof (press and hold)
*
Opens the trunk
(press and hold)
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
Sounds the alarm
(press and hold) ( →P. 142)
*: This setting must be customized at
your Lexus dealer.
Function summary
1
2
3
4
5

142
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
Tr u n k :
A buzzer sounds to indicate that the trunk has been opened.
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are operating.
■Welcome light illumination control
→P. 1 2 7
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously for 5 seconds. Fully cl ose the door to stop the buzzer, and lock
the vehicle once more.
■Pa ni c m o d e
■Security feature
→ P. 1 2 7
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
(→ P. 8 8 )
■Conditions affecting operation
→P. 1 3 4
■If the wireless remote control does not operate properly
Locking and unlocking the doors and opening the trunk: Use the mechanical key.
(→ P. 677)
When is pressed for longer than about
one second, an alarm will sound intermittently
and the vehicle lights will flash to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, press any button on the
electronic key.

ES350_300h_OM_OM33B36U_(U)
1433-2. Opening, closing and locking the doors and trunk
3
Operation of each component

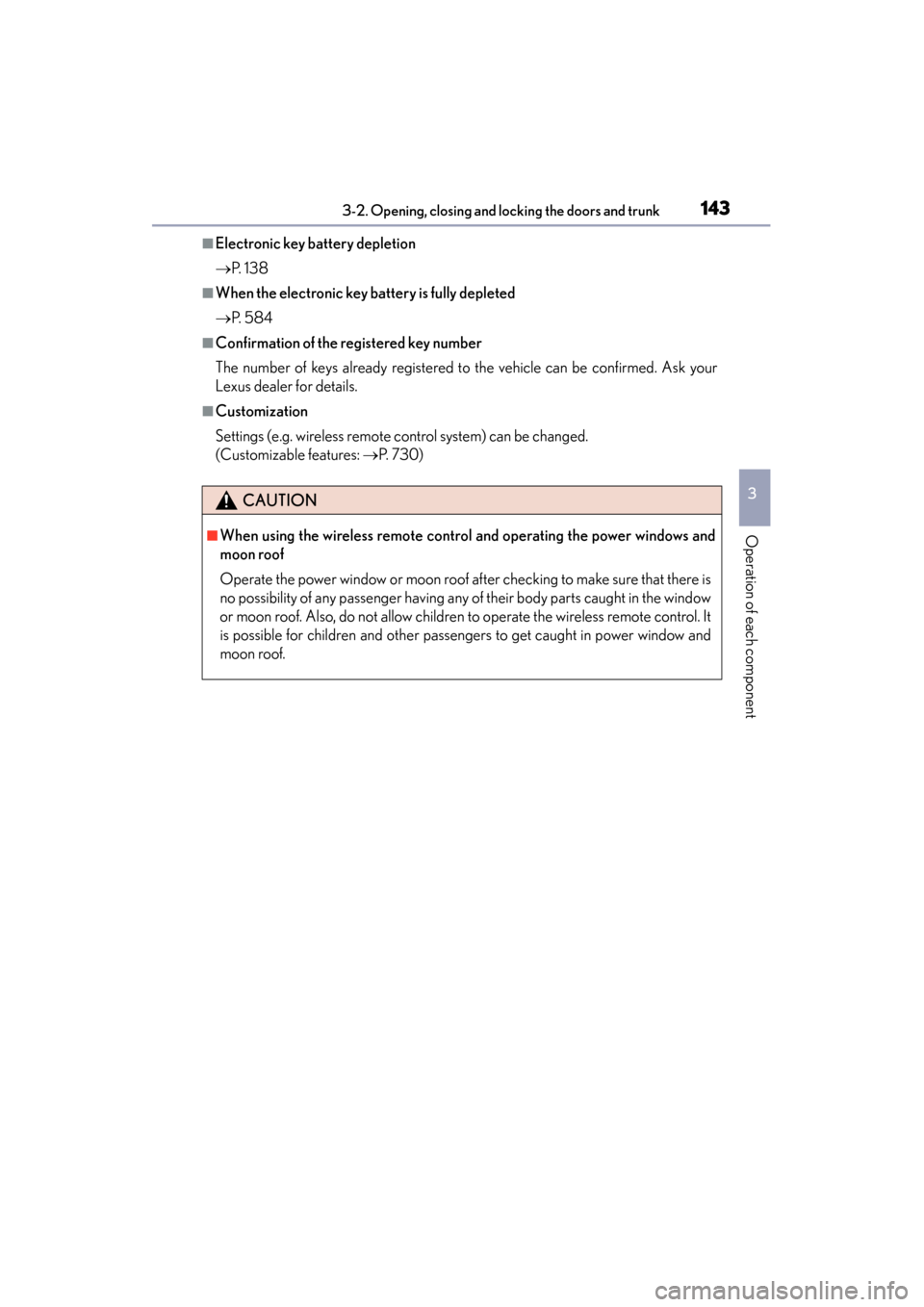

■Electronic key battery depletion
→P. 1 3 8
■When the electronic key battery is fully depleted
→P. 5 8 4
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask your
Lexus dealer for details.
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: → P. 7 3 0 )
CAUTION
■When using the wireless remote control and operating the power windows and
moon roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof. Also, do not allow children to operate the wireless remote control. It
is possible for children and other passengers to get caught in power window and
moon roof.

144
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
Doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switches.
◆Entry function
→P. 1 2 7
◆Wireless remote control
→P. 1 4 1
◆Door lock switch
Locks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock posi-
tion.
Unlocking and locking the doors
1
2
1
2

ES350_300h_OM_OM33B36U_(U)
1453-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “START STOP ENGINE” <“POWER”>
switch is in ACCESSORY or IGNITION ON mode, or the elec-
tronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

146
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
The following functions can be set or canceled:
■Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:Close all the doors and turn the “START STOP ENGINE”
<“POWER”> switch to IGNITION ON mode. (Perform step
2 within 20 seconds.)
Shift the shift lever to P or N,
and press and hold the driver’s
door lock switch ( or
) for approximately 5
seconds and then release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown as follows.
Use the same procedure to cancel
the function.
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked
door locking functionShifting the shift lever out of P locks all doors.
Shift position linked
door unlocking functionShifting the shift lever to P unlocks all doors.
Speed linked door
locking functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking functionAll doors are unlocked when the driver’s door is
opened within 45 seconds after turning the “START
STOP ENGINE” <“POWER”> switch off.
1
2

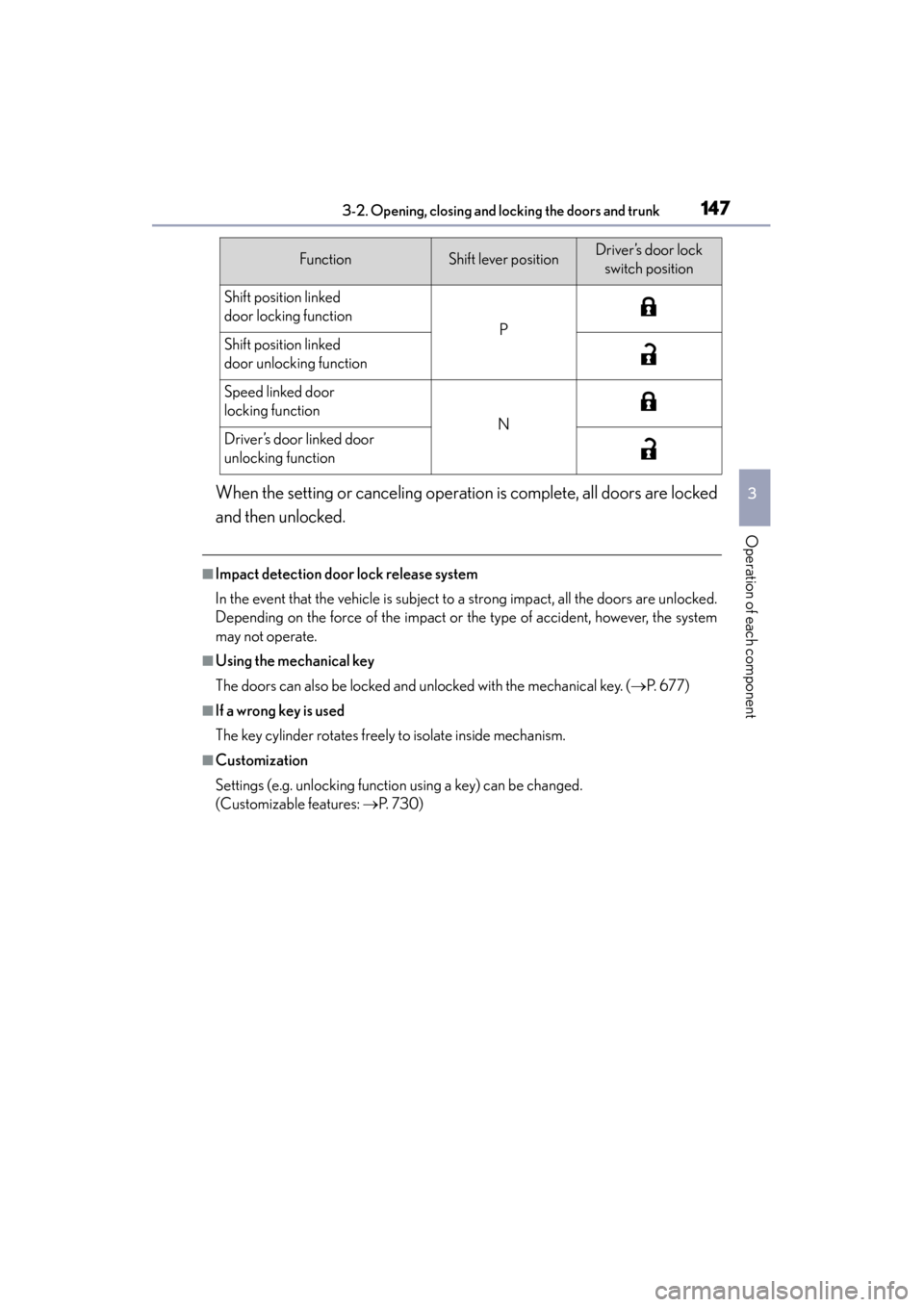

ES350_300h_OM_OM33B36U_(U)
1473-2. Opening, closing and locking the doors and trunk
3
Operation of each component
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 677)
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: → P. 7 3 0 )
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked
door locking function
PShift position linked
door unlocking function
Speed linked door
locking function
NDriver’s door linked door
unlocking function

148
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.

149
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Trunk
Press the opener switch.
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
■Trunk release button
While carrying the electronic key,
press the button on the trunk lid.
When all the doors are unlocked
with the power door lock system,
the trunk can be opened without
carrying the electronic key.
■Wireless remote control
→P. 1 4 1
The trunk can be opened using the trunk opener, trunk release button
or wireless remote control.
If the vehicle is equipped with a power trunk opener and closer, the
trunk can be closed us ing the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle
