display Lexus ES300h 2016 Owner's Manual Quick Guide (OM33B89U)
[x] Cancel search | Manufacturer: LEXUS, Model Year: 2016, Model line: ES300h, Model: Lexus ES300h 2016Pages: 114, PDF Size: 2.18 MB
Page 1 of 114
1
ES300h_QG_OM33B89U_(U)
The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
Air Conditioning System .................................................................................................................82
Audio System (with Lexus Display Audio System) Lexus Display Audio operation buttons ............................................................................... 78
Using the steering switches to change audio sources ................................................... 78
Audio menu screen.............................................................................................................. ......... 79
Operating the audio system using the steering wheel switches ................................. 81
Audio System (with navigation system)
*
Audio control screen........................................................................................................... ......... 67
Remote control (steering wheel switches).......................................................................... 67
Basic operation ................................................................................................................ ...............68
Radio ................................................................................................................................................... 69
DVD player/CD player ........................................................................................................... .... 70
Operating an iPod .............................................................................................................. ........... 72
Automatic High Beam ......................................................................................................................36
BSM (Blind Spot Monitor) .............................................................................................................. 49
Cruise Control ...................................................................................................................................... 41
Door Locks ............................................................................................................................................ 101
Driving Mode Select Switch ......................................................................................................... 50
Driving Position Memory ................................................................................................................ 23
Dynamic Radar Cruise Control ................................................................................................... 43
Energy Monitor/Consumption Screen ..................................................................................... 14
EV Drive Mode .................................................................................................................................... 29
Floor mat installation ............................................................................................................................ 11
Front Seats .............................................................................................................................................. 21
Fuel Tank Cap ............................................................................................................................... ...... 104
Garage Door Opener ...................................................................................................................... 93
Contents
*: These features may be operated by Voice Command (See P.86)
Page 2 of 114
2
ES300h_QG_OM33B89U_(U)
Hands-free System For Cellular Phone (with Lexus Display Audio System)How to register a Bluetooth
® phone .................................................................................... 75
Registering favorites .......................................................................................................... ........... 75
Dialing................................................................................................................................................. 75
Dialing from the phonebook ..................................................................................................... 75
When the phonebook is empty.................................................................................................76
Dialing from favorites ......................................................................................................... ...........76
To answer the phone............................................................................................................ ......... 77
To refuse a call ................................................................................................................................. 77
Operating a telephone using the steering wh eel switches .......................................... 77
Hands-free System For Cellular Phone (with navigation system)
*
Bluetooth® phone pairing ......................................................................................................... 62
Contacts transfer .............................................................................................................. .............63
Registering the contacts in the favorites list........................................................................ 64
Calling by name................................................................................................................ ..............65
Calling by favorites list ...................................................................................................... ...........65
Calling using e-mail/SMS/MMS message ........................................................................66
Receiving a call ............................................................................................................... ................66
Steering switches .............................................................................................................. .............66
Headlights ..............................................................................................................................................35
Head Restraints ............................................................................................................................... .... 22
Hybrid System ............................................................................................................................... ....... 12
Hybrid Transmission ......................................................................................................................... 30
Intuitive Parking Assist .....................................................................................................................48
Keys ............................................................................................................................................................ 18
LDA (Lane Departure Alert with steering control) ............................................................ 47
Lexus Display Audio Controller (with Lexus Display Audio System) ........................ 73
LEXUS Enform .................................................................................................................................... 97
LEXUS Enform Safety Connect ..................................................................................................95
*: These features may be operated by Voice Command (See P.86)
Page 3 of 114
3
ES300h_QG_OM33B89U_(U)
Moon Roof........................................................................................................................................... 103
Multi-information Display .............................................................................................................. 33
Navigation System
*
Register home .................................................................................................................. ...............56
Destination input - Search by address .................................................................................. 57
Destination input - Search points of interest by name....................................................59
Destination input - Search points of interest by category.............................................60
Destination input - Search points of interest by telephone number ...........................61
Outside Rear View Mirrors ........................................................................................................... 25
Portable Audio Device Ports .......................................................................................................... 91
Power (Ignition) Switch .................................................................................................................... 26
Po w e r Wi n d o w s ............................................................................................................................... .. 102
Rear Sunshade/Rear Door Sunshades .................................................................................... 92
Remote Touch (with navigation system) ................................................................................... 52
Seat Heaters and Ventilators ......................................................................................................... 91
Smart Access System with Push-button Start ........................................................................ 19
Theft Deterrent System ...................................................................................................................20
Tire Pressure Warning System ....................................................................................................... 51
Tr u n k ........................................................................................................................................................105
Turn Signal Lever ............................................................................................................................... .. 32
Voice Command System Basic operation ................................................................................................................ ...............86
Command list ................................................................................................................... ............... 87
Windshield Wipers and Washer ...................................................................................................38
XM Satellite Radio ...........................................................................................................................100
*: These features may be operated by Voice Command (See P.86)
Page 5 of 114
5
ES300h_QG_OM33B89U_(U)

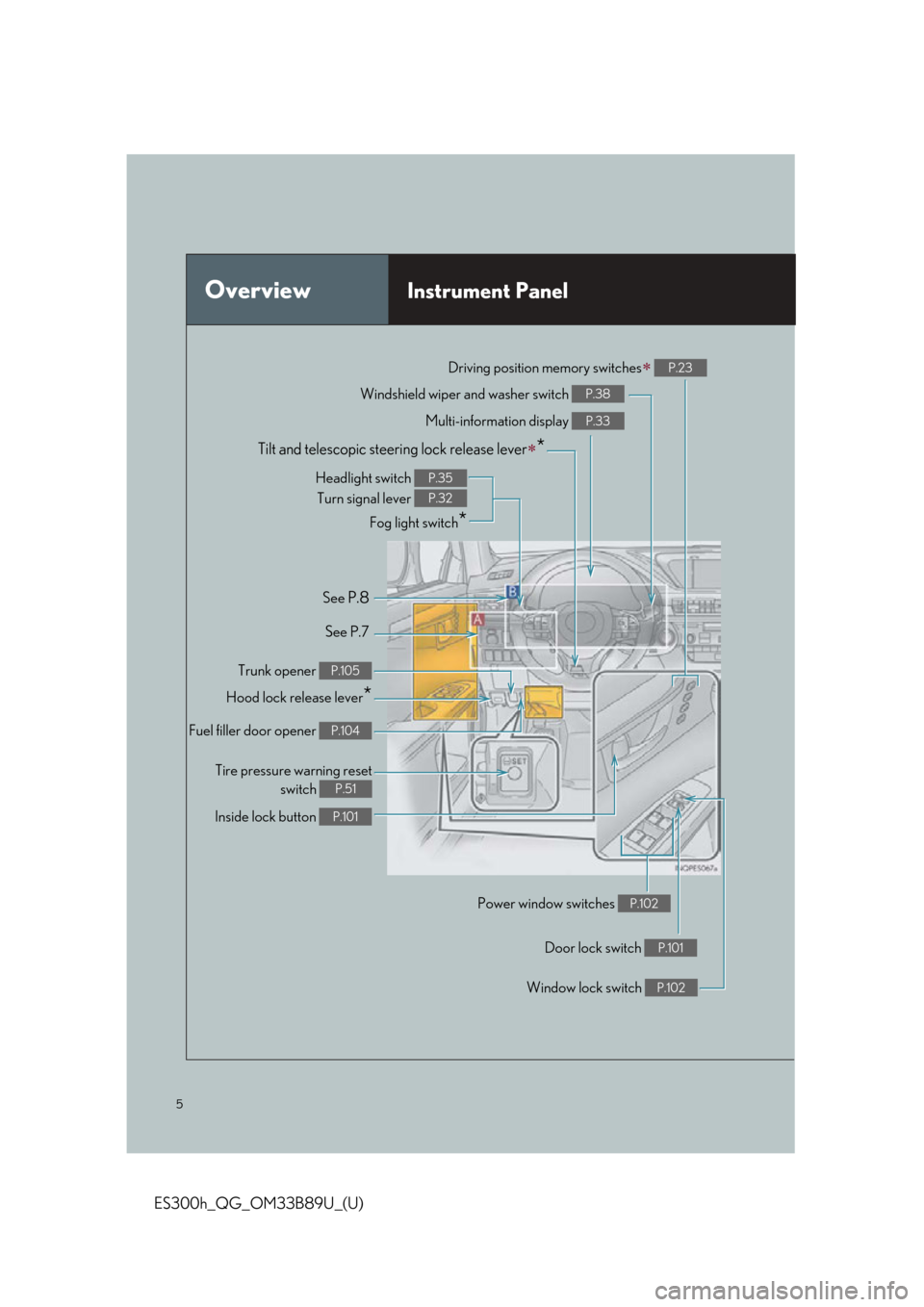

OverviewInstrument Panel
Windshield wiper and washer switch P.38
Multi-information display P.33
Headlight switch Turn signal lever
Fog light switch
*
P.35
P.32
Inside lock button P.101
Trunk opener P.105
Hood lock release lever*
Driving position memory switches P.23
See P.8
See P.7
Window lock switch
P.102
Power window switches P.102
Door lock switch P.101
Tire pressure warning resetswitch
P.51
Fuel filler door opener P.104
Tilt and telescopic steering lock release lever*
Page 6 of 114
6
ES300h_QG_OM33B89U_(U)
: If equipped
*: Refer to “OWNER’S MANUAL”.
Remote Touch screen
Navigation system
Lexus Display Audio system
P.52
P.56
P.73
Clock*
Trunk opener main switch
P.105
Audio system P.67, 78
Air conditioning system P.82
Emergency flasher switch*
See P.9 Power (ignition) switch
P.26
Parking brake*
Tilt and telescopic st
eering control switch*
Page 9 of 114
9
ES300h_QG_OM33B89U_(U)

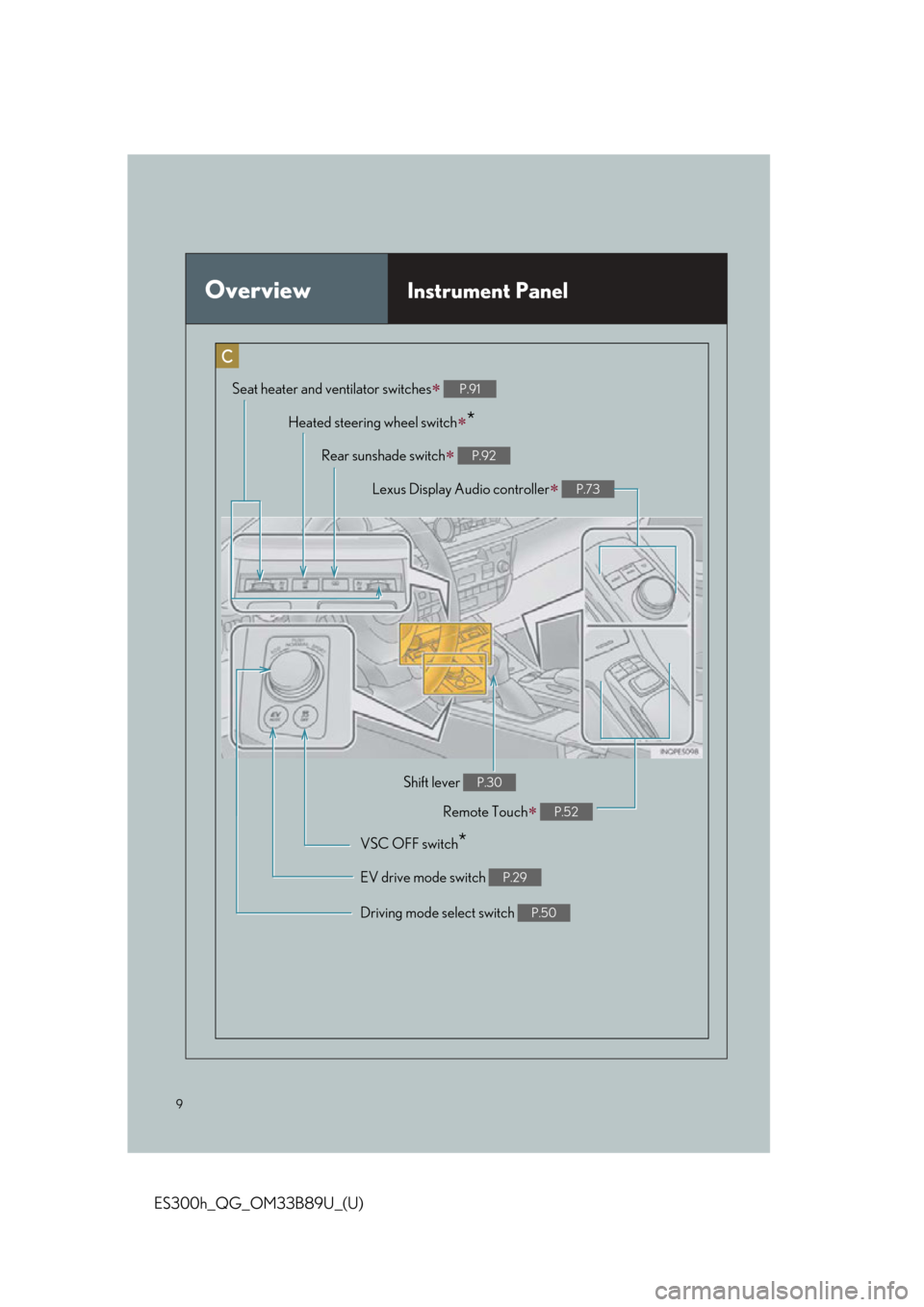

OverviewInstrument Panel
Remote Touch P.52
Heated steering wheel switch*
VSC OFF switch*
Seat heater and ventilator switches P.91
Driving mode select switch P.50
Shift lever P.30
Rear sunshade switch P.92
Lexus Display Audio controller P.73
EV drive mode switch P.29
Page 12 of 114
12
ES300h_QG_OM33B89U_(U)
Hybrid System
■Hybrid System Indicator
Po w e r a r e a
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Charge area
Shows regenerative charging.
● Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
● By keeping the indicator needle within Ec o area, more Eco-friendly driving can be
achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be used to charge
the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy created by the movement of the vehicle into electrical energy.
Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles.
Be sure you are closely familiar with the char acteristics of your vehicle, and operate it
with care.
The hybrid system combines the use of a gaso line engine and an electric motor (traction
motor) according to driving conditions, impr oving fuel efficiency and reducing exhaust
emissions.
For details, refer to the “OWNER’S MANUAL”.
1
2
3
4
Page 14 of 114
14
ES300h_QG_OM33B89U_(U)
Energy Monitor/Consumption Screen
■Energy monitor
● How to display on the navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record” screen is displaye d, select “Energy”.
● How to display on the Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Au dio controller, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Energy Monitor” screen does not appear, move the controller to the right and
select “Energy”.
You can view the status of your hybrid syst em on the multi-information display and the
navigation system screen or Lexus Display Audio system screen.
The flow of energy is displayed on the navigation system
screen.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery A light blue arrow appears when regenerative braking
occurs.
The flow of energy is displayed on the Lexus Display Audio
system screen.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recoveryA light blue arrow appears when regenerative braking
occurs.
Page 15 of 114
15
ES300h_QG_OM33B89U_(U)
●How to display on the multi-information display
Press or of the meter control switches and select , and then press or
to select the energy monitor display.
■Fuel Consumption
● Trip information
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the hybrid
system was started
Elapsed time since the hybrid system
was started
Cruising range
The flow of energy is indicated by the movement of the
arrows on the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recoveryA light blue arrow appears when regenerative braking
occurs.
The displayed energy flow, battery level, etc. wi ll change in response to the current driving
conditions.
1
2
3
4
5
6
7
Page 16 of 114
16
ES300h_QG_OM33B89U_(U)
Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, move the controller to the right and select
“Trip Information”.
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the hybrid
system was started
Elapsed time since the hybrid system
was started
Cruising range
1
2
3
4
5
6
