Lexus ES300h 2017 Navigation Manual

189
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
AUDIO/VISUAL SYSTEM
4
Press to play/pause.Press to play/pause.
•Turn to select a track.
• Turn to move up/down the list.•Turn to select a file.
• Turn to move up/down the list.
•Press to select a track.
• Press and hold to fast forward/rewind.•Press to select a file.
• Press and hold to fast forward/rewind.
No.Function
AudioVideo
ES350_300h_Navi_OM33C79U_(U).book Page 189 Wednesday, June 22, 2016 2:54 PM

190
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
WA R N I N G
●Do not operate the player’s controls or connect the iPod while driving.
NOTICE
●Depending on the size and shape of the iPod that is connected to the system, the armrest
may not close fully. In this case, do not forcib ly close the armrest as this may damage the
iPod or the terminal, etc.
● Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
● The system can only output the sound while driving.
● When an iPod is connected using a genuine iPod cable, the iPod starts charging its battery.
● Depending on the iPod, the video sound may not be able to be heard.
● Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to “On” or “Off” . (→ P.206) It may take time to display iPod cover
art, and the iPod may not be operated while the cover art display is in process.
● When an iPod is connected and the audio sour ce is changed to iPod mode, the iPod will
resume playing from the same point it was last used.
● Depending on the iPod that is connected to the system, certain functions may not be avail-
able.
● For viewing videos from an iPod, it is nece ssary to set “Video Sound Input” to “A/V”.
( → P. 2 0 6 )
● If an iPhone is connected via Bluetooth
® and USB at the same time, system operation may
become unstable. For known phone compatibility information, refer to
http://www.lexus.com/enform/
.
● The system may not function properly if a conversion adapter is used to connect a device.
ES350_300h_Navi_OM33C79U_(U).book Page 190 Wednesday, June 22, 2016 2:54 PM

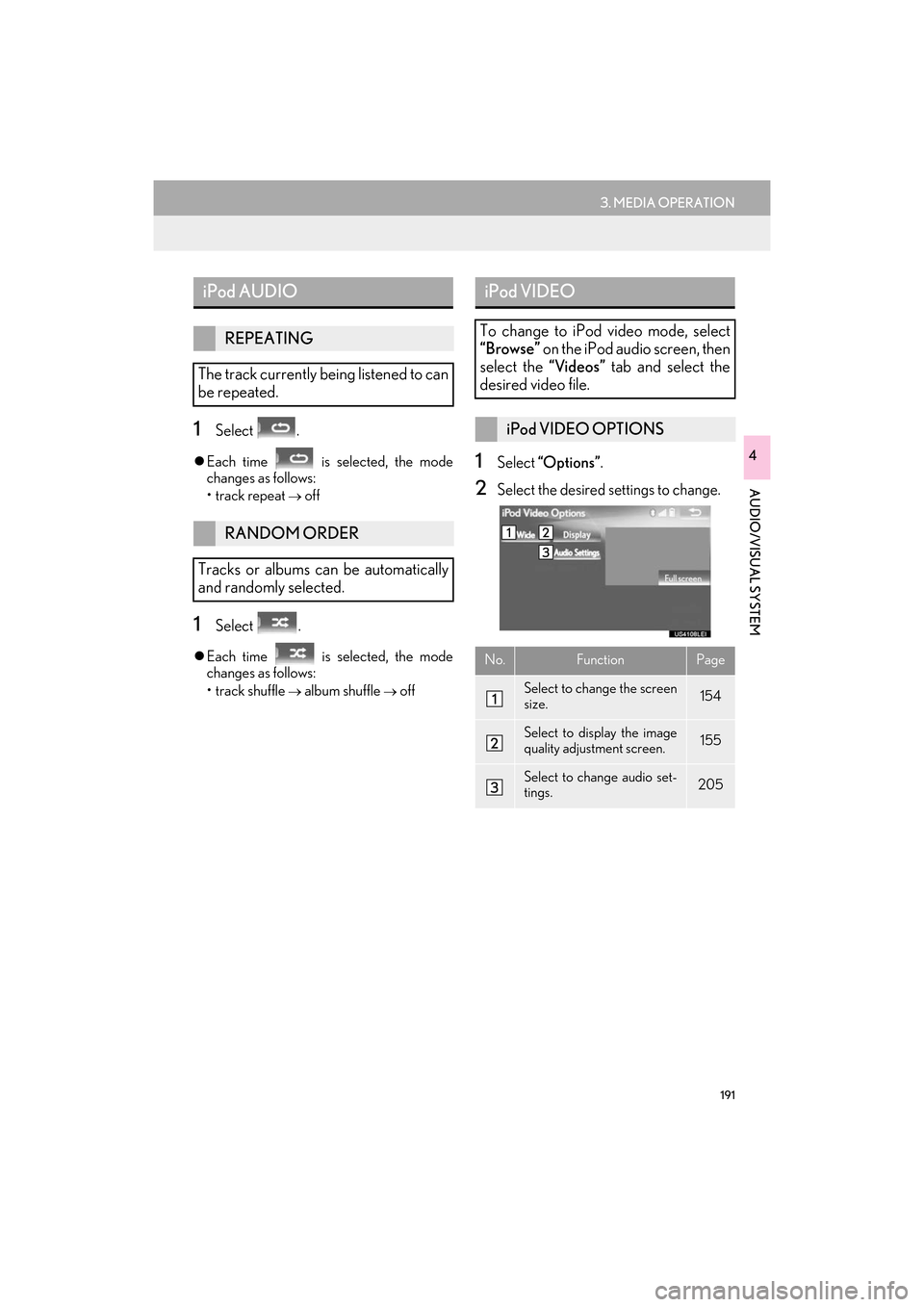

191
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
AUDIO/VISUAL SYSTEM
4
1Select .
zEach time is selected, the mode
changes as follows:
• track repeat
→ off
1Select .
zEach time is selected, the mode
changes as follows:
• track shuffle
→ album shuffle → off
1Select “Options” .
2Select the desired settings to change.
iPod AUDIO
REPEATING
The track currently being listened to can
be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.
iPod VIDEO
To change to iPod video mode, select
“Browse” on the iPod audio screen, then
select the “Videos” tab and select the
desired video file.
iPod VIDEO OPTIONS
No.FunctionPage
Select to change the screen
size. 154
Select to display the image
quality adjustment screen.155
Select to change audio set-
tings.205
ES350_300h_Navi_OM33C79U_(U).book Page 191 Wednesday, June 22, 2016 2:54 PM

192
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
5. Bluetooth® AUDIO
■CONTROL SCREEN
The Bluetooth
® audio system enables users to enjoy listening to music that is played
on a portable player on the vehicle speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of playing por-
table audio music without cables. If your device does not support Bluetooth
®, the
Bluetooth® audio system will not function.
OVERVIEW
The Bluetooth® audio operation screen can be reached by the following methods:
→ P.149
Depending on the type of portable player connected, some functions may not be avail-
able and/or the screen may look diff erently than shown in this manual.
XConnecting a Bluetooth® audio device ( →P.197)
ES350_300h_Navi_OM33C79U_(U).book Page 192 Wednesday, June 22, 2016 2:54 PM

193
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
AUDIO/VISUAL SYSTEM
4
■CONTROL PANEL
ES350_300h_Navi_OM33C79U_(U).book Page 193 Wednesday, June 22, 2016 2:54 PM

194
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
No.Function
•Displays cover art
• Select to display a track list.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the portable device connection screen. ( →P.197)
Select to display the playlist screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to set random playback. ( →P.197)
Select to set repeat playback. ( →P.197)
•Select to select a track.
• Select and hold to fast forward.
Select to play/pause.
•Select to select a track.
• Select and hold to rewind.
Select to select an album.
Displays Bluetooth® device condition
Press to play/pause.
•Turn to select a track.
• Turn to move up/down the list.
•Press to select a track.
• Press and hold to fast forward/rewind.
ES350_300h_Navi_OM33C79U_(U).book Page 194 Wednesday, June 22, 2016 2:54 PM

195
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
AUDIO/VISUAL SYSTEM
4
WA R N I N G
●Do not operate the player’s controls or connect to the Bluetooth® audio system while driv-
ing.
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should mainta in a reasonable distance between themselves and the
Bluetooth
® antennas. The radio waves may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device other than implant-
able cardiac pacemakers, cardiac resynchron ization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for information
about its operation under the influence of ra dio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
● Do not leave your portable player in the vehicl e. In particular, high temperatures inside the
vehicle may damage the portable player.
ES350_300h_Navi_OM33C79U_(U).book Page 195 Wednesday, June 22, 2016 2:54 PM

196
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
INFORMATION
●Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is pa used. Conversely, the music may pause when
selecting while it is playing.
● In the following conditions, the system may not function:
•The Bluetooth
® device is turned off.
•The Bluetooth
® device is not connected.
•The Bluetooth
® device has a low battery.
● It may take time to connect the phone when Bluetooth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
● If the Bluetooth
® device is disconnected due to poor reception from the Bluetooth® net-
work when the engine switch is in ACCESSORY or IGNITION ON mode,
the system automatically reconnects the portable player.
● If the Bluetooth
® device is disconnected on purpose, such as it was turned off, this does not
happen. Reconnect the portable player manually.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disp osing of the vehicle, remove the
Bluetooth® audio information from the system. ( →P. 6 6 )
● In some situations, sound output via the Bluetooth
® audio system may be out of sync with
the connected device or output intermittently.
ES350_300h_Navi_OM33C79U_(U).book Page 196 Wednesday, June 22, 2016 2:54 PM

197
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
AUDIO/VISUAL SYSTEM
4
XRegistering an additional device
1Select “Connect” on the Bluetooth®
audio control screen.
2For more information: →P.51
X Selecting a registered device
1Select “Connect” on the Bluetooth®
audio control screen.
2For more information: →P.53
1Select .
zEach time is selected, the mode
changes as follows:
• track repeat
→ album repeat → off
1Select .
zEach time is selected, the mode
changes as follows:
•album random → all track random → off
CONNECTING A Bluetooth®
DEVICE
To use the Bluetooth® audio system, it is
necessary to register a Bluetooth
® de-
vice with the system.
LISTENING TO Bluetooth®
AUDIO
REPEATING
The track or album currently being lis-
tened to can be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.
ES350_300h_Navi_OM33C79U_(U).book Page 197 Wednesday, June 22, 2016 2:54 PM

198
3. MEDIA OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:52
6. AUX
■CONTROL SCREEN
While driving, video will not be displayed. Only sound will be output.
OVERVIEW
The AUX operation screen can be reached by the following methods:
→P.149
XConnecting a device to the AUX port ( →P.151)
XWhen “External” is selected
ES350_300h_Navi_OM33C79U_(U).book Page 198 Wednesday, June 22, 2016 2:54 PM
