Lexus ES300h 2017 Navigation Manual

4. FUNCTION INDEX
29
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
QUICK GUIDE
1XUseful functions
InformationPage
Displaying vehicle maintenance70
Hands-free system (for cellular phone)Page
Registering/connecting a Bluetooth® phone44
Making a call on a Bluetooth® phone271
Receiving a call on the Bluetooth® phone277
Voice command systemPage
Operating the system with your voice226
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle248
ES350_300h_Navi_OM33C79U_(U).book Page 29 Wednesday, June 22, 2016 2:54 PM

30
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
ES350_300h_Navi_OM33C79U_(U).book Page 30 Wednesday, June 22, 2016 2:54 PM

2
31
ES350/300h_Navi_OM33C79U_(U)16.06.14 11:50
1
2
3 4
5
6
7
8 9
1. INITIAL SCREEN ....................................... 32
2. HOW TO USE THE Remote Touch...... 34
3. HOME SCREEN OPERATION ........... 36
4. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION............................................ 38
ENTERING LETTERS AND NUMBERS ....... 38
LIST SCREEN............................................................... 39
5. SCREEN ADJUSTMENT ......................... 41
6. LINKING MULTI-INFORMATION
DISPLAY AND NAVIGATION
SYSTEM...................................................... 43 1. REGISTERING/CONNECTING
Bluetooth
® DEVICE ............................... 44
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME .......................................... 44
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ...................... 46
PROFILES ..................................................................... 48
2. SETTING Bluetooth® DETAILS ............ 50
“Bluetooth* Setup” SCREEN ................................ 50
REGISTERING A Bluetooth® DEVICE ........... 51
DELETING A Bluetooth® DEVICE.................. 53
CONNECTING A Bluetooth® DEVICE ...... 53
EDITING THE Bluetooth® DEVICE
INFORMATION .................................................... 55
“System Settings” SCREEN .................................... 57
1. GENERAL SETTINGS............................... 61
GENERAL SETTINGS SCREEN ........................ 61
2. VOICE SETTINGS ..................................... 67
VOICE SETTINGS SCREEN ............................... 67
3. VEHICLE SETTINGS ................................ 69
MAINTENANCE ....................................................... 70
1BASIC INFORMATION BEFORE
OPERATION2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION
*: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
ES350_300h_Navi_OM33C79U_(U).book Page 31 Wednesday, June 22, 2016 2:54 PM

32
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is
turned to ACCESSORY or IGNITION
ON mode, the initial screen will
be displayed and the system will begin
operating.
zAfter a few seconds displays the initial
screen, the caution screen will be dis-
played.
z After about 5 seconds, the “CAUTION”
screen automatically switches to the home
screen. (Select “Continue” or press the
“HOME” button on the Remote Touch to
display the home screen.)
z Images shown on the initial screen can be
changed to suit individual preferences.
(→ P. 6 4 )
CAUTION SCREEN
WA R N I N G
●When the vehicle is stopped with the
engine running ating>, always apply the parking brake for
safety.
MAINTENANCE
INFORMATION
This system reminds users when to re-
place certain parts or components and
shows dealer information (if registered)
on the screen.
When the vehicle reaches a previously
set driving distance or date specified for
a scheduled maintenance check, the
“Maintenance Reminder” screen will be
displayed when the system is turned on.
z This screen goes off if the screen is not
operated for several seconds.
z To prevent this screen from being dis-
played again, select “Do Not Display
This Message Again”.
z To register maintenance information:
→ P. 7 0
z If is selected, the registered phone
number can be called.
ES350_300h_Navi_OM33C79U_(U).book Page 32 Wednesday, June 22, 2016 2:54 PM

33
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
BASIC FUNCTION
2

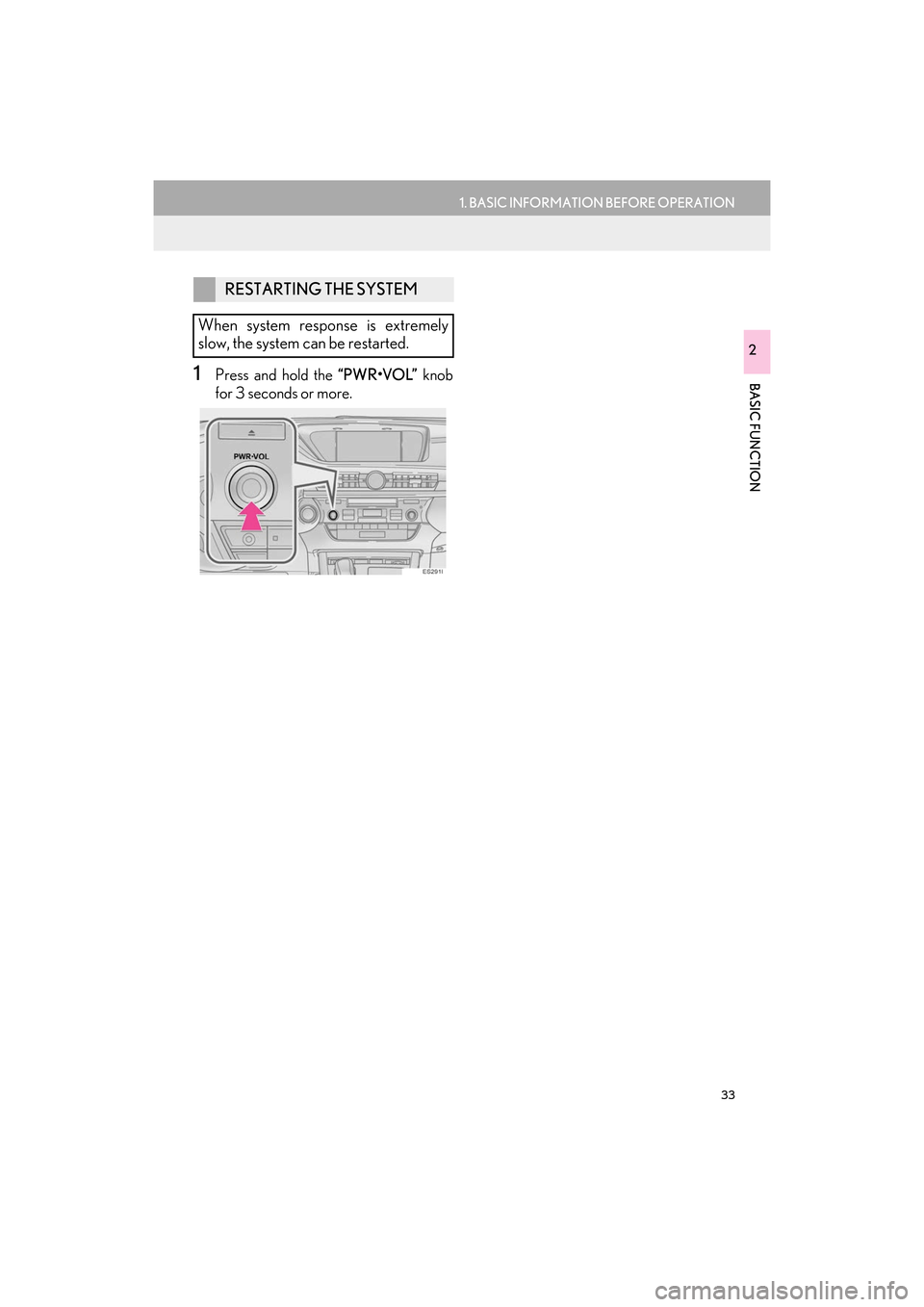

1Press and hold the “PWR•VOL” knob
for 3 seconds or more.
RESTARTING THE SYSTEM
When system response is extremely
slow, the system can be restarted.
ES350_300h_Navi_OM33C79U_(U).book Page 33 Wednesday, June 22, 2016 2:54 PM

34
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
2. HOW TO USE THE Remote Touch
1Use the Remote Touch knob to select
the desired button on the screen.
2To select a screen button, press the
Remote Touch knob or an “ENTER”
button. Once a button has been select-
ed, the screen will change.
z When the pointer moves close to a button,
it will be automatically pulled onto that but-
ton. The strength of this pull can be
adjusted. ( →P. 6 1 )
z The pointer will disappear from the screen
if it is not moved for 6 seconds. Operation
of the Remote Touch knob will cause the
pointer to reappear.
z Press the “ ” button on the Remote Touch
to zoom in on the map screen and the “ ”
button to zoom out. These buttons can also
be used to scroll up and down on list
screens.
z When is displayed on the screen,
select or press the button on
the Remote Touch to return to the previous
screen.
z Press the “MENU” button on the Remote
Touch to display the “Menu” screen.
( → P.1 4 )
z The home screen can be displayed by
pressing the “HOME” button on the
Remote Touch. ( →P.1 8 )This system can be operated by the
Remote Touch when the engine
switch is in ACCESSORY or
IGNITION ON mode.
ES350_300h_Navi_OM33C79U_(U).book Page 34 Wednesday, June 22, 2016 2:54 PM

35
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
BASIC FUNCTION
2
WA R N I N G
●Do not allow fingers, fingernails or hair to
become caught in the Remote Touch as
this may cause an injury.
● Be careful when touching the Remote
Touch in extreme temperatures as it may
become very hot or cold due to the tem-
perature inside the vehicle.
NOTICE
●Do not allow the Remote Touch to come
into contact with food, liquid, stickers or lit
cigarettes as doing so may cause it to
change color, emit a strange odor or stop
functioning.
● Do not subject the Remote Touch to
excessive pressure or strong impact as
the knob may bend or break off.
● Do not allow coins, contact lenses or
other such items to become caught in the
Remote Touch as this may cause it to stop
functioning.
● Items of clothing may rip if they become
caught on the Remote Touch knob.
● If your hand or any object is on the
Remote Touch knob when the engine
switch is in ACCESSORY
mode, the Remote Touch knob may not
operate properly.
INFORMATION
● Under extremely cold conditions, the
Remote Touch knob may react slowly.
ES350_300h_Navi_OM33C79U_(U).book Page 35 Wednesday, June 22, 2016 2:54 PM

36
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
3. HOME SCREEN OPERATION
1Press the “HOME” button on the
Remote Touch.
2Check that the home screen is dis-
played.
z When a screen is selected, the selected
screen will change to a full screen display.
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “Customize Home Screen” .
The home screen can display multiple
information screens, such as the audio
system screen and fuel consumption
screen, simultaneously. CUSTOMIZING THE HOME
SCREEN
The display items/area on the home
screen and the home screen layout can
be changed.
ES350_300h_Navi_OM33C79U_(U).book Page 36 Wednesday, June 22, 2016 2:54 PM

37
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
BASIC FUNCTION
2
4Check that “Customize Home Screen”
is displayed.■CHANGING THE DISPLAY
ITEMS/AREA
1Select the desired item.
2Select the desired area.
■CHANGING THE HOME SCREEN
LAYOUT
1Select “Change Layout” .
2Select the desired screen layout.
No.FunctionPage
Select to change the dis-
play items/area.37
Select to change the home
screen layout.37
INFORMATION
●When the selected item is already being
displayed and another area is selected for
that item, the item that it is replacing will
be displayed in the original item’s loca-
tion.
ES350_300h_Navi_OM33C79U_(U).book Page 37 Wednesday, June 22, 2016 2:54 PM

38
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33C79U_(U)16.06.22 14:51
4. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION
zOn certain letter entry screens, letters can
be entered in upper or lower case.
: Select to enter in lower case.
: Select to enter in upper case.
When searching by an address, name,
etc., or entering data, letters and num-
bers can be entered via the screen.
ENTERING LETTERS AND
NUMBERS
No.Function
Select to enter desired characters.
Text field. Entered character(s) will
be displayed.
During character entry, when there is
only one available option for the next
character(s), the next character(s)
will be displayed in gray text in the
text field automatically. Gray text is
entered by selecting this button.
Select to erase one character. Select
and hold to continue erasing charac-
ters.
Select to display the alphabet keys.
Select to display other symbols.
zKeyboard layout can be changed.
(→ P. 6 1 )
ES350_300h_Navi_OM33C79U_(U).book Page 38 Wednesday, June 22, 2016 2:54 PM
