81
ES300h_QG_OM06179U_(U)
●If the garage door or other device does not operate, proceed to “Programming a
rolling code system”.
5Repeat the steps above to program another device for any of the remaining Home-
Link
® buttons.
■Programming a rolling code system
2 or more people may be necessary to complete rolling code programming.
1Locate the “Learn” or “Smart” button
on the garage door opener motor in
the garage.
This button can usually be found where
the hanging antenna wire is attached to
the unit. The name and color of the but-
ton may vary by manufacturer. Refer to
the owner’s manual supplied with the
garage door opener motor for details.
2Press and release the “Learn” or
“Smart” button.
Perform
3 within 30 seconds after
performing
2.
3Press and hold the desired Home-
Link
® button (inside the vehicle) for 2
seconds and release it. Repeat this
sequence (press/hold/release) up to 3
times to complete programming.
If the garage door opener motor oper-
ates when the HomeLink
® button is
pressed, the garage door opener
motor recognizes the HomeLink
® sig-
nal.

82
ES300h_QG_OM06179U_(U)
■Enabling 2-way communication with a garage door (only available for compat-
ible devices)
When enabled, 2-way communication allows you to check the status of the opening and
closing of a garage door through indicators in your vehicle.
2-way communication is only available if the garage door opener motor used is a compati-
ble device. (To check device compatibility, refer to www.homelink.com.)
1Within 5 seconds after programming the garage door opener has been completed, if
the garage door opener motor is trained to HomeLink
®, both garage door operation
indicators will flash rapidly (green) and the light on the garage door opener motor will
blink twice, indicating that 2-way communication is enabled.
If the indicators do not flash, perform
2 and 3 within the first 10 presses of the HomeLink®
button after programming has been completed.
2Press a programmed HomeLink® button to operate a garage door.
3Within 1 minute of pressing the HomeLink® button, after the garage door operation
has stopped, press the “Learn” or “Smart” button on the garage door opener motor.
Within 5 seconds of the establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will flash rapidly (green)
and the light on the garage door opener motor will blink twice, indicating that 2-way
communication is enabled.
■Reprogramming a single HomeLink® button
When the following procedure is performed, buttons which already have devices registered
to them can be overwritten:
1With one hand, press and hold the desired HomeLink® button.
2When the HomeLink® indicator starts flashing (orange), continue to hold the Home-
Link
® button and perform “Programming HomeLink®” 1 (it takes 20 seconds for the
HomeLink
® indicator to start flashing).
Press the appropriate HomeLink
® button. The HomeLink® indicator light should turn on.
Operating HomeLink®

83
ES300h_QG_OM06179U_(U)
“SOS” button
LED light indicators
Microphone
Subscribers have the following Safety Connect services available:
●Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emer-
gency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services provider to describe the
situation, and requests that assistance be sent to the location.
Lexus Enform Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security fea-
tures to subscribers. Safety Connect is supported by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telematics hardware-
equipped vehicles.
System components
A
B
C
Services

84
ES300h_QG_OM06179U_(U)
●Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After filing a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-265-3987 in Canada, and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Con-
nect-equipped vehicle location data may, under certain circumstances, be shared with
third parties to locate your vehicle. Further information is available at Lexus.com.
●Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agent will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
●Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included warranty-based
Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Roadside Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at Lexus.com.
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus dealer, call the
following or push the “SOS” button in your vehicle for further subscription details.
●The United States
1-800-25-LEXUS (1-800-255-3987)
●Canada
1-800-26-LEXUS (1-800-265-3987)
●Puerto Rico
1-877-539-8777
Subscription

85
ES300h_QG_OM06179U_(U)
After you sign the Telematics Subscription Service Agreement, download the Lexus Enform
Remote app from your cellular phone’s app store, and register within the app (or enroll and
complete registration at the dealer), you can begin using these services.
A variety of subscription terms are available. Contact your Lexus dealer, or call 1-800-25-
LEXUS (1-800-255-3987) for further subscription details.

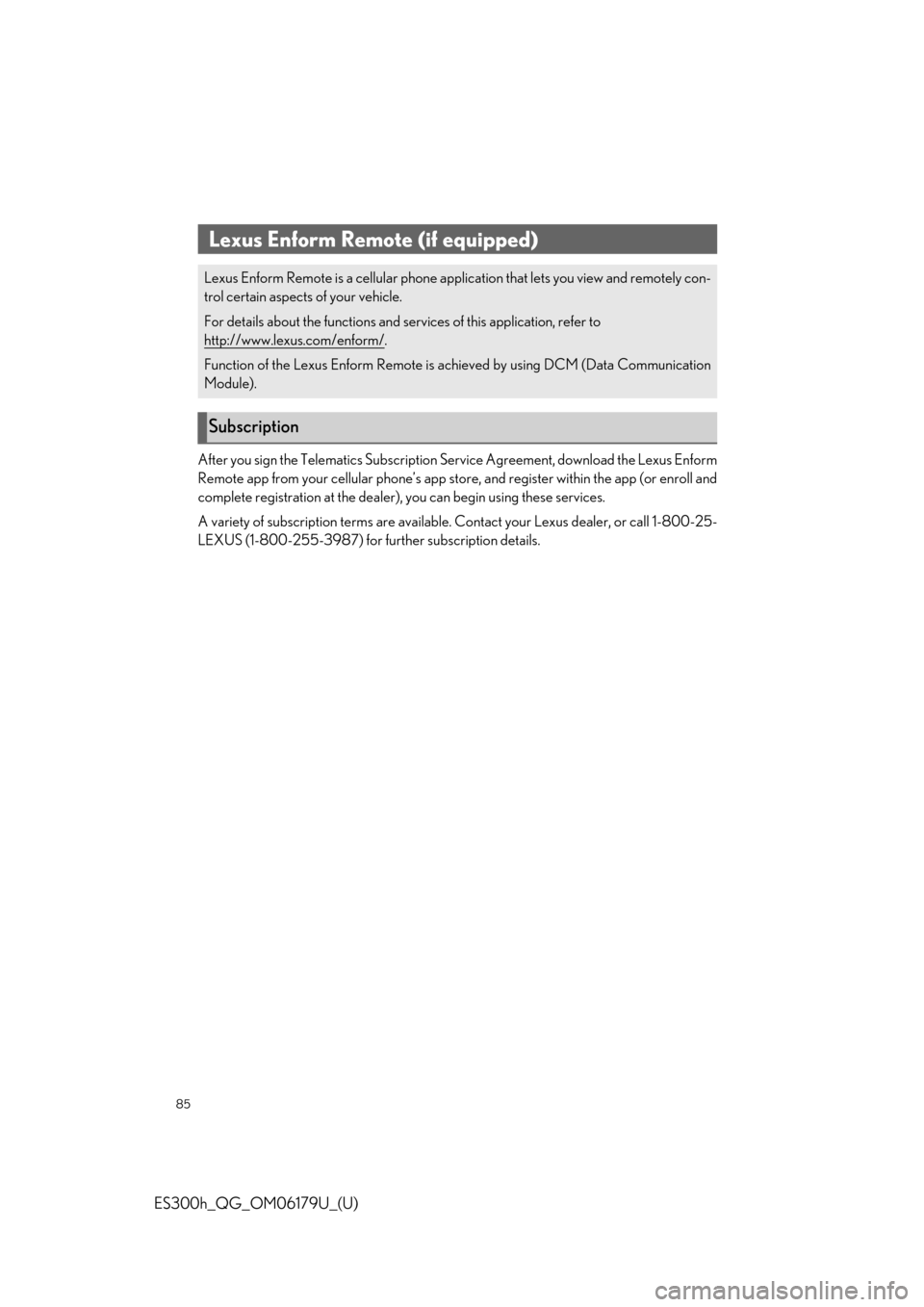

Lexus Enform Remote (if equipped)
Lexus Enform Remote is a cellular phone application that lets you view and remotely con-
trol certain aspects of your vehicle.
For details about the functions and services of this application, refer to
http://www.lexus.com/enform/
.
Function of the Lexus Enform Remote is achieved by using DCM (Data Communication
Module).
Subscription

86
ES300h_QG_OM06179U_(U)

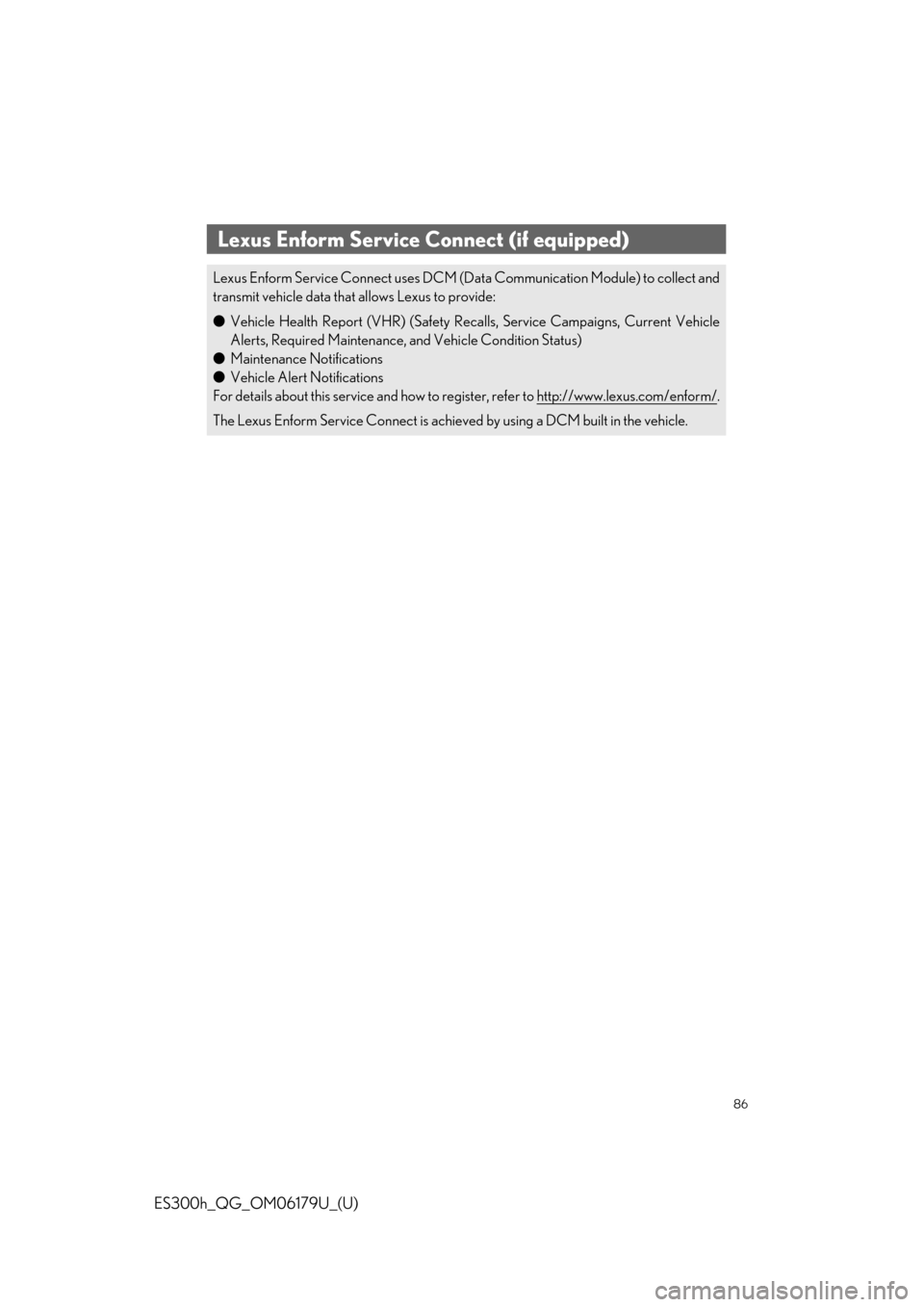

Lexus Enform Service Connect (if equipped)
Lexus Enform Service Connect uses DCM (Data Communication Module) to collect and
transmit vehicle data that allows Lexus to provide:
●Vehicle Health Report (VHR) (Safety Recalls, Service Campaigns, Current Vehicle
Alerts, Required Maintenance, and Vehicle Condition Status)
●Maintenance Notifications
●Vehicle Alert Notifications
For details about this service and how to register, refer to http://www.lexus.com/enform/
.
The Lexus Enform Service Connect is achieved by using a DCM built in the vehicle.

87
ES300h_QG_OM06179U_(U)
All SiriusXM services, including satellite radio and data services, plus streaming services,
require a subscription, sold separately or as a package by Sirius XM Radio Inc. (U.S.A.) or
Sirius XM Canada Inc. (Canada), after any trial subscription which may be included with
your vehicle purchase or lease. To subscribe after your trial subscription, call 1-877-447-
0011 (U.S.A.) or 1-877-438-9677 (Canada).
SiriusXM Satellite Radio
Most in-car trials today include SiriusXM’s best package  All Access. It includes every
channel available on your radio, plus streaming.
For details, refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Subscription

88
ES300h_QG_OM06179U_(U)
■Door lock switches (to lock/unlock)
1
Locks all the doors
2Unlocks all the doors
■Inside lock buttons (to lock)
Push down the inside lock button to lock the
door.
■Inside door handles (to unlock)
For the front doors
Pull the handle to unlock and open the
door.
When the door is unlocked, the inside
lock button will pop up.
For the rear doors
Pull the handle to unlock the door. Pull
the handle a second time to open the
door.
When the door is unlocked, the inside
lock button will pop up.
Door Locks
The vehicle can be locked and unlocked using the entry function, wireless remote control
or door lock switches.
For details about the entry function or wireless remote control, refer to P.15, 16.
Unlocking and locking the doors from the inside

89
ES300h_QG_OM06179U_(U)
●Turn the power switch off and ensure that all the doors and windows are closed.
●Confirm the type of fuel.
1Press the opener switch.
The fuel filler door will open within
about 10 seconds of the switch being
pressed.
Before refueling is possible, a message
will be shown on the multi-information
display in the instrument cluster to indi-
cate the progress of the fuel filler door
opener.
2Turn the fuel tank cap slowly and
remove it, then hang it on the back of
the fuel filler door.
After refueling, turn the fuel tank cap until
you hear a click. Once the cap is released, it
will turn slightly in the opposite direction.
Opening the fuel tank cap
The fuel tank of your vehicle has a special structure, which requires a reduction in fuel tank
pressure before refueling. After the opener switch has been pressed, it will take several
seconds until the vehicle is ready for refueling.
Before refueling the vehicle
Opening the fuel tank cap
Closing the fuel tank cap

90
ES300h_QG_OM06179U_(U)
