Lexus ES350 2007 Audio/video System
Manufacturer: LEXUS, Model Year: 2007, Model line: ES350, Model: Lexus ES350 2007Pages: 72, PDF Size: 0.94 MB
Page 31 of 72
189
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
(d) Operating an audio CD
Playing an audio CD
Push the AUDIOº button to display
this screen.
CD text only Ð The disc title and track title
will appear on the screen when pushing
the DISC´AUXº button.
You can operate the touch-screen buttons
and choose the number of the disc you
want to play. The selected disc is automat-
ically played.
Selecting a desired track
SEEK/TRACKº button: Use for a direct
access to a desired track.
Push the
º or º button of SEEK/
TRACKº and repeat it until the desired
track number appears on the screen. As
you release the button, the changer will
start playing the selected track from the
beginning.
TRACK LISTº: The desired track can be
selected from a list. This function is avail-
able only when the vehicle is not moving.
Touch TRACK LISTº. The track list is
displayed.
Page 32 of 72
190AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
Touch the desired track number. The
changer will start playing the selected
track from the beginning.
: By touching this button, the list moves
up by 6 track groups. If this button is
touched when the top page of the list is dis-
played, the last page is displayed.
: By touching this button, the list moves
down by 6 track groups. If this button is
touched when the last page of the list is
displayed, the top page is displayed.
Fast forward: Push the
º button of
SEEK/TRACKº and hold it to fast for-
ward the disc. When you release the but-
ton, the changer will resume playing from
that position.
Reverse: Push the
º button of SEEK/
TRACKº and hold it to reverse the disc.
When you release the button, the changer
will resume playing.
Searching for a desired track or a
disc
Searching for a desired track Ð
While the disc is playing, touch
SCANº on the screen briefly.
SCANº appears on the screen. The
changer will play the next track for 10 sec-
onds, then scan again. To select a track,
touch SCANº once again. If the changer
reaches the end of the disc, it will continue
scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.
Searching for a desired disc Ð
While the disc is playing, touch
SCANº on the screen and hold it until
the D´SCANº appears on the screen.
The program at the beginning of each au-
dio disc will be played for 10 seconds. To
continue listening to the program of your
choice, touch SCANº once again.
After all the audio discs are scanned in one
pass, normal play resumes.
Page 33 of 72
191
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
Other functions
RPTº: Use it for automatic repeat of the
track or disc you are currently listening to.
Repeating a track Ð
While the track is playing, touch RPTº
briefly.
RPTº appears on the screen. When the
track is finished, the changer will automati-
cally go back to the beginning of the track
and play the track again. To cancel it,
touch RPTº once again.
Repeating a disc Ð
While the disc is playing, touch RPTº
and hold it until the D´RPTº appears on
the screen.
When the disc is finished, the changer will
automatically go back to the beginning of
the disc and play the disc again. To cancel
it, touch RPTº once again.RANDº: Use it for automatic and random
selection.
Playing the tracks on one disc in ran-
dom order Ð
While the disc is playing, touch
RANDº briefly.
RANDº appears on the screen. The sys-
tem selects a track on the disc being lis-
tened to in random order. To cancel it,
touch RANDº once again.
Playing the tracks on all the audio discs
in random order Ð
While the disc is playing, touch
RANDº and hold it until the D´RANDº
appears on the screen.
The system selects a track on all the audio
discs in the changer in random order. To
cancel it, touch RANDº once again.
If a CD-TEXT disc is inserted, the title of
the disc and track will be displayed. Up to
29 letters can be displayed.

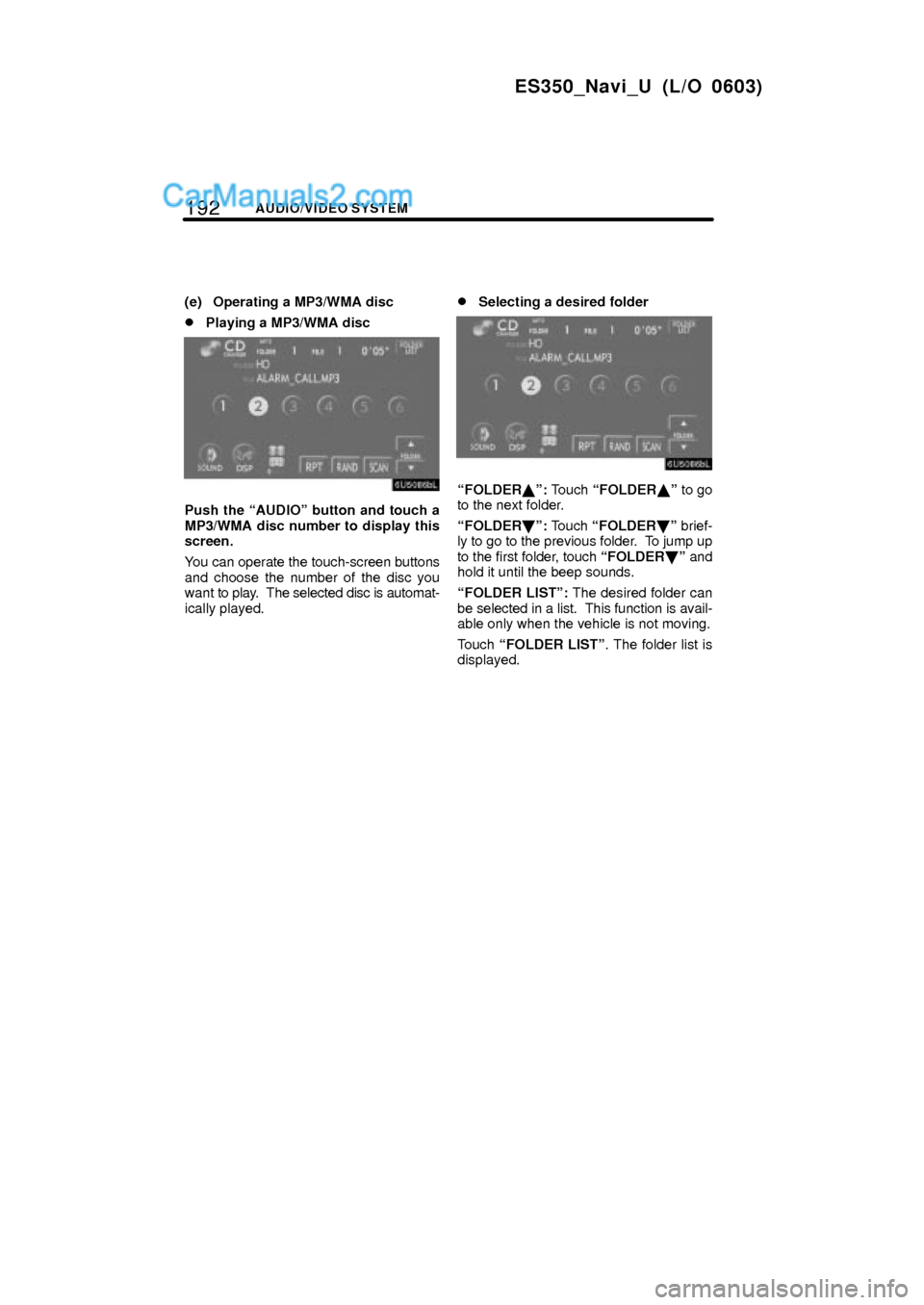

Page 34 of 72
192AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
(e) Operating a MP3/WMA disc
Playing a MP3/WMA disc
Push the AUDIOº button and touch a
MP3/WMA disc number to display this
screen.
You can operate the touch-screen buttons
and choose the number of the disc you
want to play. The selected disc is automat-
ically played.
Selecting a desired folder
FOLDERº: Touch FOLDERº to go
to the next folder.
FOLDERº: Touch FOLDERº brief-
ly to go to the previous folder. To jump up
to the first folder, touch FOLDERº and
hold it until the beep sounds.
FOLDER LISTº: The desired folder can
be selected in a list. This function is avail-
able only when the vehicle is not moving.
Touch FOLDER LISTº. The folder list is
displayed.

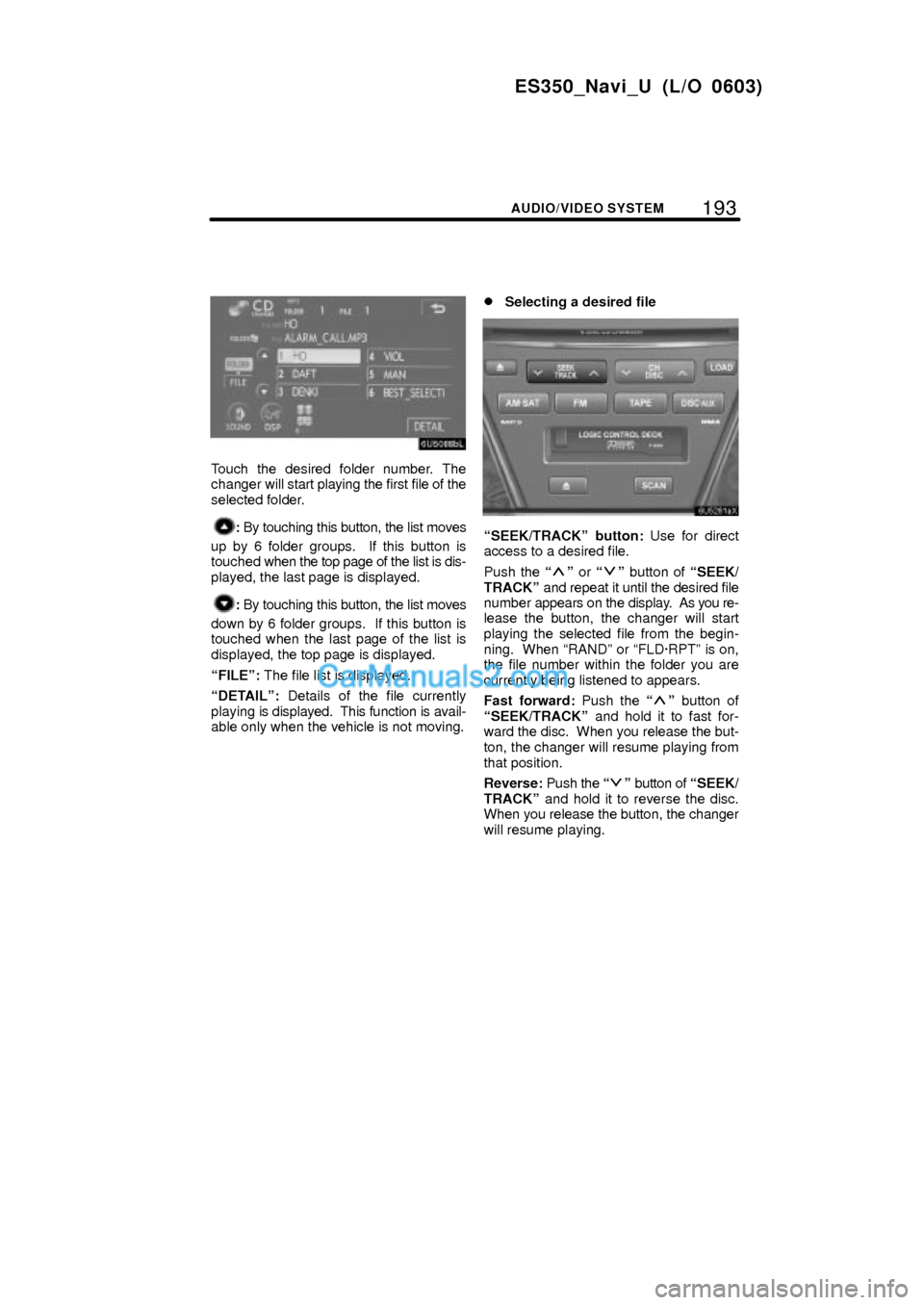

Page 35 of 72
193
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
Touch the desired folder number. The
changer will start playing the first file of the
selected folder.
: By touching this button, the list moves
up by 6 folder groups. If this button is
touched when the top page of the list is dis-
played, the last page is displayed.
: By touching this button, the list moves
down by 6 folder groups. If this button is
touched when the last page of the list is
displayed, the top page is displayed.
FILEº: The file list is displayed.
DETAILº: Details of the file currently
playing is displayed. This function is avail-
able only when the vehicle is not moving.
Selecting a desired file
SEEK/TRACKº button: Use for direct
access to a desired file.
Push the
º or º button of SEEK/
TRACKº and repeat it until the desired file
number appears on the display. As you re-
lease the button, the changer will start
playing the selected file from the begin-
ning. When RANDº or FLD´RPTº is on,
the file number within the folder you are
currently being listened to appears.
Fast forward: Push the
º button of
SEEK/TRACKº and hold it to fast for-
ward the disc. When you release the but-
ton, the changer will resume playing from
that position.
Reverse: Push the
º button of SEEK/
TRACKº and hold it to reverse the disc.
When you release the button, the changer
will resume playing.

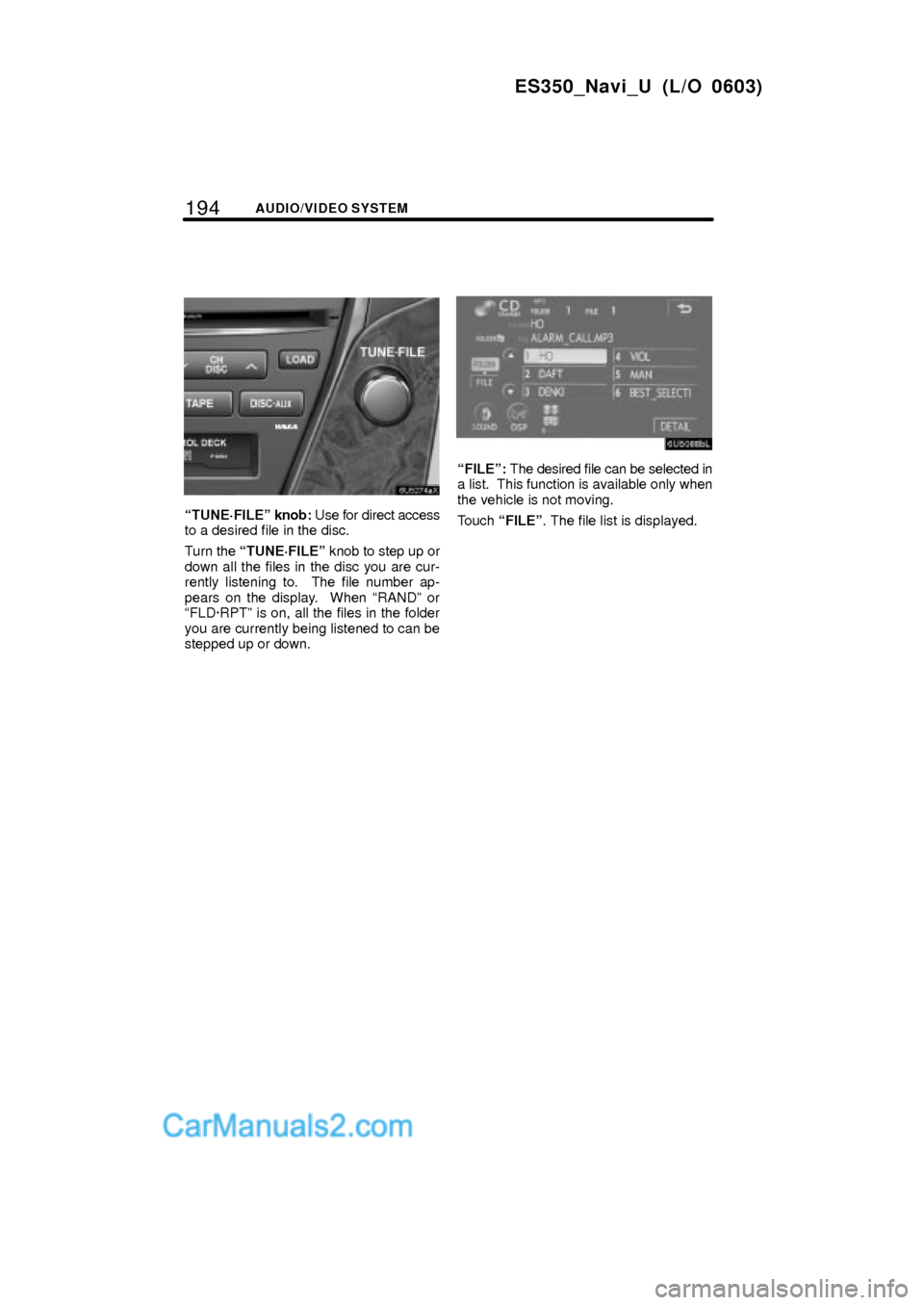

Page 36 of 72
194AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
TUNE´FILEº knob: Use for direct access
to a desired file in the disc.
Turn the TUNE´FILEº knob to step up or
down all the files in the disc you are cur-
rently listening to. The file number ap-
pears on the display. When RANDº or
FLD´RPTº is on, all the files in the folder
you are currently being listened to can be
stepped up or down.
FILEº: The desired file can be selected in
a list. This function is available only when
the vehicle is not moving.
Touch FILEº. The file list is displayed.

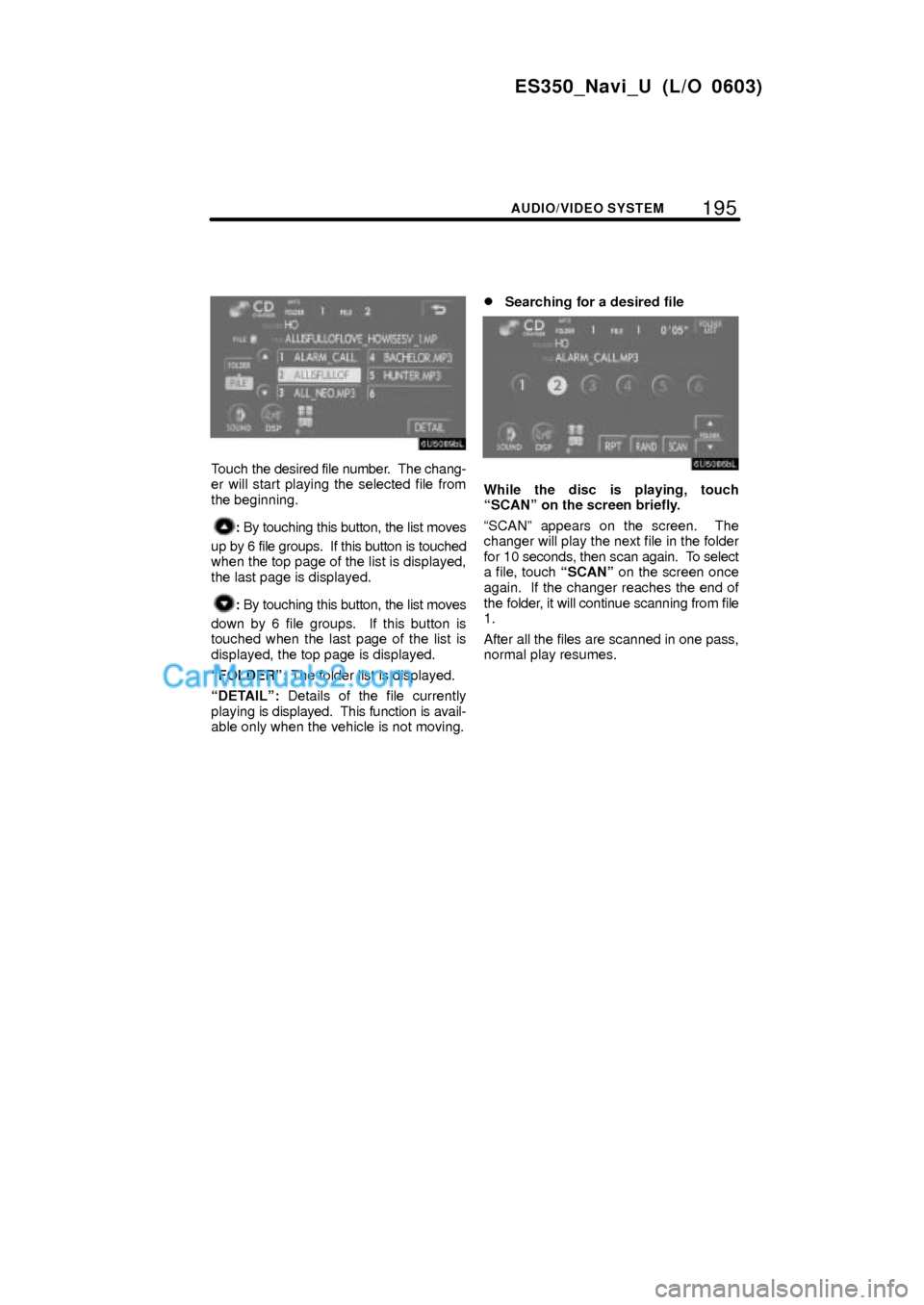

Page 37 of 72
195
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
Touch the desired file number. The chang-
er will start playing the selected file from
the beginning.
: By touching this button, the list moves
up by 6 file groups. If this button is touched
when the top page of the list is displayed,
the last page is displayed.
: By touching this button, the list moves
down by 6 file groups. If this button is
touched when the last page of the list is
displayed, the top page is displayed.
FOLDERº: The folder list is displayed.
DETAILº: Details of the file currently
playing is displayed. This function is avail-
able only when the vehicle is not moving.
Searching for a desired file
While the disc is playing, touch
SCANº on the screen briefly.
SCANº appears on the screen. The
changer will play the next file in the folder
for 10 seconds, then scan again. To select
a file, touch SCANº on the screen once
again. If the changer reaches the end of
the folder, it will continue scanning from file
1.
After all the files are scanned in one pass,
normal play resumes.

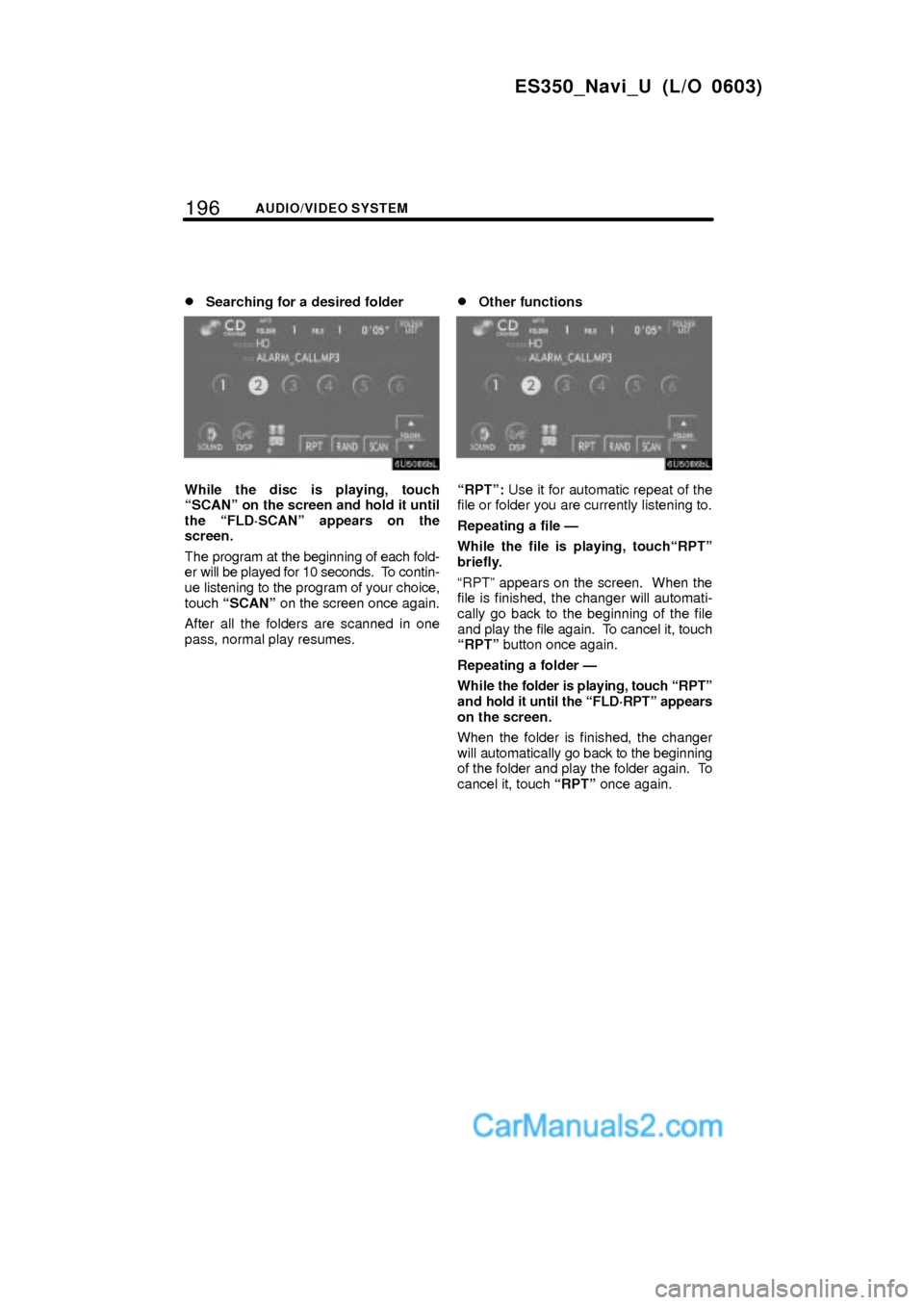

Page 38 of 72
196AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
Searching for a desired folder
While the disc is playing, touch
SCANº on the screen and hold it until
the FLD´SCANº appears on the
screen.
The program at the beginning of each fold-
er will be played for 10 seconds. To contin-
ue listening to the program of your choice,
touch SCANº on the screen once again.
After all the folders are scanned in one
pass, normal play resumes.
Other functions
RPTº: Use it for automatic repeat of the
file or folder you are currently listening to.
Repeating a file Ð
While the file is playing, touchRPTº
briefly.
RPTº appears on the screen. When the
file is finished, the changer will automati-
cally go back to the beginning of the file
and play the file again. To cancel it, touch
RPTº button once again.
Repeating a folder Ð
While the folder is playing, touch RPTº
and hold it until the FLD´RPTº appears
on the screen.
When the folder is finished, the changer
will automatically go back to the beginning
of the folder and play the folder again. To
cancel it, touch RPTº once again.

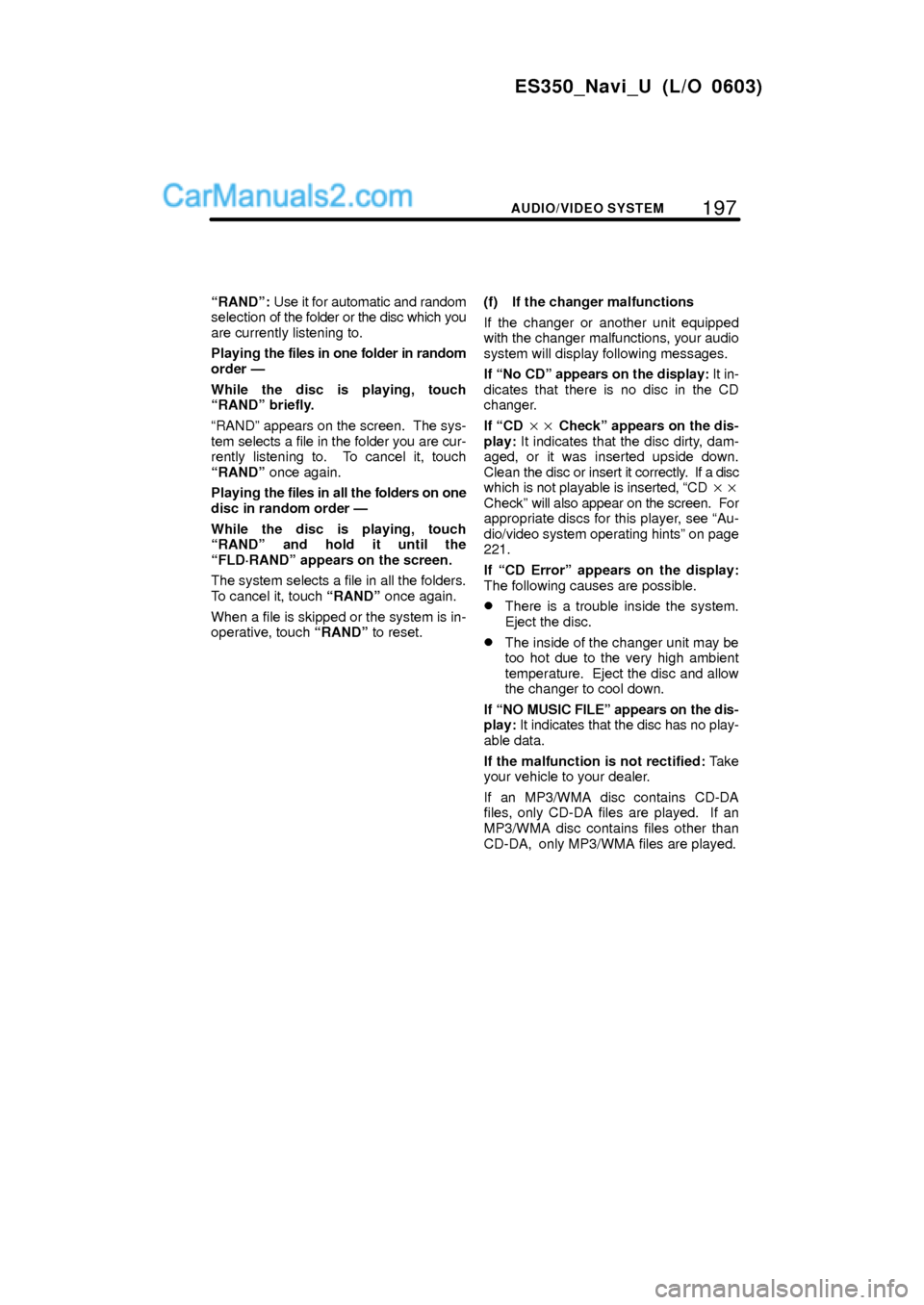

Page 39 of 72
197
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
RANDº: Use it for automatic and random
selection of the folder or the disc which you
are currently listening to.
Playing the files in one folder in random
order Ð
While the disc is playing, touch
RANDº briefly.
RANDº appears on the screen. The sys-
tem selects a file in the folder you are cur-
rently listening to. To cancel it, touch
RANDº once again.
Playing the files in all the folders on one
disc in random order Ð
While the disc is playing, touch
RANDº and hold it until the
FLD´RANDº appears on the screen.
The system selects a file in all the folders.
To cancel it, touch RANDº once again.
When a file is skipped or the system is in-
operative, touch RANDº to reset.(f) If the changer malfunctions
If the changer or another unit equipped
with the changer malfunctions, your audio
system will display following messages.
If No CDº appears on the display: It in-
dicates that there is no disc in the CD
changer.
If CD Checkº appears on the dis-
play: It indicates that the disc dirty, dam-
aged, or it was inserted upside down.
Clean the disc or insert it correctly. If a disc
which is not playable is inserted, CD
Checkº will also appear on the screen. For
appropriate discs for this player, see Au-
dio/video system operating hintsº on page
221.
If CD Errorº appears on the display:
The following causes are possible.
There is a trouble inside the system.
Eject the disc.
The inside of the changer unit may be
too hot due to the very high ambient
temperature. Eject the disc and allow
the changer to cool down.
If NO MUSIC FILEº appears on the dis-
play: It indicates that the disc has no play-
able data.
If the malfunction is not rectified: Take
your vehicle to your dealer.
If an MP3/WMA disc contains CD-DA
files, only CD-DA files are played. If an
MP3/WMA disc contains files other than
CD-DA, only MP3/WMA files are played.
Page 40 of 72
198AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
The DVD changer can play audio CDs,
video CDs, CD text, WMA discs, MP3
discs, DVD video discs and DVD audio
discs.
Audio CD, CD text 189. . . . . . . . .
MP3/WMA disc 192. . . . . . . . . . .
DVD video, DVD audio 202. . . . .
Video CD 215. . . . . . . . . . . . . . . . .
For appropriate discs for this changer, see
Audio/video system operating hintsº on
page 221.
For safety reasons, you can enjoy DVD
video discs, DVD audio discs and video
CDs only when the vehicle is completely
stopped with the engine switch is in the
ACCº or IG-ONº mode and the parking
brake applied. While you are driving, you
can hear audio alone even in the DVD vid-
eo, DVD audio or video CD mode.(a) Inserting or ejecting discs
The engine switch must be in the ACCº or
IG-ONº mode.
Your DVD changer can store up to 6 discs.
Setting a single disc:
1. Push the LOADº button briefly.
The amber indicators at both ends of the
slot start blinking. After the amber indica-
tors change to green and stay on, the DVD
changer door will open.
Ð DVD changer operation
