Lexus ES350 2007 Audio/video System

219
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
Title: The largest unit of the video and au-
dio programs stored on DVD video discs.
Usually, one piece of movie, one album, or
one audio program is assigned as a title.
Chapter: The unit smaller than that of title.
A title comprises plural chapters.
Manufactured under license from
Dolby Laboratories. Dolbyº, Pro Log-
icº, and the double-D symbol are trade-
marks of Dolby Laboratories. Confi-
dential unpublished works.
1992-1997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision
Corporation, and is intended for home
and other limited viewing uses only un-
less otherwise authorized by Macrovi-
sion Corporation. Reverse engineering
or disassembly is prohibited.
DTSº is a trademark of Digital Theater
Systems, Inc.
Some parts of the audio/video system can
be adjusted with the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.
1Volume control switch
2º º switches
3MODEº switch
Audio/video remote
controls Ð
Ð Steerin
g switches

220AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
1Volume control switch
Push +º side to increase the volume. The
volume continues to increase while the
switch is being pressed.
Push -º side to decrease the volume.
The volume continues to decrease while
the switch is being pressed.
2º º switches
Radio
To select a preset station:
Quickly push and release the
º or º
switch. Do this again to select the next pre-
set station.
To seek a station:
Push and hold the
º or º switch until
you hear a beep. Do this again to find the
next station. If you push either the
º or
º switch in seek mode, the seek mode
will cancel.
Cassette tape player
To skip to a different track in either direc-
tion:
Quickly push and release the
º or º
switch. FF 1º or REW 1º will appear on
the display.
Next, push the
º or º switch until the
track you want to listen to is set. If you
push the switch ten times, the skip function
will turn off. (You can skip up to nine tracks
at a time.)
When counting the number of the tracks
you want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two before
the song you are listening to, push the
º
button three times.
If you push the switch further than you
wanted to, push the other side of the
switch. The track number will be increased
or reduced.The track number you select is not valid if
it is higher than the number of the tracks re-
maining on the current side of the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the switch to
work correctly. In addition, the feature may
not work well with some spoken, live, or
classical recordings.
To fast-forward or reverse:
Push and hold the
º switch to fast-for-
ward a cassette tape. FFº will appear on
the display. Push and hold the
º switch
to rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast-forwarding,
push the
º switch . To stop the tape
while it is rewinding, push the º switch.
If a tape rewinds completely, the cassette
tape player will stop and then play that
same side. If a tape fast-forwards com-
pletely, the cassette will play the other side
of the tape using the auto-reverse feature.
CD changer or DVD changer
Use this button to skip up or down to a dif-
ferent track, file or chapter in either direc-
tion.
To select a desired track, file or chapter:
Quickly push and release the
º or º
switch until the track, file or chapter you
want to play is set. If you want to return to
the beginning of the current track, file or
chapter, push the
º switch once, quick-
ly.
To select a desired disc:
Push and hold the
º or º switch until
you hear a beep to change to the next or
the previous disc. Repeat this operation
until you reach the disc you want to listen
to.

221
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM

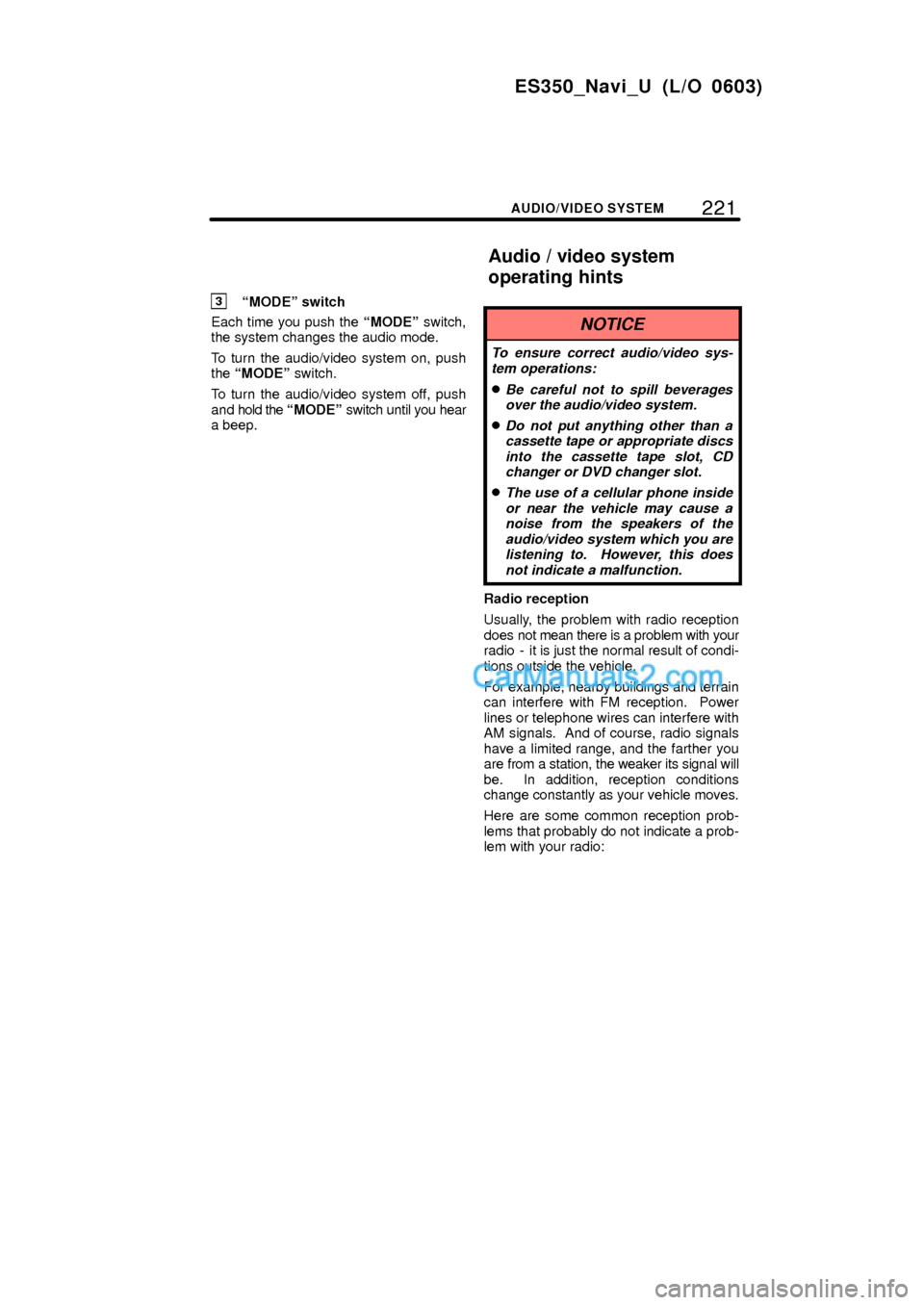

3MODEº switch
Each time you push the MODEº switch,
the system changes the audio mode.
To turn the audio/video system on, push
the MODEº switch.
To turn the audio/video system off, push
and hold the MODEº switch until you hear
a beep.
NOTICE
To ensure correct audio/video sys-
tem operations:
Be careful not to spill beverages
over the audio/video system.
Do not put anything other than a
cassette tape or appropriate discs
into the cassette tape slot, CD
changer or DVD changer slot.
The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the
audio/video system which you are
listening to. However, this does
not indicate a malfunction.
Radio reception
Usually, the problem with radio reception
does not mean there is a problem with your
radio - it is just the normal result of condi-
tions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range, and the farther you
are from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
Audio / video system
operating hints

222AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)

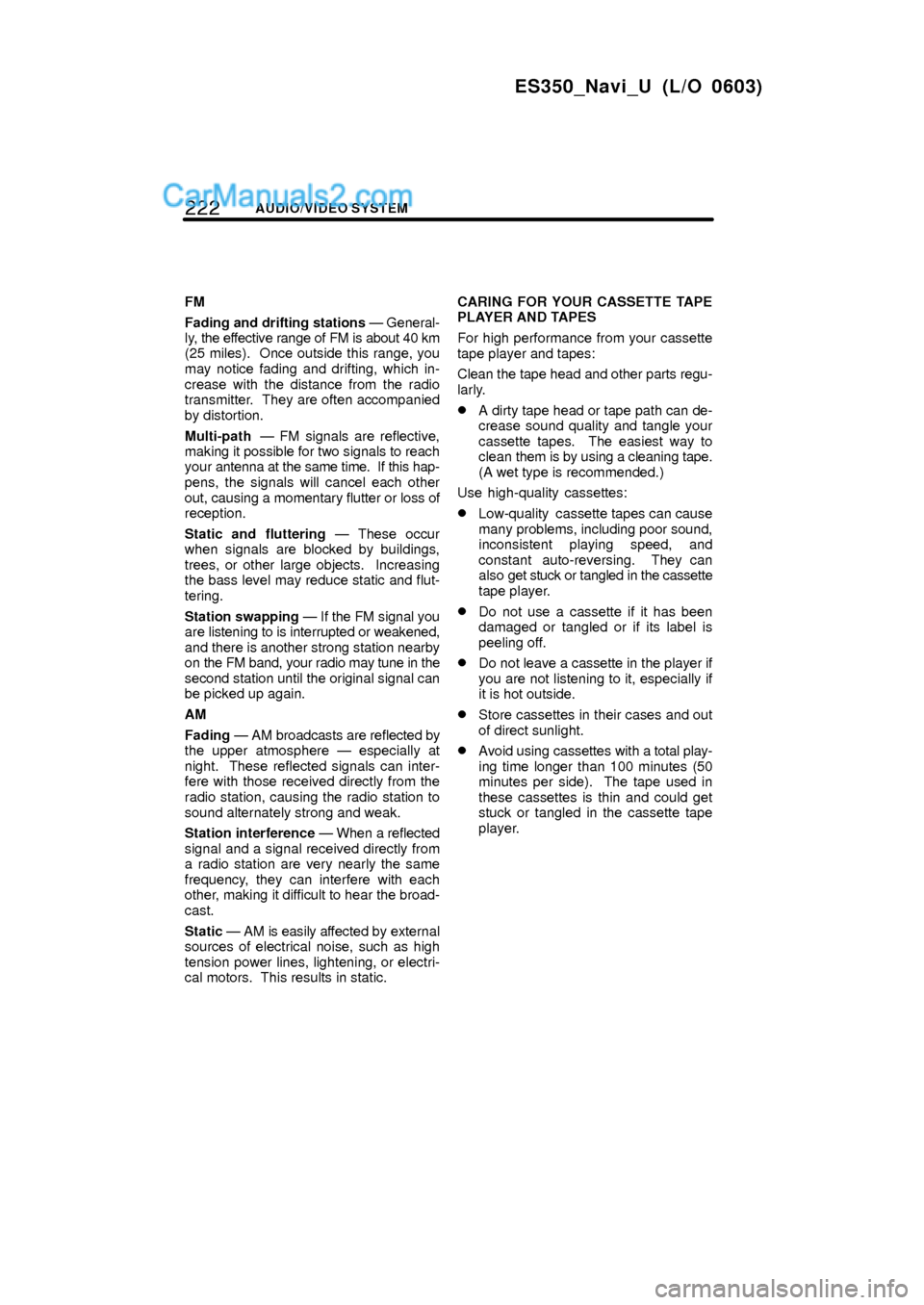

FM
Fading and drifting stations Ð General-
ly, the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi-path Ð FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this hap-
pens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering Ð These occur
when signals are blocked by buildings,
trees, or other large objects. Increasing
the bass level may reduce static and flut-
tering.
Station swapping Ð If the FM signal you
are listening to is interrupted or weakened,
and there is another strong station nearby
on the FM band, your radio may tune in the
second station until the original signal can
be picked up again.
AM
Fading Ð AM broadcasts are reflected by
the upper atmosphere Ð especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference Ð When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static Ð AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.CARING FOR YOUR CASSETTE TAPE
PLAYER AND TAPES
For high performance from your cassette
tape player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can de-
crease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Use high-quality cassettes:
Low-quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto-reversing. They can
also get stuck or tangled in the cassette
tape player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player if
you are not listening to it, especially if
it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette tape
player.

223
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
MP3/WMA files
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio
compression standards.
The MP3/WMA player can play MP3
and WMA files on CD-ROM, CD-R
and CD-RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file, add
the appropriate file extension (.mp3 or
.wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
The player can play only the first ses-
sion using multi-session compatible
CDs.
MP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and Ver.
2.3 formats. The unit cannot display
disc title, track title and artist name in
other formats.
WMA files can contain a WMA tag that
is used in the same way as an ID3 tag.
WMA tags carry information such as
track title, artist name.
The emphasis function is available
only when playing MP3/WMA files re-
corded at 32, 44.1 and 48 kHz. (The
system can play MP3 files with sam-
pling frequencies of 16, 22.05, and 24
kHz. However, the emphasis function
is not available for files recorded at
these frequencies.)
The sound quality of MP3/WMA files
generally improves with higher bit rate-
s. In order to achieve a reasonable lev-
el of sound quality, discs recorded with
a bit rate of at least 128 kbps are rec-
ommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3Ð64 to 320 kbps
MPEG2 LSF LAYER3Ð64 to 160 kbps
WMA files:
Ver. 7, 8 CBRÐ48 to 192 kbps
Ver. 9 CBRÐ48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs re-
corder using packet write data transfer
(UDF format). Discs should be re-
corded using pre-masteringº software
rather than packet-write software.
The m3u playlists are not compatible
with the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast-forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 levels
deep can be played. However, the
start of playback may be delayed when
using discs containing numerous lev-
els of folders. For this reason, we rec-
ommend creating discs with no more
than two levels of folders.
It is possible to play up to 192 folders or
255 files on one disc.

224AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)

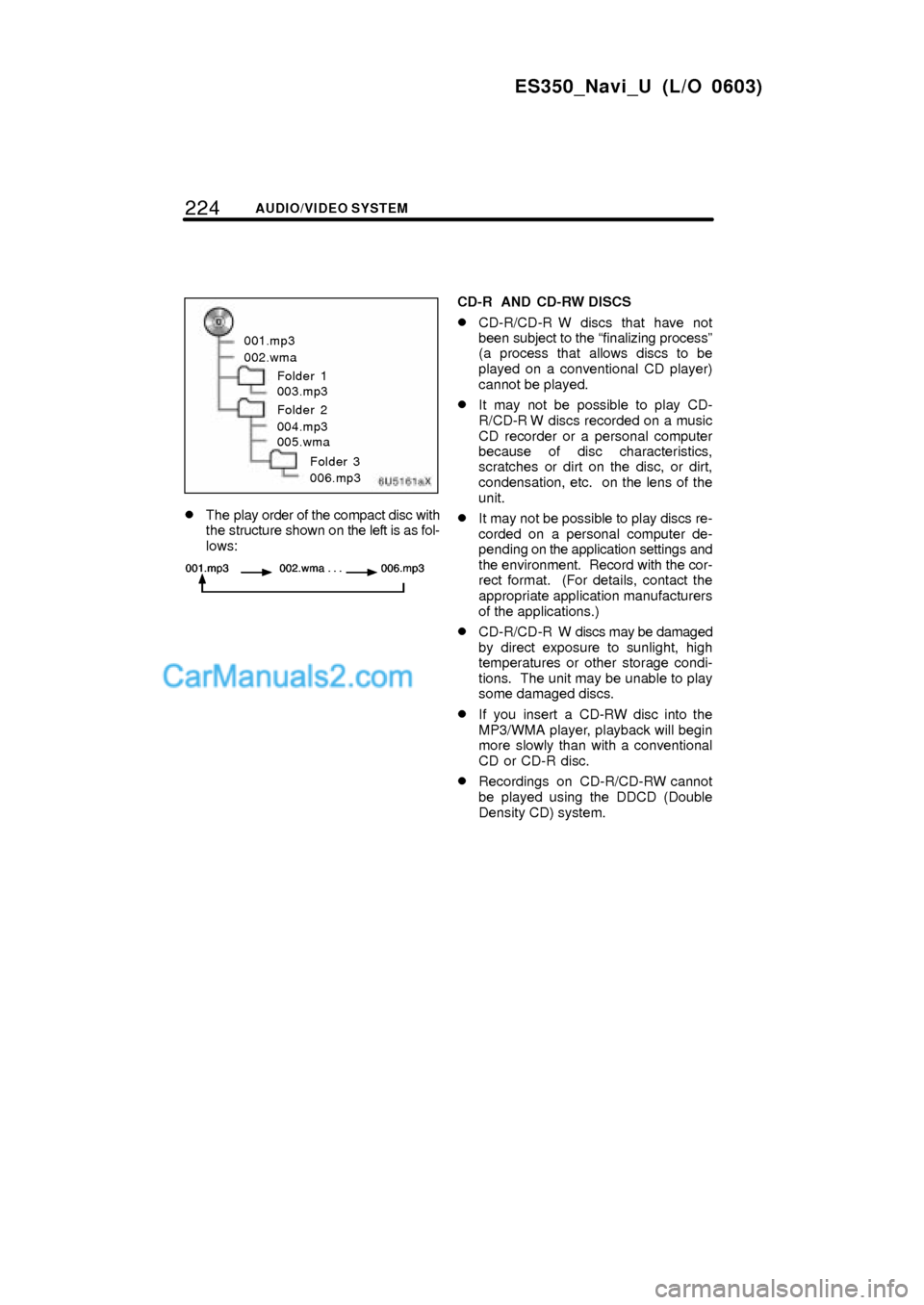

001.mp3
002.wma
Folder 1
003.mp3
Folder 2
004.mp3
005.wma
Folder 3
006.mp3
The play order of the compact disc with
the structure shown on the left is as fol-
lows:
CD-R AND CD-RW DISCS
CD-R/CD-R W discs that have not
been subject to the finalizing processº
(a process that allows discs to be
played on a conventional CD player)
cannot be played.
It may not be possible to play CD-
R/CD-R W discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs re-
corded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers
of the applications.)
CD-R/CD-R W discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged discs.
If you insert a CD-RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional
CD or CD-R disc.
Recordings on CD-R/CD-RW cannot
be played using the DDCD (Double
Density CD) system.

225
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM

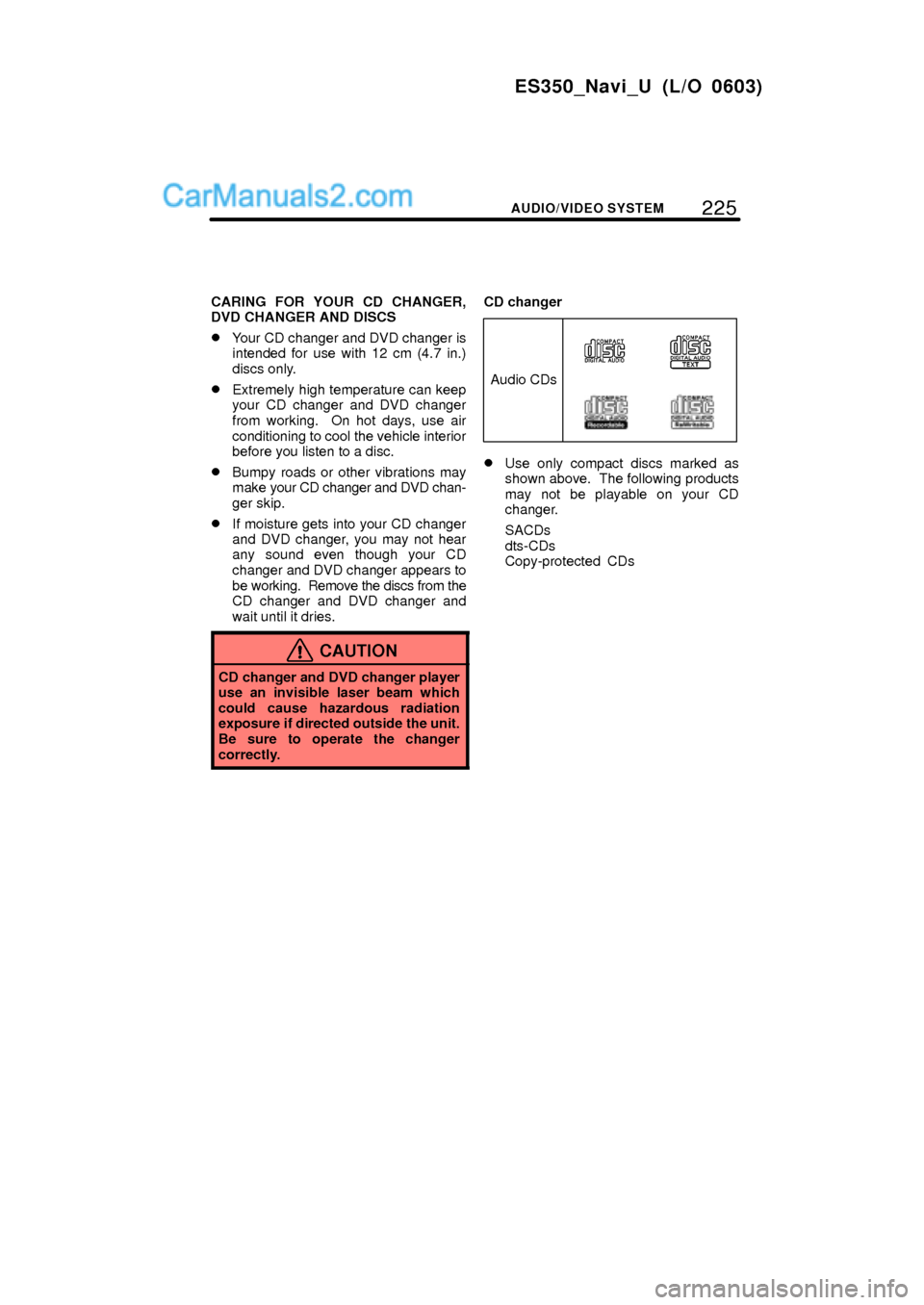

CARING FOR YOUR CD CHANGER,
DVD CHANGER AND DISCS
Your CD changer and DVD changer is
intended for use with 12 cm (4.7 in.)
discs only.
Extremely high temperature can keep
your CD changer and DVD changer
from working. On hot days, use air
conditioning to cool the vehicle interior
before you listen to a disc.
Bumpy roads or other vibrations may
make your CD changer and DVD chan-
ger skip.
If moisture gets into your CD changer
and DVD changer, you may not hear
any sound even though your CD
changer and DVD changer appears to
be working. Remove the discs from the
CD changer and DVD changer and
wait until it dries.
CAUTION
CD changer and DVD changer player
use an invisible laser beam which
could cause hazardous radiation
exposure if directed outside the unit.
Be sure to operate the changer
correctly.
CD changer
Audio CDs
Use only compact discs marked as
shown above. The following products
may not be playable on your CD
changer.
SACDs
dts-CDs
Copy-protected CDs

226AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)

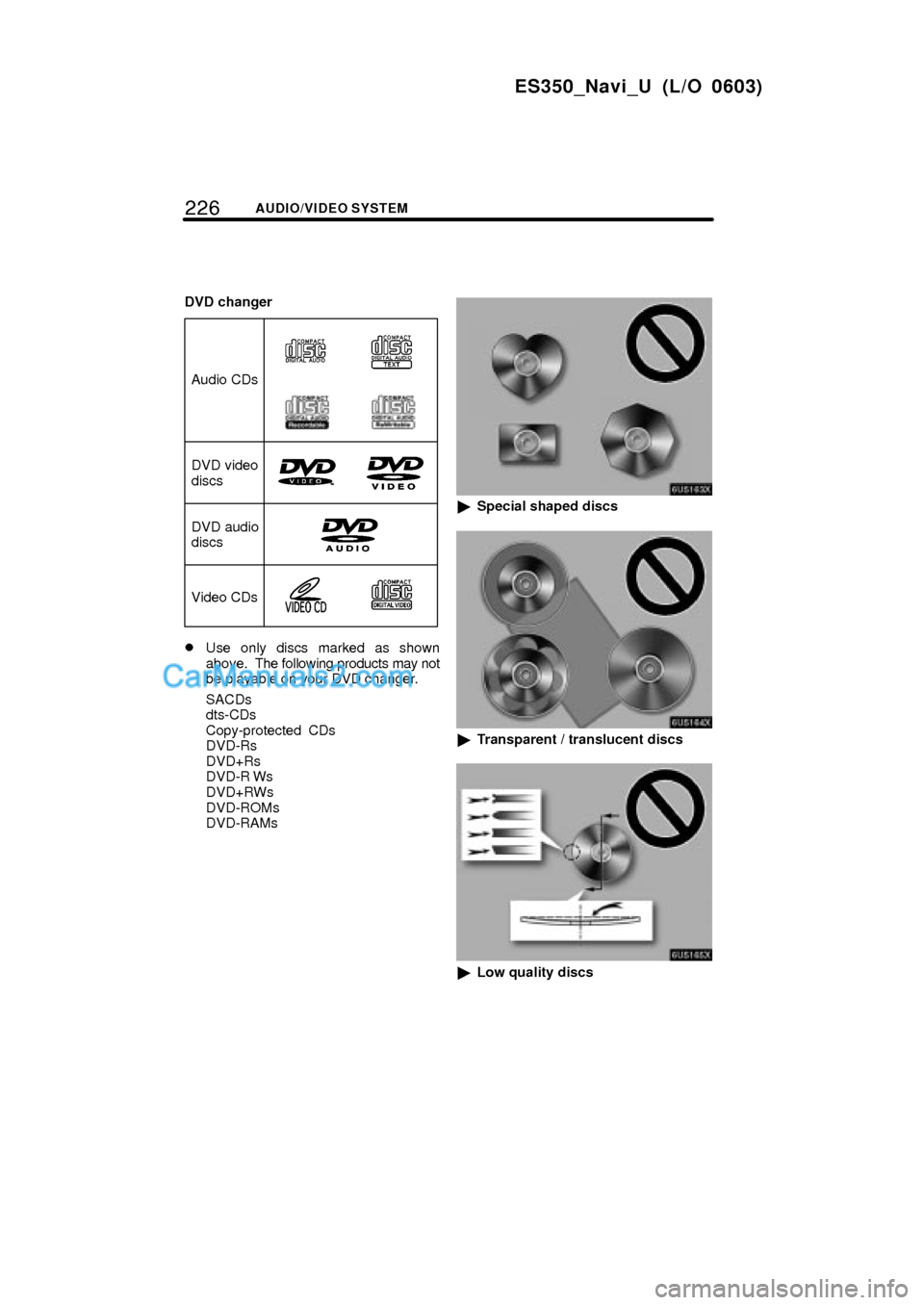

DVD changer
Audio CDs
DVD video
discs
Video CDs
DVD audio
discs
Use only discs marked as shown
above. The following products may not
be playable on your DVD changer.
SACDs
dts-CDs
Copy-protected CDs
DVD-Rs
DVD+Rs
DVD-R Ws
DVD+RWs
DVD-ROMs
DVD-RAMs

Special shaped discs

Transparent / translucent discs

Low quality discs

227
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM

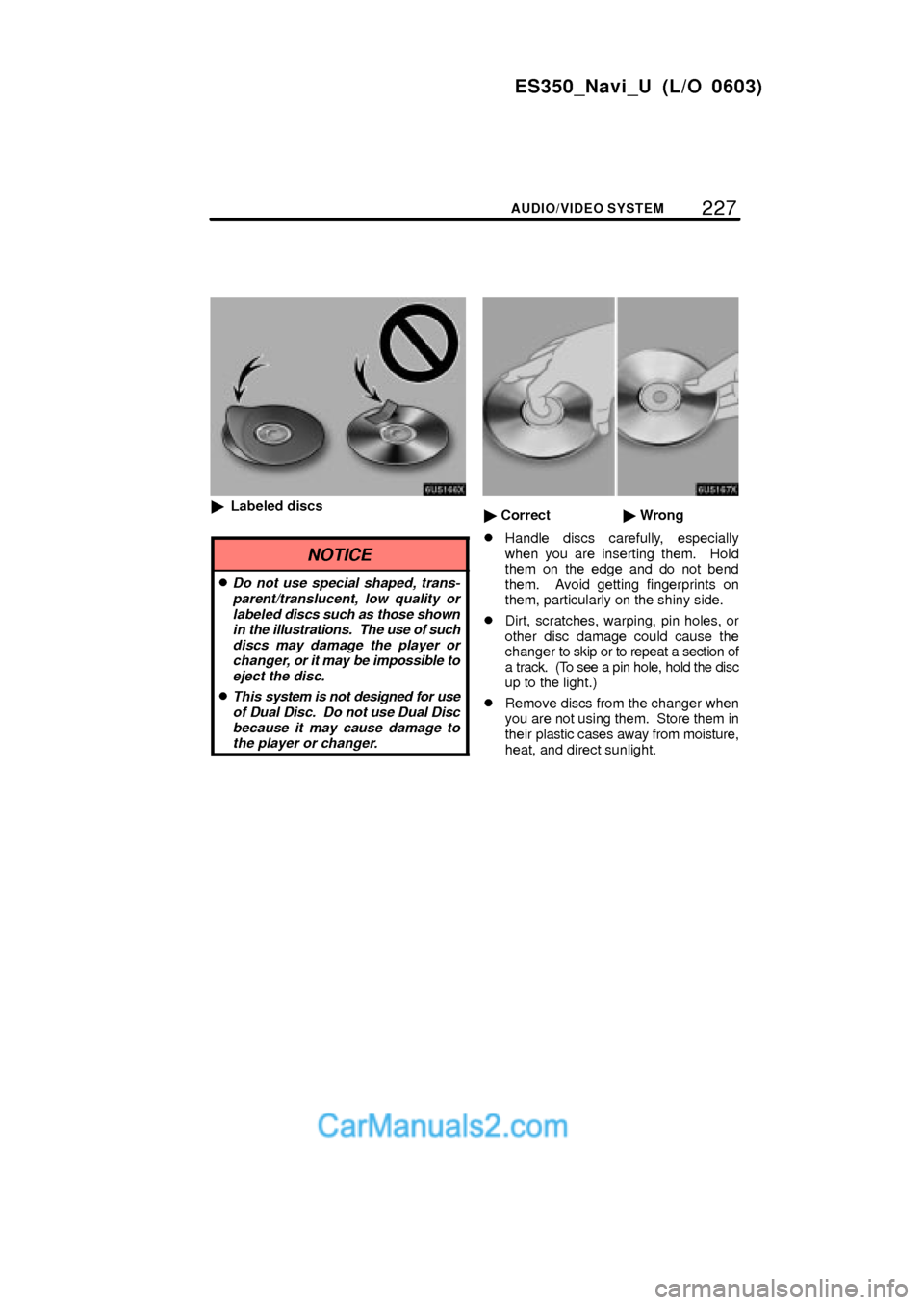

Labeled discs
NOTICE
Do not use special shaped, trans-
parent/translucent, low quality or
labeled discs such as those shown
in the illustrations. The use of such
discs may damage the player or
changer, or it may be impossible to
eject the disc.
This system is not designed for use
of Dual Disc. Do not use Dual Disc
because it may cause damage to
the player or changer.

Correct
Wrong
Handle discs carefully, especially
when you are inserting them. Hold
them on the edge and do not bend
them. Avoid getting fingerprints on
them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
changer to skip or to repeat a section of
a track. (To see a pin hole, hold the disc
up to the light.)
Remove discs from the changer when
you are not using them. Store them in
their plastic cases away from moisture,
heat, and direct sunlight.

228AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
To clean a disc: Wipe it with a soft, lint-
free cloth that has been dampened with
water. Wipe in a straight line from the cen-
ter to the edge of the disc (not in a circle).
Do not use a conventional record cleaner
or anti-static device.TERMS
Packet writeÐ
This is a general term that describes the
process of writing data on-demand to
CD-R, etc., in the same way that data is
written to floppy or hard discs.
ID3 TagÐ
This is a method of embedding track-re-
lated information in an MP3 file. This em-
bedded information can include the track
title, the artist's name, the album title, the
music genre, the year of production, com-
ments and other data. The contents can
be freely edited using software with ID3 tag
editing functions. Although the tags are re-
stricted to the number of characters, the in-
formation can be viewed when the track is
played back.
WMA TagÐ
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag. WMA
tags carry information such as track title,
artist name.
ISO 9660 formatÐ
This is the international standard for the
formatting of CD-ROM folders and files.
For the ISO 9660 format, there are two lev-
els of regulations.
Level 1:
The file name is in 8.3 format (8 character
file names, with a 3 character file exten-
sion. File names must be composed of
one-byte capital letters and numbers. The
_º symbol may also be included.)
Level 2:
The file name can have up to 31 characters
(including the separation mark .º and file
extension). Each folder must contain few-
er than 8 hierarchies.
