Lexus ES350 2007 Using the hands-free phone system

209
3-3. Using the hands-free phone system
3
Interior features
■Automatic adjustment of volume
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle speed
drops to 43 mph (70 km/h) or less.
■When using a voice command
●For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
●Say a command correctly and clearly.
■The system may not recognize your voice in the following situations:
●When driving on a rough road
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■The following cannot be performed while driving:
●Operating the system with
●Registering a cellular phone to the system
■Changing the passkey
(→P. 2 1 7 )

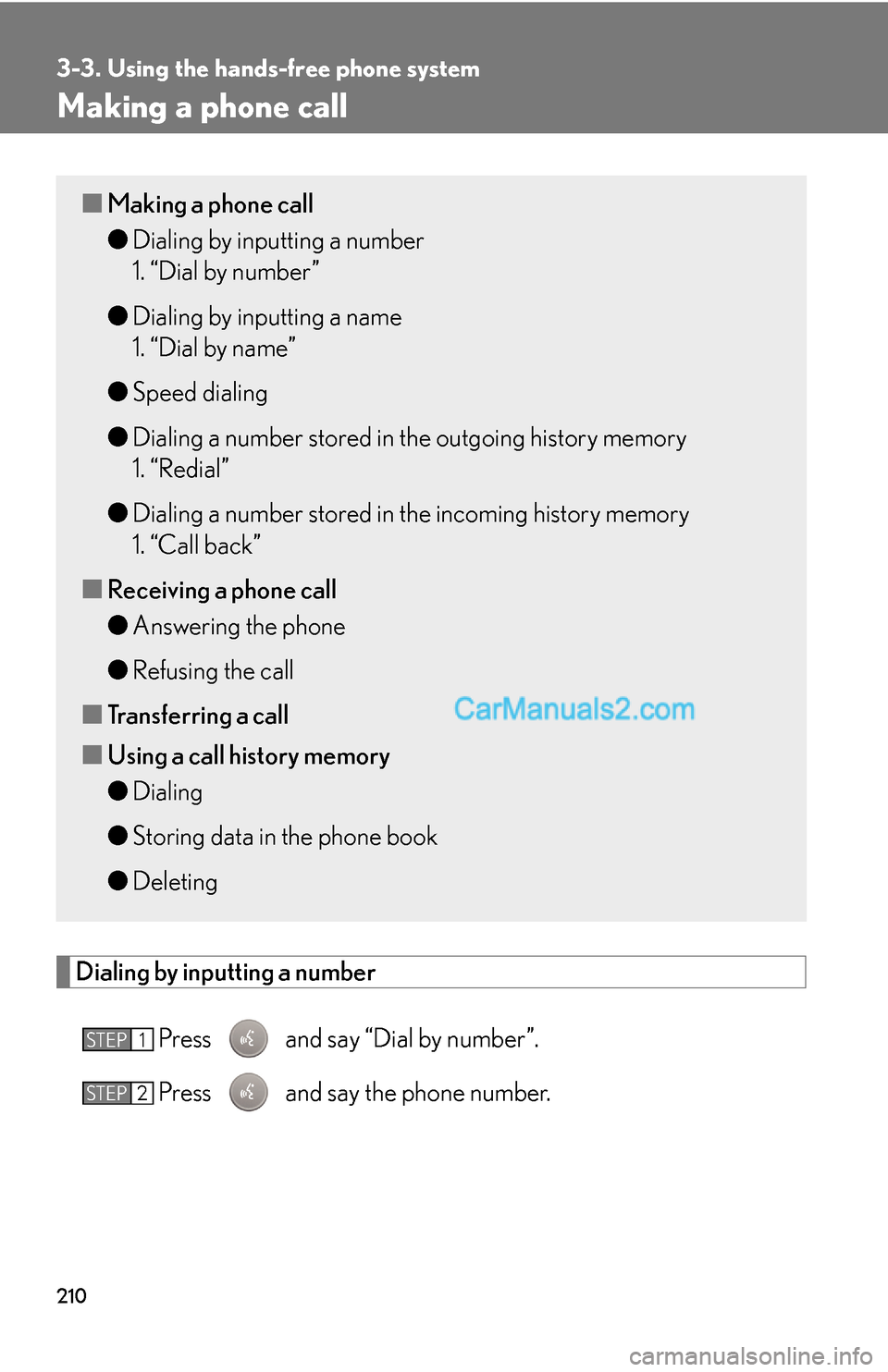

210
3-3. Using the hands-free phone system
Making a phone call
Dialing by inputting a number
Press and say “Dial by number”.
Press and say the phone number.
■Making a phone call
●Dialing by inputting a number
1. “Dial by number”
●Dialing by inputting a name
1. “Dial by name”
●Speed dialing
●Dialing a number stored in the outgoing history memory
1. “Redial”
●Dialing a number stored in the incoming history memory
1. “Call back”
■Receiving a phone call
●Answering the phone
●Refusing the call
■Transferring a call
■Using a call history memory
●Dialing
●Storing data in the phone book
●Deleting
STEP1
STEP2

211
3-3. Using the hands-free phone system
3
Interior features
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
Dialing by inputting a name
Press and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press and say a registered name.
b. Press and say “List names”. Press while the
desired name is being read aloud.
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
Speed dialing
Press .
Press the preset button in which the desired number is registered.
Press .
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

212
3-3. Using the hands-free phone system
When receiving a phone call
■Answering the phone
Press .
■Refusing the call
Press .
Transferring a call
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following meth-
ods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the opera-
tion of the phone.
b. Press *1.
c. Press and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from
the cellular phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred from
the system to the cellular phone.
Using a call history memory
Follow the procedure below to use number stored in call history memory:
Press and say “Redial” (when using a number stored in the
outgoing history memory) or “Call back” (when using a number
stored in the incoming history memory).
STEP1

213
3-3. Using the hands-free phone system
3
Interior features
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is dis-
played.
b. Select the desired number by using .
The following operations can be performed:
Dialing: Press or select “Dial” by using a voice command or
.
Storing the number in the phone book: Select “Store” by using a voice
command or .
Deleting: Select “Delete” by using a voice command or .
■Muting your voice
Your voice can be muted so that the other party cannot hear your voice during a
call.
To s e t o r c a n c e l : P ress and say “Mute”.
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history mem-
ories.
■When talking on the phone
●Do not talk simultaneously with the other party.
●Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.
STEP2

214
3-3. Using the hands-free phone system
Setting a cellular phone
Registering a cellular phone
Select “Pair Phone” by using a voice command or , and do the pro-
cedure for registering a cellular phone. (→P. 205)
Registering a cellular phone in the hands-free phone system allows the sys-
tem to function. The following function can be used for registered cellular
phones:
■Functions and operation procedures
To enter menu for each function, follow the steps below by using a
voice command or :
●Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
●Selecting a cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Select Phone”
●Changing a registered name
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
●Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
●Deleting a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete”
●Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”

215
3-3. Using the hands-free phone system
3
Interior features
Selecting a cellular phone to be used
Select “Select Phone” by using a voice command or .
Pattern A
Select a cellular phone to be used by either of the following meth-
ods, and select “Confirm” by using a voice command or :
a. Press and say the desired phone name.
b. Press and say “List phones”. While the name of the
desired cellular phone is being read aloud, press .
Pattern B
Select a cellular phone to be used by using .
Changing a registered name
Select “Change Name” by using a voice command or .
Select a name of cellular phone to be changed by either of the
following methods:
a. Press and say the desired phone name, and select
“Confirm” by using a voice command or .
b. Press and say “List phones”. While the desired phone
name is being read aloud, press .
c. Select the desired phone name by using .
STEP1
STEP2
STEP2
STEP1
STEP2

216
3-3. Using the hands-free phone system
Press or select “Record Name” by using , and say a
new name.
Select “Confirm” by using a voice command or .
Listing the registered cellular phones
Selecting “List Phones” by using a voice command or begins read-
ing aloud the list of the registered cellular phones.
When listing is complete, the system returns to “Phone Setup”.
Pressing while a name of cellular phone is being read selects the
cellular phone, and the following functions will be available:
• Selecting a cellular phone: “Select Phone”
• Changing a registered name: “Change Name”
• Deleting a cellular phone: “Delete”
Deleting a cellular phone
Select “Delete” by using a voice command or .
Pattern A
Select a cellular phone to be deleted by either of the following
methods and select “Confirm” by using a voice command or
:
a. Press and say the name of the desired cellular phone.
b. Press and say “List phones”. While the name of the
desired cellular phone is being read aloud, press .
STEP3
STEP4
STEP1
STEP2

217
3-3. Using the hands-free phone system
3
Interior features
Pattern B
Select a desired cellular phone to be deleted by using .
Changing the passkey
Select “Set Passkey” by using a voice command or .
Pattern A
Press , say a four to eight-digit number, and select “Con-
firm” by using a voice command or .
Pattern B
Select a four to eight-digit number by using .
The number should be input one digit at a time.
When the entire number to be registered as a passkey has been
input, press once again.
■The number of cellular phone that can be registered
Up to 6 cellular phones can be registered in the system.
STEP2
STEP1
STEP2
STEP2
STEP3

218
3-3. Using the hands-free phone system
Security and system setup
Setting or changing the PIN
■Setting a PIN
Select “Set PIN” by using a voice command or .
Enter a PIN by using a voice command or .
When using , input the code one digit at a time.
■Changing the PIN
Select “Set PIN” by using a voice command or .
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
●Setting or changing the PIN (Personal Identification Number)
1. “Setup” → 2. “Security” → 3. “Set PIN”
●Locking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Lock”
●Unlocking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Unlock”
■System setup items and operation procedure
●Setting voice guidance volume
1. “Setup” → 2. “System Setup” → 3. “Guidance Vol”
●Initialization
1. “Setup” → 2. “System Setup” → 3. “Initialize”
can only be used for system setup operation.
STEP1
STEP2
STEP1
