ES350_U_(L/O_0708)
5
5-1. Essential information .............. 352If your vehicle needs to be towed ....................................... 352
If you think something is wrong ........................................ 358
Fuel pump shut off system ........ 359
Event data recorder................... 360
5-2. Steps to take in an emergency .............................. 362
If a warning light turns on or a warning buzzer
sounds... ........................................ 362
If a warning message is displayed....................................... 373
If you have a flat tire.................... 384
If the engine will not start .......... 394
If the shift lever cannot be shifted from P .............................. 396
If you lose your keys .................... 397
If the electronic key does not operate properly .............. 398
If the vehicle battery is discharged .................................. 400
If your vehicle overheats .......... 403
If the vehicle becomes stuck............................................... 405 6-1. Specifications............................ 408
Maintenance data (fuel, oil level, etc.).................... 408
Fuel information............................. 418
Tire information ............................. 421
6-2. Customization .......................... 433 Customizable features .............. 433
6-3. Initialization ............................... 438 Items to initialize .......................... 438
Reporting safety defects for U.S. owners........................... 440
Abbreviation list .................................. 442
Alphabetical index.............................. 444
What to do if... ...................................... 454
5When trouble arises6Vehicle specifications
7For US owners
Index

113
2-1. Driving procedures
2
When driving
ES350_U_(L/O_0708)
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of engine oil, transaxle fluid, etc.
●Lubricant condition for the bearings and suspension joints (where possible) and
the function of all joints, bearings, etc.

167
2-5. Driving information
2
When driving
ES350_U_(L/O_0708)
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
●Tire inflation pressure falls in winter as the outside temperature
falls. Add 2.9 to 4.3 psi (20 to 30 kPa, 0.2 to 0.3 kgf/cm2 or bar)
to the standard tire inflation pressure.

289
4-2. Maintenance
4
Maintenance and care
ES350_U_(L/O_0708)

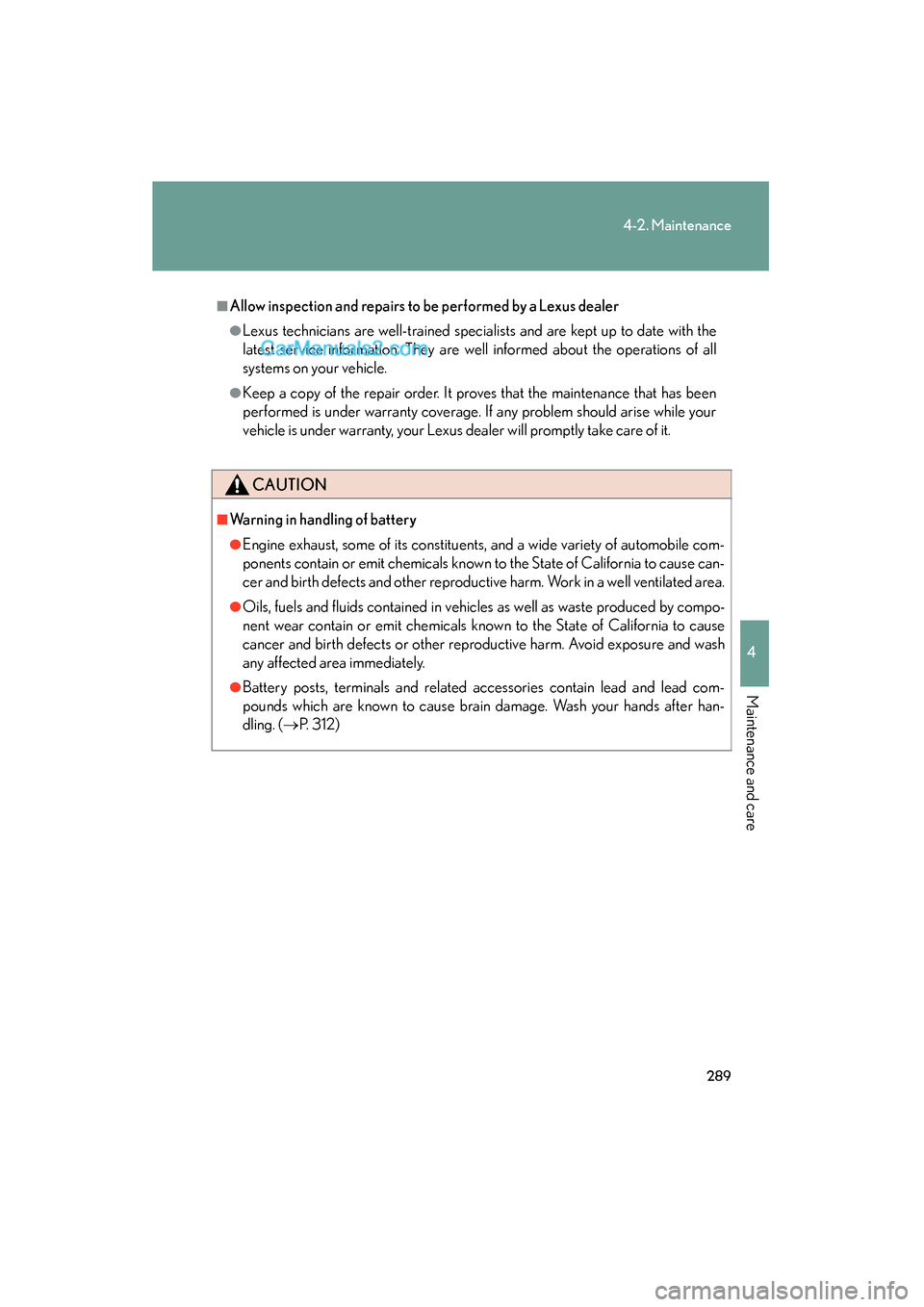

■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus dealer will promptly take care of it.
CAUTION
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. (→P. 3 1 2 )

290
4-2. Maintenance
ES350_U_(L/O_0708)
General maintenance
Engine compartment
ItemsCheck points
BatteryMaintenance-free. (→P. 3 1 2 )
Brake fluidAt the correct level? ( →P. 3 0 9 )
Engine coolantAt the correct level? ( →P. 3 0 7 )
Engine oilAt the correct level? ( →P. 303)
Exhaust systemNo fumes or strange sounds?
Power steering fluidAt the correct level? ( →P. 3 1 0 )
Radiator/condenser/hosesNot blocked with foreign matter?
(→ P. 3 0 9 )
Washer fluidAt the correct level? ( →P. 3 1 5 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Service Guide” or “Owners
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

295
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)

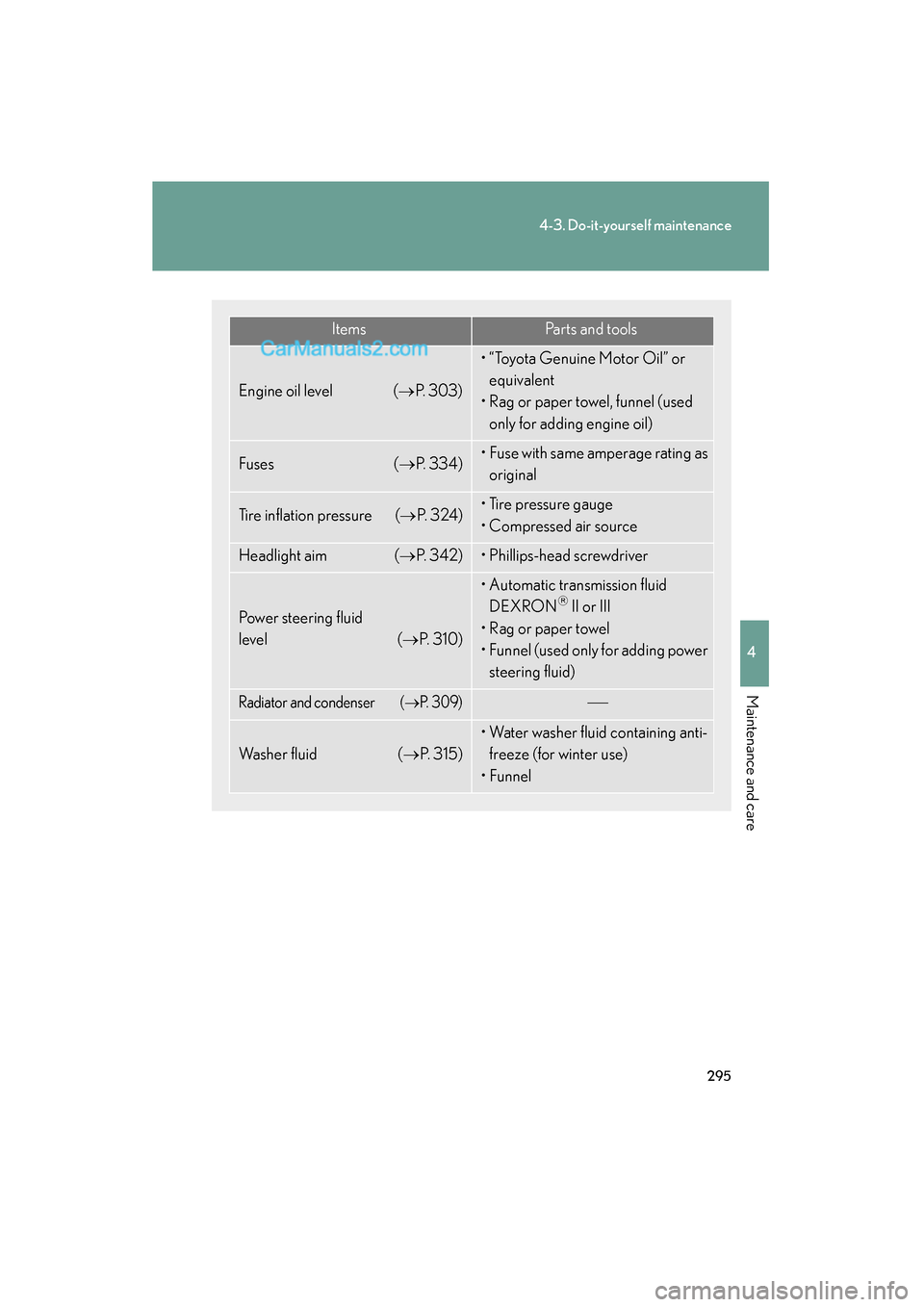

ItemsParts and tools
Engine oil level (→P. 303)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 3 3 4 )• Fuse with same amperage rating as
original
Tire inflation pressure ( →P. 3 2 4 )• Tire pressure gauge
• Compressed air source
Headlight aim ( →P. 3 4 2 )• Phillips-head screwdriver
Power steering fluid
level (→ P. 3 1 0 )
• Automatic transmission fluid
DEXRON II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and condenser (→P. 3 0 9 )
Washer fluid ( →P. 3 1 5 )
• Water washer fluid containing anti-
freeze (for winter use)
• Funnel

296
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean water
immediately.
If you still experience discomfort, see a doctor.
■When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high.
(→ P. 3 0 9 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.

301
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)
Engine compartment
Power steering fluid reservoir(→P. 310)
Engine oil filler cap (→P. 304)
Engine oil level dipstick (→P. 303)
Brake fluid reservoir (→P. 309)
Battery ( →P. 312)Fuse box ( →P. 3 3 4 )
Electric cooling fans
Condenser ( →P. 309)
Radiator ( →P. 309)
Washer fluid tank (→P. 315)
Engine coolant reservoir (→P. 3 0 7 )

303
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)■
Installing the clips
Press the tip of the clip against a
hard surface, such as a desk, to
allow the center part of the clip
to be pushed up.
Insert
Press
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

304
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)Wipe the dipstick and reinsert it fully.
Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp. qt.) to raise the oil level from low to full on the
dipstick.
STEP6
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3
