SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log59
126 Months or 105,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Clean air conditioner filter (ES, GS, IS)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Exhaust pipes and mountings
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect engine air filter
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
___Front differential oil (GS 350 AWD,
IS 250 AWD)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
Date: _____________________________ Mileage: ____________________________
Notes:
Lexus sedans-046_080.cgla 7/3/07 8:03 PM Page 59

SCHEDULED MAINTENANCE LOG
MAINTENANCE

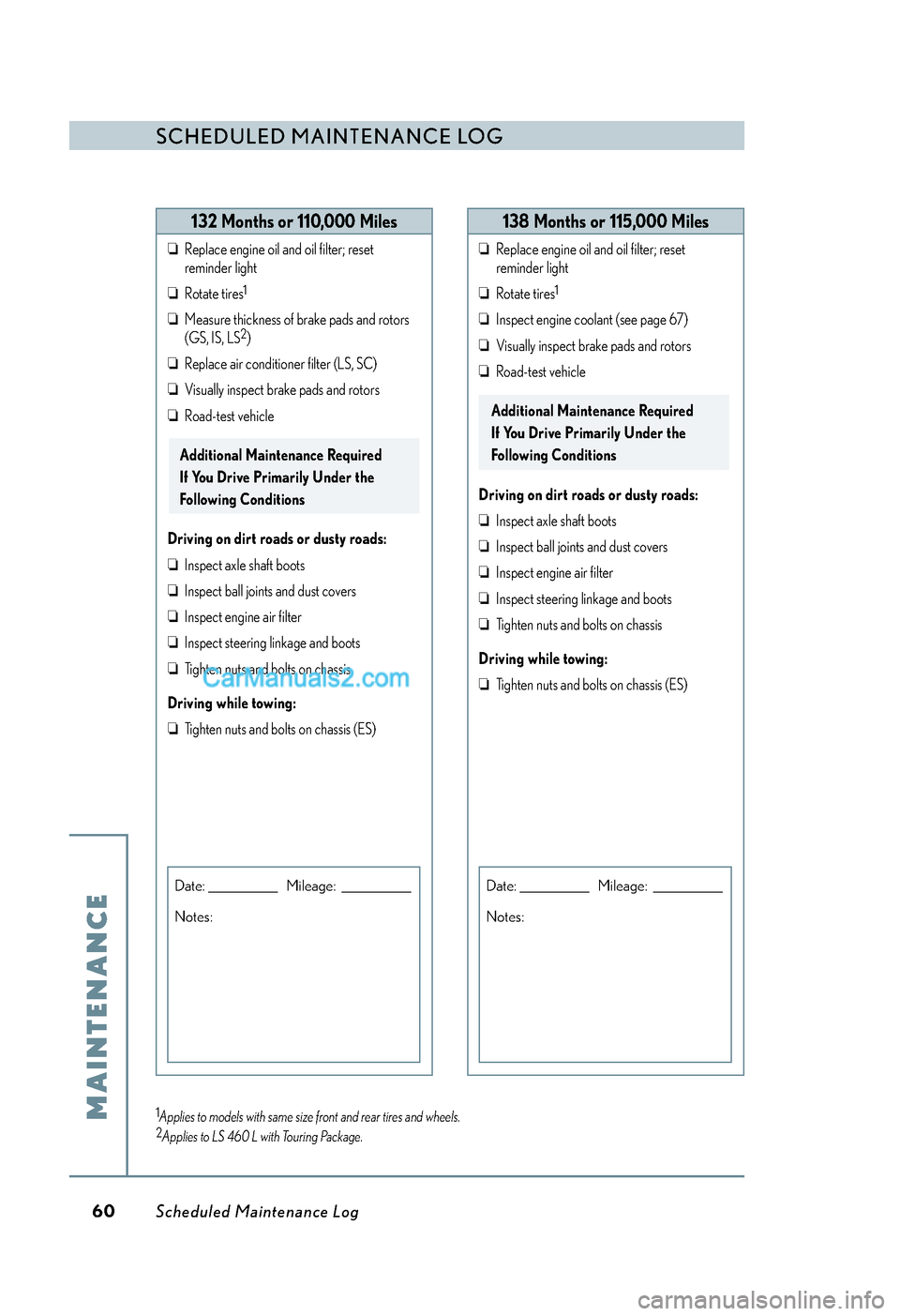

132 Months or 110,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors
(GS, IS, LS2)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
138 Months or 115,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Inspect engine coolant (see page 67)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
60
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:03 PM Page 60

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log61
144 Months or 120,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors; measure rotor runout (GS, IS, LS2)
❏ Replace air conditioner filter
❏ Replace brake fluid
❏ Replace engine air filter
❏ Replace spark plugs
3(for ES 350, use Denso FK20HR11
plugs or equivalent)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Engine valve clearance (SC)
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD, IS 250 AWD)
___Fuel lines and connections, fuel tank band and fuel
tank vapor vent system hoses
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Replace transmission fluid (ES only; use type ATFWS or equivalent)
❏ Tighten nuts and bolts on chassis (ES)
___Fuel tank cap gasket
___Manual transmission oil (IS 250)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
___Transfer case for signs of leakage
(GS 350 AWD, IS 250 AWD)
___Transmission for signs of leakage
Date: _____________________________ Mileage: ____________________________
Notes:
3Required under the terms of the Emission Control Warranty.
Lexus sedans-046_080.cgla 7/3/07 8:04 PM Page 61

SCHEDULED MAINTENANCE LOG
MAINTENANCE
150 Months or 125,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
156 Months or 130,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Inspect engine coolant (see page 67)
❏ Measure thickness of brake pads and rotors
(GS, IS, LS
2)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
62
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:09 PM Page 62

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log63
162 Months or 135,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Clean air conditioner filter (ES, GS, IS)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Exhaust pipes and mountings
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect engine air filter
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
___Front differential oil (GS 350 AWD,
IS 250 AWD)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
Date: _____________________________ Mileage: ____________________________
Notes:
Lexus sedans-046_080.cgla 7/3/07 8:10 PM Page 63

SCHEDULED MAINTENANCE LOG
MAINTENANCE
168 Months or 140,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors
(GS, IS, LS2)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
174 Months or 145,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Inspect engine coolant (see page 67)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
64
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:44 PM Page 64

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log65
180 Months or 150,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors; measure rotor runout (GS, IS, LS2)
❏ Replace air conditioner filter
❏ Replace brake fluid
❏ Replace engine air filter
❏ Replace engine coolant (see page 67)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD, IS 250 AWD)
___Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
___Fuel tank cap gasket
___Manual transmission oil (IS 250)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
___Transfer case for signs of leakage
(GS 350 AWD, IS 250 AWD)
___Transmission for signs of leakage
Date: _____________________________ Mileage: ____________________________
Notes:
Lexus sedans-046_080.cgla 7/3/07 8:11 PM Page 65

EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log
66
The following descriptions are provid-
ed to give you a better understanding
of the maintenance services that
should be performed on your vehicle.
The scheduled maintenance log indi-
cates at which time/mileage intervals
each service should be performed.
Please note that many maintenance
services should be performed only
by a qualified technician.
Air Conditioner Filter
Clean or replace at specified inter-
vals. More frequent cleaning or
replacement may be required when
driving in dusty conditions.
Axle Shaft Boots
Check the axle shaft boots and
clamps for cracks, deterioration and
damage. Replace any damaged parts
and, if necessary, repack the grease.
A qualified technician should perform
these operations. Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. A qualified
technician should perform these
inspections.
Body Inspection
Visually check for corrosion, scratch-
es and other damage. Check outer
body panels, inner panels of the hood
and doors, and underneath the vehi-
cle. Apply touch-up paint to any chips
and scratches or have them repaired
by a qualified technician.
Brake Fluid
Replace using fluid type specified
in your
Owner’s Manual . A qualified
technician should perform this
operation.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deteriora-
tion and signs of leakage. Replace
any deteriorated or damaged parts.
A qualified technician should perform
these operations.
For further information on
maintenance services that you
can perform yourself, see the
maintenance sections of your
Owner’s Manual .
Lexus sedans-046_080.cgla 7/3/07 8:12 PM Page 66

EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log67
Brake Pads/Rotors and
Parking Brake Linings/Drums
Check brake pads and rotors for
excessive wear; check brake rotors
for runout. Check brake calipers for
fluid leakage. Check the parking
brake linings (shoes) and drums for
scoring, burning, fluid leakage, broken
parts and excessive wear. Some mod-
els are equipped with directional
rotors. When servicing these rotors,
reinstall at same location. A qualified
technician should perform these
operations. See inside front cover
for additional brake information.
Drive Belt
Inspect for cracks, excessive wear
and oiliness. Check the belt tension
and adjust if necessary. Replace the
belt if it is damaged.
Engine Air Filter
Check for damage, excessive wear
and oiliness. Replace if necessary.
Engine Coolant
When inspecting, visually check
the engine coolant level on the see-
through reservoir. Add coolant as necessary. When replacing, drain
and flush the cooling system and refill
with coolant. Always use Genuine
Toyota Super Long-Life Coolant or
similar high-quality non-silicate, non-
amine, non-borate ethylene-glycol
coolant with long-life hybrid organic
acid technology (i.e., a combination
of low phosphates and organic acids).
A qualified technician should per-
form these operations.
Note:
Initial replacement is at 120
months/100,000 miles. Replace
every 60 months/50,000 miles
thereafter.
Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified inter-
vals. For recommended oil grade
and viscosity, refer to your Owner’s
Manual . Some models are equipped
with a replaceable oil-filter element
and oil-filter cap O-ring; replace both
at each oil change. For instructions on
how to reset the reminder light, refer
to your Owner’s Manual .
Lexus sedans-046_080.cgla 7/3/07 8:13 PM Page 67

EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log
68
Engine Valve Clearance (SC)
Inspect for excessive lifter noise and
engine vibration and adjust if neces-
sary. (All other models are equipped
with hydraulic valve lash adjusters that
require no periodic clearance inspec-
tion or adjustment.)
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start
the engine and listen carefully for
any exhaust leakage. Tighten connec-
tions and replace parts as necessary.
Fuel Lines and Connections, Fuel
Tank Band and Fuel Tank Vapor
Vent System Hoses
Visually inspect for corrosion, dam-
age, cracks, and loose or leaking
connections. Tighten connections
and replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterio-
ration and damage and replace if
necessary.
Nuts and Bolts on Chassis
Check that tightness of the seat-
mounting bolts and front/rear suspen- sion-member retaining bolts matches
torque measurements specified in the
Repair Manual
.
Power Steering Fluid
When inspecting, visually check the
power steering fluid level on the see-
through reservoir. Add fluid as neces-
sary. For fluid specifications, refer to
your Owner's Manual .
Rack and Pinion Assembly
Inspect the rack and pinion assembly
for signs of leakage, damage and
loose electrical connections. Tighten
connections and if you discover any
leakage or damage, have it repaired
immediately by a qualified technician.
Road Test
While driving the vehicle, check for
proper operation of engine, transmis-
sion, brakes and steering. Also check
for abnormal noise or vibration from
any part of the vehicle.
Spark Plugs
Replace at specified interval. A quali-
fied technician should perform this
operation. To ensure optimum engine
performance on ES 350, replace only
with Denso FK20HR11 plugs or
equivalent.
Lexus sedans-046_080.cgla 7/3/07 8:15 PM Page 68
