Page 6 of 475
TABLE OF CONTENTSIndex
ES350_U_(L/O_0808)
4
3-4. Using the interior lightsInterior lights list............................ 253
• Interior lights ............................... 255
• Personal lights ............................ 255
3-5. Using the storage features List of storage features............... 256
• Glove box..................................... 256
• Console box ................................ 257
• Overhead console.................... 259
• Cup holders................................ 260
• Auxiliary box ............................... 262
3-6. Other interior features Sun visors......................................... 263
Vanity mirror .................................. 264
Clock ................................................. 265
Ashtray ............................................. 266
Cigarette lighter ........................... 267
Power outlet .................................. 268
Seat heaters .................................... 269
Seat heaters and ventilators ..... 271
Armrest ............................................ 273
Rear sunshade ............................... 274
Extended trunk.............................. 276
Floor mat.......................................... 277
Trunk features................................ 278
Garage door opener................. 280
Compass......................................... 286 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......................... 292
Cleaning and protecting the vehicle interior............................ 295
4-2. Maintenance Maintenance requirements .... 298
General maintenance ............... 300
Emission inspection and maintenance (I/M)
programs ..................................... 303
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................. 304
Hood................................................. 308
Positioning a floor jack.............. 309
Engine compartment..................... 311
Tires ................................................... 326
Tire inflation pressure................. 334
Wheels............................................. 338
Air conditioning filter................. 340
Electronic key battery ................ 342
Checking and replacing fuses ................................................ 344
Headlight aim................................. 352
Light bulbs ....................................... 354
4Maintenance and care
Page 313 of 475
311
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)

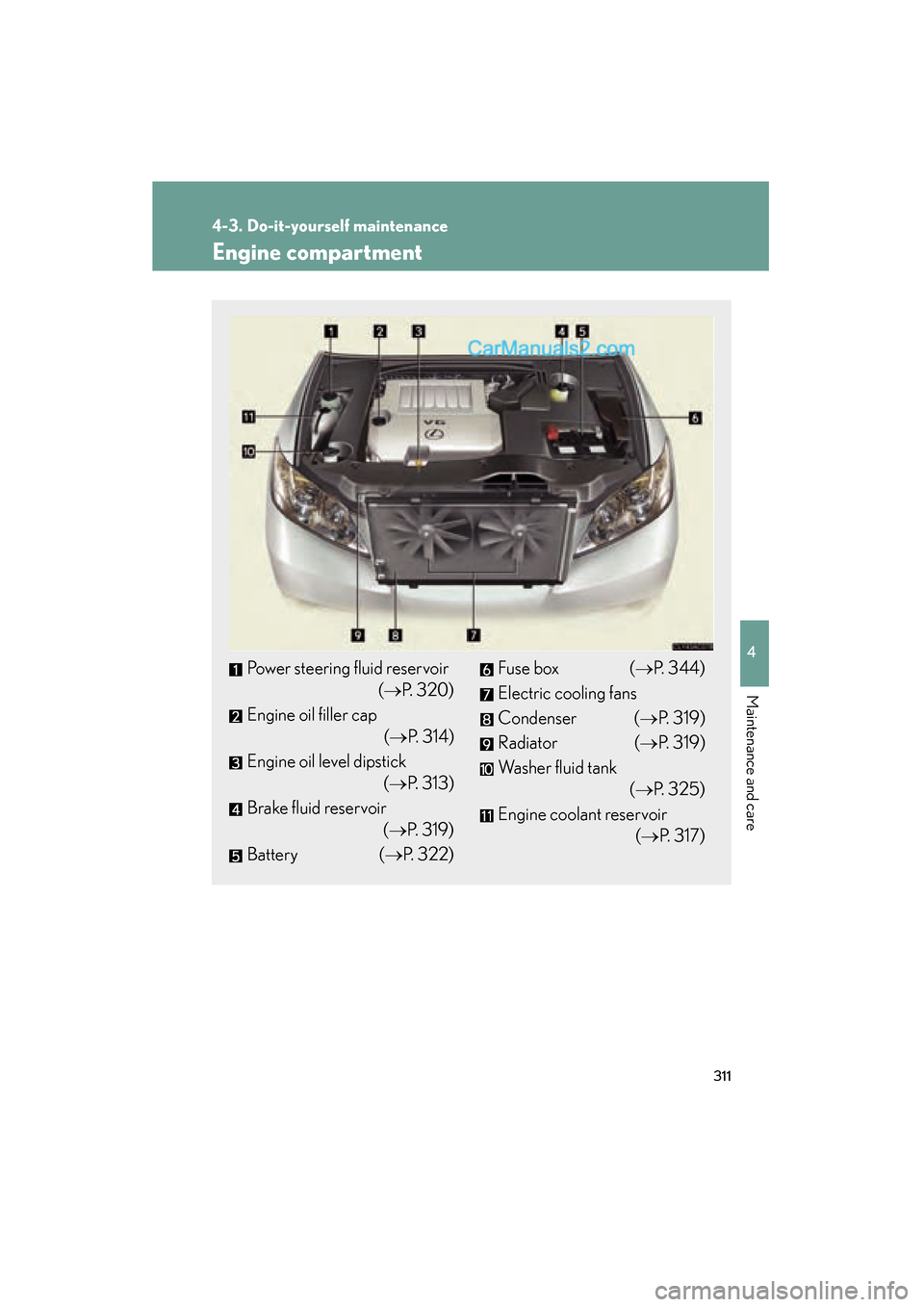

Engine compartment
Power steering fluid reservoir(→P. 320)
Engine oil filler cap (→P. 314)
Engine oil level dipstick (→P. 3 1 3 )
Brake fluid reservoir (→P. 319)
Battery ( →P. 322)Fuse box ( →P. 3 4 4 )
Electric cooling fans
Condenser ( →P. 319)
Radiator ( →P. 319)
Washer fluid tank (→P. 325)
Engine coolant reservoir (→P. 317)
Page 346 of 475
344
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0808)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Remove the engine compartment cover.
→P. 312
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Driver's side instrument
panel
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 346) for details about which fuse to check.
Remove the fuse with the pull-
out tool.STEP1
STEP2
STEP3
STEP4
STEP5
Page 347 of 475
345
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)

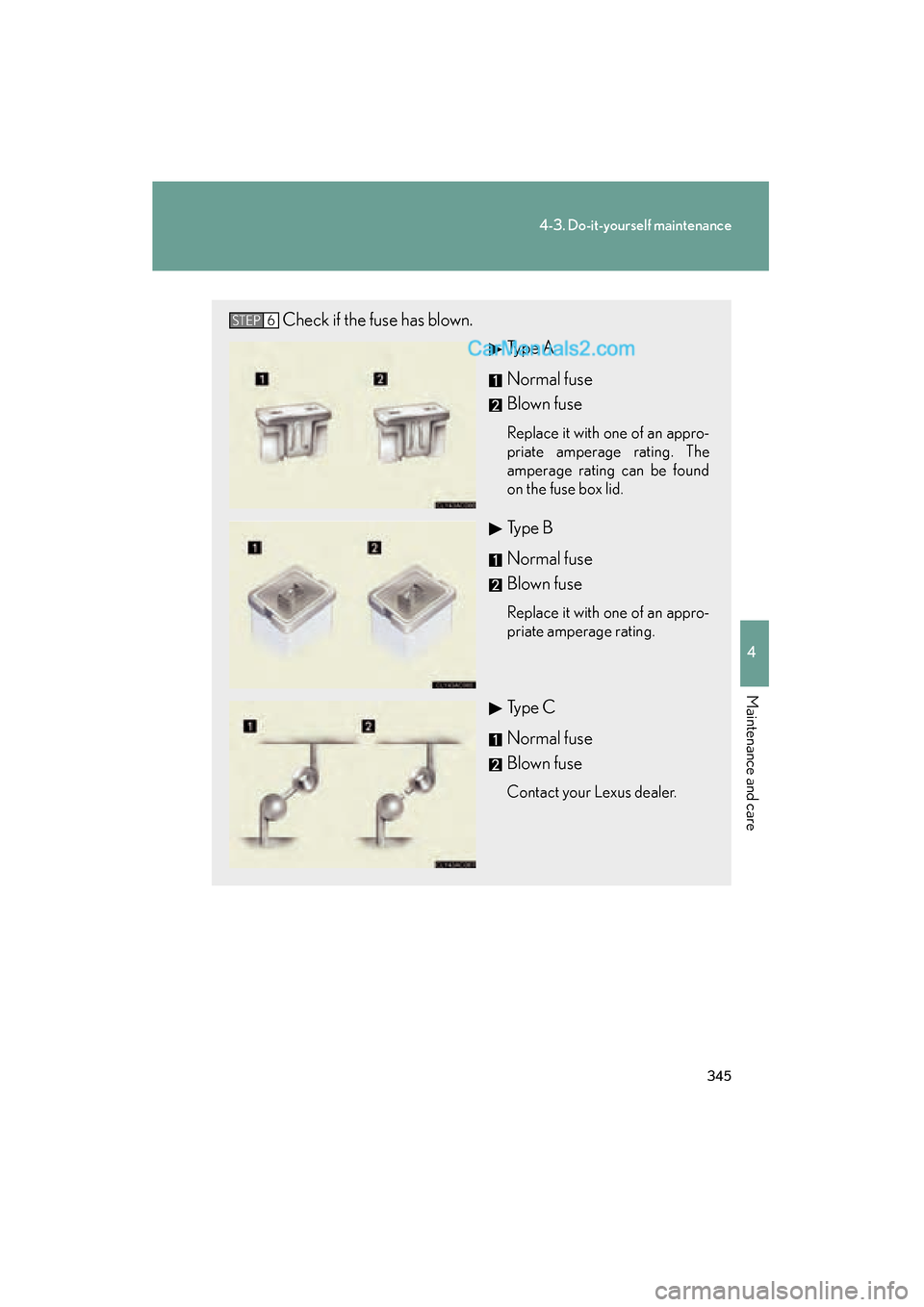

Check if the fuse has blown.Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type B
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating.
Type C
Normal fuse
Blown fuse
Contact your Lexus dealer.
STEP6
Page 353 of 475
351
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)

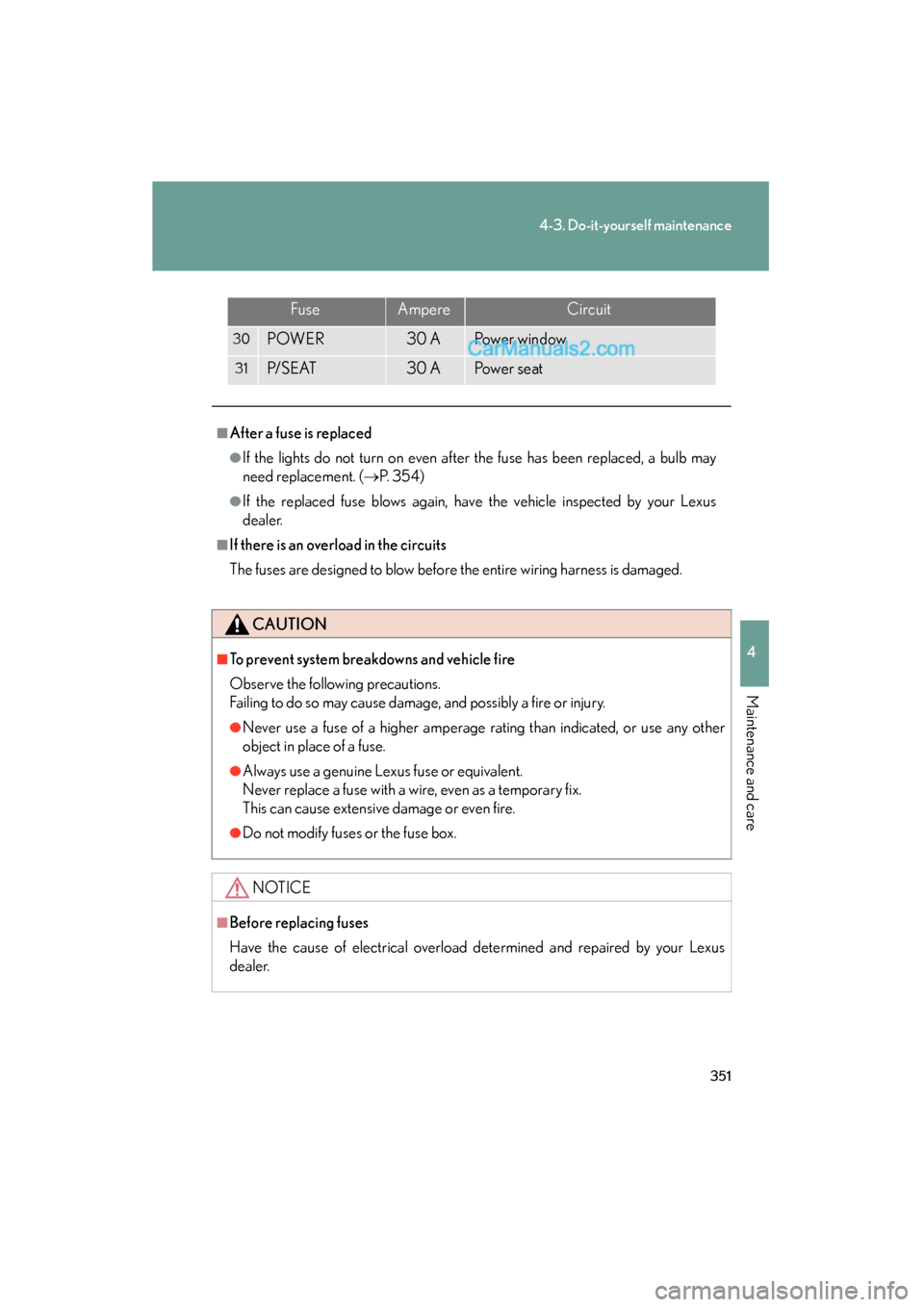

30POWER30 APower window
31P/ S E AT30 APower seat
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 3 5 4 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
FuseAmpereCircuit
Page 465 of 475
463
Alphabetical index
ES350_U_(L/O_0808)
Engine coolantCapacity................................................. 426
Checking ................................................. 317
Preparing and checking
before winter ...................................... 172
Engine coolant temperature
gauge ....................................................... 125
Engine immobilizer system ..................70
Engine oil Capacity................................................. 425
Checking ................................................. 313
Preparing and checking
before winter ...................................... 172
Engine oil maintenance data ............. 316
Event data recorder.............................373
Floor mat................................................... 277
Fluid
Brake ......................................................... 319
Power steering fluid ......................... 320
Washer ................................................... 325
Fog lights
Switch ........................................................138
Wattage ................................................... 431
Foot well lighting .................................. 253
Front fog lights Switch ........................................................138
Wattage ................................................... 431
Front passenger occupant classification system ........................... 88
Front passenger's seat belt reminder light ...................................... 377 Front seats
Adjustment ............................................... 43
Driving position memory .................. 44
Seat position memory ........................ 47
Front side marker lights Replacing light bulbs ........................ 357
Wattage ................................................... 431
Front turn signal lights
Replacing light bulbs ........................ 357
Wattage ................................................... 431
Fuel Capacity ................................................. 424
Fuel gauge.............................................. 125
Fuel pump shut off system ............. 372
Gas station information .................. 472
Information ............................................ 432
Refueling.................................................... 67
Fuel door ..................................................... 67
Fuel filler door ........................................... 67
Fuel pump shut off system................. 372
Fuses .......................................................... 344
Garage door opener ......................... 280
Gas station information...................... 472
Gauges ...................................................... 125
Glove box ................................................ 256
Glove box light ...................................... 257
Grocery bag hooks ............................. 278
