Lexus ES350 2011 Owner's Manuals

319
3-6. Using the storage features
3
Interior features
ES350_U

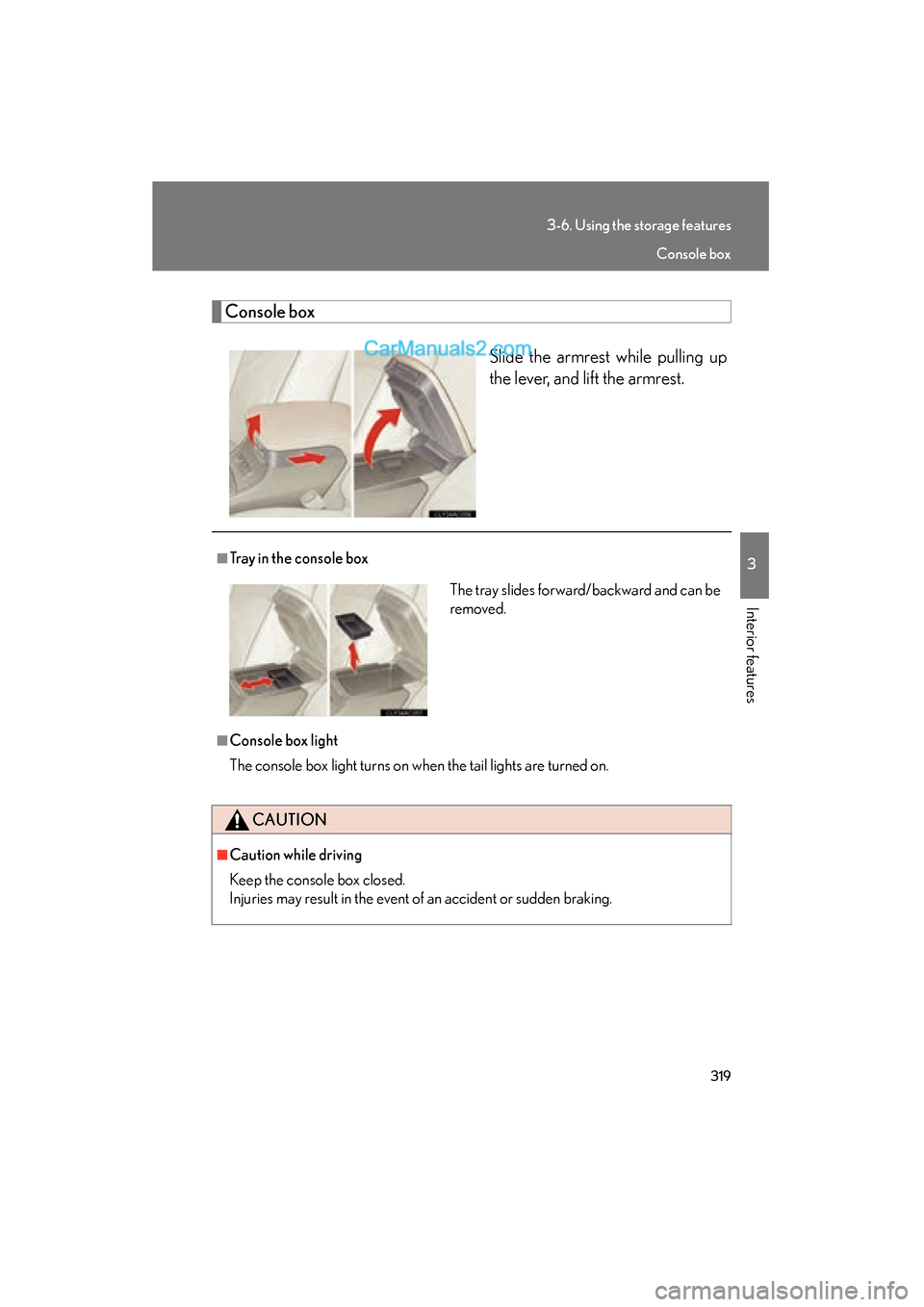

Console boxSlide the armrest while pulling up
the lever, and lift the armrest.
■Tray in the console box
■Console box light
The console box light turns on when the tail lights are turned on.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
The tray slides forward/backward and can be
removed.
Console box

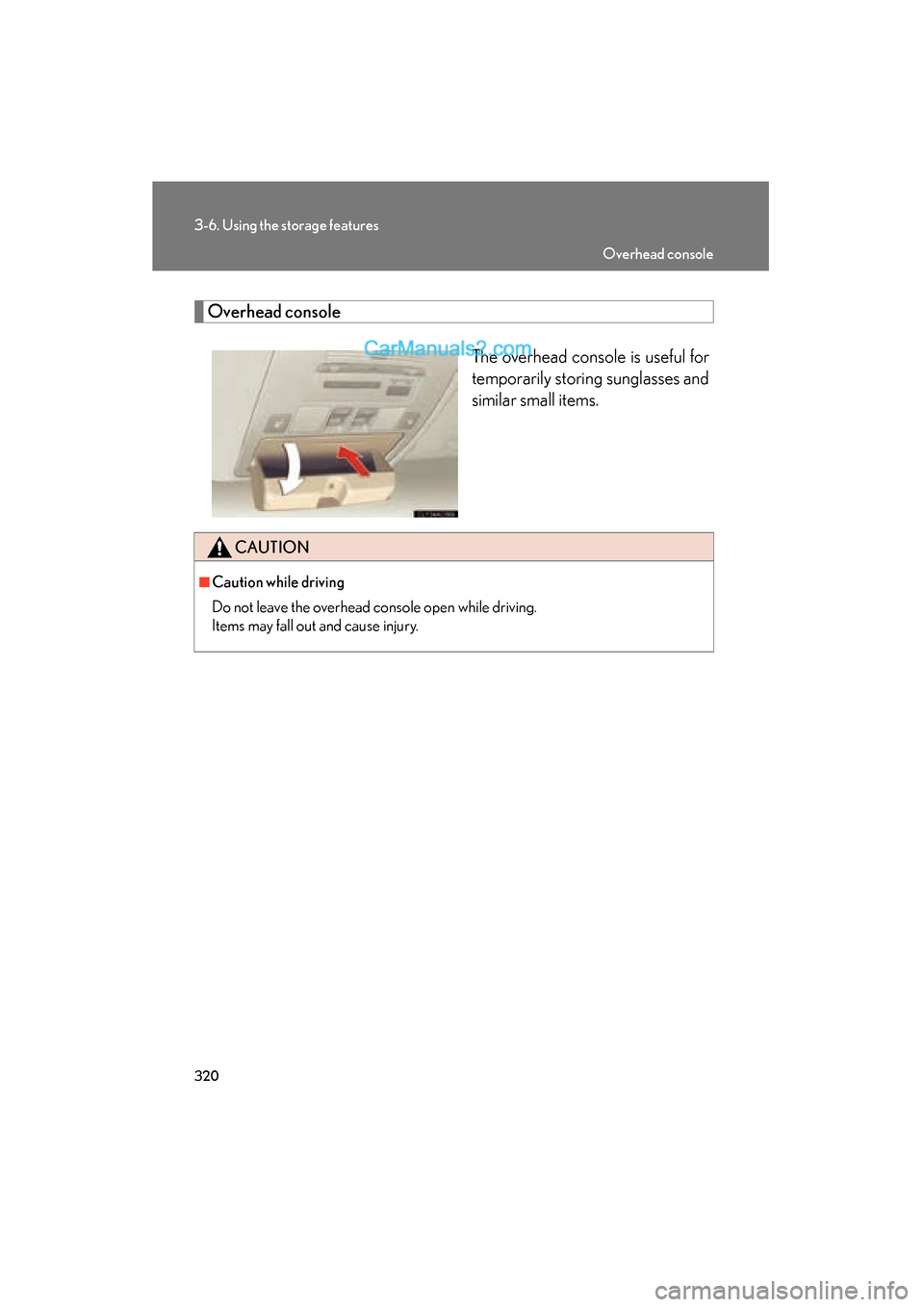

320
3-6. Using the storage features
ES350_U
Overhead consoleThe overhead console is useful for
temporarily storing sunglasses and
similar small items.
CAUTION
■Caution while driving
Do not leave the overhead console open while driving.
Items may fall out and cause injury.
Overhead console

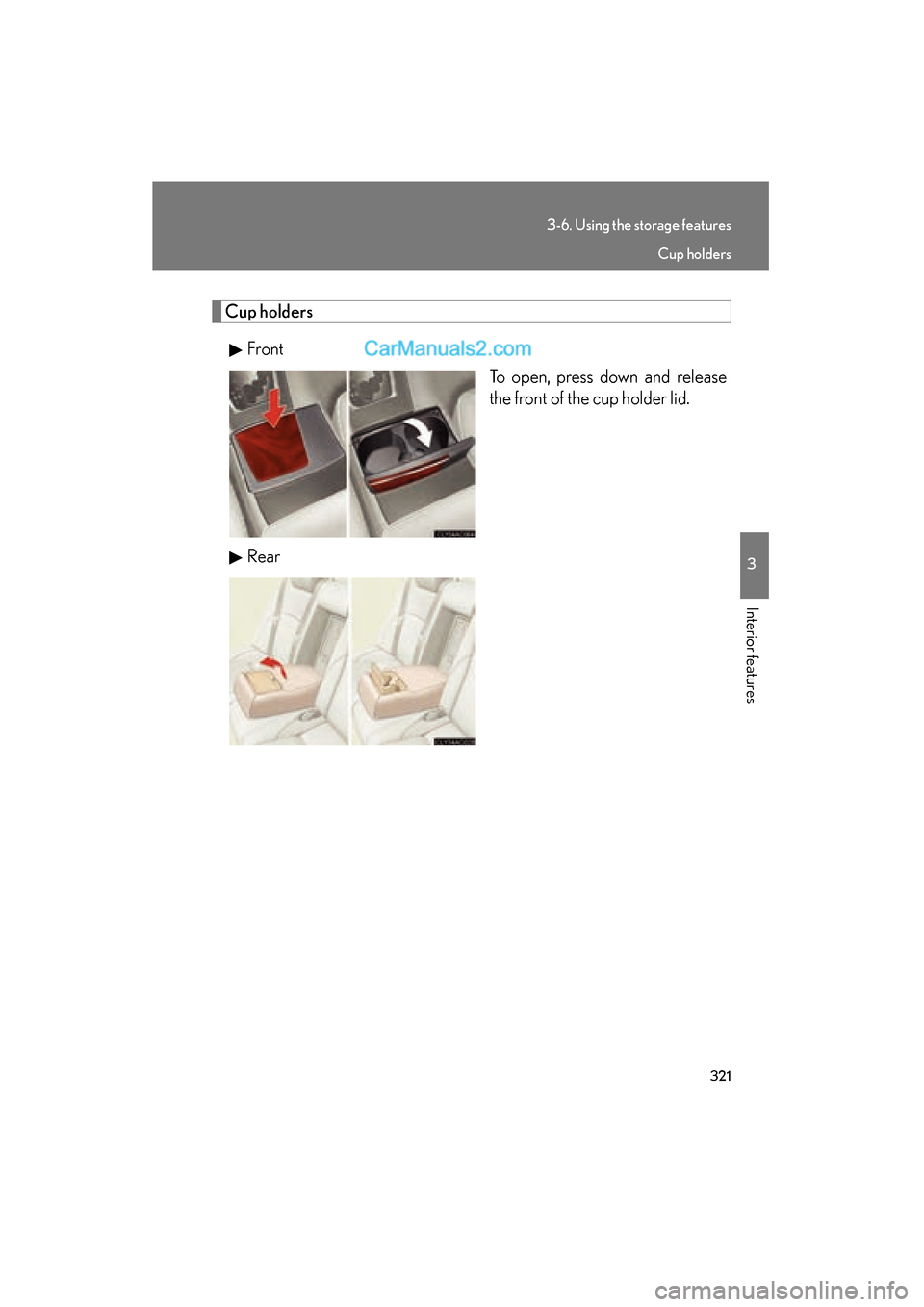

321
3-6. Using the storage features
3
Interior features
ES350_U
Cup holdersFront To open, press down and release
the front of the cup holder lid.
Rear
Cup holders

322
3-6. Using the storage features
ES350_U

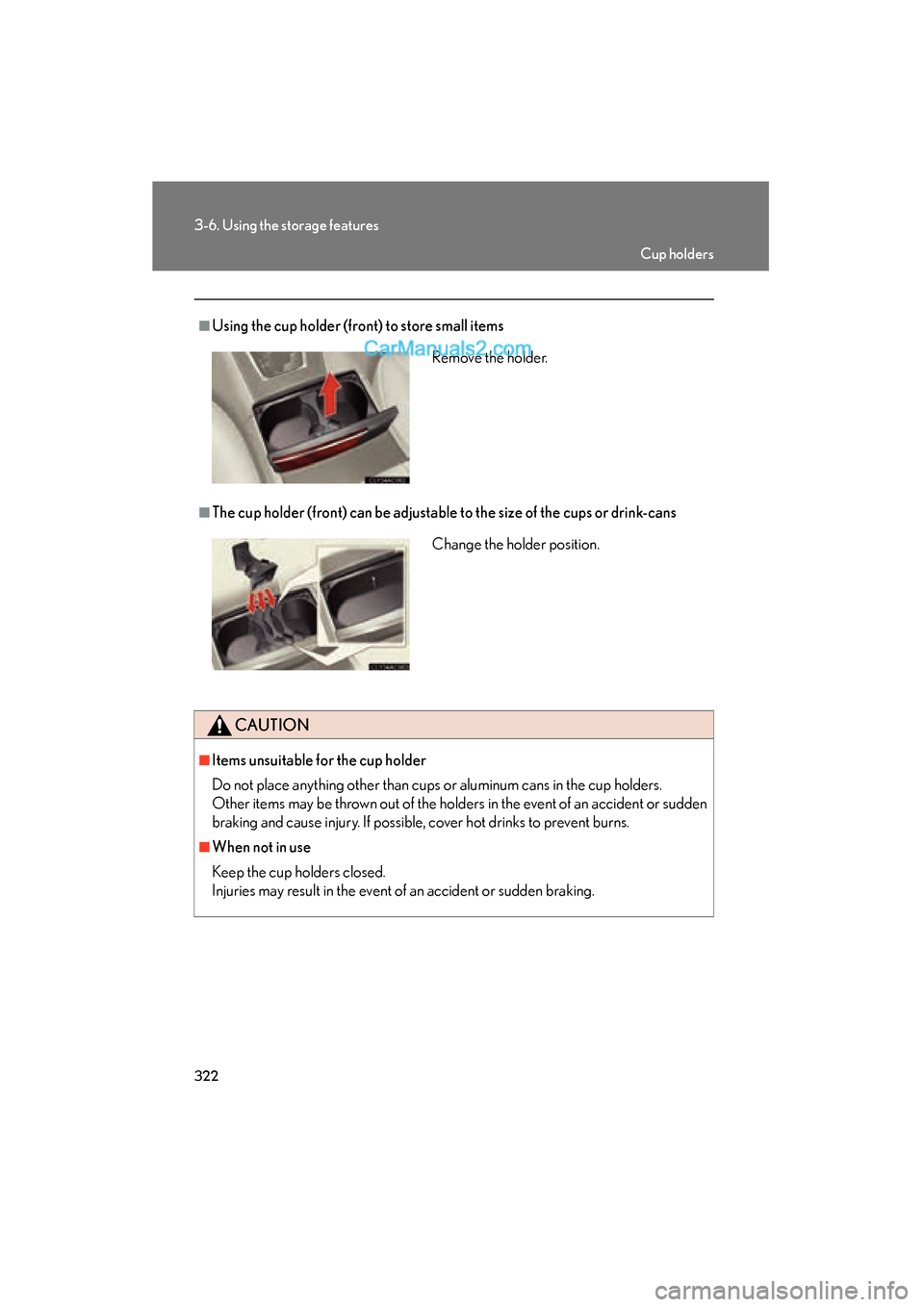

■Using the cup holder (front) to store small items
■The cup holder (front) can be adjustable to the size of the cups or drink-cans
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Remove the holder.
Change the holder position.
Cup holders

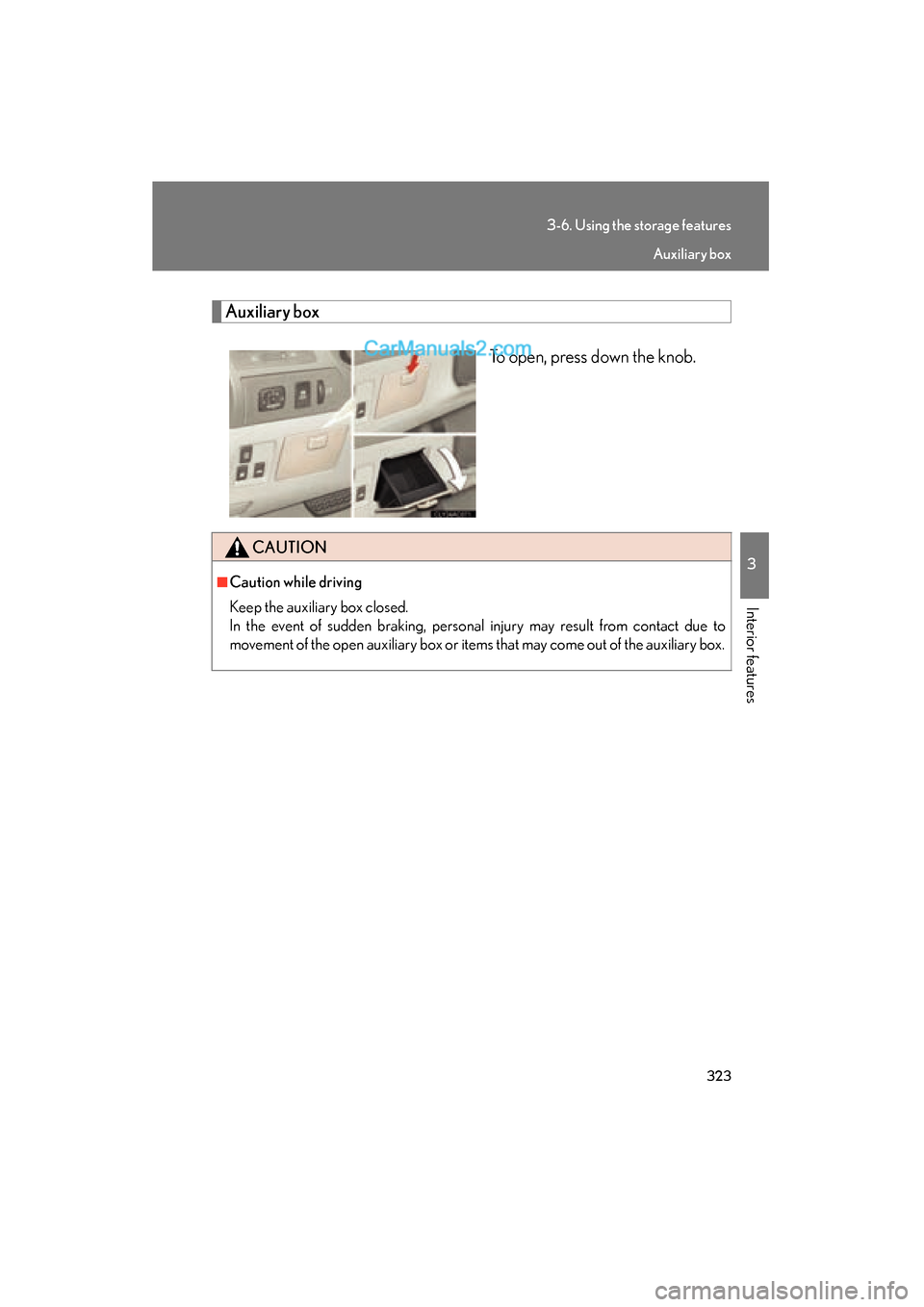

323
3-6. Using the storage features
3
Interior features
ES350_U
Auxiliary boxTo open, press down the knob.
CAUTION
■Caution while driving
Keep the auxiliary box closed.
In the event of sudden braking, personal injury may result from contact due to
movement of the open auxiliary box or items that may come out of the auxiliary box.
Auxiliary box

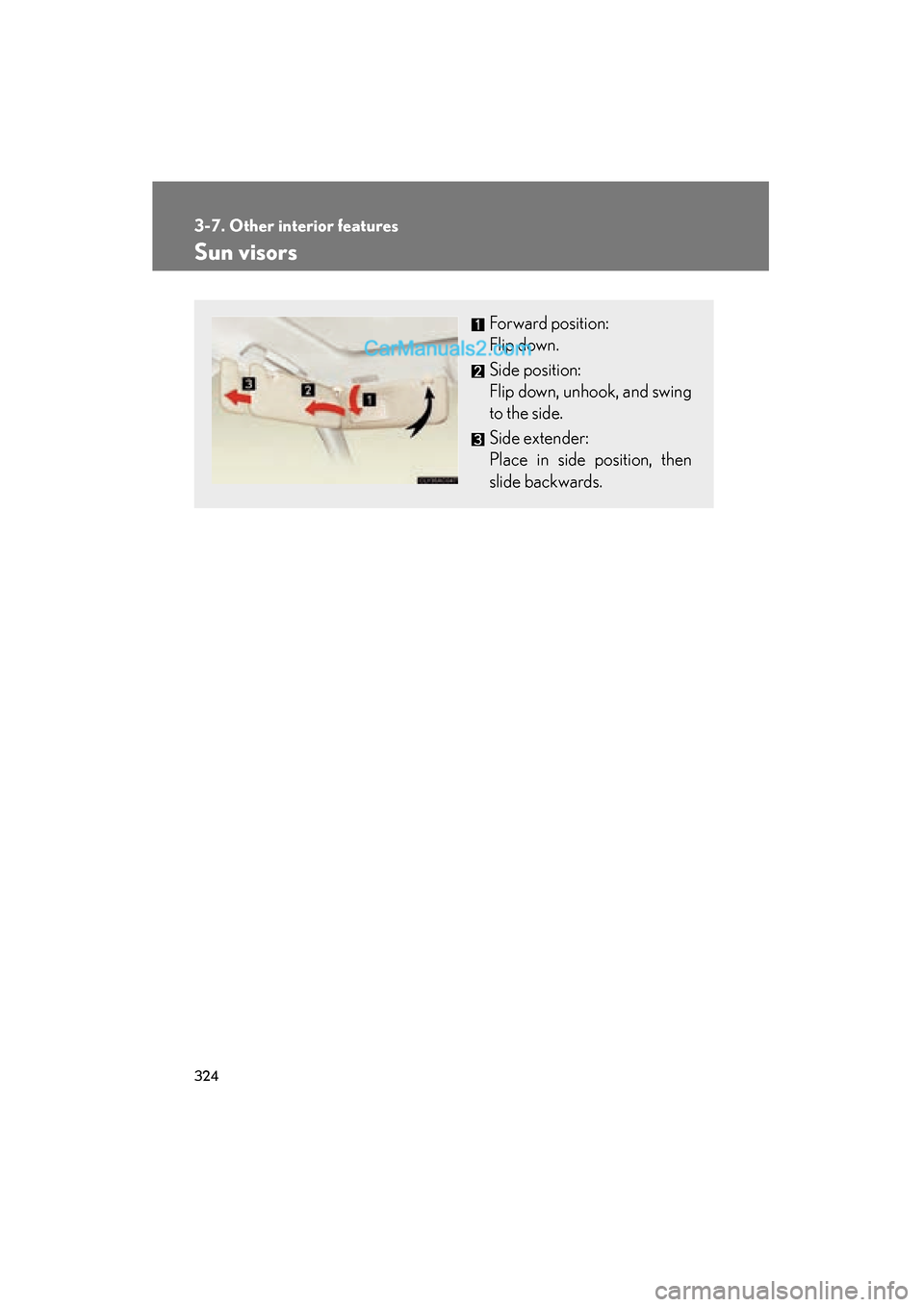

324
ES350_U
3-7. Other interior features
Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.
Side extender:
Place in side position, then
slide backwards.

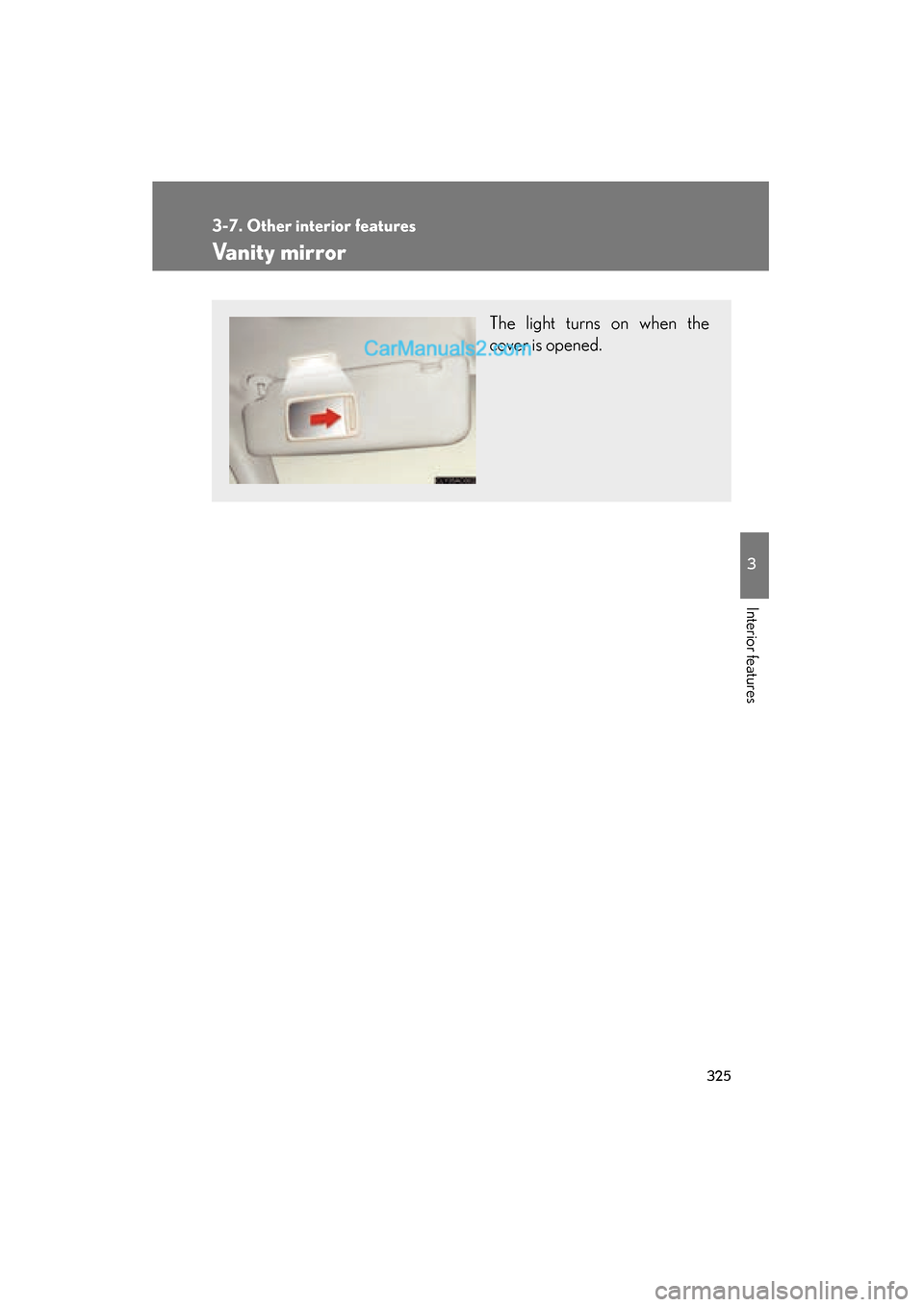

325
3-7. Other interior features
3
Interior features
ES350_U
Vanity mirror
The light turns on when the
cover is opened.

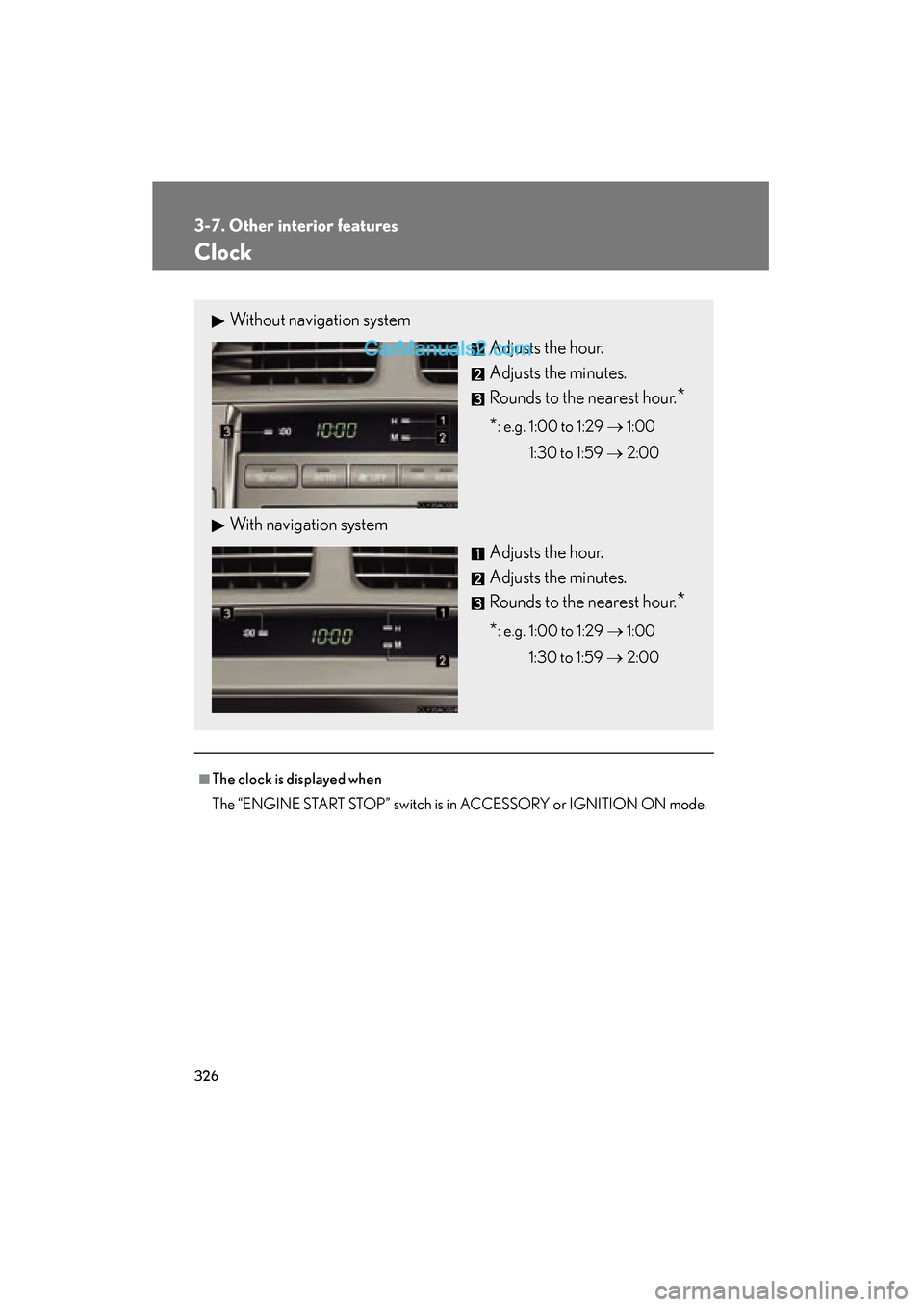

326
3-7. Other interior features
ES350_U
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Without navigation systemAdjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
With navigation system
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

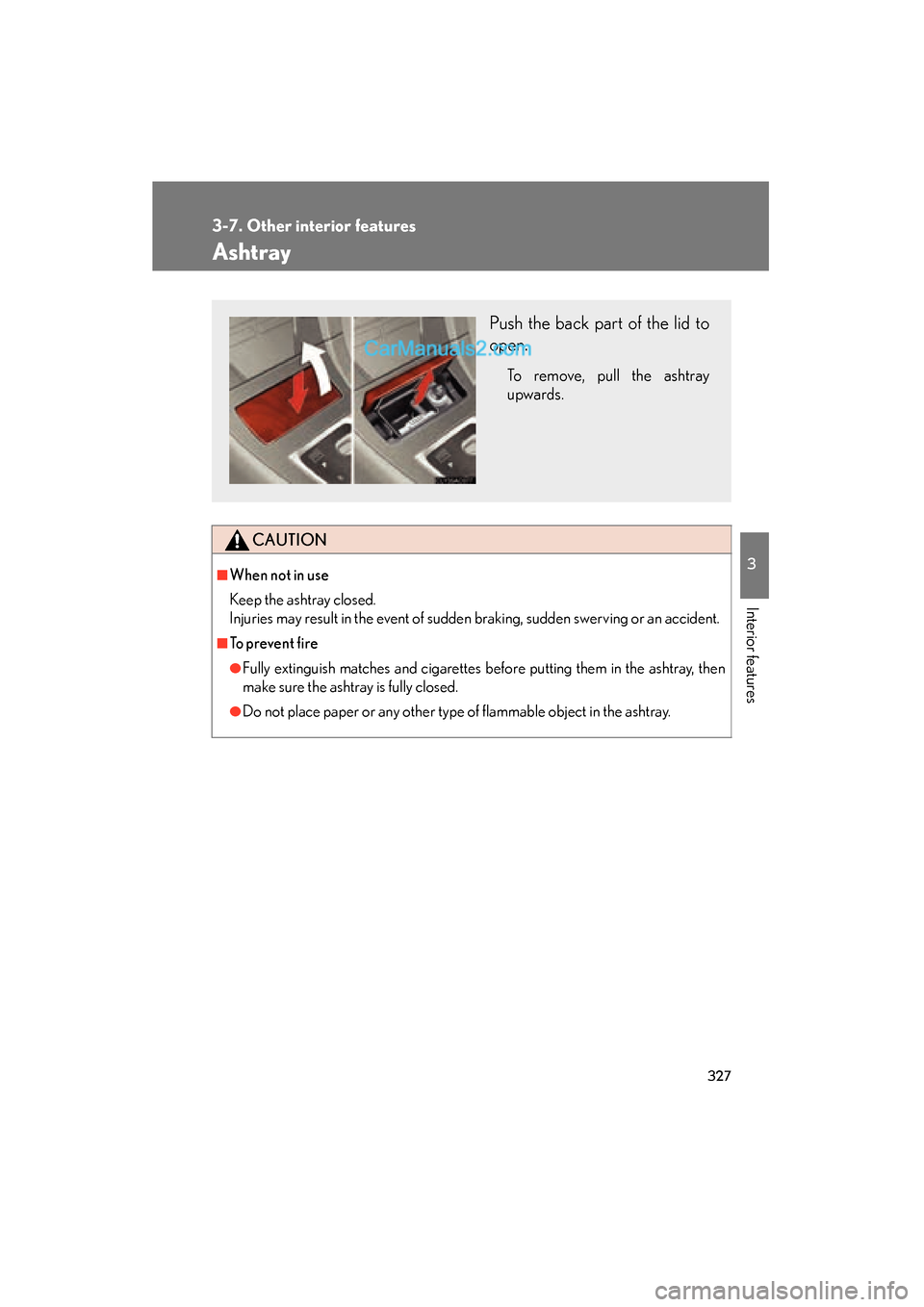

327
3-7. Other interior features
3
Interior features
ES350_U
Ashtray
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
Push the back part of the lid to
open.
To remove, pull the ashtray
upwards.

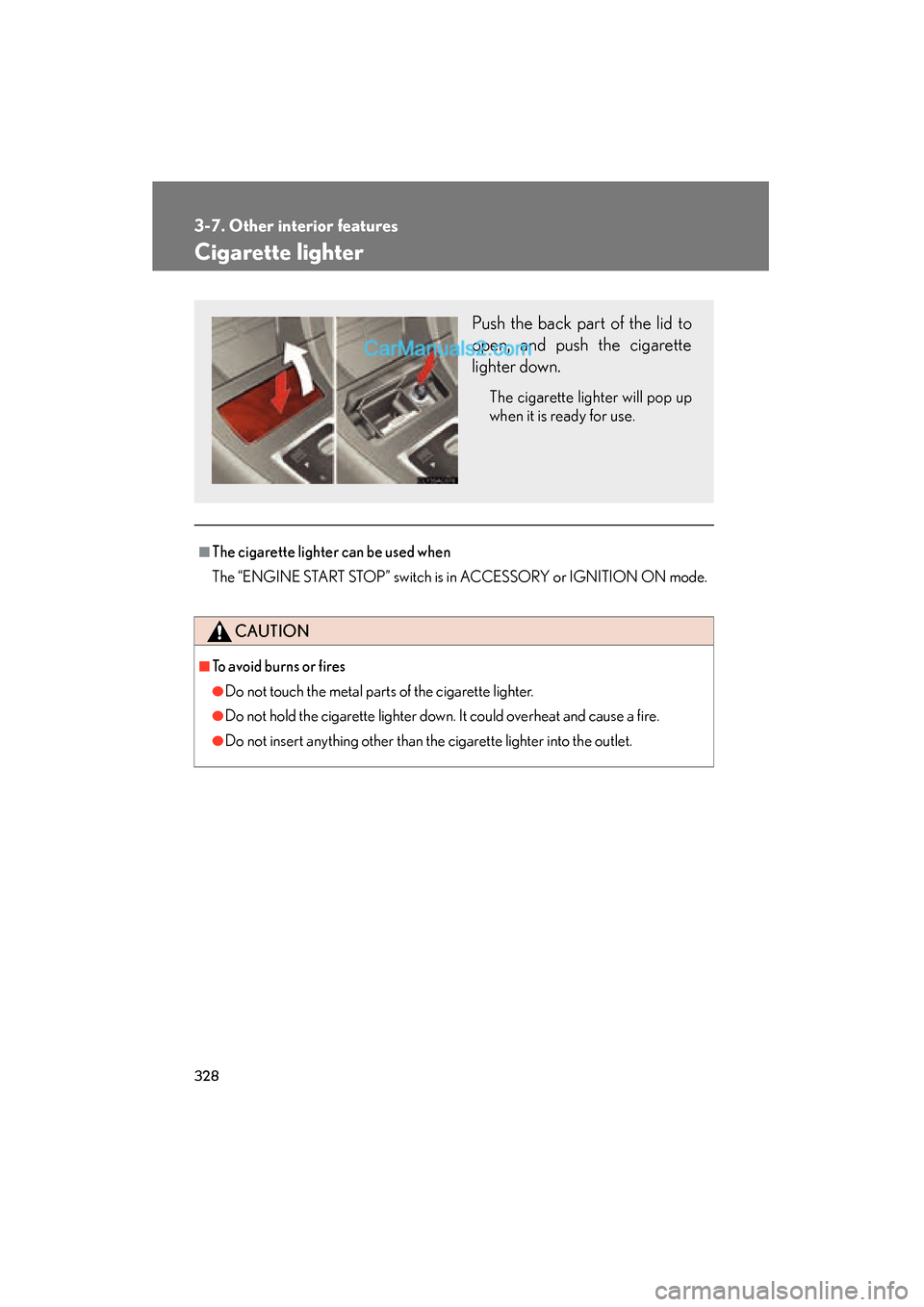

328
3-7. Other interior features
ES350_U
Cigarette lighter
■The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
Push the back part of the lid to
open, and push the cigarette
lighter down.
The cigarette lighter will pop up
when it is ready for use.
