Lexus ES350 2011 Owner's Manuals

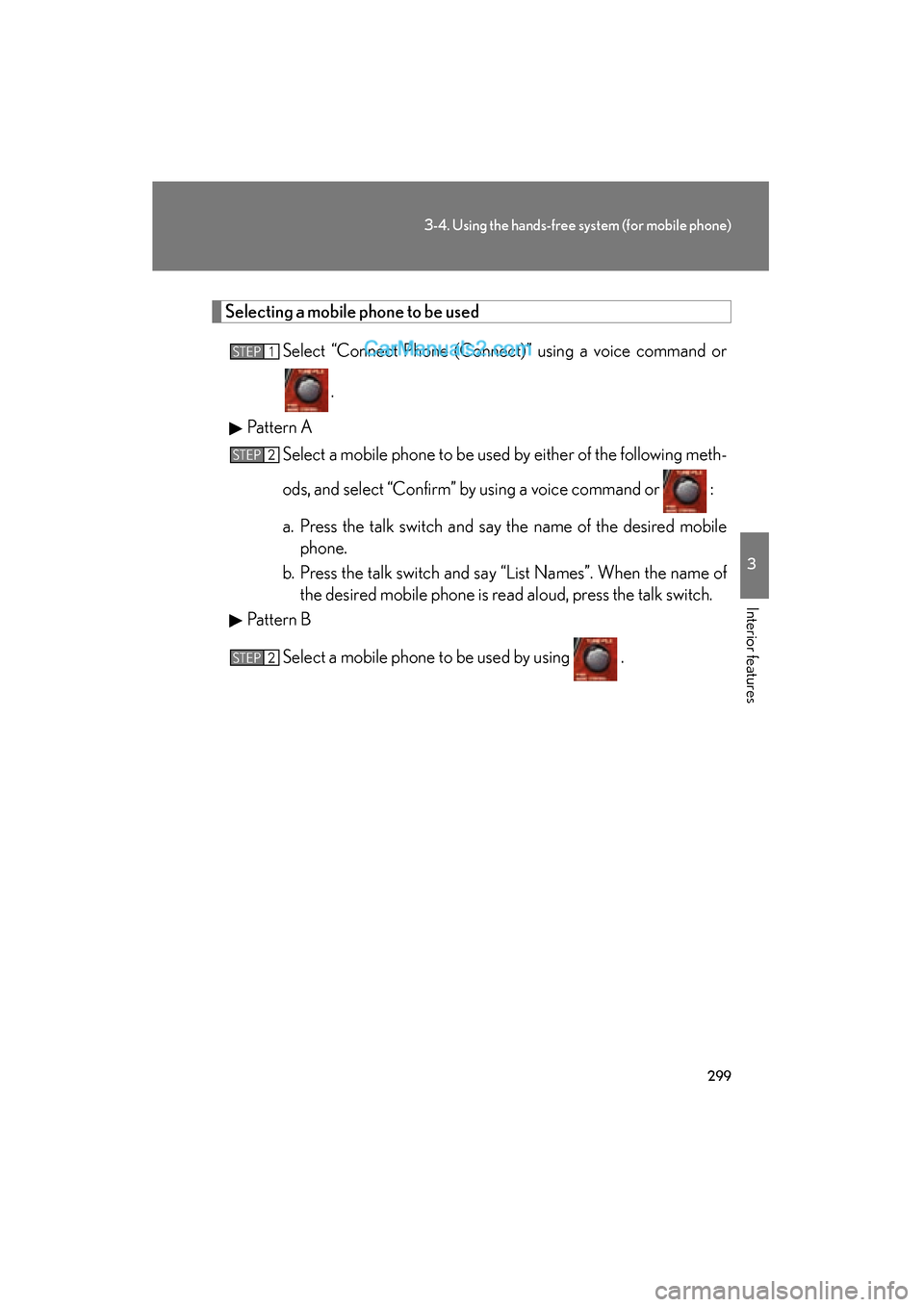

299
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Selecting a mobile phone to be usedSelect “Connect Phone (Connect)” using a voice command or
.
Pattern A Select a mobile phone to be used by either of the following meth-
ods, and select “Confirm” by using a voice command or :
a. Press the talk switch and say the name of the desired mobilephone.
b. Press the talk switch and say “List Names”. When the name of the desired mobile phone is read aloud, press the talk switch.
Pattern B
Select a mobile phone to be used by using .
STEP1
STEP2
STEP2

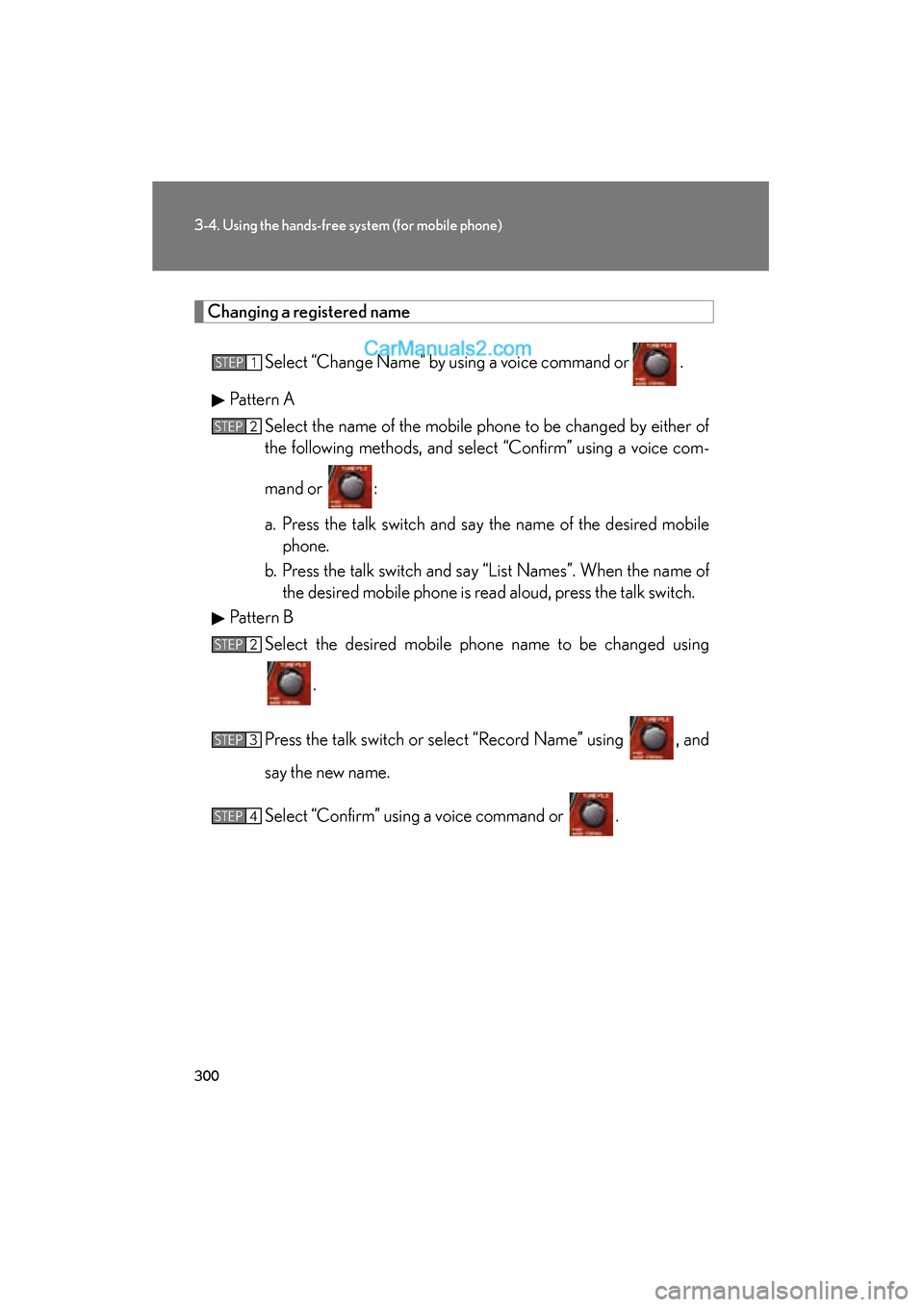

300
3-4. Using the hands-free system (for mobile phone)
ES350_U
Changing a registered name
Select “Change Name” by using a voice command or .
Pattern A Select the name of the mobile phone to be changed by either of
the following methods, and select “Confirm” using a voice com-
mand or :
a. Press the talk switch and say the name of the desired mobilephone.
b. Press the talk switch and say “List Names”. When the name of the desired mobile phone is read aloud, press the talk switch.
Pattern B
Select the desired mobile phone name to be changed using
.
Press the talk switch or select “Record Name” using , and
say the new name.
Select “Confirm” using a voice command or .
STEP1
STEP2
STEP2
STEP3
STEP4

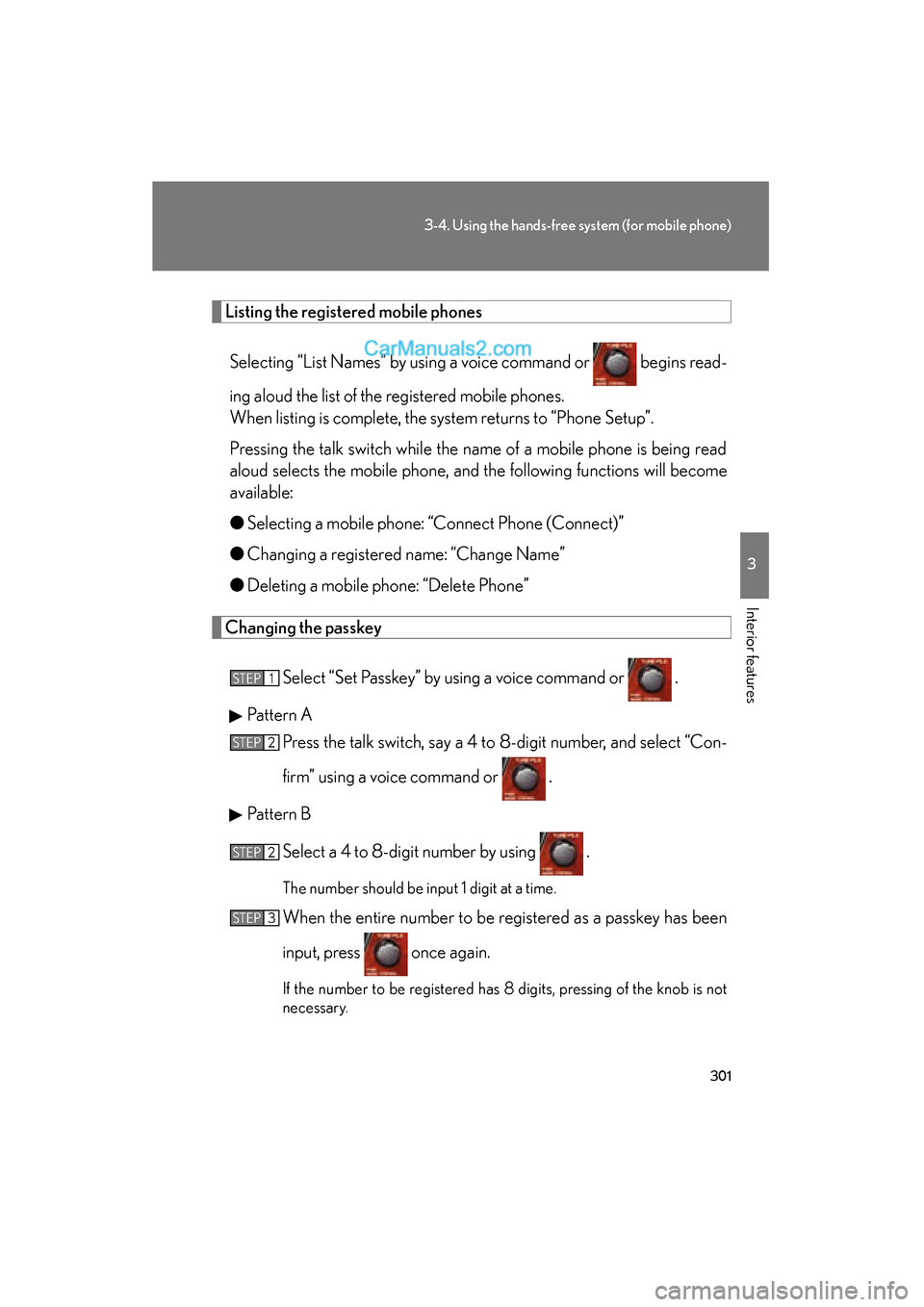

301
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Listing the registered mobile phonesSelecting “List Names” by using a voice command or begins read-
ing aloud the list of the registered mobile phones.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a mobile phone is being read
aloud selects the mobile phone, and the following functions will become
available:
● Selecting a mobile phone: “Connect Phone (Connect)”
● Changing a registered name: “Change Name”
● Deleting a mobile phone: “Delete Phone”
Changing the passkey
Select “Set Passkey” by using a voice command or .
Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Con-
firm” using a voice command or .
Pattern B
Select a 4 to 8-digit number by using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press once again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
STEP1
STEP2
STEP2
STEP3

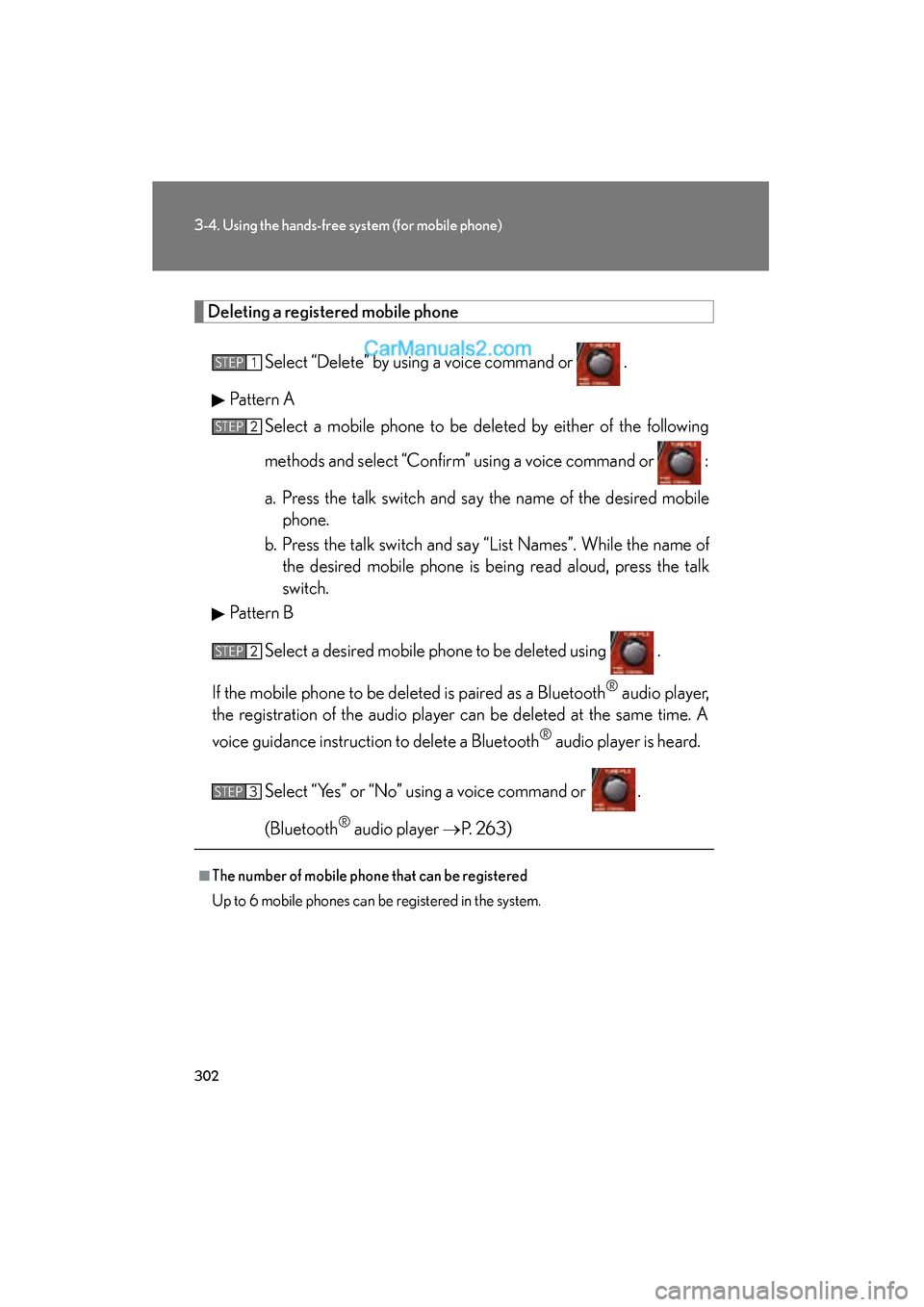

302
3-4. Using the hands-free system (for mobile phone)
ES350_U
Deleting a registered mobile phone
Select “Delete” by using a voice command or .
Pattern A Select a mobile phone to be deleted by either of the following
methods and select “Confirm” using a voice command or :
a. Press the talk switch and say the name of the desired mobilephone.
b. Press the talk switch and say “List Names”. While the name of the desired mobile phone is being read aloud, press the talk
switch.
Pattern B
Select a desired mobile phone to be deleted using .
If the mobile phone to be de leted is paired as a Bluetooth
® audio player,
the registration of the audio player can be deleted at the same time. A
voice guidance instruction to delete a Bluetooth
® audio player is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® audio player →P. 2 6 3 )
■The number of mobile phone that can be registered
Up to 6 mobile phones can be registered in the system.
STEP1
STEP2
STEP2
STEP3

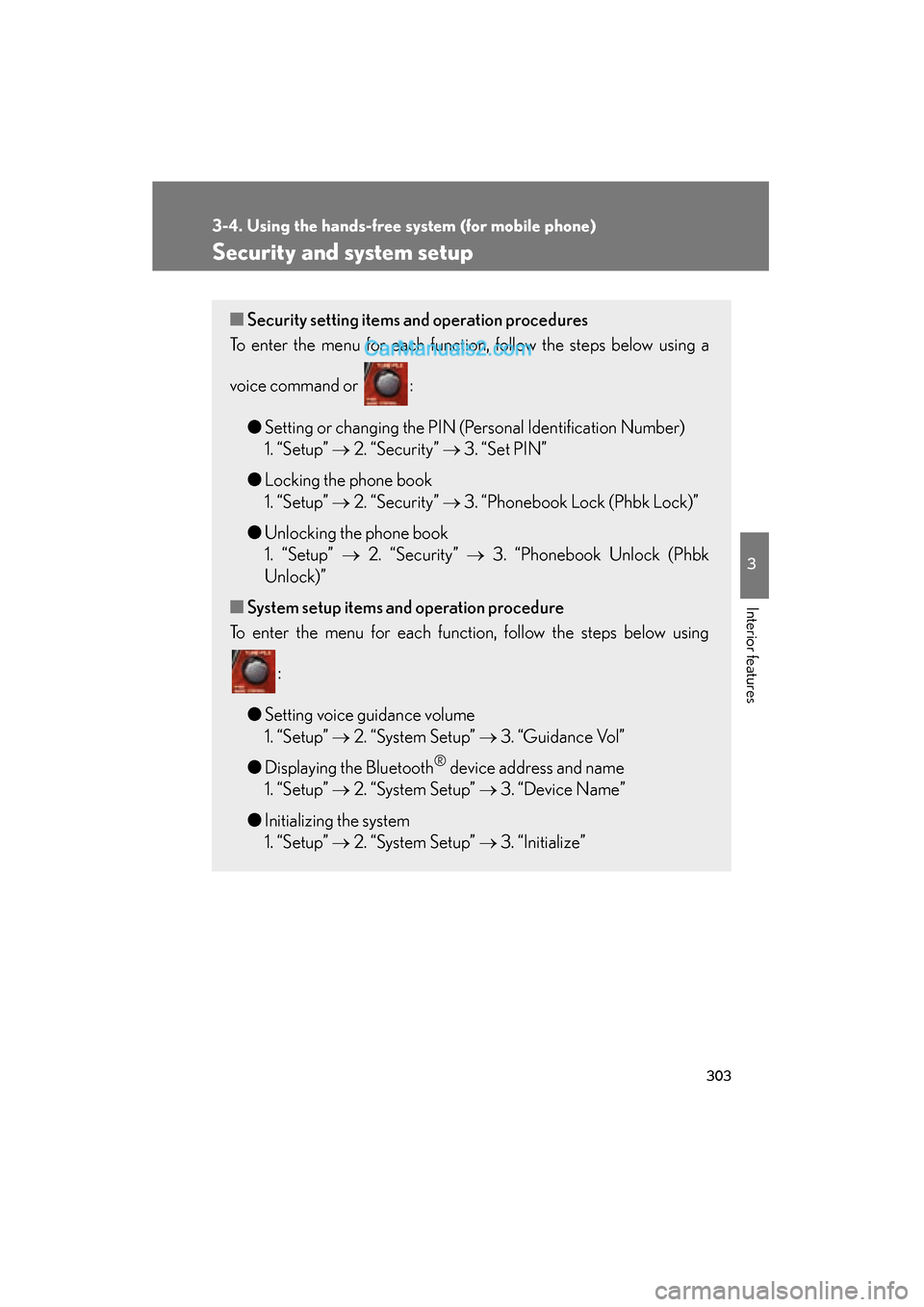

303
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Security and system setup
■Security setting items an d operation procedures
To enter the menu for each function, follow the steps below using a
voice command or :
●Setting or changing the PIN (Personal Identification Number)
1. “Setup” → 2. “Security” → 3. “Set PIN”
● Locking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Lock (Phbk Lock)”
● Unlocking the phone book
1. “Setup” → 2. “Security” → 3. “Phonebook Unlock (Phbk
Unlock)”
■ System setup items and operation procedure
To enter the menu for each function, follow the steps below using
:
● Setting voice guidance volume
1. “Setup” → 2. “System Setup” → 3. “Guidance Vol”
● Displaying the Bluetooth
® device address and name
1. “Setup” → 2. “System Setup” → 3. “Device Name”
● Initializing the system
1. “Setup” → 2. “System Setup” → 3. “Initialize”

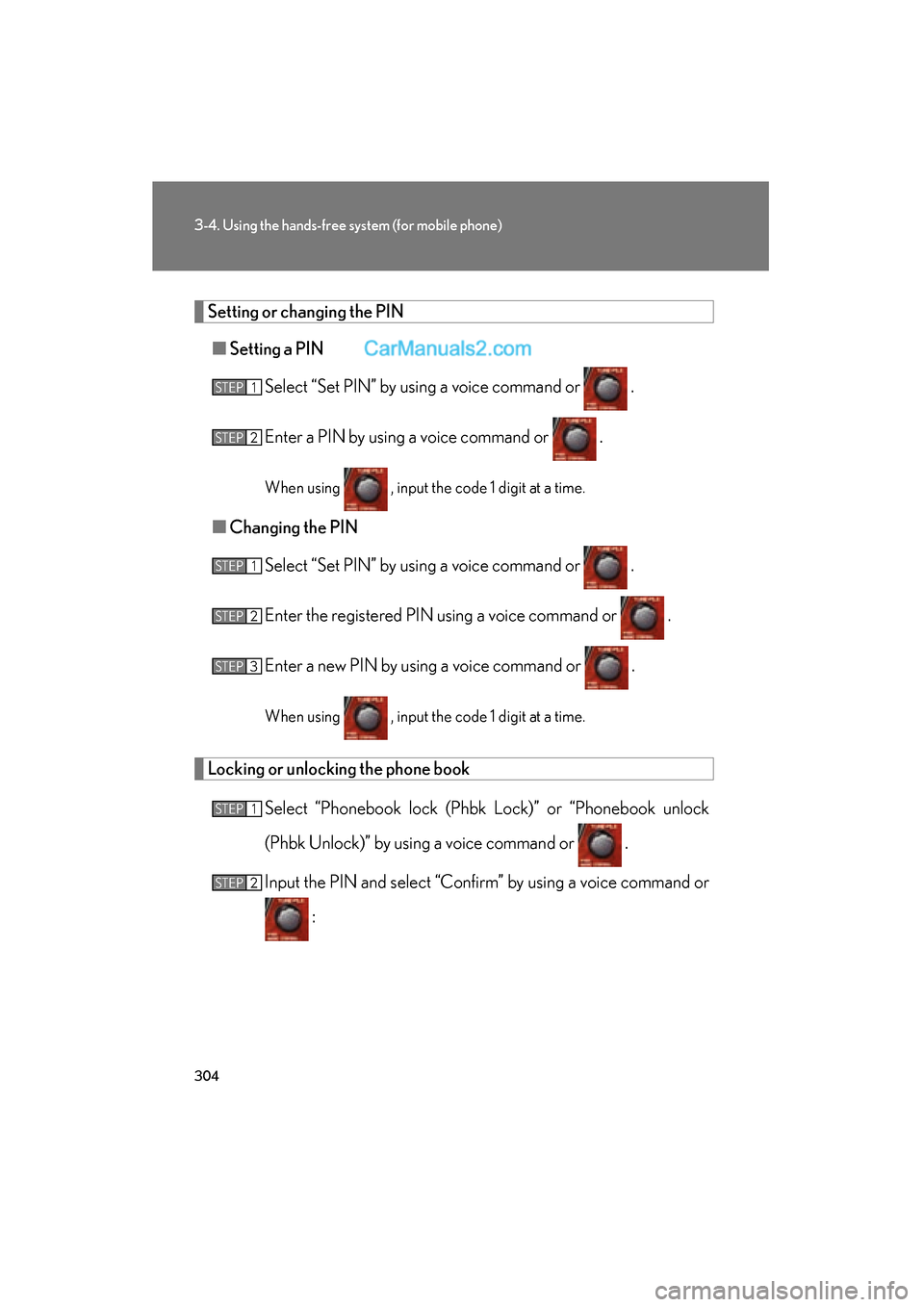

304
3-4. Using the hands-free system (for mobile phone)
ES350_U
Setting or changing the PIN
■ Setting a PIN
Select “Set PIN” by using a voice command or .
Enter a PIN by using a voice command or .
When using , input the code 1 digit at a time.
■Changing the PIN
Select “Set PIN” by using a voice command or .
Enter the registered PIN using a voice command or .
Enter a new PIN by using a voice command or .
When using , input the code 1 digit at a time.
Locking or unlocking the phone book
Select “Phonebook lock (Phbk Lock)” or “Phonebook unlock
(Phbk Unlock)” by using a voice command or .
Input the PIN and select “Confirm” by using a voice command or :
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2

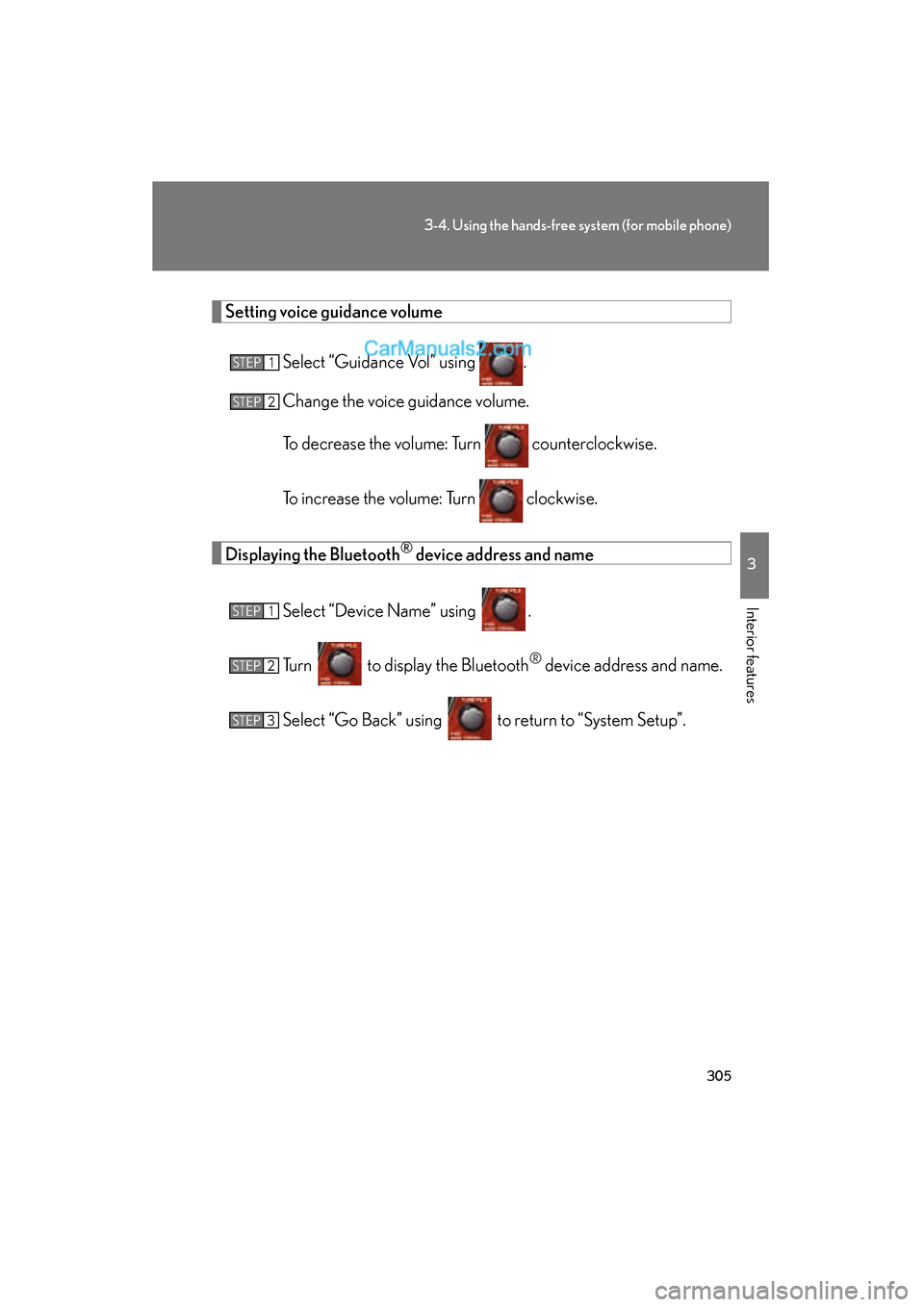

305
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Setting voice guidance volumeSelect “Guidance Vol” using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Displaying the Bluetooth® device address and name
Select “Device Name” using .
Turn to display the Bluetooth
® device address and name.
Select “Go Back” using to return to “System Setup”.
STEP1
STEP2
STEP1
STEP2
STEP3

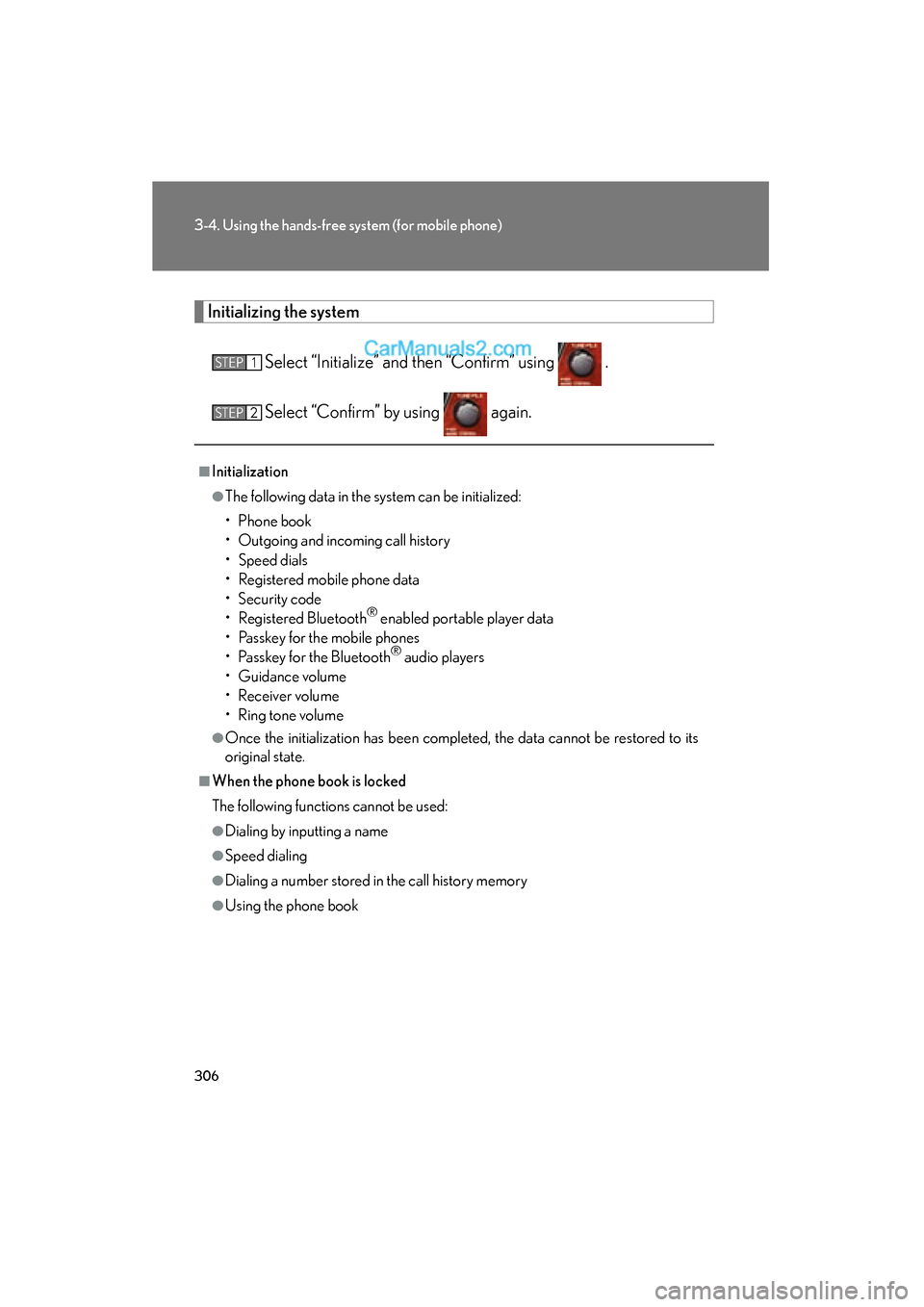

306
3-4. Using the hands-free system (for mobile phone)
ES350_U
Initializing the system
Select “Initialize” and then “Confirm” using .
Select “Confirm” by using again.
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered mobile phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the mobile phones
• Passkey for the Bluetooth
® audio players
• Guidance volume
• Receiver volume
• Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its
original state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book
STEP1
STEP2

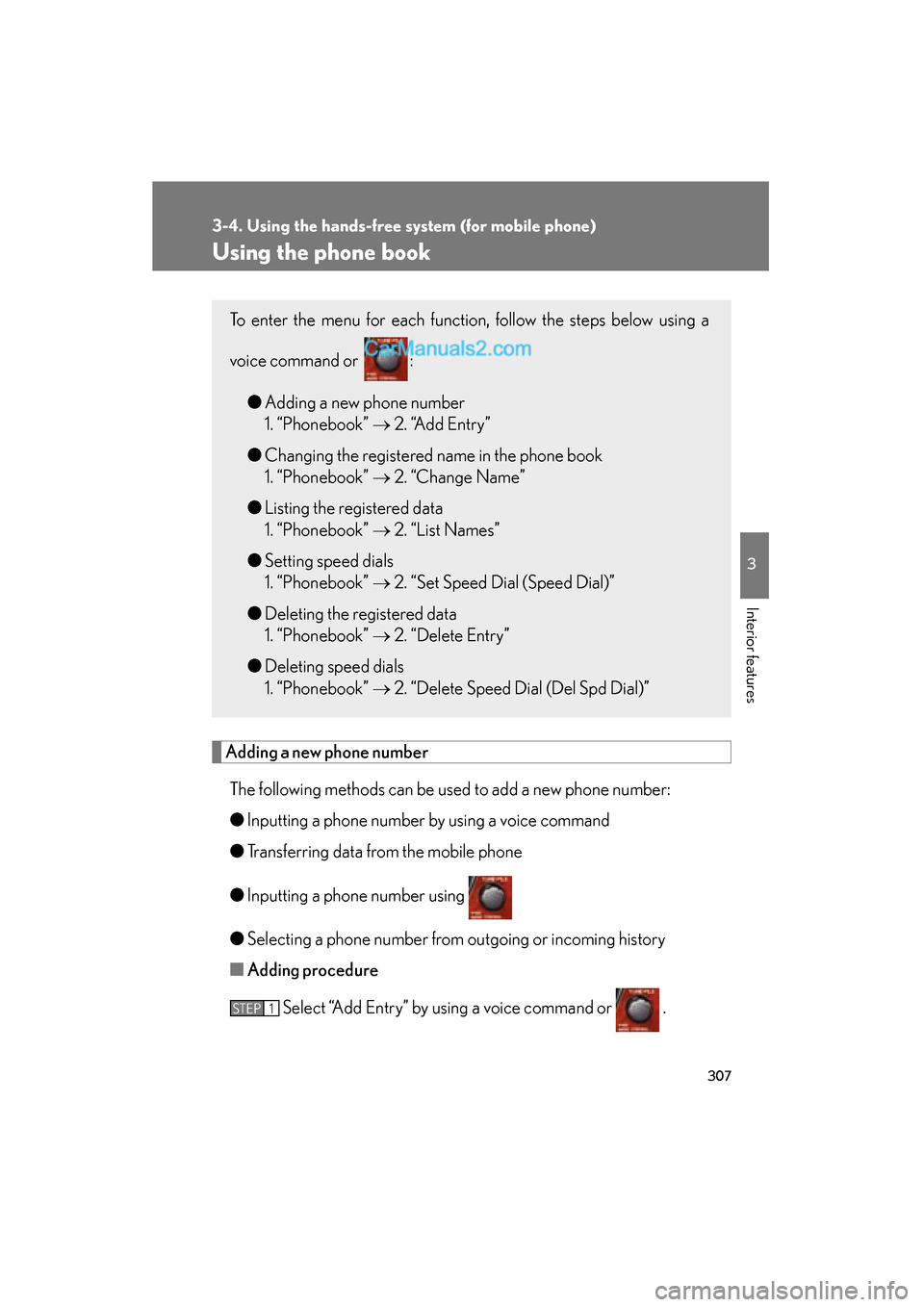

307
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Using the phone book
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number by using a voice command
● Transferring data from the mobile phone
● Inputting a phone number using
● Selecting a phone number from outgoing or incoming history
■ Adding procedure
Select “Add Entry” by using a voice command or .
To enter the menu for each function, follow the steps below using a
voice command or :
●Adding a new phone number
1. “Phonebook” → 2. “Add Entry”
● Changing the registered name in the phone book
1. “Phonebook” → 2. “Change Name”
● Listing the registered data
1. “Phonebook” → 2. “List Names”
● Setting speed dials
1. “Phonebook” → 2. “Set Speed Dial (Speed Dial)”
● Deleting the registered data
1. “Phonebook” → 2. “Delete Entry”
● Deleting speed dials
1. “Phonebook” → 2. “Delete Speed Dial (Del Spd Dial)”
STEP1

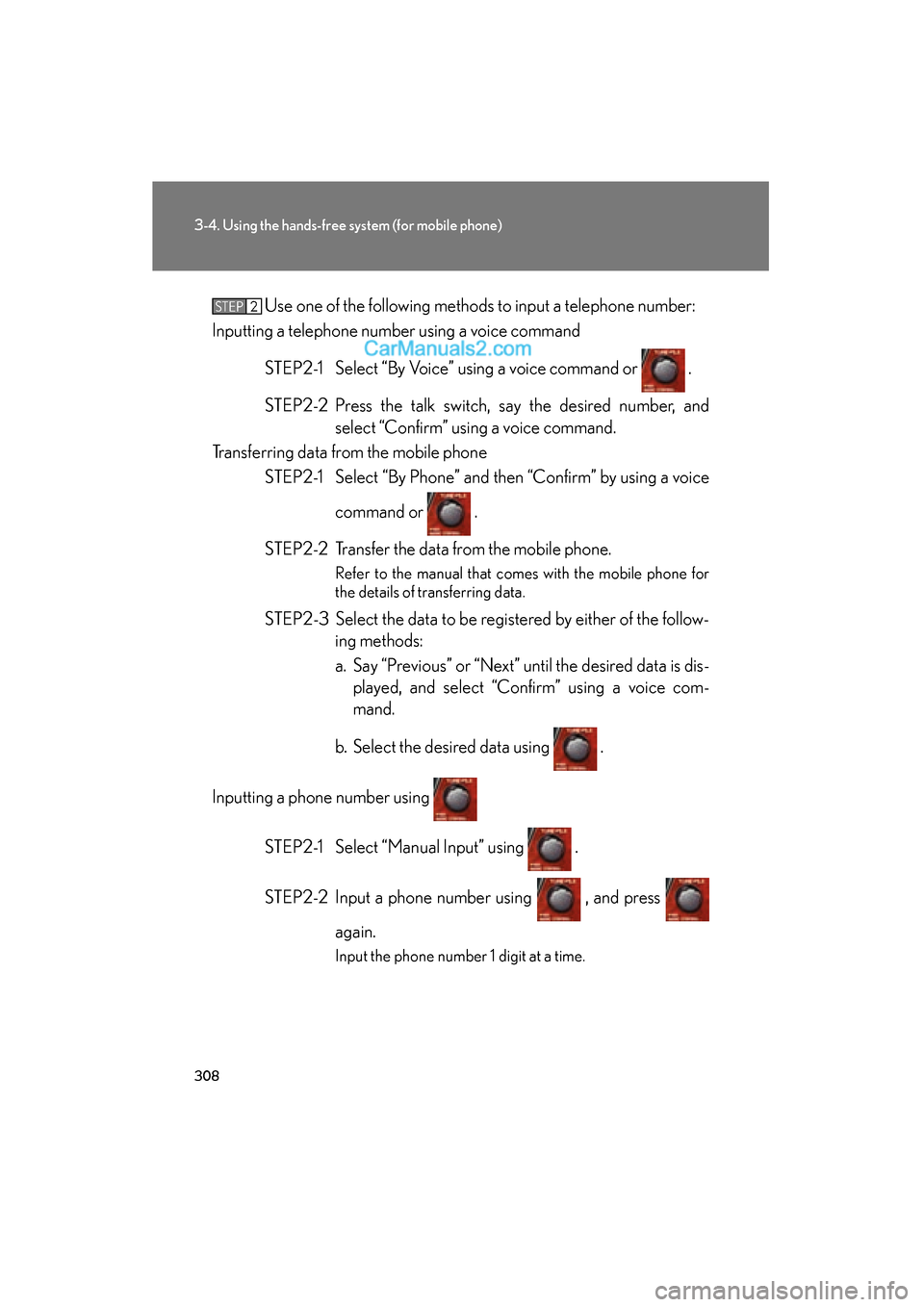

308
3-4. Using the hands-free system (for mobile phone)
ES350_UUse one of the following methods to input a telephone number:
Inputting a telephone number using a voice command
STEP2-1 Select “By Voice” using a voice command or .
STEP2-2 Press the talk switch, say the desired number, and select “Confirm” using a voice command.
Transferring data from the mobile phone STEP2-1 Select “By Phone” and then “Confirm” by using a voice
command or .
STEP2-2 Transfer the data from the mobile phone.
Refer to the manual that comes with the mobile phone for
the details of transferring data.
STEP2-3 Select the data to be registered by either of the follow- ing methods:
a. Say “Previous” or “Next” until the desired data is dis-played, and select “Confirm” using a voice com-
mand.
b. Select the desired data using .
Inputting a phone number using STEP2-1 Select “Manual Input” using .
STEP2-2 Input a phone number using , and press again.
Input the phone number 1 digit at a time.
STEP2
