Lexus ES350 2012 Owner's Manual

200
2-5. Driving information
ES350_U
■Snow chain installation
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
●Install tire chains on the front tires only. Do not install tire chains on rear tires.
●Install the tire chains on front tires as tightly as possible. Retighten chains after
driving 1 /4 - 1 /2 mile (0.5 - 1.0 km).
●Install tire chains following the instructions provided in the accompanying
instructions.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or serious
injury.
●Use tires of the size specified for your vehicle.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of snow tires
being used.
●Use snow tires on all, not just some wheels.
■Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used,
or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden turns and braking, as use of chains may adversely affect vehicle
handling.
●Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.

201
2-5. Driving information
2
When driving
ES350_U

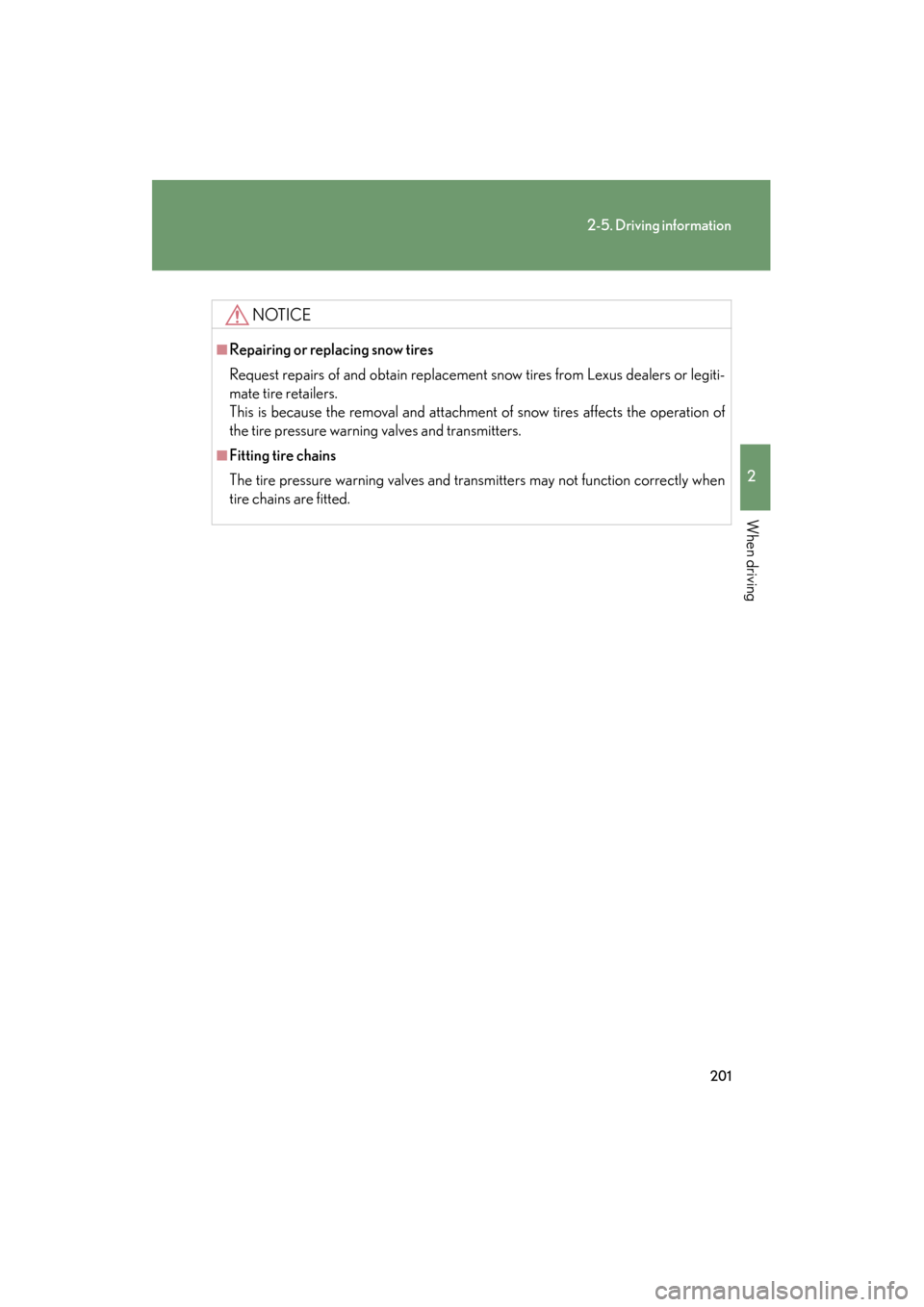

NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Lexus dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly when
tire chains are fitted.

202
2-5. Driving information
ES350_U
Trailer towing
Lexus does not recommend towing a trailer with your vehicle. Lexus also
does not recommend the installation of a tow hitch or the use of a tow hitch
carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed
for trailer towing or for the use of tow hitch mounted carriers.

203
2-5. Driving information
2
When driving
ES350_U
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on the
ground) behind a motor home.

204
ES350_U

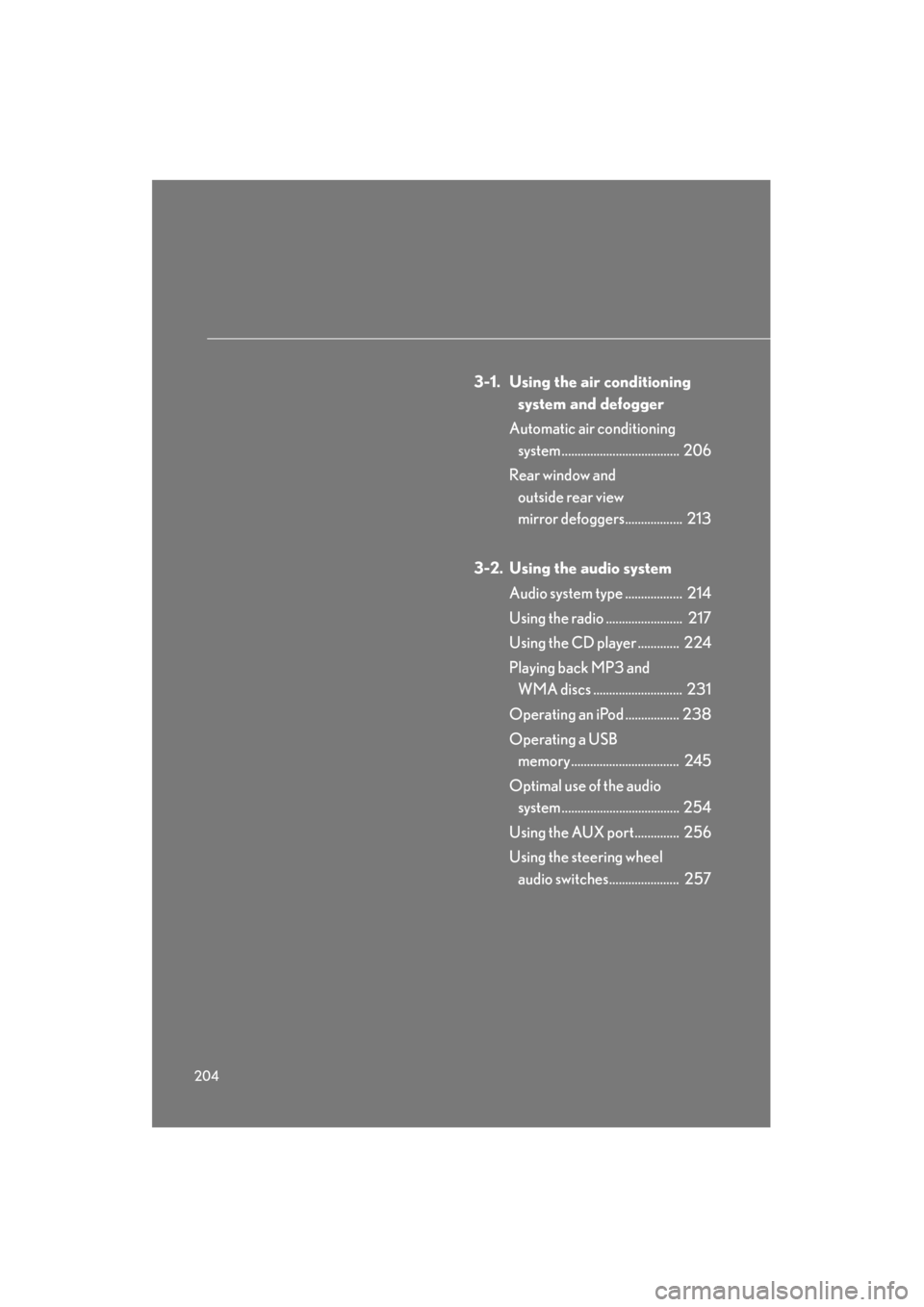

3-1. Using the air conditioning system and defogger
Automatic air conditioning system ..................................... 206
Rear window and outside rear view
mirror defoggers.................. 213
3-2. Using the audio system Audio system type .................. 214
Using the radio ........................ 217
Using the CD player ............. 224
Playing back MP3 and WMA discs ............................ 231
Operating an iPod ................. 238
Operating a USB memory.................................. 245
Optimal use of the audio system ..................................... 254
Using the AUX port.............. 256
Using the steering wheel audio switches...................... 257

Interior features3
205
ES350_U
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system .... 260
Using the Bluetooth
®
audio system ......................... 263
Operating a Bluetooth
®
enabled portable player .... 268
Setting up a Bluetooth
®
enabled portable player ..... 271
Bluetooth
® audio system
setup ........................................ 278
3-4. Using the hands-free system (for mobile phone)
Hands-free system for mobile phones ...................... 279
Using the hands-free system
(for mobile phone).............. 283
Making a phone call ............... 291
Setting a mobile phone......... 296
Security and system setup ......................................... 301
Using the phone book.......... 305
3-5. Using the interior lights Interior lights list ...................... 312
• Interior lights ......................... 314
• Personal lights ....................... 314 3-6. Using the storage features
List of storage features.......... 315
• Glove box ............................... 316
• Console box .......................... 317
• Overhead console............... 318
• Cup holders ........................... 319
• Auxiliary box ......................... 321
3-7. Other interior features Sun visors ................................. 322
Vanity mirror ........................... 323
Clock ......................................... 324
Ashtray ..................................... 325
Cigarette lighter .................... 326
Power outlet ............................ 327
Seat heaters ............................ 328
Seat heaters and ventilators ............................. 330
Armrest .................................... 332
Rear sunshade ........................ 333
Extended trunk....................... 335
Coat hooks .............................. 336
Floor mat .................................. 337
Trunk features ......................... 338
Garage door opener ............ 340
Compass................................... 346
Safety Connect ...................... 350

206
ES350_U
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .The air conditioning system will begin to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Press to switch to automatic mode. Automatically switches between outside air and recirculated
air modes.
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display
Changes the air outlets used Off
Fan speed
Airflow display
Fan speed display
Passenger’s side
temperature
setting display
Driver's side
temperature control
Air conditioning
ON/OFF switch Outside air or
recirculated air mode
Windshield defogger Passenger’s side
temperature control
Dual operation switch
STEP1
STEP2

207
3-1. Using the air conditioning system and defogger
3
Interior features
ES350_UPress “
∧” to increase the temperature and “ ∨” to decrease the
temperature on the .
The temperature for the driver and passenger seats can be set sepa-
rately.
Adjusting the settings ■ Adjusting the temperature setting
Press “ ∧” to increase the temperature and “ ∨” to decrease the temper-
ature on the .
Press “∧” (increase) or “∨” (decrease) on the to separately adjust the
temperature for the passenger and driver sides (dual mode). Press to
return the driver and passenger side temperatures to the same setting
(simultaneous mode).
The air conditioning system switches between individual and simultaneous
modes each time is pressed.
■ Adjusting the fan speed
Press “ ∧” (increase) or “∨ ” (decrease) on .
Press to turn the fan off.
STEP3

208
3-1. Using the air conditioning system and defogger
ES350_U■
Changing the air outlets
Press “∧” or “ ∨” on the .
The air outlets switch each time the
switch is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between (recycles air inside the vehicle),
AUTO and (introduces air from outside the vehicle) modes each
time the switch is pressed.
When the system is switched to automatic mode, the air conditioning
system operates automatically.

209
3-1. Using the air conditioning system and defogger
3
Interior features
ES350_U
Defogging the windshield
Defogging
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return to
recirculated air mode when the
switch is on.
Adjusting the sensitivity of the air intake control in automatic mode
Press for 2 or more sec-
onds.
Press “ ∧” (increase) or “ ∨”
(decrease) on the .
From —3 (low) to 3 (high) can be
set.
STEP1
STEP2
