Lexus ES350 2012 Owner's Manual

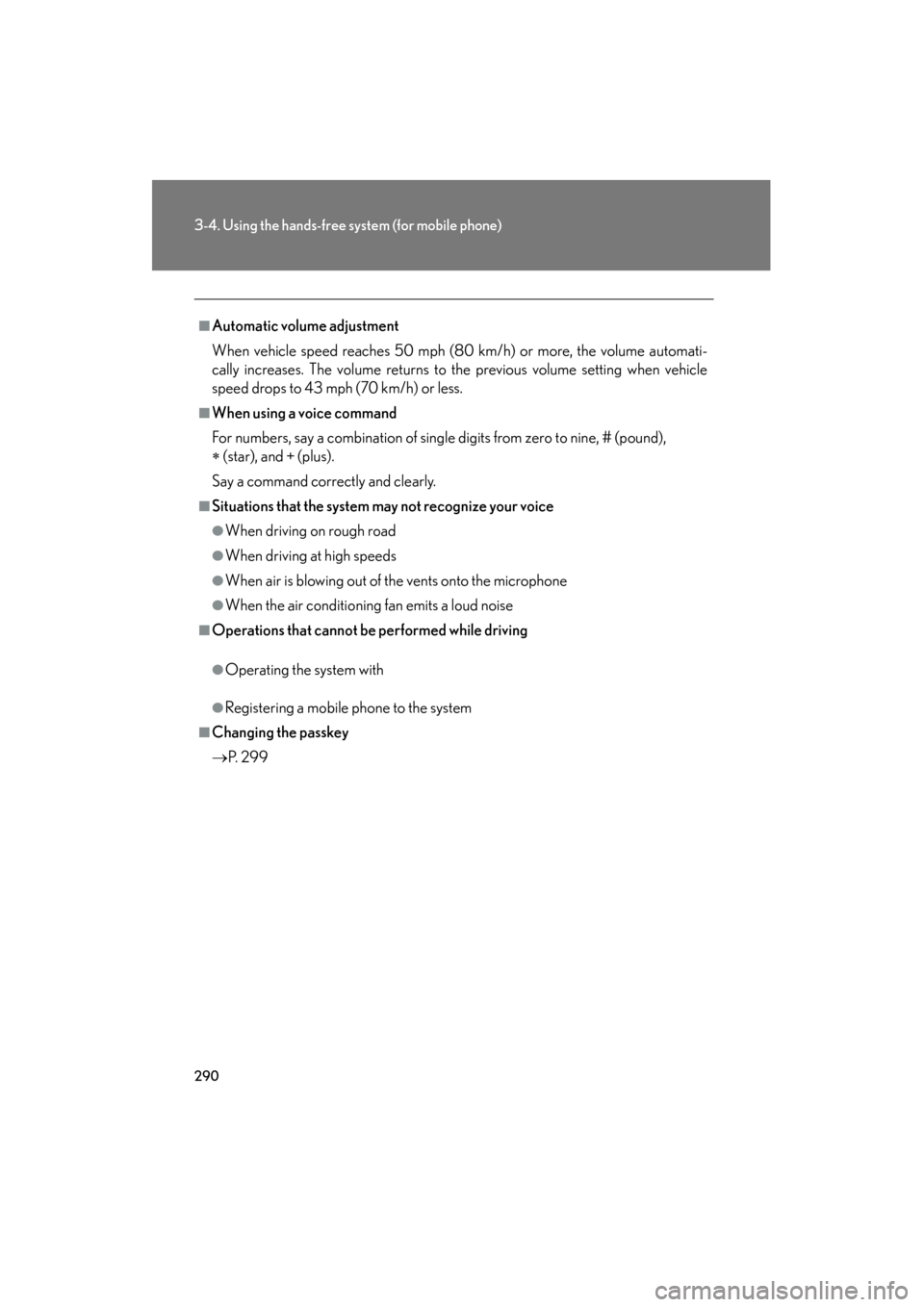

290
3-4. Using the hands-free system (for mobile phone)
ES350_U
■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automati-
cally increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
Say a command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough road
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a mobile phone to the system
■Changing the passkey
→ P. 2 9 9

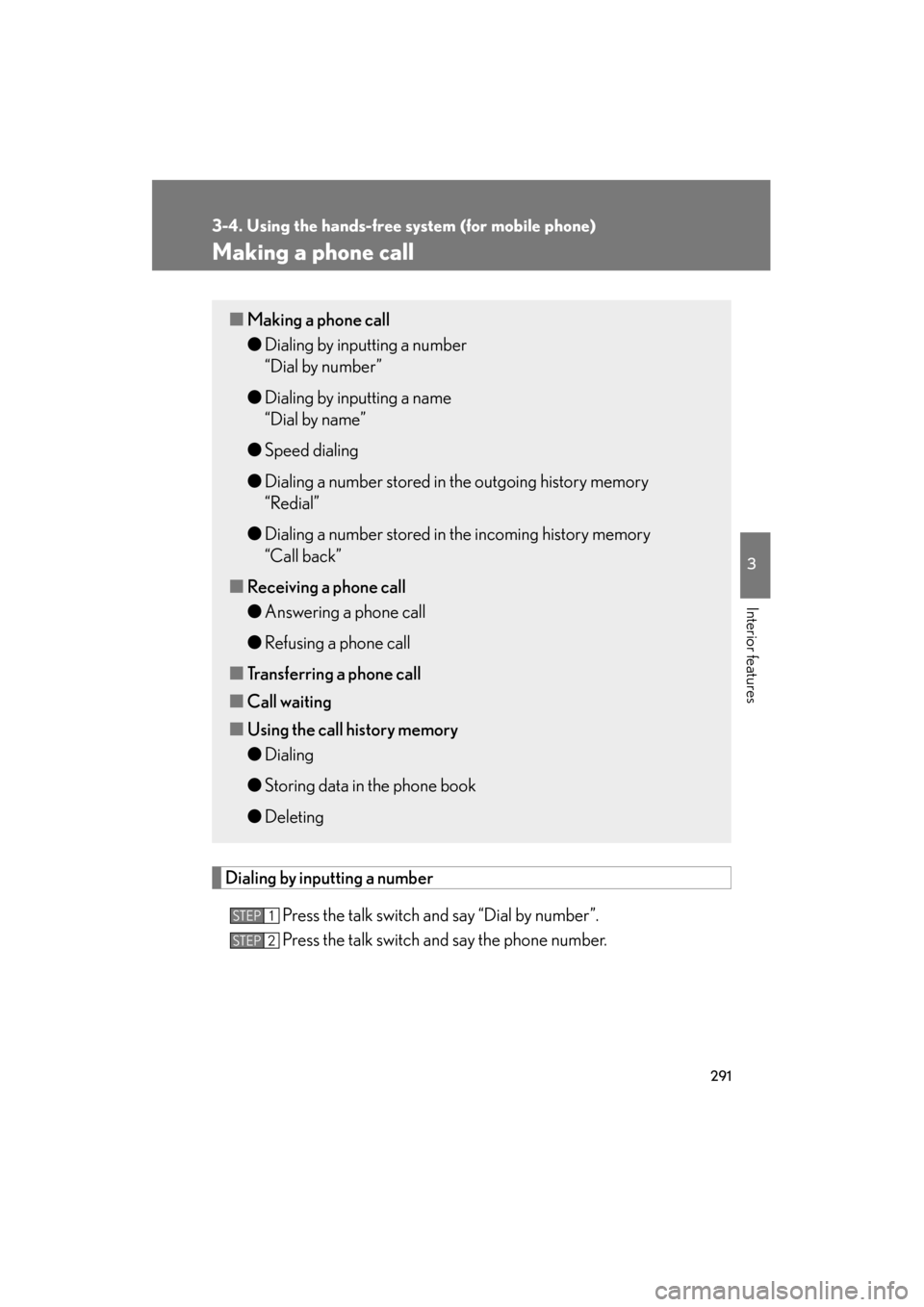

291
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Making a phone call
Dialing by inputting a numberPress the talk switch and say “Dial by number”.
Press the talk switch and say the phone number.
■Making a phone call
●Dialing by inputting a number
“Dial by number”
● Dialing by inputting a name
“Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“Call back”
■ Receiving a phone call
●Answering a phone call
● Refusing a phone call
■ Transferring a phone call
■ Call waiting
■ Using the call history memory
●Dialing
● Storing data in the phone book
● Deleting
STEP1
STEP2

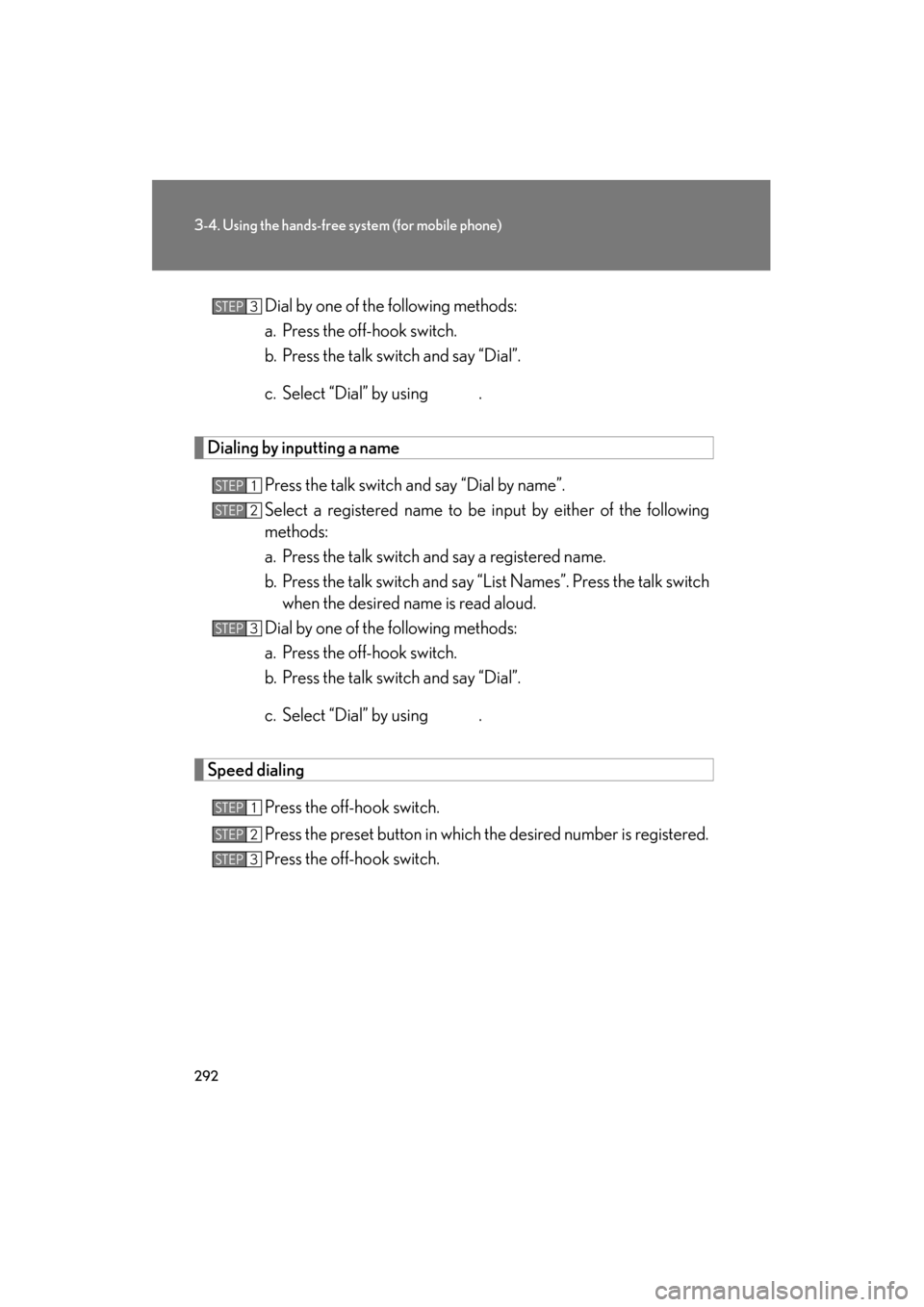

292
3-4. Using the hands-free system (for mobile phone)
ES350_UDial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” by using .
Dialing by inputting a name
Press the talk switch and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press the talk switch and say a registered name.
b. Press the talk switch and say “List Names”. Press the talk switchwhen the desired name is read aloud.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” by using .
Speed dialing
Press the off-hook switch.
Press the preset button in which the desired number is registered.
Press the off-hook switch.
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

293
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
When receiving a phone call■ Answering a phone call
Press the off-hook switch.
■ Refusing a phone call
Press the on-hook switch.
Transferring a phone call
A call can be transferred between the mobile phone and system while
dialing, receiving a call, or during a call. Use one of the following meth-
ods: a. Operate the mobile phone.
Refer to the manual that comes with the mobile phone for the operation
of the phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the mobile phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred fromthe system to the mobile phone.
Call waiting
When a call is interrupted by an incoming call from a third party, the fol-
lowing options will become available:
● Answer the incoming call: Press the off-hook switch. (Press the off-
hook switch again as necessary to switch back and forth between
calls.)
● Refuse the incoming call: Press the on-hook switch.

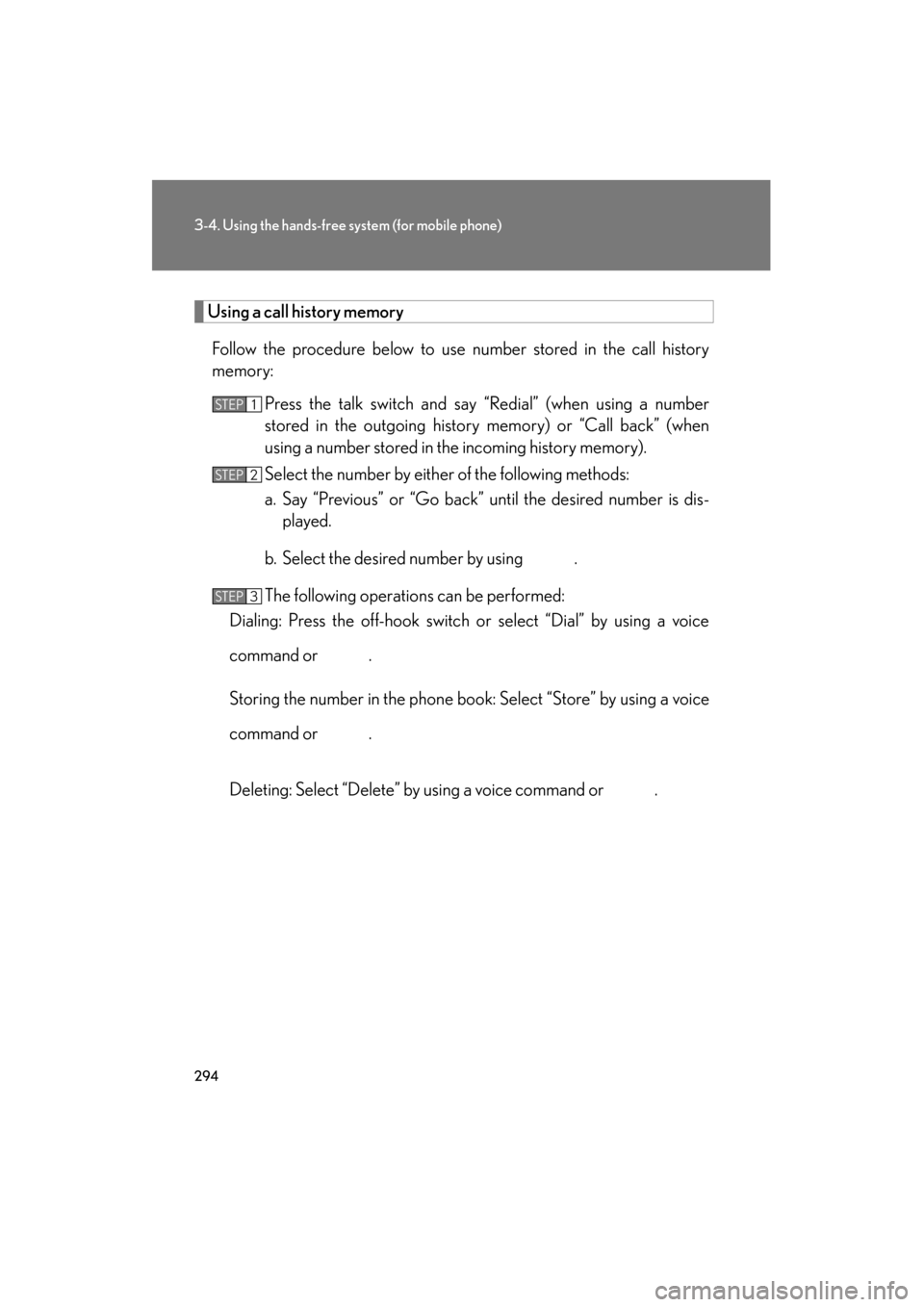

294
3-4. Using the hands-free system (for mobile phone)
ES350_U
Using a call history memory
Follow the procedure below to use number stored in the call history
memory: Press the talk switch and say “Redial” (when using a number
stored in the outgoing history memory) or “Call back” (when
using a number stored in the incoming history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is dis-played.
b. Select the desired number by using .
The following operations can be performed:
Dialing: Press the off-hook switch or select “Dial” by using a voice
command or .
Storing the number in the phone book: Select “Store” by using a voice
command or .
Deleting: Select “Delete” by using a voice command or .
STEP1
STEP2
STEP3

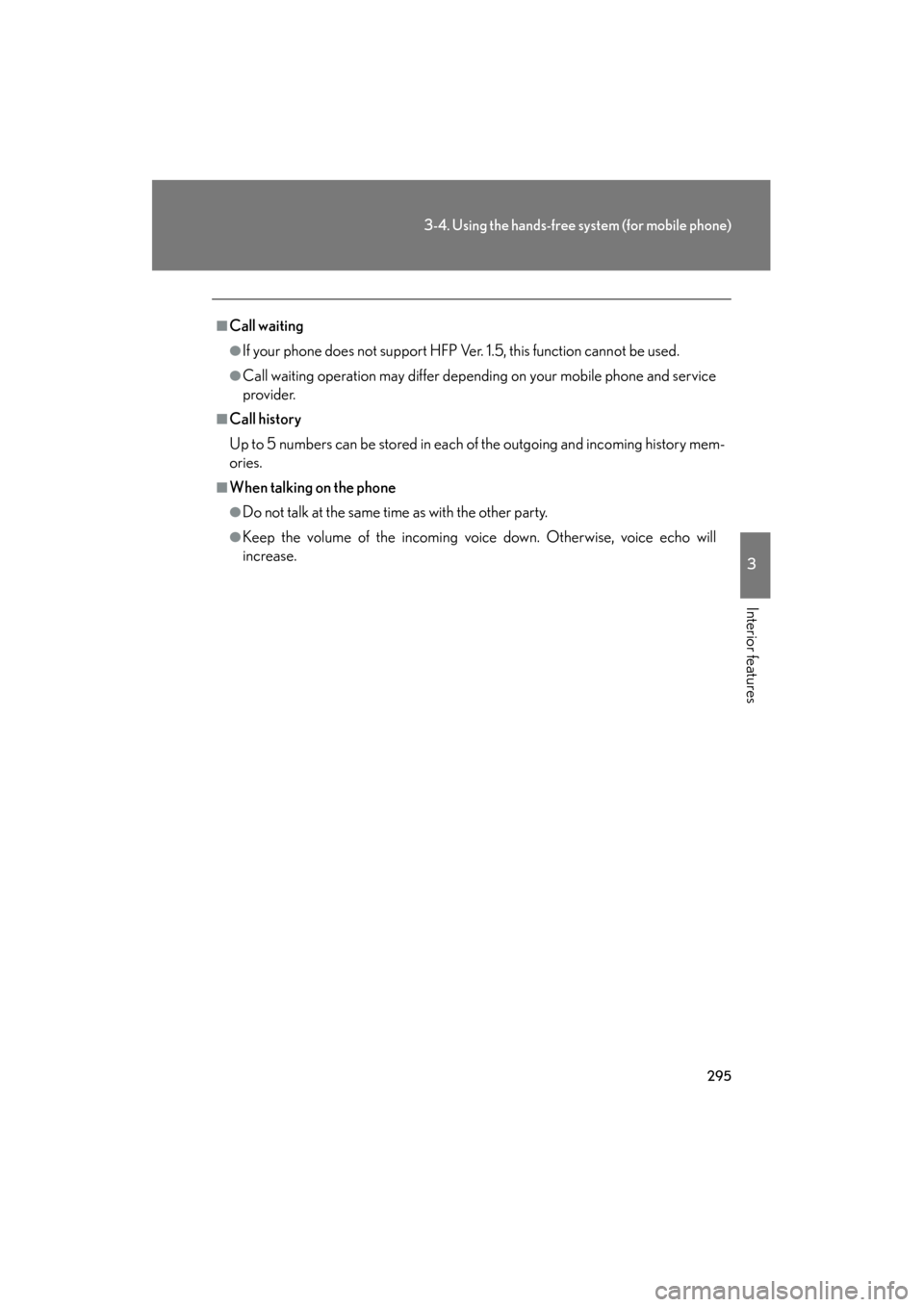

295
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
■Call waiting
●If your phone does not support HFP Ver. 1.5, this function cannot be used.
●Call waiting operation may differ depending on your mobile phone and service
provider.
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history mem-
ories.
■When talking on the phone
●Do not talk at the same time as with the other party.
●Keep the volume of the incoming voice down. Otherwise, voice echo will
increase.

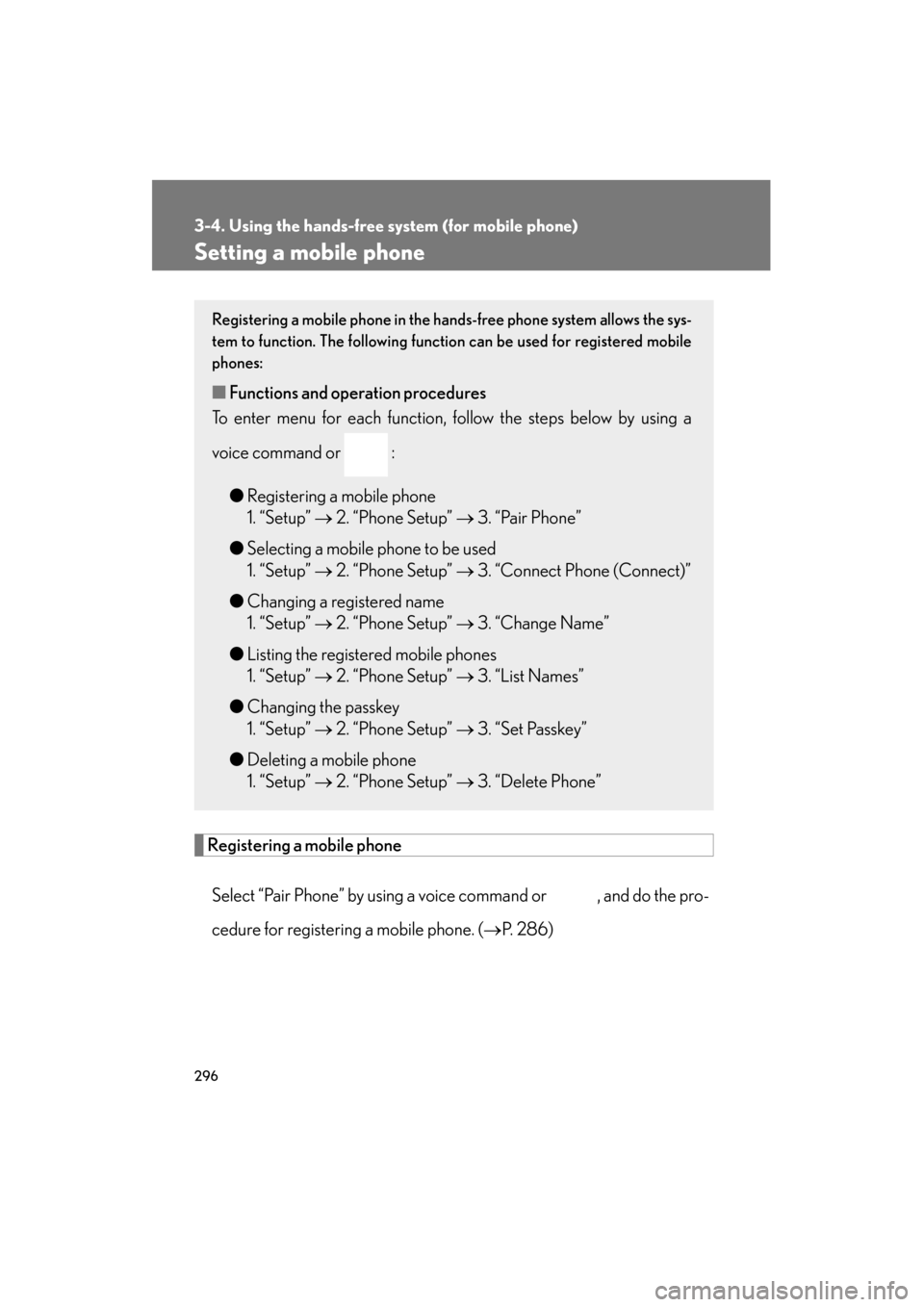

296
3-4. Using the hands-free system (for mobile phone)
ES350_U
Setting a mobile phone
Registering a mobile phoneSelect “Pair Phone” by using a voice command or , and do the pro-
cedure for registering a mobile phone. ( →P. 2 8 6 )
Registering a mobile phone in the ha nds-free phone system allows the sys-
tem to function. The following function can be used for registered mobile
phones:
■ Functions and operation procedures
To enter menu for each function, follow the steps below by using a
voice command or :
● Registering a mobile phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
● Selecting a mobile phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Connect Phone (Connect)”
● Changing a registered name
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
● Listing the registered mobile phones
1. “Setup” → 2. “Phone Setup” → 3. “List Names”
● Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”
● Deleting a mobile phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete Phone”

297
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Selecting a mobile phone to be usedSelect “Connect Phone (Connect)” using a voice command or
.
Pattern A Select a mobile phone to be used by either of the following meth-
ods, and select “Confirm” by using a voice command or :
a. Press the talk switch and say the name of the desired mobilephone.
b. Press the talk switch and say “List Names”. When the name of the desired mobile phone is read aloud, press the talk switch.
Pattern B
Select a mobile phone to be used by using .
STEP1
STEP2
STEP2

298
3-4. Using the hands-free system (for mobile phone)
ES350_U
Changing a registered name
Select “Change Name” by using a voice command or .
Pattern A Select the name of the mobile phone to be changed by either of
the following methods, and select “Confirm” using a voice com-
mand or :
a. Press the talk switch and say the name of the desired mobilephone.
b. Press the talk switch and say “List Names”. When the name of the desired mobile phone is read aloud, press the talk switch.
Pattern B
Select the desired mobile phone name to be changed using
.
Press the talk switch or select “Record Name” using , and
say the new name.
Select “Confirm” using a voice command or .
STEP1
STEP2
STEP2
STEP3
STEP4

299
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Listing the registered mobile phonesSelecting “List Names” by using a voice command or begins read-
ing aloud the list of the registered mobile phones.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a mobile phone is being read
aloud selects the mobile phone, and the following functions will become
available:
● Selecting a mobile phone: “Connect Phone (Connect)”
● Changing a registered name: “Change Name”
● Deleting a mobile phone: “Delete Phone”
Changing the passkey
Select “Set Passkey” by using a voice command or .
Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Con-
firm” using a voice command or .
Pattern B
Select a 4 to 8-digit number by using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press once again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
STEP1
STEP2
STEP2
STEP3
