Lexus ES350 2012 Owner's Manual

310
3-4. Using the hands-free system (for mobile phone)
ES350_UPattern B
Select the desired data using .
Select the desired preset button, and register the data into speed
dial by either of the following methods:
a. Press the desired preset button and select “Confirm” by using avoice command or .
b. Press and hold the desired preset button.
Deleting registered data
Select “Delete Entry” using a voice command or .
Pattern A Select data to be deleted by either of the following methods, and
select “Confirm” using a voice command or :
a. Press the talk switch, and say the name of the desired phonenumber to be deleted.
b. Press the talk switch, say “List Names”. While the name of the desired phone number is being read aloud, press the talk
switch.
Pattern B
Select the desired data to be deleted using .
STEP2
STEP3
STEP1
STEP2
STEP2

311
3-4. Using the hands-free system (for mobile phone)
3
Interior features
ES350_U
Deleting speed dialSelect “Delete Speed Dial (Del Spd Dial)” using a voice com-
mand or .
Press the preset button in which the desired speed dial is regis-
tered, and select “Confirm” using a voice command or .
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

312
ES350_U
3-5. Using the interior lights
Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in enter-
ing the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the door s are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
Front personal lights (→P. 314)
Front interior lights ( →P. 314)
Shift lever lighting
This light turns on or off depending on the darkness of the surroundings
when the “ENGINE START STOP” switch is in ACCESSORY or IGNI-
TION ON mode.
Rear personal lights ( → P. 314)
Rear interior light ( → P. 314)
Door courtesy lights
Front foot well lighting
Outer foot lights

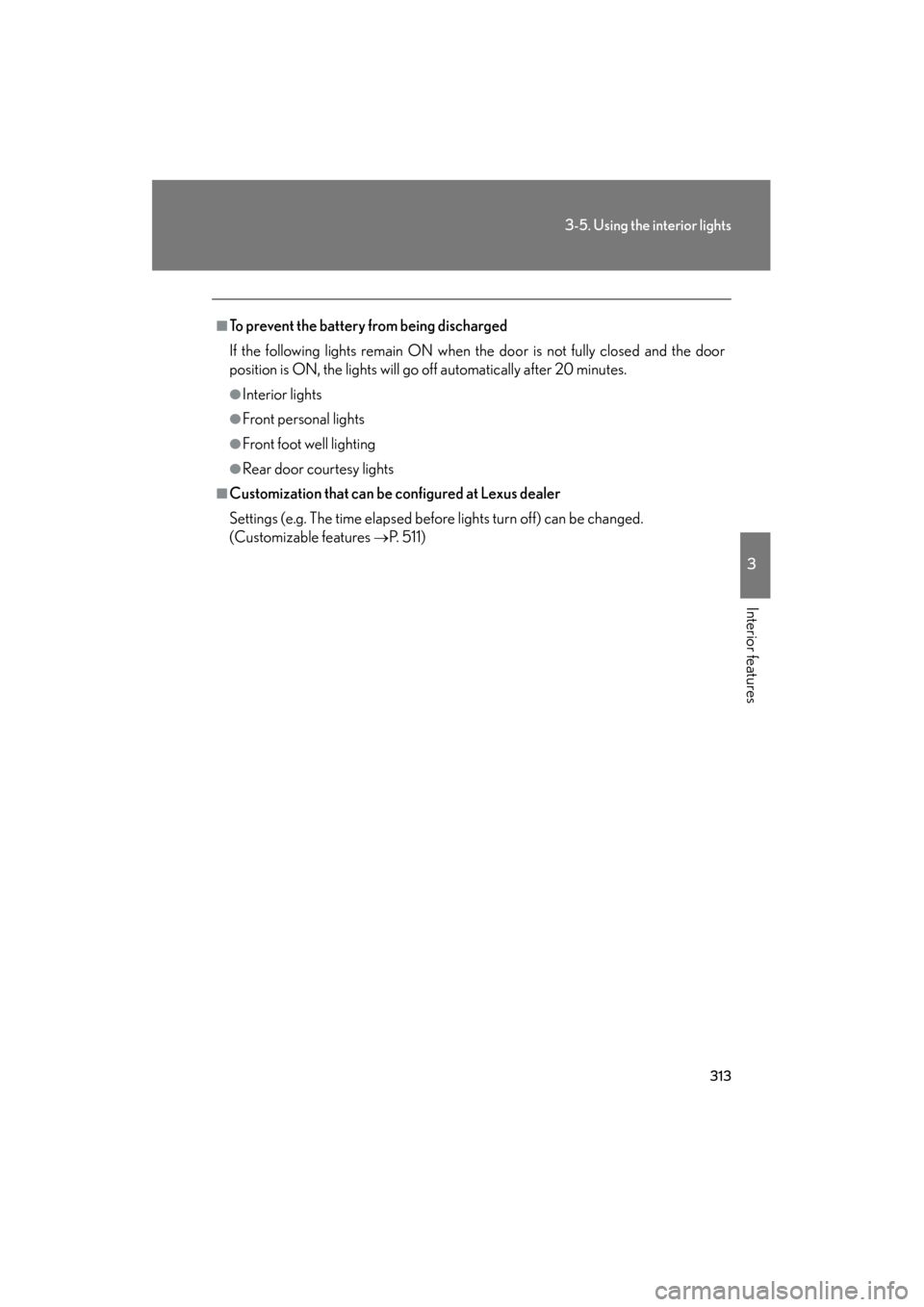

313
3-5. Using the interior lights
3
Interior features
ES350_U
■To prevent the battery from being discharged
If the following lights remain ON when the door is not fully closed and the door
position is ON, the lights will go off automatically after 20 minutes.
●Interior lights
●Front personal lights
●Front foot well lighting
●Rear door courtesy lights
■Customization that can be configured at Lexus dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
→P. 511)

314
3-5. Using the interior lights
ES350_U
Interior lightsFront and rear interior lights
ON/OFF
Door position ON/OFF
The illuminated entry system is
activated when the switch is in
the locked position (the door
position is on).
Personal lightsFront ON/OFF
Rear ON/OFF
Interior lights and personal lights

315
3
Interior features
ES350_U
3-6. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
Glove box
Overhead console
Cup holders
Console box
Auxiliary box

316
3-6. Using the storage features
ES350_U
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
■Glove box light
The glove box light turns on when the tail lights are turned on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( → P. 4 6 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

317
3-6. Using the storage features
3
Interior features
ES350_U
Console boxSlide the armrest while pulling up
the lever, and lift the armrest.
■Tray in the console box
■Console box light
The console box light turns on when the tail lights are turned on.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
The tray slides forward/backward and can be
removed.
Console box

318
3-6. Using the storage features
ES350_U
Overhead consoleThe overhead console is useful for
temporarily storing sunglasses and
similar small items.
CAUTION
■Caution while driving
Do not leave the overhead console open while driving.
Items may fall out and cause injury.
Overhead console

319
3-6. Using the storage features
3
Interior features
ES350_U
Cup holdersFront To open, press down and release
the front of the cup holder lid.
Rear
Cup holders
