Lexus ES350 2013 Quick Guide

80
ES350_QG_OM33A11U_(U)

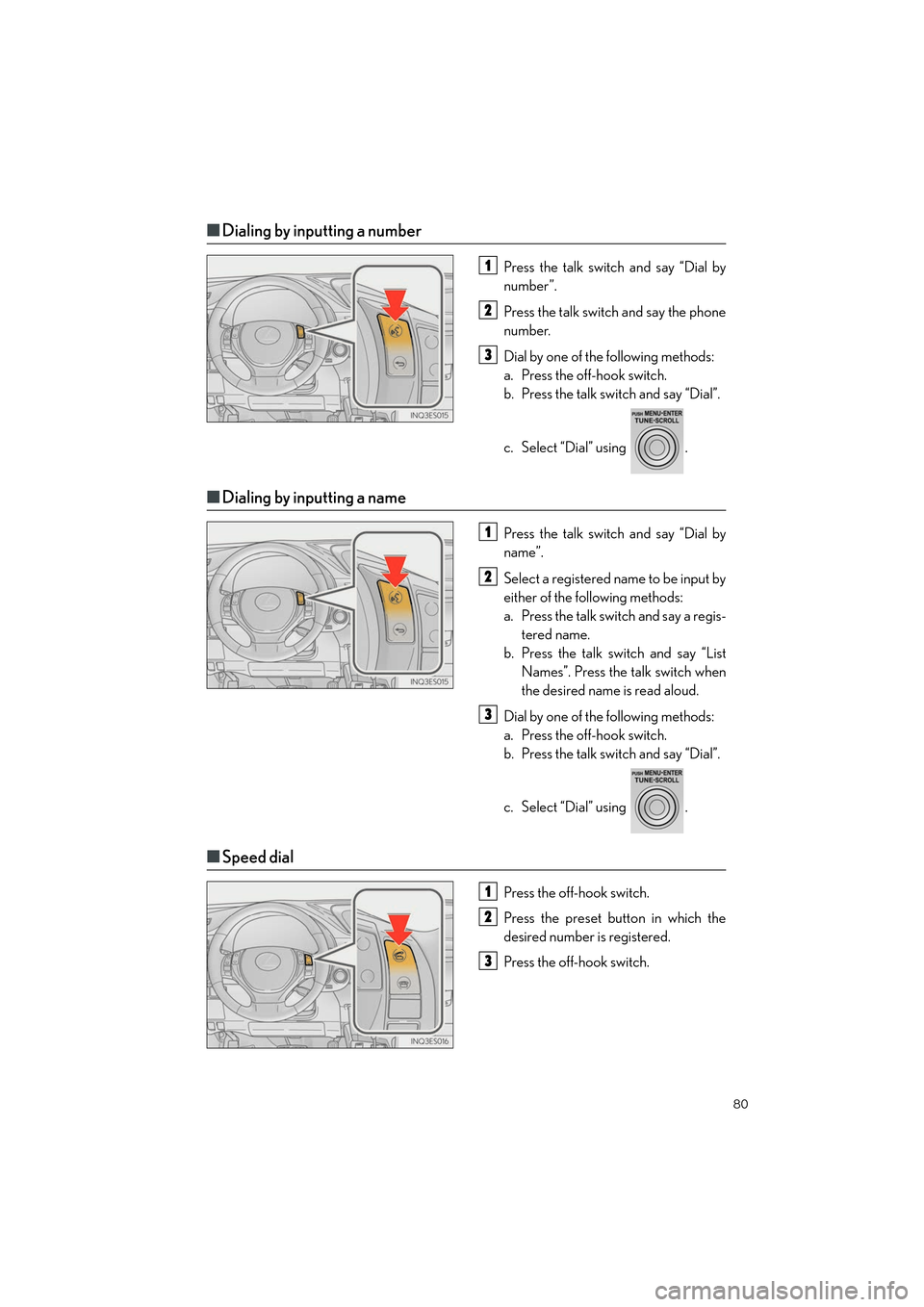

■Dialing by inputting a number
Press the talk switch and say “Dial by
number”.
Press the talk switch and say the phone
number.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using .
■Dialing by inputting a name
Press the talk switch and say “Dial by
name”.
Select a registered name to be input by
either of the following methods:
a. Press the talk switch and say a regis-
tered name.
b. Press the talk sw itch and say “List
Names”. Press the talk switch when
the desired name is read aloud.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using .
■ Speed dial
Press the off-hook switch.
Press the preset button in which the
desired number is registered.
Press the off-hook switch.
1
2
3
1
2
3
1
2
3

81
ES350_QG_OM33A11U_(U)
■When receiving a phone call
■
Answering a phone call
Press the off-hook switch.
■Refusing a phone call
Press the on-hook switch.
Audio System (without navigation
system or Lexus Display Audio)
■ Basic operation
Ty p e A
Pow e r/ Vo l u m e
Audio sourcesAM: AM mode
FM: FM mode
SAT: SAT mode
CD: CD player
AUX: Auxiliary audio device/USB
memory/iPod/Bluetooth
® audio
Sound quality modes
Ty p e B
Pow e r/ Vo l u m e
Audio sourcesAM: AM mode
FM: FM mode
CD: CD player
AUX: Auxiliary audio device/USB
memory/iPod/Bluetooth
® audio
Sound quality modes
1
2
3
1
2
3

82
ES350_QG_OM33A11U_(U)
■Radio
Ty p e A
Scan button
Seek button
Channel category button
Frequency adjustment (AM/FM
mode) and channel (SAT mode) knob
Traffic information button
Preset station buttons
Radio text message button
Ty p e B
Seek button
Channel category button
Frequency adjustment knob
Traffic information button
Preset station buttons
Radio text message button
■Entering station presets
Select the desired station by using the tune or the seek function.
Press and hold one of the preset buttons (1-6) until you hear a beep, indicating that the
station has been set.
■CD player
■
Playing an audio CD
Eject button
Load button
Search playback button (if equipped)
Track selector button
CD selector button
Playback/Pause button
Repeat play button
Random playback button
Text button
1
2
3
4
5
6
7
1
2
3
4
5
6
1
2
1
2
3
4
5
6
7
8
9

83
ES350_QG_OM33A11U_(U)

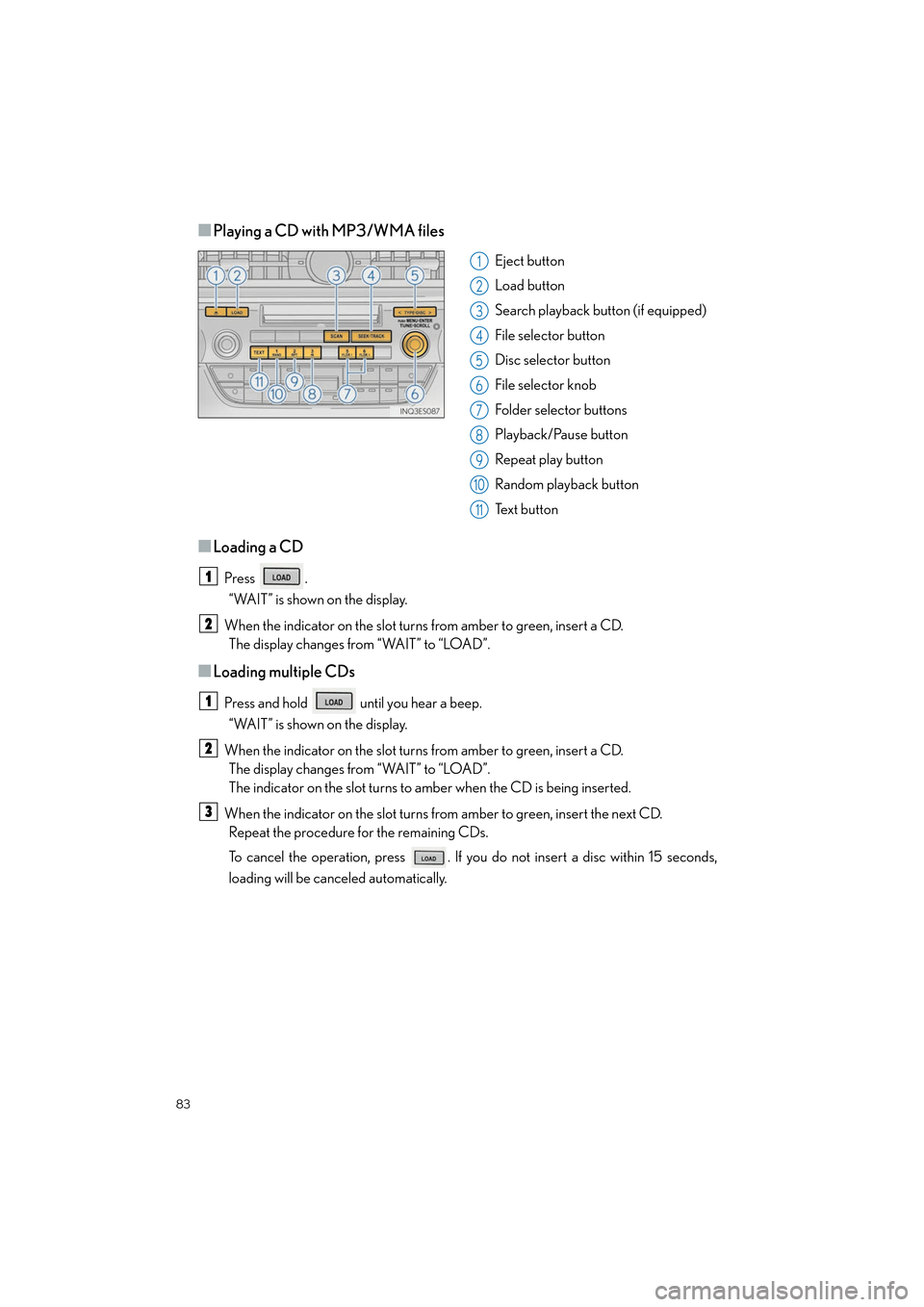

■Playing a CD with MP3/WMA files
Eject button
Load button
Search playback button (if equipped)
File selector button
Disc selector button
File selector knob
Folder selector buttons
Playback/Pause button
Repeat play button
Random playback button
Text button
■Loading a CD
Press .“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a CD.
The display changes from “WAIT” to “LOAD”.
■Loading multiple CDs
Press and hold until you hear a beep.
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a CD.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is being inserted.
When the indicator on the slot turns from amber to green, insert the next CD. Repeat the procedure for the remaining CDs.
To cancel the operation, press . If you do not insert a disc within 15 seconds,
loading will be canceled automatically.
1
2
3
4
5
6
7
8
9
10
11
1
2
1
2
3

84
ES350_QG_OM33A11U_(U)

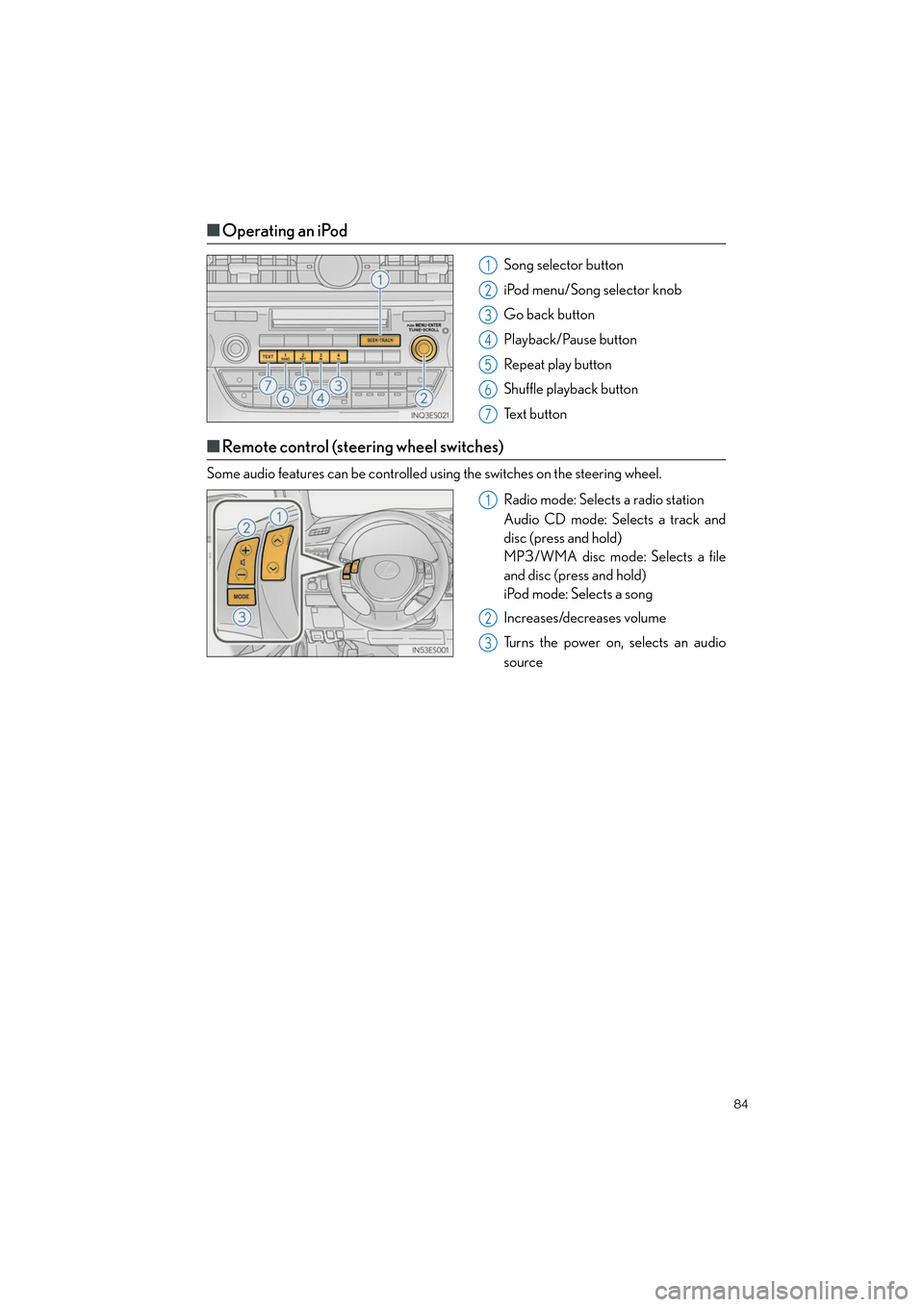

■Operating an iPod
Song selector button
iPod menu/Song selector knob
Go back button
Playback/Pause button
Repeat play button
Shuffle playback button
Text button
■Remote control (steering wheel switches)
Some audio features can be controlled using the switches on the steering wheel.
Radio mode: Selects a radio station
Audio CD mode: Selects a track and
disc (press and hold)
MP3/WMA disc mode: Selects a file
and disc (press and hold)
iPod mode: Selects a song
Increases/decreases volume
Turns the power on, selects an audio
source
1
2
3
4
5
6
7
1
2
3

85
ES350_QG_OM33A11U_(U)

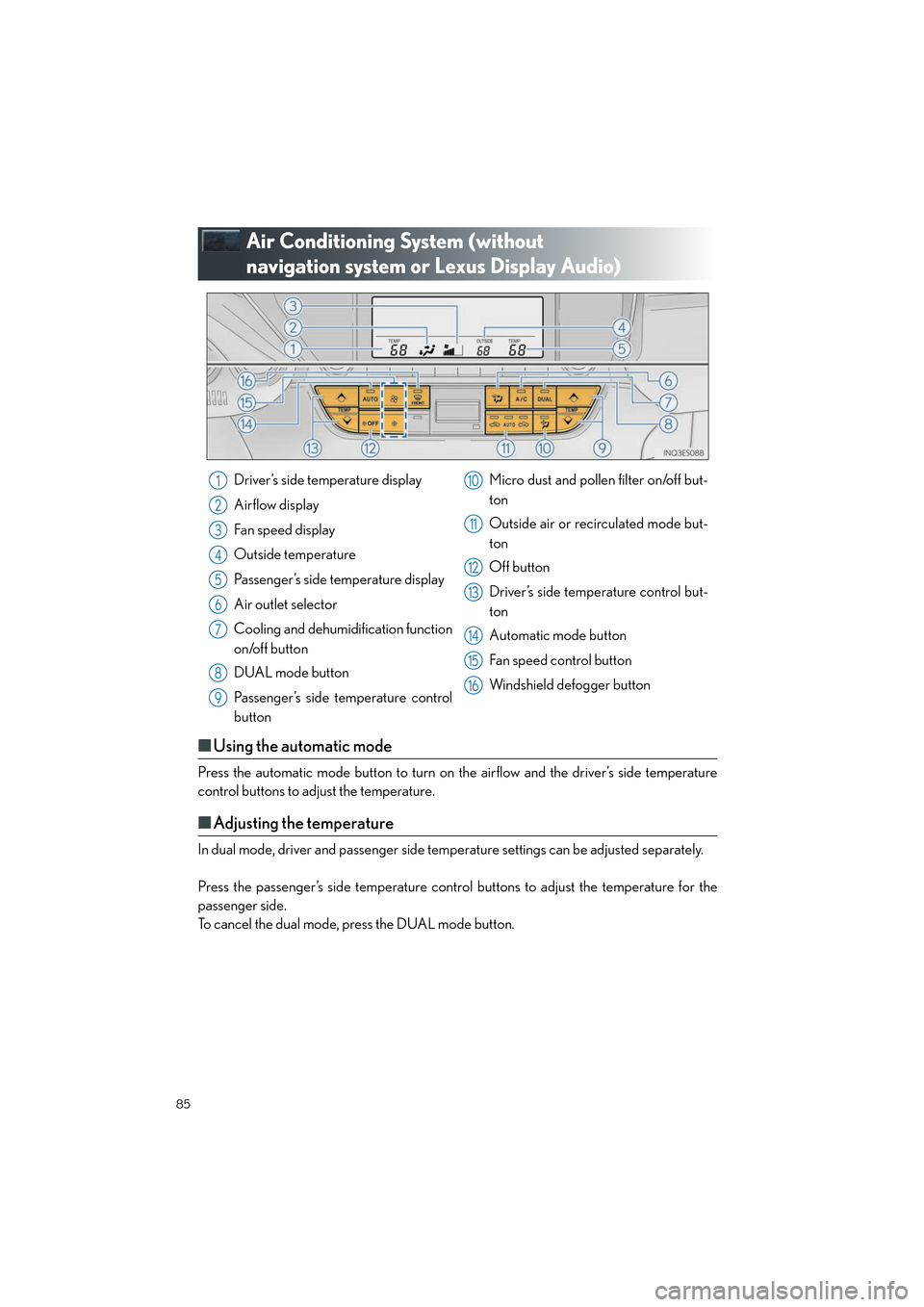

Air Conditioning System (without
navigation system or Lexus Display Audio)
■Using the automatic mode
Press the automatic mode button to turn on the airflow and the driver’s side temperature
control buttons to adjust the temperature.
■Adjusting the temperature
In dual mode, driver and passenger side temperature settings can be adjusted separately.
Press the passenger’s side temperature contro l buttons to adjust the temperature for the
passenger side.
To cancel the dual mode, press the DUAL mode button.
Driver’s side temperature display
Airflow display
Fan speed display
Outside temperature
Passenger’s side temperature display
Air outlet selector
Cooling and dehumidification function
on/off button
DUAL mode button
Passenger’s side temperature control
button Micro dust and pollen filter on/off but-
ton
Outside air or recirculated mode but-
ton
Off button
Driver’s side temperature control but-
ton
Automatic mode button
Fan speed control button
Windshield defogger button1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

86
ES350_QG_OM33A11U_(U)

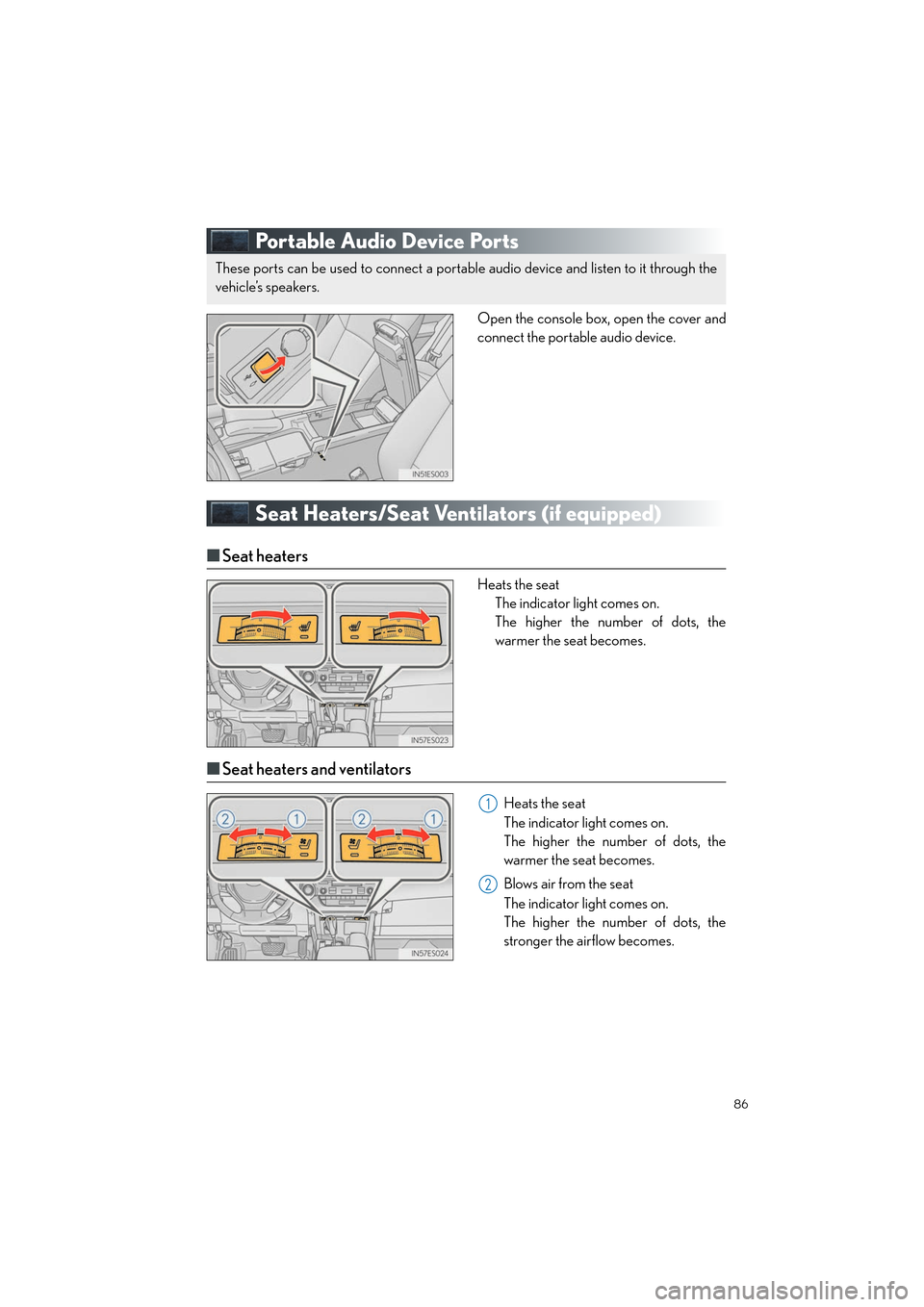

Portable Audio Device Ports
Open the console box, open the cover and
connect the portable audio device.
Seat Heaters/Seat Ventilators (if equipped)
■Seat heaters
Heats the seat
The indicator light comes on.
The higher the number of dots, the
warmer the seat becomes.
■Seat heaters and ventilators
Heats the seat
The indicator light comes on.
The higher the number of dots, the
warmer the seat becomes.
Blows air from the seat
The indicator light comes on.
The higher the number of dots, the
stronger the airflow becomes.
These ports can be used to connect a portable audio device and listen to it through the
vehicle’s speakers.
1
2

87
ES350_QG_OM33A11U_(U)

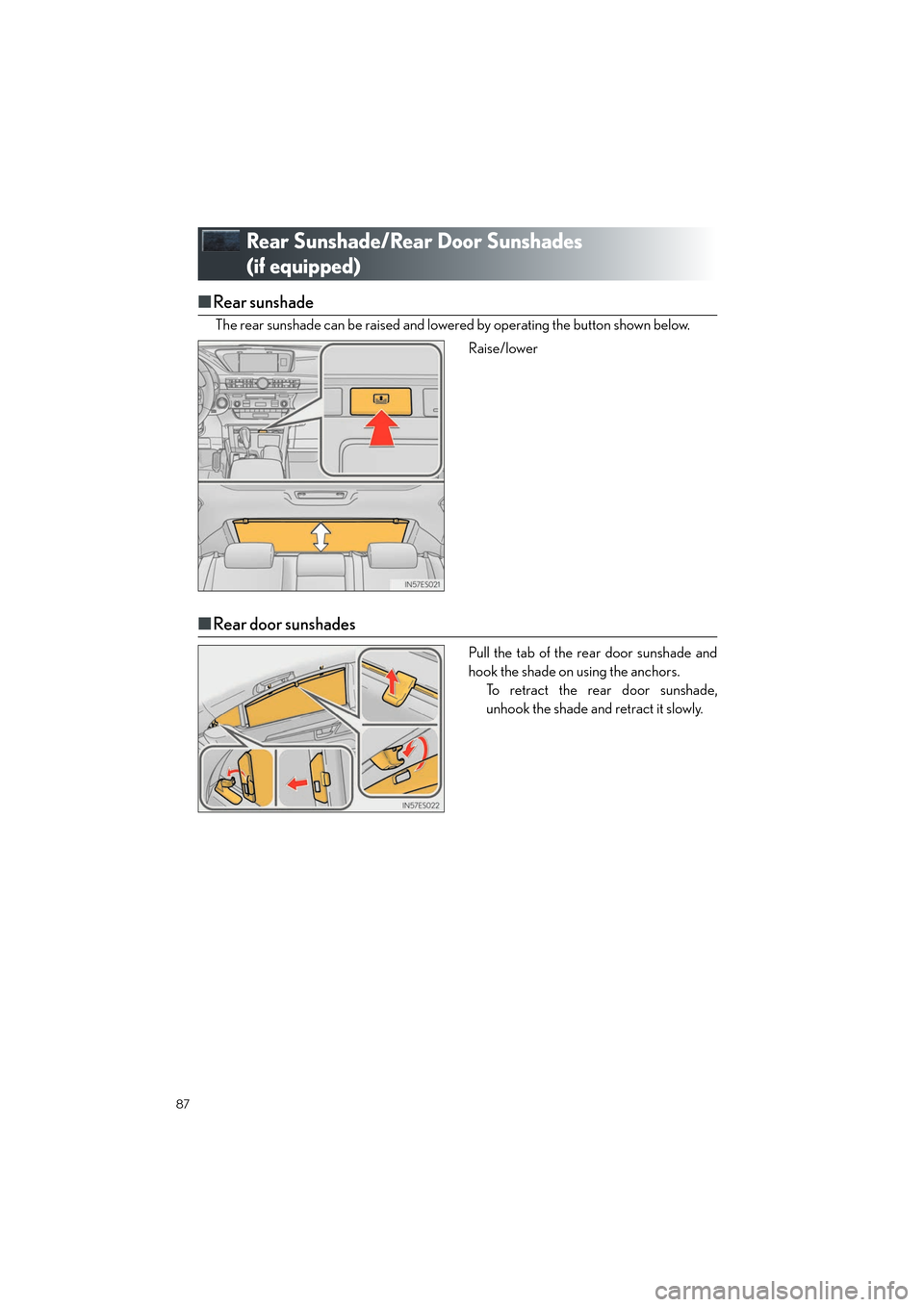

Rear Sunshade/Rear Door Sunshades
(if equipped)
■Rear sunshade
The rear sunshade can be raised and lowered by operating the button shown below.
Raise/lower
■Rear door sunshades
Pull the tab of the rear door sunshade and
hook the shade on using the anchors.
To retract the rear door sunshade,
unhook the shade and retract it slowly.

88
ES350_QG_OM33A11U_(U)

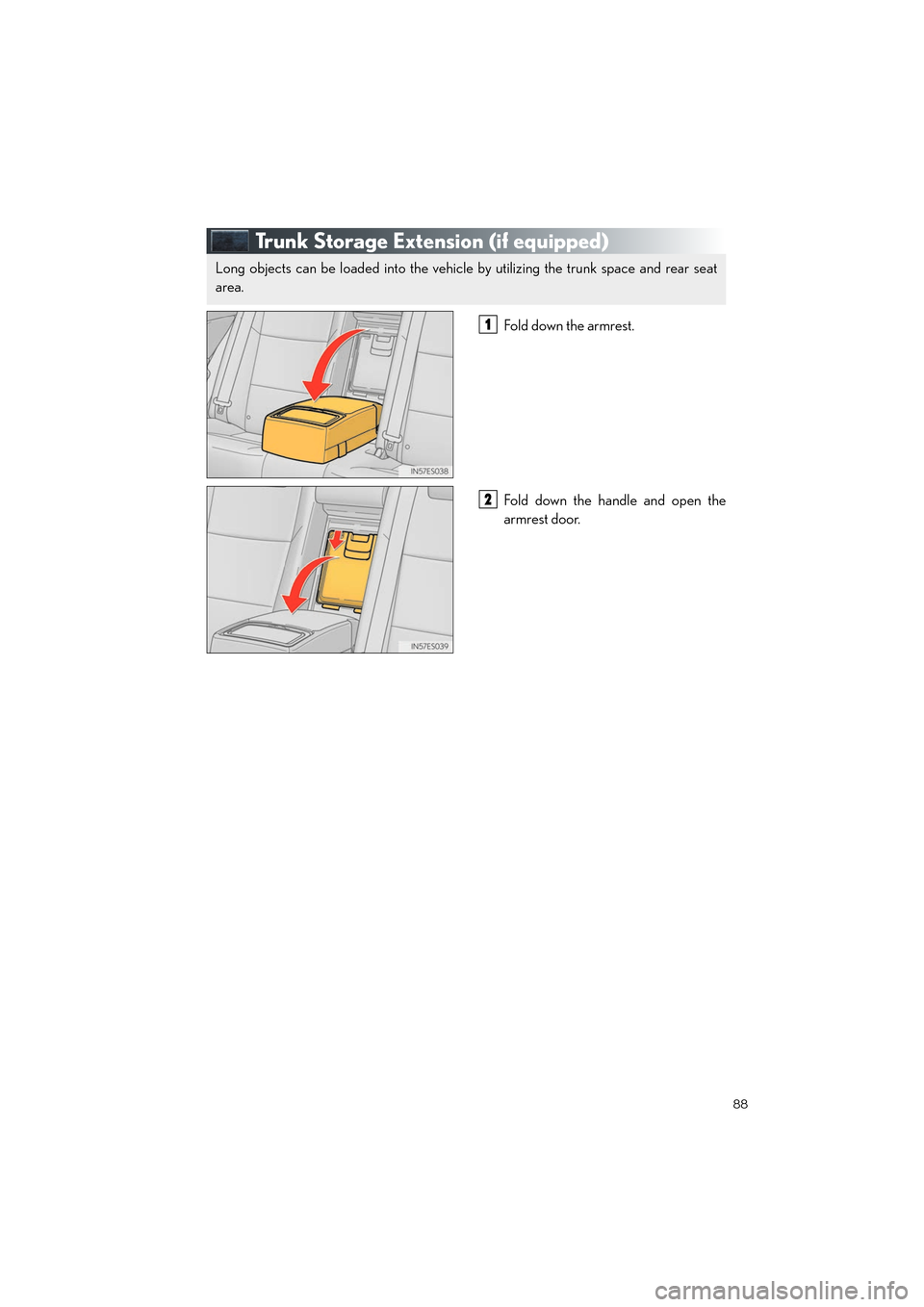

Trunk Storage Extension (if equipped)
Fold down the armrest .
Fold down the handle and open the
armrest door.
Long objects can be loaded into the vehicle by utilizing the trunk space and rear seat
area.
1
2

89
ES350_QG_OM33A11U_(U)

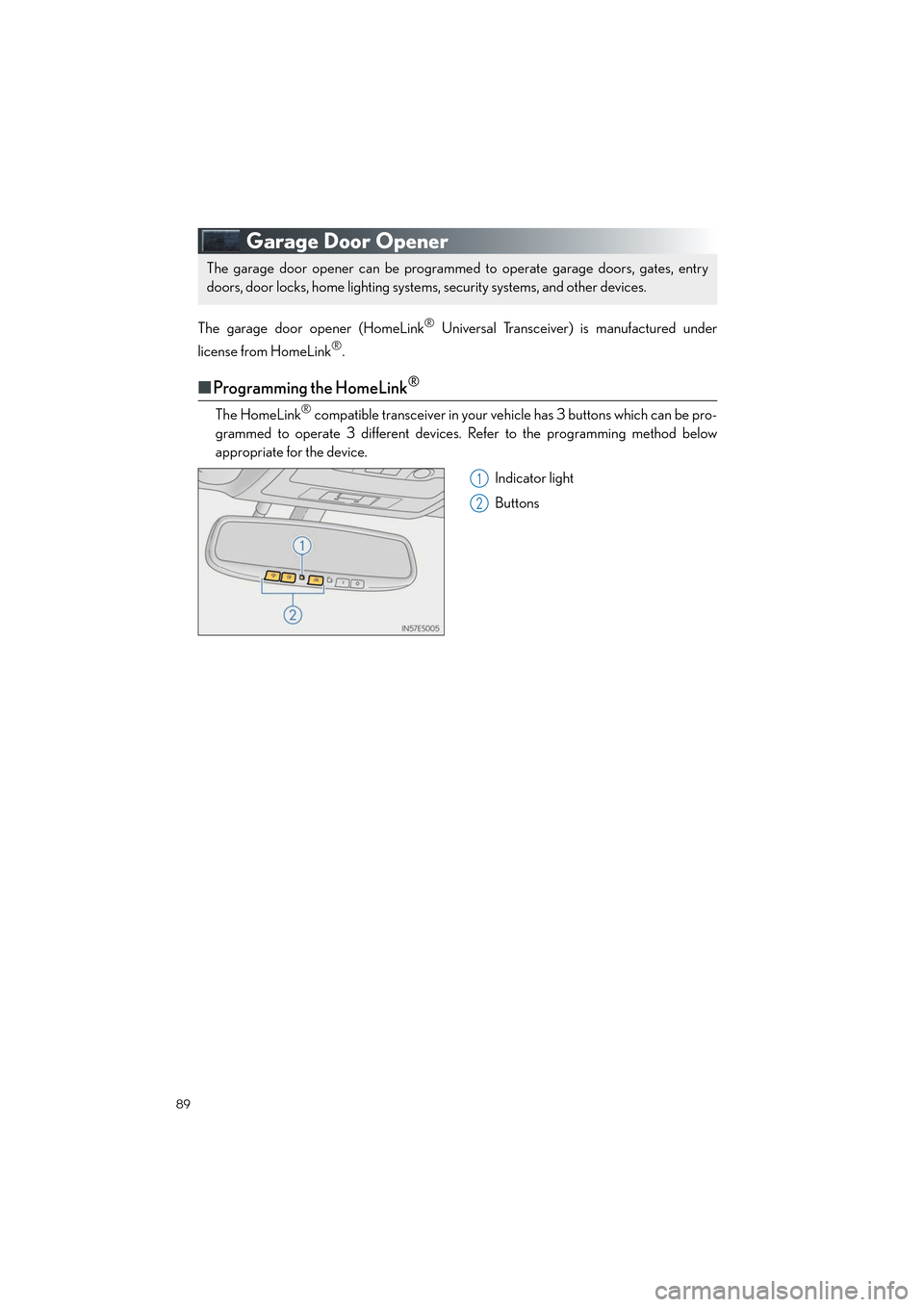

Garage Door Opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured under
license from HomeLink
®.
■ Programming the HomeLink®
The HomeLink® compatible transceiver in your vehicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refer to the programming method below
appropriate for the device.
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting systems, security systems, and other devices.
1
2
