stop start Lexus ES350 2014 User Guide

44
ES350_QG_OM33A70U_(U)
LDA (Lane Departure Alert) (if equipped)
■Tu r n i n g t h e L D A s y s t e m o n
Press the “LDA” switch to activate the sys-
tem.
“LDA” indicator and the lane lines will
come on.
Press the switch again to turn the LDA
system off.
The LDA system will remain on or off
even if the “START STOP ENGINE”
switch is turned to IGNITION ON
mode.
While driving on a road that has lane markers, this system recognizes the lane markers
using a camera as a sensor to alert the driver when the vehicle deviates from its lane.
If the system judges that the vehicle may deviate from its lane, it alerts the driver using
beeping and indications on the multi-information display.

102
ES350_QG_OM33A70U_(U)

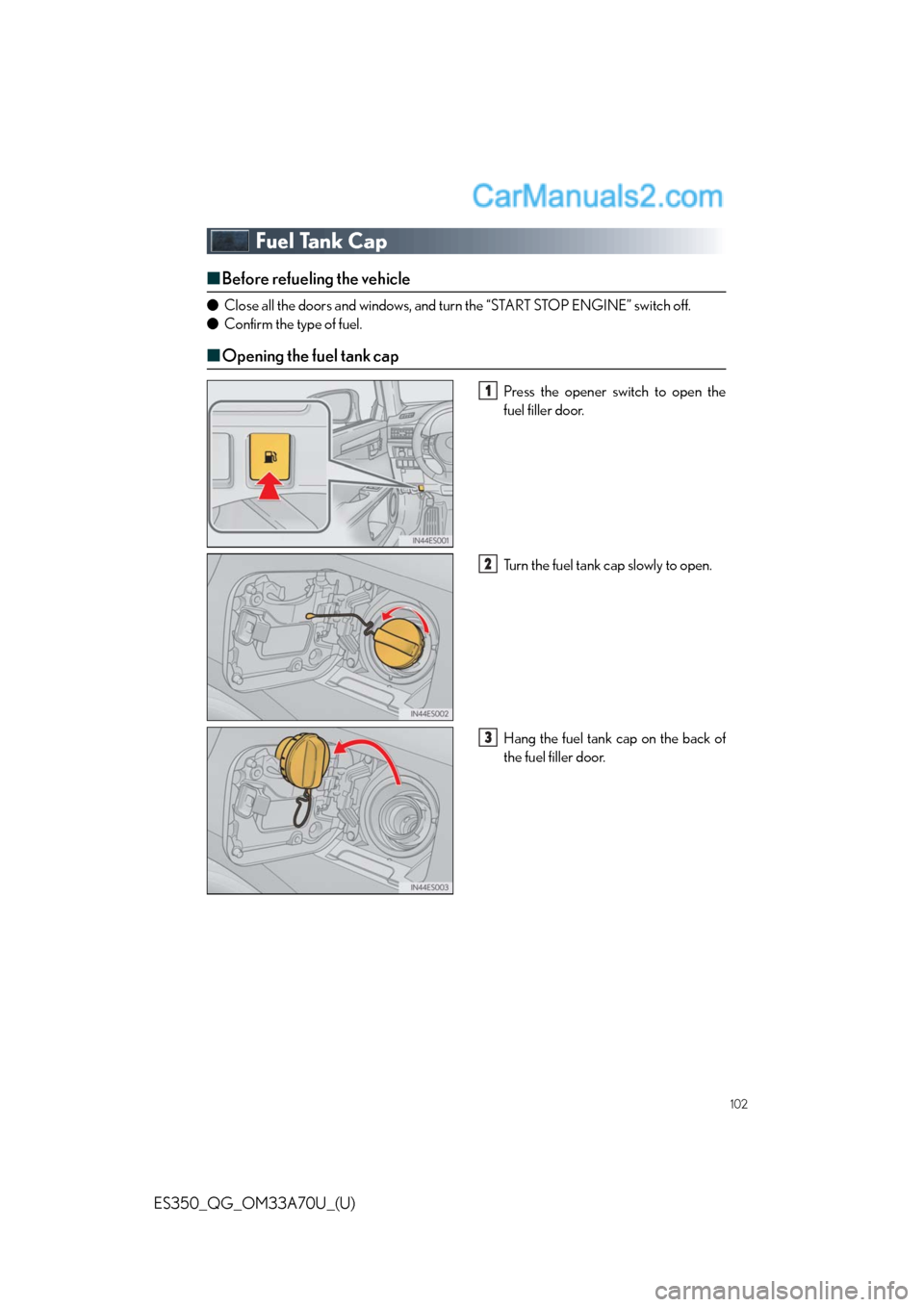

Fuel Tank Cap
■Before refueling the vehicle
●Close all the doors and windows, and turn the “START STOP ENGINE” switch off.
●Confirm the type of fuel.
■Opening the fuel tank cap
Press the opener switch to open the
fuel filler door.
Turn the fuel tank cap slowly to open.
Hang the fuel tank cap on the back of
the fuel filler door.1
2
3

What to do if...
109
ES350_QG_OM33A70U_(U)

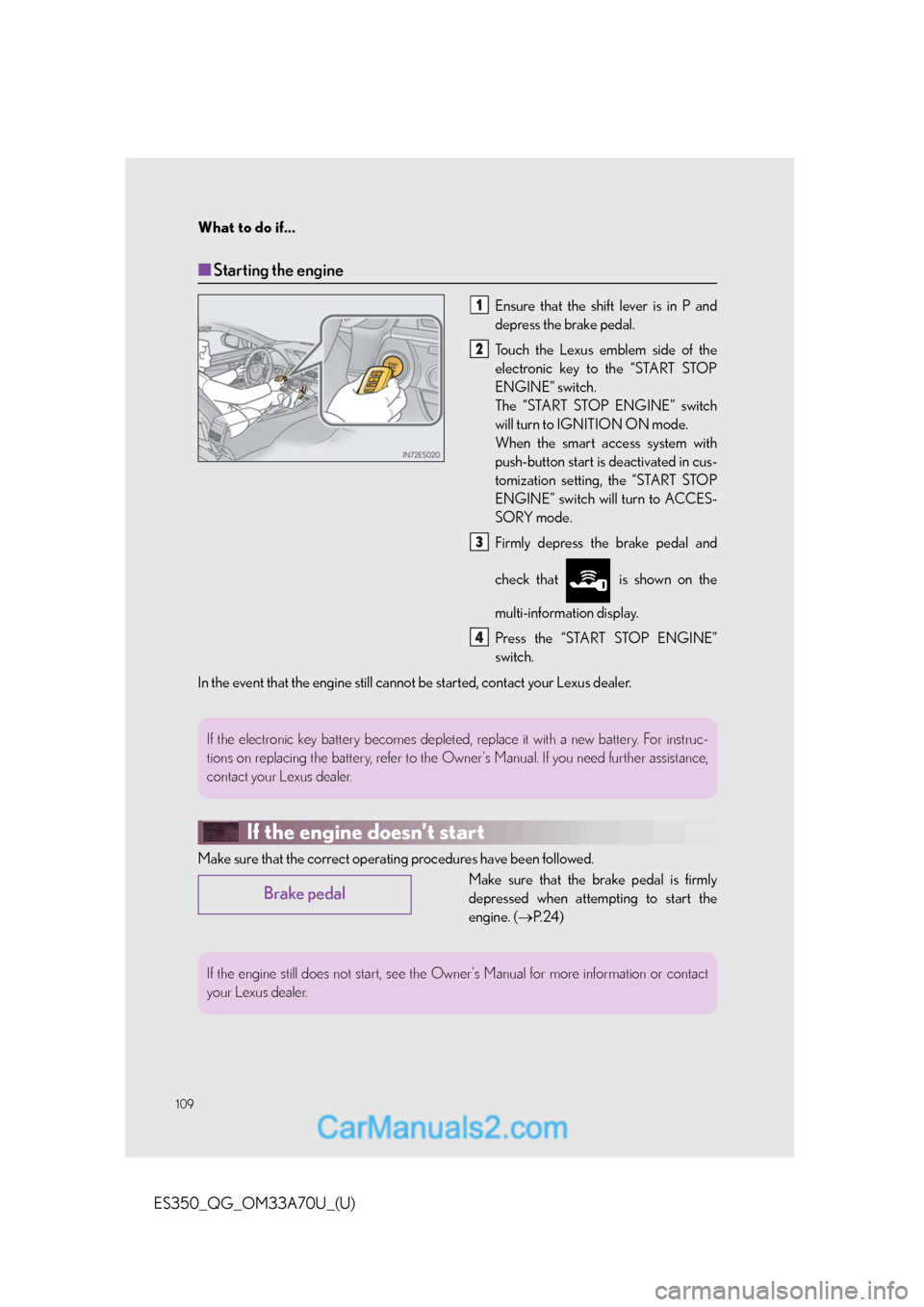

■Starting the engine
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the “START STOP
ENGINE” switch.
The “START STOP ENGINE” switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the “START STOP
ENGINE” switch will turn to ACCES-
SORY mode.
Firmly depress the brake pedal and
check that is shown on the
multi-information display.
Press the “START STOP ENGINE”
switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
If the engine doesn’t start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
engine. (P. 2 4 )
1
2
3
4
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner’s Manual. If you need further assistance,
contact your Lexus dealer.
Brake pedal
If the engine still does not start, see the Owner’s Manual for more information or contact
your Lexus dealer.
