Lexus ES350 2014 Owner's Guide

31
ES350_QG_OM33A70U_(U)

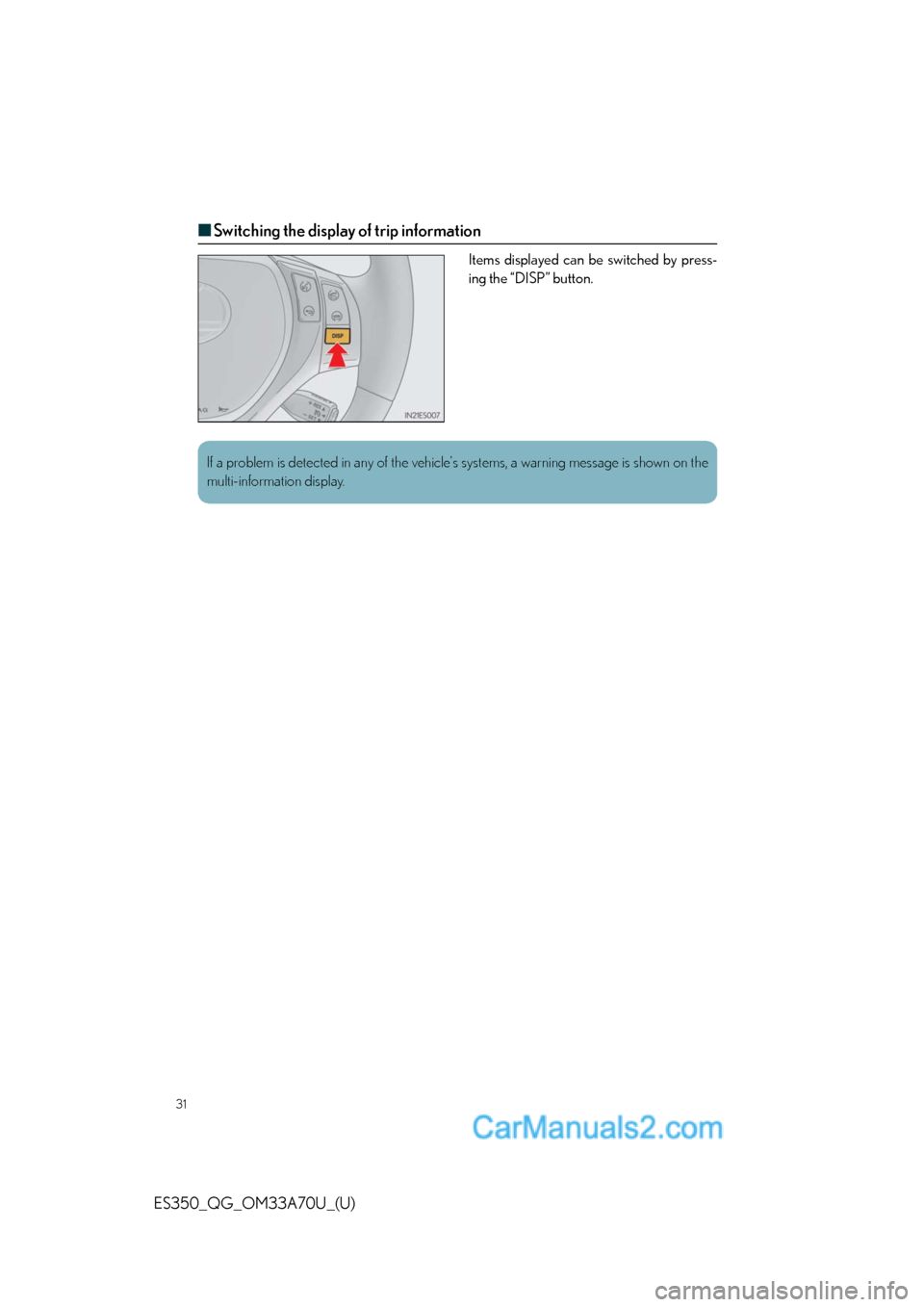

■Switching the display of trip information
Items displayed can be switched by press-
ing the “DISP” button.
If a problem is detected in any of the vehicle’s systems, a warning message is shown on the
multi-information display.

32
ES350_QG_OM33A70U_(U)

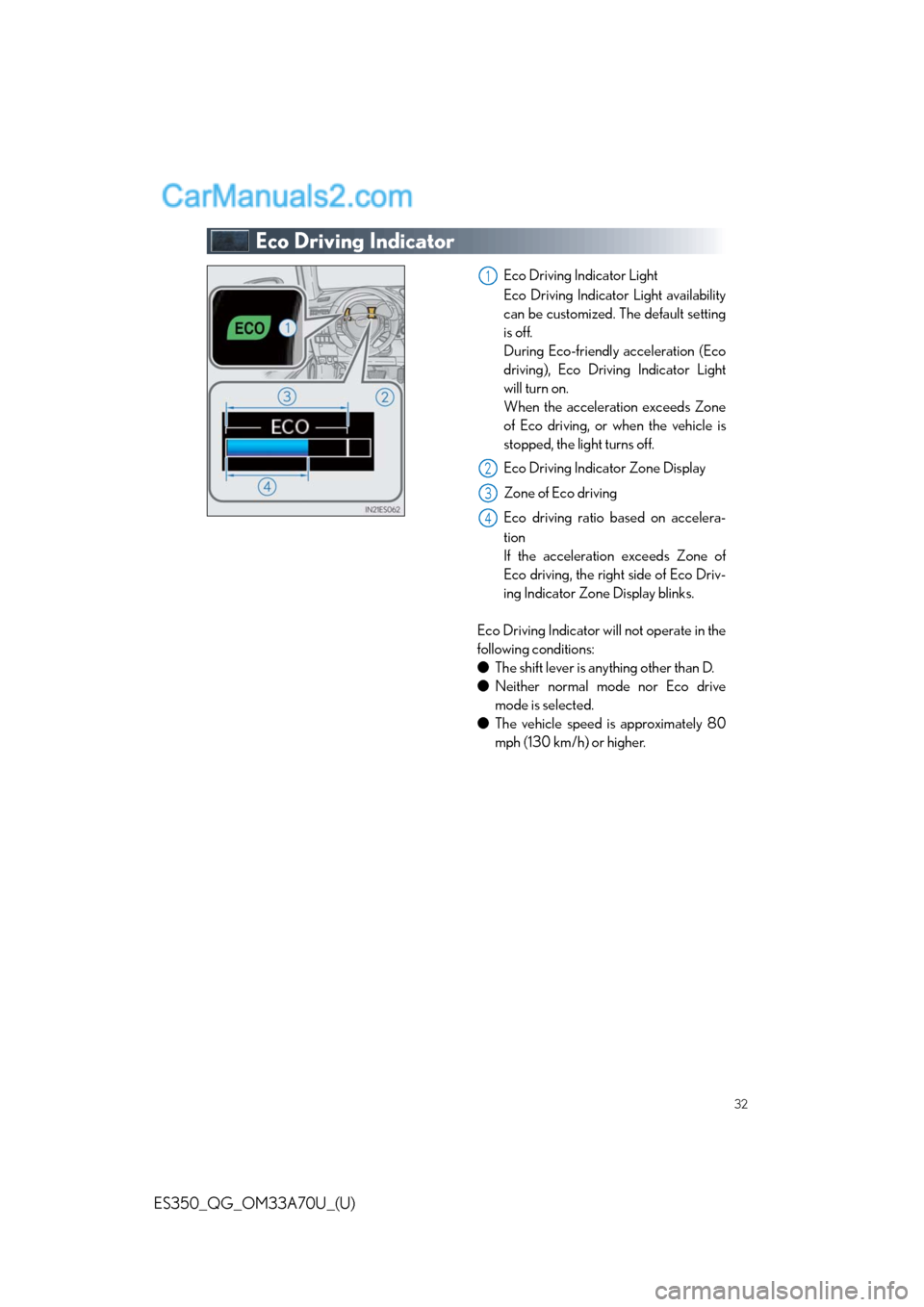

Eco Driving Indicator
Eco Driving Indicator Light
Eco Driving Indicator Light availability
can be customized. The default setting
is off.
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light
will turn on.
When the acceleration exceeds Zone
of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Zone Display
Zone of Eco driving
Eco driving ratio based on accelera-
tion
If the acceleration exceeds Zone of
Eco driving, the right side of Eco Driv-
ing Indicator Zone Display blinks.
Eco Driving Indicator will not operate in the
following conditions:
●The shift lever is anything other than D.
●Neither normal mode nor Eco drive
mode is selected.
●The vehicle speed is approximately 80
mph (130 km/h) or higher.1
2
3
4

33
ES350_QG_OM33A70U_(U)
Headlights
The side marker, daytime run-
ning, tail, license plate and
instrument panel lights turn on.
The headlights, parking and all
lights listed above (except day-
time running lights) turn on.
The headlights, daytime
running lights and all the lights
listed above turn on and off
automatically. (When the
“START STOP ENGINE”
switch is in IGNITION ON
mode.)
Off
The daytime running lights turn
on.
■Turning on the high beam headlights
With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.
(Canada) (U.S.A.)
1
2
3
4
(U.S.A.)
(Canada)
1
2

34
ES350_QG_OM33A70U_(U)
Automatic High Beam (if equipped)
■Activating the Automatic High Beam system
Push the lever away from you with the
headlight switch in or posi-
tion.
Press the Automatic High Beam
switch.
The Automatic High Beam indicator
will come on when the headlights are
turned on automatically to indicate
that the system is active.
The Automatic High Beam uses an in-vehicle camera sensor to assess the brightness of
streetlights, the lights of oncoming and preceding vehicles, etc., and automatically turns
high beam on or off as necessary.
1
2

35
ES350_QG_OM33A70U_(U)

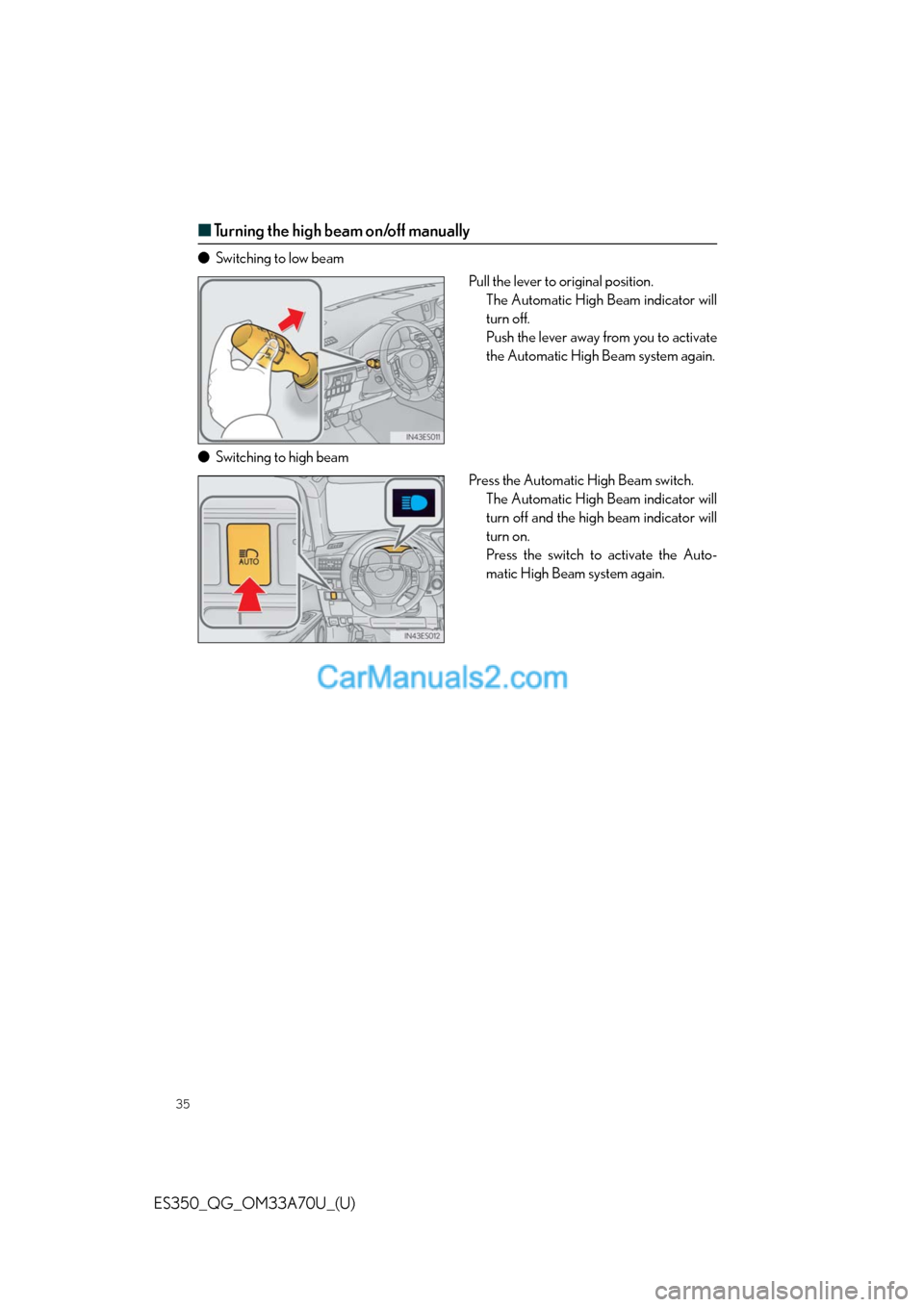

■Turning the high beam on/off manually
●Switching to low beam
Pull the lever to original position.
The Automatic High Beam indicator will
turn off.
Push the lever away from you to activate
the Automatic High Beam system again.
●Switching to high beam
Press the Automatic High Beam switch.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Press the switch to activate the Auto-
matic High Beam system again.

36
ES350_QG_OM33A70U_(U)
Windshield Wipers and Washer
■Intermittent windshield wipers with interval adjuster
Temporary operation
Intermittent operation
Low speed operation
High speed operation
Wiper intervals can be adjusted when inter-
mittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.1
2
3
4
5
6
7

37
ES350_QG_OM33A70U_(U)
■Rain-sensing windshield wipers
Te m p o r a r y o p e r a t i o n
Rain-sensing wiper operation (AUTO)
Low speed operation
High speed operation
With AUTO selected, the wipers will
operate automatically when the sen-
sor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
The sensor sensitivity can be adjusted when
AUTO is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.1
2
3
4
5
6
7

38
ES350_QG_OM33A70U_(U)
■Shifting the windshield wiper position
■
To rest position
Raise the wiper in line with the windshield
until it locks.
You can stand the wipers up for the rest
position.
★: More than 3.9 in. (10 cm)
■To retract position
Lower the wipers by pressing on the upper
part of the hook section.

39
ES350_QG_OM33A70U_(U)

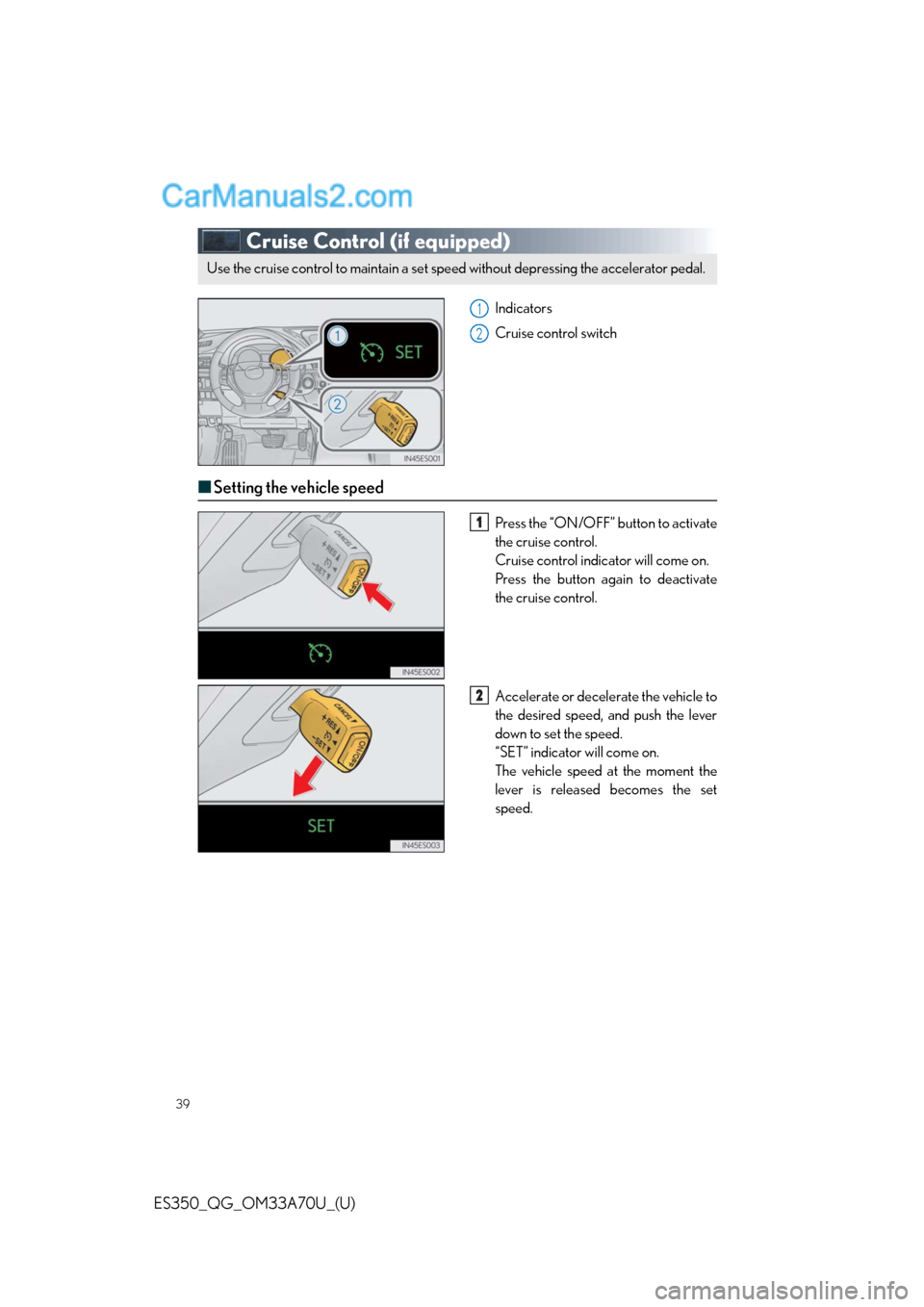

Cruise Control (if equipped)
Indicators
Cruise control switch
■Setting the vehicle speed
Press the “ON/OFF” button to activate
the cruise control.
Cruise control indicator will come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the vehicle to
the desired speed, and push the lever
down to set the speed.
“SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
Use the cruise control to maintain a set speed without depressing the accelerator pedal.
1
2
1
2

40
ES350_QG_OM33A70U_(U)

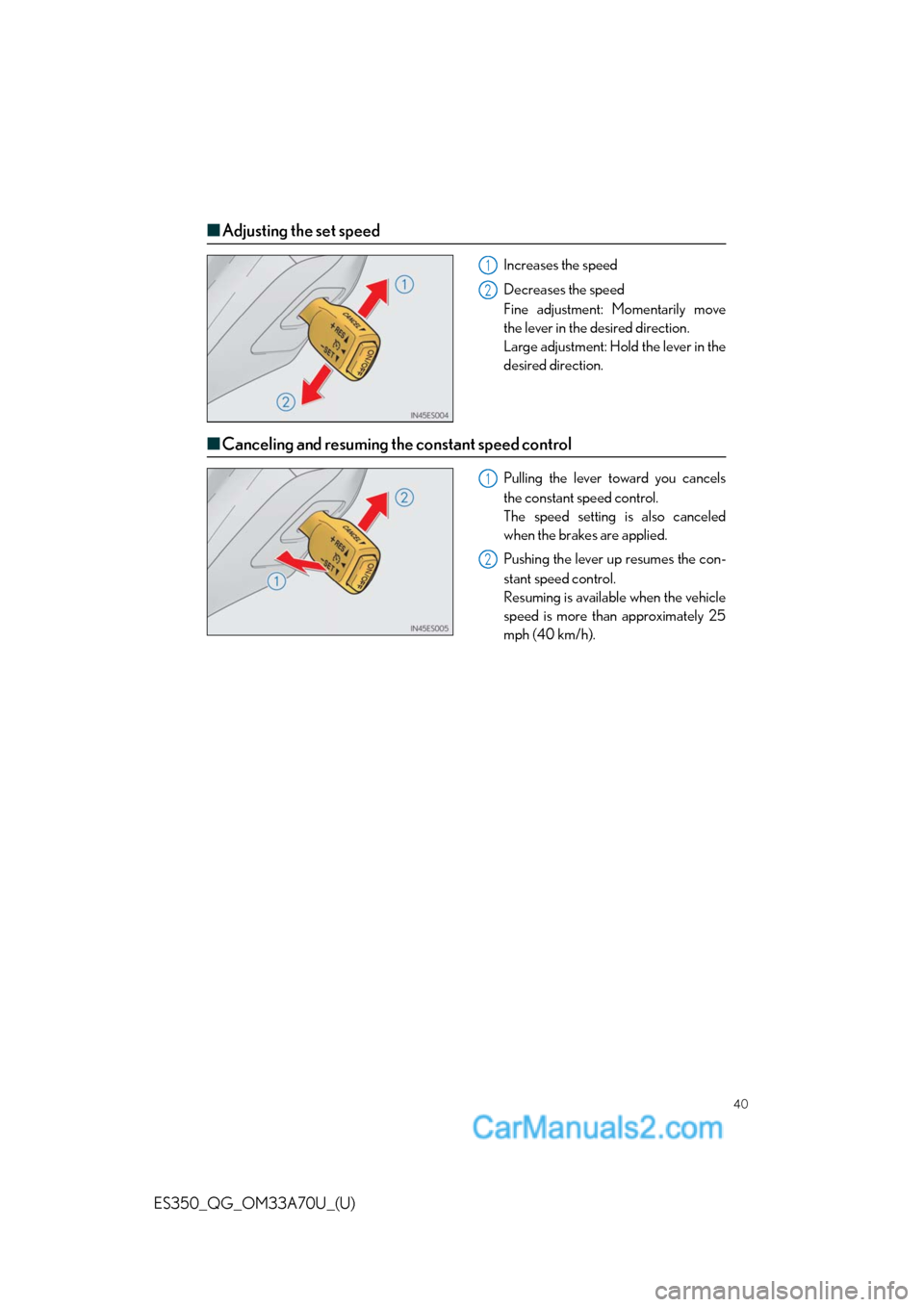

■Adjusting the set speed
Increases the speed
Decreases the speed
Fine adjustment: Momentarily move
the lever in the desired direction.
Large adjustment: Hold the lever in the
desired direction.
■Canceling and resuming the constant speed control
Pulling the lever toward you cancels
the constant speed control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes the con-
stant speed control.
Resuming is available when the vehicle
speed is more than approximately 25
mph (40 km/h).
1
2
1
2
