Lexus ES350 2016 Owner's Manuals / LEXUS 2016 ES350 OWNERS MANUAL (OM33B64U)

ES350_OM_OM33B64U_(U)
2614-6. Driving tips
4
Driving
Park the vehicle and move the shift lever to P without setting the parking brake.
The parking brake may freeze up, preventing it from being released. If necessary,
block the wheels to prevent inadvertent sliding or creeping.
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
0.12 in. (3 mm) in diameter
0.39 in. (10 mm) in width
1.18 in. (30 mm) in length
Cross chain
0.16 in. (4 mm) in diameter
0.55 in. (14 mm) in width
0.98 in. (25 mm) in length
Regulations regarding the use of tire chains vary depending on location and type
of road. Always check local regulations before installing chains.
■Tire chain installation
Observe the following precautions wh en installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the front tires. Do not install tire chains on the rear tires.
●Install tire chains on front tires as tightly as possible. Retighten chains after driving 1 /4
 1 /2 mile (0.5  1.0 km).
●Install tire chains following the instru ctions provided with the tire chains.
When parking the vehicle
Selecting tire chains
1
2
3
4
5
6
Regulations on the use of tire chains

262
ES350_OM_OM33B64U_(U)4-6. Driving tips
If heavy snow or icy condition is expe
cted, shift the rest position manually.
Grip the hook section of the wiper arm firmly when shifting the wiper position.
■To rest position
Raise the wiper in line with the wind-
shield until it locks.
You can stand the wipers up for the
rest position.
★ : More than 3.9 in. (10 cm)
■To retract position
Lower the wipers by pressing on the
upper part of the hook section.
Shifting the windshield wiper position

ES350_OM_OM33B64U_(U)
2634-6. Driving tips
4
Driving
WA R N I N G
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of snow tires
being used.
●Use snow tires on all, not just some wheels.
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used, or 30
mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, ab rupt steering, sudden braking and shifting operations
that cause sudden engine braking.
●Slow down sufficiently before entering a cu rve to ensure that vehicle control is main-
tained.
●Do not use LDA (Lane Departure Alert with steering control) system. (if equipped)
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attachment of snow tires affects the operation of the
tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly when tire
chains are fitted.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. ( P. 2 6 2 )
Failure to do so may result in dama ge to the wipers and/or the hood.

264
ES350_OM_OM33B64U_(U)
5-1. Basic OperationsLexus Display Audio System ......................................... 266
Steering wheel audio switches........................................273
USB/AUX ports .......................... 274
5-2. Setup Setup menu ................................... 276
General settings ..........................277
Voice settings ............................... 281
Display settings ........................... 282
Lexus Display Audio system
5

265
ES350_OM_OM33B64U_(U)
Lexus Display Audiosystem
5
5-3. Using the audio system
Selecting the audio source ..........................................284
Optimal use of the audio system ......................................... 285
Audio settings ..............................286
Audio menu screen operation ....................................289
5-4. Using the radio Radio operation .......................... 292
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation.................299
5-6. Using an external device Listening to an iPod .................. 306
Using USB memory device ............................................ 310
Using the AUX port................... 314
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices .......................................... 315
Registering a Bluetooth
®
device ............................................ 317
Selecting a Bluetooth
®
device ............................................ 318
Connecting a Bluetooth
®
audio player ................................ 319
Connecting a Bluetooth
®
phone .......................................... 320
Displaying a Bluetooth
®
device details ............................. 321
Detailed Bluetooth
®
settings.........................................322 5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ........................................... 323
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone ........................................... 325
Making a call ................................ 327
Receiving a call ...........................330
Speaking on the phone............. 331
Using a Bluetooth
®
phone message........................ 334
Using the steering wheel switches....................................... 336
Bluetooth
® phone
settings ........................................ 337
5-10. Phonebook Contact settings ......................... 339
Messaging setting...................... 342
5-11. Bluetooth
®
What to do if... (Troubleshooting)....................343
Bluetooth
®................................... 346
5-12. Other function “Information” screen .................. 351
USB photo .................................... 353
Weather information ................ 355
Voice command system .......... 356
Mobile Assistant.........................360
LEXUS Enform Remote ......... 362

266
ES350_OM_OM33B64U_(U)5-1. Basic Operations
Lexus Display Audio System
Eject a disc.
Disc slot
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Selects a preset radio st
ation, or to access a desired track or file.
Display the radio top screen.
Display the media top screen.
“PWR•VOL” knob
Press to turn the audio system on/o ff, and turn to adjust the volume.
: If equipped
Use the following buttons to start listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8

ES350_OM_OM33B64U_(U)
2675-1. Basic Operations
5
Lexus Display Audio system

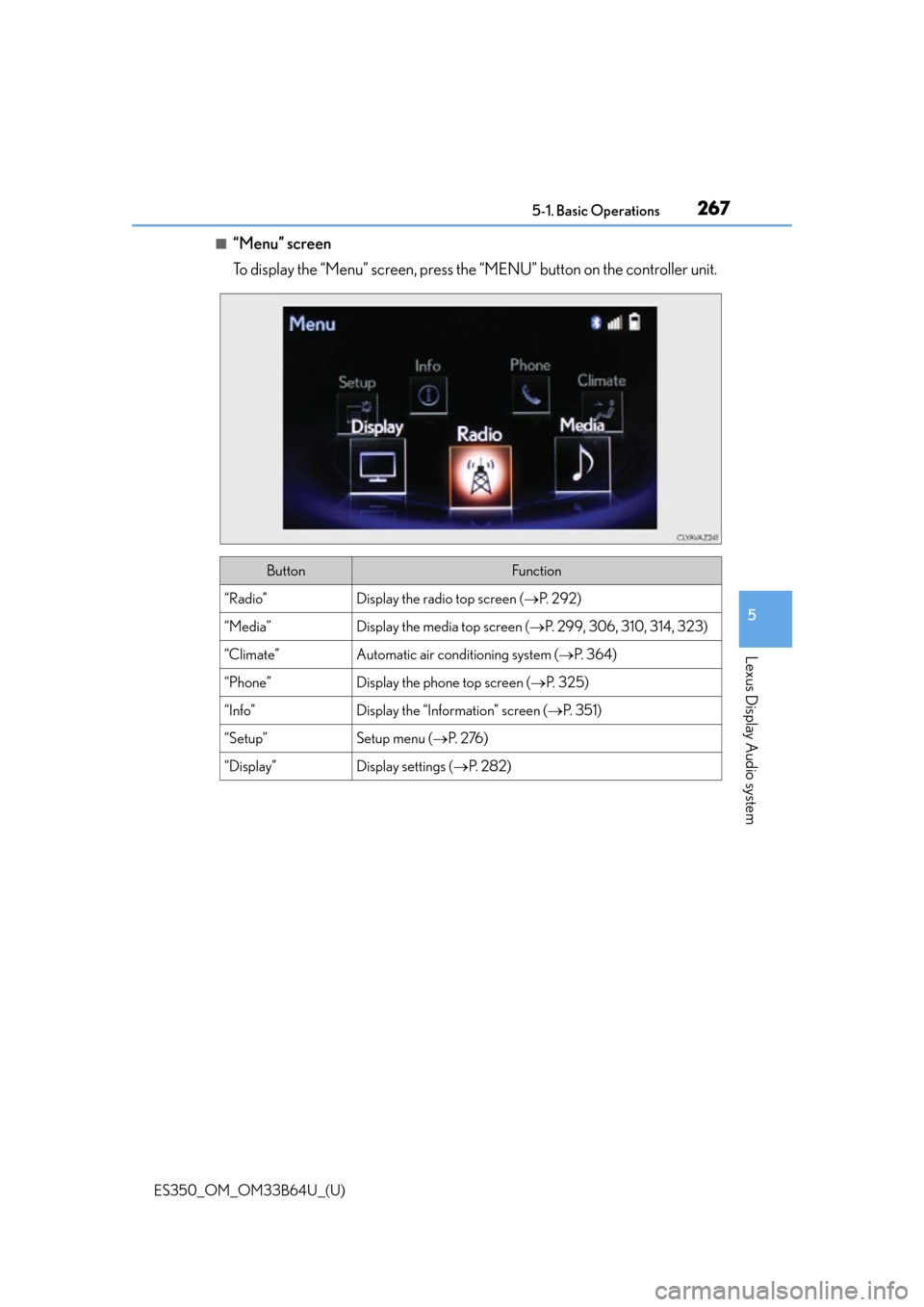

■“Menu” screen
To display the “Menu” screen, press the “MENU” button on the controller unit.
ButtonFunction
“Radio”Display the radio top screen (P. 2 9 2 )
“Media”Display the media top screen ( P. 299, 306, 310, 314, 323)
“Climate”Automatic air conditioning system ( P. 3 6 4 )
“Phone”Display the phone top screen ( P. 3 2 5 )
“Info”Display the “Information” screen ( P. 3 5 1 )
“Setup”Setup menu ( P. 2 76 )
“Display”Display settings ( P. 2 8 2 )

2685-1. Basic Operations
ES350_OM_OM33B64U_(U)
By using the Lexus Display Audio controller, you can control the audio system,
hands-free system, etc. Display the “Source” screen or audio top screen ( P. 2 8 4 )
Display the “Menu” screen ( P. 2 6 7 )
Back button
Display the previous screen
Turn or move the controller to select a function and number.
Move the controller to display the left or right side of the screen.
Push the controller to enter the selected function and number.
Lexus Display Audio controller
1
2
3
4

ES350_OM_OM33B64U_(U)
2695-1. Basic Operations
5
Lexus Display Audio system
■Using the Lexus Display Audio controllerSelect: Turn or move the control-
ler.
Enter: Push the controller.
■Basic screen operation
When a list is displayed, use the appropriate button to scroll through the list.Indicator turns on when you can
select the list by turning the con-
troller.
Indicator turns on when you can
return to the previous screen by
pressing the back button.
Indicator turns on when you can
move the controller left to view
additional screen text.
Indicator turns on when you can move the controller right to view addi-
tional screen text.
1
2
1
2
3
4

2705-1. Basic Operations
ES350_OM_OM33B64U_(U)
■Input mode
Letters and numbers are inputted via the screen. Turn the controller to select the
desired character and press the
controller to input the character.
When this indicator is shown, you
can change input fields by moving
the controller forward.
When this indicator is shown, you
can change character types by
moving the controller to the right
and then selecting the desired
character type.
Select to erase characters one by one. Select and hold to erase all charac-
ters.
Select to complete data input.
Inputting letters and numbers
1
2
3
4
5
