Page 425 of 576
425
ES350_OM_OM33B64U_(U)7-3. Do-it-yourself maintenance
7
Maintenance and care
Engine compartment
Wa s h e r f l u i d t a n k (
P. 4 3 5 )
Engine oil filler cap ( P. 4 2 8 )
Engine oil level dipstick (P. 4 2 7 )
Engine coolant reservoir (P. 4 3 0 ) Brake fluid reservoir (
P. 4 3 2 )
Fuse box ( P. 4 5 3 )
Battery ( P. 4 3 3 )
Electric cooling fans
Condenser ( P. 4 3 1 )
Radiator ( P. 4 3 1 )1
2
3
4
5
6
7
8
9
10
Page 453 of 576
453
ES350_OM_OM33B64U_(U)7-3. Do-it-yourself maintenance
7
Maintenance and care

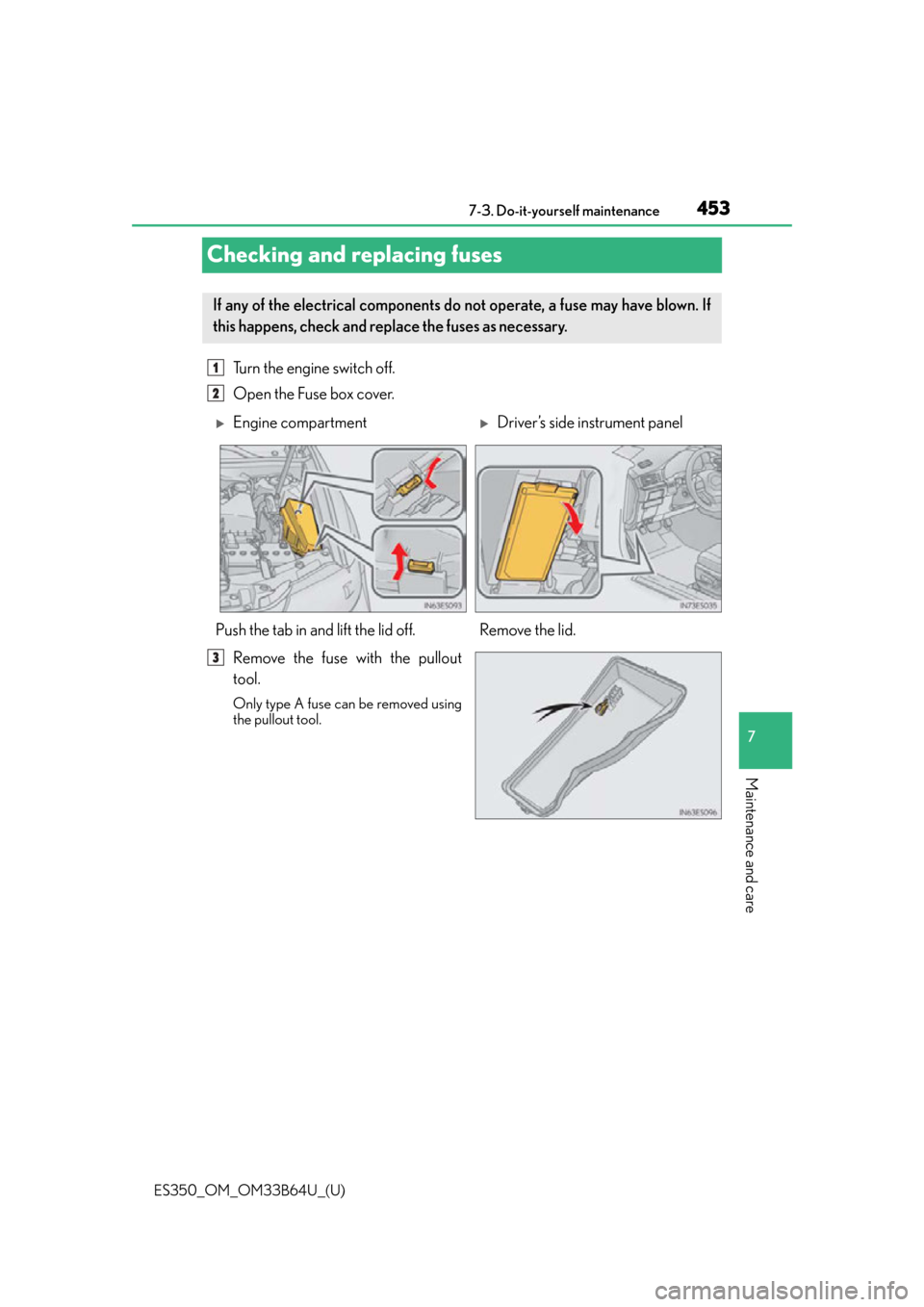

Checking and replacing fuses
Turn the engine switch off.
Open the Fuse box cover.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed using
the pullout tool.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2
Engine compartmentDriver’s side instrument panel
Push the tab in and lift the lid off. Remove the lid.
3
Page 454 of 576
454
ES350_OM_OM33B64U_(U)7-3. Do-it-yourself maintenance

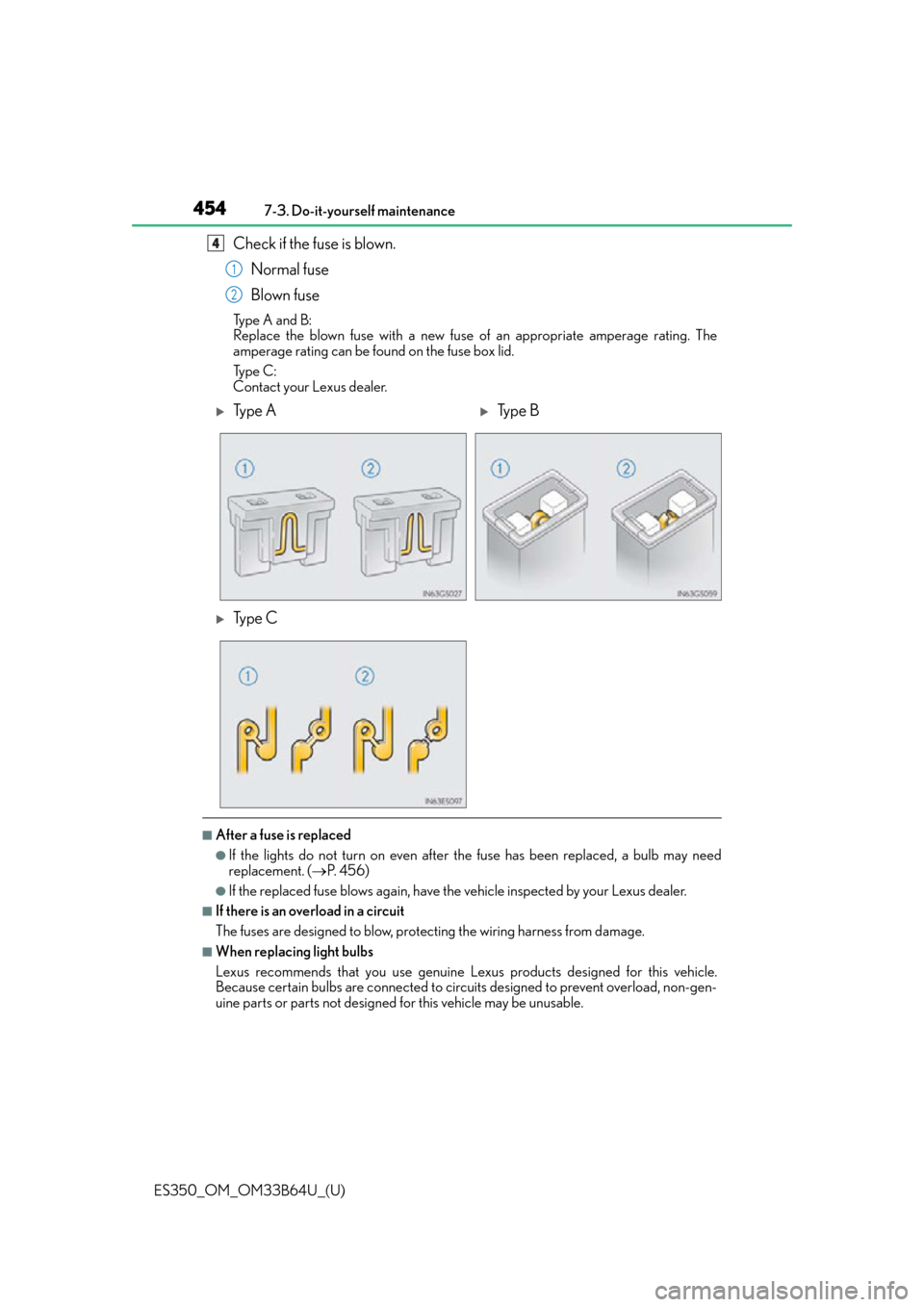

Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Ty p e C :
Contact your Lexus dealer.
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 4 5 6 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Le xus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
4
1
2
Ty p e ATy p e B
Ty p e C
Page 455 of 576
ES350_OM_OM33B64U_(U)
4557-3. Do-it-yourself maintenance
7
Maintenance and care
WA R N I N G
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rati ng than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determ ined and repaired by your Lexus dealer as
soon as possible.
Page 565 of 576
565Alphabetical index
ES350_OM_OM33B64U_(U)
FuelCapacity .................................................. 514
Fuel gauge ................................................ 74
Fuel pump shut off system.............475
Information ............................................. 521
Refueling...................................................173
Type ........................................................... 514
Warning light ....................................... 477
Fuel filler door .......................................... 173 Refueling...................................................173
When the fuel filler door cannot be opened .......................... 175
Fuel pump shut off system................. 475
Fuses .......................................................... 453
Garage door opener ............................391
Gauges .........................................................74
Glove box ................................................ 379
Grocery bag hooks ............................. 382
Hands-free system (for cellular phone)
*........................ 325
Head restraints ......................................... 119
Headlights Light switch .............................................. 161
Replacing light bulbs ........... 458, 464
Wattage ................................................. 520 Heaters
Air conditioning system .................................................. 364
Heated steering wheel ................... 374
Seat heaters .......................................... 374
Outside rear view mirrors ............368
Hill-start assist control ....................... 255
Hood ..........................................................423
Hooks Cargo hooks ....................................... 382
Coat hooks ...........................................390
Grocery bag hooks ......................... 382
Retaining hooks (floor mat)............. 26
Horn............................................................. 123
I/M test ..................................................... 420
Identification Engine .......................................................513
Vehicle ......................................................513
Ignition switch (engine switch) .......... 151
Illuminated entry system .................... 377
Immobilizer system .................................65
Indicators ..................................................... 72
Initialization Maintenance ..........................................415
Tire pressure warning system ............................... 437
Initiators (tire pressure warning system) .................................442
G
H
I
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
