Lexus ES350 2017 Owner's Manuals

379
ES350_OM_OM33C68U_(U)6-2. Using the interior lights
6
Interior features
Interior lights list
When the instrument panel light
control switch is turned to minimum and the tail lights
are on, the ornament lights and th e footwell lights will turn off. (→P. 77)
Outer foot lights
Shift lever light
Interior lights ( →P. 3 8 0 )
Front personal lights ( →P. 3 8 0 ) Rear personal lights (
→P. 3 8 0 )
Door courtesy lights
Ornament lights (if equipped)
Footwell lights1
2
3
4
5
6
7
8

380
ES350_OM_OM33C68U_(U)6-2. Using the interior lights
Turns the light on/off (touch the light)
The rear interior light also turns on/off.
Turns the door position on/off
On
The front and rear interior lights turn on/
off when a door is opened/closed.
Off
■Front
Turns the lights on/off (touch the
lights)
■Rear
Turns the light on/off
Interior lights
1
2
Personal lights

ES350_OM_OM33C68U_(U)
3816-2. Using the interior lights
6
Interior features
●Illuminated entry system: The lights automatically turn on/off according to engine
switch mode, the presence of the electronic key, whether the doors are locked/
unlocked, and whether the doors are opened/closed.
●If the following lights remain on when the engine switch is turned off the lights will go off
automatically after 20 minutes:
• Outer foot lights
• Personal/interior lights
• Door courtesy lights
• Ornament lights (if equipped)
• Footwell lights
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 5 3 8 )

382

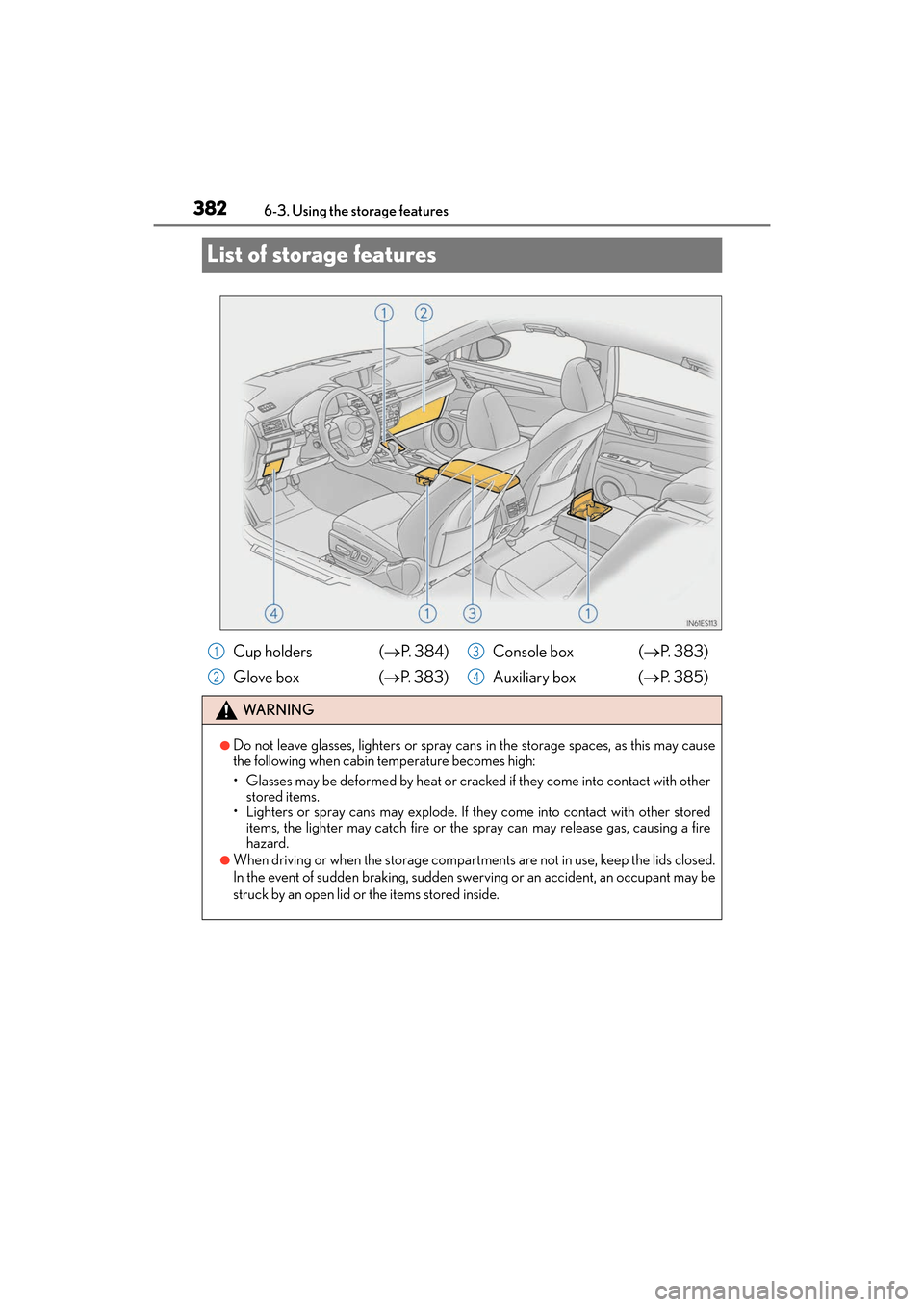

ES350_OM_OM33C68U_(U)6-3. Using the storage features
List of storage features
Cup holders (
→P. 3 8 4 )
Glove box ( →P. 383) Console box (
→P. 383)
Auxiliary box ( →P. 3 8 5 )
WA R N I N G
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other
stored items.
• Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking, sudden swerving or an accident, an occupant may be
struck by an open lid or the items stored inside.
1
2
3
4

ES350_OM_OM33C68U_(U)
3836-3. Using the storage features
6
Interior features
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (→P. 1 0 2 )
●The partition inside the glove box can be removed. ( →P. 4 5 5 )
Push the knob to release the lock, and
lift the armrest to open fully.
●The console box light turns on when the tail lights are on.
Glove box
1
2
3
Console box
●The tray slides forward/backward and can be
removed.
WA R N I N G
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.

384
ES350_OM_OM33C68U_(U)6-3. Using the storage features
■Driver’s side
To open, move the cup holder lid
until it locks.
To close, press and release the
cup holder lid.
■Front passenger’s side
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
open the lid.
Cup holders
1
2

ES350_OM_OM33C68U_(U)

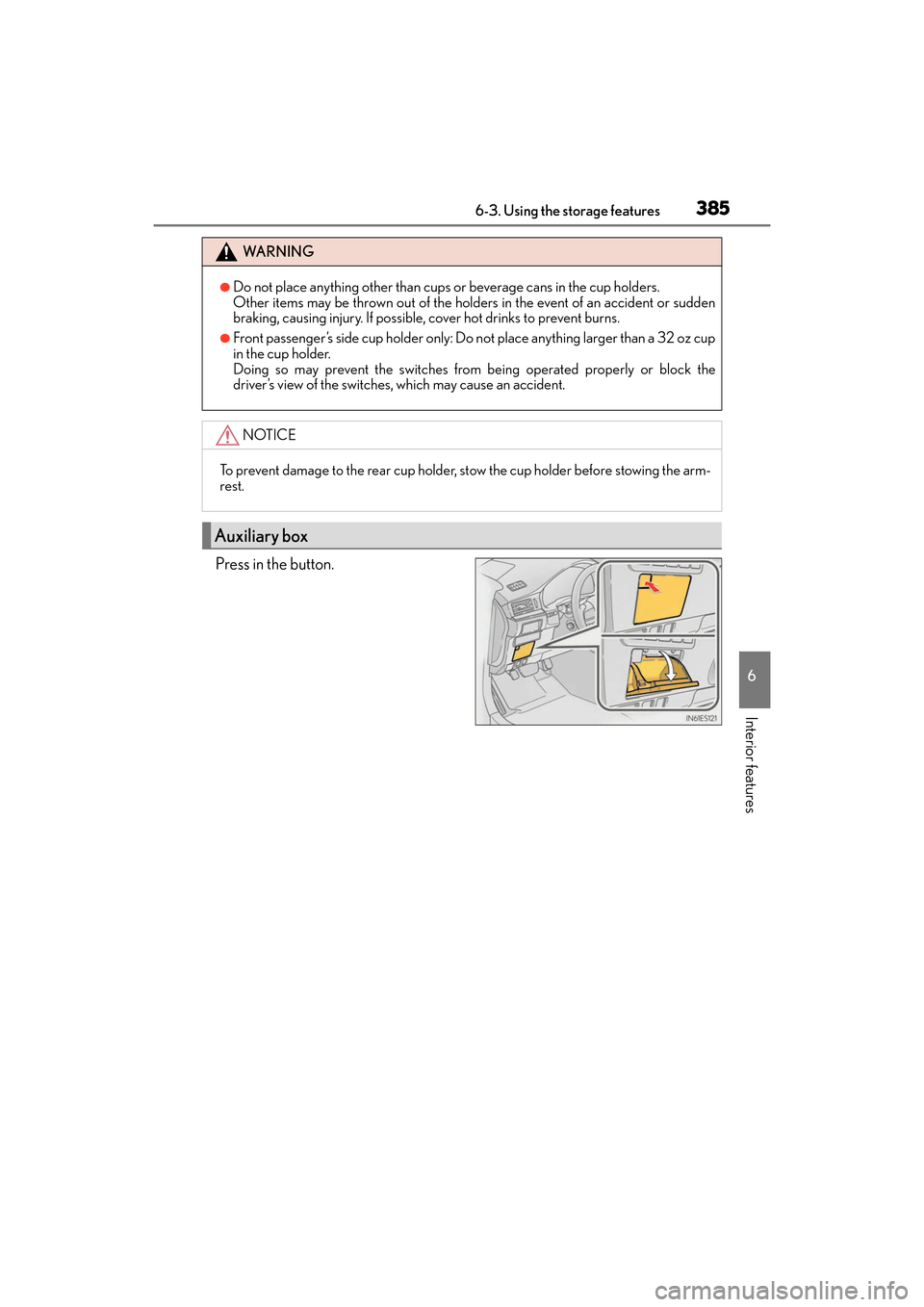

3856-3. Using the storage features
6
Interior features
Press in the button.
WA R N I N G
●Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
●Front passenger’s side cup holder only: Do not place anything larger than a 32 oz cup
in the cup holder.
Doing so may prevent the switches from being operated properly or block the
driver’s view of the switches, which may cause an accident.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.
Auxiliary box

386

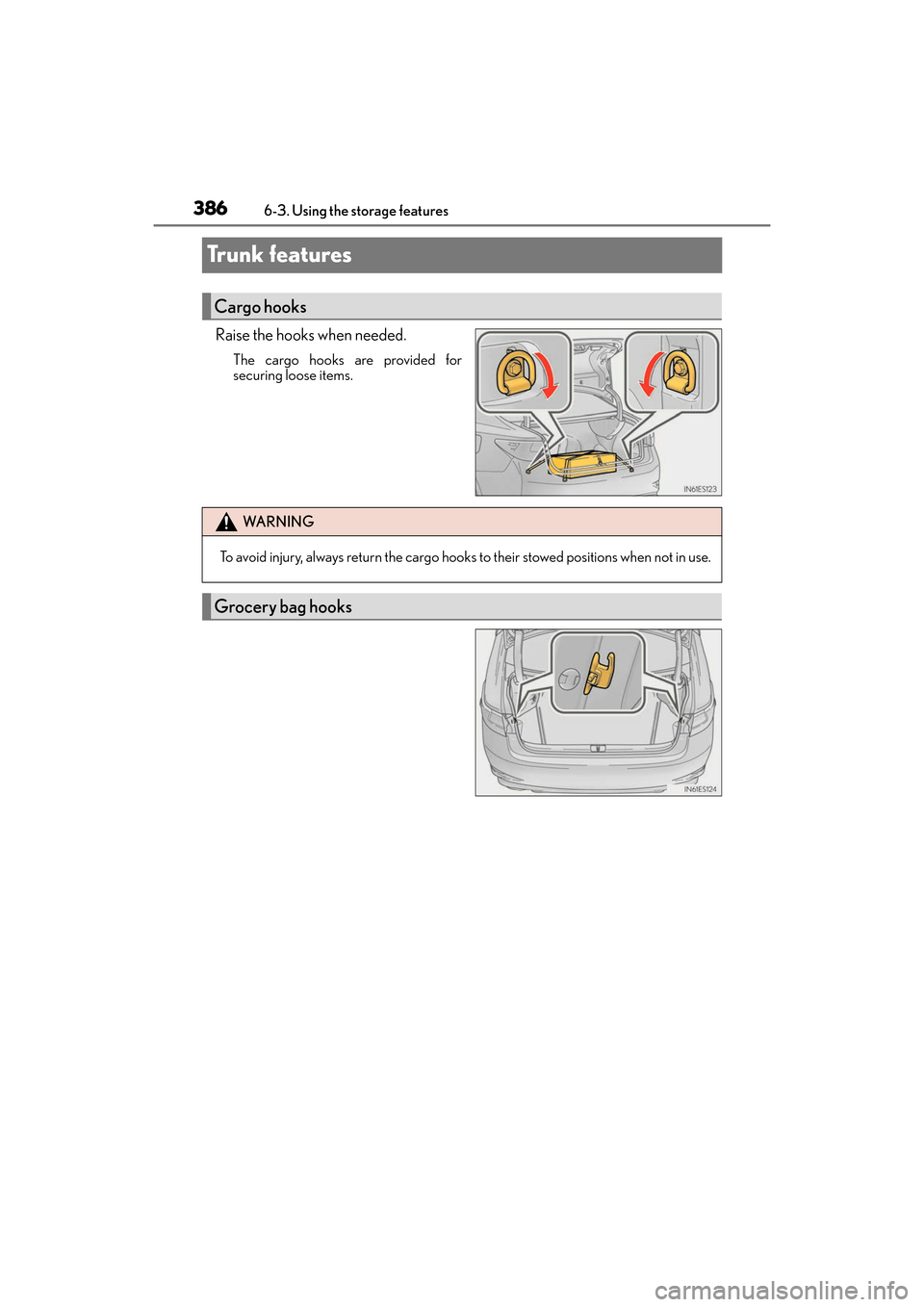

ES350_OM_OM33C68U_(U)6-3. Using the storage features
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Cargo hooks
WA R N I N G
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Grocery bag hooks

ES350_OM_OM33C68U_(U)

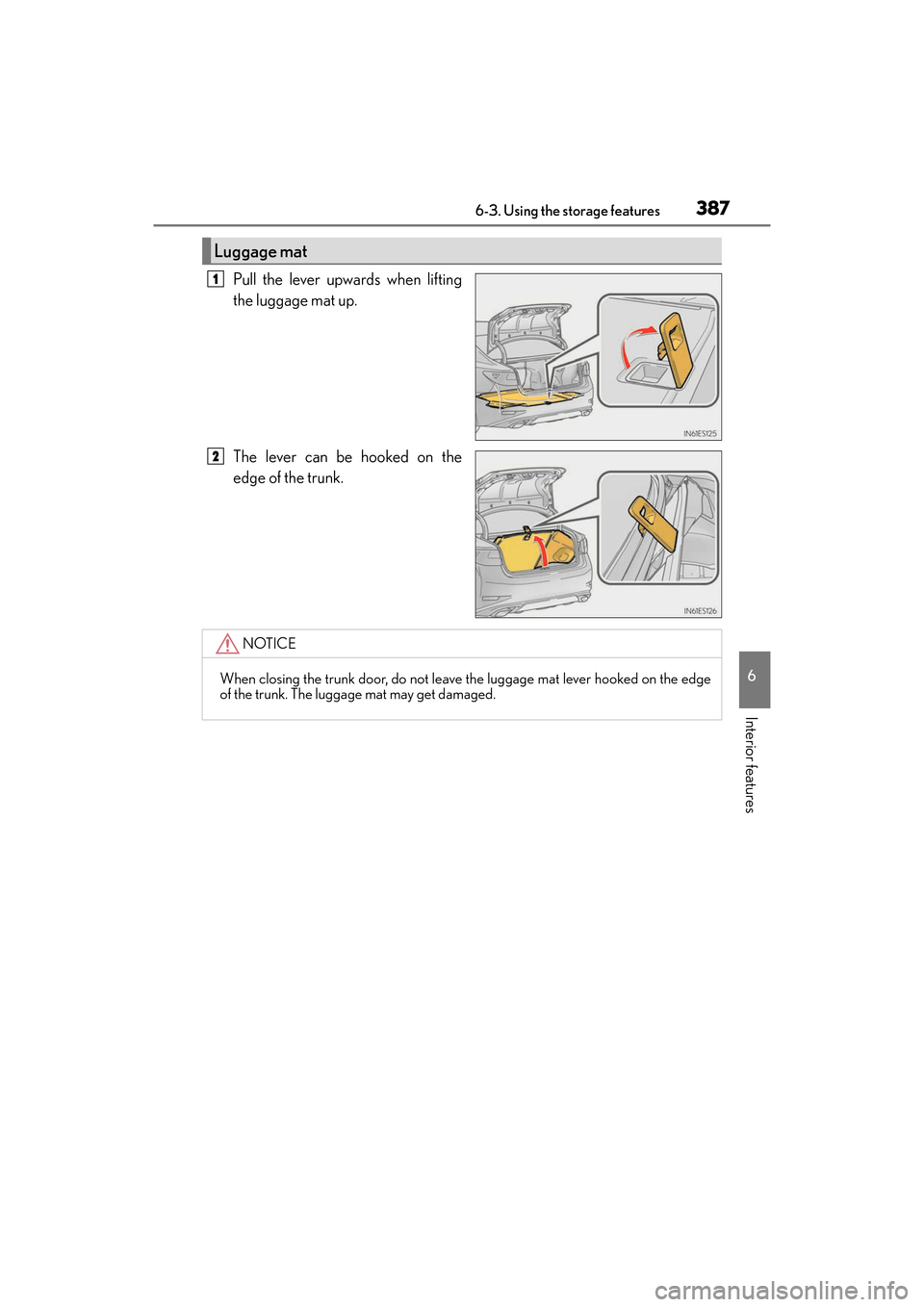

3876-3. Using the storage features
6
Interior features
Pull the lever upwards when lifting
the luggage mat up.
The lever can be hooked on the
edge of the trunk.
Luggage mat
1
2
NOTICE
When closing the trunk door, do not leave the luggage mat lever hooked on the edge
of the trunk. The luggage mat may get damaged.

388
ES350_OM_OM33C68U_(U)6-4. Using the other interior features
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods
while the engine is not running.
