8-inch display model (Type B)
Select to display the audio control screen. ( P.54)
Select to display the hands-free control sc reen. When an Apple CarPlay connection is
established, select to display the Phone app screen.
*1 ( P.50)
Select to display the “Apps” screen.
*1, 2, 3
When an Apple CarPlay co nnection is established and this button displays
“Apple CarPlay”, select to display the home screen of Apple CarPlay.
*1, 2
Select to display the fuel consumption screen. ( P.44)
Select to display the general settings screen.
*1, 4
Select to display the air conditioning control screen. ( P.63)
Select to adjust the contrast and brightness of the screens, turn the screen off, etc.
*1
*1: Refer to the “NAVIGATION AND MU LTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not made available in some countries or areas.
*3:The Lexus Enform App Suite 2.0 screen may not be displayed when an Apple CarPlay
connection is established.
*4: Refer to the “OWNER’S MANUAL”
A
B
C
D
E
F
G
H
Page 42 of 94
42
ES350_QG_OM06176U_(U)
Different information can be displayed on the left and right of the screen. For example, air
conditioning system screen can be displayed and operated while the fuel consumption
information screen is being displayed. The large screen on the left of the display is called the
main display, and the small screen to the right is called the side display.
The following function s can be displayed
and operated on the side display.
Navigation system ( P.46)
Audio ( P.57, 58, 59, 60)
Vehicle information ( P.45)
Air conditioning system ( P.65)
Show/hide the side display
Split-screen display (12.3-inch display model)
Side display (12.3-inch display model)
A
B
C
D
E
Page 43 of 94
43
ES350_QG_OM06176U_(U)
Select the desired point on the map screen.
Move the desired point on the center of the
map screen.Cursor mark
Distance from the current position to
the cursor mark
Select to register as a memory point
Select to set as a destination
Press the “MAP” button on the Remote Touch to return to the current position.
Destinations can be added, reordered or deleted, and conditions for the route to the desti-
nation can be changed.
1Select “Edit Route”.
2Select the desired item.
Select to add destinations.
Select to delete destinations.
Select to reorder destinations.
Select to set route preferences.
Map scroll operation
A
B
C
D
Editing route
A
B
C
D
Some functions are unavailable while the vehicle is in motion. Refer to the “NAVIGATION
AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Page 44 of 94
44
ES350_QG_OM06176U_(U)
Press the “MENU” button on the Remote Touch, then select on the menu screen, and
then select “Trip Information” or “History”.
■Trip information
If a screen other than “Trip Information” is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range
■History
If a screen other than “History” is displayed, select “History”. Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption
data
Fuel Consumption Screen
You can view the status of your fuel consumption information on the multi-information dis-
play and Center Display.
12.3-inch display model: The consumption scre en can be displayed on the side display.
For details, refer to the “OWNER’S MANUAL”.
Consumption
A
B
C
D
E
F
A
B
C
D
E
Page 45 of 94
45
ES350_QG_OM06176U_(U)
Vehicle information can be displayed on the side display.
Select or to display the desired screen.
●Trip information (type A/type B)
● History
Using the side display (12.3-inch display model)
Page 46 of 94
46
ES350_QG_OM06176U_(U)
If home has been registered, that information can be recalled by selecting on the desti-
nation screen.
1Display the navigation settings screen:
● “MENU” button “Setup” “Navigation” on the sub menu
2Select “Home”.
3Select the desired item to be set.
Select to register home.
Select to edit home.
Select to delete home.
■Search by address
There are 2 methods to search for a destination by address.
1Display the destination search screen by either operation:
● “MAP” button
● “MENU” button “Destination”
2Select “Address”.
3Select the desired search method.
Select to change the search area.
Select to search by city.
Select to search by street address.
Navigation System (if equipped)
Registering home
A
B
C
Destination search
A
B
C
Page 47 of 94
47
ES350_QG_OM06176U_(U)
Search by city ( )
4Select “City”.
5Enter a city name and select “Search”.
“Last 5 Cities”: Select the desired city name from the list of the last 5 cities.
6Select the desired city name.
7Enter a street name and select “Search”.
8Select the desired street name.
9Enter a house number and select “Search”.
Search by street address ( )
4Select “Street Address”.
5Enter a house number and select “Search”.
6Enter a street name and select “Search”.
7Select the desired street name.
8Enter a city name and select “Search”.
9Select the desired city name.
B
C
Page 48 of 94
48
ES350_QG_OM06176U_(U)

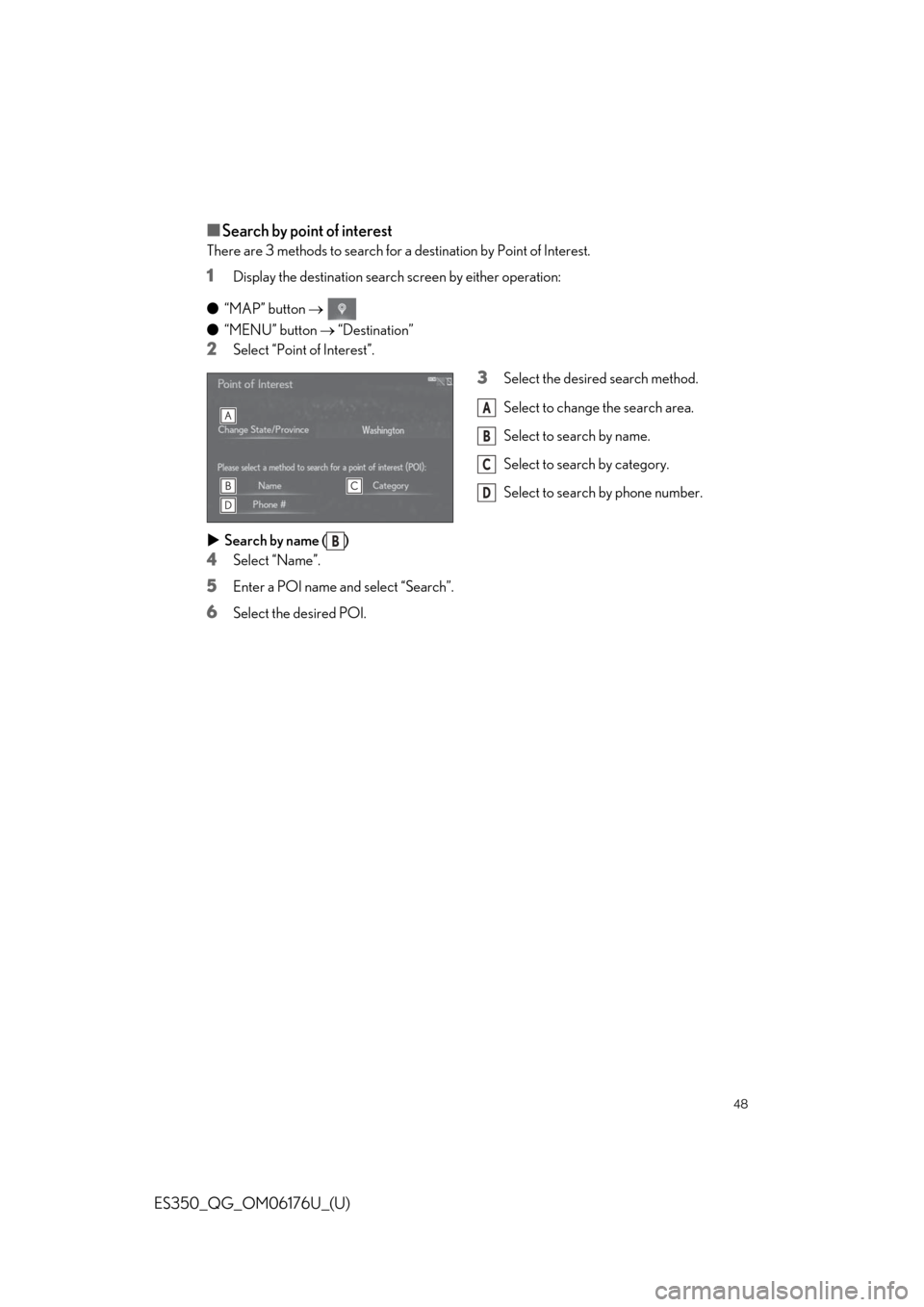

■Search by point of interest
There are 3 methods to search for a destination by Point of Interest.
1Display the destination search screen by either operation:
● “MAP” button
● “MENU” button “Destination”
2Select “Point of Interest”.
3Select the desired search method.
Select to change the search area.
Select to search by name.
Select to search by category.
Select to search by phone number.
Search by name ( )
4Select “Name”.
5Enter a POI name and select “Search”.
6Select the desired POI.
A
B
C
D
B
Page 49 of 94
49
ES350_QG_OM06176U_(U)
Search by category ( )
4Select “Category”.
5Select the desired search point.
Select to search for POIs near your
current position.
Select to search for POIs along the set
route.
Select to search for POIs near a spe-
cific city center.
Select to search for POIs near a desti-
nation. When more than 1 destination
has been set, a list will be displayed on
the screen. Select the desired destina-
tion.
6Select the desired POI category.
7Select the desired POI.
Search by phone number ( )
4Select “Phone #”.
5Enter a phone number and select “OK”.
C
A
B
C
D
D
Page 50 of 94
50
ES350_QG_OM06176U_(U)
To use the hands-free system, it is necessary to register a Bluetooth® phone with the system.
Refer to http://www.lexus.com/MobileLink
to find approved Bluetooth® phones for this
system.
1Turn the Bluetooth® connection setting of your cellular phone on.
2Press the “MENU” button on the Remote Touch.
3Select “Phone”.
4Select “Yes” to register a phone.
5Select the desired Bluetooth® device.
6Register the Bluetooth® device using your Bluetooth® device.
7Check that the following screen is dis-
played, indicating pairing was success-
ful.
● The system is connecting to the regis-
tered device.
● At this stage, the Bluetooth
® functions
are not yet available.
8Check that “Connect ed” is displayed
and registration is complete.
Hands-free System For Cellular Phone
Registering/connecting Bluetooth® device
