LEXUS ES350 2023 Owner's Guide

30
ES350_ES250_QG_OM06255U_(U)
Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.
Driving support system display area
Navigation system-linked display area (if equipped)
Driving information display area
Tachometer/Eco Driving Indicator display area
Head-up display switch

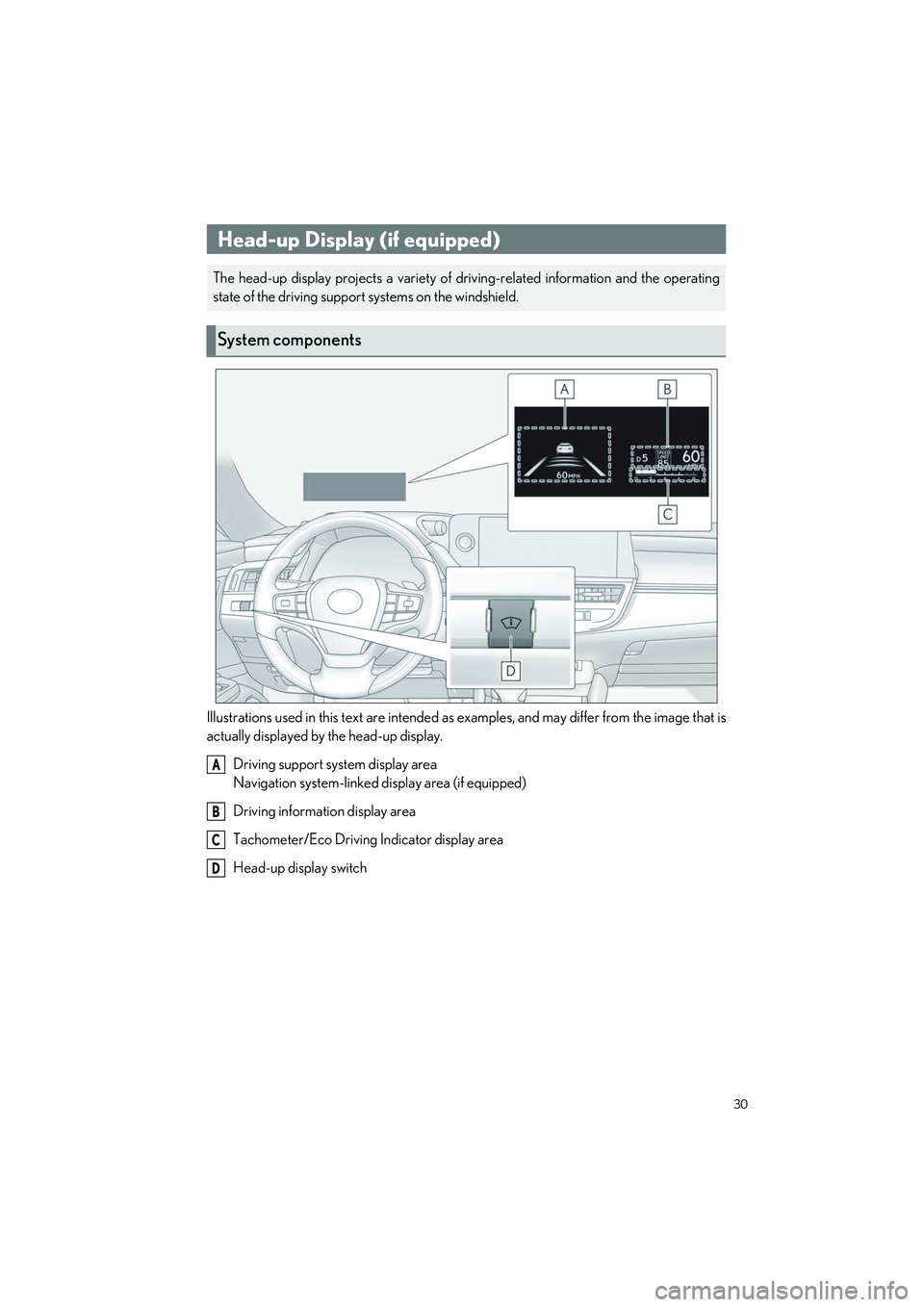

Head-up Display (if equipped)
The head-up display projects a variety of driving-related information and the operating
state of the driving support systems on the windshield.
System components
A
B
C
D

31
ES350_ES250_QG_OM06255U_(U)

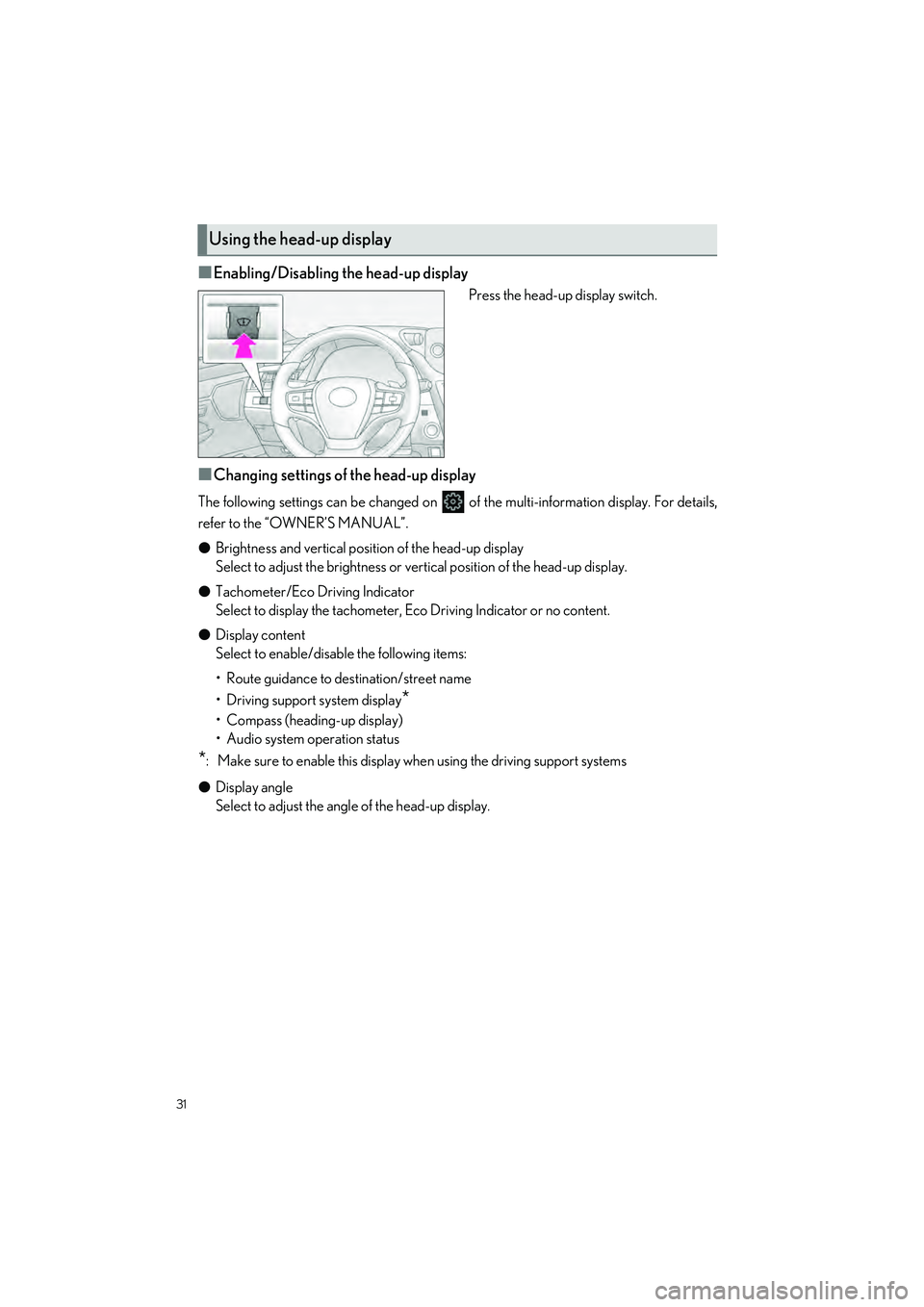

QEnabling/Disabling the head-up display
Press the head-up display switch.
QChanging settings of the head-up display
The following settings can be changed on of the multi-information display. For details,
refer to the “OWNER’S MANUAL”.
O Brightness and vertical position of the head-up display
Select to adjust the brightness or vert ical position of the head-up display.
O Tachometer/Eco Driving Indicator
Select to display the tachometer, Eco Driving Indicator or no content.
O Display content
Select to enable/disable the following items:
• Route guidance to destination/street name
• Driving support system display
*
• Compass (heading-up display)
• Audio system operation status
*: Make sure to enable this display when using the driving support systems
O Display angle
Select to adjust the angle of the head-up display.
Using the head-up display

32
ES350_ES250_QG_OM06255U_(U)

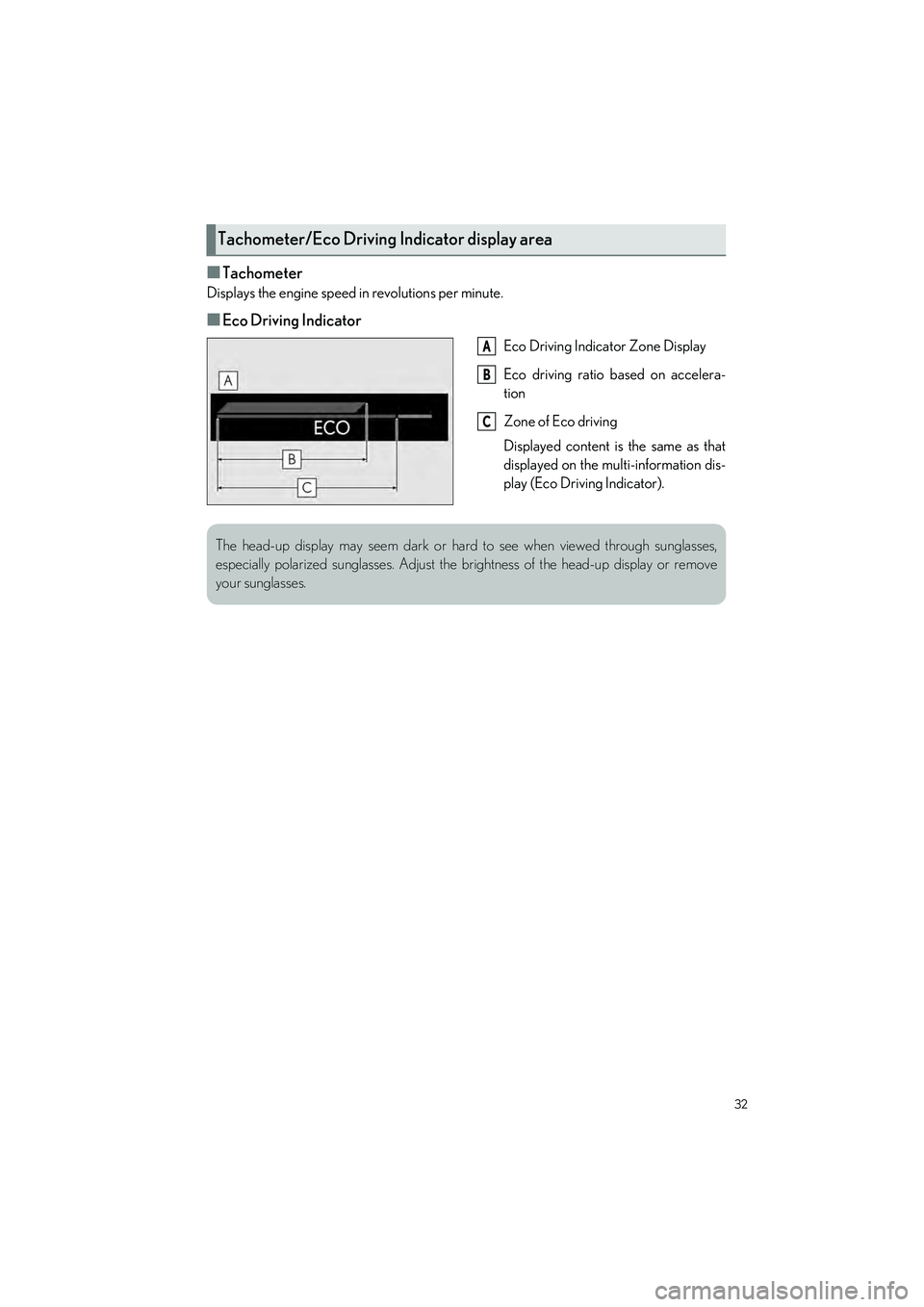

QTachometer
Displays the engine speed in revolutions per minute.
QEco Driving Indicator
Eco Driving Indicator Zone Display
Eco driving ratio based on accelera-
tion
Zone of Eco driving
Displayed content is the same as that
displayed on the multi-information dis-
play (Eco Driving Indicator).
Tachometer/Eco Driving Indicator display area
A
B
C
The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses. Adjust the brightness of the head-up display or remove
your sunglasses.

33
ES350_ES250_QG_OM06255U_(U)
U.S.A.
Canada

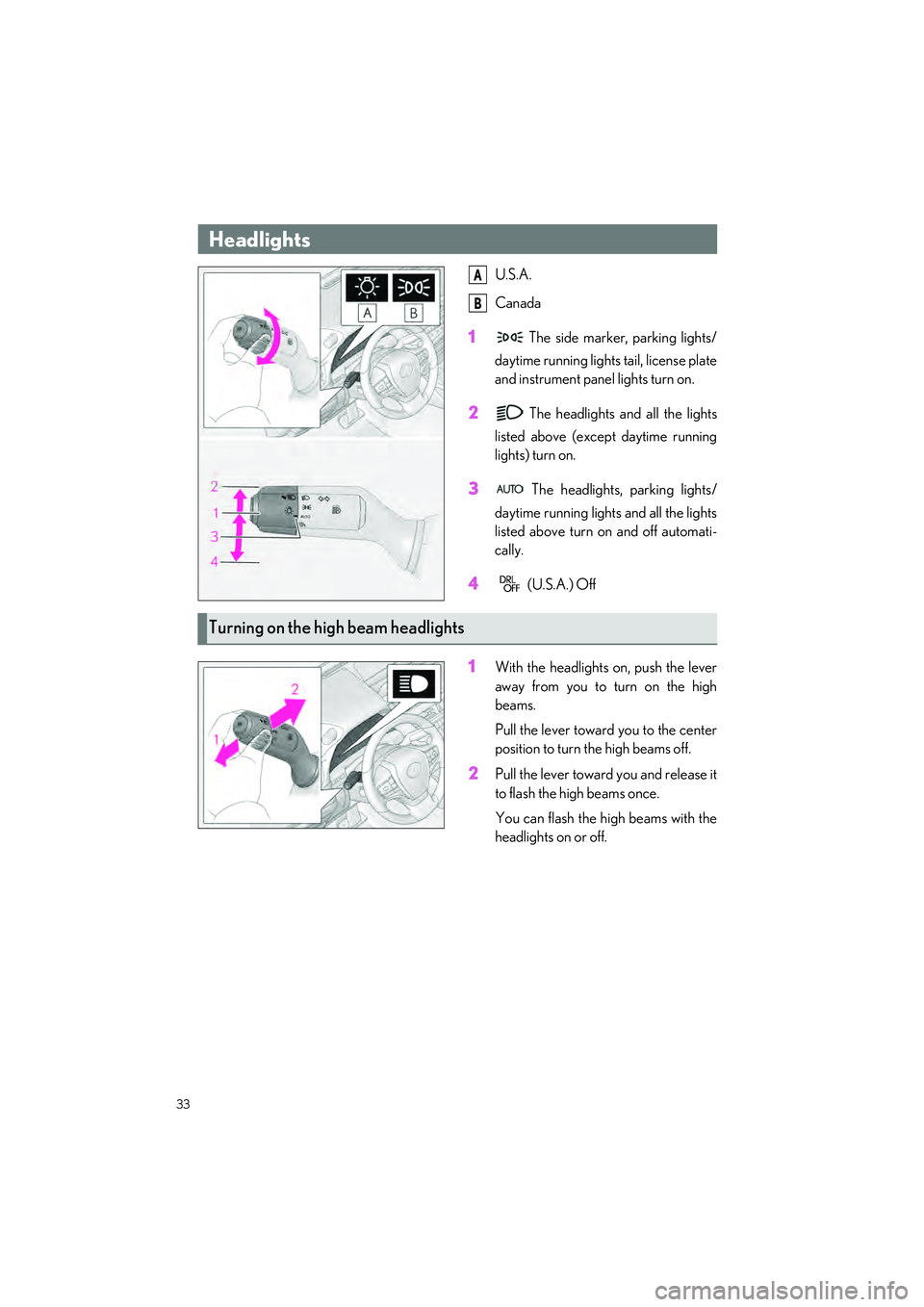

1 The side marker, parking lights/
daytime running lights tail, license plate
and instrument panel lights turn on.
2 The headlights and all the lights
listed above (except daytime running
lights) turn on.
3 The headlights, parking lights/
daytime running lights and all the lights
listed above turn on and off automati-
cally.
4 (U.S.A.) Off
1With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
2Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.
Headlights
A
B
Turning on the high beam headlights

34
ES350_ES250_QG_OM06255U_(U)
1Press the Automatic High Beam
switch.
2Turn the headlight switch to the
or position.
The Automatic High Beam indicator
will come on when the system is oper-
ating.

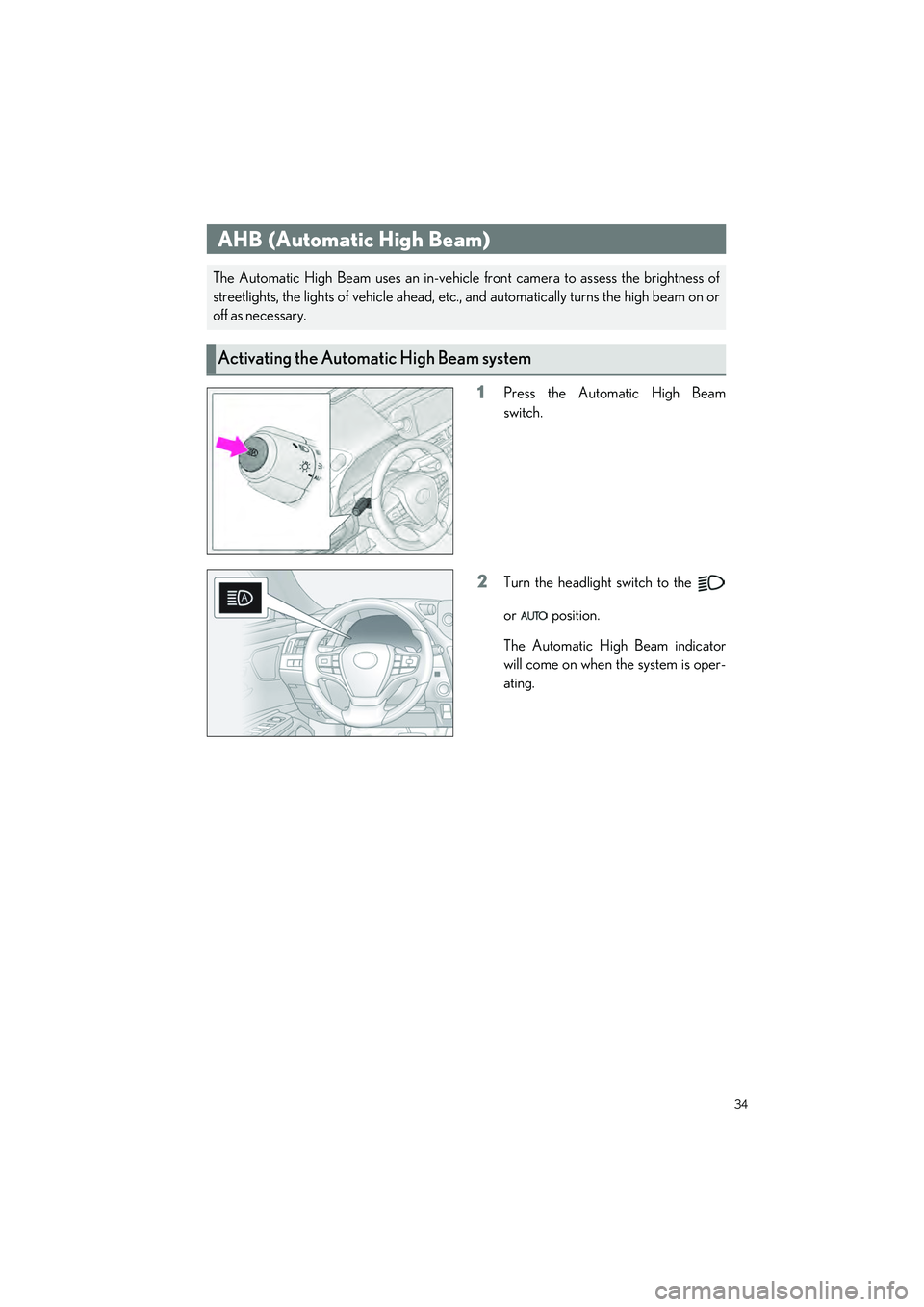

AHB (Automatic High Beam)
The Automatic High Beam uses an in-vehicle front camera to assess the brightness of
streetlights, the lights of vehicle ahead, etc., and automatically turns the high beam on or
off as necessary.
Activating the Automatic High Beam system

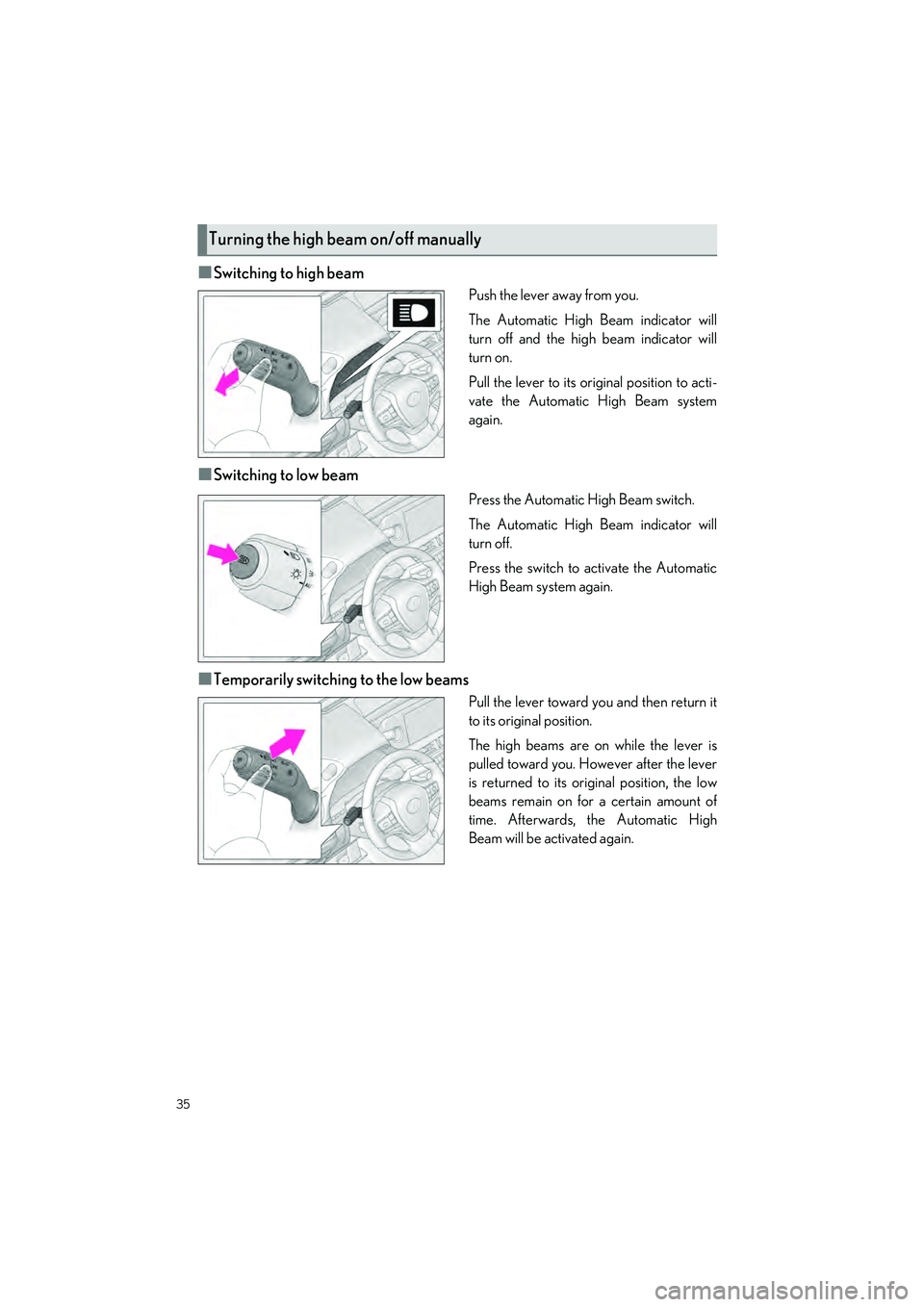

35
ES350_ES250_QG_OM06255U_(U)
QSwitching to high beam
Push the lever away from you.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Pull the lever to its original position to acti-
vate the Automatic High Beam system
again.
QSwitching to low beam
Press the Automatic High Beam switch.
The Automatic High Beam indicator will
turn off.
Press the switch to activate the Automatic
High Beam system again.
QTemporarily switching to the low beams
Pull the lever toward you and then return it
to its original position.
The high beams are on while the lever is
pulled toward you. However after the lever
is returned to its original position, the low
beams remain on for a certain amount of
time. Afterwards, the Automatic High
Beam will be activated again.
Turning the high beam on/off manually

36
ES350_ES250_QG_OM06255U_(U)

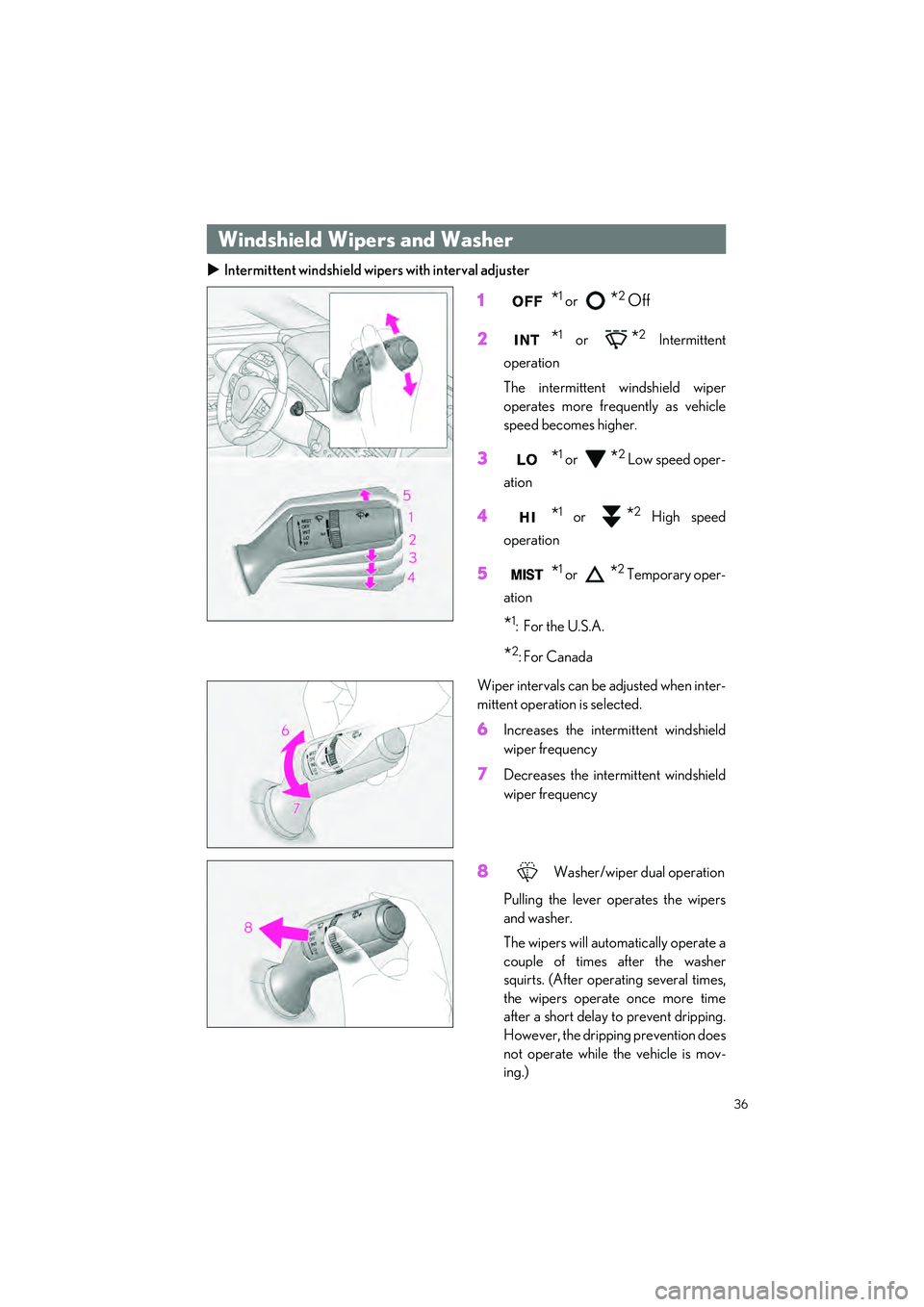

Intermittent windshield wipers with interval adjuster
1*1 or *2 Off
2
*1 or *2 Intermittent
operation
The intermittent windshield wiper
operates more frequently as vehicle
speed becomes higher.
3*1 or *2 Low speed oper-
ation
4*1 or *2 High speed
operation
5*1 or *2 Temporary oper-
ation
*1:For the U.S.A.
*2:For Canada
Wiper intervals can be adjusted when inter-
mittent operation is selected.
6Increases the intermittent windshield
wiper frequency
7Decreases the intermittent windshield
wiper frequency
8 Washer/wiper dual operation
Pulling the lever operates the wipers
and washer.
The wipers will automatically operate a
couple of times after the washer
squirts. (After operating several times,
the wipers operate once more time
after a short delay to prevent dripping.
However, the dripping prevention does
not operate while the vehicle is mov-
ing.)
Windshield Wipers and Washer

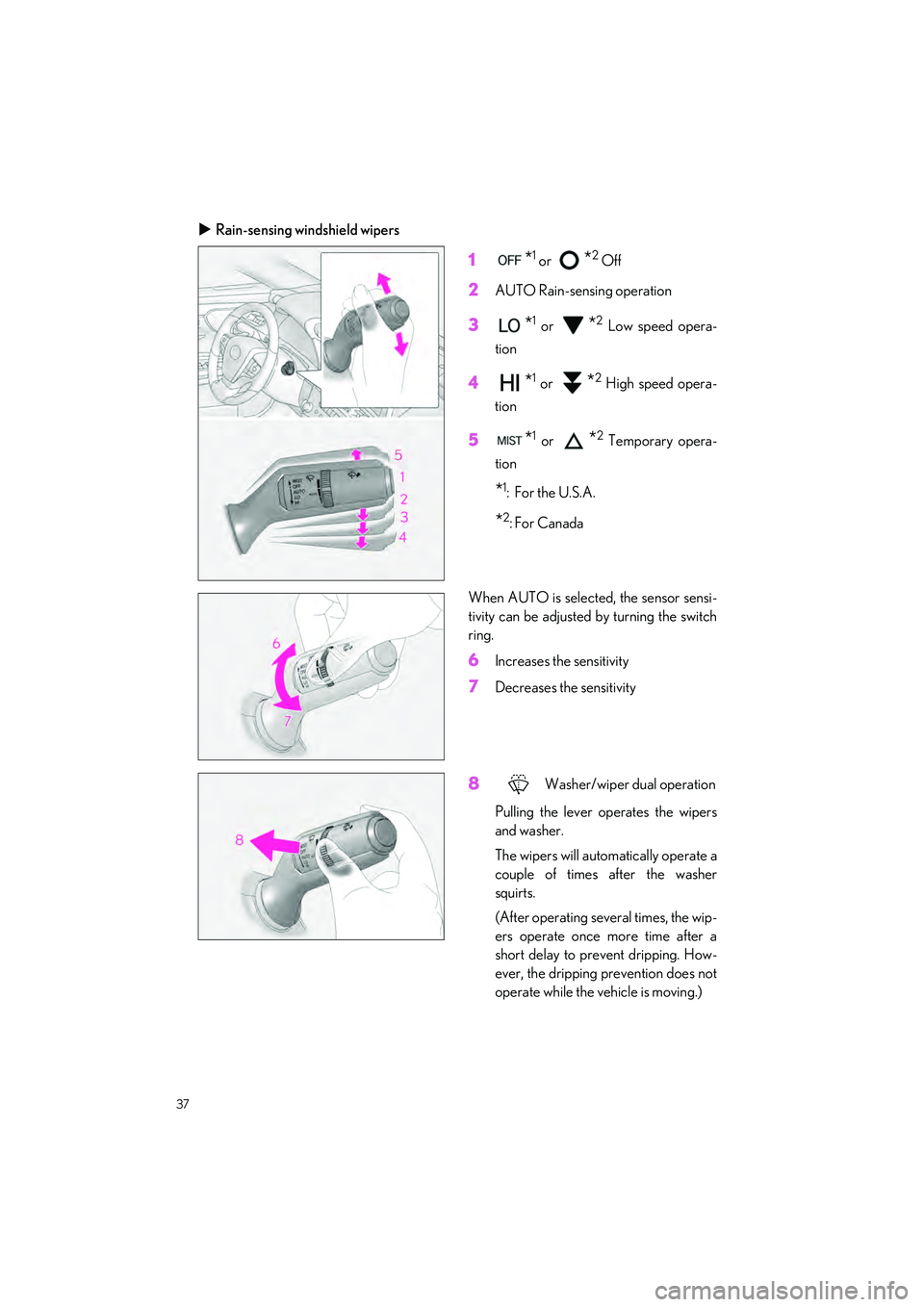

37
ES350_ES250_QG_OM06255U_(U)
Rain-sensing windshield wipers
1*1 or *2 Off
2AUTO Rain-sensing operation
3*1 or *2 Low speed opera-
tion
4*1 or *2 High speed opera-
tion
5*1 or *2 Temporary opera-
tion
*1:For the U.S.A.
*2:For Canada
When AUTO is selected, the sensor sensi-
tivity can be adjusted by turning the switch
ring.
6Increases the sensitivity
7Decreases the sensitivity
8 Washer/wiper dual operation
Pulling the lever operates the wipers
and washer.
The wipers will automatically operate a
couple of times after the washer
squirts.
(After operating several times, the wip-
ers operate once more time after a
short delay to prevent dripping. How-
ever, the dripping prevention does not
operate while the vehicle is moving.)

38
ES350_ES250_QG_OM06255U_(U)
QDisplay procedure
1
Select on the main menu.
2Select “Trip information”.
3Select “Current”.
QDisplay
Resetting the history data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Average vehicle speed since the
engine was started.
Trip range
Elapsed time since the engine was
started.
QDisplay procedure
1 Select on the main menu.
2
Select “Trip information”.
3Select “History”.
QDisplay
Latest fuel consumption
Best recorded fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption
data

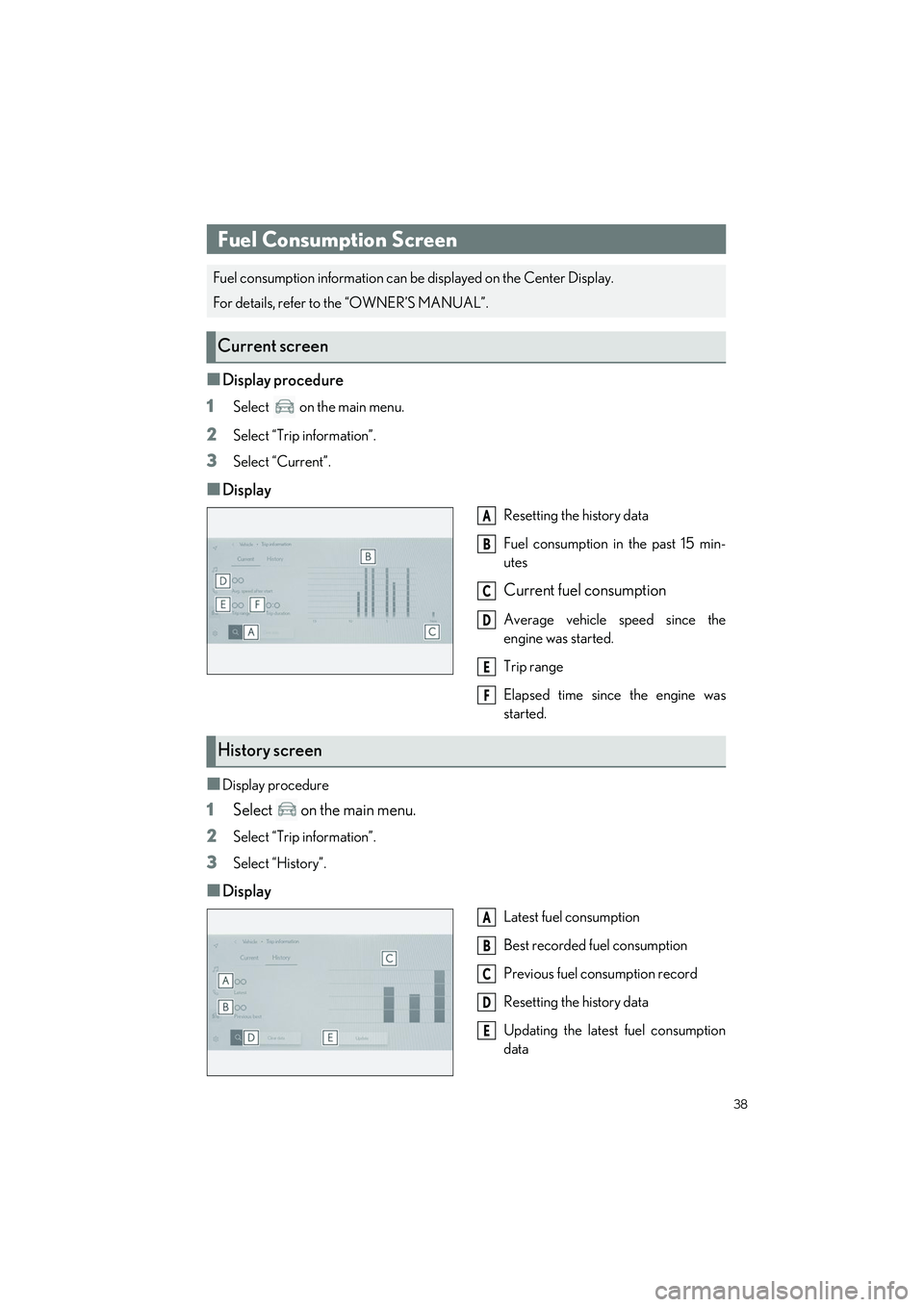

Fuel Consumption Screen
Fuel consumption information can be displayed on the Center Display.
For details, refer to the “OWNER’S MANUAL”.
Current screen
A
B
C
D
E
F
History screen
A
B
C
D
E

39
ES350_ES250_QG_OM06255U_(U)

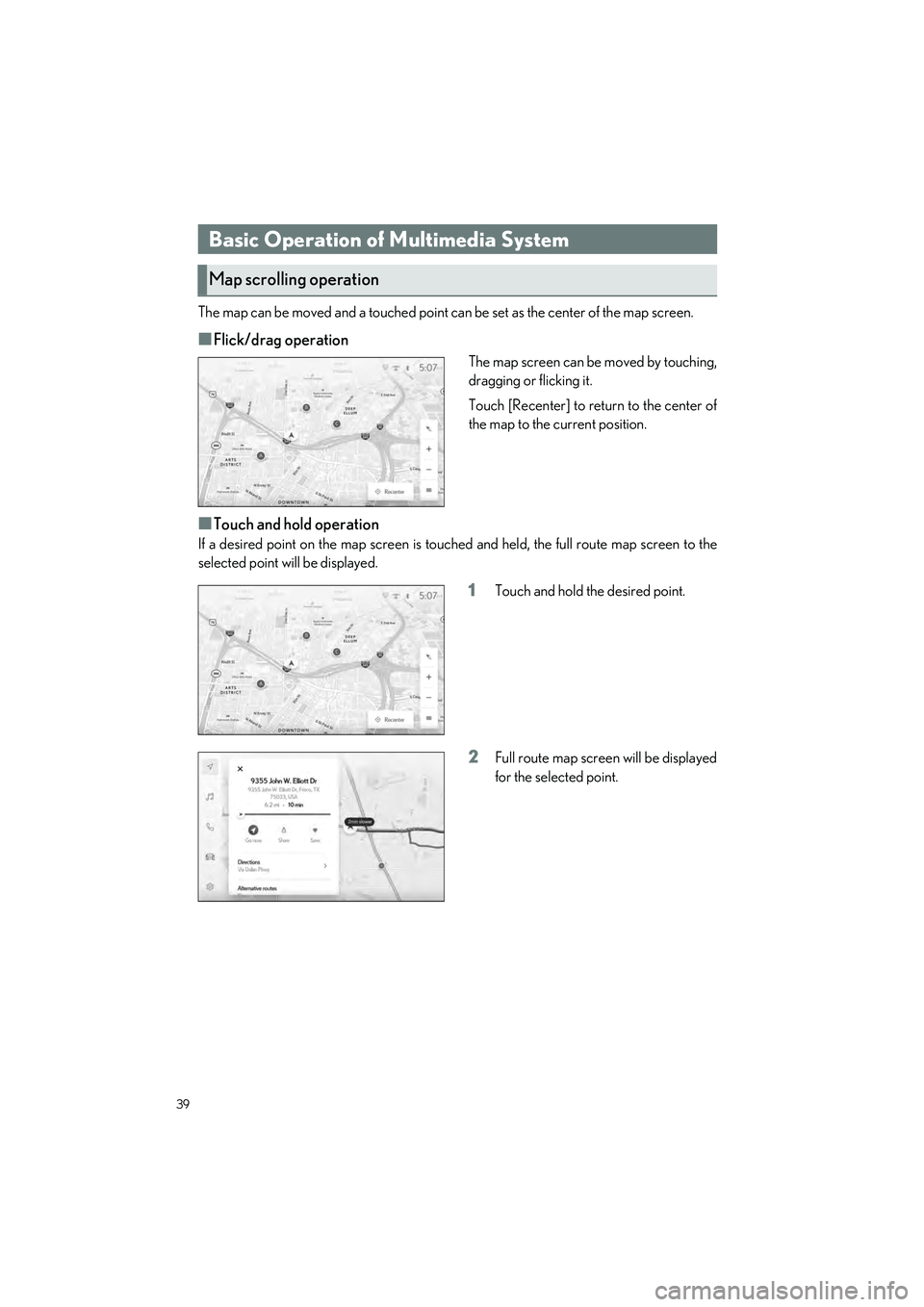

The map can be moved and a touched point can be set as the center of the map screen.
QFlick/drag operation
The map screen can be moved by touching,
dragging or flicking it.
Touch [Recenter] to return to the center of
the map to the current position.
QTouch and hold operation
If a desired point on the map screen is touched and held, the full route map screen to the
selected point will be displayed.
1Touch and hold the desired point.
2Full route map screen will be displayed
for the selected point.
Basic Operation of Multimedia System
Map scrolling operation
