LEXUS ES350 2023 Manual PDF

70
ES350_ES250_QG_OM06255U_(U)
Remote Connect is a smartphone application that lets you view and remotely control cer-
tain aspects of your vehicle.
Remote Connect (if equipped)
The functionality of Remote Connect and Service Connect are made possible by the use
of a DCM and a smartphone.
For details about these services, refer to https://www.lexus.com
.
Remote Connect subscription

71
ES350_ES250_QG_OM06255U_(U)

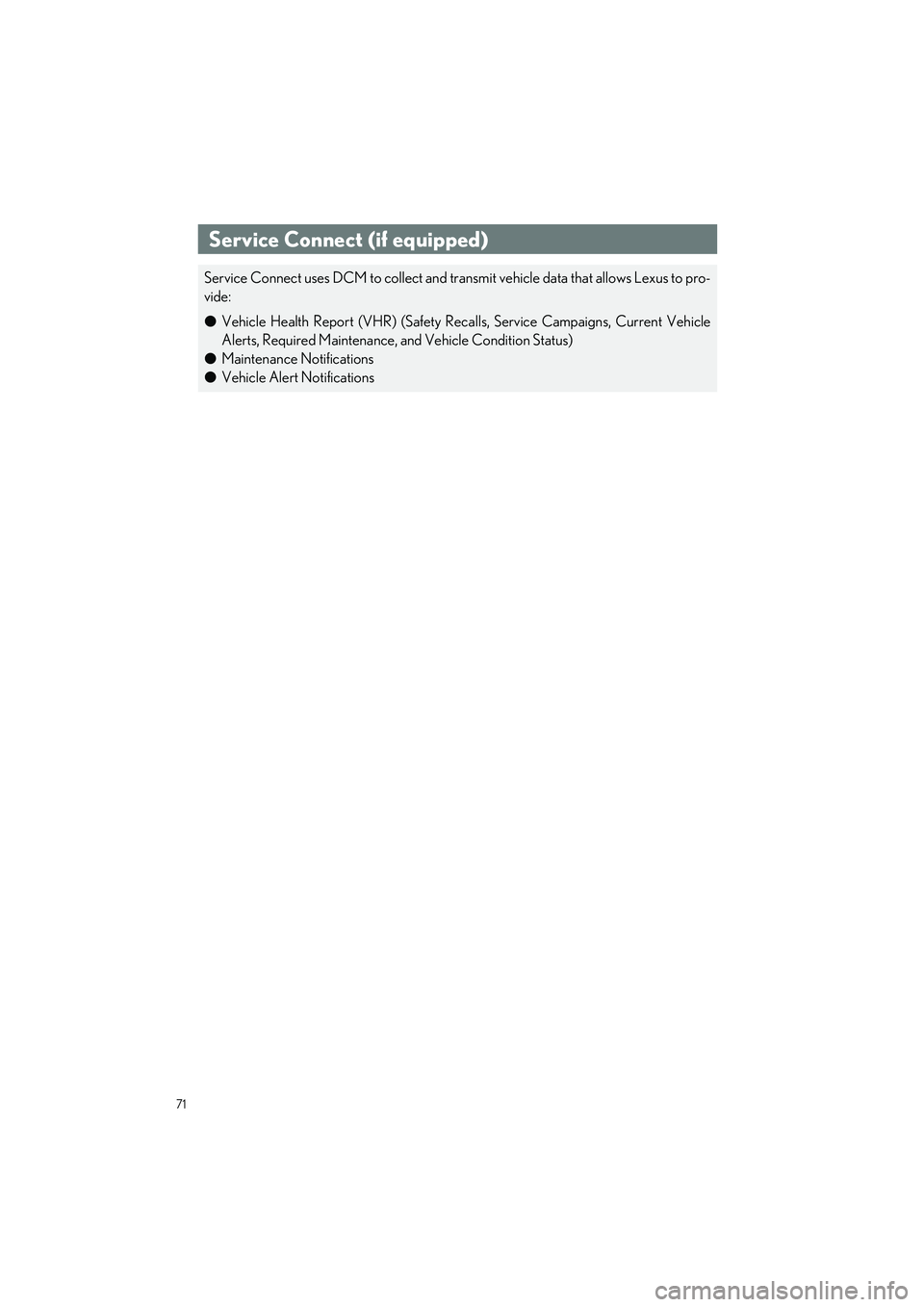

Service Connect (if equipped)
Service Connect uses DCM to collect and transmit vehicle data that allows Lexus to pro-
vide:
OVehicle Health Report (VHR) (Safety Reca lls, Service Campaigns, Current Vehicle
Alerts, Required Maintenance, and Vehicle Condition Status)
O Maintenance Notifications
O Vehicle Alert Notifications

72
ES350_ES250_QG_OM06255U_(U)

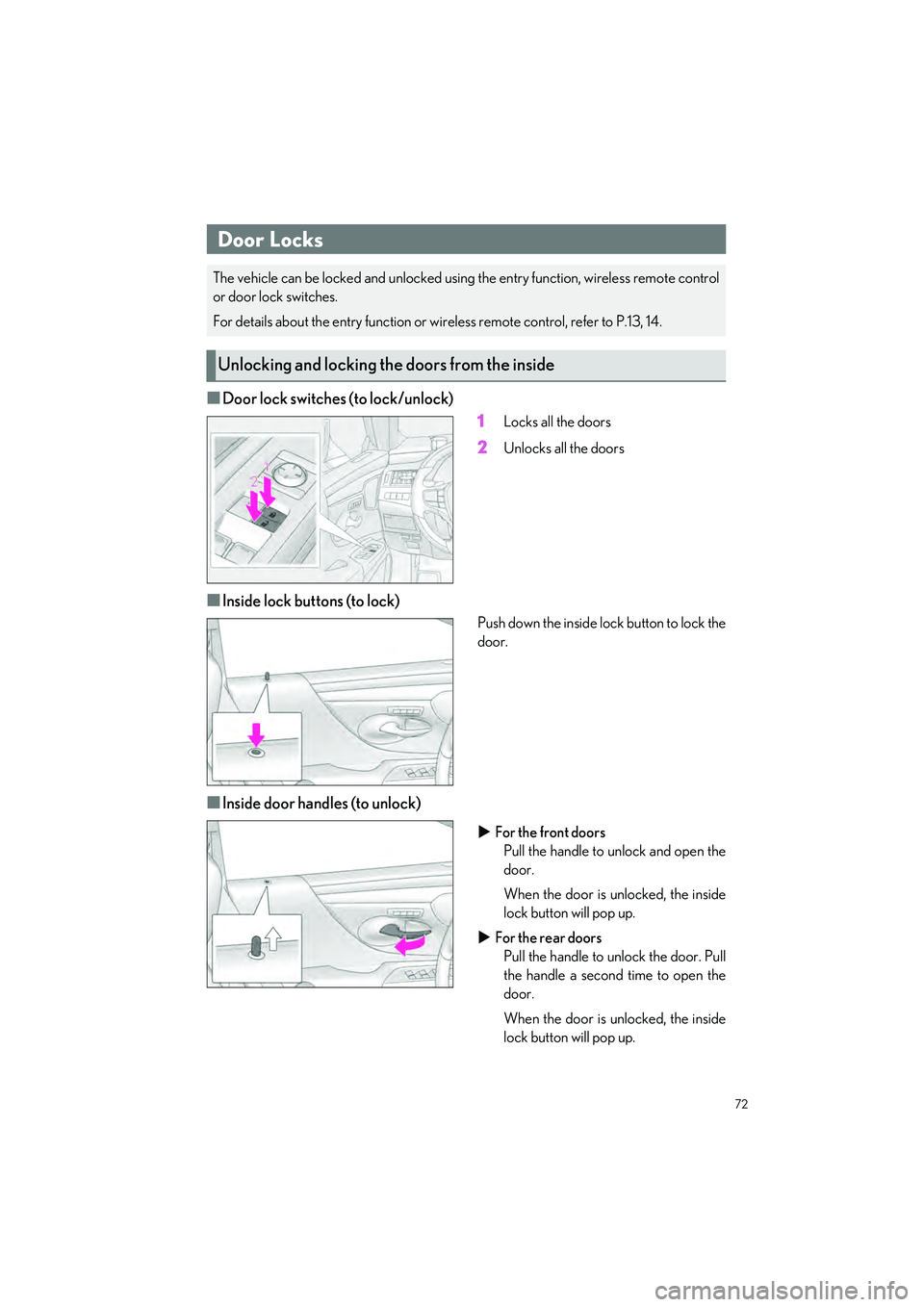

QDoor lock switches (to lock/unlock)1
Locks all the doors
2Unlocks all the doors
QInside lock buttons (to lock)
Push down the inside lock button to lock the
door.
QInside door handles (to unlock)
For the front doors
Pull the handle to unlock and open the
door.
When the door is unlocked, the inside
lock button will pop up.
 For the rear doors
Pull the handle to unlock the door. Pull
the handle a second time to open the
door.
When the door is unlocked, the inside
lock button will pop up.
Door Locks
The vehicle can be locked and unlocked using the entry function, wireless remote control
or door lock switches.
For details about the entry function or wi reless remote control, refer to P.13, 14.
Unlocking and locking the doors from the inside

73
ES350_ES250_QG_OM06255U_(U)
OClose all the doors and windows, and turn the engine switch off.
O Confirm the type of fuel.
1Press the opener switch.
2Turn the fuel tank cap slowly and
remove it, then hang it on the back of
the fuel filler door.
After refueling, turn the fuel tank cap until
you hear a click. Once the cap is released, it
will turn slightly in the opposite direction.
Fuel Tank Cap
Before refueling the vehicle
Opening the fuel tank cap
Closing the fuel tank cap

74
ES350_ES250_QG_OM06255U_(U)

What to do if...
75
ES350_ES250_QG_OM06255U_(U)
List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continu-
ing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Red)
(Canada)
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Low engine oil pressure warn-
ing light(U.S.A.)Malfunction
indicator lamp
Charging system warning light(Canada)
Have the vehicle inspected by your Lexus dealer immediately.
SRS warning light
(Flashes)
Brake hold operated indicator
(U.S.A.)
ABS warning light(Flashes)(U.S.A.)Parking brake
indicator
(Canada)
(Flashes)
(Canada)
(Red or yellow)
Electric power steering
system warning light
(Yellow)
Brake system warning light
(Flashes or
illuminates)PCS warning light
(Flashes)
RCTA OFF indicator
Slip indicator(Flashes or
illuminates)
RCD OFF indicator (if
equipped)
(Flashes)
Intuitive parking assist OFF
indicator (if equipped)
(Flashes)
PKSB OFF indicator (if
equipped)
For further information, refer to the “OWNER’S MANUAL”.

76
What to do if...
ES350_ES250_QG_OM06255U_(U)
Follow the correction procedures.
Inappropriate pedal
operation warning lightRear passengers’ seat belt
reminder lights
(Blinking and then
continu-
ously on)
Tire pressure warning lightMaster warning light
(Orange)
LTA indicator
Low fuel level warning light
(Illuminates without
blinking)
Tire pressure warning light*
Driver’s and front passenger’s
seat belt reminder light
Stop and check.
High coolant temperature
warning light
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
77
ES350_ES250_QG_OM06255U_(U)
See the “OWNER’S MANUAL”
Turn signal indicatorBSM outside rear view mirror
indicators
Headlight indicator (U.S.A.)BSM indicator
Tail light indicator (Canada)Intuitive parking assist OFF
indicator (if equipped)
Headlight high beam indicatorRCTA OFF indicator
Automatic High Beam
indicatorRCD OFF indicator (if
equipped)
Cruise control indicatorPKSB OFF indicator (if
equipped)
Dynamic radar cruise control
indicatorBrake hold standby indicator
Cruise control “SET” indicatorBrake hold operated
indicator
(White or green)LTA indicatorSmart access system with
push-button start indicator
(Flashes in orange)LTA indicatorLow outside temperature
indicator
(Flashes)
Slip indicatorEco Driving Indicator Light
VSC OFF indicator(U.S.A.)Parking brake
indicator
PCS warning light(Canada)
For further information, refer to the “OWNER’S MANUAL”.

78
What to do if...
ES350_ES250_QG_OM06255U_(U)
*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.
See the “OWNER’S MANUAL”
“PASSENGER AIR
BAG” indicator lights
ODrive mode indicators
Except F SPORT modelsF SPORT models
Eco drive mode indicatorCustom mode indicator
(if equipped)
Sport mode indicatorEco drive mode indicator
Sport mode indicator
(if equipped)
Sport S mode indicator
(if equipped)
Sport S+ mode indicator
(if equipped)
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
79
ES350_ES250_QG_OM06255U_(U)

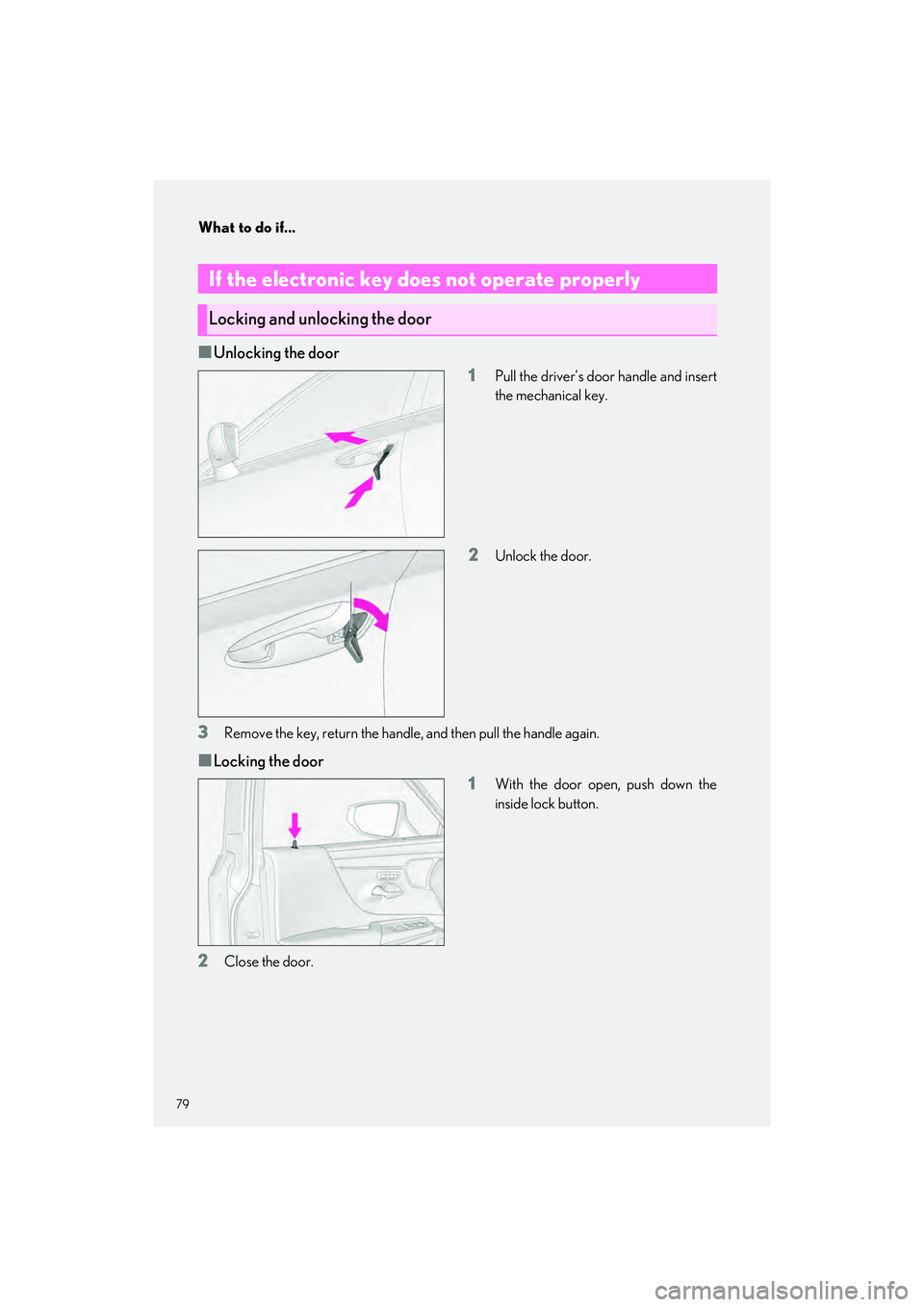

QUnlocking the door1
Pull the driver’s door handle and insert
the mechanical key.
2Unlock the door.
3Remove the key, return the handle, and then pull the handle again.
QLocking the door1
With the door open, push down the
inside lock button.
2Close the door.
If the electronic key does not operate properly
Locking and unlocking the door
