LEXUS ES350 2023 Workshop Manual

50
ES350_ES250_QG_OM06255U_(U)

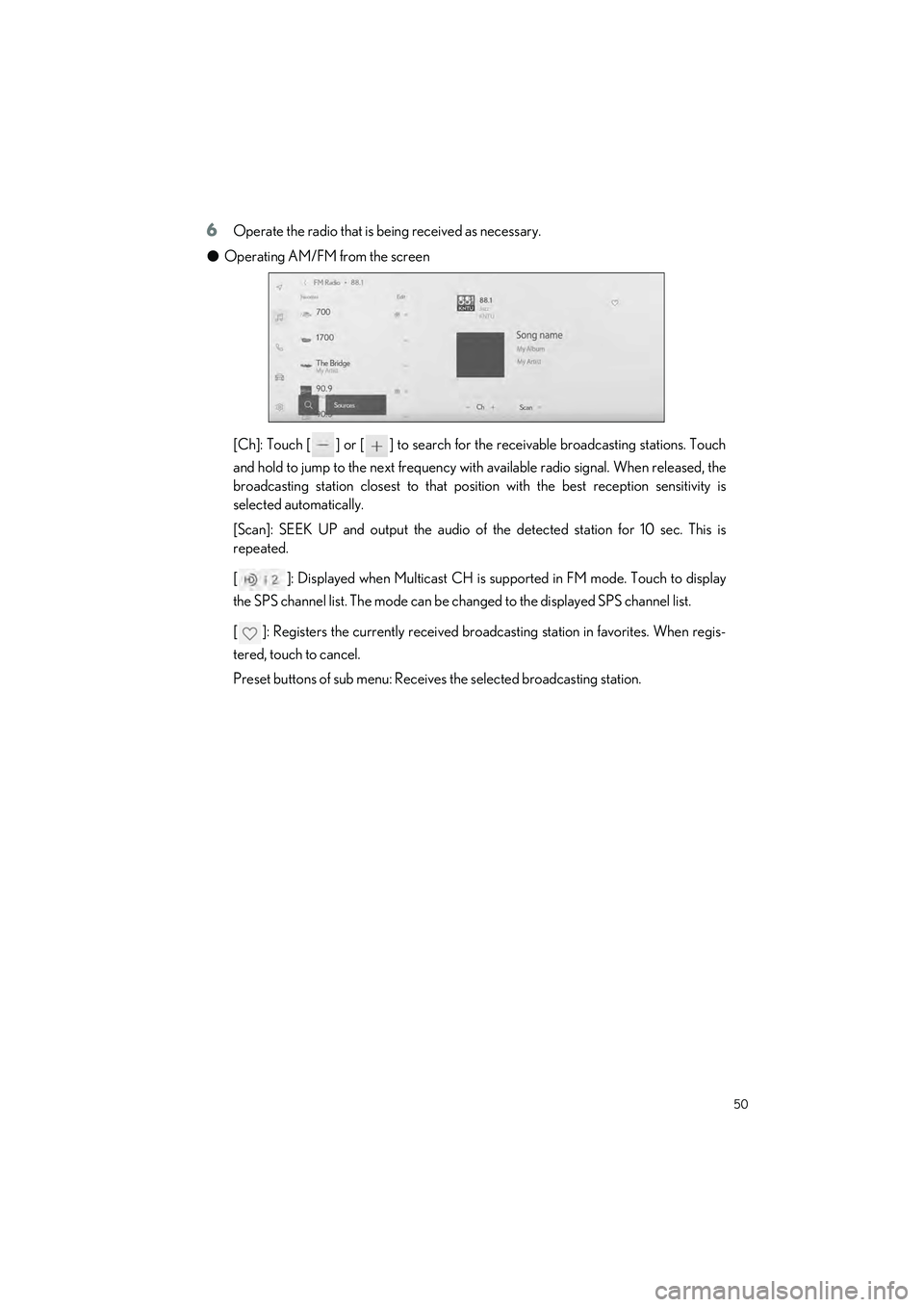

6Operate the radio that is being received as necessary.
O Operating AM/FM from the screen
[Ch]: Touch [ ] or [ ] to search for the receivable broadcasting stations. Touch
and hold to jump to the next frequency with available radio signal. When released, the
broadcasting station closest to that position with the best reception sensitivity is
selected automatically.
[Scan]: SEEK UP and output the audio of the detected station for 10 sec. This is
repeated.
[ ]: Displayed when Multicast CH is supported in FM mode. Touch to display
the SPS channel list. The mode can be changed to the displayed SPS channel list.
[ ]: Registers the currently received broadc asting station in favorites. When regis-
tered, touch to cancel.
Preset buttons of sub menu: Receives the selected broadcasting station.

51
ES350_ES250_QG_OM06255U_(U)

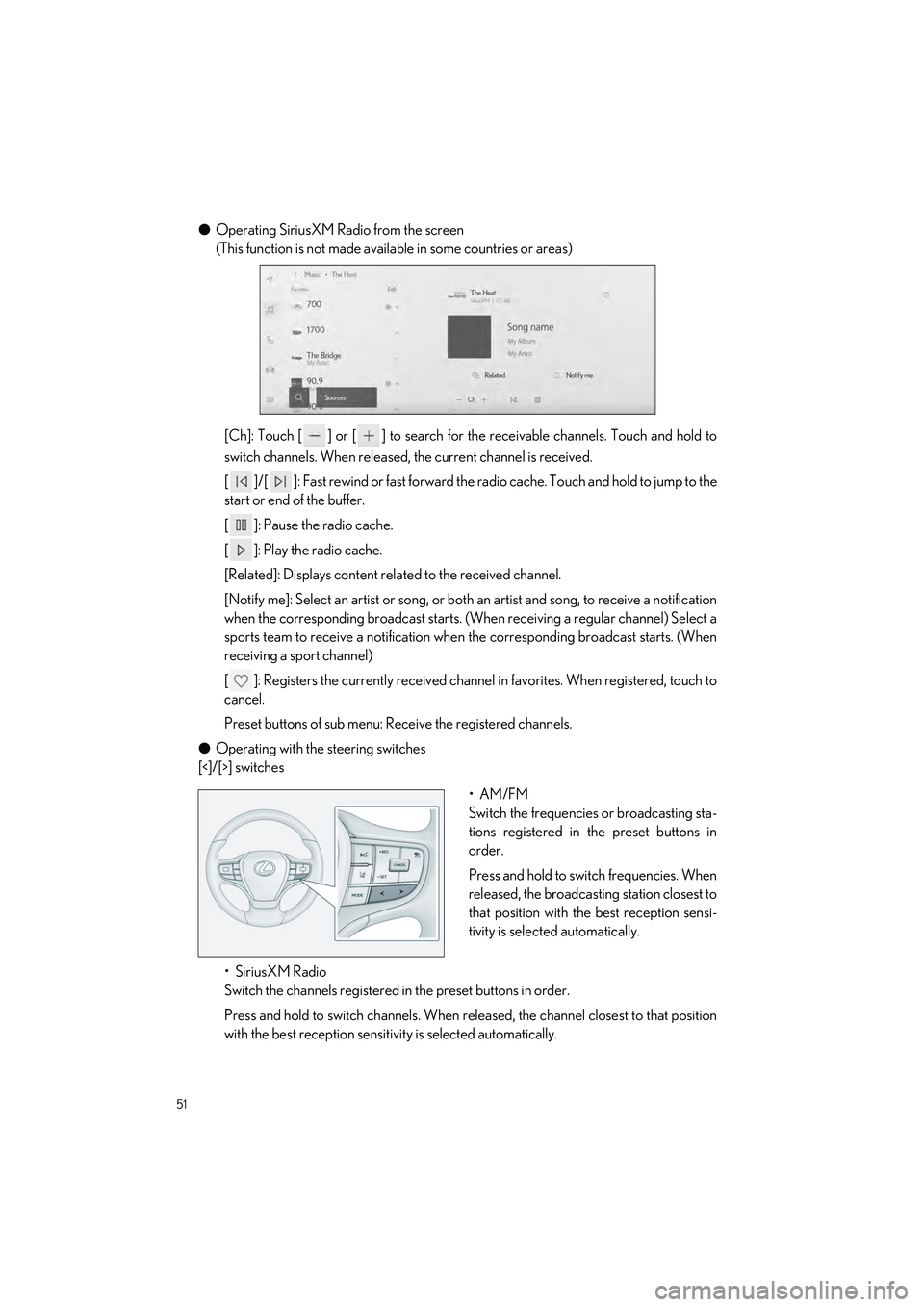

OOperating SiriusXM Radio from the screen
(This function is not made available in some countries or areas)
[Ch]: Touch [ ] or [ ] to search for the receivable channels. Touch and hold to
switch channels. When released, the current channel is received.
[ ]/[ ]: Fast rewind or fast forward the radio cache. Touch and hold to jump to the
start or end of the buffer.
[ ]: Pause the radio cache.
[ ]: Play the radio cache.
[Related]: Displays content related to the received channel.
[Notify me]: Select an artist or song, or both an artist and song, to receive a notification
when the corresponding broadcast starts. (When receiving a regular channel) Select a
sports team to receive a notification when the corresponding broadcast starts. (When
receiving a sport channel)
[ ]: Registers the currently received channe l in favorites. When registered, touch to
cancel.
Preset buttons of sub menu: Receive the registered channels.
O Operating with the steering switches
[<]/[>] switches
•AM/FM
Switch the frequencies or broadcasting sta-
tions registered in the preset buttons in
order.
Press and hold to switch frequencies. When
released, the broadcasting station closest to
that position with the best reception sensi-
tivity is selected automatically.
• SiriusXM Radio
Switch the channels registered in the preset buttons in order.
Press and hold to switch channels. When released, the channel closest to that position
with the best reception sensitivity is selected automatically.

52
ES350_ES250_QG_OM06255U_(U)

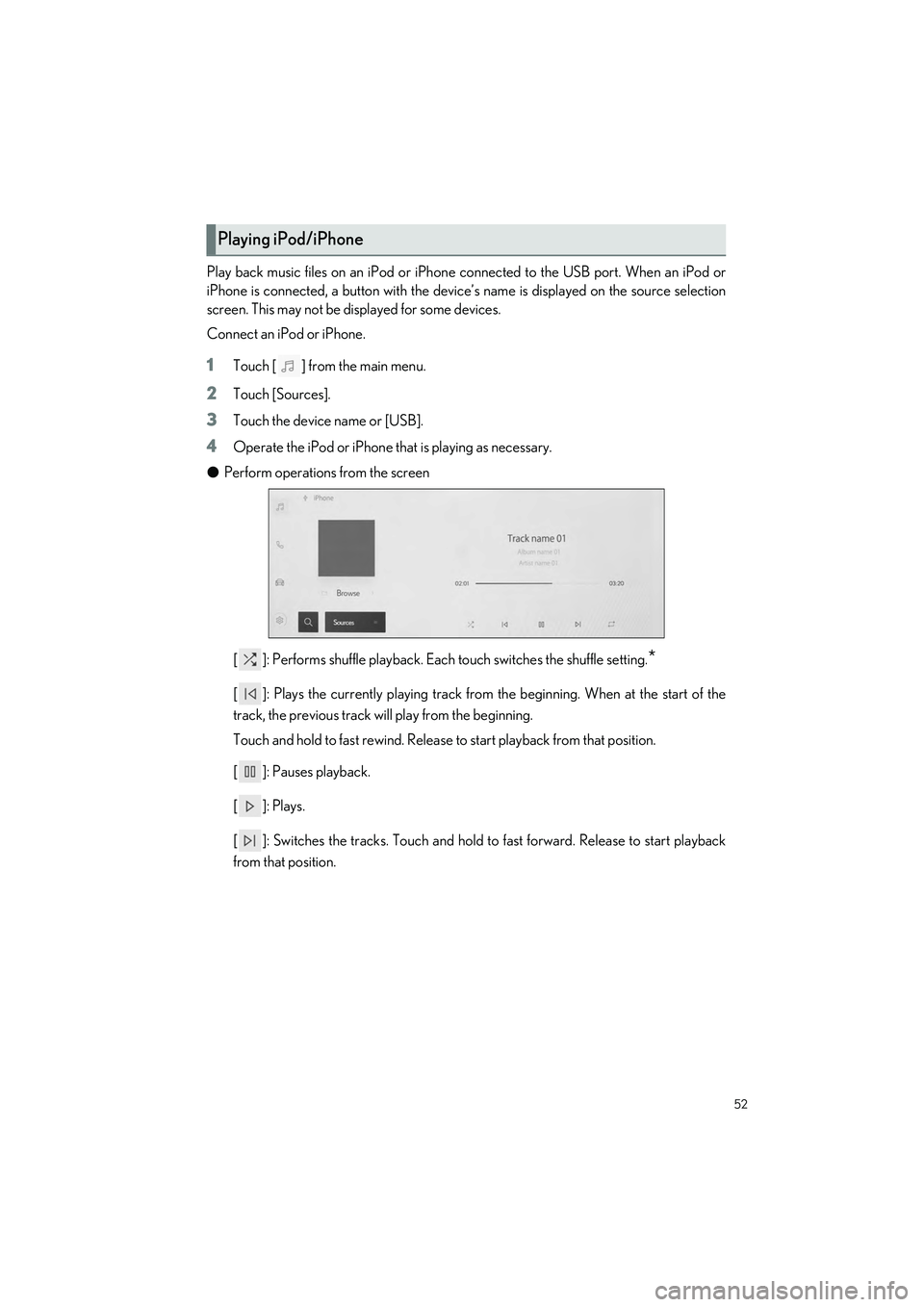

Play back music files on an iPod or iPhone connected to the USB port. When an iPod or
iPhone is connected, a button with the device’s name is displayed on the source selection
screen. This may not be displayed for some devices.
Connect an iPod or iPhone.
1Touch [ ] from the main menu.
2Touch [Sources].
3Touch the device name or [USB].
4Operate the iPod or iPhone that is playing as necessary.
O Perform operations from the screen
[ ]: Performs shuffle playback. Each touch switches the shuffle setting.
*
[ ]: Plays the currently playing track from the beginning. When at the start of the
track, the previous track will play from the beginning.
Touch and hold to fast rewind. Release to start playback from that position.
[ ]: Pauses playback.
[]: Plays.
[ ]: Switches the tracks. Touch and hold to fast forward. Release to start playback
from that position.
Playing iPod/iPhone

53
ES350_ES250_QG_OM06255U_(U)

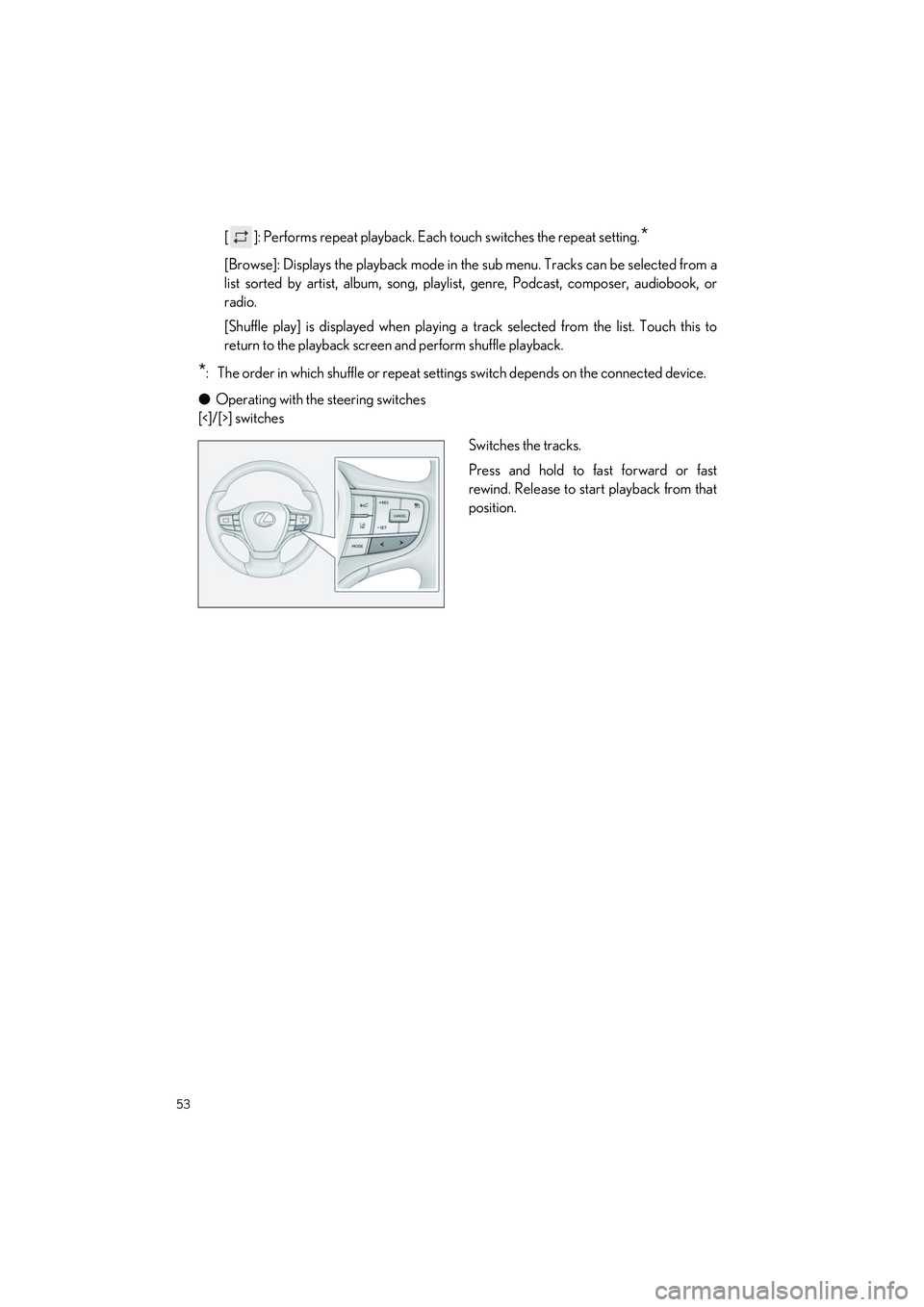

[ ]: Performs repeat playback. Each touch switches the repeat setting.*
[Browse]: Displays the playback mode in the sub menu. Tracks can be selected from a
list sorted by artist, album, song, playlis t, genre, Podcast, composer, audiobook, or
radio.
[Shuffle play] is displayed when playing a track selected from the list. Touch this to
return to the playback screen and perform shuffle playback.
*: The order in which shuffle or repeat setti ngs switch depends on the connected device.
O Operating with the steering switches
[<]/[>] switches
Switches the tracks.
Press and hold to fast forward or fast
rewind. Release to start playback from that
position.

54
ES350_ES250_QG_OM06255U_(U)
Lexus Climate Concierge can be operated using the air conditioning control screen on the
Center Display (P.56).
1Select in the main menu on the Center Display.
2Select “Climate”.
3Select “Front”.
4Select “Climate concierge”.
The indicator on the air conditioning control screen illuminates, and the automatic air condi-
tioning system, seat heaters and ventilators, and heated steering wheel operate in automatic
mode.
If any of the system is operated manually, the indicator turns off. However, all other functions
continue to operate in automatic mode.
Lexus Climate Concierge
The seat heaters (if equipped), seat ventilators (if equipped) and heated steering wheel (if
equipped) are each automatically controlled acc ording to the set temperature of the air
conditioning system, the outside and cabin temperature, etc. Lexus Climate Concierge
allows a comfortable condition to be maintained without adjusting each system.
Displaying the Lexus Climate Concierge
Turning on Lexus Climate Concierge

55
ES350_ES250_QG_OM06255U_(U)
QControl panel
Left-hand side temperature control switch
Automatic mode switch
Off switch
Fan speed decrease switch
Fan speed increase switch
Airflow mode control switch
Windshield defogger switch
Rear window and outside rear view mirror defoggers switch
Outside/recirculated air mode switch
Right-hand side temperature control switch
QAdjusting the temperature
Operate the temperature control switch upwards to increase the temperature and down-
wards to decrease the temperature.
If the “A/C” indicator is turned off, the system will blow ambient temperature air or heated air.
QSetting the fan speed
Operate the fan speed increase switch to increase the fan speed and the fan speed
decrease switch to decrease the fan speed.
Press the off switch to turn the fan off.
QChanging the air flow mode
 P.56
Automatic Air Conditioning System
The air conditioning system can be operated using the air conditioning control panel and
air conditioning control screen on the Center Display ( P.56).
Air conditioning controls
A
B
C
D
E
F
G
H
I
J

56
ES350_ES250_QG_OM06255U_(U)

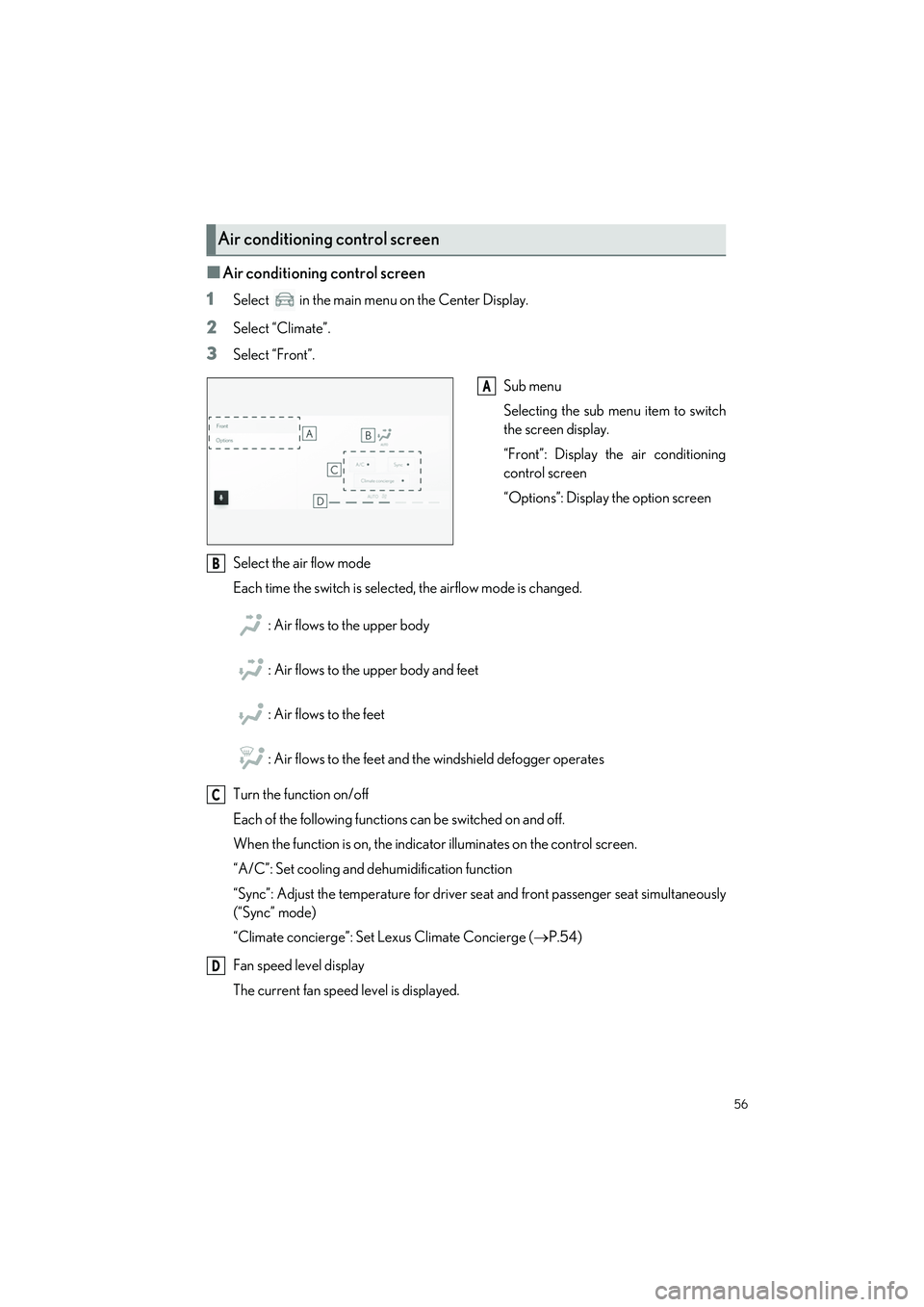

QAir conditioning control screen
1
Select in the main menu on the Center Display.
2Select “Climate”.
3Select “Front”.
Sub menu
Selecting the sub menu item to switch
the screen display.
“Front”: Display the air conditioning
control screen
“Options”: Display the option screen
Select the air flow mode
Each time the switch is selected, the airflow mode is changed. : Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates
Turn the function on/off
Each of the following functions can be switched on and off.
When the function is on, the indicat or illuminates on the control screen.
“A/C”: Set cooling and dehumidification function
“Sync”: Adjust the temperature for driver se at and front passenger seat simultaneously
(“Sync” mode)
“Climate concierge”: Set Lexus Climate Concierge ( P.54)
Fan speed level display
The current fan speed level is displayed.
Air conditioning control screen
A
B
C
D

57
ES350_ES250_QG_OM06255U_(U)

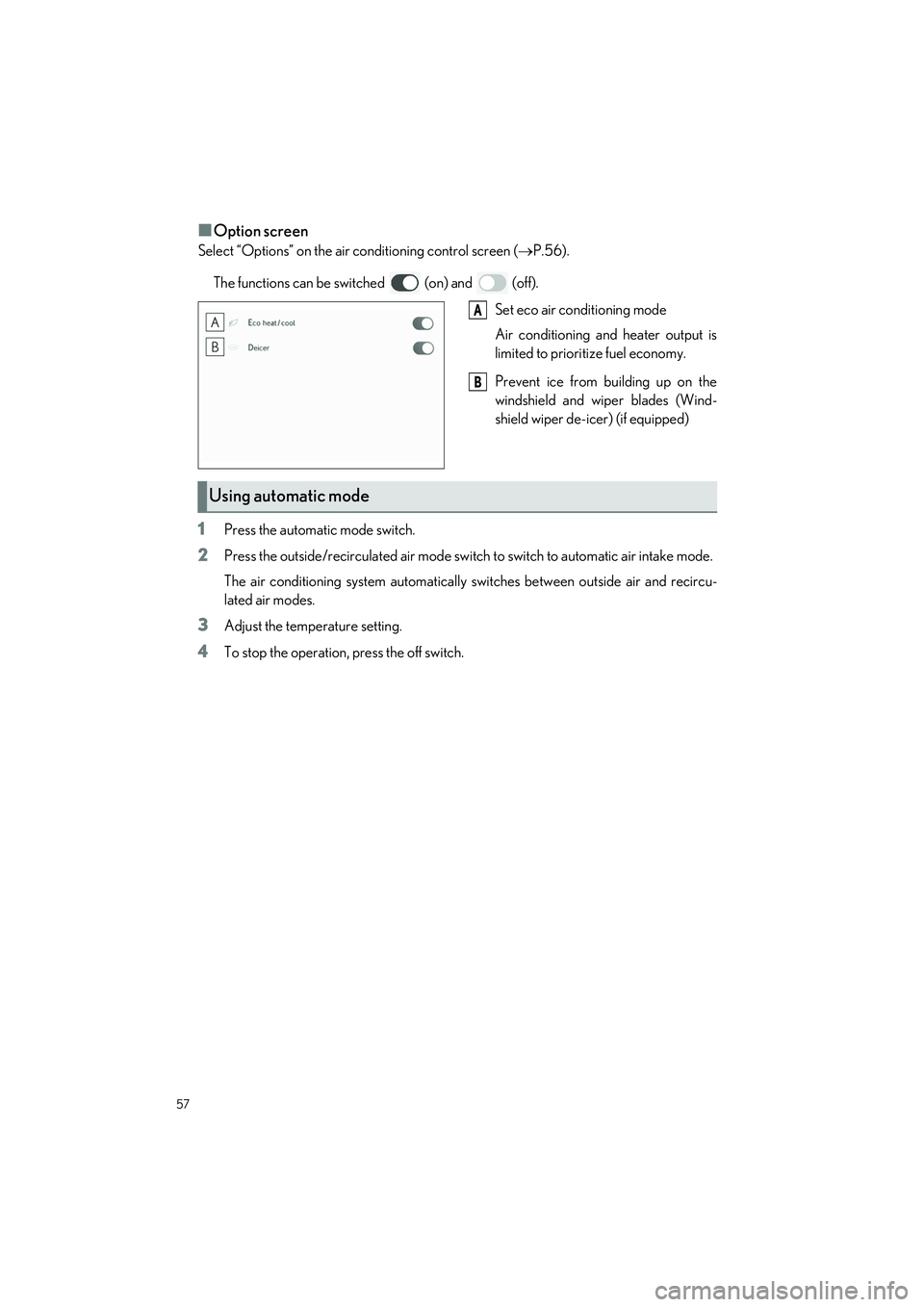

QOption screen
Select “Options” on the air conditioning control screen (P.56).
The functions can be switched (on) and (off). Set eco air conditioning mode
Air conditioning and heater output is
limited to prioritize fuel economy.
Prevent ice from building up on the
windshield and wiper blades (Wind-
shield wiper de-icer) (if equipped)
1Press the automatic mode switch.
2Press the outside/recirculated air mode switch to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air and recircu-
lated air modes.
3Adjust the temperature setting.
4To stop the operation, press the off switch.
A
B
Using automatic mode

58
ES350_ES250_QG_OM06255U_(U)

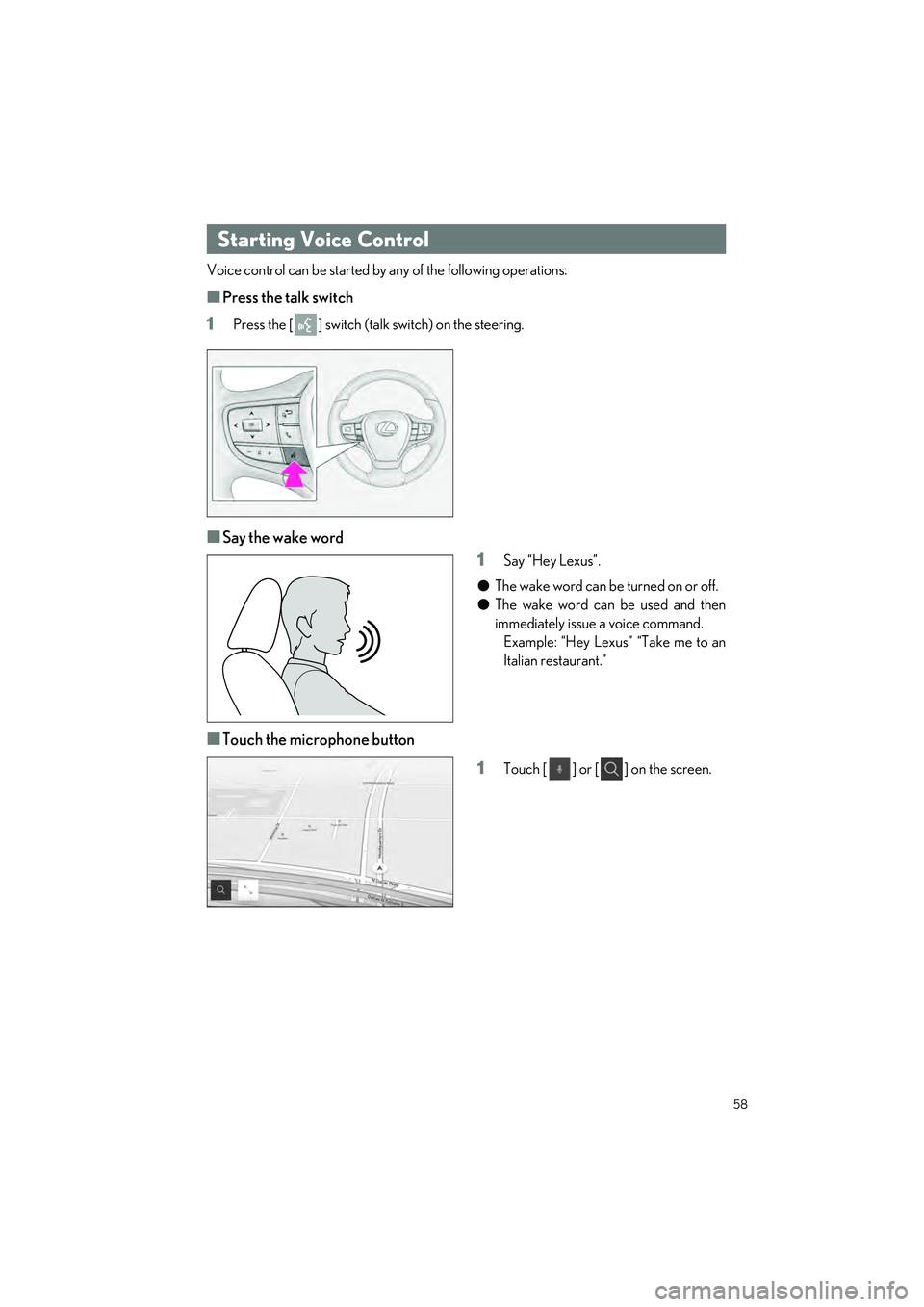

Voice control can be started by any of the following operations:
QPress the talk switch
1
Press the [ ] switch (tal k switch) on the steering.
QSay the wake word
1
Say “Hey Lexus”.
O The wake word can be turned on or off.
O The wake word can be used and then
immediately issue a voice command.
Example: “Hey Lexus” “Take me to an
Italian restaurant.”
QTouch the microphone button
1
Touch [ ] or [ ] on the screen.
Starting Voice Control

59
ES350_ES250_QG_OM06255U_(U)
The following tables list frequently used commands for each function category.
OThe functions available may vary according to the system installed.
O Items with subscription will require Intelligent Assistant functionality.
QCommon
QNavigation
Intelligent Assistant system enables navigation voice search. This allows you with variety of
features such as searching a point of interest (P OI), navigate to an address as well as discov-
ering new POIs.
Function list
ActionExample voice commandSubscription
Shows list of general commands“Help”No
Stops the current con-versation and re-starts
at the beginning“Start over”No
Cancels the voice con- trol system“Cancel”No
FunctionExample voice commandSubscription
Destination search
“Take me to ”
“Take me to ”“Take me to
