Lexus GS F 2015 Owner's Manuals
Manufacturer: LEXUS, Model Year: 2015, Model line: GS F, Model: Lexus GS F 2015Pages: 668, PDF Size: 177.56 MB
Page 641 of 668

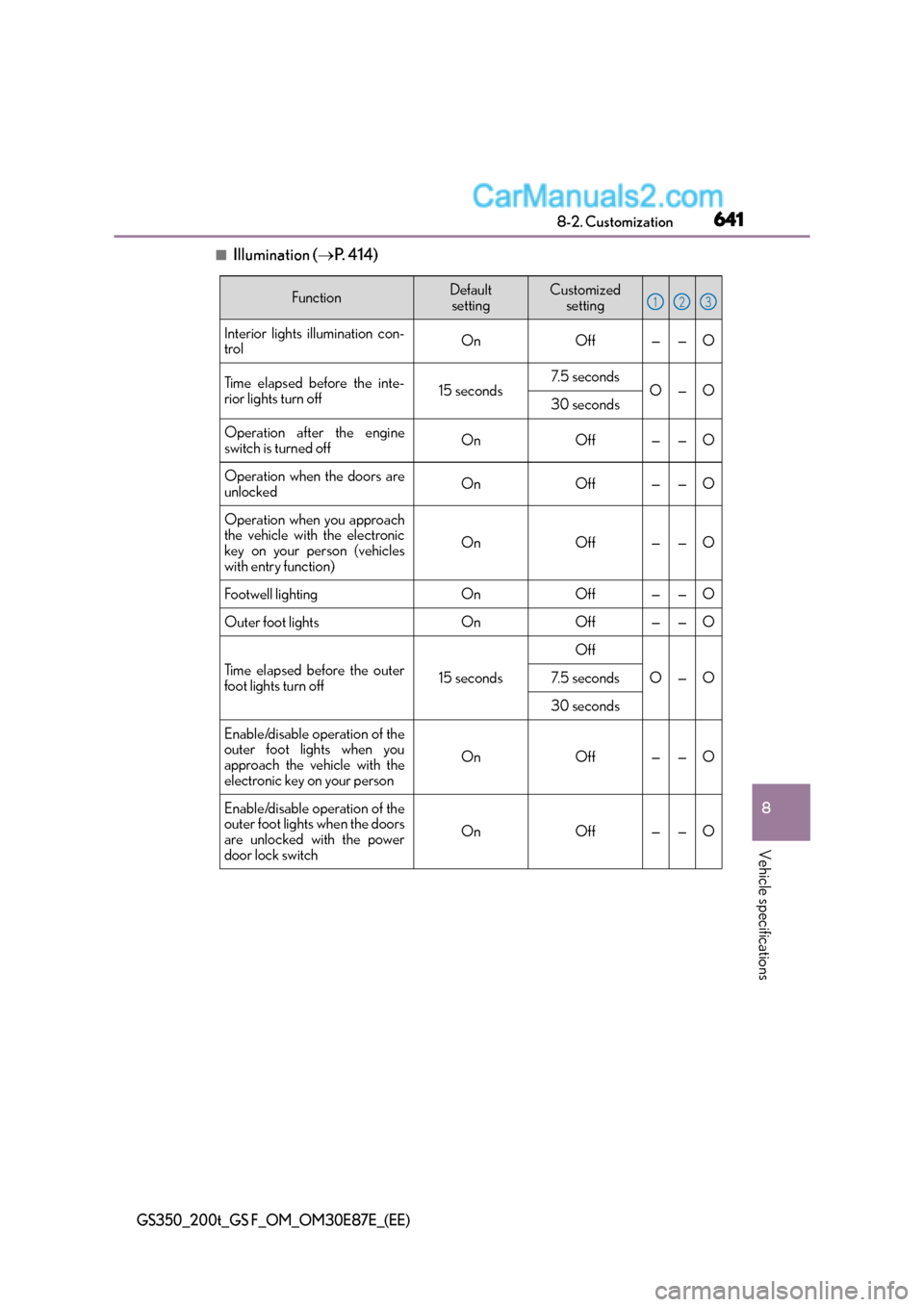

641
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
■Illumination (
→P. 4 1 4 )
FunctionDefault
settingCustomized setting
Interior lights illumination con-
trolOnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds7. 5 s e c o n d sO—O30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person (vehicles
with entry function)
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Enable/disable operation of the
outer foot lights when you
approach the vehicle with the
electronic key on your person
OnOff——O
Enable/disable operation of the
outer foot lights when the doors
are unlocked with the power
door lock switch
OnOff——O
123
Page 642 of 668

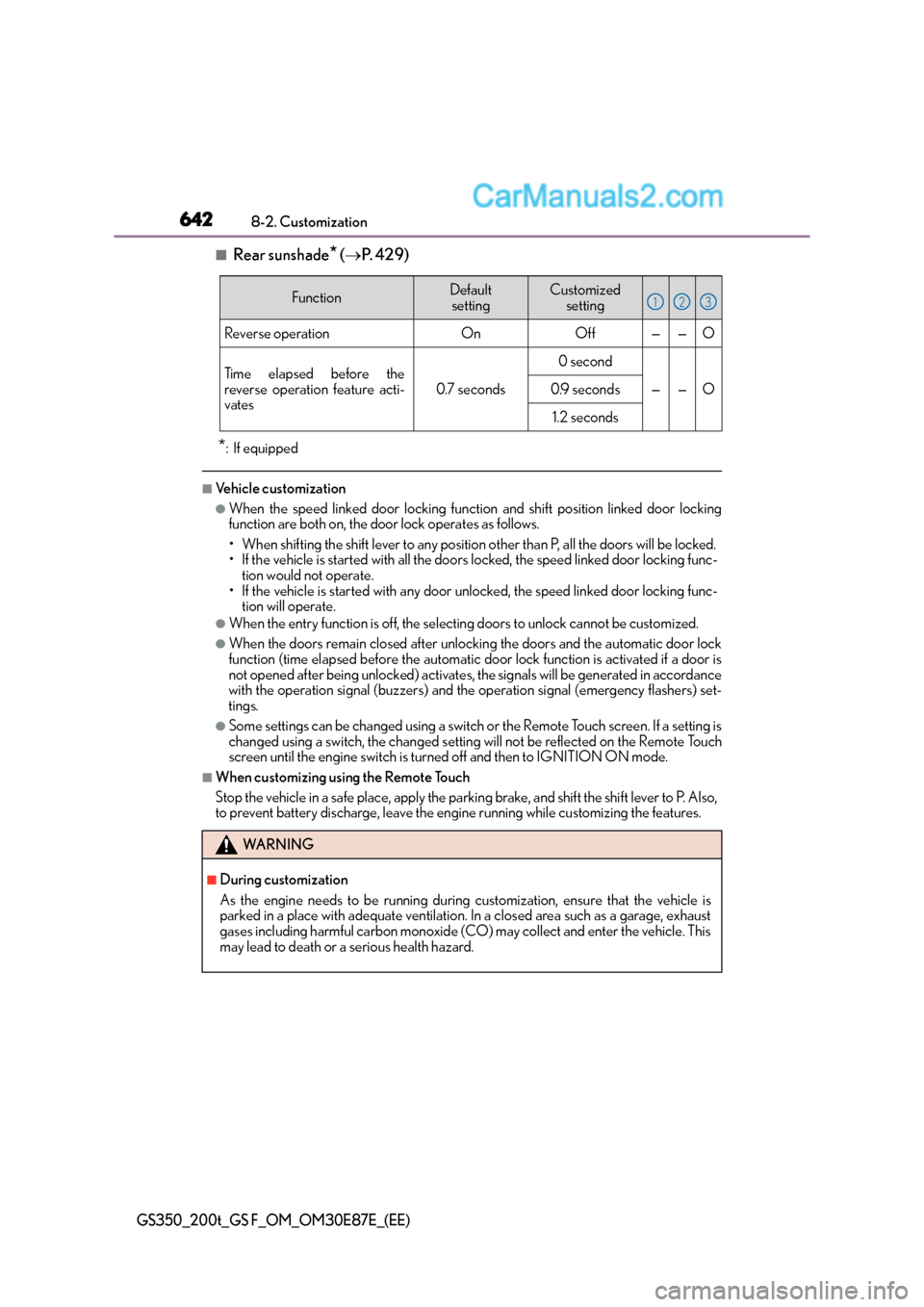

6428-2. Customization
GS350_200t_GS F_OM_OM30E87E_(EE)
■Rear sunshade* (→ P. 4 2 9 )
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
• If the vehicle is started with all the door s locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door unlocked, the speed linked door locking func- tion will operate.
●When the entry function is off, the select ing doors to unlock cannot be customized.
●When the doors remain closed after unlocking the doors and the automatic door lock
function (time elapsed before the automatic d oor lock function is activated if a door is
not opened after being unlock ed) activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency flashers) set-
tings.
●Some settings can be changed using a switch or the Remote Touch screen. If a setting is
changed using a switch , the changed setting will not be reflected on the Remote Touch
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
FunctionDefault
settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the
reverse operation feature acti-
vates
0.7 seconds
0 second
——O0.9 seconds
1.2 seconds
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
123
Page 643 of 668

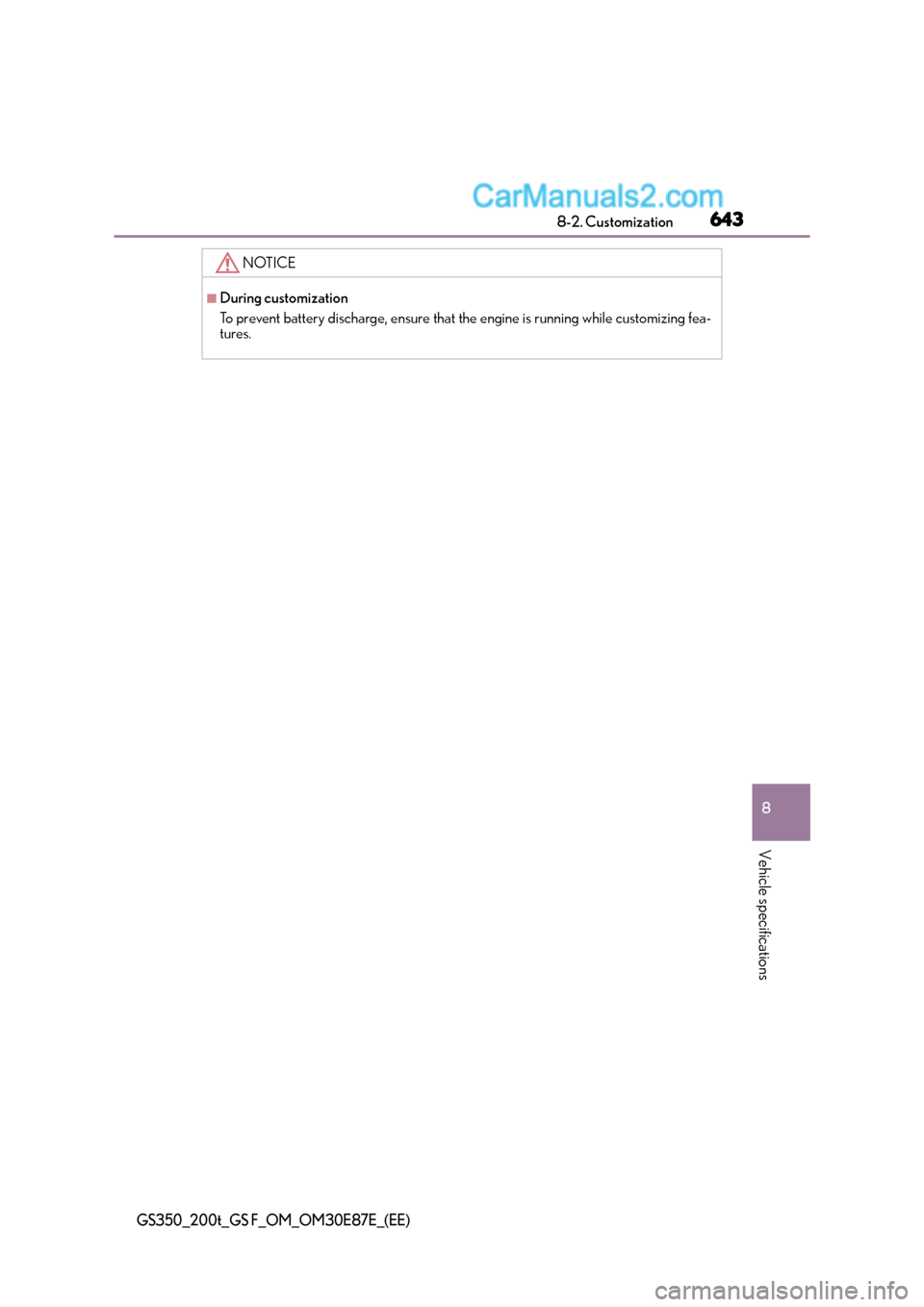

643
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
NOTICE
■During customization
To prevent battery discharge, ensure that
the engine is running while customizing fea-
tures.
Page 644 of 668

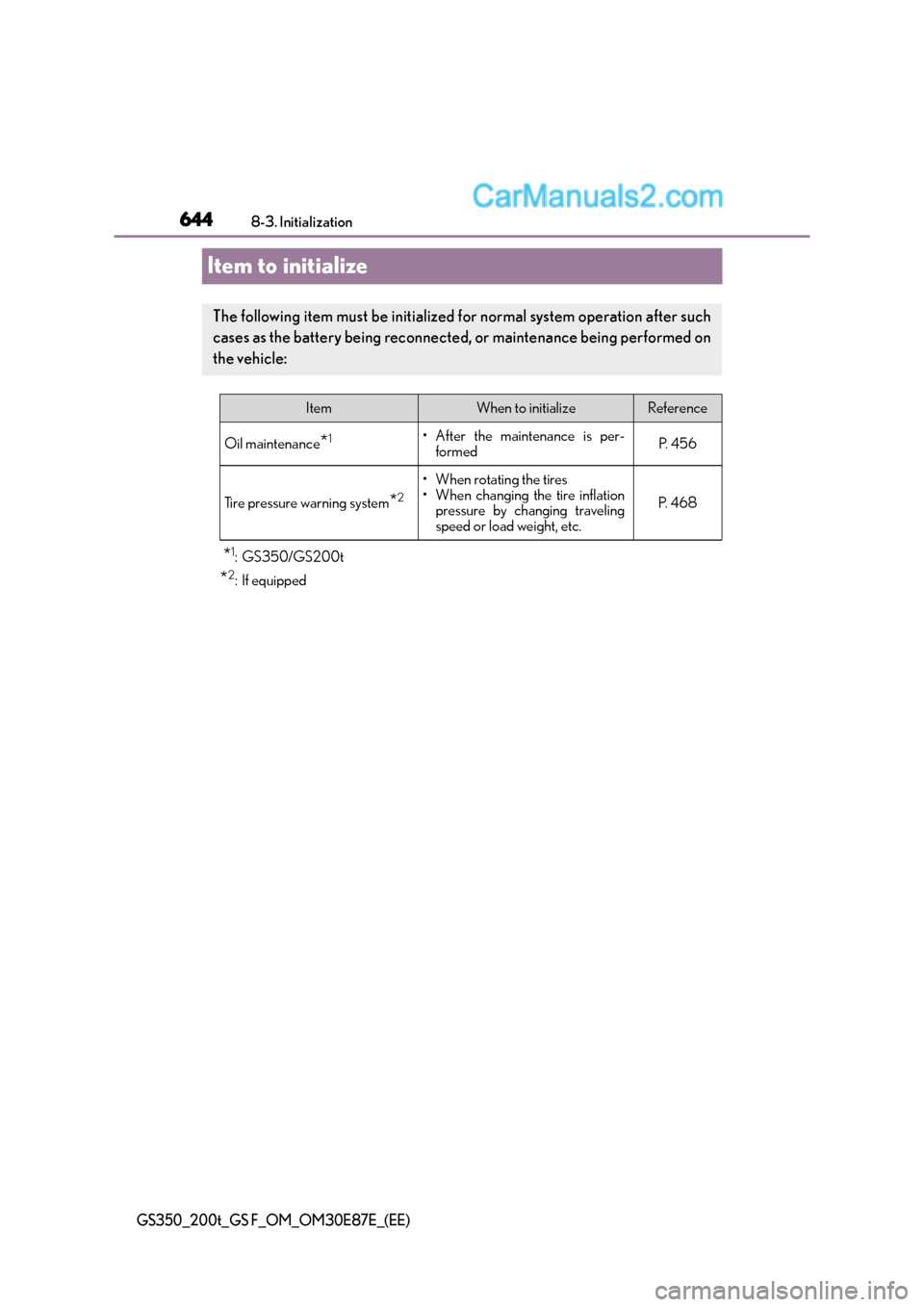

6448-3. Initialization
GS350_200t_GS F_OM_OM30E87E_(EE)
Item to initialize
*1: GS350/GS200t
*2:If equipped
The following item must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Oil maintenance*1• After the maintenance is per-formedP. 4 5 6
Tire pressure warning system*2
• When rotating the tires
• When changing the tire inflationpressure by changing traveling
speed or load weight, etc.
P. 4 6 8
Page 645 of 668
645
Index
GS350_200t_GS F_OM_OM30E87E_(EE)
What to do if... (Troubleshooting)................................ 646
Alphabetical index.................................650
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”
• Audio system
•Navigation system
• Lexus parking assist-sensor
• Lexus parking assist monitor
Page 646 of 668

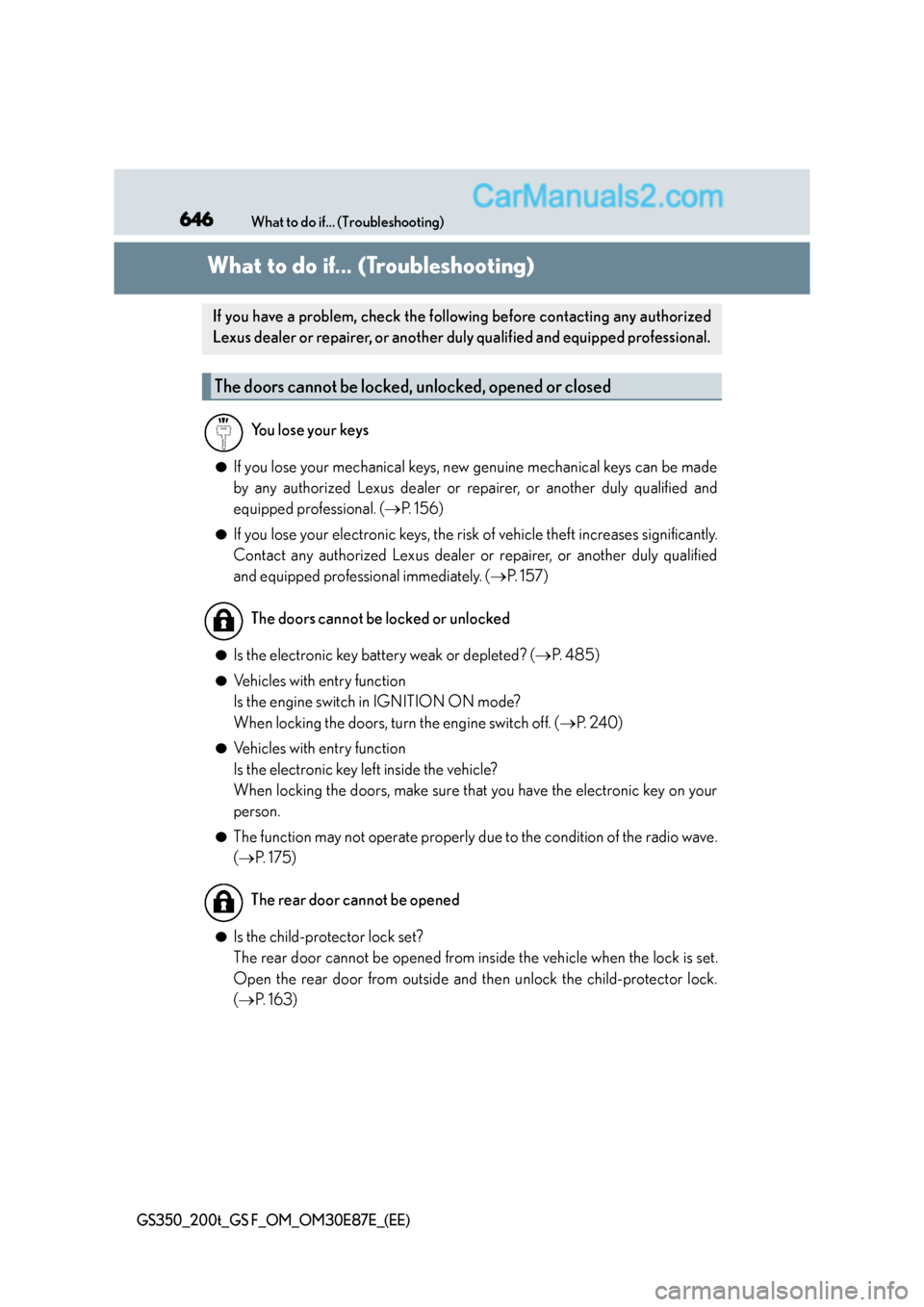

646What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E87E_(EE)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. (→P. 1 5 6 )
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. ( →P. 1 5 7 )
●Is the electronic key battery weak or depleted? ( →P. 4 8 5 )
●Vehicles with entry function
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 2 4 0 )
●Vehicles with entry function
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
(→ P. 1 7 5 )
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( → P. 1 6 3 )
If you have a problem, check the foll owing before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
Page 647 of 668

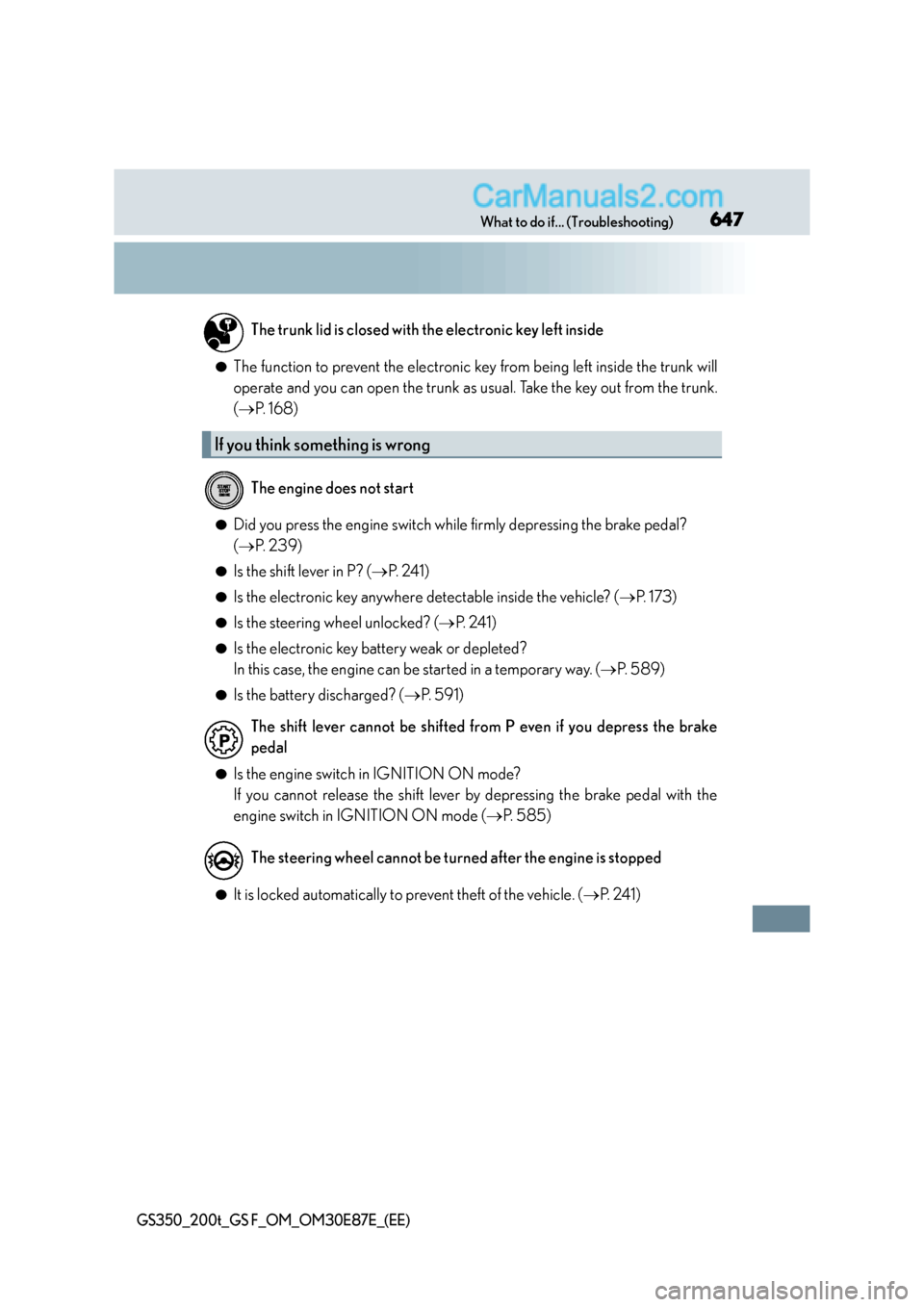

647What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E87E_(EE)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk.
(→ P. 1 6 8 )
●Did you press the engine switch while firmly depressing the brake pedal?
(→ P. 2 3 9 )
●Is the shift lever in P? ( →P. 2 4 1 )
●Is the electronic key anywhere detectable inside the vehicle? ( →P. 1 7 3 )
●Is the steering wheel unlocked? ( →P. 2 4 1 )
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( →P. 5 8 9 )
●Is the battery discharged? ( →P. 5 9 1 )
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( →P. 585)
●It is locked automatically to prevent theft of the vehicle. ( →P. 2 4 1 )
The trunk lid is closed with the electronic key left inside
If you think som
ething is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
Page 648 of 668
648What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E87E_(EE)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. (→P. 2 1 3 )
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 2 4 1 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 5 1 4 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 5 4 )
Depending on the situation, other types of warning buzzer may also sound.
( → P. 5 1 2 , 5 1 8 )
●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( →P. 9 2 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle or the moon roof opened (if
equipped)?
Check the message on the multi-information display. ( →P. 5 1 8 )
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th
e horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with entry function)
Page 649 of 668

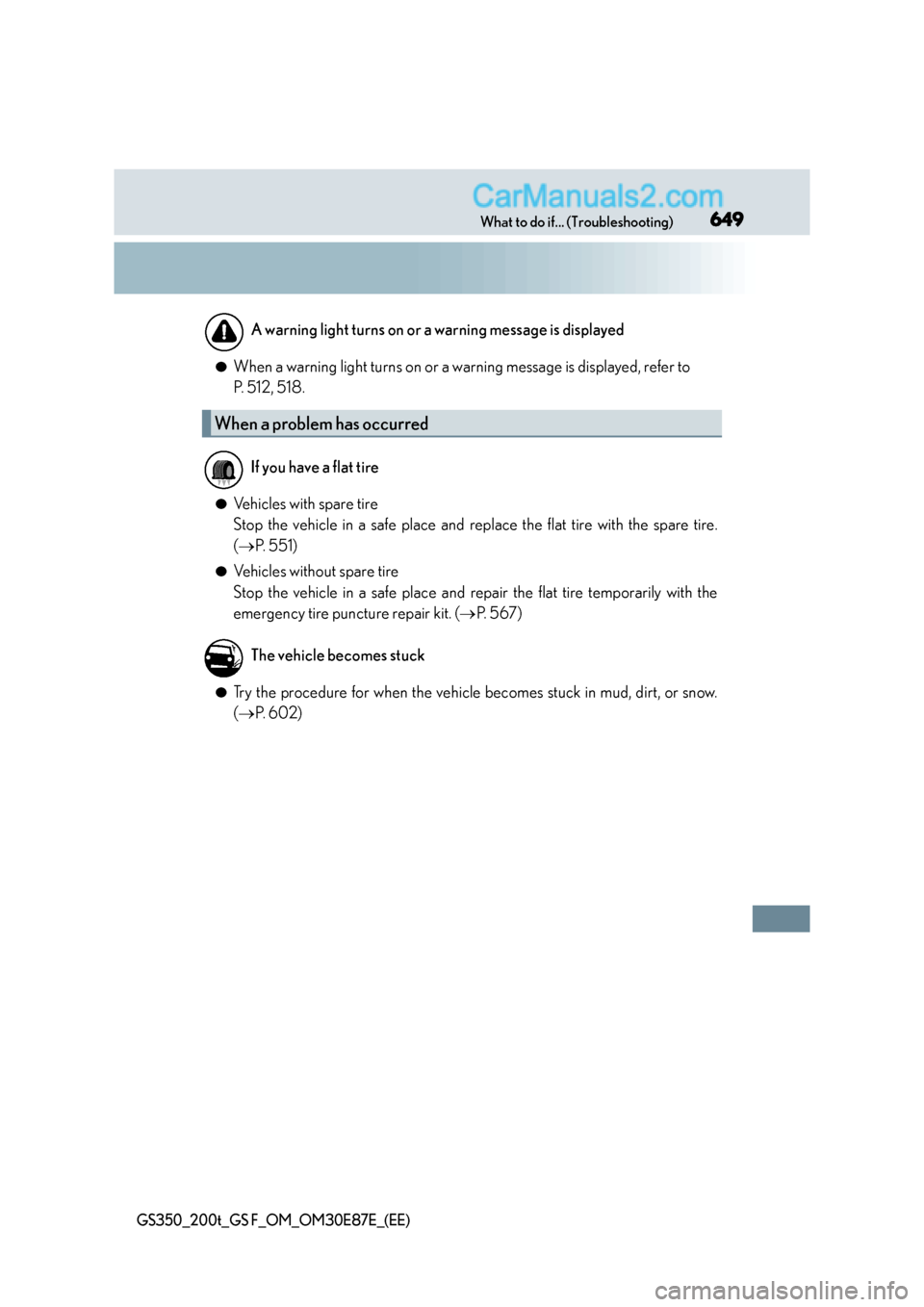

649What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E87E_(EE)
●When a warning light turns on or a warning message is displayed, refer to
P. 5 1 2 , 5 1 8 .
●Vehicles with spare tire
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( → P. 5 5 1 )
●Vehicles without spare tire
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( →P. 5 6 7 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(→ P. 6 0 2 )
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
Page 650 of 668

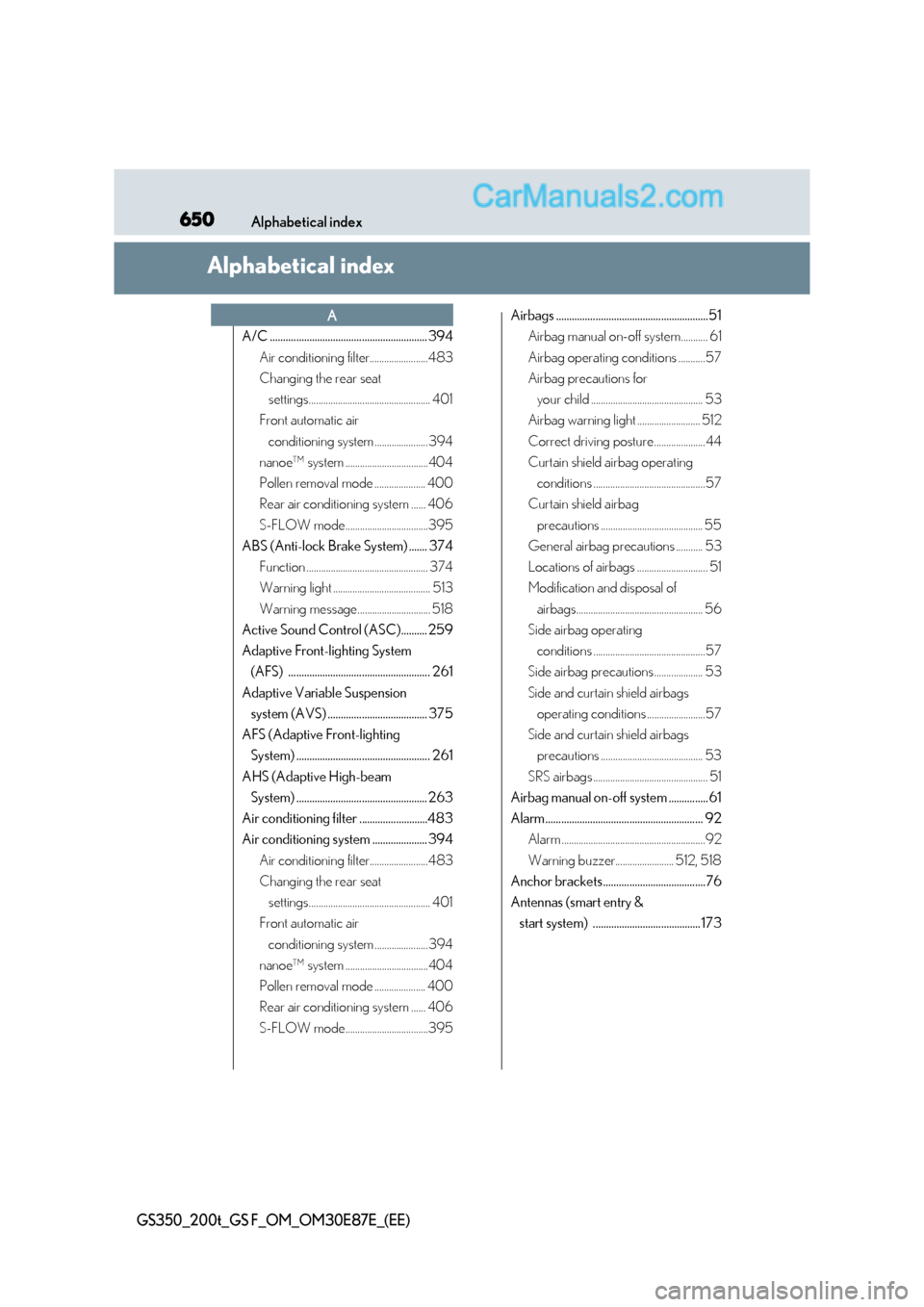

650Alphabetical index
GS350_200t_GS F_OM_OM30E87E_(EE)
Alphabetical index
A/C ............................................................ 394Air conditioning filter........................483
Changing the rear seat settings.................................................. 401
Front automatic air
conditioning system ...................... 394
nanoe™ system ..................................404
Pollen removal mode ..................... 400
Rear air conditioning system ...... 406
S-FLOW mode..................................395
ABS (Anti-lock Brake System) ....... 374
Function .................................................. 374
Warning light ........................................ 513
Warning message.............................. 518
Active Sound Control (ASC).......... 259
Adaptive Front-lighting System (AFS) ...................................................... 261
Adaptive Variable Suspension system (AVS) ...................................... 375
AFS (Adaptive Front-lighting System) ................................................... 261
AHS (Adaptive High-beam System) .................................................. 263
Air conditioning filter ..........................483
Air conditioning system ..................... 394 Air conditioning filter........................483
Changing the rear seat settings.................................................. 401
Front automatic air
conditioning system ...................... 394
nanoe™ system ..................................404
Pollen removal mode ..................... 400
Rear air conditioning system ...... 406
S-FLOW mode..................................395 Airbags ..........................................................51
Airbag manual on-off system........... 61
Airbag operating conditions ...........57
Airbag precautions for
your child .............................................. 53
Airbag warning light .......................... 512
Correct driving posture.....................44
Curtain shield airbag operating
conditions ..............................................57
Curtain shield airbag
precautions .......................................... 55
General airbag precautions ........... 53
Locations of airbags ............................. 51
Modification and disposal of
airbags.................................................... 56
Side airbag operating
conditions ..............................................57
Side airbag precautions .................... 53
Side and curtain shield airbags operating conditions ........................57
Side and curtain shield airbags precautions .......................................... 53
SRS airbags ............................................... 51
Airbag manual on-off system ............... 61
Alarm............................................................ 92 Alarm ...........................................................92
Warning buzzer........................ 512, 518
Anchor brackets .......................................76
Antennas (smart entry & start system) .........................................173
A
