Lexus GS F 2016 Navigation Manual

179
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
AUDIO/VISUAL SYSTEM
4
■CONTROL PANEL
No.Function
Select to display th e menu control key.
Full screen/Expand:
•Select to display full screen video. (8-inch display)
• Select to display expanded screen video. (12.3-inch display)
•Select to select a chapter.
• During playback: Select and hold to fast forward.
• During a pause: Select and hold to slow forward.
Select to play/pause.
Select to stop the video screen.
•Select to select a chapter.
• Select and hold to rewind.
Select to display the option screen. ( →P.181)
Select to display the menu screen.
Select to display the password input screen.
Press to play/pause.

180
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
Turn to select a chapter.
•Press to select a chapter.
• Press and hold to fast forward/rewind.
WA R N I N G
● Conversational speech on some DVDs is recorded at a low volume to emphasize the
impact of sound effects. If you adjust the volume assuming that the conversations represent
the maximum volume level that the DVD will play, you may be startled by louder sound
effects or when you change to a different audio source. The louder sounds may have a sig-
nificant impact on the human body or pose a driving hazard. Keep this in mind when you
adjust the volume.
INFORMATION
● According to the DVD disc, some menu items ca n be selected directly. (For details, see the
manual that comes with the DVD disc provided separately.)
● If appears on the screen when a control is selected, the operation relevant to the control
is not permitted.
No.Function

181
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
AUDIO/VISUAL SYSTEM
4
1Select “Options” .
2The following screen is displayed.
1Select “Search”.
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ” .
2Each time “Change” is selected, the au-
dio language is changed.
z The languages available are restricted to
those available on the DVD disc.
DVD OPTIONS
No.FunctionPage
Select to display the title
search screen.181
Select to display the prede-
termined scene on the
screen and start playing.
Select to display the audio
selection screen.181
Select to display the subtitle
selection screen.182
Select to display the angle
selection screen.182
Select to change the screen
size.154
Select to display the image
quality adjustment screen.155
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE

182
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select “Subtitle” .
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
z The languages available are restricted to
those available on the DVD disc.
z When “Hide” is selected, the subtitles can
be hidden.
1Select “A n g l e ” .
2Each time “Change” is selected, the an-
gle is changed.
z The angles available are restricted to those
available on the DVD disc.
CHANGING THE SUBTITLE
LANGUAGE
CHANGING THE ANGLE
The angle can be selected for discs that
are multi-angle compatible when the an-
gle mark appears on the screen.

183
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
AUDIO/VISUAL SYSTEM
4
3. USB MEMORY
■CONTROL SCREEN
■ CONTROL PANEL
OVERVIEW
The USB memory operation screen can be reached by the following methods:
→ P.149
XConnecting a USB memory ( →P.151)

184
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
No.Function
•Displays cover art
• Select to display a file/track list.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to set random playback. ( →P.186)
Select to set repeat playback. (→ P.186)
•Select to select a file/track.
• Select and hold to fast forward.
Select to play/pause.
•Select to select a file/track.
• Select and hold to rewind.
Select to select a folder/album.
Press to play/pause.
•Turn to select a file/track.
• Turn to move up/down the list.
•Press to select a file/track.
• Press and hold to fast forward/rewind.

185
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
AUDIO/VISUAL SYSTEM
4
WA R N I N G
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Depending on the size and shape of the USB memory that is connected to the system, the
armrest may not close fully. In this case, do not forcibly close the armrest as this may dam-
age the USB memory or the terminal, etc.
● Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
● If tag information exists, the file/folder names will be changed to track/album names.

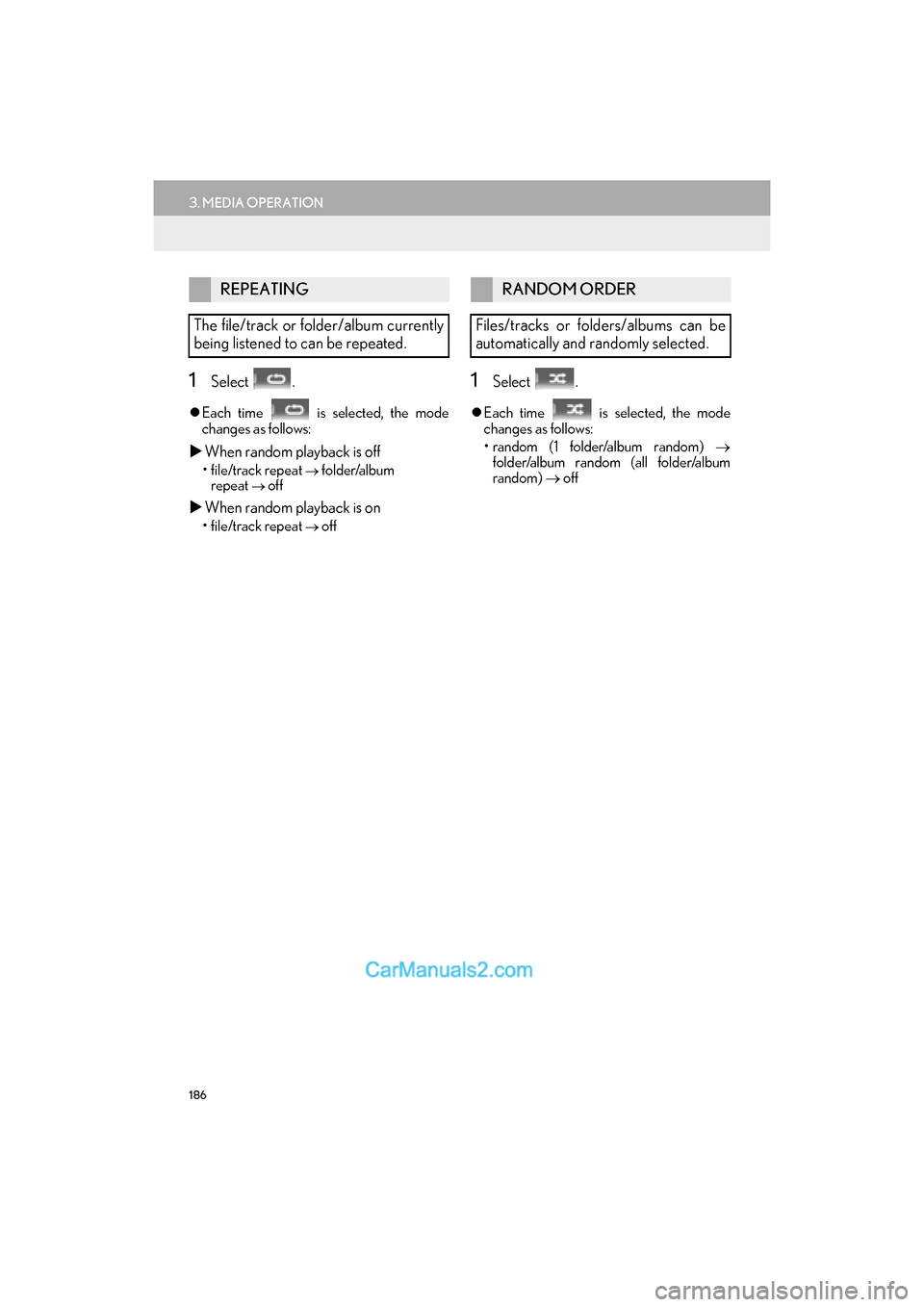

186
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select .
zEach time is selected, the mode
changes as follows:
X When random playback is off
• file/track repeat → folder/album
repeat → off
X When random playback is on
• file/track repeat → off
1Select .
zEach time is selected, the mode
changes as follows:
• random (1 folder/album random) →
folder/album random (all folder/album
random) → off
REPEATING
The file/track or folder/album currently
being listened to can be repeated.RANDOM ORDER
Files/tracks or folders/albums can be
automatically and randomly selected.

187
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
AUDIO/VISUAL SYSTEM
4
4. iPod
■CONTROL SCREEN
■ CONTROL PANEL
OVERVIEW
The iPod operation screen can be reached by the following methods: →P.149
XConnecting an iPod ( →P.151)
XiPod audio
XiPod video

188
3. MEDIA OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
No.Function
AudioVideo
•Displays cover art
• Select to display a track list.
To return to the top screen, select “Now
Playing” on the list screen.

Select to display the play mode selection
screen.
To return to the top screen, select “Now
Playing” on the list screen.Select to display the play mode selection
screen.
To return to the top screen, select “Now
Playing” on the list screen.
Select to set random playback. ( →P.191)
Select to set repeat playback. (→ P.191)
•Select to select a track.
• Select and hold to fast forward.•Select to select a file.
• Select and hold to fast forward.
Select to play/pause.Select to play/pause.
•Select to select a track.
• Select and hold to rewind.•Select to select a file.
• Select and hold to rewind.

Full screen/Expand:
•Select to display full screen video. (8-
inch display)
• Select to display expanded screen
video. (12.3-inch display)
Select to display the option screen.
(→ P.191)
