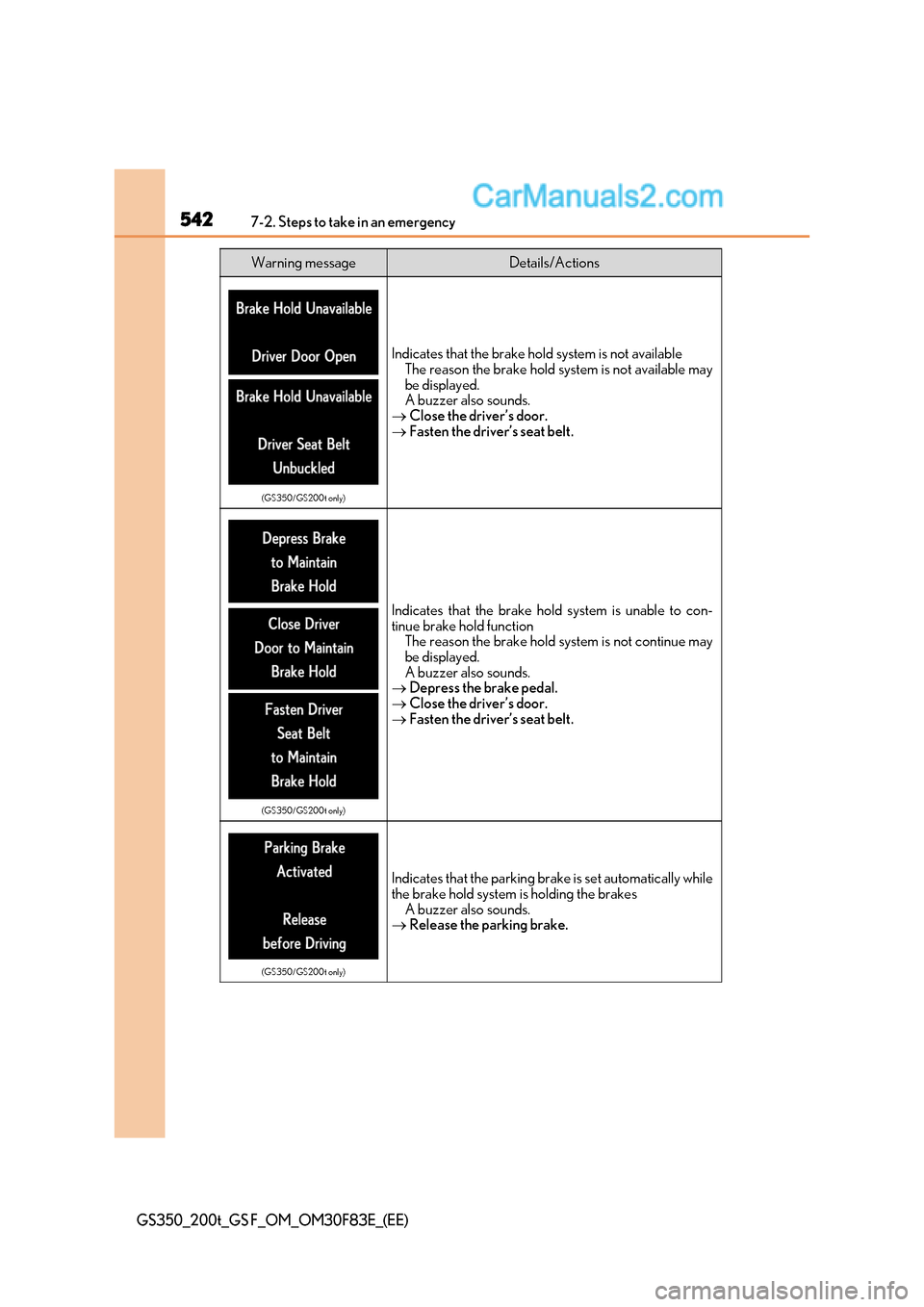

5427-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(GS350/GS200t only)
Indicates that the brake hold system is not available
The reason the brake hold system is not available may
be displayed.
A buzzer also sounds.
 Close the driver’s door.
 Fasten the driver’s seat belt.
(GS350/GS200t only)
Indicates that the brake hold system is unable to con-
tinue brake hold function
The reason the brake hold system is not continue may
be displayed.
A buzzer also sounds.
 Depress the brake pedal.
 Close the driver’s door.
 Fasten the driver’s seat belt.
(GS350/GS200t only)
Indicates that the parking brake is set automatically while
the brake hold system is holding the brakes
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions

5447-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates a malfunction in the TVD (Torque Vectoring
Differential) system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates that the TVD (Torque Vectoring Differential)
system has overheated
This message may be displayed when driving under
extremely high load conditions such as the following:

547
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the tire in flation pressure is low
 Check the tire inflation pressure, and adjust to the
appropriate level.
(If equipped)
Indicates a malfunction in th e tire pressure warning sys-
tem  Stop the vehicle in a safe place and turn the engine
switch off then on again. If the tire pressure warning
indicator flashes for 1 minute then illuminates, there
is a malfunction in the system. Have the vehicle
inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
(If equipped)
Indicates that the tire position information cannot be rec- ognized Drive for a short while and check if the display
updates.
If the radio wave conditio ns improve, the display
may return to normal. If the tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driving. If the tire pressure is
still not displayed even after repeating this process
several times, Have the vehicle inspected by any
authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
Warning messageDetails/Actions

5507-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable
A buzzer also sounds.
 When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption Turn off unnecessary electronic equipment to
reduce power consumption. Please wait until the
power supply returns to normal.
If this item is frequently displayed, have the vehicle
inspected at your any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer
immediately.
(If equipped)
Indicates that part of the PC S (Pre-Crash Safety system)
sensor is dirty, covered with ice, etc.
A buzzer also sounds.
 Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

551
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
■Warning message in radar cruise mode (if equipped)
In the following cases, the warn ing message may not be displayed even if vehicle-to-vehi-
cle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■Open door warning message (GS350/GS200t only)
The open door warning message continues to display until a door or the trunk is fully
closed, even if the engine switch is turned off. However, approximately 20 minutes after a
door or the trunk is not fully closed, the battery-saving function operates and the display
turns off even though a door or the trunk is not fully closed.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.

5527-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
Once
The electronic key is not detected
when an attempt is made to start the
engine.  Start the engine with the elec-
tronic key present.
Once3 times
The electronic key was carried out-
side the vehicle and a door other
than the driver’s door was opened
and closed while the engine switch
was in a mode other than off.Bring the electronic key back
into the vehicle.
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
in P and the engine switch was not
turned off.Turn the engine switch off or
bring the electronic key back
into the vehicle.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the engine switch off when the shift
lever was in P. Turn the engine switch off and
lock the doors again.
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)

553
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
9
times
An attempt was made to drive when
the regular key was not inside the
vehicle.  Confirm that the electronic key
is inside the vehicle.
Con-
tinuous
The driver’s door was opened when
the shift lever was not in P and the
engine switch was not turned off. Shift the shift lever to P.
Con-
tinuousCon-
tinuous
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
not in P and the engine switch was
not turned off. Shift the shift lever to P.
 Bring the electronic key back
into the vehicle.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)

595
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart entry & start system is
deactivated in customization setting, the
engine switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and check that and a message (GS F
only) are shown on the multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( P. 491)
■Alarm (if equipped)
Using the mechanical key to lock the doors or trunk will not set the alarm system.
If a door or trunk are unlocked using the me chanical key when the alarm system is set,
the alarm may be triggered. ( P. 92)
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed. ( P. 241)
■When the electronic key does not work properly
●Make sure that the smart entry & start syst em has not been deactivated in the customi-
zation setting. If it is off, turn the function on.
(Customizable features: P. 634)
●Check if battery-saving mode is set. If it is set, cancel the function. (P. 174)
Starting the engine
1
2
3
4
3

6027-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
If your vehicle overheats
●The needle of the engine coolant temperature gauge ( P. 108, 113) enters
the red zone or a loss of engine power is experienced. (For example, the vehi-
cle speed does not increase.)
● “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is shown
on the multi-information display.
● Steam is coming from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, imme-
diately contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

635
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Meters and multi-information display ( P. 121, 129)
GS350/GS200t
Customizable features
1
2
3
FunctionDefault
settingCustomized setting
Speed warning Off On — O —
Speed warning setting 30 km/h
(20 mph) 30 to 260 km/h
(20 to 160 mph) —O—
Language
*1English
French
—O—
German
Spanish
Italian
Russian
Units
*1km (L/100 km)km (km/L)OO—miles (MPG)
Eco Driving Indicator Light On
(self-lighting) Off — O —
switch settingsDrive
information 1Desired status screen *2—O—
Drive information screen dis-
played on the first screen of
(Drive information 1)
Current fuel
consumption
* 3—O—Average fuel
economy
(after reset)
