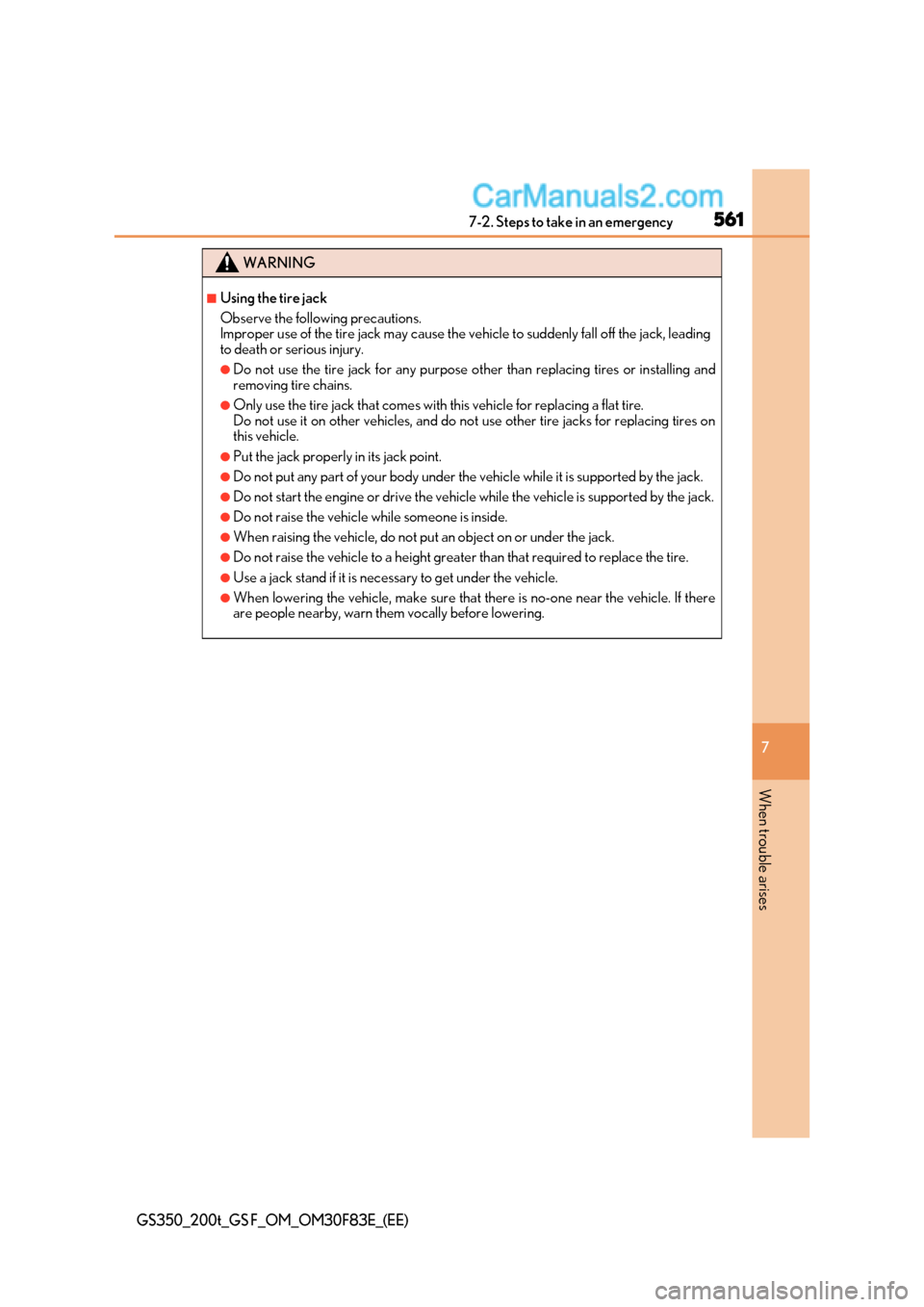

Lexus GS F 2017 Owner's Manual

561
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose ot her than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.

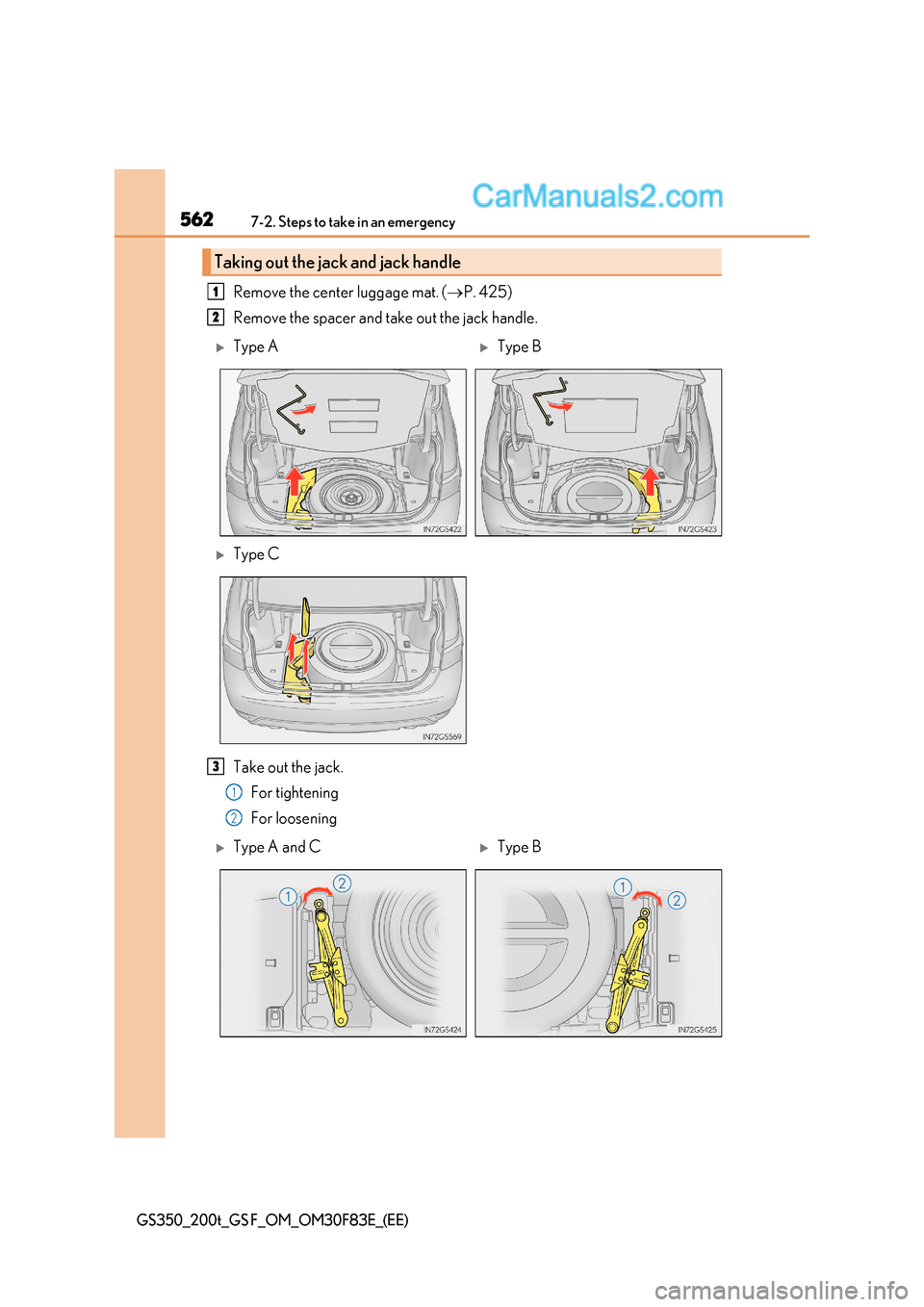

5627-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Remove the center luggage mat. ( P. 425)
Remove the spacer and take out the jack handle.
Take out the jack. For tightening
For loosening
Taking out the jack and jack handle
1
2
Type AType B
Type C
3
1
2
Type A and CType B

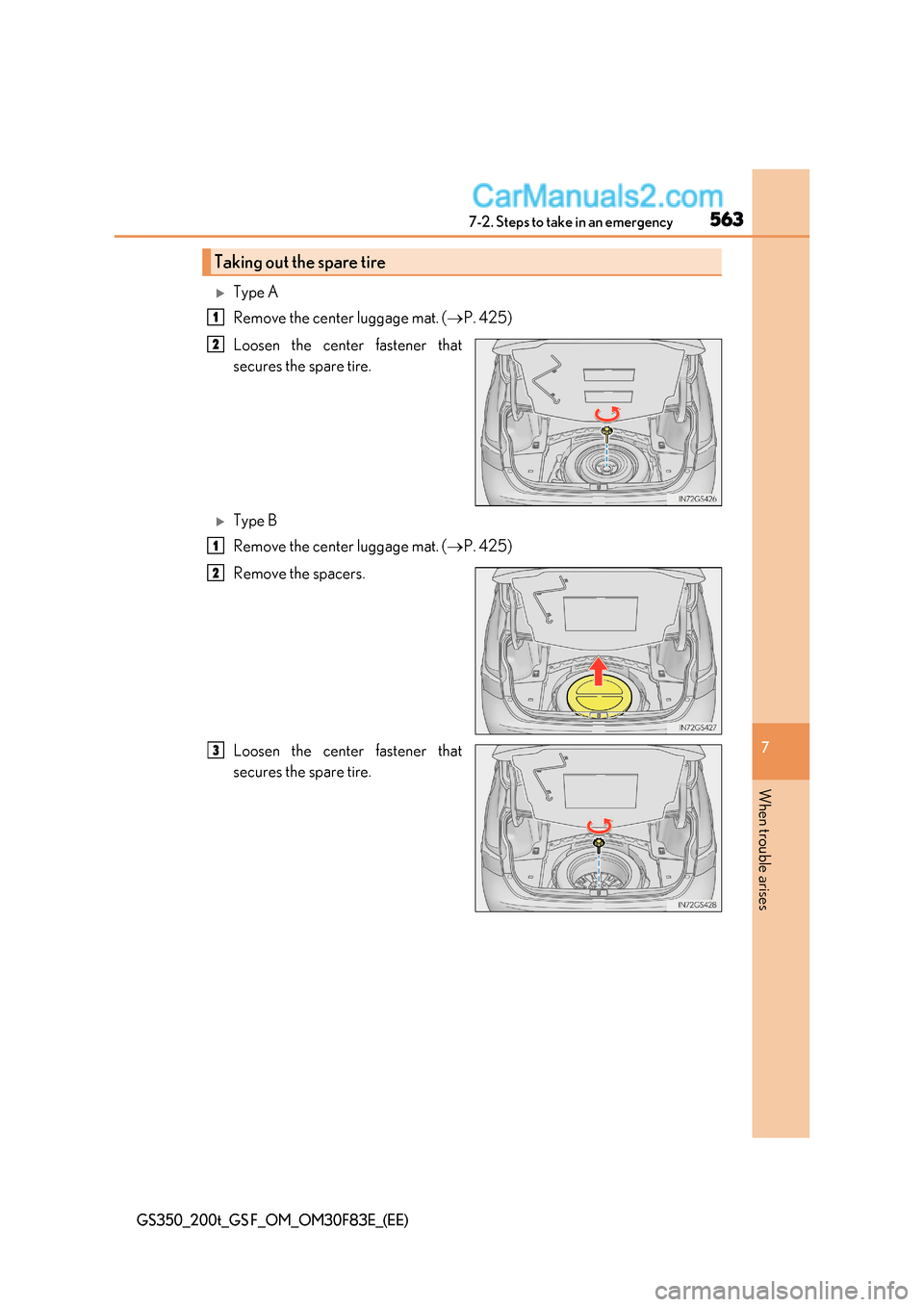

563
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Type A
Remove the center luggage mat. ( P. 425)
Loosen the center fastener that
secures the spare tire.
Type B
Remove the center luggage mat. ( P. 425)
Remove the spacers.
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
1
2
3

5647-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Type C
Remove the center luggage mat. ( P. 426)
Remove the spacers.
Loosen the center fastener that
secures the spare tire.
1
2
3
WARNING
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.

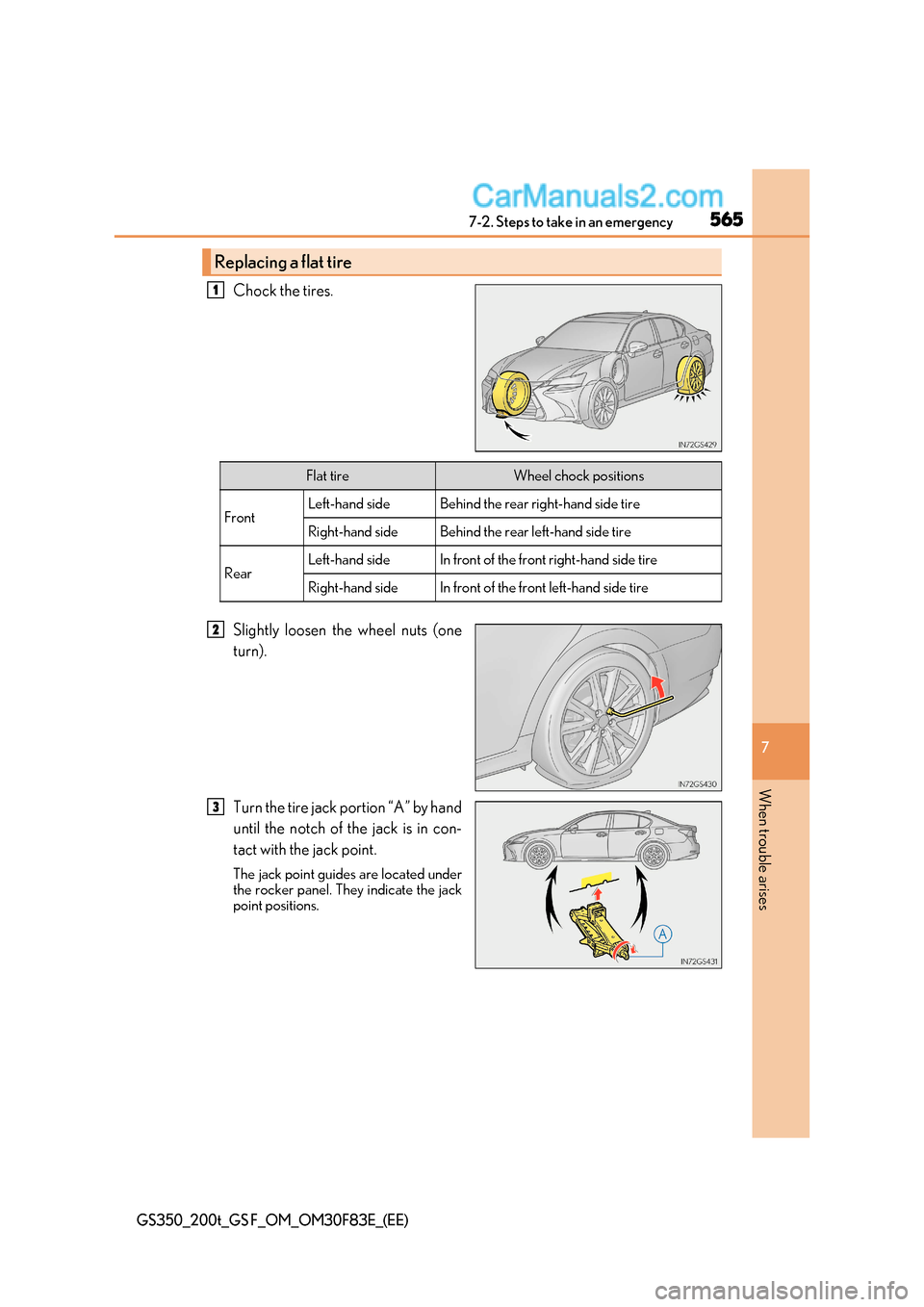

565
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by hand
until the notch of the jack is in con-
tact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

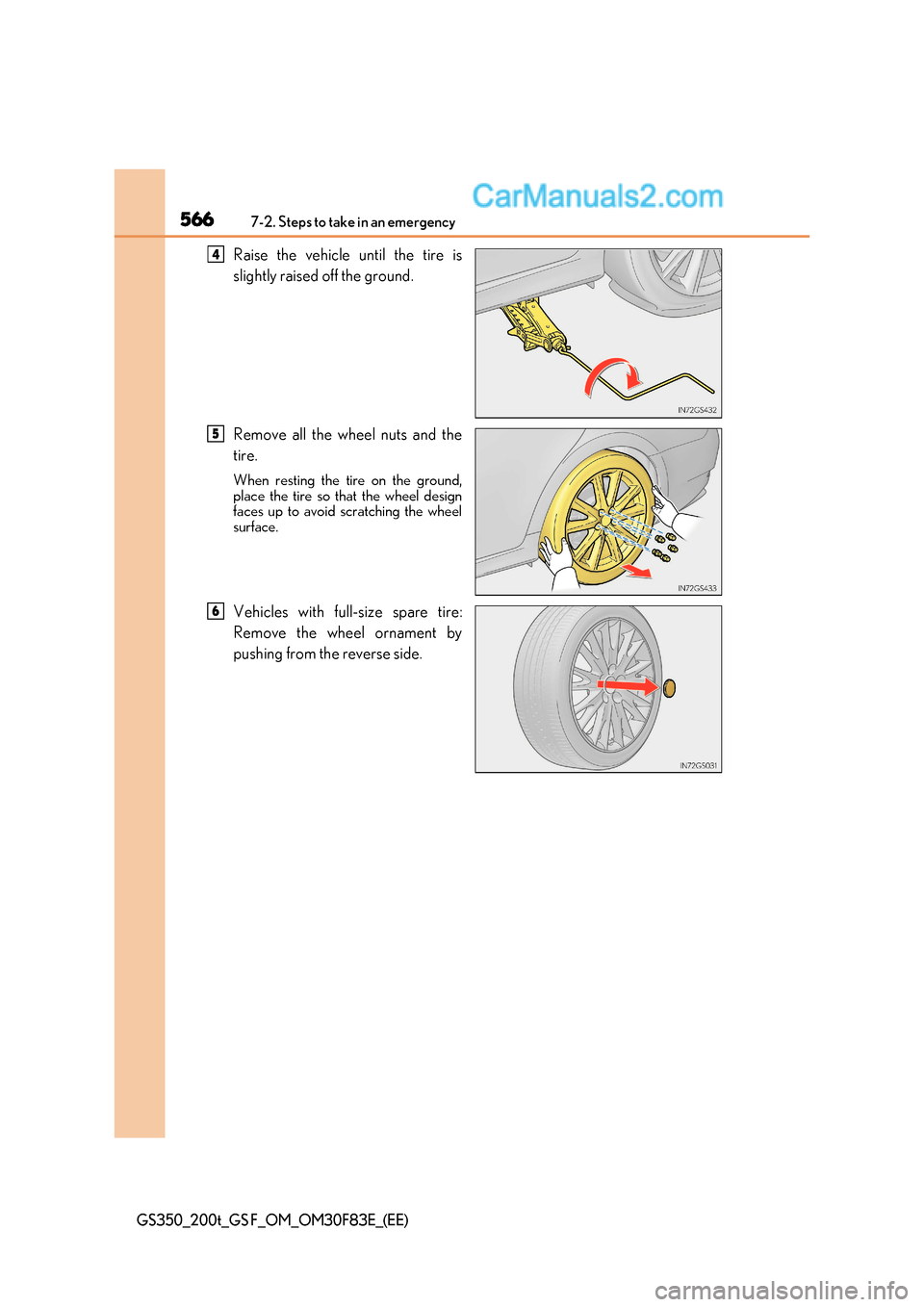

5667-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
Vehicles with full-size spare tire:
Remove the wheel ornament by
pushing from the reverse side.4
5
6

567
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)

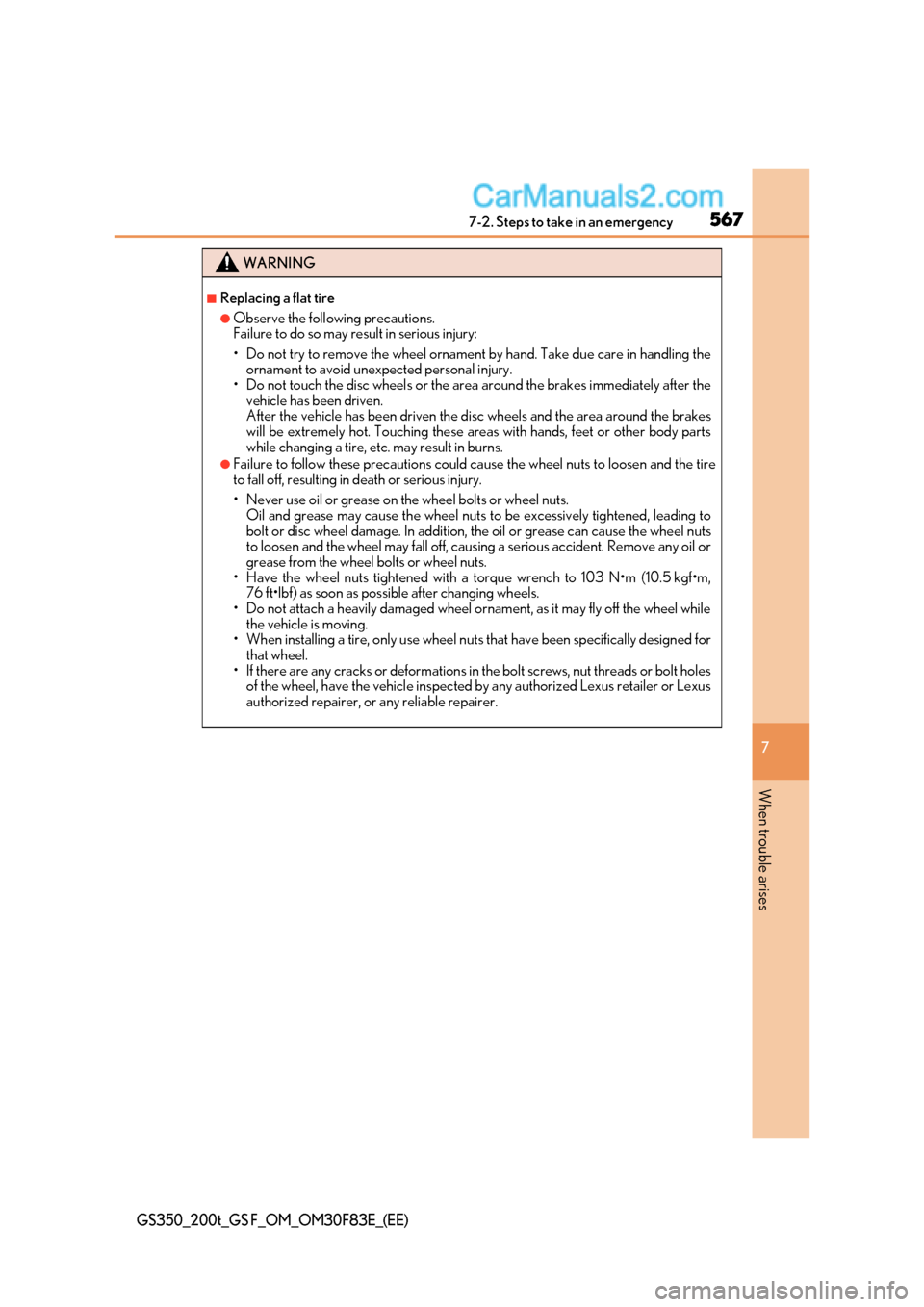

WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:

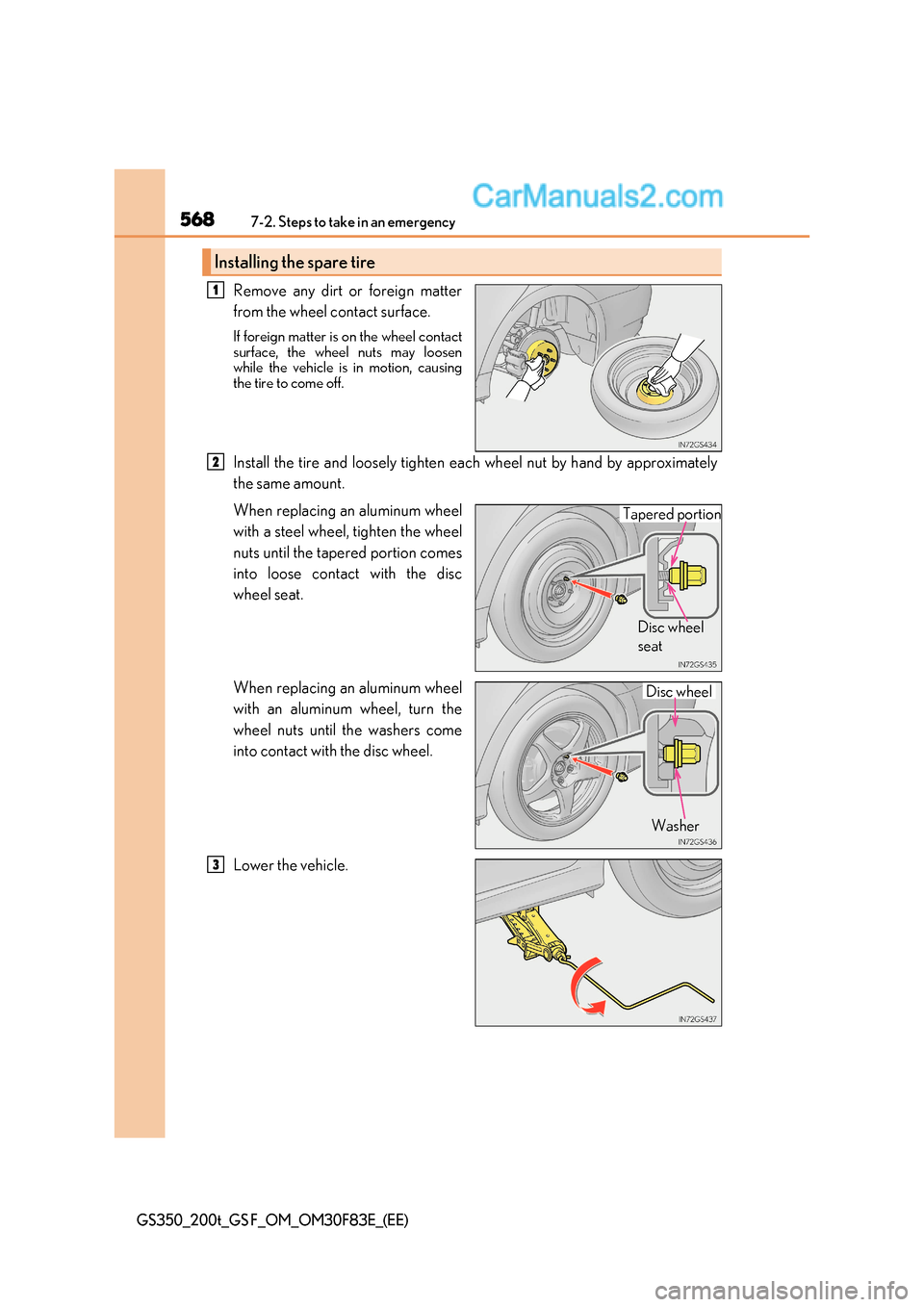

5687-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the tire and loosely tighten each wheel nut by hand by approximately
the same amount.
When replacing an aluminum wheel
with a steel wheel, tighten the wheel
nuts until the tapered portion comes
into loose contact with the disc
wheel seat.
When replacing an aluminum wheel
with an aluminum wheel, turn the
wheel nuts until the washers come
into contact with the disc wheel.
Lower the vehicle.
Installing th e spare tire
1
2
Disc wheel
seat
Tapered portion
Disc wheel
Washer
Disc wheel
3

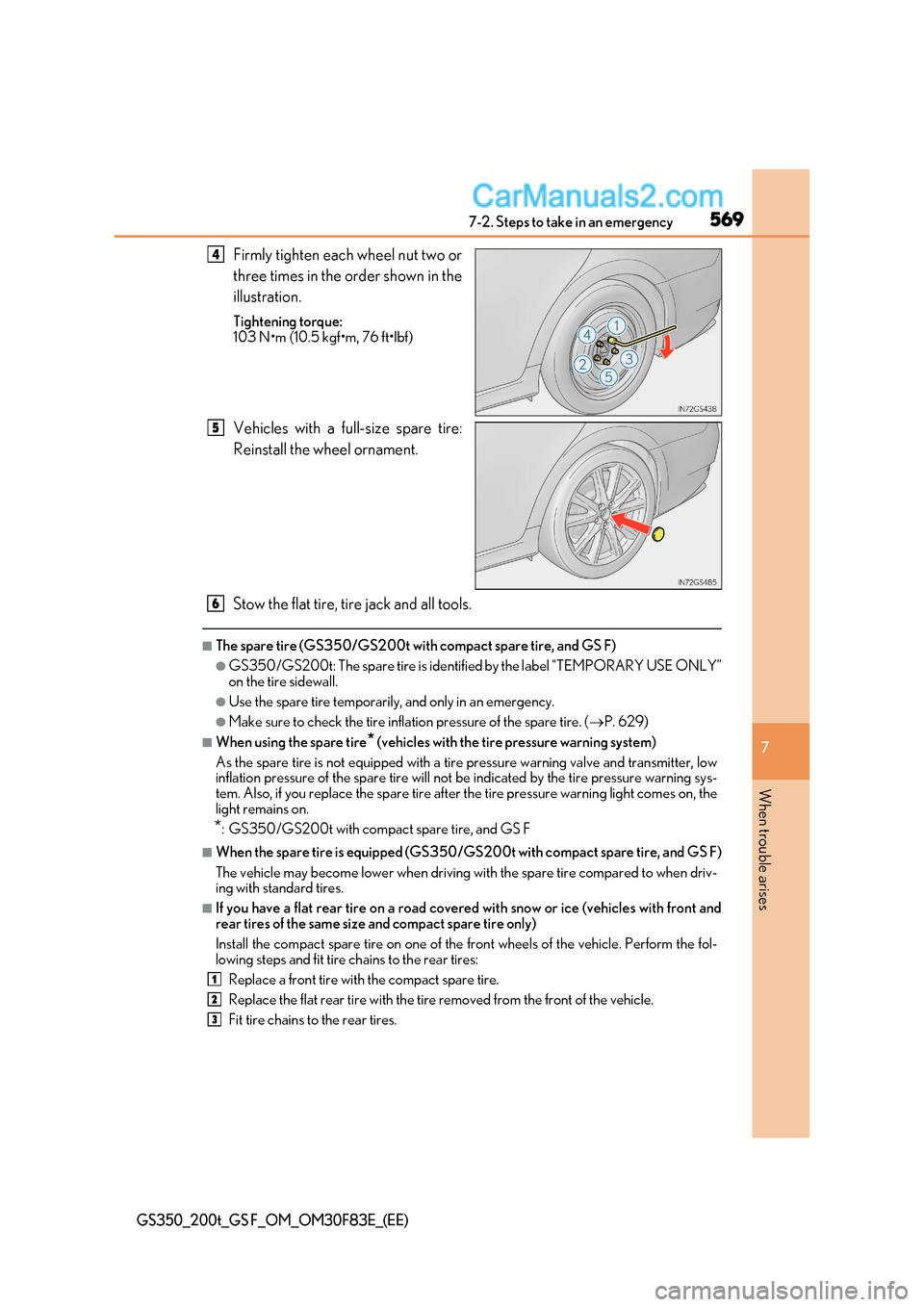

569
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
103 N

5707-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)

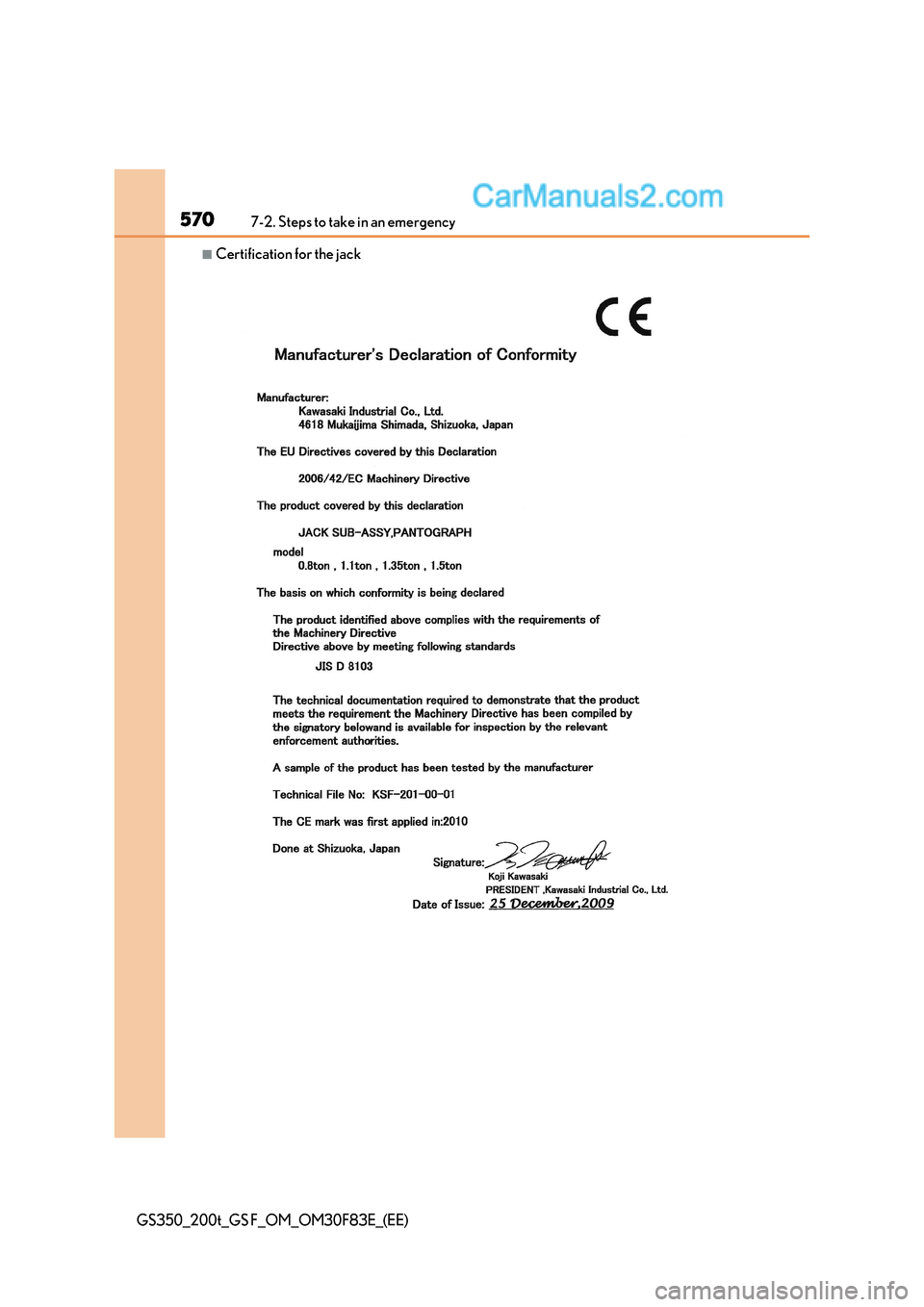

■Certification for the jack
