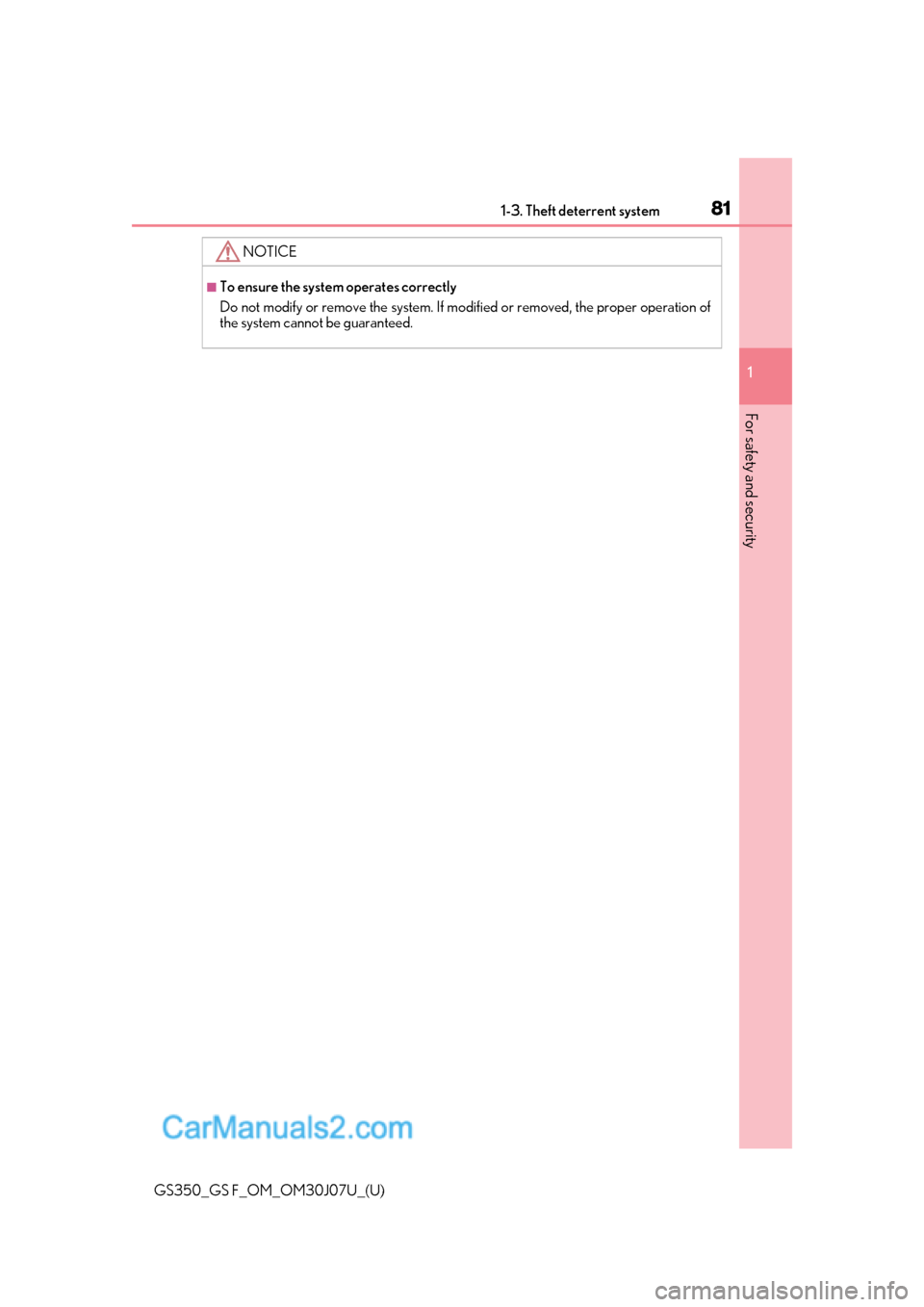

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

821-3. Theft deterrent system
GS350_GS F_OM_OM30J07U_(U)

83
GS350_GS F_OM_OM30J07U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators .............................. 84
Gauges and meters (GS350) ....................................... 92
Gauges and meters (GS F) ......98
Multi-information display (GS350) ..................................... 106
Multi-information display (GS F) ............................................. 114
Head-up display ...........................126
Fuel consumption information ................................. 133

84
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
Warning lights and indicators
GS350 (except F SPORT models)
GS350 (F SPORT models)
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

GS350_GS F_OM_OM30J07U_(U)
852. Instrument cluster
2
Instrument cluster

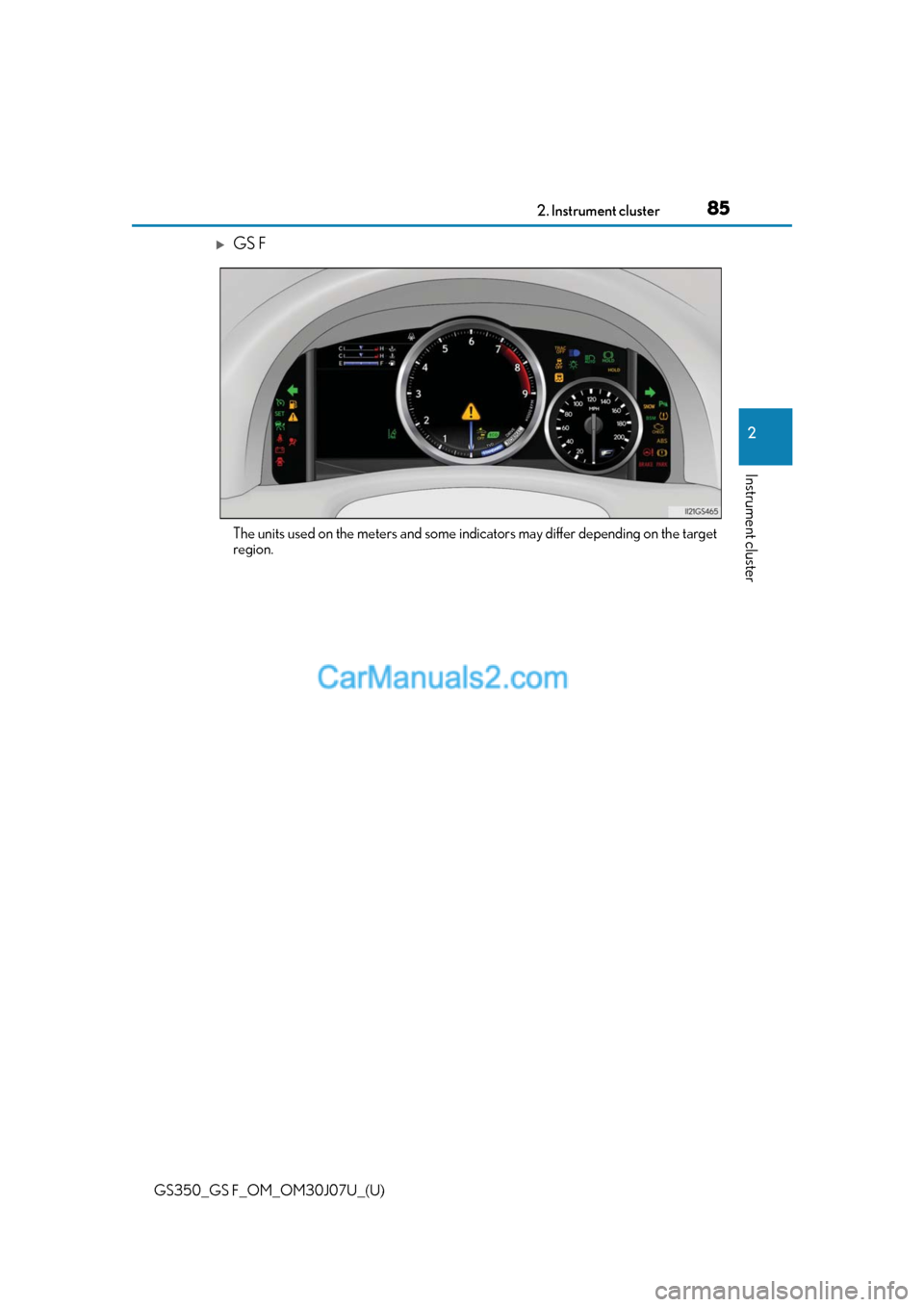

GS F
The units used on the meters and some indicators may differ depending on the target
region.

86
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
Warning lights inform the driv
er of malfunctions in the indicated vehicle systems.

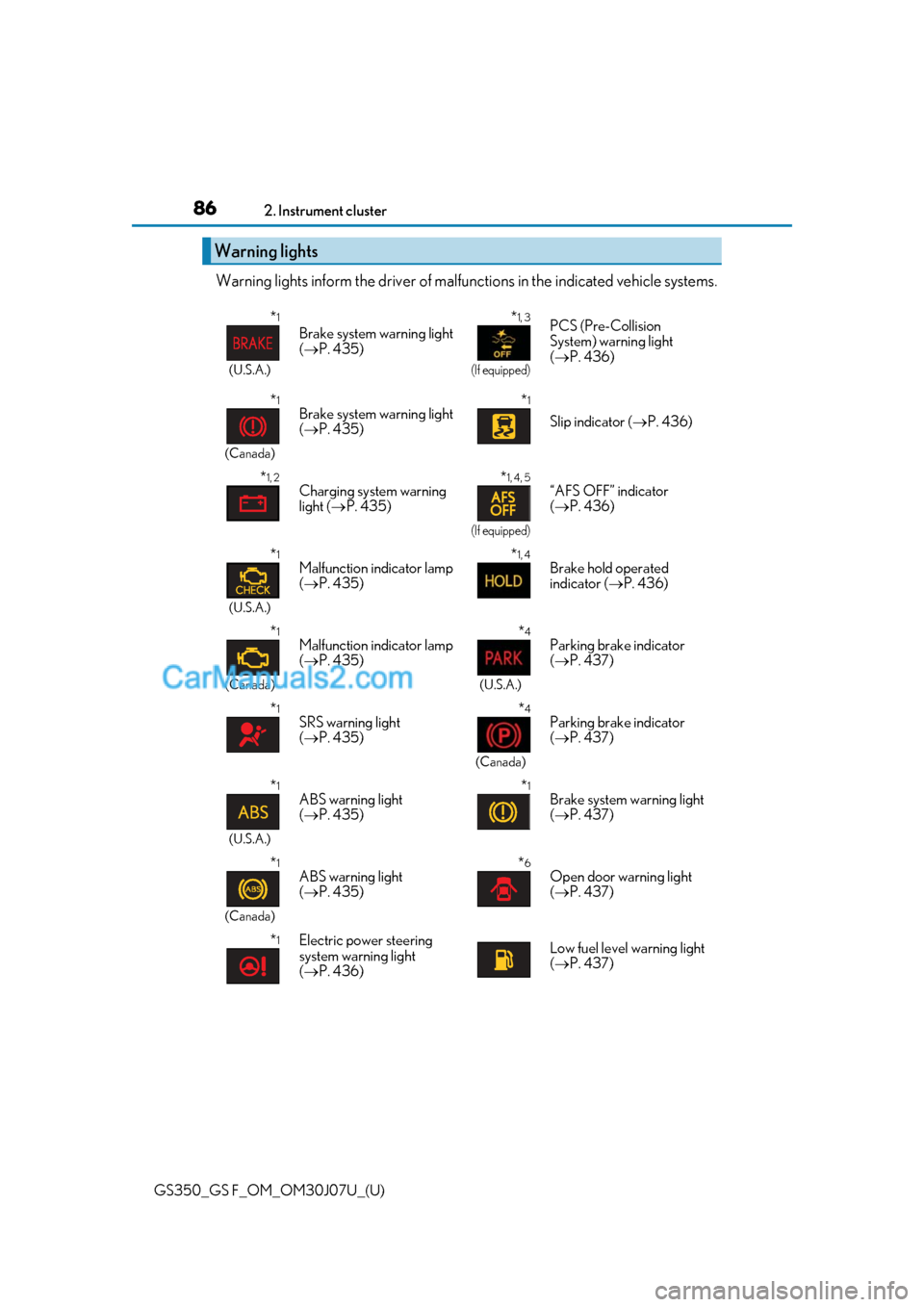

Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 435)
*1, 3
(If equipped)
PCS (Pre-Collision
System) warning light
( P. 436)
*1
(Canada)
Brake system warning light
( P. 435)*1
Slip indicator ( P. 436)
*1, 2Charging system warning
light ( P. 435)*1, 4, 5
(If equipped)
“AFS OFF” indicator
( P. 436)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 435)*1, 4Brake hold operated
indicator ( P. 436)
*1
(Canada)
Malfunction indicator lamp
( P. 435)*4
(U.S.A.)
Parking brake indicator
( P. 437)
*1SRS warning light
( P. 435)*4
(Canada)
Parking brake indicator
( P. 437)
*1
(U.S.A.)
ABS warning light
( P. 435)*1Brake system warning light
( P. 437)
*1
(Canada)
ABS warning light
( P. 435)*6Open door warning light
( P. 437)
*1Electric power steering
system warning light
( P. 436)Low fuel level warning light
( P. 437)

GS350_GS F_OM_OM30J07U_(U)
872. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the ve hicle inspected by your Lexus dealer.
*2:On some models
*3: The light flashes or illuminates to indicate a malfunction.
*4: The light flashes to indicate a malfunction.
*5:GS350
*6:GS F
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
Seat belt reminder light
(  P. 437)*1Tire pressure warning light
( P. 437)
*1Master warning light
( P. 437)
(If equipped)
LKA warning light
( P. 438)
Indicators
Turn signal indicator
( P. 216) Cruise control indicator
(
 P. 274, 278)
(U.S.A.)
Headlight indicator
( P. 222)
(If equipped)
Dynamic radar cruise
control indicator
( P. 266)
(Canada)
Tail light indicator
( P. 222) Cruise control
“SET” indicator
(
 P. 266, 278)
Headlight high beam
indicator ( P. 222)
(If equipped)
LKA indicator ( P. 256)
(If equipped)
Automatic High Beam
indicator (P. 225)*1
(If equipped)
Intuitive parking assist
indicator

88
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
●Drive mode indicators
GS350 (except F SPORT models)
*2, 3
(If equipped)
“AFS OFF” indicator
(
 P. 223)*2Brake hold standby
indicator ( P. 219)
*2, 4
Slip indicator ( P. 299)*2Brake hold operated
indicator ( P. 219)
*2VSC OFF indicator
( P. 299)*2, 9“AIR BAG ON/OFF”
indicator ( P. 52)
*2, 5TRAC OFF indicator
( P. 299)*2Eco Driving Indicator Light
( P. 91)
*2, 6
(If equipped)
PCS (Pre-Collision
System) warning light
( P. 248)
(U.S.A.)
Parking brake indicator
( P. 217)
*7, 8
(If equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 286)
(Canada)
Parking brake indicator
( P. 217)
(If equipped)
BSM (Blind Spot Monitor)
indicator ( P. 286)*10Low outside temperature
indicator ( P. 93, 100)
Eco drive mode indicator
( P. 281)
(If equipped)
“SPORT” indicator
( P. 281)
(If equipped)
“SPORT S” indicator
( P. 281)
(If equipped)
“SPORT S+” indicator
( P. 281)
(If equipped)
“Customize” indicator
( P. 281) Snow mode indicator
(
 P. 209)

GS350_GS F_OM_OM30J07U_(U)
892. Instrument cluster
2
Instrument cluster
GS350 (F SPORT models)
GS F
●TVD (Torque Vectoring Differential) control mode indicators (GS F)
Eco drive mode indicator
( P. 281) “SPORT S” indicator
(
 P. 281)
“SPORT S+” indicator
(  P. 281) “CUSTOMIZE” indicator
(
 P. 281)
Snow mode indicator
(  P. 209)
“NORMAL” indicator
( P. 284) Eco drive mode indicator
(
 P. 284)
“SPORT S” indicator
(  P. 284) “SPORT S+” indicator
(
 P. 284)
“CUSTOMIZE” indicator
(  P. 284) Snow mode indicator
(
 P. 209)
“EXPERT” indicator
( P. 301)
“STANDARD” indicator
( P. 295) “SLALOM” indicator
(
 P. 295)
“TRACK” indicator
(  P. 295)

90
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
*1: Refer to the “NAVIGATION AND MU
LTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the ve hicle inspected by your Lexus dealer.
*3:GS350
*4: The light flashes to indicate that the system is operating.
*5:GS F
*6: The light turns on when the system is turned off.
*7: In order to confirm operation, the BSM ou tside rear view mirror indicators illuminate
in the following situations:
• When the engine switch is in IGNITION ON mode, the BSM function is enabled
on of the multi-information display
• When the BSM function is enabled on of the multi-information display, the
engine switch is turned to IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*8: This light illuminates on the outside rear view mirrors.
*9: This light illuminates on the center panel.
*10: When the outside temperature is approximately 37 F (3 C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
