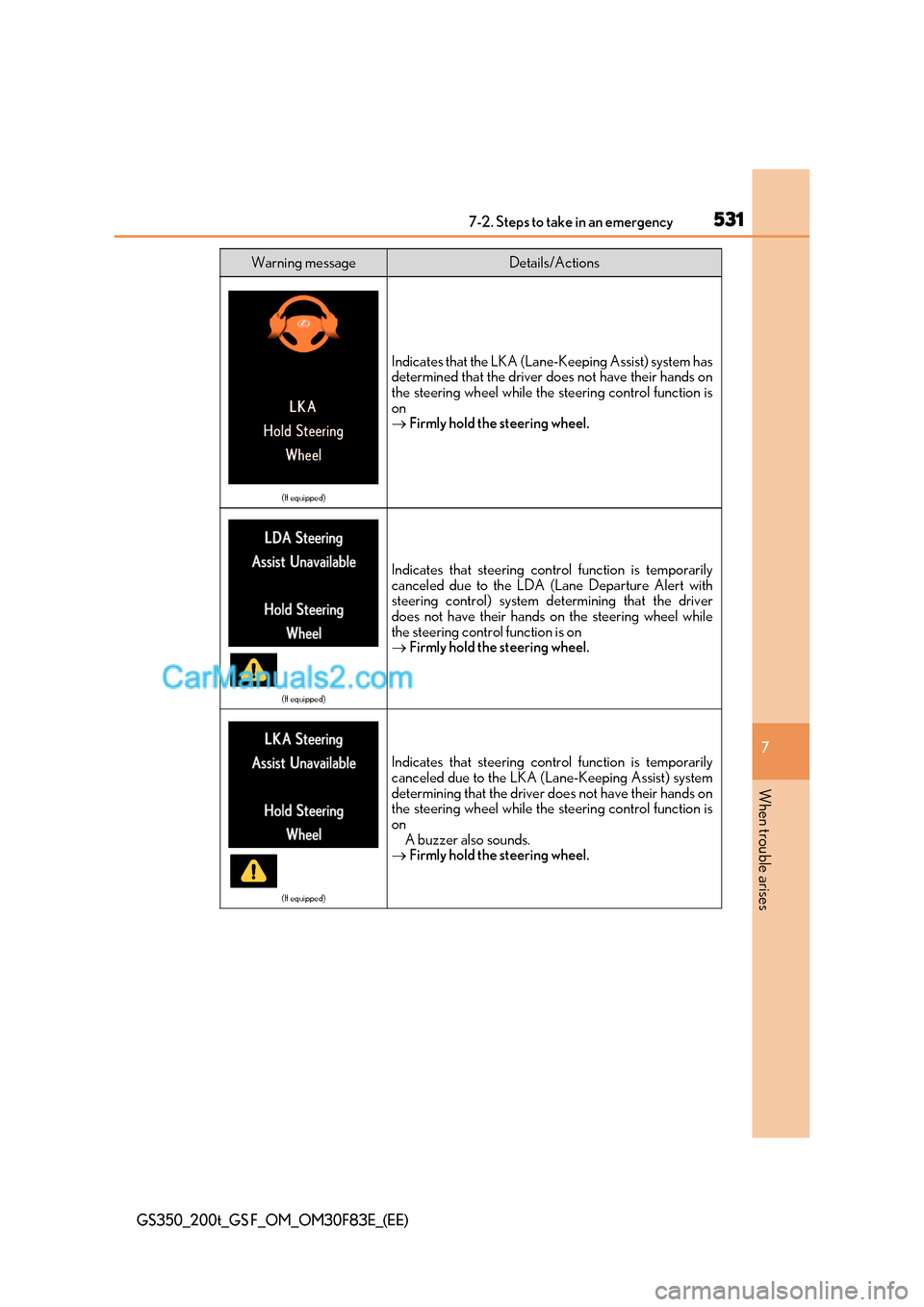

Lexus GS200t 2017 Owner's Manual

531
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the LKA (Lane- Keeping Assist) system has
determined that the driver does not have their hands on
the steering wheel while the steering control function is on  Firmly hold the steering wheel.
(If equipped)
Indicates that steering control function is temporarily
canceled due to the LDA (Lane Departure Alert with steering control) system determining that the driver
does not have their hands on the steering wheel while
the steering control function is on  Firmly hold the steering wheel.
(If equipped)
Indicates that steering control function is temporarily
canceled due to the LKA (L ane-Keeping Assist) system
determining that the driver does not have their hands on
the steering wheel while the steering control function is on A buzzer also sounds.
 Firmly hold the steering wheel.
Warning messageDetails/Actions

5327-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Indicates that the parking brake system is overheating
A buzzer also sounds.
 Do not use the parking brake until the message dis-
appears.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

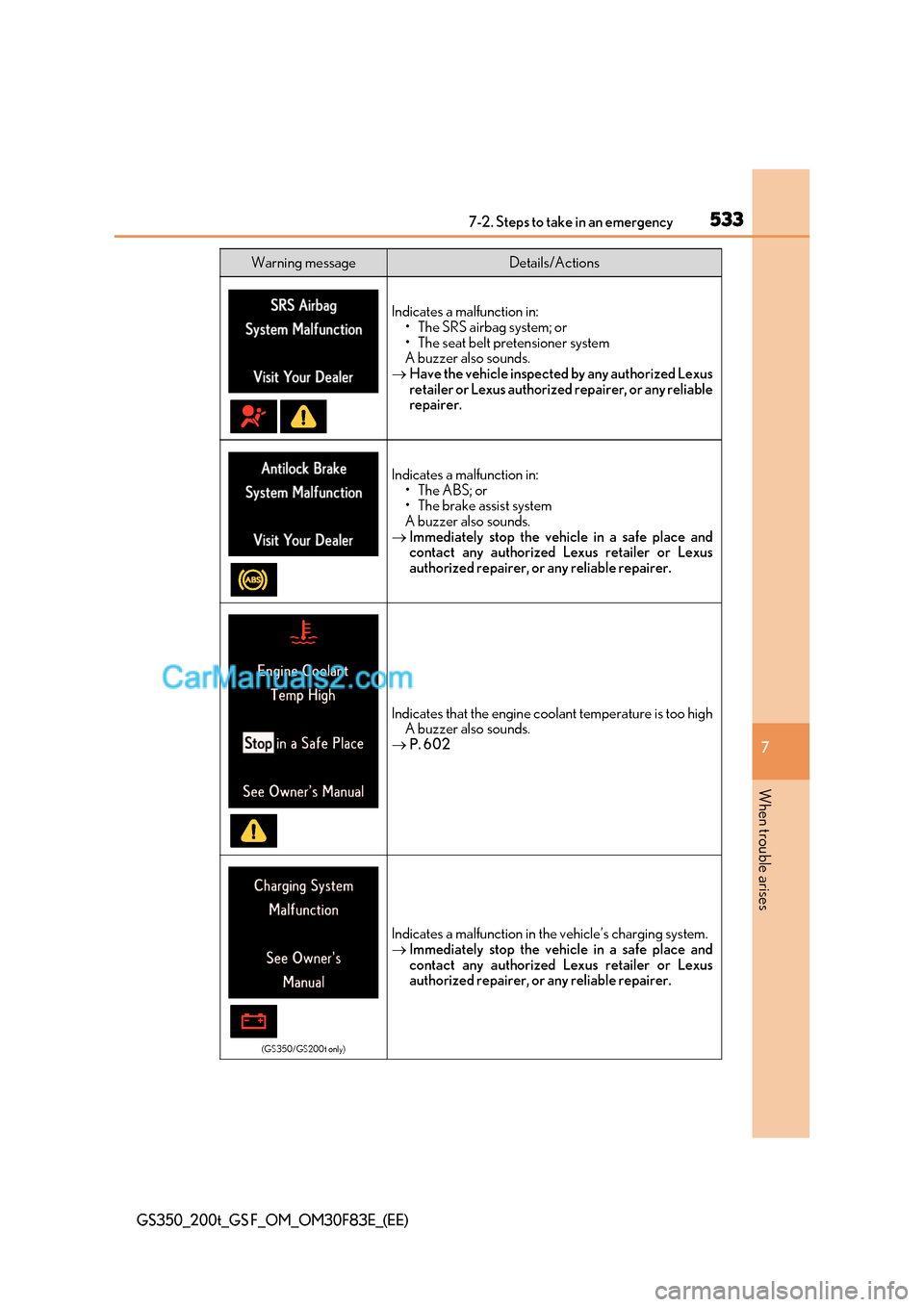

533
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Indicates a malfunction in:

5347-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the radar sensor is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weather
A buzzer also sounds.
 Use the radar cruise control system when it
becomes available again.
(If equipped)
Indicates that the radar cruise control system brake con-
trol function is temporarily unavailableDepress the brake.
(Vehicles with the entry function)
Indicates a malfunction in the smart entry & start system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions
(Flashes)

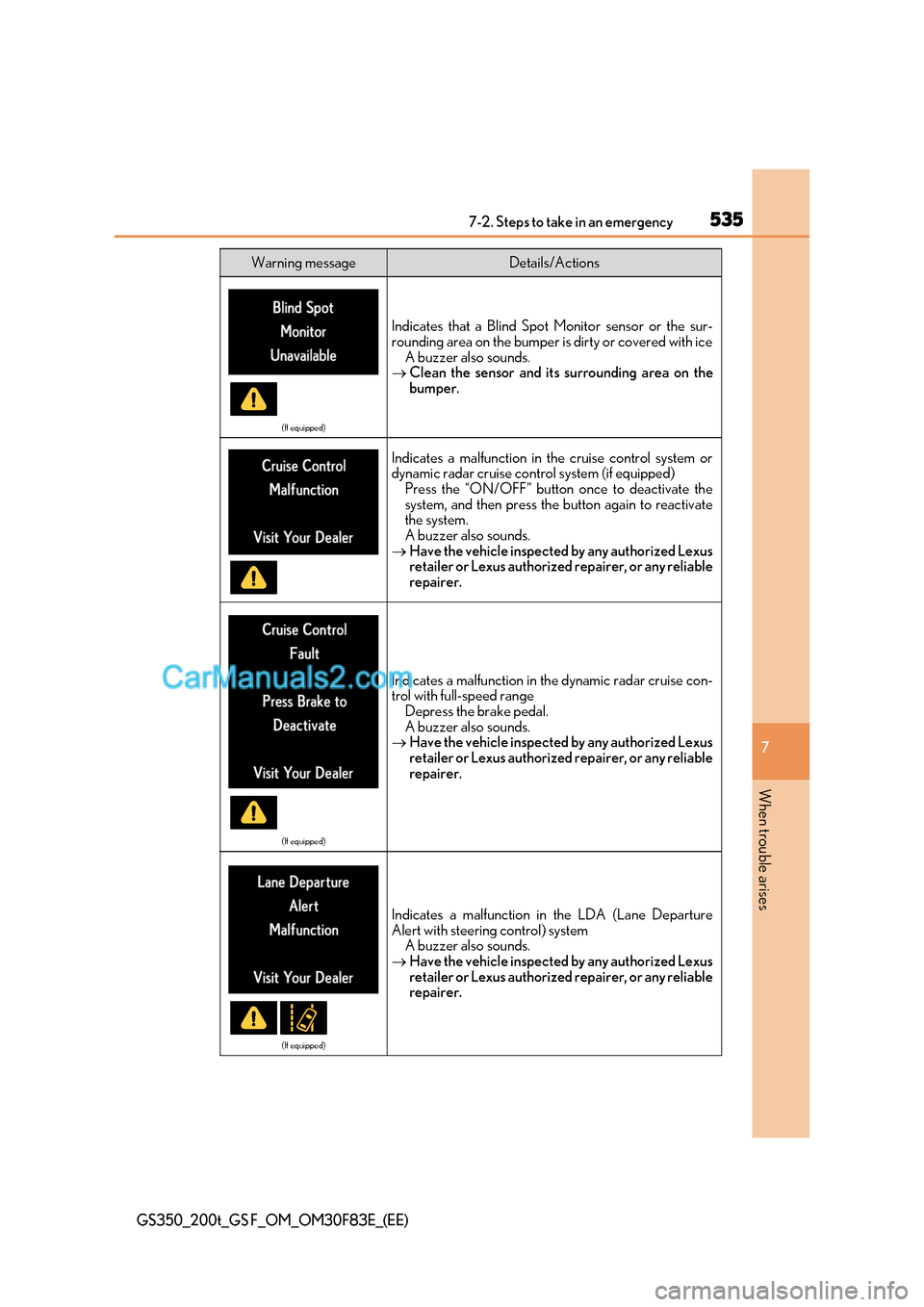

535
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in the cruise control system or
dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in th e dynamic radar cruise con-
trol with full-speed range
Depress the brake pedal.
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert with steering control) system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

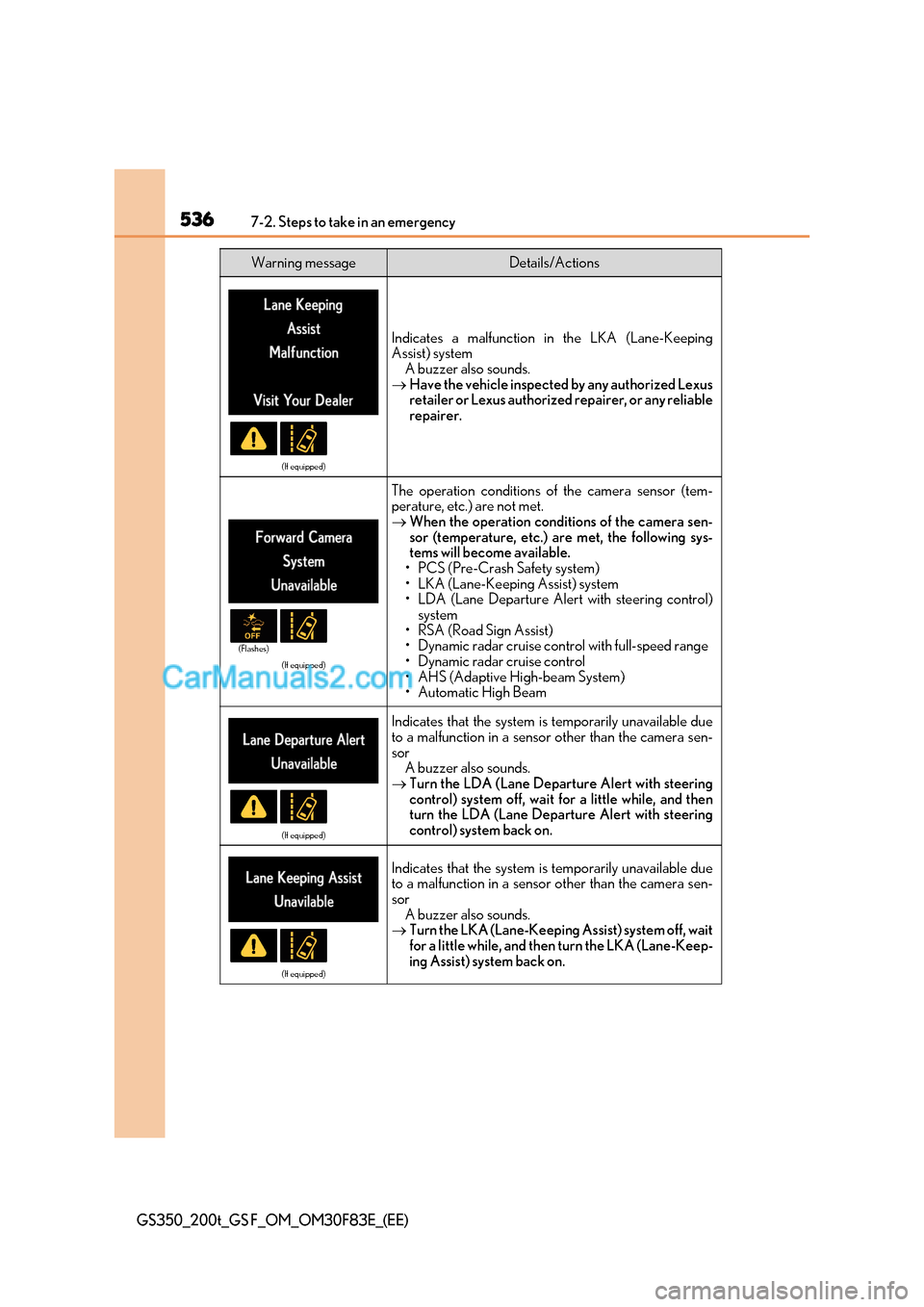

5367-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
The operation conditions of the camera sensor (tem-
perature, etc.) are not met. When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.

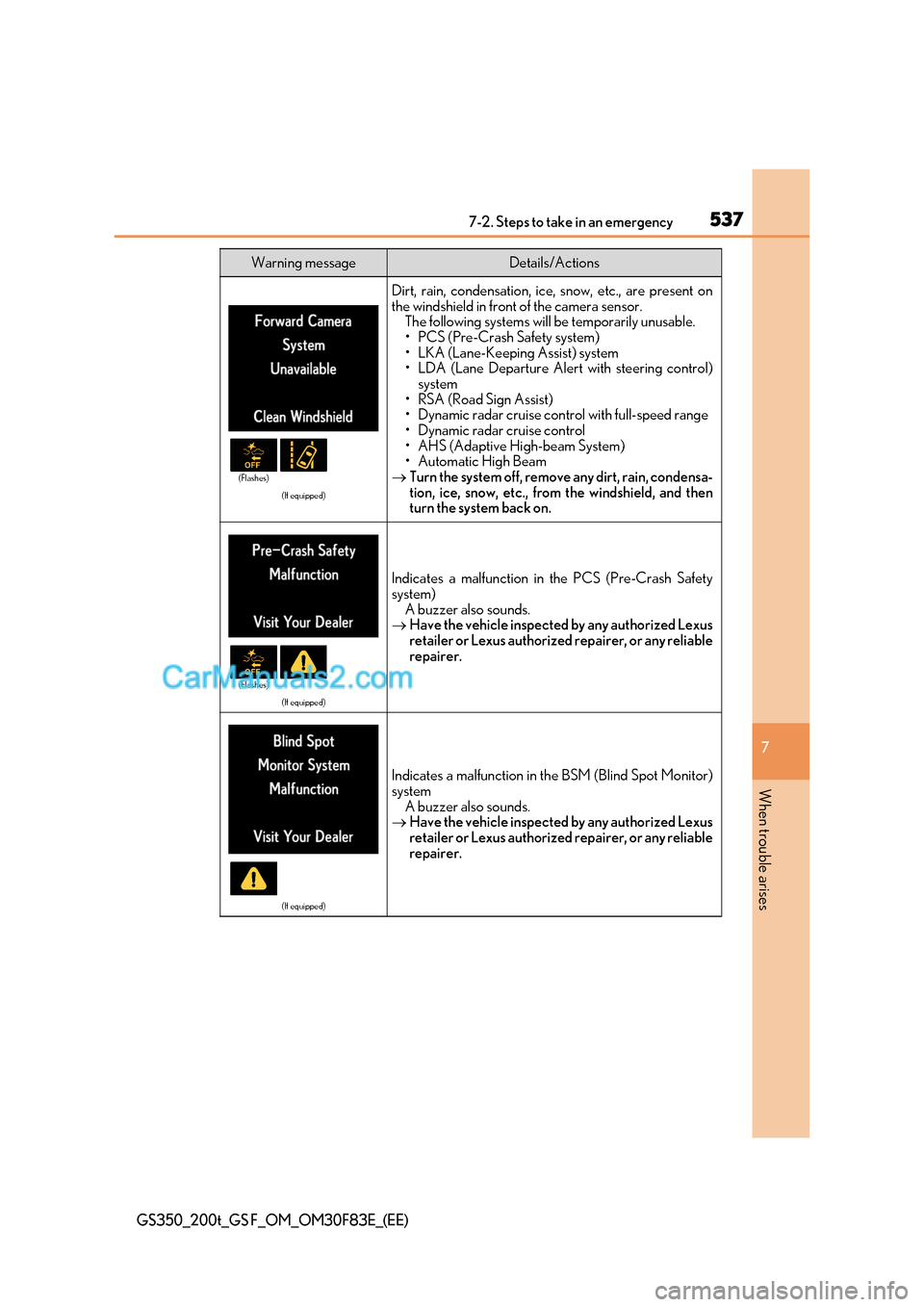

537
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor.
The following systems will be temporarily unusable.

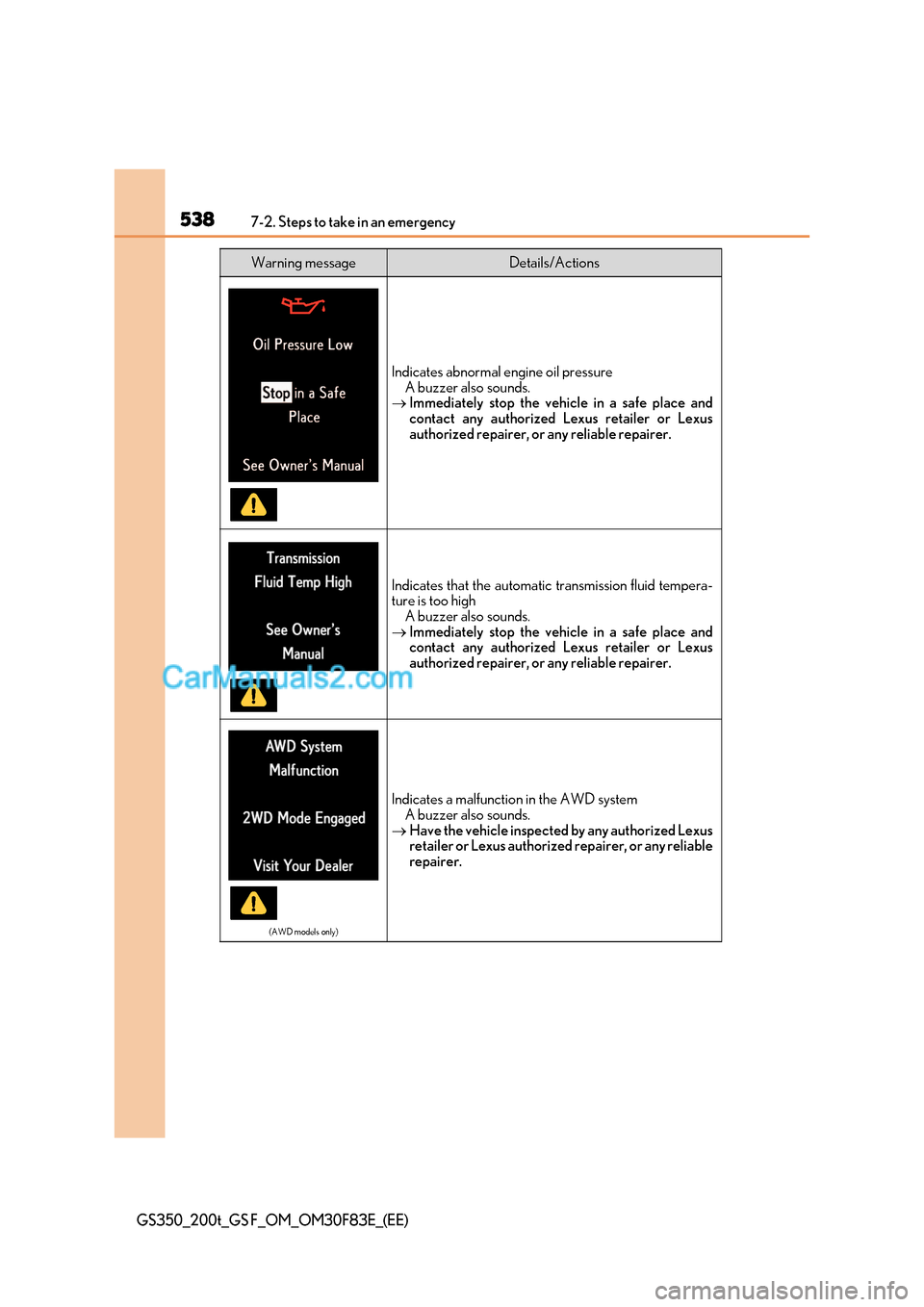

5387-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
Indicates that the automatic transmission fluid tempera-
ture is too high
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
(AWD models only)
Indicates a malfunctio n in the AWD system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

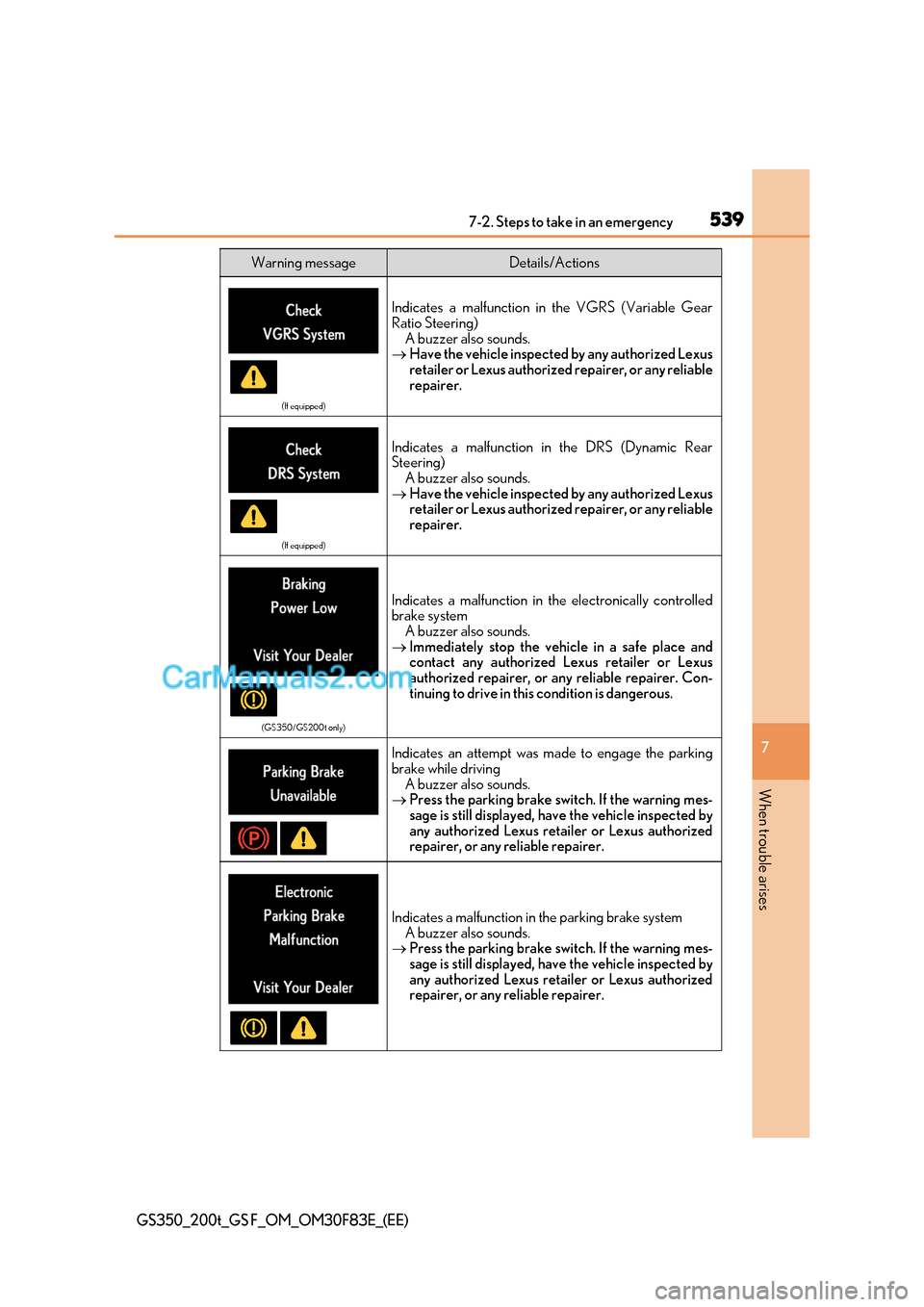

539
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates a malfunction in the VGRS (Variable Gear
Ratio Steering)
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in the DRS (Dynamic Rear
Steering)
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(GS350/GS200t only)
Indicates a malfunction in the electronically controlled
brake system
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. Con-
tinuing to drive in this condition is dangerous.
Indicates an attempt was made to engage the parking
brake while driving
A buzzer also sounds.
 Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
Indicates a malfunction in the parking brake system
A buzzer also sounds.
 Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
Warning messageDetails/Actions

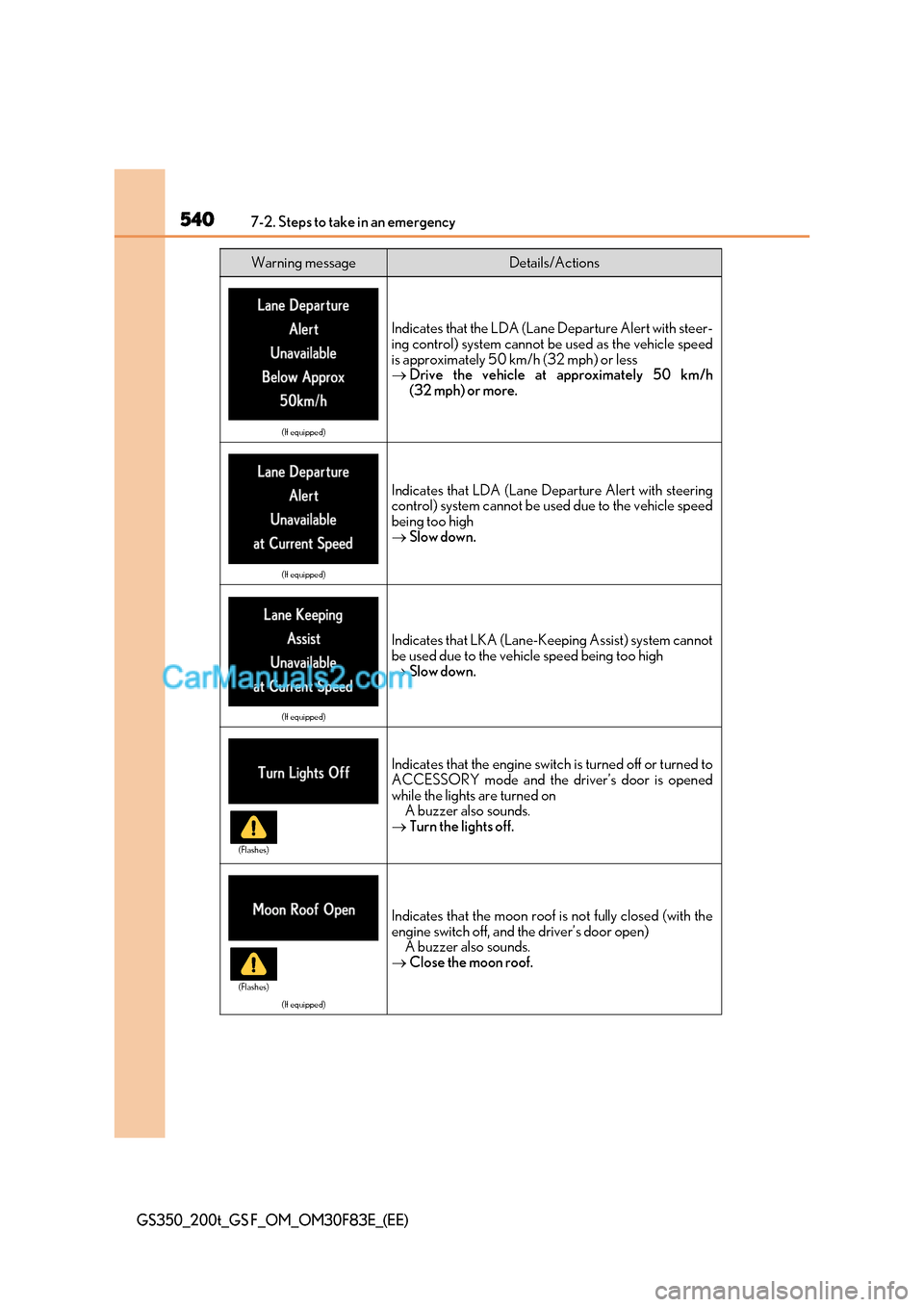

5407-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system cannot be used as the vehicle speed
is approximately 50 km/h (32 mph) or lessDrive the vehicle at approximately 50 km/h
(32 mph) or more.
(If equipped)
Indicates that LDA (Lane Departure Alert with steering
control) system cannot be used due to the vehicle speed
being too high Slow down.
(If equipped)
Indicates that LKA (Lane-Keeping Assist) system cannot
be used due to the vehicle speed being too high Slow down.
Indicates that the engine switch is turned off or turned to
ACCESSORY mode and the driver’s door is opened
while the lights are turned on
A buzzer also sounds.
 Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
 Close the moon roof.
Warning messageDetails/Actions
(Flashes)
(Flashes)
