Lexus GS250 2012 Owner's Manual

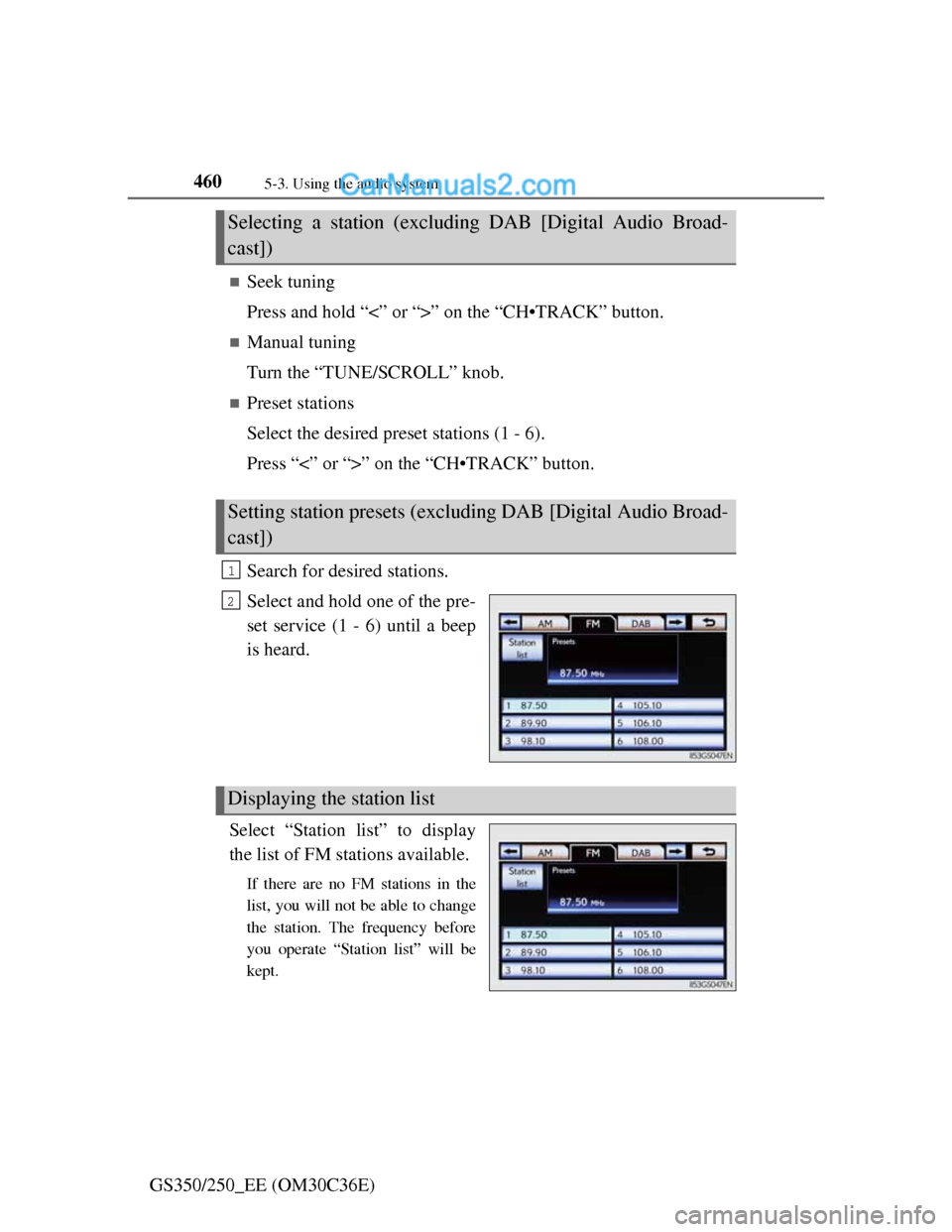

4605-3. Using the audio system
GS350/250_EE (OM30C36E)
Seek tuning
Press and hold “<” or “>” on the “CH•TRACK” button.
Manual tuning
Turn the “TUNE/SCROLL” knob.
Preset stations
Select the desired preset stations (1 - 6).
Press “<” or “>” on the “CH•TRACK” button.
Search for desired stations.
Select and hold one of the pre-
set service (1 - 6) until a beep
is heard.
Select “Station list” to display
the list of FM stations available.
If there are no FM stations in the
list, you will not be able to change
the station. The frequency before
you operate “Station list” will be
kept.
Selecting a station (excluding DAB [Digital Audio Broad-
cast])
Setting station presets (excluding DAB [Digital Audio Broad-
cast])
1
2
Displaying the station list

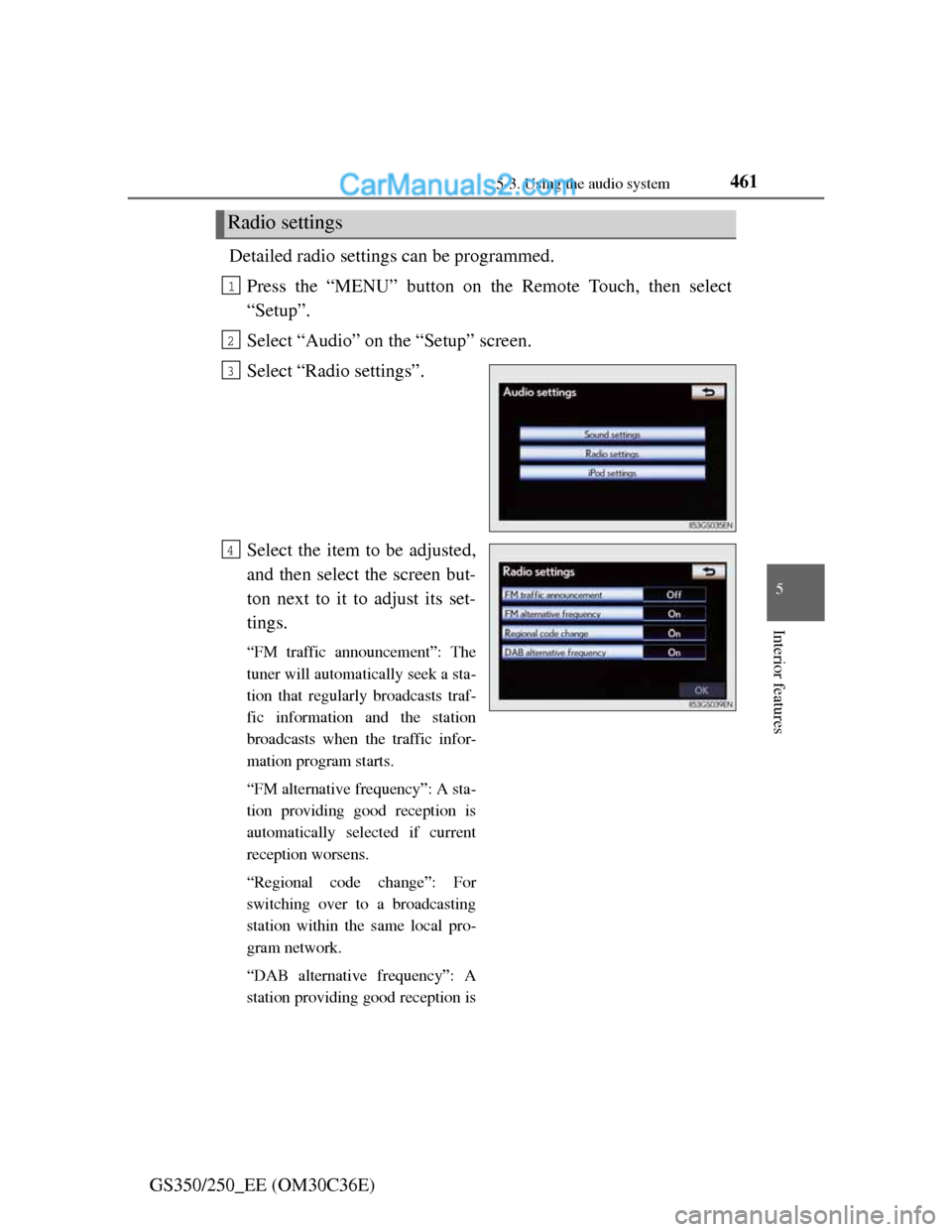

4615-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)Detailed radio settings can be programmed.
Press the “MENU” button on the Remote Touch, then select
“Setup”.
Select “Audio” on the “Setup” screen.
Select “Radio settings”.
Select the item to be adjusted,
and then select the screen but-
ton next to it to adjust its set-
tings.
“FM traffic announcement”: The
tuner will automatically seek a sta-
tion that regularly broadcasts traf-
fic information and the station
broadcasts when the traffic infor-
mation program starts.
“FM alternative frequency”: A sta-
tion providing good reception is
automatically selected if current
reception worsens.
“Regional code change”: For
switching over to a broadcasting
station within the same local pro-
gram network.
“DAB alternative frequency”: A
station providing good reception is
Radio settings
1
2
3
4

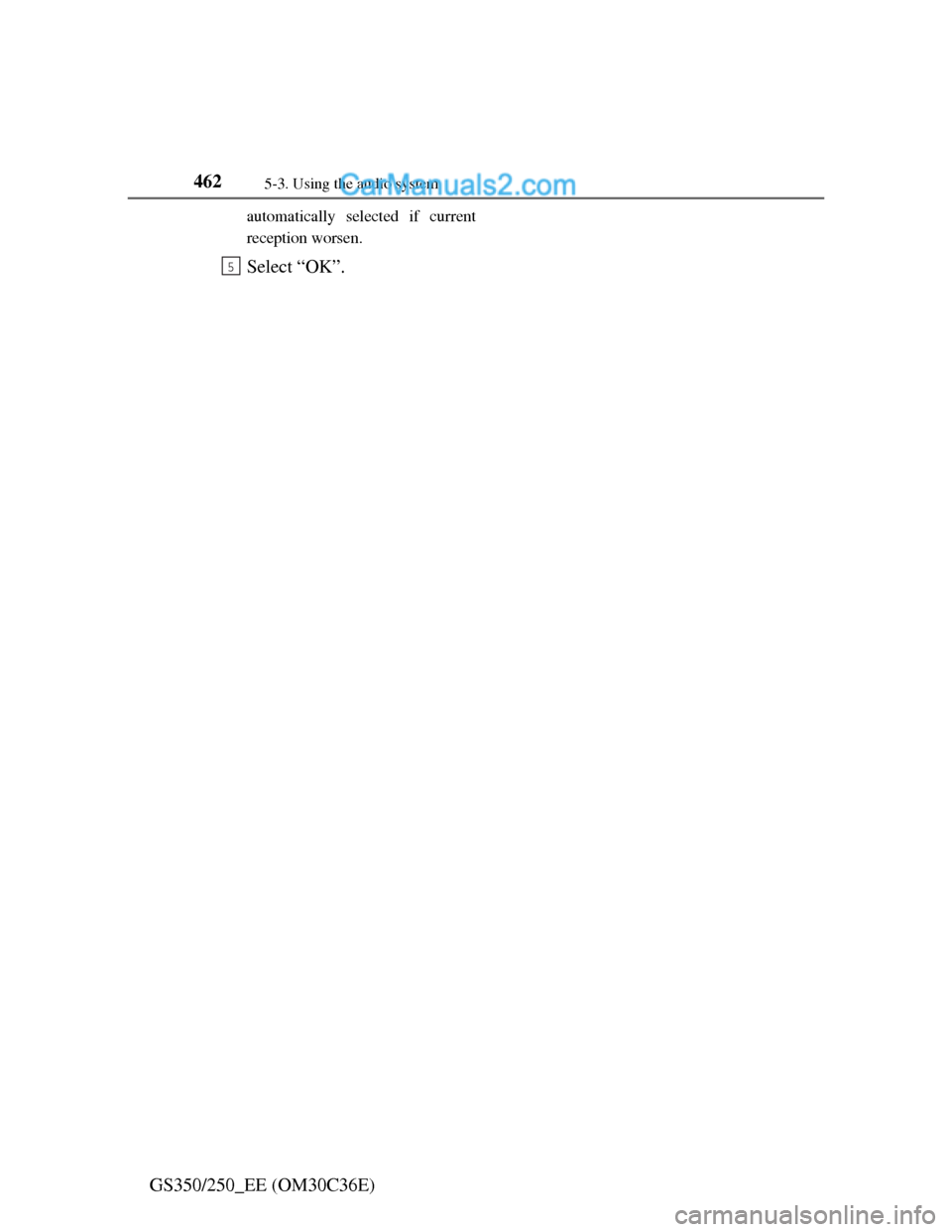

4625-3. Using the audio system
GS350/250_EE (OM30C36E)
automatically selected if current
reception worsen.
Select “OK”.5

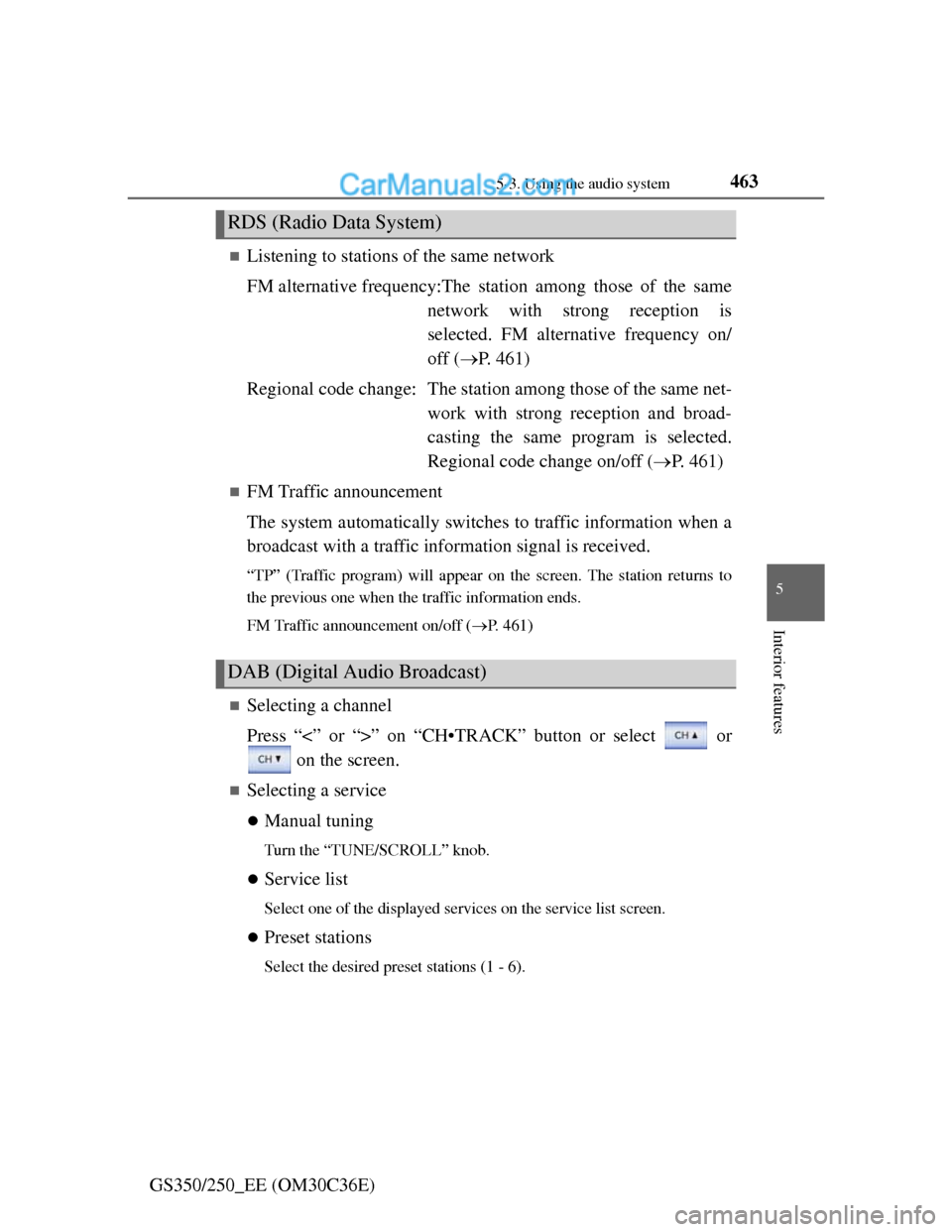

4635-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)
Listening to stations of the same network
FM alternative frequency:The station among those of the same
network with strong reception is
selected. FM alternative frequency on/
off (P. 461)
Regional code change: The station among those of the same net-
work with strong reception and broad-
casting the same program is selected.
Regional code change on/off (P. 461)
FM Traffic announcement
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received.
“TP” (Traffic program) will appear on the screen. The station returns to
the previous one when the traffic information ends.
FM Traffic announcement on/off (P. 461)
Selecting a channel
Press “<” or “>” on “CH•TRACK” button or select or
on the screen.
Selecting a service
Manual tuning
Turn the “TUNE/SCROLL” knob.

Service list
Select one of the displayed services on the service list screen.

Preset stations
Select the desired preset stations (1 - 6).
RDS (Radio Data System)
DAB (Digital Audio Broadcast)

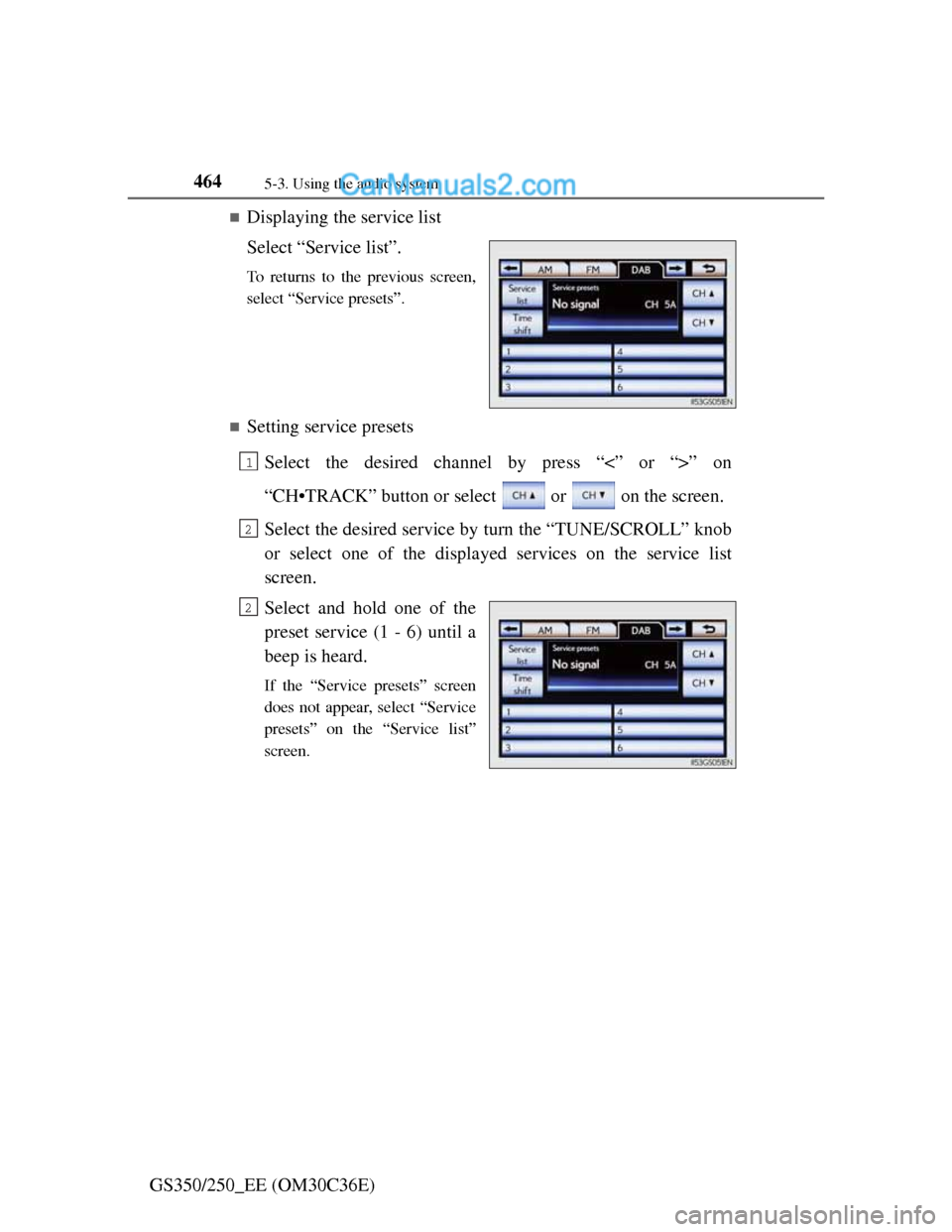

4645-3. Using the audio system
GS350/250_EE (OM30C36E)
Displaying the service list
Select “Service list”.
To returns to the previous screen,
select “Service presets”.
Setting service presets
Select the desired channel by press “<” or “>” on
“CH•TRACK” button or select or on the screen.
Select the desired service by turn the “TUNE/SCROLL” knob
or select one of the displayed services on the service list
screen.
Select and hold one of the
preset service (1 - 6) until a
beep is heard.
If the “Service presets” screen
does not appear, select “Service
presets” on the “Service list”
screen.
1
2
2

465
5 5-3. Using the audio system
Interior features
GS350/250_EE (OM30C36E)

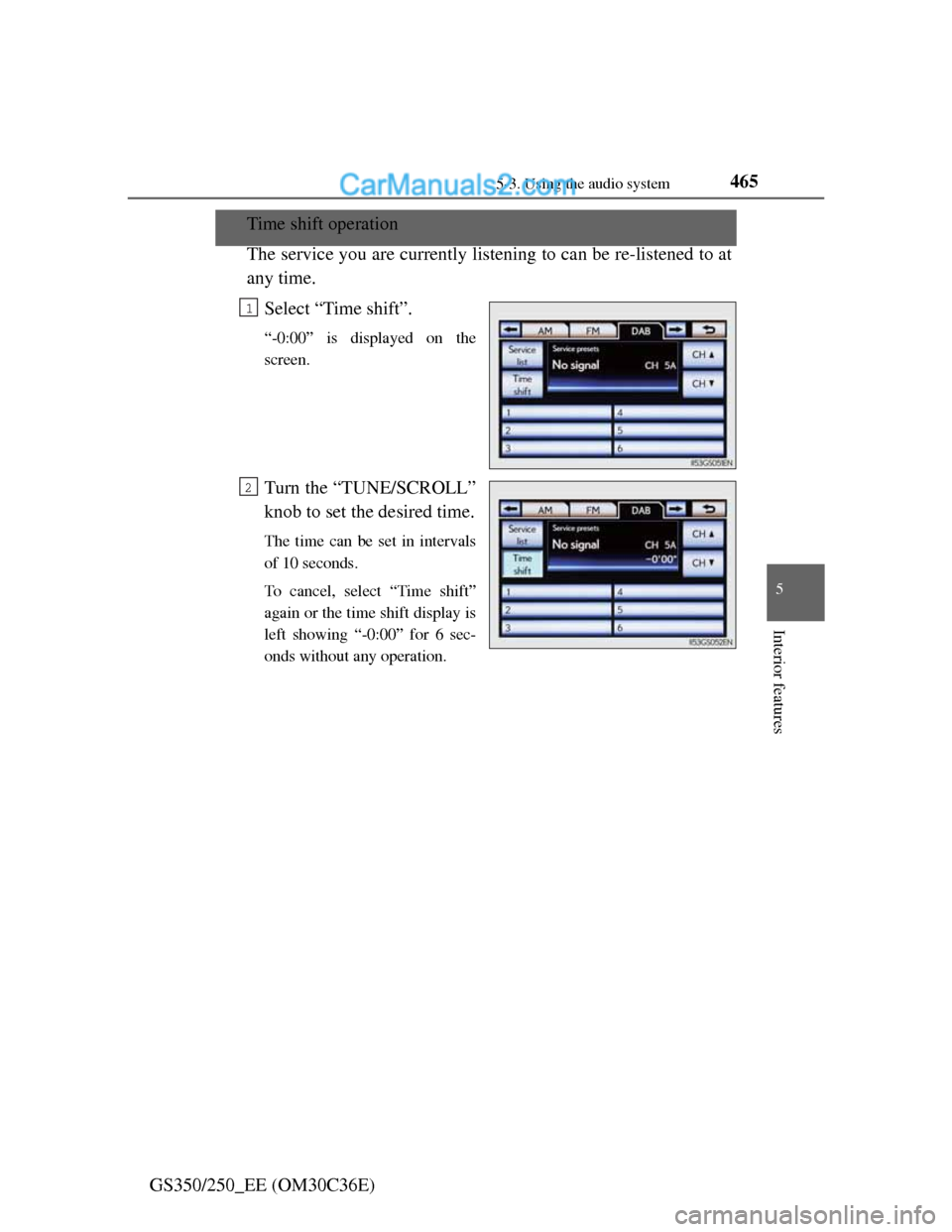

Time shift operation
The service you are currently listening to can be re-listened to at
any time.
Select “Time shift”.
“-0:00” is displayed on the
screen.
Turn the “TUNE/SCROLL”
knob to set the desired time.
The time can be set in intervals
of 10 seconds.
To cancel, select “Time shift”
again or the time shift display is
left showing “-0:00” for 6 sec-
onds without any operation.
1
2

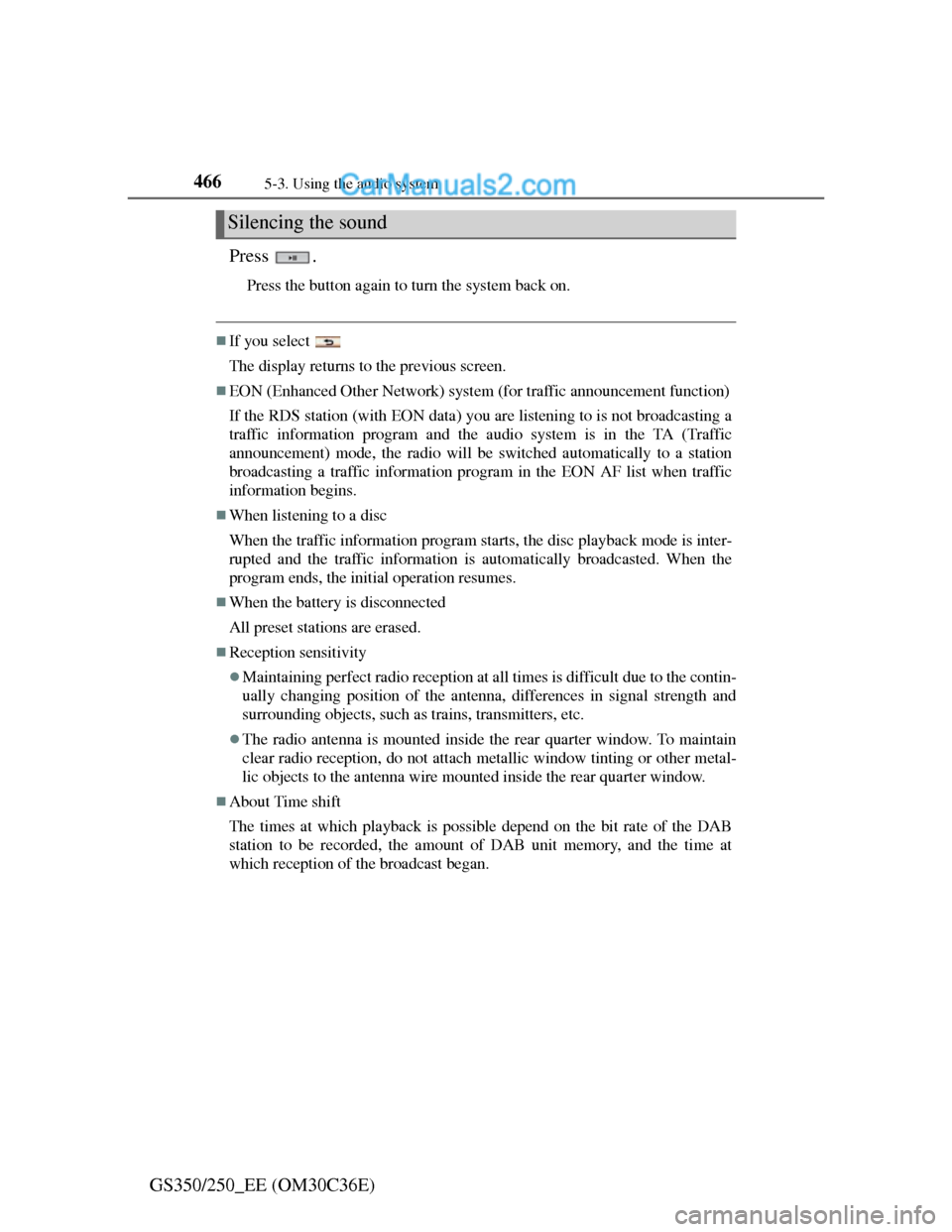

4665-3. Using the audio system
GS350/250_EE (OM30C36E)Press .
Press the button again to turn the system back on.
If you select
The display returns to the previous screen.
EON (Enhanced Other Network) system (for traffic announcement function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (Traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When listening to a disc
When the traffic information program starts, the disc playback mode is inter-
rupted and the traffic information is automatically broadcasted. When the
program ends, the initial operation resumes.
When the battery is disconnected
All preset stations are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the contin-
ually changing position of the antenna, differences in signal strength and
surrounding objects, such as trains, transmitters, etc.
The radio antenna is mounted inside the rear quarter window. To maintain
clear radio reception, do not attach metallic window tinting or other metal-
lic objects to the antenna wire mounted inside the rear quarter window.
About Time shift
The times at which playback is possible depend on the bit rate of the DAB
station to be recorded, the amount of DAB unit memory, and the time at
which reception of the broadcast began.
Silencing the sound

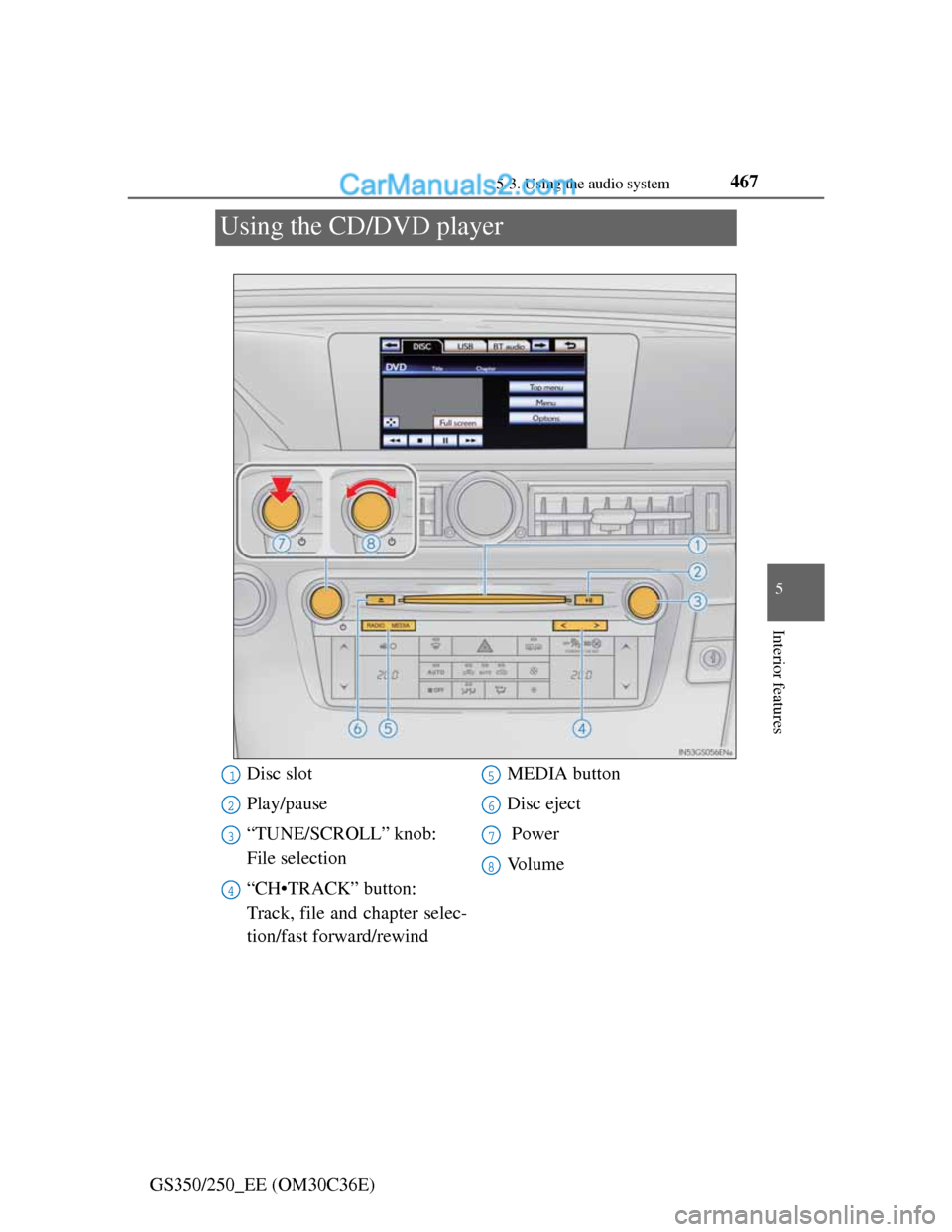

467
5 5-3. Using the audio system
Interior features
GS350/250_EE (OM30C36E)
Using the CD/DVD player
Disc slot
Play/pause
“TUNE/SCROLL” knob:
File selection
“CH•TRACK” button:
Track, file and chapter selec-
tion/fast forward/rewindMEDIA button
Disc eject
Power
Vo l u m e1
2
3
4
5
6
7
8

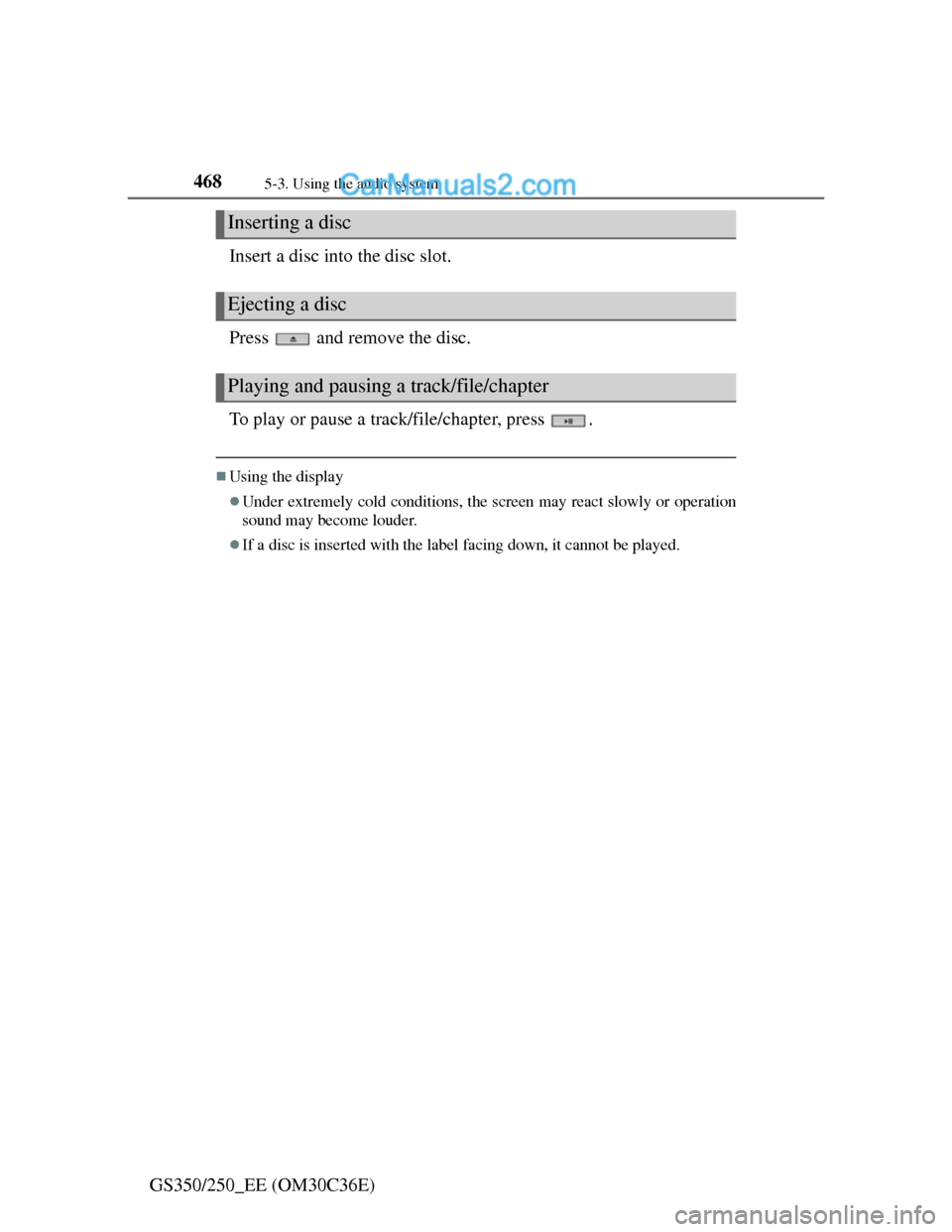

4685-3. Using the audio system
GS350/250_EE (OM30C36E)Insert a disc into the disc slot.
Press and remove the disc.
To play or pause a track/file/chapter, press .
Using the display
Under extremely cold conditions, the screen may react slowly or operation
sound may become louder.
If a disc is inserted with the label facing down, it cannot be played.
Inserting a disc
Ejecting a disc
Playing and pausing a track/file/chapter

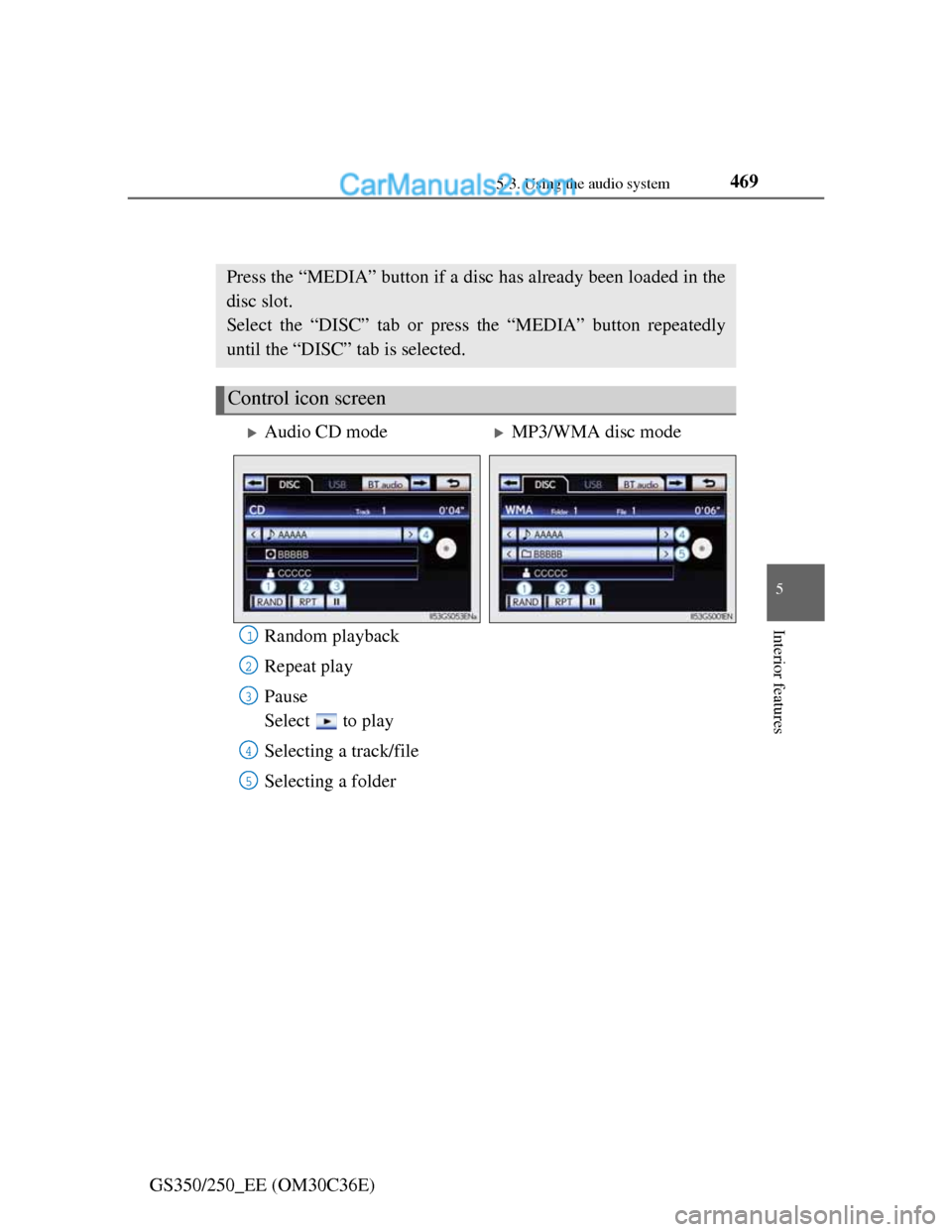

4695-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)
Playing an audio CD and MP3/WMA discs
Random playback
Repeat play
Pause
Select to play
Selecting a track/file
Selecting a folder
Press the “MEDIA” button if a disc has already been loaded in the
disc slot.
Select the “DISC” tab or press the “MEDIA” button repeatedly
until the “DISC” tab is selected.
Control icon screen
Audio CD modeMP3/WMA disc mode
1
2
3
4
5
