4805-3. Using the audio system

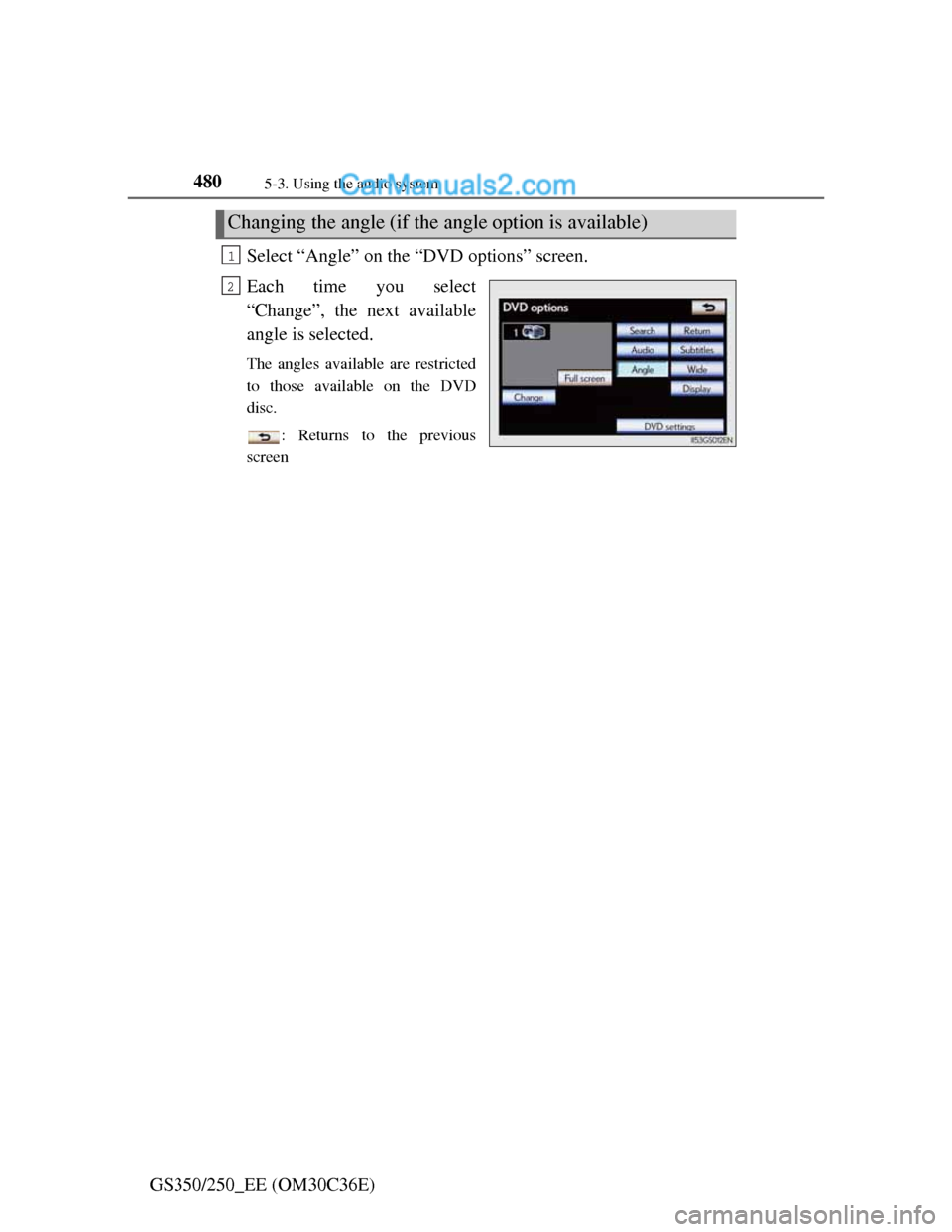

GS350/250_EE (OM30C36E)Select “Angle” on the “DVD options” screen.
Each time you select
“Change”, the next available
angle is selected.
The angles available are restricted
to those available on the DVD
disc.
: Returns to the previous
screen
Changing the angle (if the angle option is available)
1
2

4815-3. Using the audio system
5
Interior features

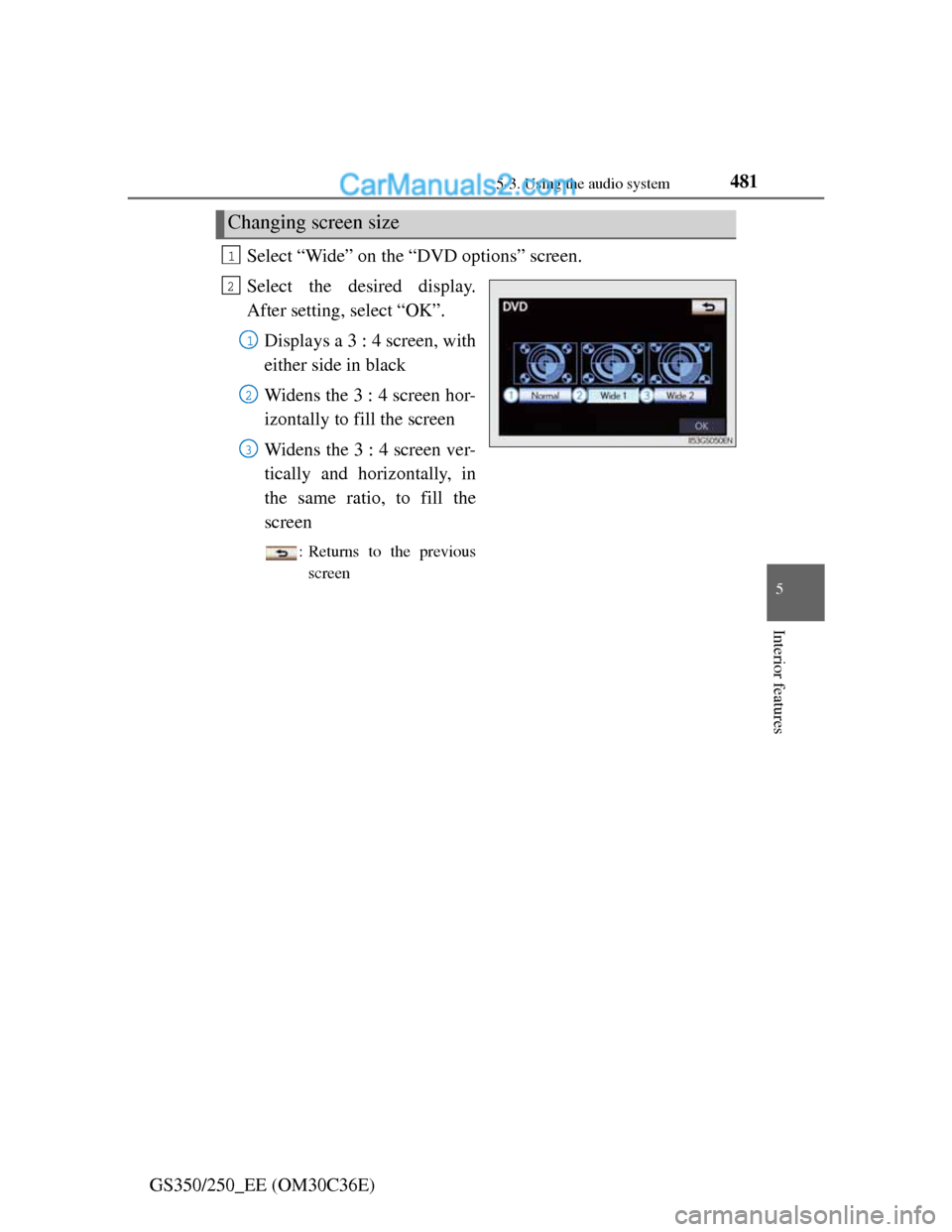

GS350/250_EE (OM30C36E)Select “Wide” on the “DVD options” screen.
Select the desired display.
After setting, select “OK”.
Displays a 3 : 4 screen, with
either side in black
Widens the 3 : 4 screen hor-
izontally to fill the screen
Widens the 3 : 4 screen ver-
tically and horizontally, in
the same ratio, to fill the
screen
: Returns to the previous
screen
Changing screen size
1
2
1
2
3

4825-3. Using the audio system

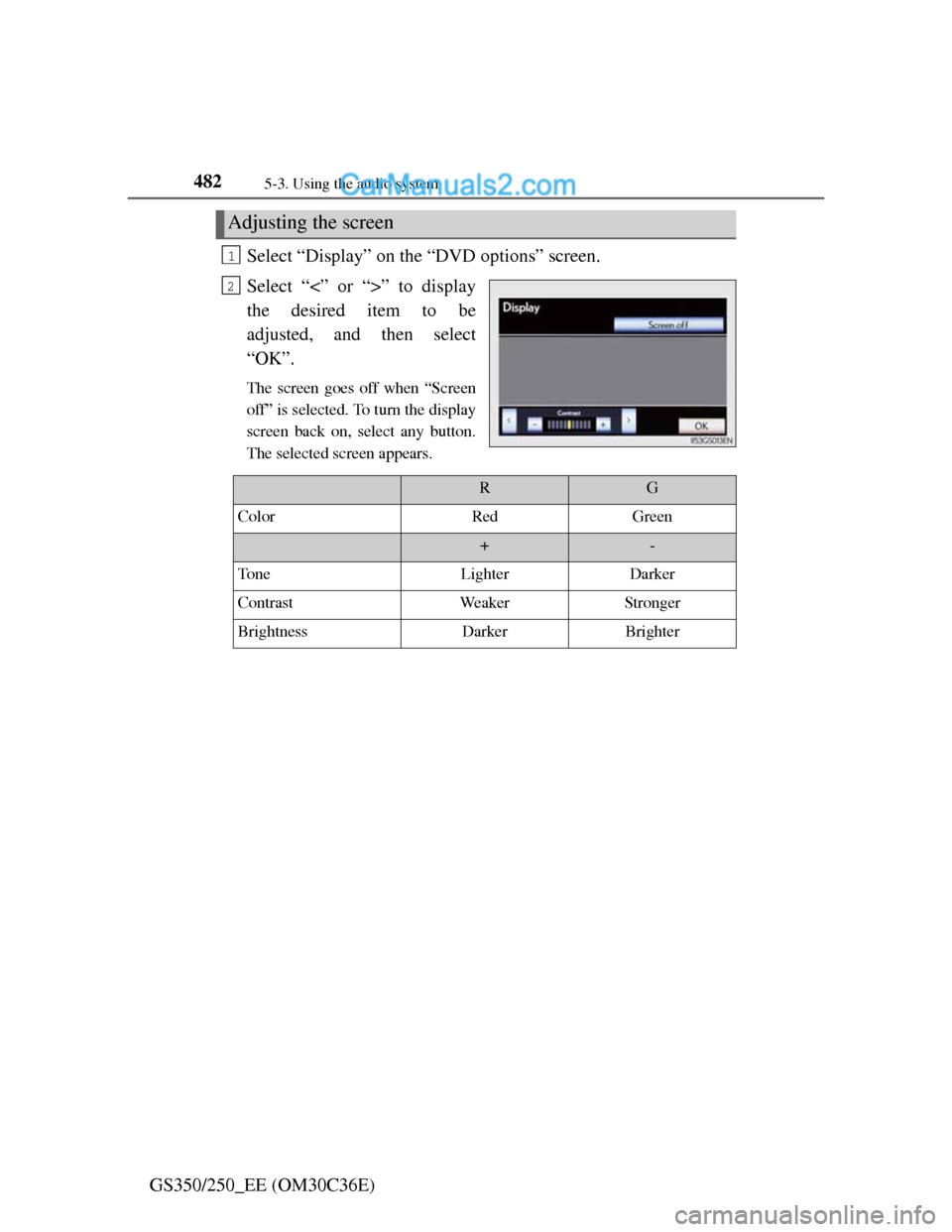

GS350/250_EE (OM30C36E)Select “Display” on the “DVD options” screen.
Select “<” or “>” to display
the desired item to be
adjusted, and then select
“OK”.
The screen goes off when “Screen
off” is selected. To turn the display
screen back on, select any button.
The selected screen appears.
Adjusting the screen
1
2
RG
ColorRedGreen
+-
To n eLighterDarker
ContrastWeakerStronger
BrightnessDarkerBrighter

4835-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)
Displaying “DVD settings” screen
Select “DVD settings” on the “DVD options” screen.
Select the setting to be changed.
After you change the settings,
select “OK”.
“Default”:Restores default set-
tings
: Returns to the previous
screen
Setting audio language
Select “Audio language” on the “DVD settings” screen.
Select the desired language to be heard on the “Audio lan-
guage” screen.
If you cannot find the desired language, select “Other” and input the
desired language code. (P. 485)
Setting subtitle language
Select “Subtitle language” on the “DVD settings” screen.
Select the desired language to be read on the “Subtitle lan-
guage” screen.
If you cannot find the desired language, select “Other” and input the
desired language code. (P. 485)
Initial DVD settings
1
2
1
2
1
2

4845-3. Using the audio system
GS350/250_EE (OM30C36E)

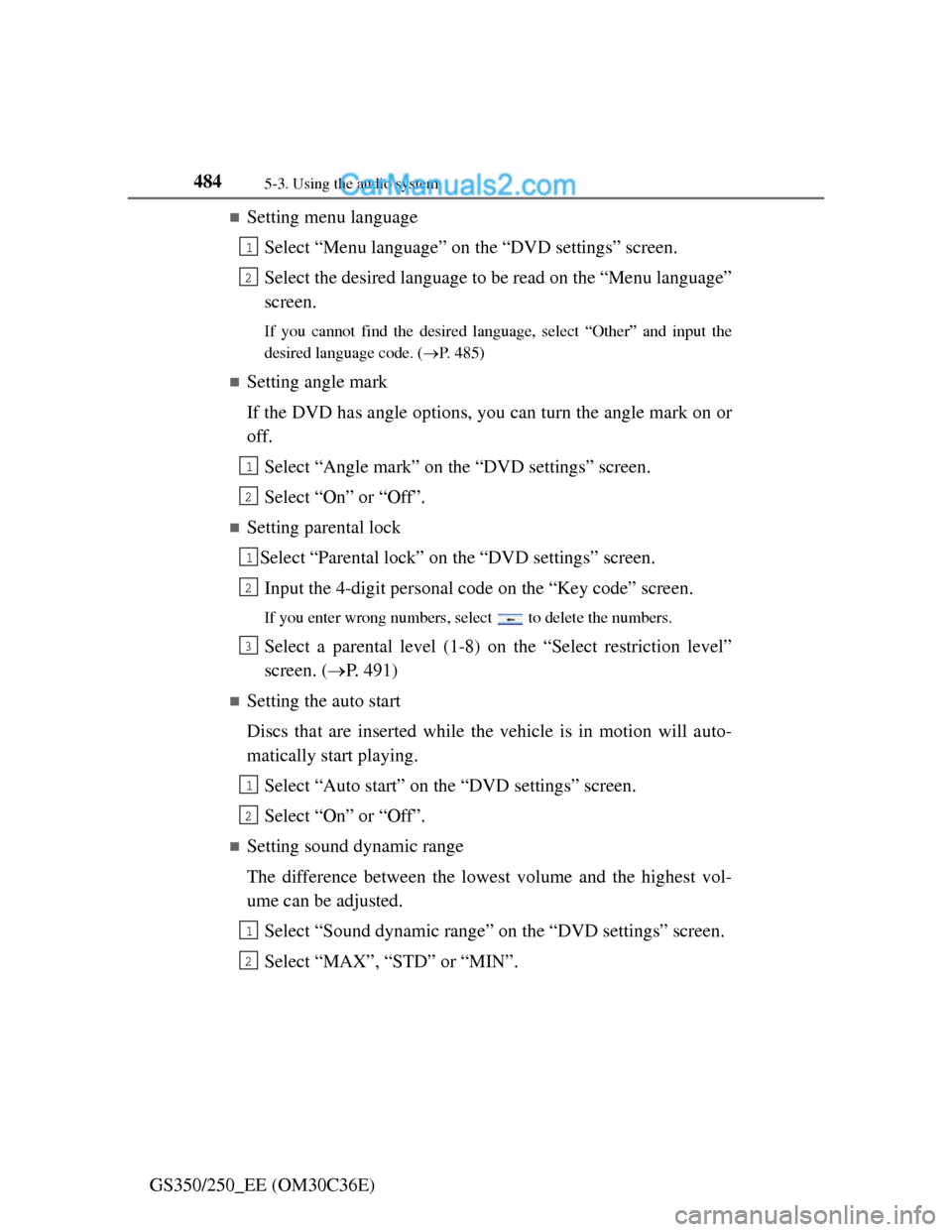

Setting menu language
Select “Menu language” on the “DVD settings” screen.
Select the desired language to be read on the “Menu language”
screen.
If you cannot find the desired language, select “Other” and input the
desired language code. (P. 485)
Setting angle mark
If the DVD has angle options, you can turn the angle mark on or
off.
Select “Angle mark” on the “DVD settings” screen.
Select “On” or “Off”.
Setting parental lock
Select “Parental lock” on the “DVD settings” screen.
Input the 4-digit personal code on the “Key code” screen.
If you enter wrong numbers, select to delete the numbers.
Select a parental level (1-8) on the “Select restriction level”
screen. (P. 491)
Setting the auto start
Discs that are inserted while the vehicle is in motion will auto-
matically start playing.
Select “Auto start” on the “DVD settings” screen.
Select “On” or “Off”.
Setting sound dynamic range
The difference between the lowest volume and the highest vol-
ume can be adjusted.
Select “Sound dynamic range” on the “DVD settings” screen.
Select “MAX”, “STD” or “MIN”.
1
2
1
2
1
2
3
1
2
1
2

4855-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)

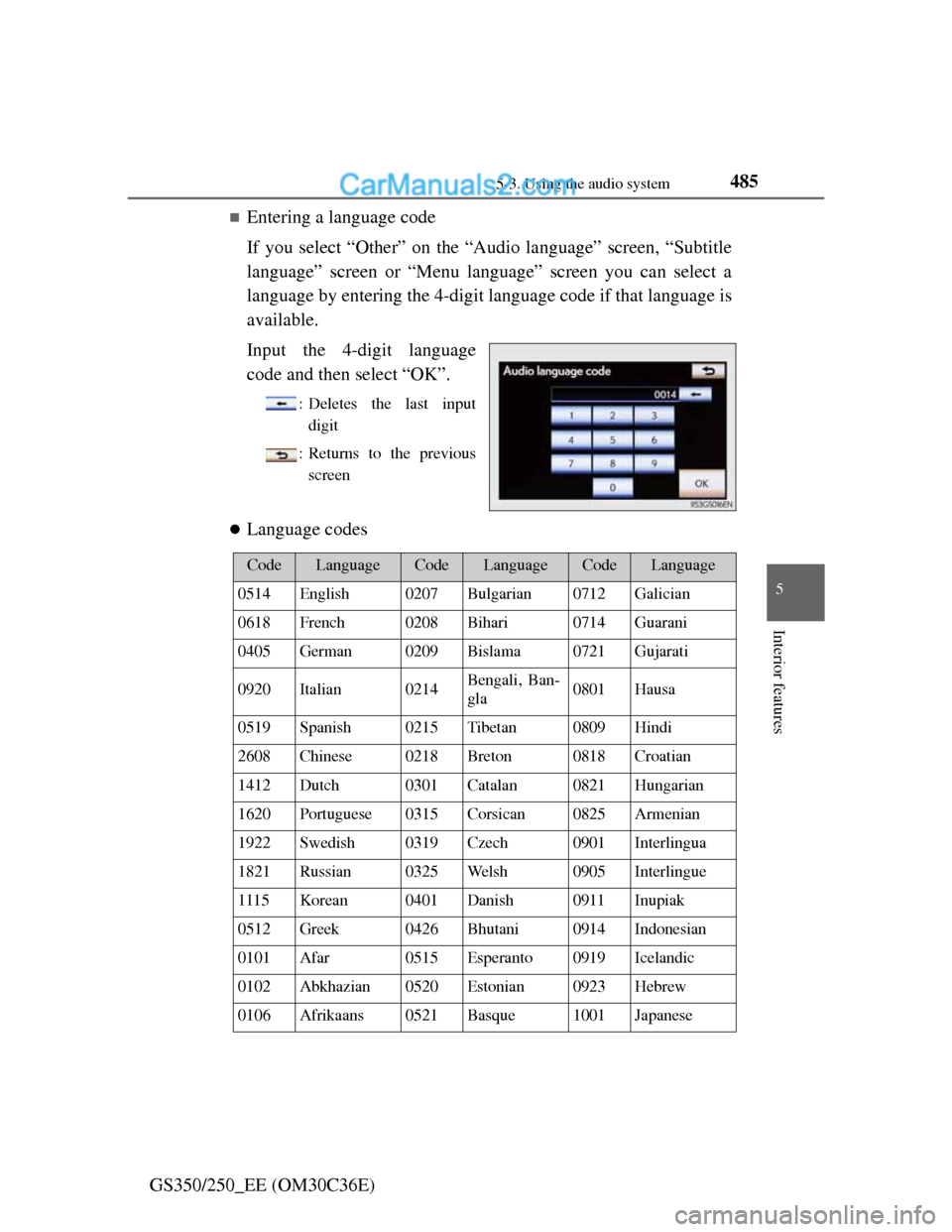

Entering a language code
If you select “Other” on the “Audio language” screen, “Subtitle
language” screen or “Menu language” screen you can select a
language by entering the 4-digit language code if that language is
available.
Input the 4-digit language
code and then select “OK”.
: Deletes the last input
digit
: Returns to the previous
screen

Language codes
CodeLanguageCodeLanguageCodeLanguage
0514English0207Bulgarian0712Galician
0618French0208Bihari0714Guarani
0405German0209Bislama0721Gujarati
0920Italian0214Bengali, Ban-
gla0801Hausa
0519Spanish0215Tibetan0809Hindi
2608Chinese0218Breton0818Croatian
1412Dutch0301Catalan0821Hungarian
1620Portuguese0315Corsican0825Armenian
1922Swedish0319Czech0901Interlingua
1821Russian0325We l s h0905Interlingue
1115Korean0401Danish0911Inupiak
0512Greek0426Bhutani0914Indonesian
0101Afar0515Esperanto0919Icelandic
0102Abkhazian0520Estonian0923Hebrew
0106Afrikaans0521Basque1001Japanese

4865-3. Using the audio system
GS350/250_EE (OM30C36E)

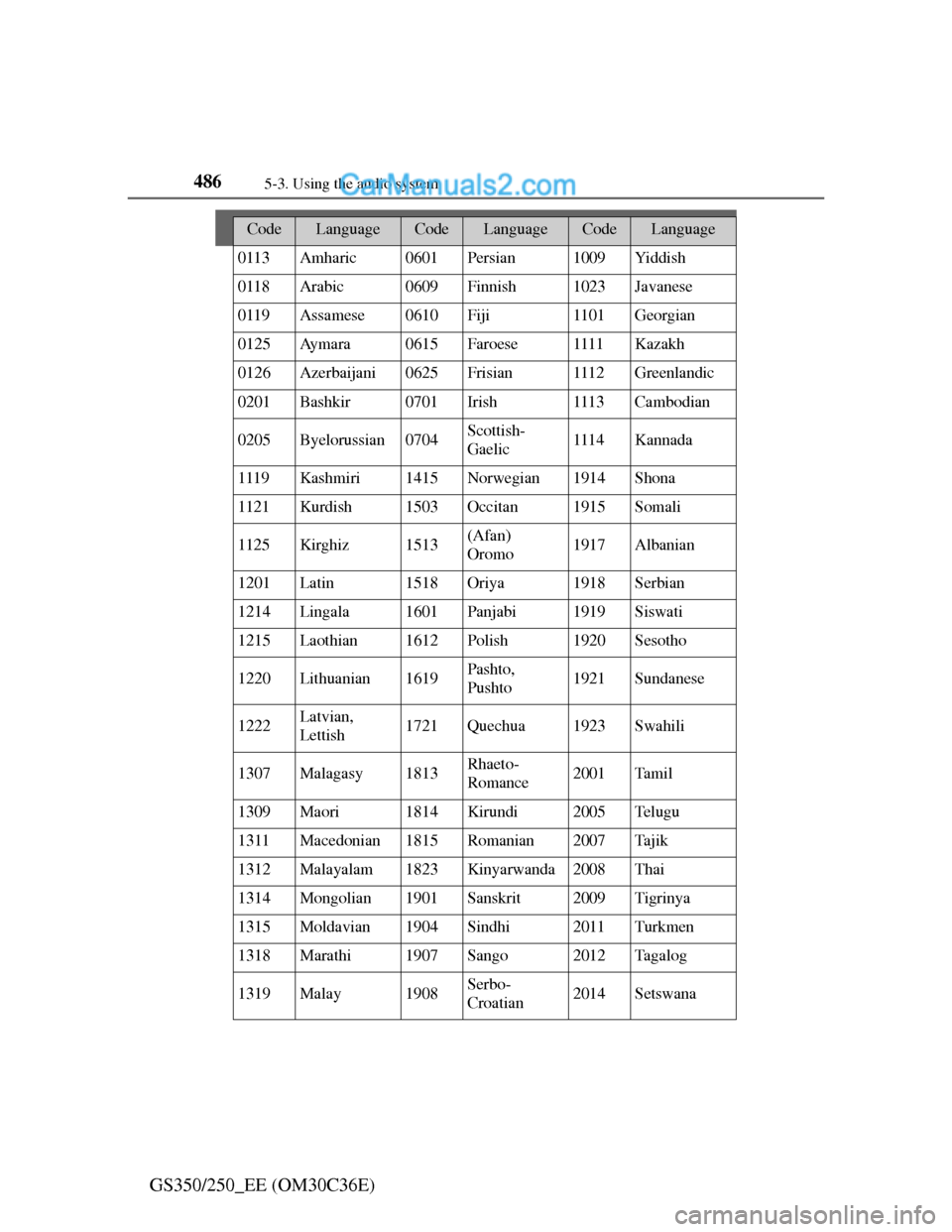

0113Amharic0601Persian1009Yi d d i s h
0118Arabic0609Finnish1023Javanese
0119Assamese0610Fiji1101Georgian
0125Ay m a r a0615Faroese1111Kazakh
0126Azerbaijani0625Frisian1112Greenlandic
0201Bashkir0701Irish1113Cambodian
0205Byelorussian0704Scottish-
Gaelic1114Kannada
1119Kashmiri1415Norwegian1914Shona
1121Kurdish1503Occitan1915Somali
1125Kirghiz1513(Afan)
Oromo1917Albanian
1201Latin1518Oriya1918Serbian
1214Lingala1601Panjabi1919Siswati
1215Laothian1612Polish1920Sesotho
1220Lithuanian1619Pashto,
Pushto1921Sundanese
1222Latvian,
Lettish1721Quechua1923Swahili
1307Malagasy1813Rhaeto-
Romance2001Ta m i l
1309Maori1814Kirundi2005Te l u g u
1311Macedonian1815Romanian2007Ta j i k
1312Malayalam1823Kinyarwanda2008Thai
1314Mongolian1901Sanskrit2009Tigrinya
1315Moldavian1904Sindhi2011Turkmen
1318Marathi1907Sango2012Ta g a l o g
1319Malay1908Serbo-
Croatian2014Setswana
CodeLanguageCodeLanguageCodeLanguage

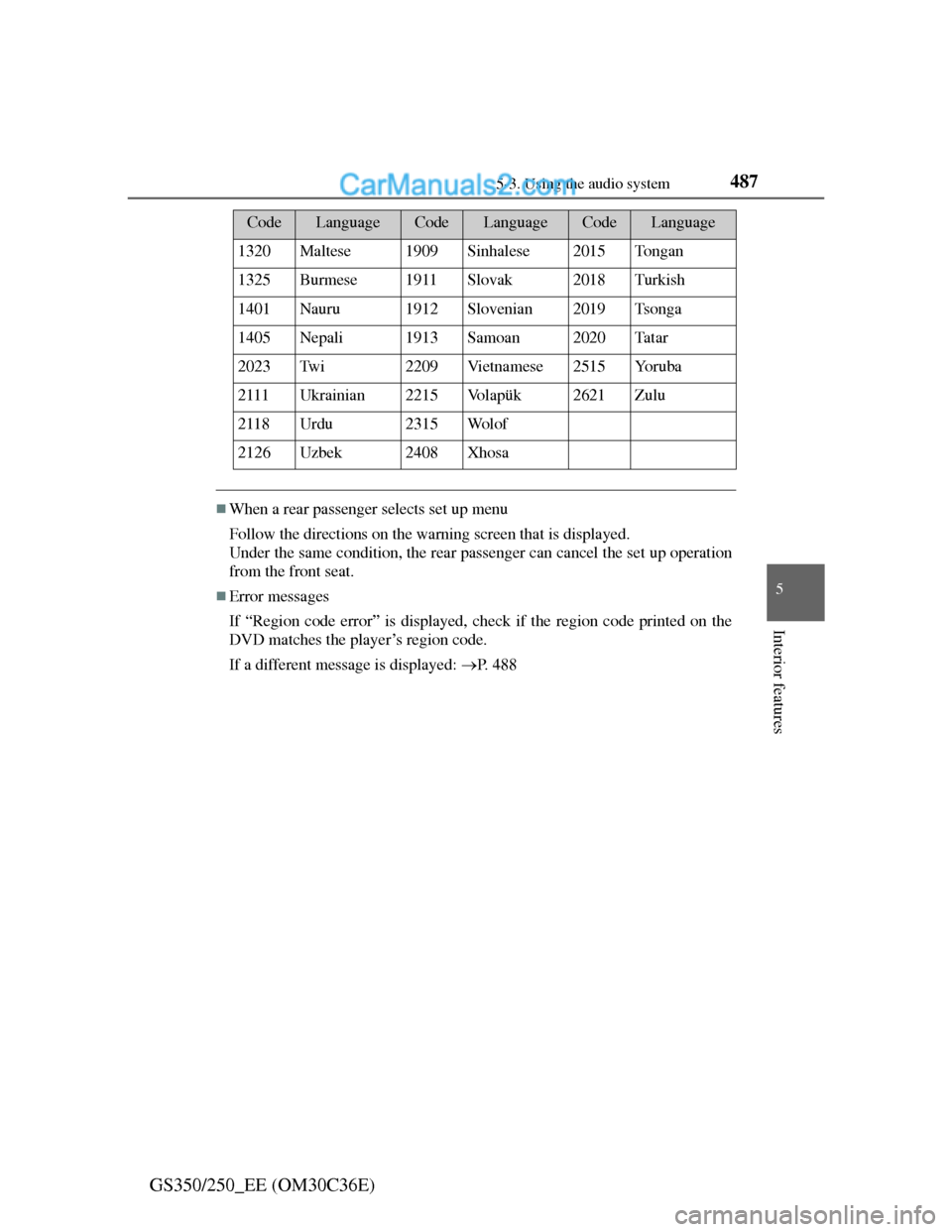

4875-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)
When a rear passenger selects set up menu
Follow the directions on the warning screen that is displayed.
Under the same condition, the rear passenger can cancel the set up operation
from the front seat.
Error messages
If “Region code error” is displayed, check if the region code printed on the
DVD matches the player’s region code.
If a different message is displayed: P. 4 8 8
1320Maltese1909Sinhalese2015To n g a n
1325Burmese1911Slovak2018Turkish
1401Nauru1912Slovenian2019Tsonga
1405Nepali1913Samoan2020Ta t a r
2023Tw i2209Vi e t n a m e s e2515Yo r u b a
2111Ukrainian2215Vo l a p ü k2621Zulu
2118Urdu2315Wo l o f
2126Uzbek2408Xhosa
CodeLanguageCodeLanguageCodeLanguage

4885-3. Using the audio system
GS350/250_EE (OM30C36E)

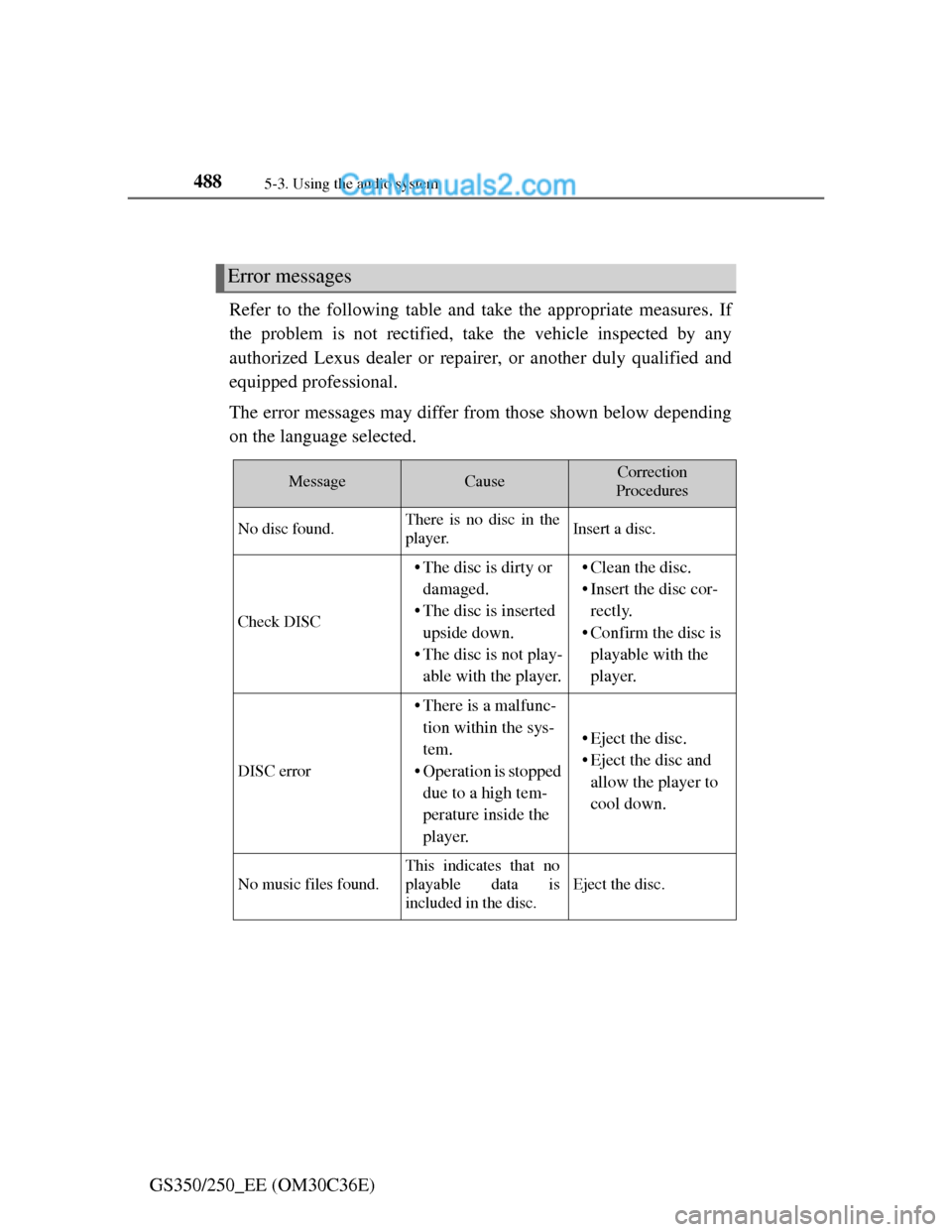

CD/DVD player and DVD video disc information
Refer to the following table and take the appropriate measures. If
the problem is not rectified, take the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
The error messages may differ from those shown below depending
on the language selected.
Error messages
MessageCauseCorrection
Procedures
No disc found.There is no disc in the
player.Insert a disc.
Check DISC
• The disc is dirty or
damaged.
• The disc is inserted
upside down.
• The disc is not play-
able with the player.• Clean the disc.
• Insert the disc cor-
rectly.
• Confirm the disc is
playable with the
player.
DISC error
• There is a malfunc-
tion within the sys-
tem.
• Operation is stopped
due to a high tem-
perature inside the
player.
• Eject the disc.
• Eject the disc and
allow the player to
cool down.
No music files found.
This indicates that no
playable data is
included in the disc.
Eject the disc.

4895-3. Using the audio system
5
Interior features
GS350/250_EE (OM30C36E)

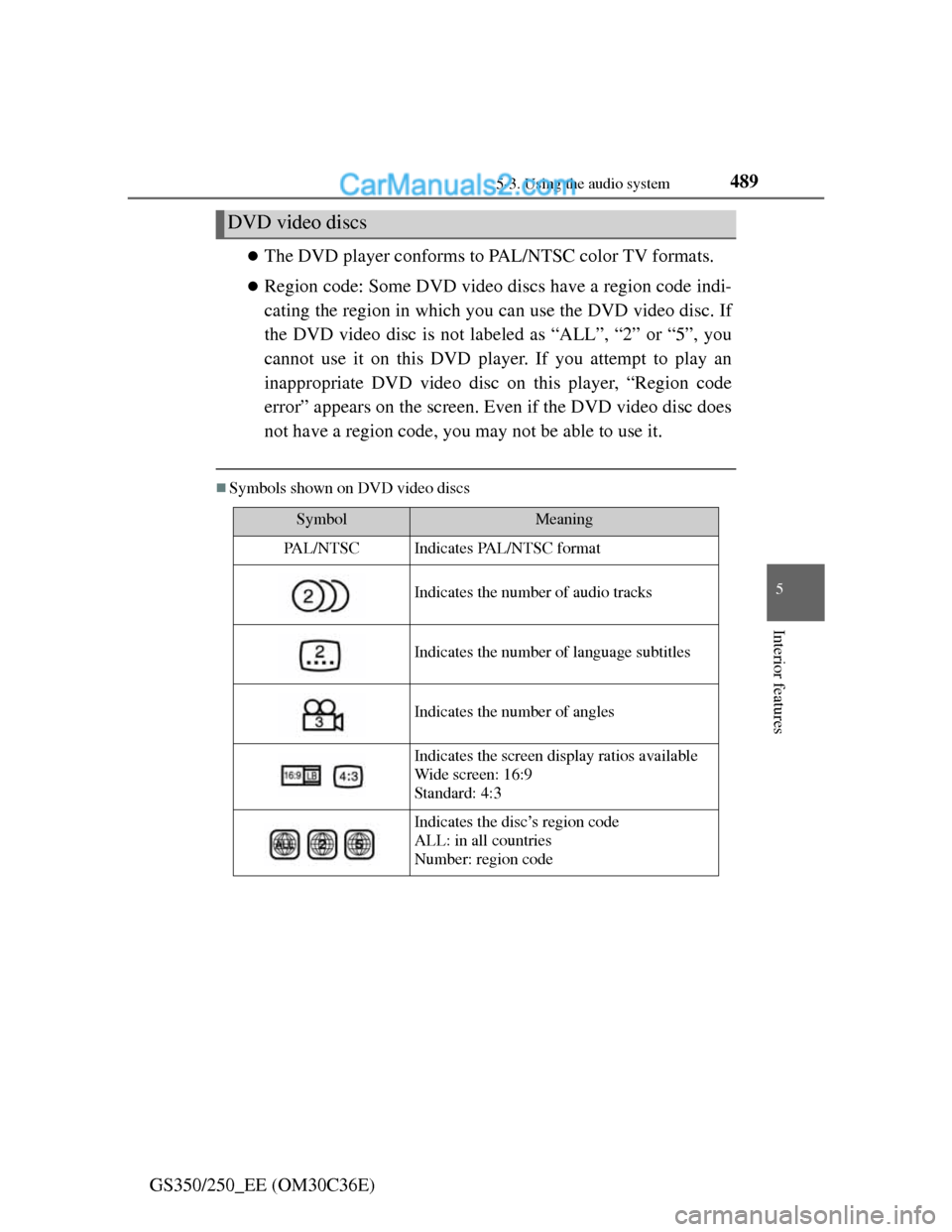

The DVD player conforms to PAL/NTSC color TV formats.
Region code: Some DVD video discs have a region code indi-
cating the region in which you can use the DVD video disc. If
the DVD video disc is not labeled as “ALL”, “2” or “5”, you
cannot use it on this DVD player. If you attempt to play an
inappropriate DVD video disc on this player, “Region code
error” appears on the screen. Even if the DVD video disc does
not have a region code, you may not be able to use it.
Symbols shown on DVD video discs
DVD video discs
SymbolMeaning
PA L / N T S CIndicates PAL/NTSC format
Indicates the number of audio tracks
Indicates the number of language subtitles
Indicates the number of angles
Indicates the screen display ratios available
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code
ALL: in all countries
Number: region code
