Lexus GS250 2012 Owner's Manual

733 6-3. Do-it-yourself maintenance
6
Maintenance and care

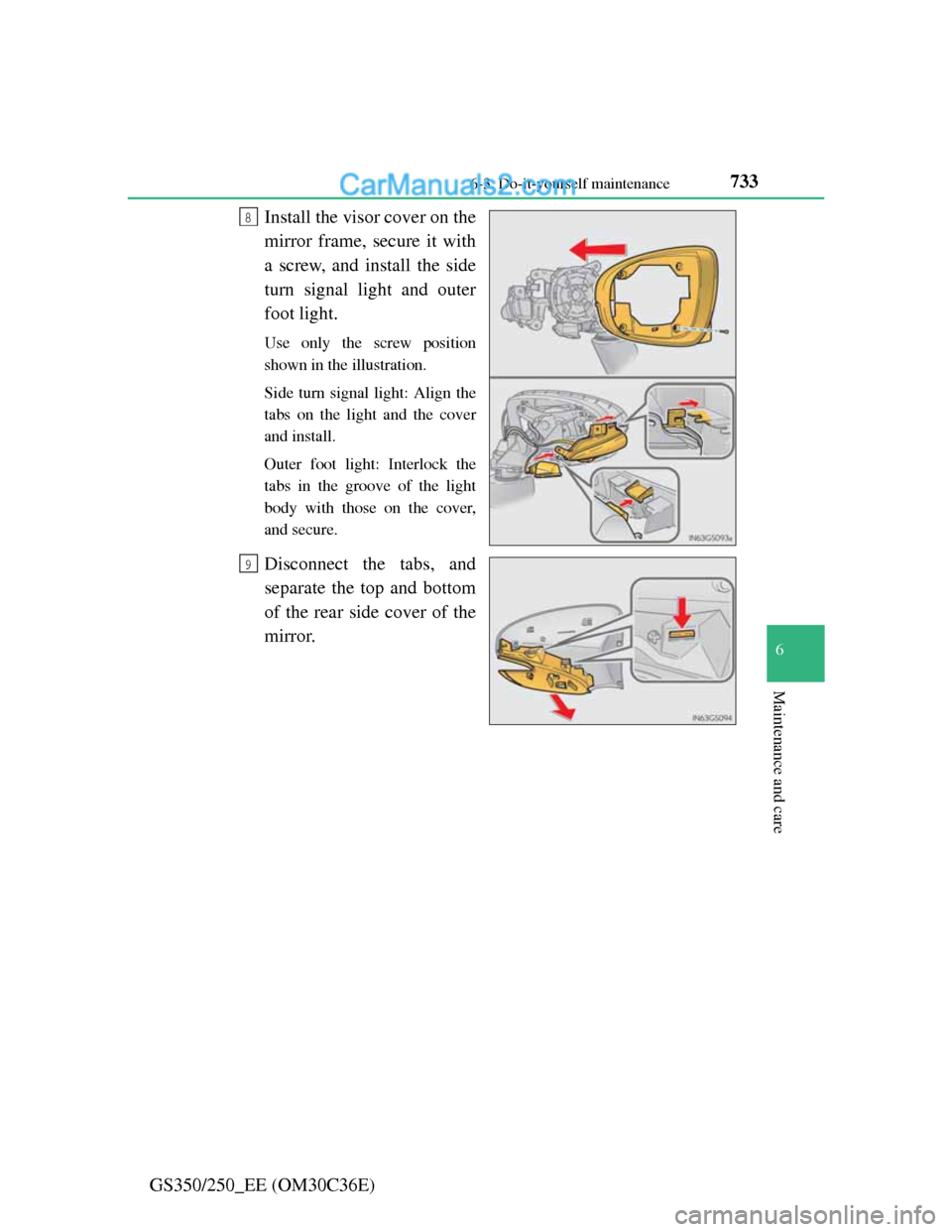

GS350/250_EE (OM30C36E)Install the visor cover on the
mirror frame, secure it with
a screw, and install the side
turn signal light and outer
foot light.
Use only the screw position
shown in the illustration.
Side turn signal light: Align the
tabs on the light and the cover
and install.
Outer foot light: Interlock the
tabs in the groove of the light
body with those on the cover,
and secure.
Disconnect the tabs, and
separate the top and bottom
of the rear side cover of the
mirror.
8
9

7346-3. Do-it-yourself maintenance

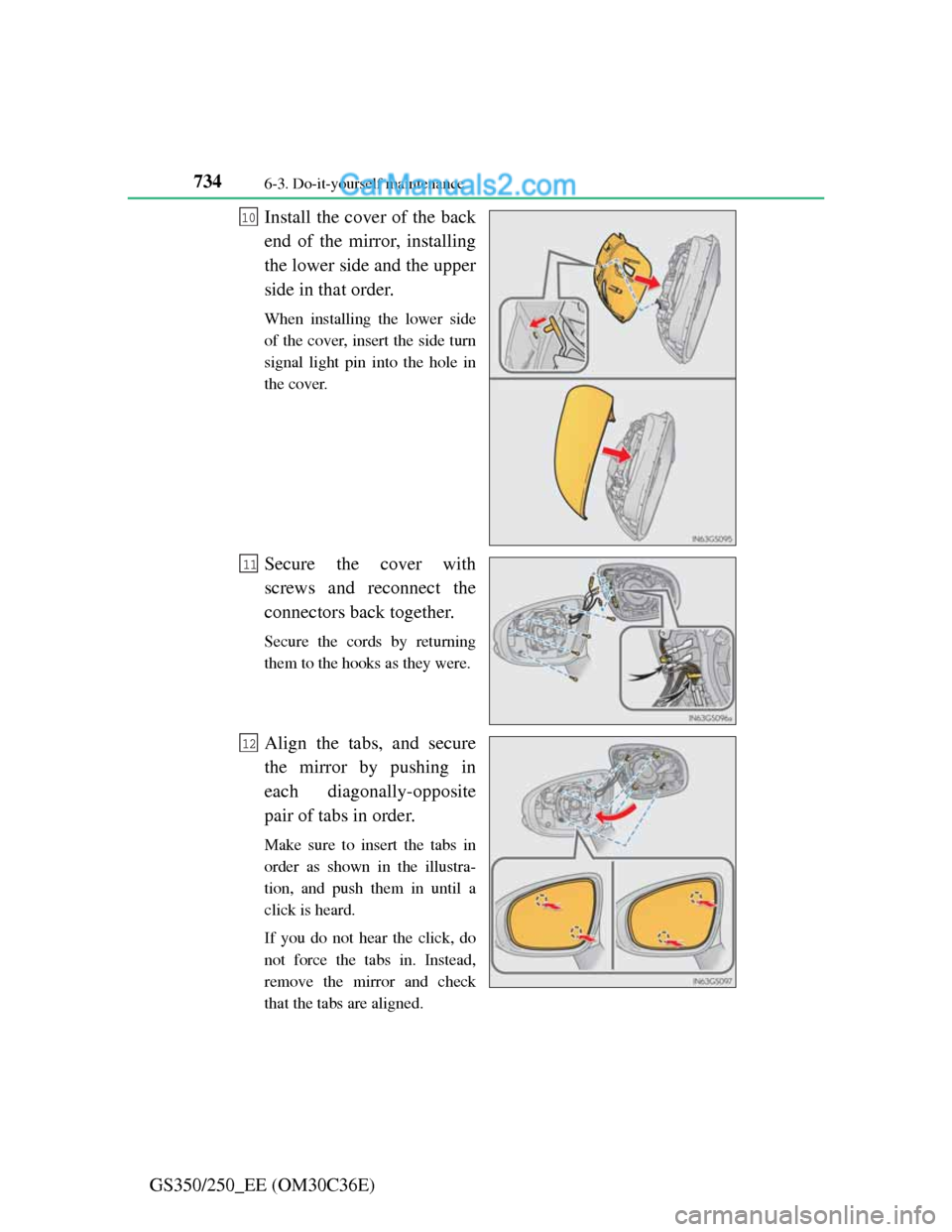

GS350/250_EE (OM30C36E)Install the cover of the back
end of the mirror, installing
the lower side and the upper
side in that order.
When installing the lower side
of the cover, insert the side turn
signal light pin into the hole in
the cover.
Secure the cover with
screws and reconnect the
connectors back together.
Secure the cords by returning
them to the hooks as they were.
Align the tabs, and secure
the mirror by pushing in
each diagonally-opposite
pair of tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
10
11
12

735 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Headlights
Front position lights and daytime running lights
Side turn signal lights
Stop/tail lights
Tail lights
Rear fog light
High mounted stoplight
License plate lights
Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The lights other than the headlights, front fog lights (if equipped), front turn
signal lights, rear turn signal lights, back-up light and outer foot lights each
consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 7 2 1

7366-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the rear
of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal compo-

737 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
CAUTION
Discharge headlights
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in death or serious injury by electric shock.
Do not attempt to take apart or repair the headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Check the wattage of the bulb before installing to prevent heat damage.
NOTICE
When replacing the outer foot lights
If the front window is stopping you from conducting the replace operation
properly, open the window on the side you are working on to allow you
enough space to work. Continuing the operation without giving yourself
enough space to work could lead you to scratch the vehicle.

7386-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)

737

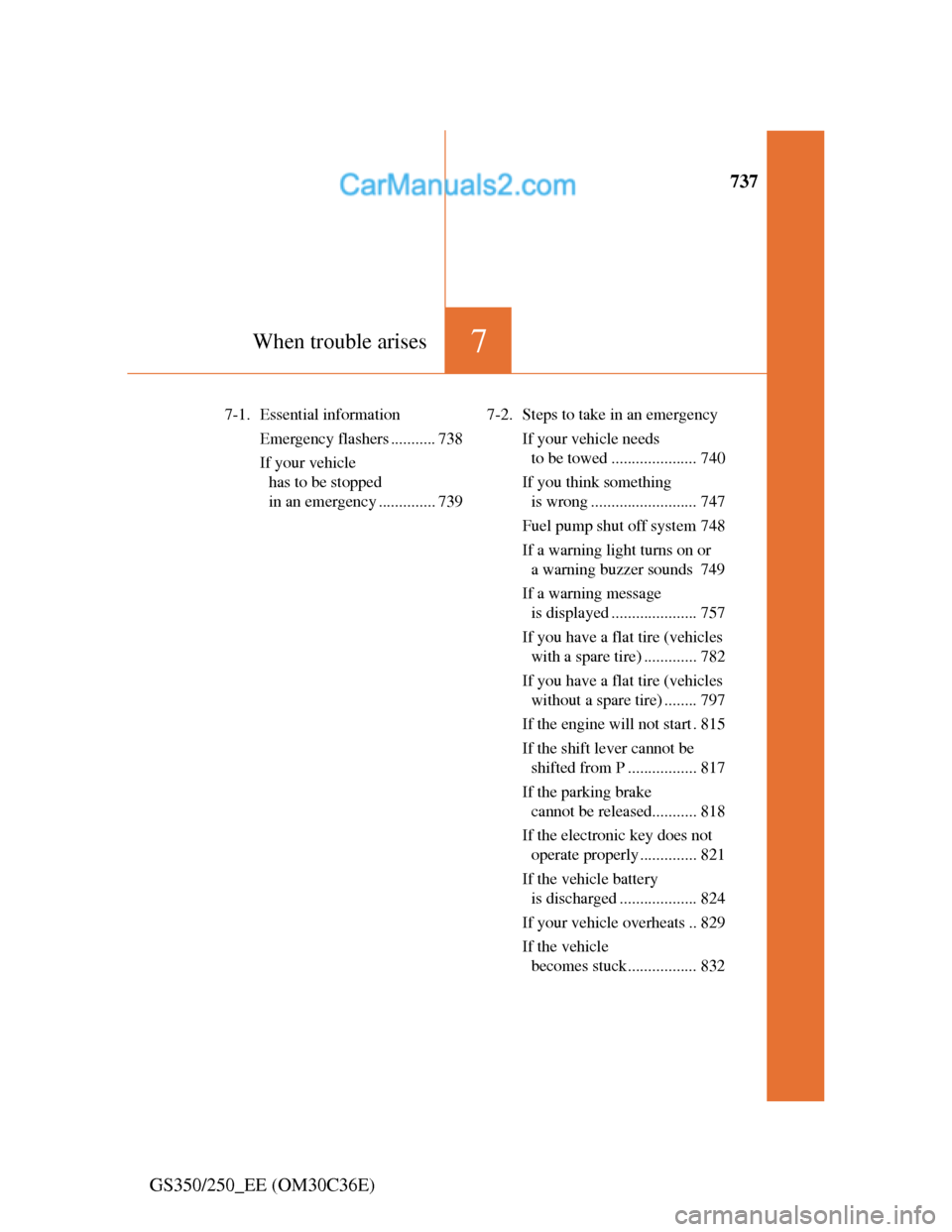

7When trouble arises
GS350/250_EE (OM30C36E)
7-1. Essential information
Emergency flashers ........... 738
If your vehicle
has to be stopped
in an emergency .............. 7397-2. Steps to take in an emergency
If your vehicle needs
to be towed ..................... 740
If you think something
is wrong .......................... 747
Fuel pump shut off system 748
If a warning light turns on or
a warning buzzer sounds 749
If a warning message
is displayed ..................... 757
If you have a flat tire (vehicles
with a spare tire) ............. 782
If you have a flat tire (vehicles
without a spare tire) ........ 797
If the engine will not start . 815
If the shift lever cannot be
shifted from P ................. 817
If the parking brake
cannot be released........... 818
If the electronic key does not
operate properly .............. 821
If the vehicle battery
is discharged ................... 824
If your vehicle overheats .. 829
If the vehicle
becomes stuck................. 832

7387-1. Essential information
GS350/250_EE (OM30C36E)

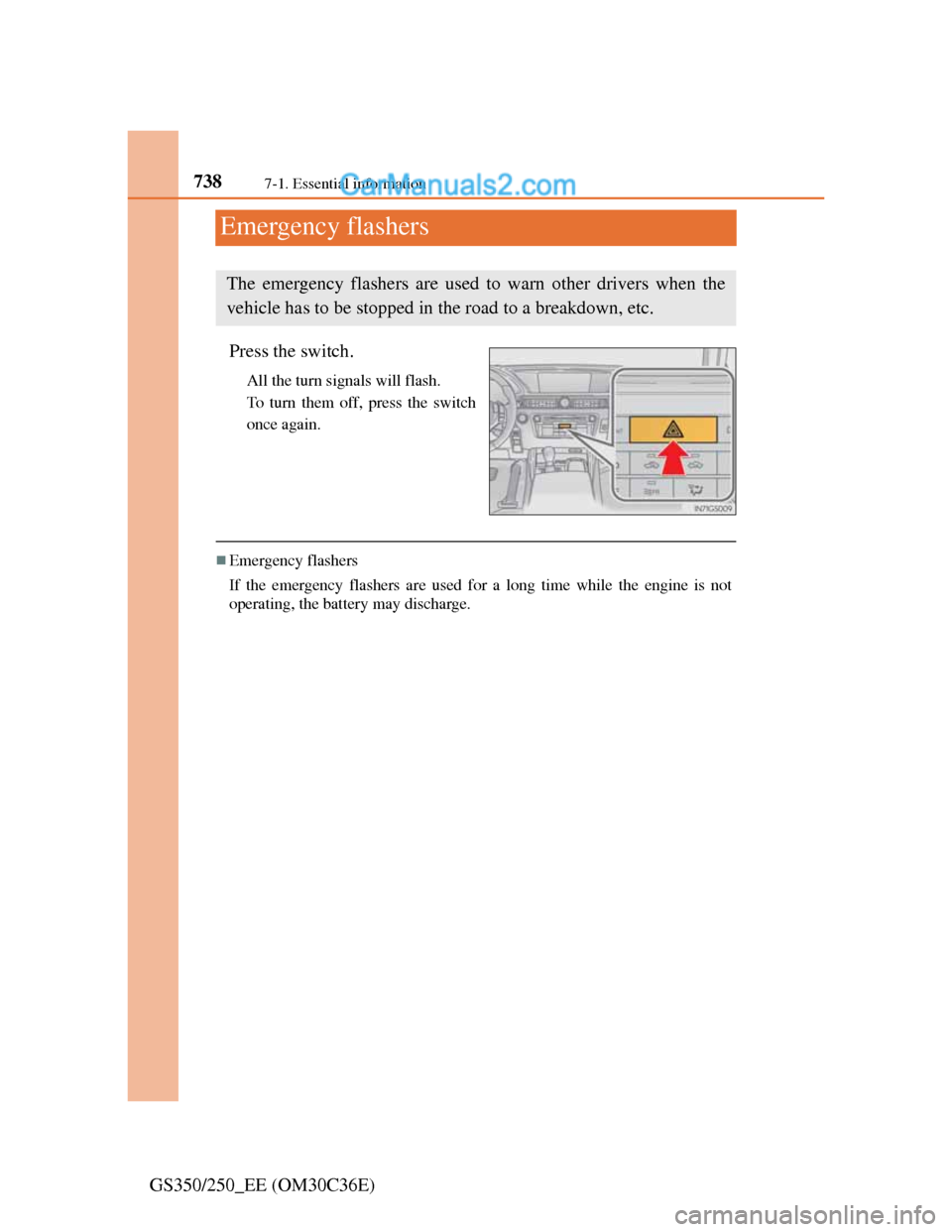

Emergency flashers
Press the switch.
All the turn signals will flash.
To turn them off, press the switch
once again.
Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road to a breakdown, etc.

739
7 7-1. Essential information
When trouble arises
GS350/250_EE (OM30C36E)

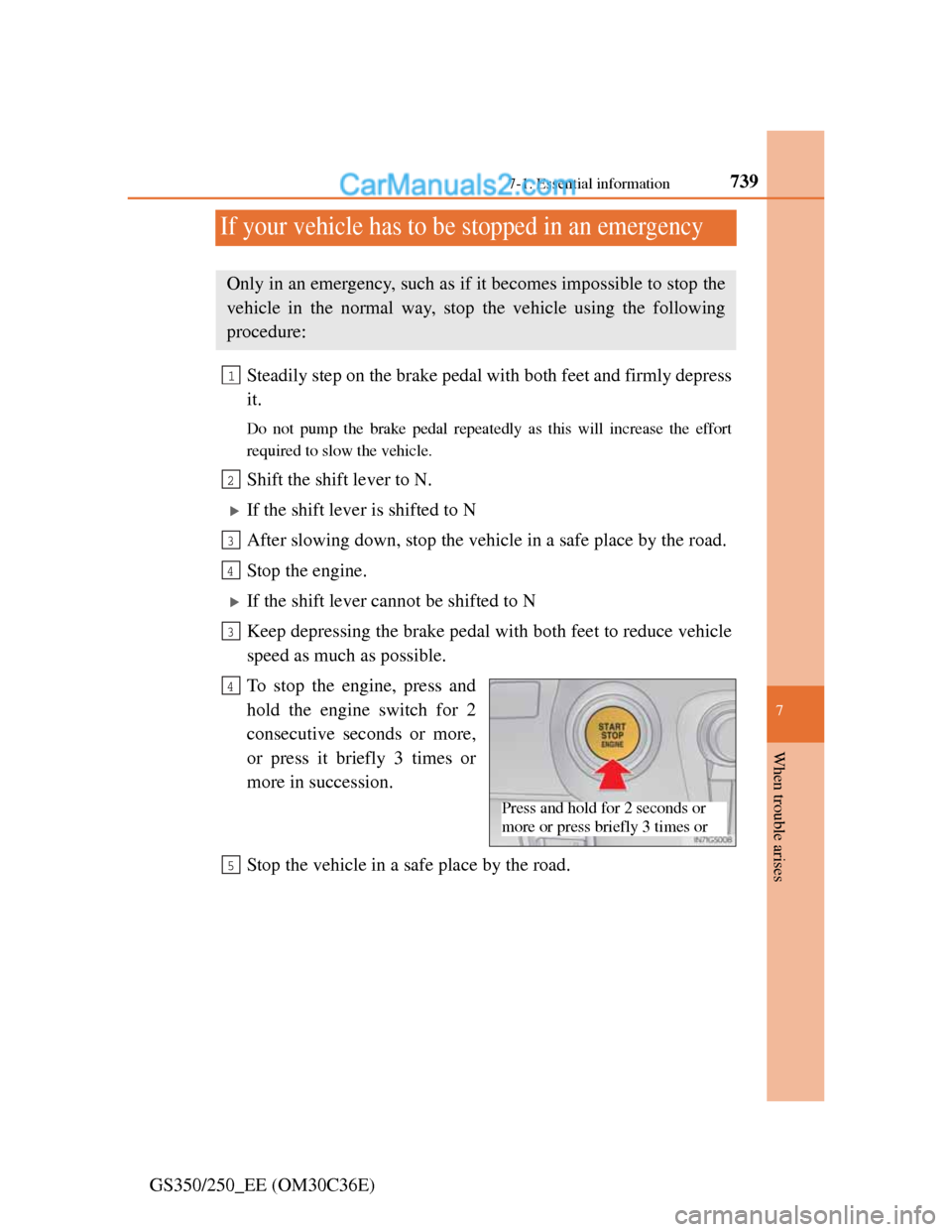

If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress
it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the engine, press and
hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following
procedure:
1
2
3
4
3
Press and hold for 2 seconds or
more or press briefly 3 times or
4
5

7407-1. Essential information
GS350/250_EE (OM30C36E)

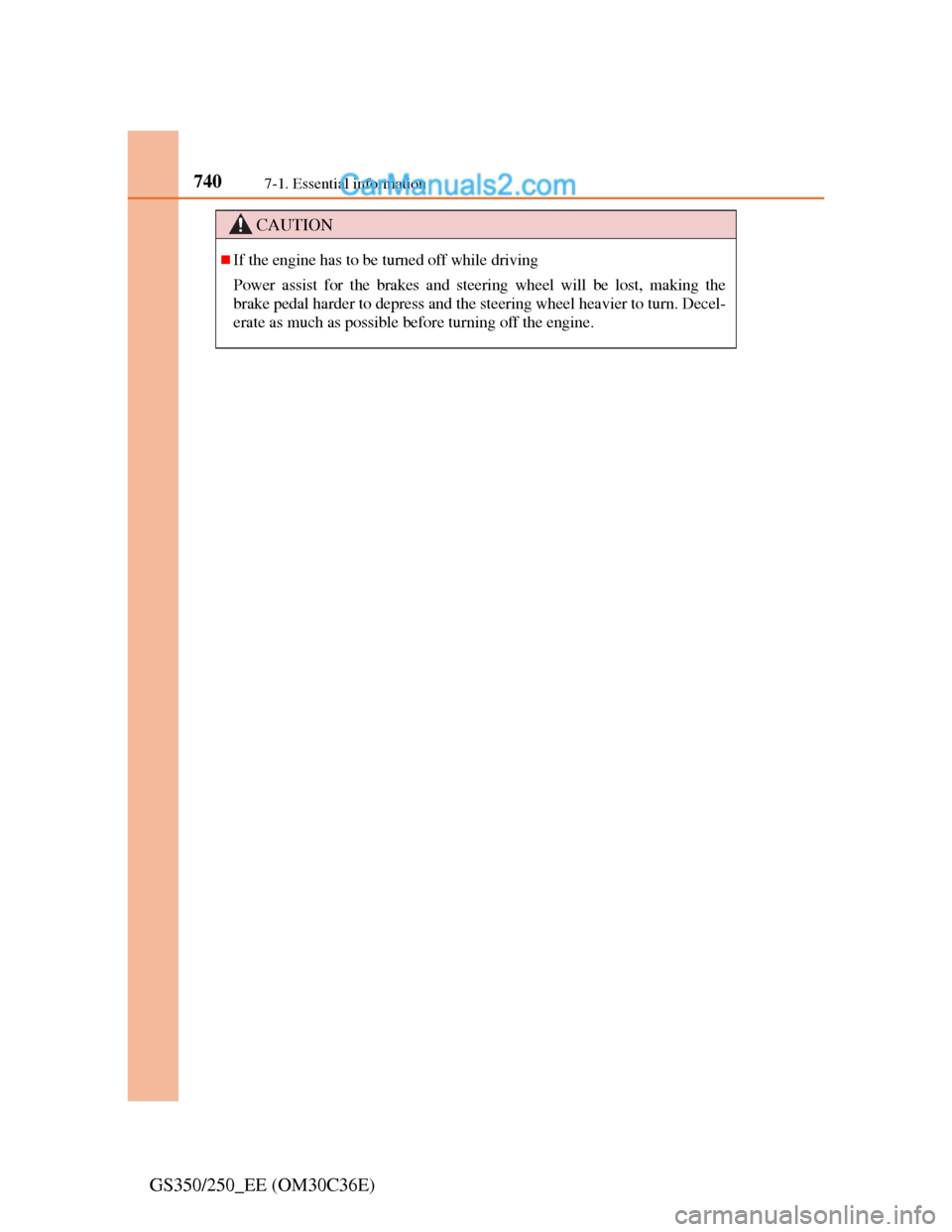

CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn. Decel-
erate as much as possible before turning off the engine.
