Lexus GS250 2012 Owner's Manual

713 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
10LH ECU-IG10
VDIM, D-SW MODULE (Blind Spot
Monitor, heated steering wheel), driver
support system, AFS, EPB
11DOOR FL30Outside rear view mirror defoggers,
power window (front left-hand)
12CAPACITOR
(HV)10No circuit
13STRG LOCK15Steering lock
14D/L NO.225Power door lock system
15DOOR RL30Power window (rear left-hand)
16HAZ15Turn signal lights, emergency flashers
17LH-IG210
Multiport fuel injection system/sequen-
tial multiport fuel injection system, stop
lights, smart entry & start system, steer-
ing lock system
18LH J/B-B7.5Body ECU
19S/ROOF20Moon roof
20P/SEAT2 F/L25Power seats
21TI & TE20Electric tilt and telescopic steering col-
umn
22A/C7.5Air conditioning system
FuseAmpereCircuit

7146-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Right-hand drive vehicles
FuseAmpereCircuit
1P/SEAT1 F/L30Power seats
2D/L NO.125Power door lock system
3NV-IR10No circuit
4FL S/HTR10Seat heaters/ventilators
5STRG HTR15Heated steering wheel
6WIPER-IG5Windshield wipers
7LH-IG10
Seat belts, body ECU, AFS, Remote
Touch screen, overhead module, rain-
drop sensor, moon roof, inside rear view
mirror, LKA, front left-hand door ECU,
Lexus parking assist-sensor, power seats,
CAN gateway ECU
8LH ECU-IG10Yaw rate and G sensor, air conditioning
system, AFS, driver support system
9DOOR FL30Outside rear view mirror defoggers,
power window (front left-hand)
10CAPACITOR
(HV)10No circuit
11AM27.5Power management system, smart entry
& start system
12D/L NO.225Power door lock system
13DOOR RL30Power window (rear left-hand)
14HAZ15Turn signal lights, emergency flashers

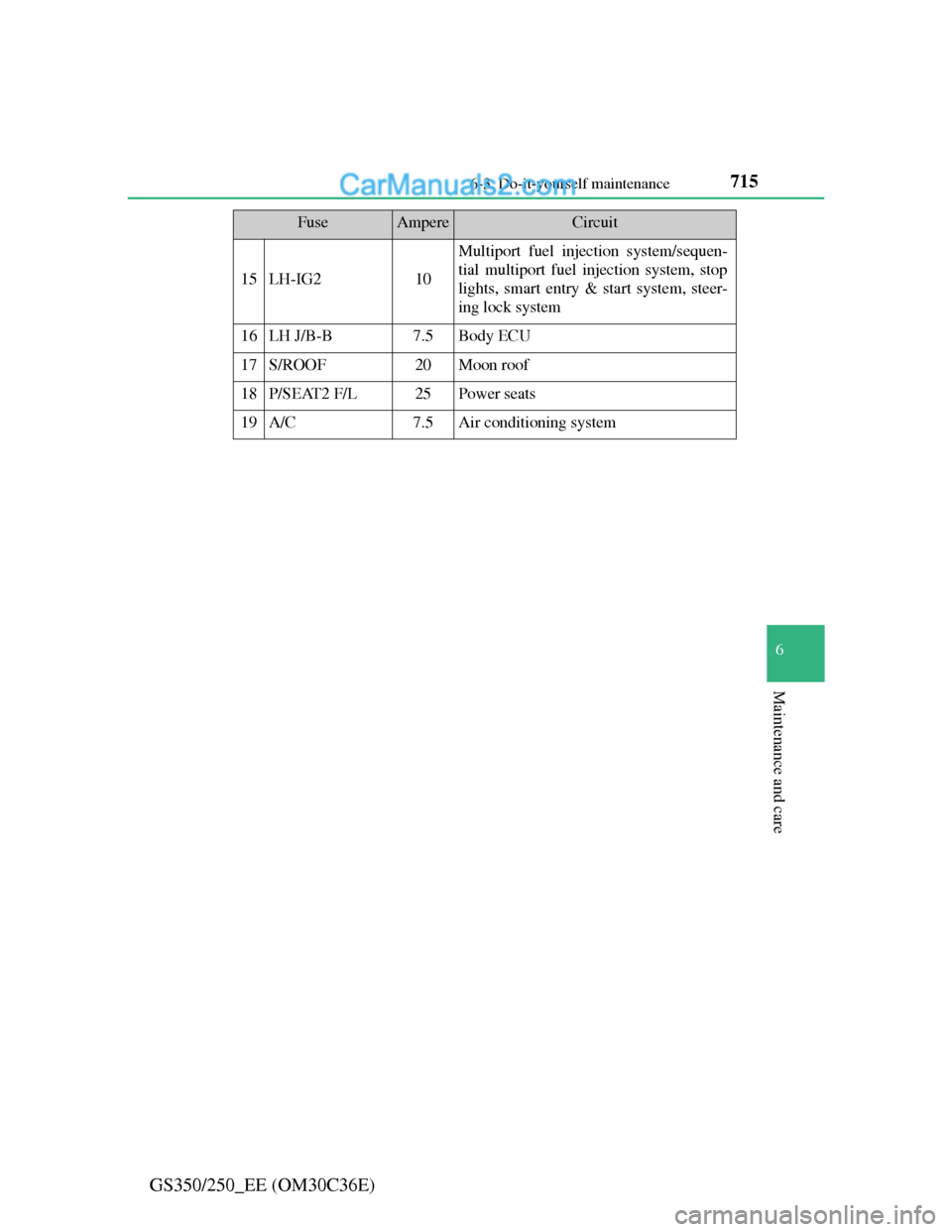

715 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
15LH-IG210
Multiport fuel injection system/sequen-
tial multiport fuel injection system, stop
lights, smart entry & start system, steer-
ing lock system
16LH J/B-B7.5Body ECU
17S/ROOF20Moon roof
18P/SEAT2 F/L25Power seats
19A/C7.5Air conditioning system
FuseAmpereCircuit

7166-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)

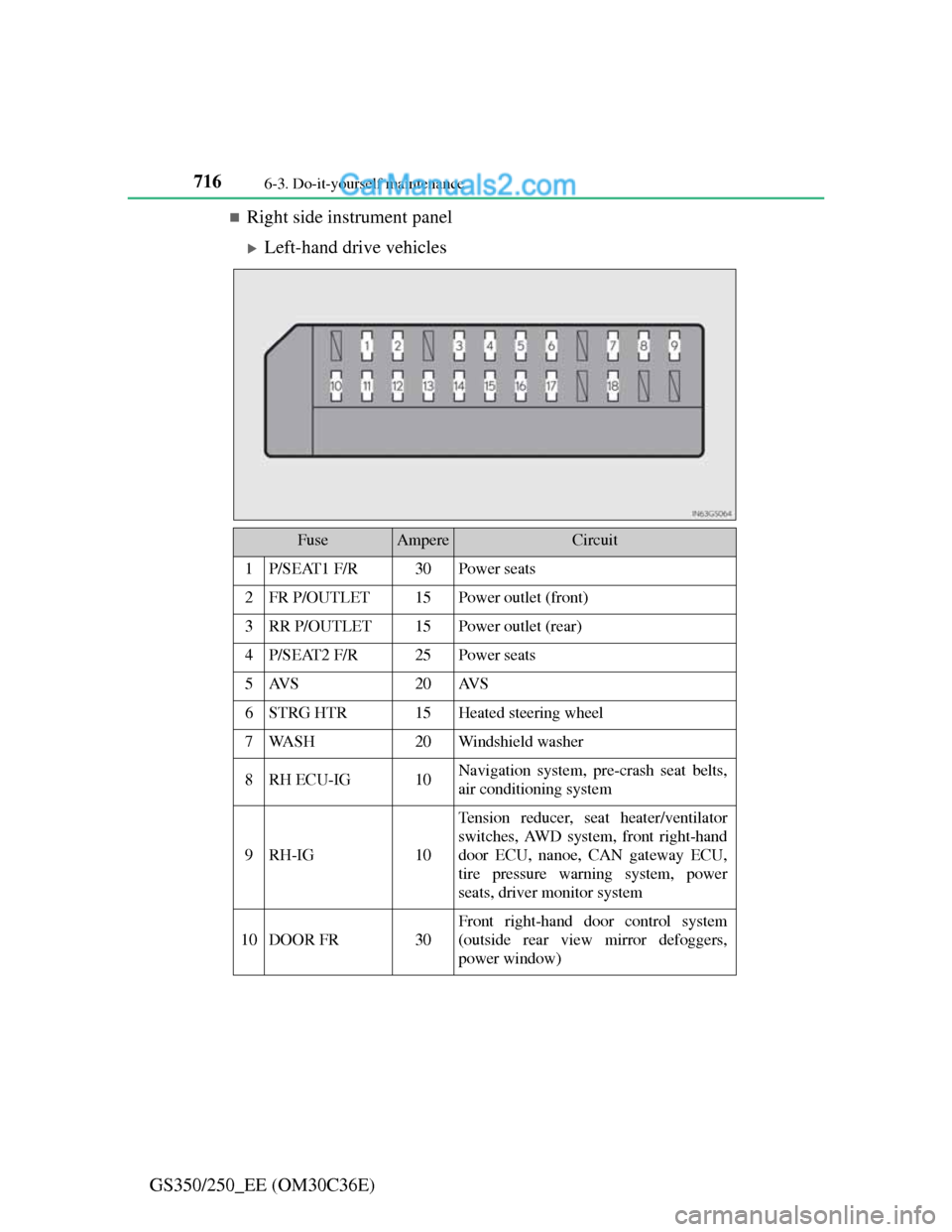

Right side instrument panel
Left-hand drive vehicles
FuseAmpereCircuit
1P/SEAT1 F/R30Power seats
2FR P/OUTLET15Power outlet (front)
3RR P/OUTLET15Power outlet (rear)
4P/SEAT2 F/R25Power seats
5AV S20AV S
6STRG HTR15Heated steering wheel
7WA S H20Windshield washer
8RH ECU-IG10Navigation system, pre-crash seat belts,
air conditioning system
9RH-IG10
Tension reducer, seat heater/ventilator
switches, AWD system, front right-hand
door ECU, nanoe, CAN gateway ECU,
tire pressure warning system, power
seats, driver monitor system
10DOOR FR30
Front right-hand door control system
(outside rear view mirror defoggers,
power window)

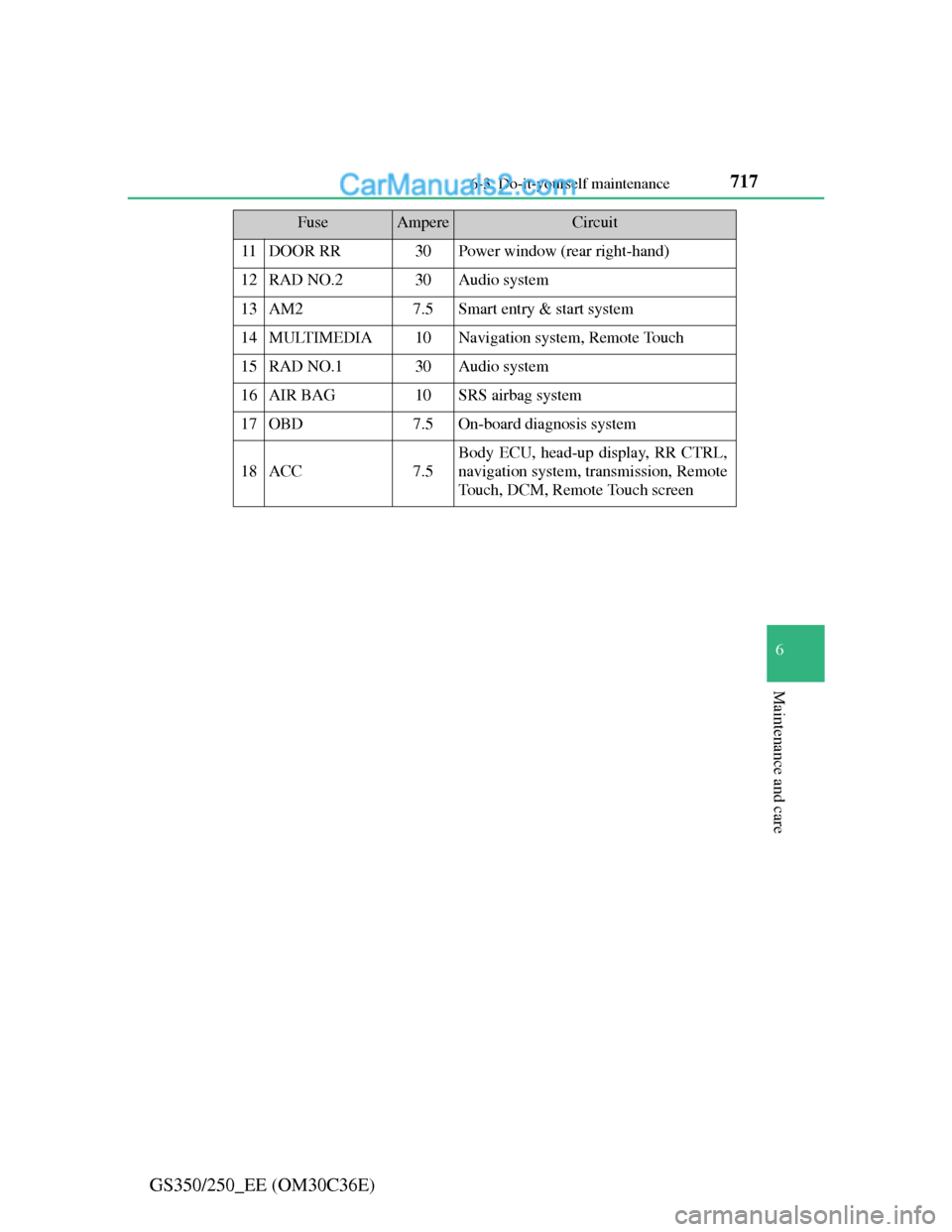

717 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27.5Smart entry & start system
14MULTIMEDIA10Navigation system, Remote Touch
15RAD NO.130Audio system
16AIR BAG10SRS airbag system
17OBD7.5On-board diagnosis system
18ACC7.5
Body ECU, head-up display, RR CTRL,
navigation system, transmission, Remote
Touch, DCM, Remote Touch screen
FuseAmpereCircuit

7186-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)

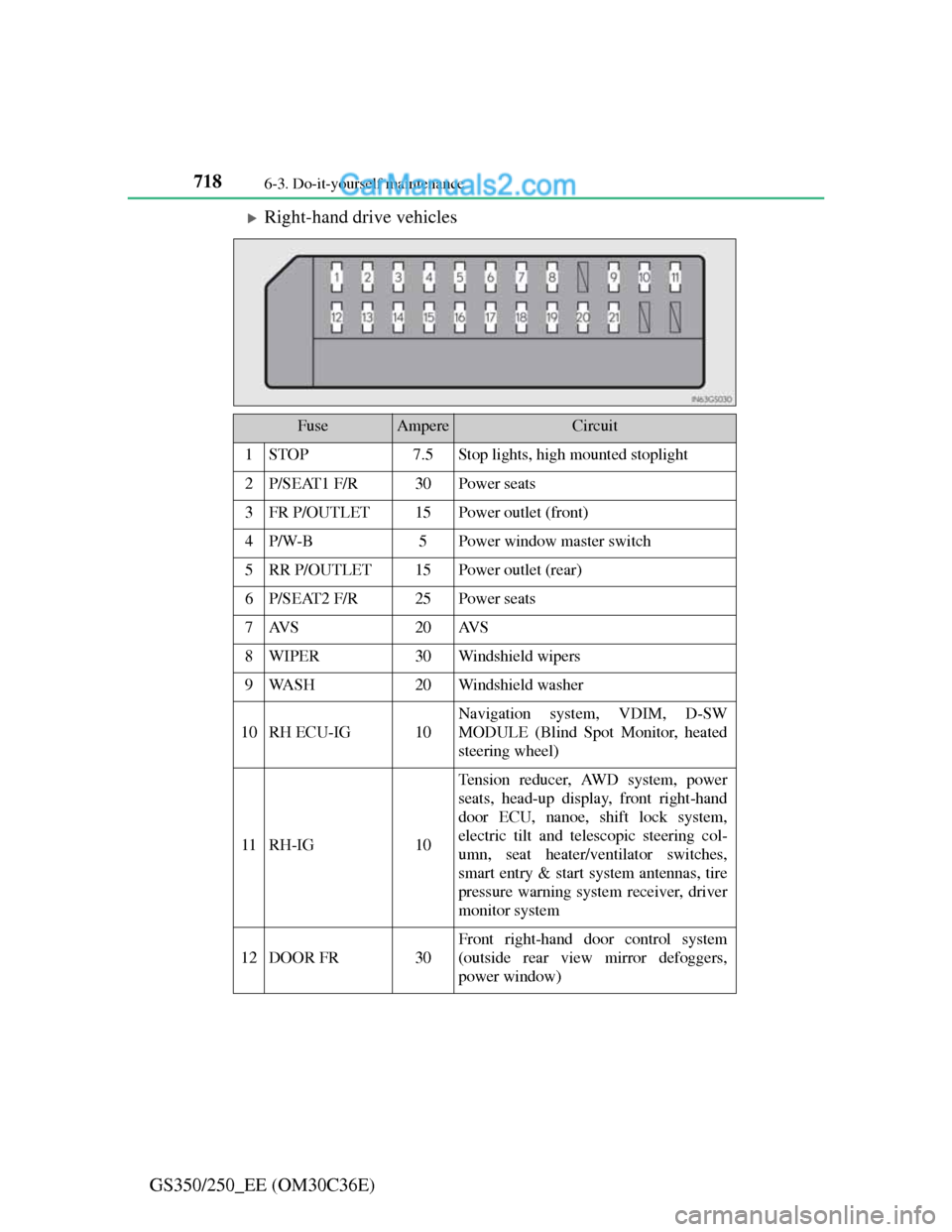

Right-hand drive vehicles
FuseAmpereCircuit
1STOP7.5Stop lights, high mounted stoplight
2P/SEAT1 F/R30Power seats
3FR P/OUTLET15Power outlet (front)
4P/W-B5Power window master switch
5RR P/OUTLET15Power outlet (rear)
6P/SEAT2 F/R25Power seats
7AV S20AV S
8WIPER30Windshield wipers
9WA S H20Windshield washer
10RH ECU-IG10
Navigation system, VDIM, D-SW
MODULE (Blind Spot Monitor, heated
steering wheel)
11RH-IG10
Tension reducer, AWD system, power
seats, head-up display, front right-hand
door ECU, nanoe, shift lock system,
electric tilt and telescopic steering col-
umn, seat heater/ventilator switches,
smart entry & start system antennas, tire
pressure warning system receiver, driver
monitor system
12DOOR FR30
Front right-hand door control system
(outside rear view mirror defoggers,
power window)

719 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
13DOOR RR30Power window (rear right-hand)
14RAD NO.230Audio system
15STRG LOCK15Steering lock system
16MULTIMEDIA10Navigation system, Remote Touch
17RAD NO.130Audio system
18AIR BAG10SRS airbag system
19OBD7.5On-board diagnosis system
20TI & TE20Electric tilt and telescopic steering col-
umn
21ACC7.5
Body ECU, head-up display, RR CTRL,
navigation system, transmission, Remote
Touch, Remote Touch screen
FuseAmpereCircuit

7206-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Trunk
FuseAmpereCircuit
1PSB30Pre-crash seat belts
2PTL25Power trunk lid
3RR J/B-B10Smart entry & start system
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10Rear fog light
7DC/DC-S (HV)7.5No circuit
8BATT FAN (HV)20No circuit
9SECURITY7.5SECURITY
10ECU-B NO.37.5Parking brake
11TRK OPN7.5Power trunk lid
12DCM (HV)7.5No circuit
13AC INV (HV)20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk lid, parking brake, tension
reducer (rear left-hand), RR CTRL SW,
tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7.5Back-up light

721 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 722)
If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

7226-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 852)
P. 661
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Removing the engine compartment covers
