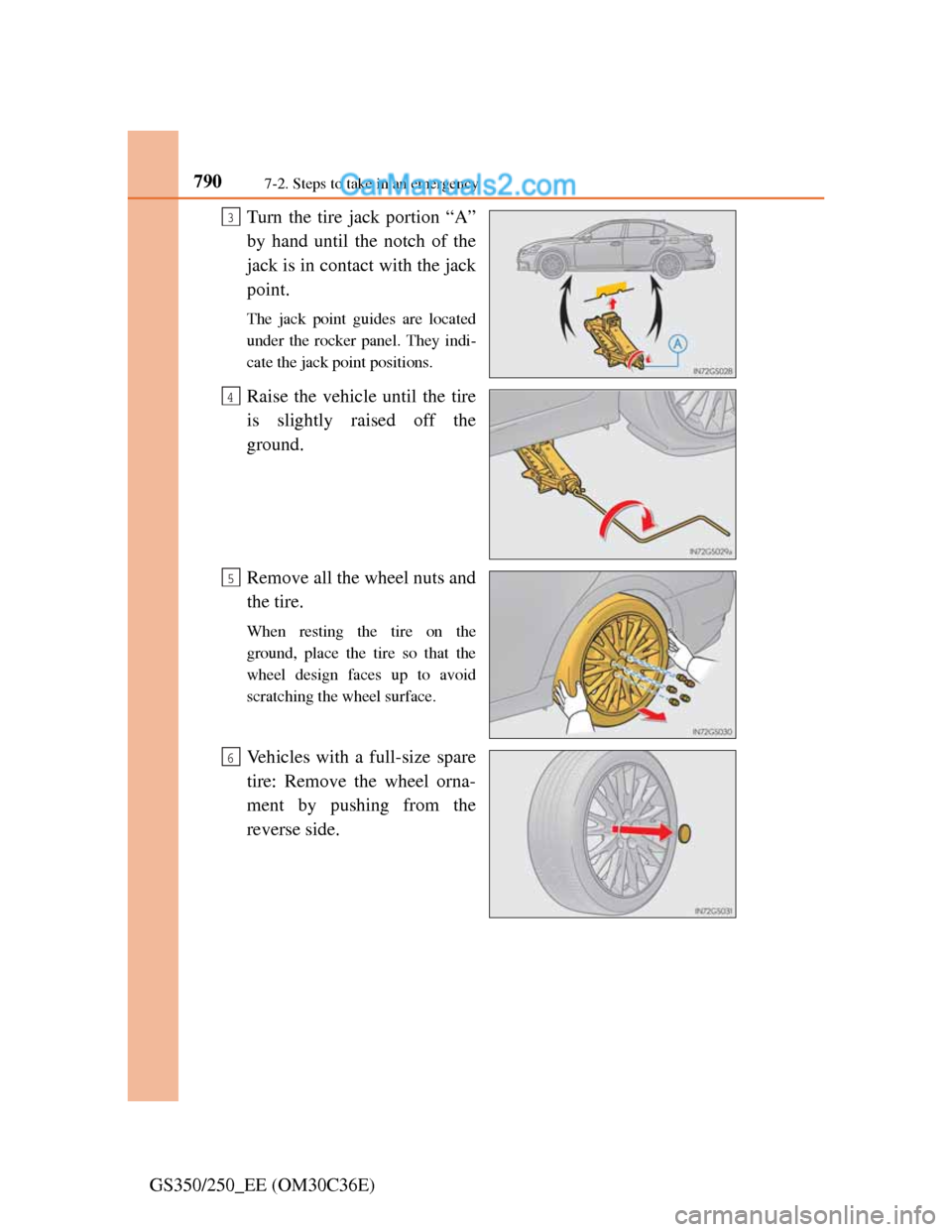

Page 811 of 914

7907-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)Turn the tire jack portion “A”
by hand until the notch of the
jack is in contact with the jack
point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
Raise the vehicle until the tire
is slightly raised off the
ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Vehicles with a full-size spare
tire: Remove the wheel orna-
ment by pushing from the
reverse side.
3
4
5
6

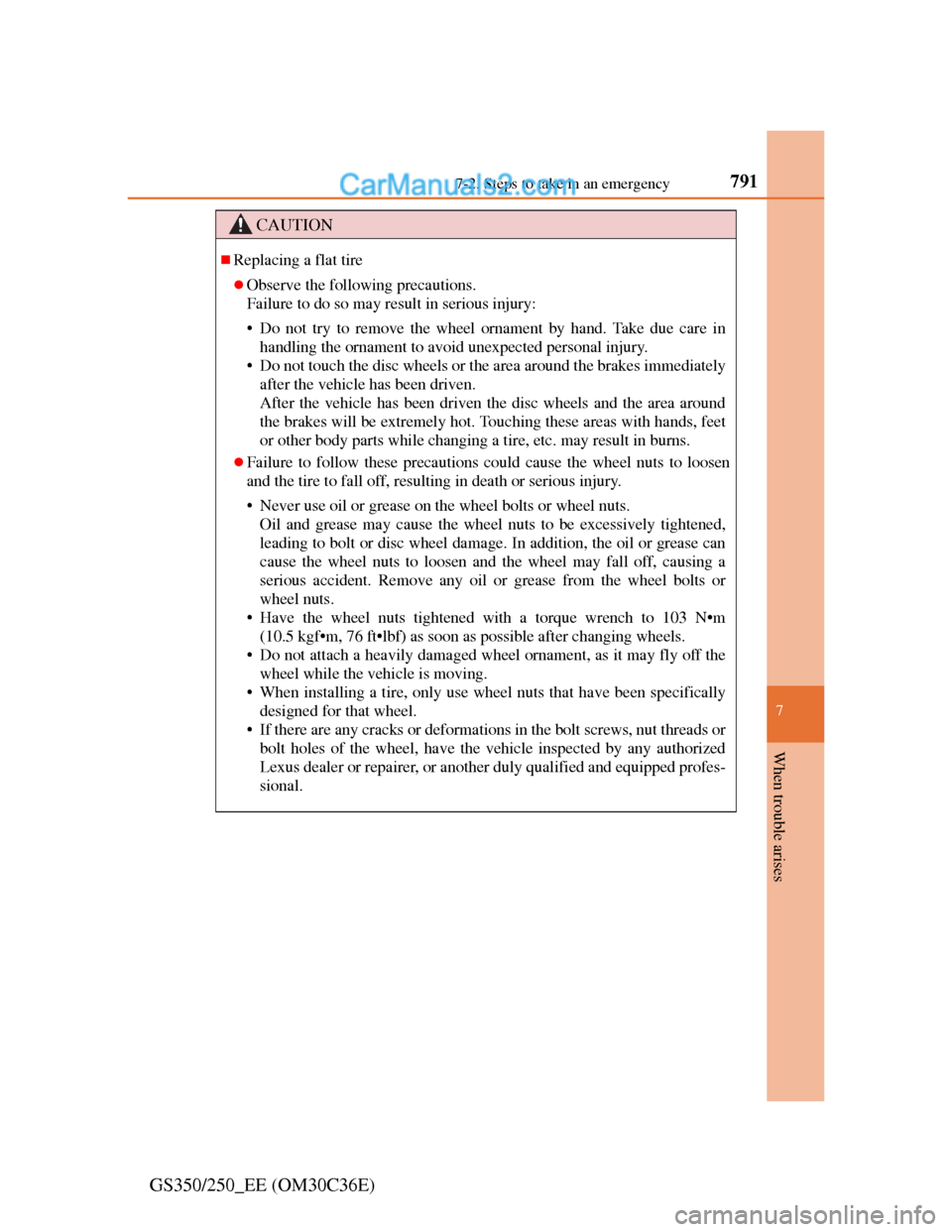

Page 812 of 914

7917-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)
CAUTION
Replacing a flat tire
Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a
serious accident. Remove any oil or grease from the wheel bolts or
wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.

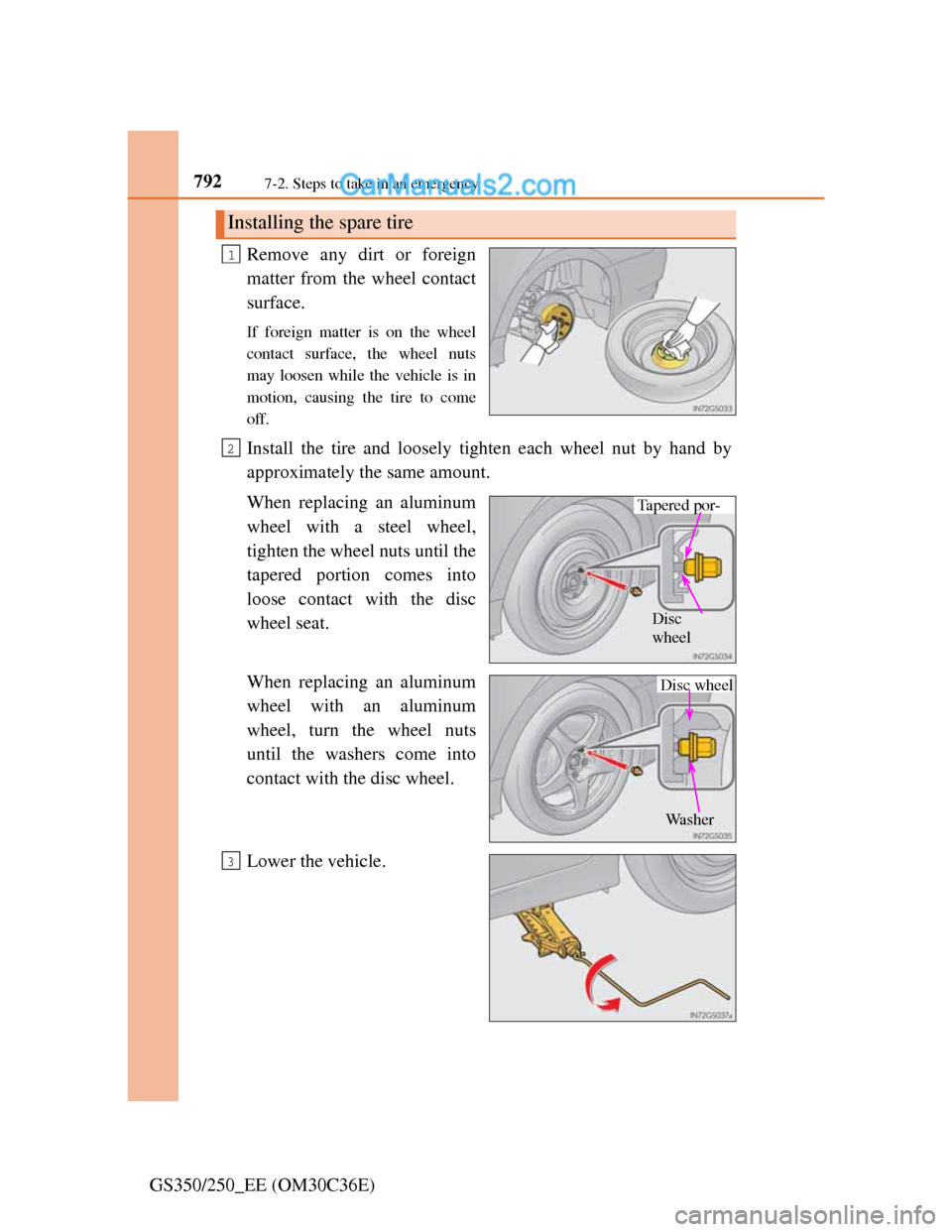

Page 813 of 914

7927-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)Remove any dirt or foreign
matter from the wheel contact
surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
wheel with a steel wheel,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with an aluminum
wheel, turn the wheel nuts
until the washers come into
contact with the disc wheel.
Lower the vehicle.
Installing the spare tire
1
2
Disc
wheel Tapered por-
Disc wheel
Wa s h e r
3

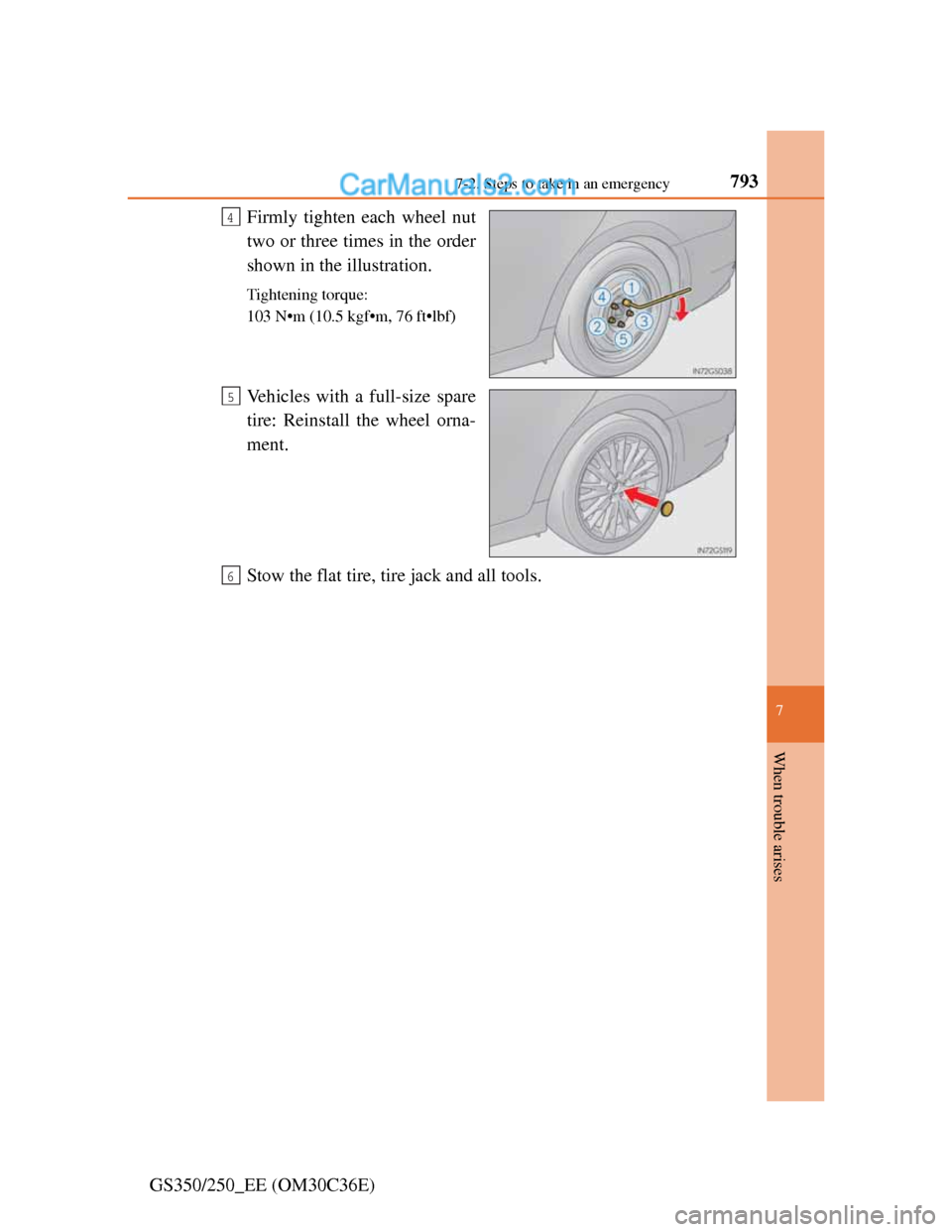

Page 814 of 914

7937-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Vehicles with a full-size spare
tire: Reinstall the wheel orna-
ment.
Stow the flat tire, tire jack and all tools.
4
5
6

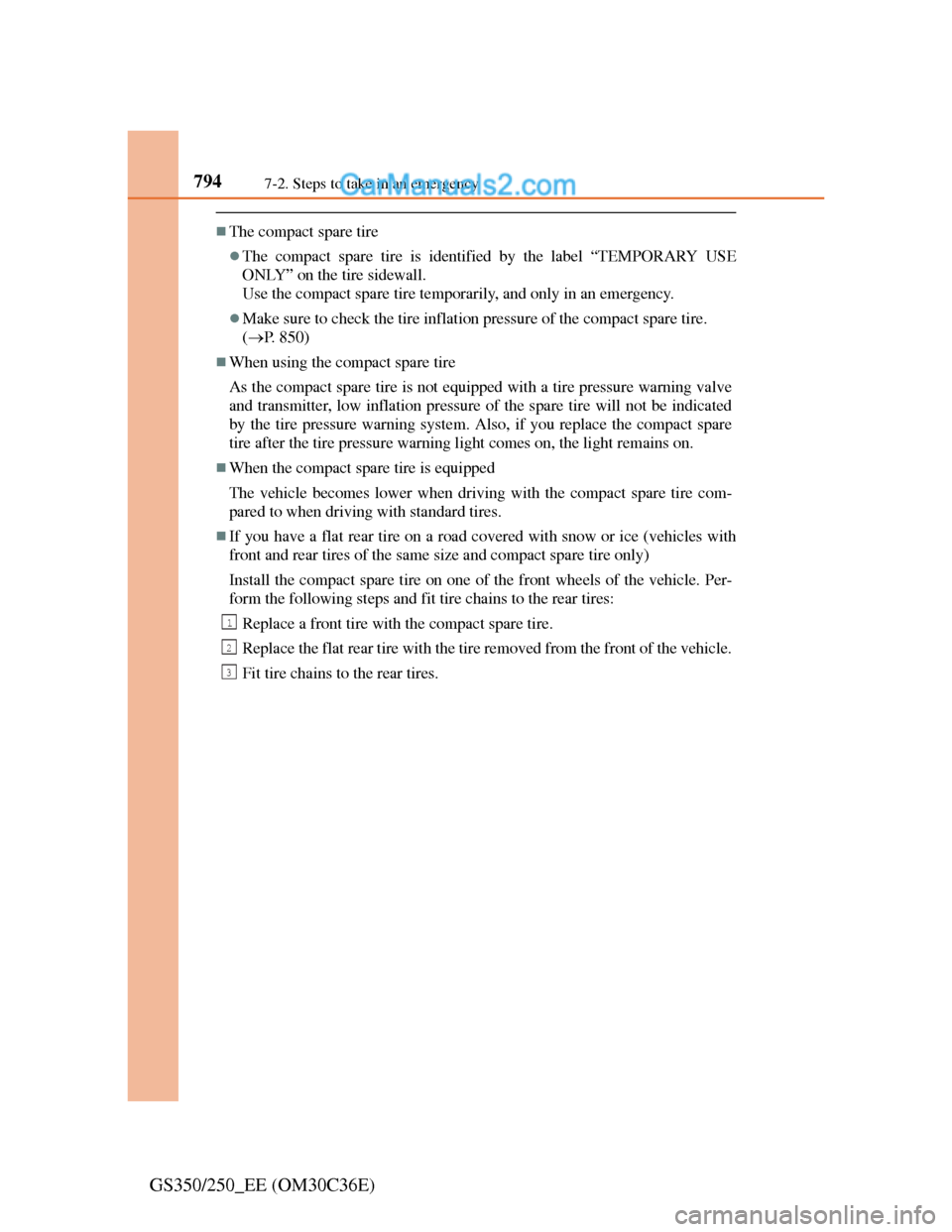

Page 815 of 914

7947-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
The compact spare tire
The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
Make sure to check the tire inflation pressure of the compact spare tire.
(P. 850)
When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve
and transmitter, low inflation pressure of the spare tire will not be indicated
by the tire pressure warning system. Also, if you replace the compact spare
tire after the tire pressure warning light comes on, the light remains on.
When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires.
If you have a flat rear tire on a road covered with snow or ice (vehicles with
front and rear tires of the same size and compact spare tire only)
Install the compact spare tire on one of the front wheels of the vehicle. Per-
form the following steps and fit tire chains to the rear tires:
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
1
2
3

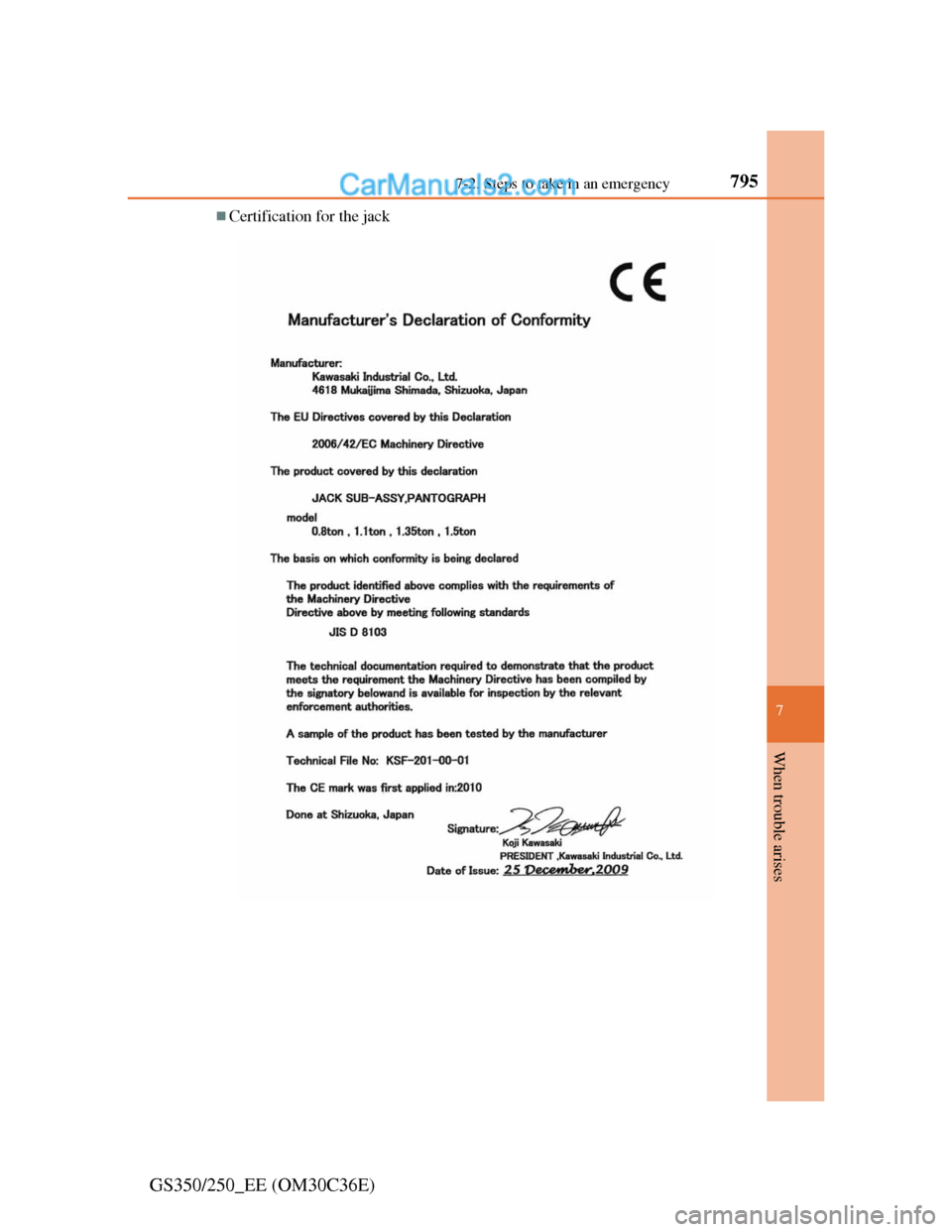

Page 816 of 914

7957-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)
Certification for the jack
Page 817 of 914

7967-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
CAUTION
When using the full-size spare tire as a rear tire (vehicles with front and rear
tires of differing sizes)
Replace the spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, abrupt steering, as well as sudden braking and
shifting operation to engine braking.
When using the compact spare tire
Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
Do not use more than one compact spare tires simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, abrupt steering, as well as sudden braking and
shifting operation to engine braking.
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
Also, not only can the following system not be utilized fully, but it may
even negatively affect the drive-train components:
• AWD system
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control
(if equipped)
• PCS (if equipped)
•EPS
• AFS (if equipped)• AVS (if equipped)
• LKA (Lane-Keeping Assist)
(if equipped)
• Lexus parking assist monitor
(if equipped)
• Lexus parking assist-sensor
(if equipped)
• Navigation system (if equipped)

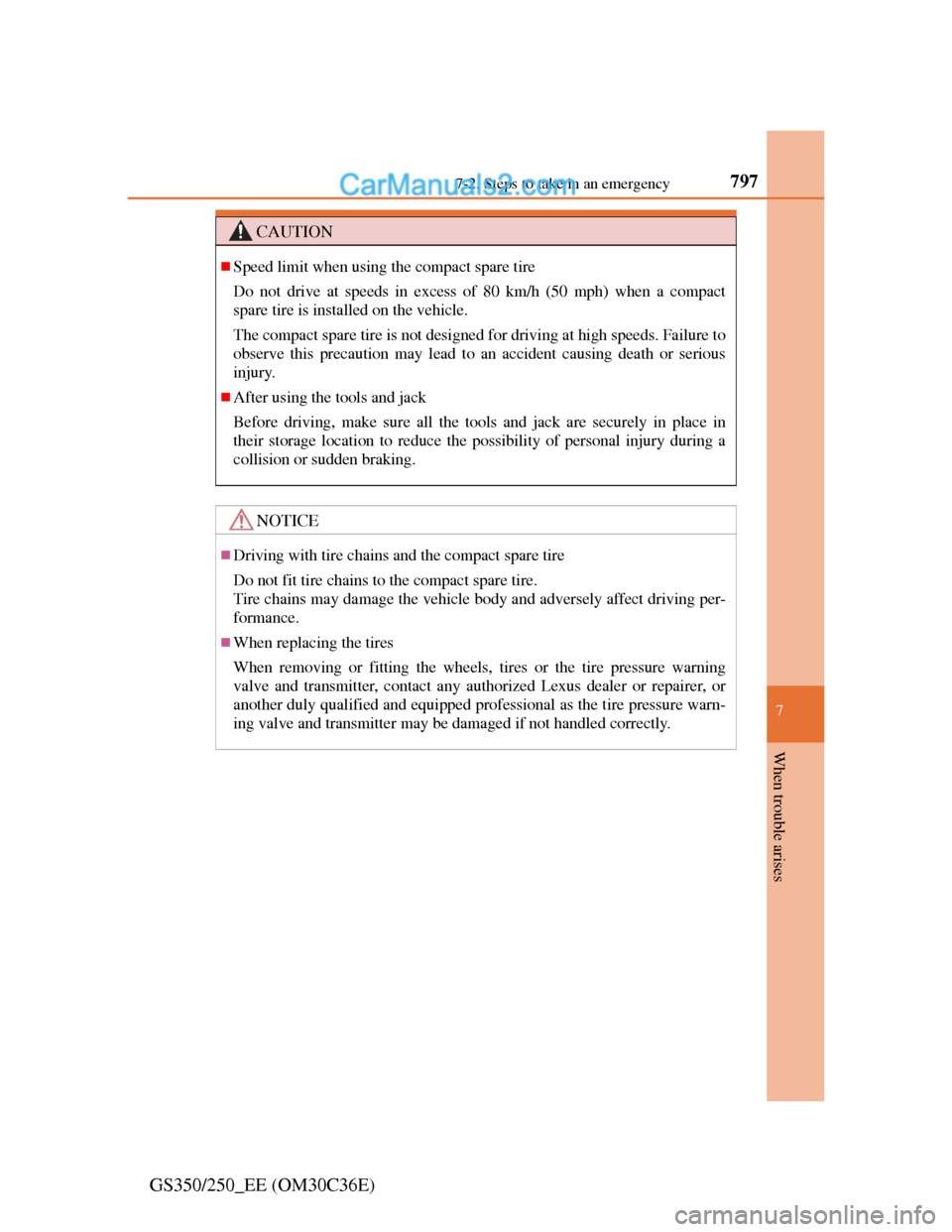

Page 818 of 914

797
7 7-2. Steps to take in an emergency
When trouble arises
GS350/250_EE (OM30C36E)
CAUTION
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.
NOTICE
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional as the tire pressure warn-
ing valve and transmitter may be damaged if not handled correctly.

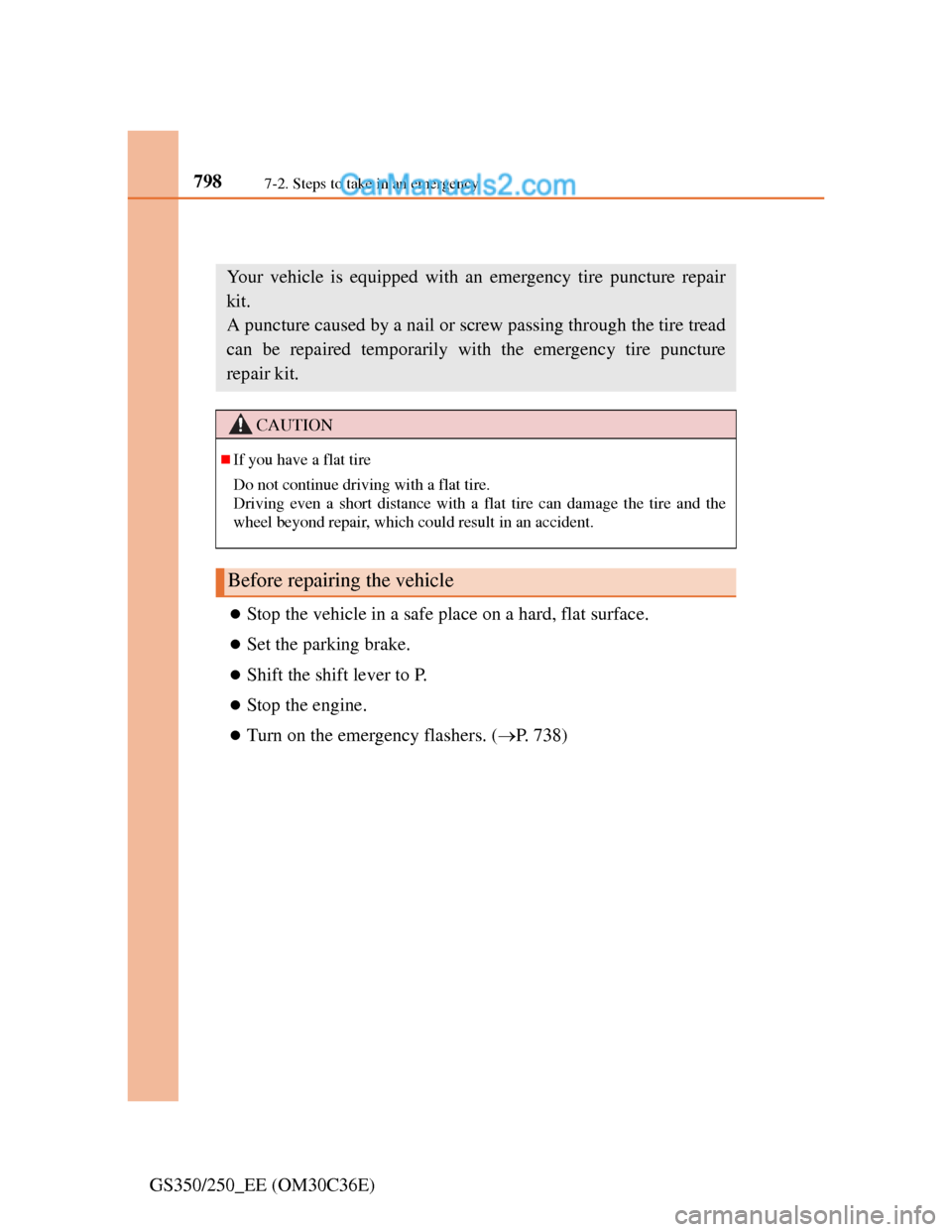

Page 819 of 914

7987-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
If you have a flat tire (vehicles without a spare tire)
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P.
Stop the engine.
Turn on the emergency flashers. (P. 738)
Your vehicle is equipped with an emergency tire puncture repair
kit.
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily with the emergency tire puncture
repair kit.
CAUTION
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before repairing the vehicle
Page 820 of 914

7997-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)
Type A
*: Use of the jack (P. 789)
Location of the emergency tire puncture repair kit, jack and
tools
Jack handle
Emergency tire puncture
repair kit
Parking brake release toolScrewdriver
Towing eyelet
Wheel nut wrench
Jack
*
1
2
3
4
5
6
7
